Product type	Fridge-freezer
Brand	Hotpoint-Ariston
Model	BC 312 ANI
Climate class	Ambient temperature up to 43°C (estimate)
Power supply voltage	220-240 V / 50 Hz
Maximum power	150 W
Freezing capacity	4 kg/24h
Autonomy during power failure	Approximately 9-14 hours
Shelf types	Solid and wire, height-adjustable
Multifunction drawer	Yes, for preserving cold cuts and preventing odors
Beverage cooling zone (Wine Area)	Yes, up to 3 bottles
Bottle/can door shelf	Yes, fold-down
Temperature indicator	Yes, coldest zone
Interior lighting	Replaceable 15 W or 25 W bulb
Refrigerator defrosting	Automatic
Freezer defrosting	Manual
Ice cube tray	With lid, 90° rotation, max water level
Drainage system	Yes, for defrost water
Materials	Hygienic, no odors
Cleaning	Warm water + baking soda or mild soap
Safety instructions	Do not touch cooling parts, do not use extension cords
Environmental compliance	WEEE compliant, recycling of packaging
Electrical connection	Grounded outlet, no extension cords
Country of origin	Not specified (estimated Europe)

Frequently Asked Questions - BC 312 ANI HOTPOINT-ARISTON

How to adjust the refrigerator temperature?

Adjustment is made via the TEMPERATURE ADJUSTMENT knob located inside. Position 1 is the least cold, position 6 the coldest. An intermediate setting is recommended.

Why is there frost or water droplets on the back wall of the refrigerator?

This is normal: the back wall is the cooling part. It gets covered with frost when the compressor is running and with water droplets when it stops. This is part of the automatic operation of the appliance.

How to defrost the freezer?

When the frost layer exceeds 5 mm, set the adjustment knob to ●, wrap frozen food in paper and keep it cool. Leave the door open until the frost melts. You can speed it up by placing containers of warm water. Do not use metal utensils.

What to do if the interior light does not turn on?

First check the outlet and connection. If the appliance is powered, the bulb may be burned out. To replace it, unplug the appliance, remove the protective cover, and replace with a bulb of the same wattage (15 W or 25 W).

How to clean the appliance?

Use a sponge soaked in warm water with baking soda or mild soap. Never use solvents, abrasive products, bleach, or ammonia. Removable accessories can be soaked in warm soapy water.

Why does the motor run continuously?

This may be due to high ambient temperature, frequent door opening, introducing hot food, or too thick a frost layer. Also check that the adjustment knob is not set to an overly cold position.

How to use the ice cube tray?

Fill the tray through the designated opening without exceeding the MAX level. Rotate the tray 90° so that water fills the cavities, then close the opening with the provided lid. Wait at least 8 hours. To release the ice cubes, tap the tray against a hard surface and wet it externally.

What to do in case of a power outage?

Do not open the freezer door. Frozen products will keep without issues for about 9 to 14 hours. After power is restored, check the condition of the food.

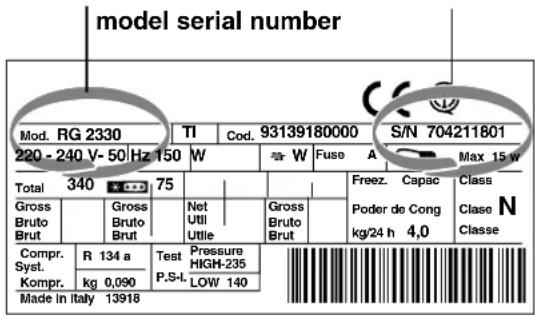

Where is the rating plate?

The rating plate is located inside the refrigerator compartment, bottom left. It shows the model, serial number, power, and voltage.

How to avoid bad odors?

Always wrap food, especially those with strong odors. Clean the interior regularly with warm water and baking soda. If the appliance is unused for a long time, clean it and leave the doors open.

USER MANUAL BC 312 ANI HOTPOINT-ARISTON

English, 1 Deutsangcrt, 11

Nederlands, 31 Polski, 41

BC 312 A NI EU

Contents

Installation, 2

Positioning and connection

Description of the appliance, 3

Overall view

Start-up and use, 4-5-6

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 7

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Replacing the light bulb

Precautions and tips, 8

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 9

Assistance, 10

GB

Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

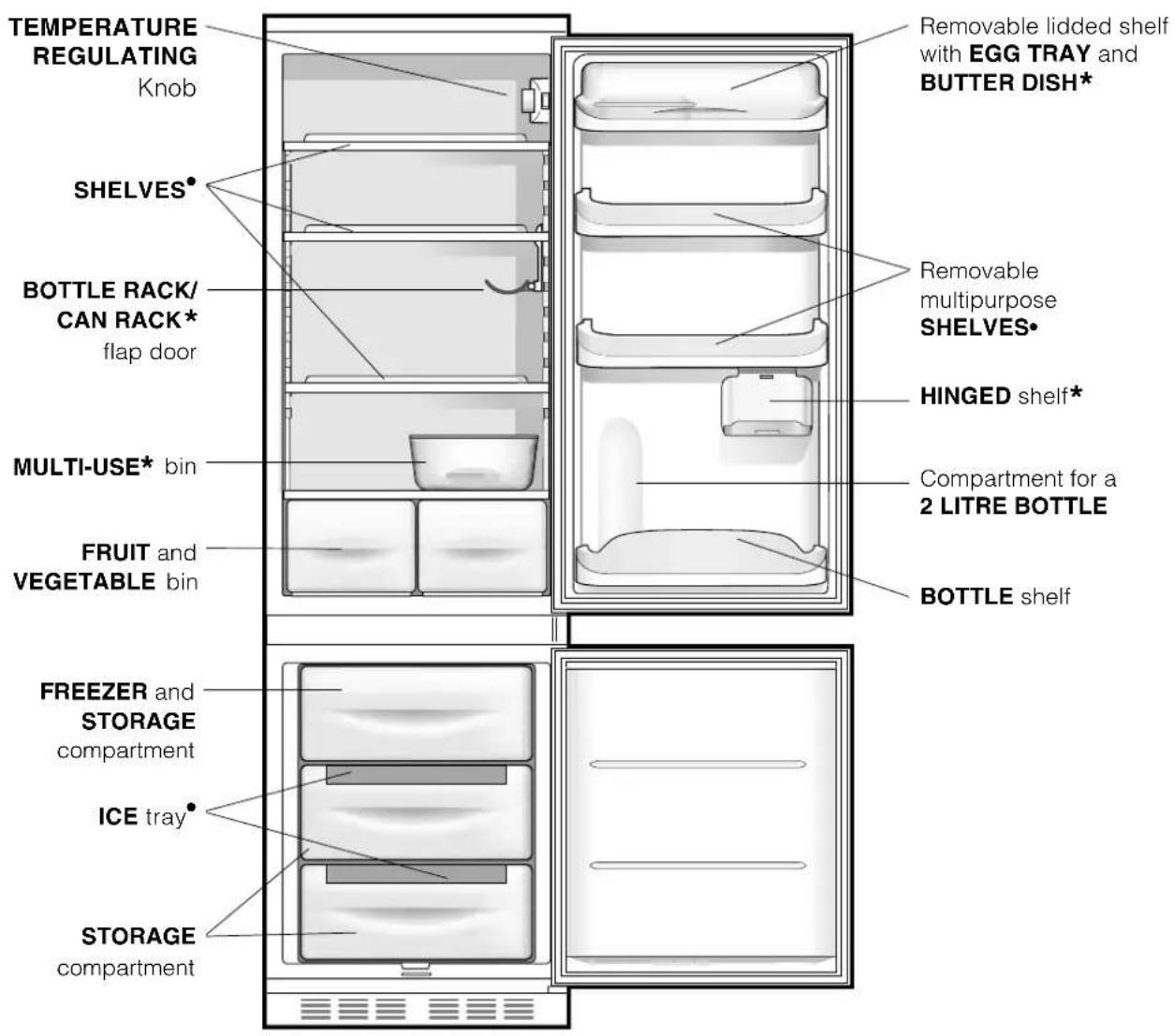

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

- Varies by number and/or position.
* Available only on certain models.

GB

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Insert the plug into the socket and ensure that the internal light illuminates.
2. Turn the TEMPERATURE ADJUSTMENT knob to an average value. After a few hours you will be able to put food in the refrigerator.

Using the refrigerator to its full potential

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the thermostat knob.

1 = warmest 5 = coldest

We recommend, however, a medium position.

The cooling section of the refrigerator is located inside the back wall of the refrigerator compartment for increased space and improved aesthetics. During operation, the back wall will be covered in frost or water droplets depending on whether the compressor is operating or paused. Do not worry, the refrigerator is functioning normally.

If the TEMPERATURE ADJUSTMENT knob has been set on high values with large quantities of food and with a high ambient temperature, the appliance can operate continuously, resulting in excessive frost formation and excessive energy consumption: compensate for this by shifting the knob towards lower values (defrosting will occur automatically).

In static appliances, the air circulates in a natural way: the colder air tends to move downwards as it is heavier. The food should be stored as follows:

Food	Arrangement inside the refrigerator
Fresh fish and meat	Above the fruit and vegetable bins
Fresh cheese	Above the fruit and vegetable bins
Cooked food On any shelf
Salami, bread loaf, chocolate	On any shelf
Fruit and vegetables In the fruit and vegetable bins
Eggs On the shelf provided
Butter and margarine	On the shelf provided
Bottles, drinks,milk On the shelf provided

• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

MULTI-USE* bin: to store food (such as cold meats) for a long time and also prevent odours from lingering in the refrigerator.

BOTTLE RACK/ CAN RACK* flap door: to store a bottle or several cans horizontally (see diagram). When not in use, close the flap door to increase the space in the refrigerator compartment.

WINE AREA*: to store up to three bottles of wine (see diagram). The air circulates freely between the bottles guaranteeing rapid cooling. When not in use, close it to increase the space on the shelf.

* Available only on certain models.

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

Food hygiene

1. Once you have bought your food, remove all external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.
2. Protect the food, (especially easily perishable items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.
3. Store all food in such a way as to ensure air can circulate freely between different items.
4. Keep the inside of your fridge clean, taking care not to use oxidiser or abrasive products.
5. Remove all food past its expiry date from the refrigerator.
6. For the correct preservation of food, all easily perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.

Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored above the grill in the freezer compartment and if possible be in direct contact with the walls (side and rear), where the temperature drops below -18^ and guarantees rapid freezing.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4)

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

! If the room temperature drops below 14^ for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced.

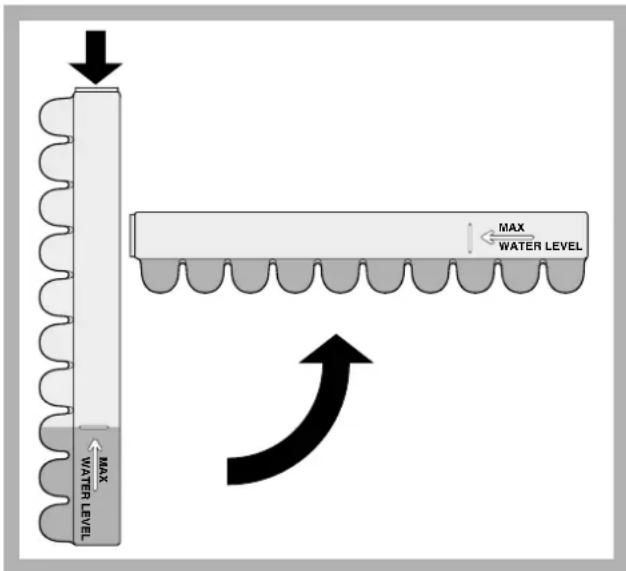

Ice tray

The fact that they are situated on the top part of the freezer drawers ensures greater cleanliness: the ice no longer comes into contact with the food placed inside the freezer compartment; furthermore, the dripping of the water during filling is avoided (a lid to cover up the hole after filling with water is also provided).

1. Pull out the tray by pushing it up. Check that the tray is completely empty and fill it with water through the opening provided.
2. Take care not to exceed the level indicated (MAX WATER LEVEL). Excess water prevents the ice cubes from dispensing (if this happens, wait for the ice to melt and empty the tray).
3. Turn the tray 90^ : due to the connected compartments each mould fills with water (see diagram).
4. Close the opening with the lid provided and put the tray back, placing the top part in the corresponding housing and allowing it to drop in again.
5. When the ice has formed (minimum time approximately 8 hours) knock the tray against a hard surface and wet the outside so that the ice cubes come loose and take them out through the opening.

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Defrosting the appliance

! Follow the instructions below.

Do not speed up the defrosting process by using any devices or tools other than the scraper provided, you may damage the refrigeration circuit.

Defrosting the refrigerator compartment

The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate.

It is necessary to clean the discharge hole regularly so that the water can flow out easily.

GB

Defrosting the freezer compartment

1. Set the TEMPERATURE ADJUSTMENT knob to the position
2. Wrap frozen foods in newspaper and place them in another freezer or in a cool place.
3. Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.
4. Clean and dry the freezer compartment carefully before switching the appliance on again.

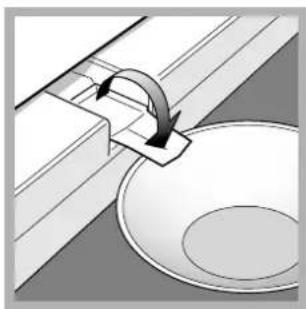

1. Certain appliances are fitted with the DRAIN SYSTEM to lead the water outside: let the water flow into a container (see diagram).
2. Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before

placing food in the freezer compartment..

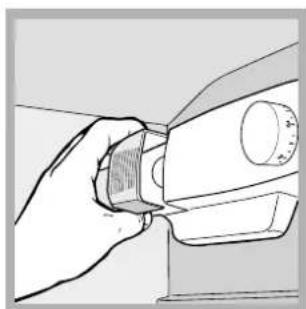

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).

GB

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

• 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; -2002/96/CE..

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use devices or tools other than the special scraper provided inside the compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product. All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

GB

Malfunctions:	Possible causes / Solutions:
The internal light does not illuminate.	• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
The refrigerator and the freezer do not cool well.	• The doors do not close properly or the seals are damaged. • The doors are opened too frequently. • The TEMPERATURE ADJUSTMENT knob is not in the correct position • The refrigerator or the freezer have been over-filled. • The atmospheric temperature of the area surrounding the appliance is lower than 14°C.
The food inside the refrigerator is beginning to freeze.	• The TEMPERATURE ADJUSTMENT knob is not in the correct position. • The food is in contact with the back inside wall of the refrigerator.
The motor runs continuously.	• The door is not closed properly or is continuously opened. • The outside ambient temperature is very high. • The thickness of the frost exceeds 2-3 mm (see Maintenance).
The appliance makes a lot of noise.	• The appliance has not been installed on a level surface (see Installation). • The appliance has been installed between cabinets that vibrate and make noise. • The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.
Some of the external parts of the refrigerator become hot.	• These raised temperatures are necessary in order to avoid the formation of condensation on certain parts of the product.
The back wall of the refrigerator unit is covered in frost or droplets of water.	• This shows the appliance is operating normally.
There is water at the bottom of the refrigerator.	• The water discharge hole is blocked (see Maintenance).

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

English, 1 Deutfrancis, 11

Nederlands, 31 Polski, 41

BC 312 A NI EU

Sommaire

Installation, 12
