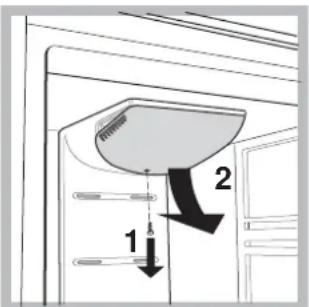

How to replace the light bulb?
Unplug the power cord. Remove the protective cover as shown in the manual. Replace the bulb with a similar bulb whose wattage corresponds to that indicated on the cover (10W, 15W or 25W).
What to do if food freezes in the refrigerator?
Check the position of the REFRIGERATOR OPERATION knob: it may be set to too high a value (colder). Set it to an intermediate value. Also make sure that food does not touch the cooling rear wall.
How to optimize energy consumption?
Activate the Optimization Energy Saving function by turning the knobs to I CARE and pressing the SUPER FREEZE button for 3 seconds until the light flashes. This function reduces consumption while maintaining performance. Disable it if condensation appears on the doors.

User questions about 4DAAWHA HOTPOINT-ARISTON

2 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

What is the power consumption of the HOTPOINT ARISTON refrigerator 4DAAWHA?
Frequently Asked Questions - 01/04/2026
Response Notice-Facile

The power consumption of the HOTPOINT ARISTON refrigerator model 4DAAWHA depends on several factors, including its usage, ambient temperature, and selected settings. However, for this type of appliance, the average annual consumption typically ranges between 100 and 300 kWh per year.

To obtain a more precise estimate:

  • Check the energy label affixed to the refrigerator, which indicates the annual consumption in kilowatt-hours (kWh).
  • Review the technical specifications provided by the manufacturer, often available on the official website or in the documentation supplied with the appliance.

Optimizing power consumption can be achieved by:

  • Setting the refrigerator temperature to a recommended value (usually around 4°C for the main compartment).
  • Avoiding frequent door openings.
  • Ensuring good ventilation around the appliance.

In summary, the annual power consumption of the HOTPOINT ARISTON 4DAAWHA is typically within an average range, but for an exact value, the energy label remains the best source of information.

Respond (be the first)
What is the energy class of the HOTPOINT ARISTON refrigerator 4DAAWHA?
Frequently Asked Questions - 01/04/2026
Response Notice-Facile

The HOTPOINT ARISTON refrigerator model 4DAAWHA is rated according to the European energy efficiency scale, which ranges from A+++ (most efficient) to D (least efficient). For this specific model, the energy class is generally A+, which means it offers good energy performance while limiting electricity consumption.

This classification allows users to easily compare the electricity consumption of appliances and choose a model that is more environmentally friendly and economical in the long run.

Note that the typical annual energy consumption for this model is about 300 kWh per year, but this can vary depending on usage and installation conditions.

Respond (be the first)

Download the instructions for your Fridge in PDF format for free! Find your manual 4DAAWHA - HOTPOINT-ARISTON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 4DAAWHA by HOTPOINT-ARISTON.

USER MANUAL 4DAAWHA HOTPOINT-ARISTON

4Dxx 4DAxx 4DAAxx 4DAAAAx

F Francais Francais

Mode d'emploi COMBINE REFRIGERATEUR/CONGELATEUR

Sommaire

Operating Instructions, 1

Assistance, 4

Description of the appliance, 8

Description of the appliance, 15

Installation, 26

Start-up and use, 26

Maintenance and care, 27

Precautions and tips, 28

Troubleshooting, 29

Espanol Espanol

HeincpaBHOCTn MeToDbI INx ycTpaHEnH,65

HOTPOINT-ARISTON 4DAAWHA - Sommaire - 1

Before calling for Assistance:

  • Check if the malfunction can be solved on your own (see Troubleshooting).
  • If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

  • type of malfunction
  • appliance model (Mod.)
  • serial number (S/N)

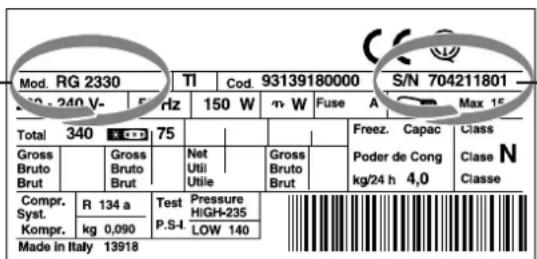

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

F

Assistance

HnKOrda He np6eraTe K yCnyram He ynONHMOeHHbIX MaTepoB H He pa3pewaTe yCTaHaBnBaTb Ha BaWy MaunHy He opuHaJIbHbIe 3aNactn.

1 -modello
GB - model
F - modulo
D - modell
E -modelo
PL - model
sl - model
sk-model
Ro - model
RU-MoJeIb
NL - model
P -modelo
cz - model

HOTPOINT-ARISTON 4DAAWHA - Assistance - 1

1 - numero di serie
GB - serial number
F - numéro de série
D - modellnummer
E - numero de série
PL - numer seryjny
SL - serijska stevilka
sk - vyrobné cislo
RO - numar de série
RU - cepinHbI HOMep
NL - serienummer
P - numero de série
cz - vyrobní cislo

NL

Service

Voordat u de Servicedienst belt:

Description of the appliance

Control panel

1 REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment.

Care is the optimal temperature for energy saving levels.
is the holiday function (see Maintenance and care). OFF switches the refrigerator off.

2 SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (see Start-up and use).
3 SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.
4 POWER Indicator light illuminates when the appliance is connected to the electricity network.
5 SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use).

If pressed for at least 3 seconds, this activates the "Optimization Energy Saving" function (see Care and maintenance).

6 SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.
7 FREEZER OPERATION Knob to regulate the temperature of the freezer compartment.

I Care is the optimal temperature for energy saving levels.

OFF switches the appliance off, including the refrigerator.

The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (see Troubleshooting).

HOTPOINT-ARISTON 4DAAWHA - Control panel - 1

HOTPOINT-ARISTON 4DAAWHA - Control panel - 2

Description of the appliance

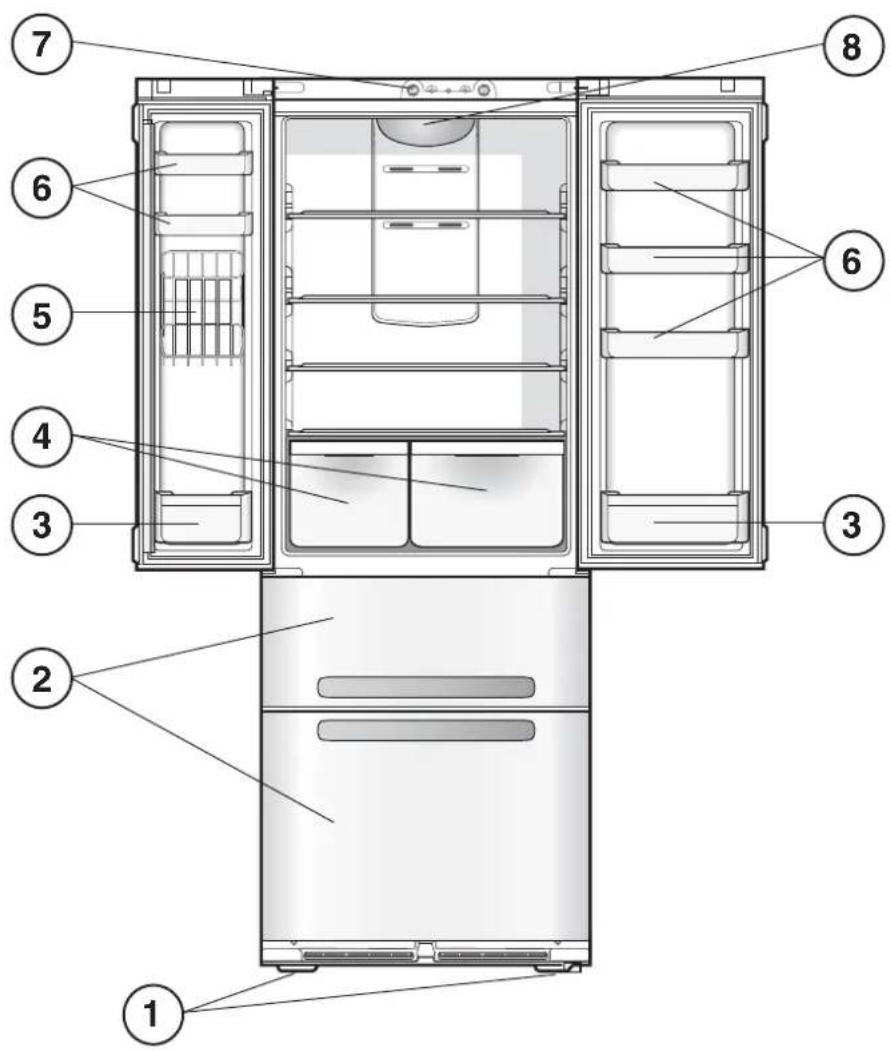

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 FREEZER and STORAGE compartment
3 BOTTLE shelf
4 FRUIT and VEGETABLE BIN
5 CAN RACK.
6 Removable multipurpose SHELVES
7 Control panel
8 LAMP (see Maintenance).
- Varies by number and/or position.

HOTPOINT-ARISTON 4DAAWHA - Overall view - 1

F

Funzione Optimization Energy Saving

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.
! Please keep these operating instructions for future reference.
Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

  1. Place the appliance in a well-ventilated humidity-free room.
  2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
  3. Leave a space of at least 10cm between the top part of the appliance and any furniture above it, and at least 5cm between the sides and any furniture/side walls.
  4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
  5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

  1. Install the appliance on a level and rigid floor.
  2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety The measures not be observed.measures not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

  1. Set the FREEZER OPERATION knob on OFF.
  2. Insert the plug into the socket and ensure that the green POWER indicator light illuminates.
  3. Turn the REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.
  4. Turn the FREEZER OPERATION knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. Once the refrigerator has reached the optimal temperature, the indicator light goes out and you can begin food storage.

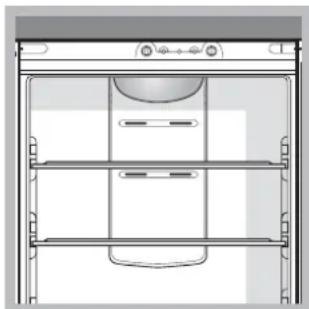

Chiller system NO FROST

HOTPOINT-ARISTON 4DAAWHA - Chiller system NO FROST - 1

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past.
! Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel.
Close bottles and wrap food tightly.

Using the refrigerator to its full potential

  • Use the REFRIGERATOR OPERATION knob to adjust the temperature (see Description).
    The temperature quickly. For example, when you place a large number of new food items inside a fridge the internal temperature will rise slightly. The function quickly cools the groceries by temporarily reducing the temperature until it reaches the ideal level.
  • Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
  • Remember that cooked foods do not last longer than raw foods.
  • Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.
  • SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable, allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

* Available only on certain models.

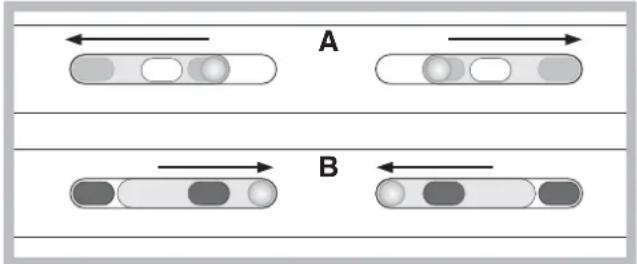

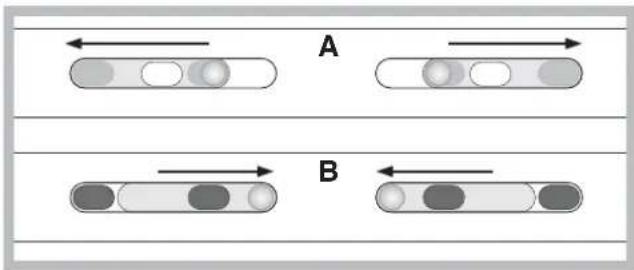

FRUIT and VEGETABLE bin

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment, or close it (position A) to store food in a more humid environment.

HOTPOINT-ARISTON 4DAAWHA - FRUIT and VEGETABLE bin - 1

TEMPERATURE Indicator light* to identify the coldest area in

the refrigerator.

  1. Check that OK appears clearly on the indicator light ( see diagram).

HOTPOINT-ARISTON 4DAAWHA - FRUIT and VEGETABLE bin - 2

  1. If the word "OK" does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.
  2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

Food hygiene

  1. Once you have bought your food, remove all external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.
  2. Protect the food, (especially easily perishable items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.
  3. Store all food in such a way as to ensure air can circulate freely between different items.
  4. Keep the inside of your fridge clean, taking care not to use oxidiser or abrasive products.
  5. Remove all food past its expiry date from the refrigerator.
  6. For the correct preservation of food, all easily perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.

Using the freezer to its full potential

  • Use the FREEZER OPERATION knob to adjust the temperature (see Description).
  • Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
  • Fresh food that needs to be frozen must not come into contact with food that has already been defrosted.
  • Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
    The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).

  • To freeze (if the freezer is already operating): press the rapid freezing SUPER FREEZE button (corresponding yellow indicator light illuminates), insert the food and close the door. The function is disabled automatically after 24 hours or when optimal temperatures have been reached (indicator light goes out);
    ! Do not open the door during freezing.
    ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9-14 hours.

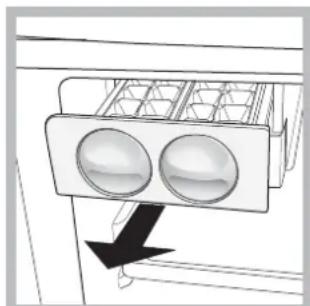

ICE DEVICE

After pouring water in the special ice cups, place them in their places in the ice device. After about 2 hours, the ice cubes will be ready. In order to get the ice cubes, it will be sufficient to turn the two buttons to the right. The ice cubes will fall in to the tray below, ready to be used.

HOTPOINT-ARISTON 4DAAWHA - ICE DEVICE - 1

HOTPOINT-ARISTON 4DAAWHA - ICE DEVICE - 2

If you need more storage space, the ICE DEVICE may be taken out after you have removed the 4 fixing screws.

HOTPOINT-ARISTON 4DAAWHA - ICE DEVICE - 3

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

  1. set the FREEZER OPERATION knob on

  2. pull the plug out of the socket

If this procedure is not followed, the alarm may sound. This alarm does not indicate a malfunction. To restore normal operation, it is sufficient to set the FREEZER OPERATION knob on the desired value. To disconnect the appliance, follow point 1 and 2.

Cleaning the appliance

  • The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
  • The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.

GB

  • The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.
  • During the cleaning of the slide rails for the drawers in the freezer compartment, it may happen that the automatic drawer closure mechanism is deactivated. To reactivate it, simply close the drawer a little more forcefully than is usually necessary.

Avoiding mould and unpleasant odours

  • The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
  • If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Holiday function

To minimise energy usage when on holiday, it is not necessary to switch the appliance off. The appliance has a function which allows it to maintain the temperature of the refrigerator compartment at approximately 15^ (which can also be used to conserve make-up and beauty products). The freezer temperature must be set to the minimum value in order to preserve the food.

To enable the function:

set the REFRIGERATOR OPERATION knob on

A double acoustic signal informs you when it has been enabled. A single acoustic signal informs you when it has been disabled.

Optimization Energy Saving function

The "Optimization Energy Saving" function may be activated in order to optimise energy consumption while maintaining the cooling performance of the product. This function maximises the energy saved. It is activated by setting the knobs to "I CARE", then pressing and holding the Super Freeze button for at least 3 seconds; the Super Freeze indicator light will begin to flash, signalling the activation of this function.

The "Optimization Energy Saving" function may also be deactivated by pressing the Super Freeze button again. The corresponding indicator light will stop flashing, thereby signalling that the original operating conditions have been restored. In humid environments, when the "Optimization Energy

Saving" function is activated, slight condensation may form on the door of the appliance; normal operating conditions are restored when the function is deactivated.

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (10 W, 15 W or 25 W).

HOTPOINT-ARISTON 4DAAWHA - Replacing the light bulb - 1

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

HOTPOINT-ARISTON 4DAAWHA - Precautions and tips - 1

HOTPOINT-ARISTON 4DAAWHA - Precautions and tips - 2

This appliance complies with the following Community Directives:

  • 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

-2002/96/CE...

General safety

The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or moist hands and feet.
- Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
- Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on OFF (appliance off) to eliminate all electrical contact.
- In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
- Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
- Do not put ice cubes taken directly from the freezer into your mouth.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.
- When closing the refrigerator doors, pay attention to the position of the upright (see figure).

HOTPOINT-ARISTON 4DAAWHA - General safety - 1

  • Make sure that excessive volumes of food are not placed in the upper part of the freezer compartment, in the space reserved for the ice tray (where present).

Disposal

  • Observe local environmental standards when disposing packaging material for recycling purposes.
  • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

  • Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
  • Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
  • Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
  • Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
  • Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
  • Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).
  • Thanks to its independent freezer door and drawer opening system, this product offers a 50% energy saving in comparison with a normal 2-door combined refrigerator/freezer unit.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The green POWER indicator light does not illuminate.

  • The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The motor does not start.

The appliance comes with a motor protection control (see Start-up and use).

The indicator lights are on but the light is dim.

  • Pull out and reverse the plug before putting it back in the socket.

a) The alarm sounds.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

b) The alarm sounds and the two yellow indicator lights flash.

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.

HOTPOINT-ARISTON 4DAAWHA - b) The alarm sounds and the two yellow indicator lights flash. - 1

  • buzzer = Heating is excessive

c) The alarm sounds and the two yellow indicator lights as well as the green one flash.

c) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

HOTPOINT-ARISTON 4DAAWHA - b) The alarm sounds and the two yellow indicator lights flash. - 2

  • buzzer = Heating danger

b/c) In both these cases the freezer will maintain a temperature of about 0^ so that the food does not re-freeze.

To turn off the acoustic signal open and close the refrigerator door. To restore normal operation bring the FREEZER

OPERATION knob setting to OFF (off) and turn the appliance on again.

d) The yellow SUPERFREEZE indicator light flashes

d) The Optimization Energy Saving function is activated.

The green POWER indicator light flashes.

  • The appliance is not operating correctly. Contact the Technical Assistance Centre.

The refrigerator and the freezer do not cool well.

  • The doors do not close properly or the seals are damaged.
    The doors are opened too frequently.
  • The OPERATION knobs are not on the correct setting (see Description).
  • The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

  • The REFRIGERATOR OPERATION knob is not on the correct setting (see Description).
    The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

  • The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on or flashing (see Description).
  • The door is not closed properly or is continuously opened.
    The outside ambient temperature is very high.

The appliance makes a lot of noise.

  • The appliance has not been installed on a level surface (see Installation).
  • The appliance has been installed between cabinets that vibrate and make noise.
  • The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The back wall of the refrigerator unit is covered in frost or droplets of water

  • This shows the appliance is operating normally.

Installation

Fonction Optimization Energy Saving

Predal SADJE in ZELENJAVA

Hladilnik je opremljen s predali za sadje in zelenjavo, ki so namenoma oblikovani za zagotavljanje svezega vona in okusa sadja in zelenjave. ČeŽelite shranitiŽivila v manj Vladznem okolju, odprite regulator Vladznosti (položaj B), v nasprotnem primuru ga zaprite (položaj A).

HOTPOINT-ARISTON 4DAAWHA - Predal SADJE in ZELENJAVA - 1

Functia Optimization Energy Saving

d) Este activata functia Optimization Energy Saving.

Ledul verde de ALIMENTARE emite un semnal intermitent

HencnpaBHOCTN IMeToDbI INX yctpaHeHn

Ecnn Baw xonodnblbnek He pa6oTaet. PpeJe yem o6paTntbcraB LHeTp TexHueckoro obcnykubnna (cm. TexHueckoe obcnykubane), npOBepbTe, MOxHO JIn yCTpaHNTb HncnpabHoctb, nCNoIb3y peKOMeHdaaun, npBBeDeHHbte B cJeDyUOeM nepeuHe.

3eHbI INDkaTOp 3NEKTPONITAHNE He ropnt.

BnIka He coeHHeHa c 3JeKtpnuecko po3Eko nn CoeHHeHa nIOxo H He o6cneuBaet KOtakTa,nn OTKnIOHIOCb 3JeKtpoNTaHne.

Komnpceccop He 3anyckaetc.

  • N3dJIeOCHaueHNO npedoxpaHTeIeM KOMPpeccopa (cM. BKnIOUeHue u 3Kcnnyamaua).

HdkaTopbI cna6o ropaT.

  • BbHbTe BnIky n3 pO3eTKn, npeBepHnTe ee n BHOb BOTKHnTe B 3JIeKtpopo3eTKy.

a) BkIbUcHnAc6 3ByKOBa CnHaJIuN3aun.

a) DBebp xoNoDnBnHa oTkpTa 6Oone yBx MNHyT. 3BykoBo CnHAn OTKnIOuAeTcN OncE 3akpbBaHnraDbepn.BbI HnPaBnBHO OTCoeDmHnn N3deneOT cETn 3NeKTponNTaHn (cm.TexHuueckoe ObcnyKueaHue).

b) BKNIOUHnIac 3ByKOBaCnHaHn3aunu MmraOT DBA XeNTbIX INDnKaTopa.

b) CnHaJIaI3aIgIOnaCHO BbICOKO Te TMnepaTpybIB MOpO3NlBHO KAmpe. IpOBePbTe COCToHHe IpOdyKTOB: BO3MOXHO, YTO INx PnIDETcR Bbl6pOHTb.

RU

HOTPOINT-ARISTON 4DAAWHA - RU - 1

+3ByKOBaCnHaJIIm3aun=IpeperpeB

c) BkIIOUHnIacb 3ByKOBA CnHAnHa3aunrN MmraOT Dba XeNTbIX INHdkatopa N ODNH 3eNEhbl.
c) CnHnIaun OnaCHO BbICOKo TeMnepaTypbB MOpO3NtBHO Kamepe. Heo6xOJIMo BbIbPocNTb BCE npOdyKtbl.

HOTPOINT-ARISTON 4DAAWHA - RU - 2

+3ByKOBA CnHaJIIN3aUN = OnacHbI nepepeB

b/c) B 060nx CnyaRx B MOp03nBHO Kamepe 6ydet
NoDepKINBaTc TEmnepaTypa OKOIO 0^ BO IN36eKaHne
NOBTOPHO 3AMOP03KN PNOyKTOB.ДЯ OTKJIOUeHNA 3BYKOBOINCRHaIN3aUN:OTKPOITNE 3AkPoITNe DBepxONODINBHKA.ДЯ
BO3BpATA B pa6oHNI peKIM: yCTAHOBITE pyKOHTKY

PEGYJIrTOPA MOPO3NbHOJ KAMEPbI b noonKeHne

(BbIKHIOUeHO) IN BHOBB KIIIOUHTe N3dEINe.

d) Muraet Keentbui HndkaTop SUPERFREEZE
d)BkNoyeHaФyHKU3Heproc6epeKeHnOOnTmM3aU3KoHOMn 3Heprn.

Muraet 3eHbI INHdkaTOp 3NEKTPONITAHNE.

3NeKtpponp6op pa6oTaet HecnPpaBHO. O6paTntecb B LcHtp Texnueckoro ObcnykubAHIN

XoOnOuNbHaN MOpO3HbHaN KaMepa BbIpa6aTbIBaIO T mAno XonoJa.

  • DBeepn nnoxo 3akpbibAHTcnn noBpeKneHbI yNIOTHNTeH.
  • DBepn XOJIOHbHnka OTKpbBaHOTc CNIuKOM YACTO.
    PyKoTNI PEYIANTOPOB yCTaHOBJIeHb B HenpaBnJBHom nnoKeHH (CM. Onucahue).
    XoIOniNbHaN IIN MOpO3HbHa KaMepbl NpePNOJIHeHbI npOdyKTAMI.

PpOdyKTBbXoJIoDnIbHOBKaMepe 3aMep3aOT.

Pyokra PEPYJATOPA XOJIOINbHOI KAMEPby cTaHOBHeHa B HnpeBaINbHom nIOJOKeHN (cM. OnucHue).
- PpOdyKtbl KaacaiTc3aHne CTeHN XoJIoNDnBnHaKa.

Komnpeccoppa6oTaETHenpepbIBHO.

  • Haxata KhoNka SUPER FREEZE (6bIcTpaa 3amOpO3ka): KeIbIy INHnKaTOp SUPER FREEZE ropNT ININ MInaTe (CM. Onucahue).
    -Дерь плохозakрытmaичасToOTkpblBaetc.
    CnIiKOM BbICOKaTempepaTpyaB nomueHm.

XoOnOuNbHnK pa6oTaET CnNtKom WymHo.

  • 13dJIeYcTaHOBJeHO HEOHOBHO (CM. YcmaHOBka).
    -3dJIeYcTaHOBHeMxJyBn6pnpUoUMNnnuIuymOn3daOUsIMN KxOHbIMN 3JeMeHTAMN nnipedMetAMN.
    XnadaareH T u npKpyIaI npOn3BODIT JERKn Wym TaKke npOCTaHOBHeHOM KOMnPecCOpe: 3TO HE YBJIETcH HeNCpabHOCTbIO, a HopMaJIbHbIM YBJIeHNEM.

TemnepaTpa HeKOTOpbIX BHeuHnx YacteX XoIoOnIbHnka BBICOKa

Harpeb HeKoTOpBIX DeTaneXONoDInbHnka Heo6xOIM BO n36eKaHne O6pa3OBAHH KOHeHCata B OnpeJeEHbIX yactkax N3deJIIN.

Installatie

Função Optimization Energy Saving

HYGIENA P R I ZACHAZENI S POTRAVINAMI

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HOTPOINT-ARISTON

Model : 4DAAWHA

Category : Fridge
