WF02E1011 - Interdental brush Waterpik - Free user manual and instructions

Product type	Dental water flosser (interdental water jet brush)
Brand	Waterpik
Model	WF02E1011
Power supply	3 AA batteries (alkaline or NiMH rechargeable)
Pressure adjustment	2 levels (low and high) via sliding switch on handle
Compatible tips	Pik Pocket, tongue cleaner, orthodontic tip, toothbrush tip, Plaque Seeker
Functions	Interdental cleaning by water jet, gum massage, dispensing mouthwash or antibacterial solution
Safety	Do not direct the jet towards the back of the tongue, inside the ear, nostrils or other sensitive areas; do not use iodine, bleaching agent or concentrated insoluble essential oil; remove oral jewelry before use
Cleaning	Never immerse the device; clean the exterior with a soft cloth and non-abrasive cleaner; removable reservoir dishwasher safe (top rack)
Descaling	Add 2 tablespoons of white vinegar to a reservoir of warm water, run until empty, then rinse with clean water; repeat every 1 to 3 months
Warranty	1 year limited (defects in materials and workmanship); does not cover accessories, batteries, or misuse
Batteries	Do not use lithium batteries; remove batteries during prolonged periods of non-use; replace all batteries at the same time
Manufacturing	Designed in the United States, manufactured in China

Frequently Asked Questions - WF02E1011 Waterpik

How to insert batteries in the Waterpik WF02E1011?

Remove the water reservoir, then turn the battery compartment cover to the left (unlocked position) and detach it. Insert 3 AA batteries following the polarity diagram shown. Reinstall the cover by aligning the arrows, push and turn to lock.

How to adjust the water jet pressure?

The pressure adjustment is made by sliding the power and pressure switch on the handle. Push up one click for low pressure (I) and two clicks for high pressure (II).

Which tips are compatible with this model?

This model is compatible with the following tips (sold separately or included depending on the kit): Pik Pocket (for periodontal pockets), tongue cleaner, orthodontic tip, toothbrush tip and Plaque Seeker tip. Visit the Waterpik website for accessories.

Can I use mouthwash or antibacterial solution in the device?

Yes, you can use a mouthwash or an antibacterial solution recommended by your dentist. After use, rinse the device by partially filling the reservoir with warm water and running the device to flush out any residue.

How to clean the Waterpik WF02E1011?

Never immerse the device in water. Clean the exterior with a soft cloth and a non-abrasive cleaner. The water reservoir is removable and can be washed in the dishwasher (top rack). Weekly cleaning is recommended.

What to do if the water jet becomes weak?

First check the battery status: replace with new batteries if necessary. If the problem persists, perform a descaling with white vinegar (2 tablespoons in warm water, run the device until empty, then rinse).

Can I use rechargeable batteries?

Yes, the use of NiMH rechargeable batteries is acceptable. Do not use lithium batteries as this will void the warranty and may damage the device.

Is it dangerous to direct the jet into the nose or ear?

Yes, it is dangerous. Never direct the water jet towards the back of the tongue, inside the ear, nostrils or other sensitive areas. This could cause serious injury and, in the case of the nose or ears, introduce the potentially deadly amoeba Naegleria fowleri.

What does the one-year warranty cover?

The one-year limited warranty covers defects in materials and workmanship for the original purchaser. It does not cover accessories (tips, batteries), misuse, modifications, or damage after purchase. You must provide the original receipt.

How to descale the device with vinegar?

Add 2 tablespoons of white vinegar to the reservoir filled with warm water. Point the handle toward the sink, turn on the device and let it run until the reservoir is empty. Rinse by repeating the process with clean warm water. Perform this operation every 1 to 3 months.

USER MANUAL WF02E1011 Waterpik

Important Safeguards 3

Product Description 5

Getting Started 7

Cleaning and Troubleshooting Your Waterpik® Water Flosser 8

Limited One-Year Warranty 9

IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS

When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING.

WARNING:

To reduce the risk of injury to persons:

• Do not direct water under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Do not direct water into the nose or ear. The potentially deadly amoeba, Naegleria fowleri, may be present in some tap water or unchlorinated well water and may be fatal if directed into these areas.
• Use this product only as indicated in these instructions or as recommended by your dental professional.

• Do not use rechargeable or replaceable lithium batteries in this product. These batteries are capable of producing pressures that may be uncomfortable to the user and may also result in damage to the appliance. Use of lithium batteries will void the warranty.

• Only use tips and accessories that are recommended by Water Pik, Inc.

• Do not drop or insert any foreign object into any opening on the product.
• Do not use this product outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use iodine, bleach, or water insoluble concentrated essential oils in this product. Use of these can reduce product performance and will shorten the life of the product.
• Fill reservoir with water or other dental professional recommended solution only.
• Remove any oral jewelry prior to use of this product.
• Do not use if you have an open wound on your tongue or in your mouth.

• If your physician advised you to receive antibiotic premedication before dental procedures, you should consult your dentist before using this instrument or any other oral hygiene aid.

• Close supervision is necessary when this product is used by, on or near children or invalids.
  Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

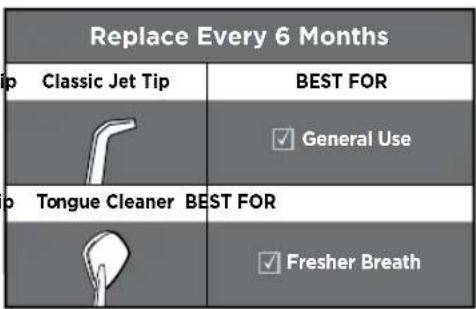

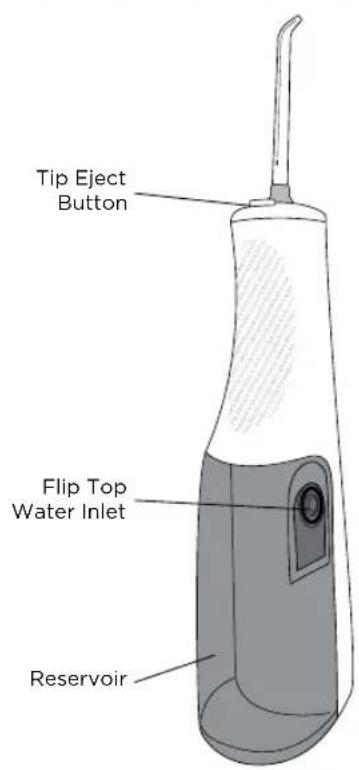

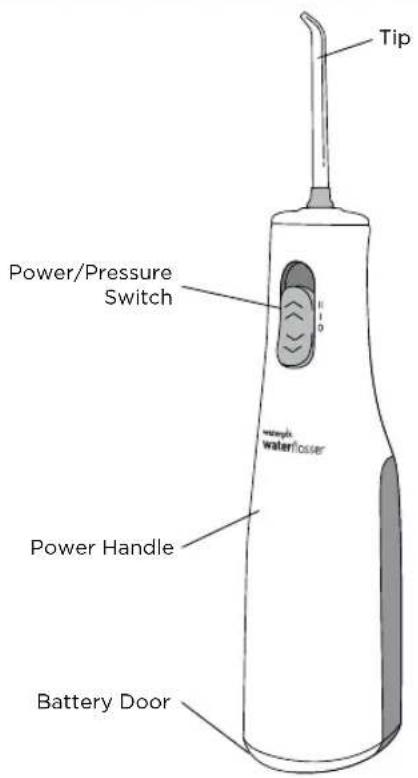

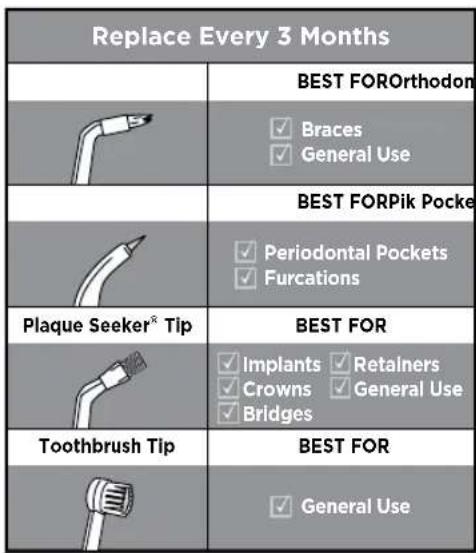

PRODUCT DESCRIPTION

NOTE: All tips not included in all models.
Replacement tips/attachments may be purchased online at www.waterpik.com, or by phone from Water Pik, Inc. at 1-800-525-2774 (USA). To find detailed information about tips, other accessories, and product usage please visit our website at www.waterpik.com.

GETTING STARTED

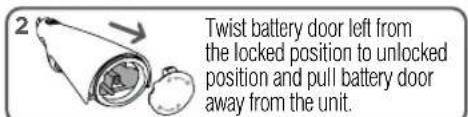

Inserting Batteries

Replace batteries when there is a noticeable change in performance.

Filling the Reservoir

Lift the flip top on reservoir and fill the reservoir with lukewarm water.

Inserting and Removing Tips

Insert tip into the center of the knob at the top of the Water Flosser handle. The colored ring will be flush with the end of the knob if the tip is correctly

locked into place. To remove the tip from the handle, press the tip eject button and pull tip from handle.

Adjusting the Pressure Setting

You can adjust the pressure setting on your Water Flosser by simply sliding the pressure/power switch on the handle. Slide power switch up 1 click for low (I) pressure and 2 clicks for high (II) pressure.

Recommended Technique

Lean low over sink and place the tip in mouth. Aim the tip toward teeth, and turn the unit ON (I).

For best results, start with the back teeth and work toward the front teeth. Glide tip along gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

Direct the jet stream at a 90-degree angle to your gumline. Slightly close lips to avoid splashing but allow water to flow freely from mouth into the sink. Keep unit upright during use for best results.

When Finished

Turn the unit off. Empty any liquid left in the reservoir.

If desired, the reservoir may be removed from the power handle by sliding the reservoir down towards the base of the unit.

To replace the reservoir on the power handle, simply slide it up towards the top of the unit.

CLEANING AND TROUBLESHOOTING YOUR WATERPIK® WATER FLOSSER

TIP USAGE

Pik Pocket™ Tip

The Pik Pocket ^※ Tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.

To use the Pik Pocket Tip, set the unit to the lowest

pressure setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket. Turn the unit on and continue tracing along the gumline.

Tongue Cleaner Tip

To use the tongue cleaner tip, set to lowest pressure setting, place tip in the center/middle of your tongue about half way back and start the Water Flosser. Pull forward with light pressure. Increase pressure as you prefer.

Orthodontic Tip

To use the Orthodontic Tip, gently glide tip along gumline, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth.

Toothbrush Tip

Place the toothbrush tip in mouth with the brush head on the tooth at the gumline. The toothbrush tip can be used with or without toothpaste. Turn the Water Flosser on so the water flows through

the tip. Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes-much like you would with a manual toothbrush.

Plaque Seeker Tip

To use the Plaque Seeker Tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip

along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

Using Mouthwash and Other Solutions

Your Waterpik® Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

Cleaning

Never immerse unit in water. Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser to wipe exterior.

The water reservoir is removable for easy cleaning and is top rack dishwasher safe. It is recommended that the reservoir is removed and cleaned weekly.

Removing Hard Water Deposits

Hard water deposits may build up in your unit, depending on the mineral content of your water. If left unattended, it can hinder performance.

Cleaning internal parts: add 2 tablespoons of white vinegar to a full

LIMITED ONE-YEAR WARRANTY

reservoir of warm water. Point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.

This process should be done every 1 to 3 months to ensure optimal performance.

AA Battery Care and Disposal

• Alkaline batteries and NiMH rechargeable batteries are acceptable.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the Water Flosser and properly disposed.
• The supply terminals are not to be short-circuited.
• Do not dispose of batteries in fire.
  The type and quality of AA battery used will impact performance of the product.
• Replace all batteries at the same time with new batteries of the same type and brand.
• Replace batteries when there is a noticeable change in performance.
• Remove batteries when the appliance will not be used for a long period of time.

WARNING: Use of lithium batteries will void the warranty and may also result in damage to the appliance.

Service Maintenance

Waterpik Water Flossers have no consumer-serviceable electrical items and do not require routine service maintenance. For all parts and accessories go to www.waterpik.com.

You may also call our toll-free customer service number at 1-800-525-2774. Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit.

Still have questions? Go to www.waterpik.com. If none of these corrective actions are successful, call the Water Pik, Inc. Customer Service. Toll-Free Number: 1-800-525-2774.

Water Pik, Inc. warrants to the original consumer of this new product that it is free from defects in materials and workmanship for 1 year from the date of purchase. Consumer will be required to submit the original purchase receipt as proof of purchase date and if requested, the entire product, to support a warranty claim. Water Pik, Inc. will replace at its discretion any part of the product, which in its opinion is defective, provided the product has not been abused, misused, altered or damaged after purchase, was used according to instructions, and was used only with accessories or consumable parts approved by Water Pik, Inc. Installation is the responsibility of the consumer and is not covered by the warranty. This limited warranty excludes accessories or consumable parts such as tips, batteries, etc.

This warranty gives you specific legal rights. You may also have other rights that vary, depending on the law in your place of residence.

TABLE DES MATIÈRES

Embout Plaque Seeker

1730 East Prospect Road

Fort Collins, CO 80553-0001 USA

www.waterpik.com

Waterpik is a trademark of Water Pik, Inc. registered in Argentina, Australia, Benelux, Brazil, Canada, Chile, China, Czech Republic, Denmark, EU, Finland, France, Germany, Hong Kong, Hungary, India, Italy, Japan, Korea, Mexico, New Zealand, Norway, Pakistan, Poland, Russian Federation, Saudi Arabia, Singapore, South Africa, Spain, Sweden, Switzerland and Taiwan, Turkey, Ukraine, United Kingdom, and the United States.

Waterpik (stylized) is a trademark of Water Pik, Inc. registered in Australia, Brazil, Canada, China, EU, Hong Kong, Japan, Korea, Mexico, Russian Federation, Saudi Arabia, South Africa, Switzerland, Trinidad & Tobago, and the United States.

Pik Pocket is a trademark of Water Pik, Inc.

Plaque Seeker is a trademark of Water Pik, Inc. registered in Canada, China, EU, and the United States.

Designed in USA. Made in CHINA.
