USER MANUAL KTD 83012 A2 Koenic

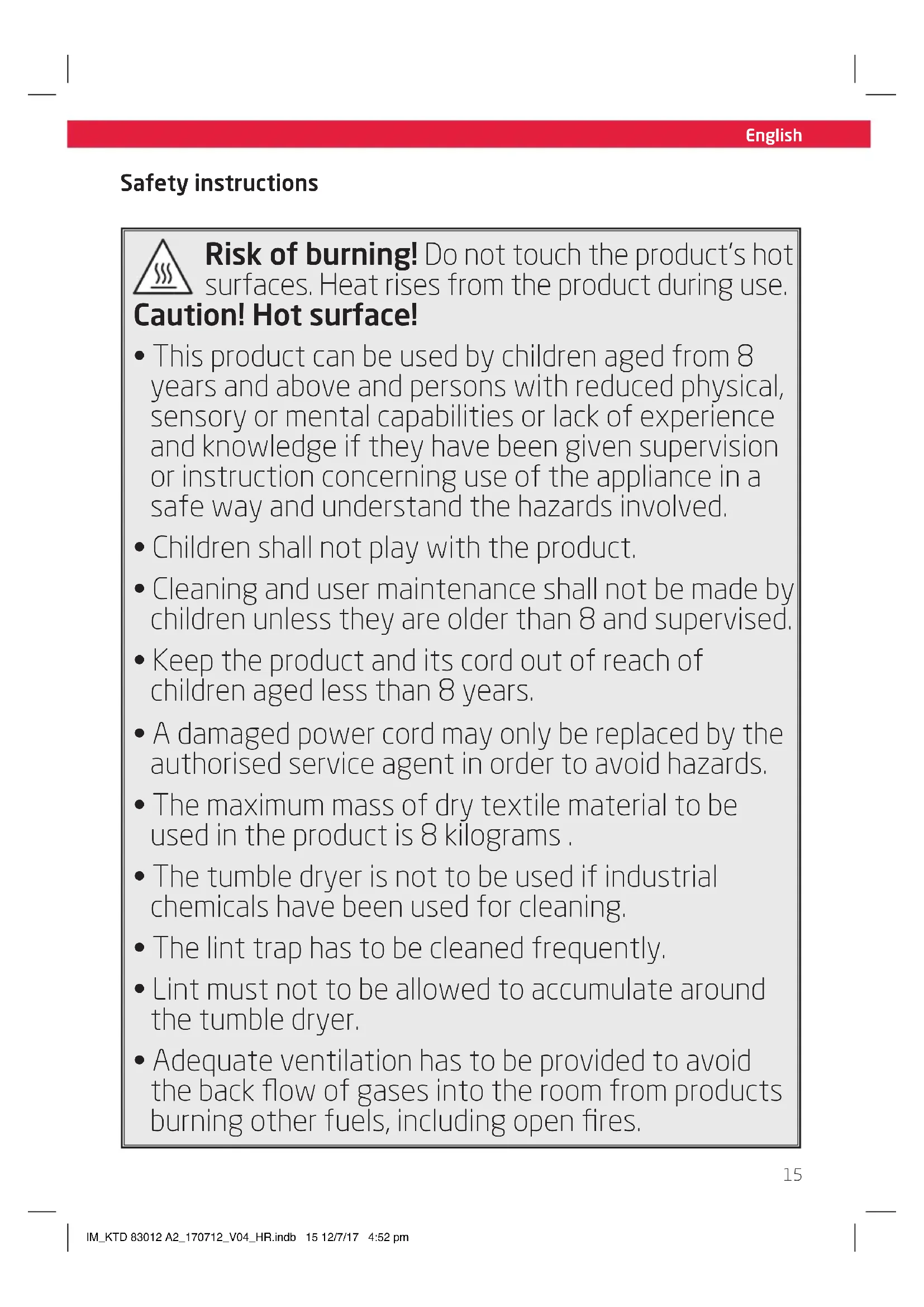

Safety instructions Risk of burning! Do not touch the product’s hot surfaces. Heat rises from the product during use. Caution! Hot surface!

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the product and its cord out of reach of children aged less than 8 years.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• The maximum mass of dry textile material to be used in the product is 8 kilograms .

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• The lint trap has to be cleaned frequently.

• Lint must not to be allowed to accumulate around the tumble dryer.

• Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires. IM_KTD 83012 A2_170712_V04_HR.indb 15 12/7/17 4:52 pmEnglish

• Do not dry unwashed items in the tumble dryer.

• Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature the ensures that the items will not be damaged.

• Remove all objects from pockets such as lighters and matches.

• Warning: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

• Children of less than 3 years should be kept away unless continuously supervised. IM_KTD 83012 A2_170712_V04_HR.indb 16 12/7/17 4:52 pmEnglish

• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.

• The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.

• For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.

• Follow the instructions in the chapter Cleaning and care.

• Warning: Ensure that the appliance is switched o before replacing the lamp to avoid the possibility of electric shock. IM_KTD 83012 A2_170712_V04_HR.indb 17 12/7/17 4:52 pmEnglish

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.

• Never leave the product unsupervised while it is switched on.

• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damage in power cord, product is dropped, etc.).

• The mains voltage must match the information on the rating label of the product.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat- producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ... - when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.

• Never use, expose or put the product near to: - direct sunlight and dust; - fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

• This product is not intended for commercial use. It is designed for household use only. IM_KTD 83012 A2_170712_V04_HR.indb 18 12/7/17 4:52 pm19 English Congratulations! Thanks for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference. Intended use This product is designed for drying clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose. Before first time use Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Content 1 x Heat Pump Dryer 1 x User manual 1 x Warranty card Part list

Program selection knob

Display of time delay

Display of additional functions and status

Operation indicator LED

Condenation water drainage connection

Air condense with service flap

Power cable with plug

• This is a Heat Pump Dryer.

• Erp-testing was done according to EN 61121:2013.

• See website below for detailed technical information or ask your vendor for specification sheet. www.koenic-online.com IM_KTD 83012 A2_170712_V04_HR.indb 19 12/7/17 4:52 pm20 English Installation Note: The heat pump dryer is equipped with power cord and plug. Make sure before installation that the wall outlet is at the desired place of installation. Consider the dimension of the product for placing and installation. Fig.

Place the tumble dryer on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out. Option 1 Fig.

The dryer can be connected to drainage.

• Connect your drainage hose to the fitting.

• Put the other end into a sink. Observe the max. height of the outlet of drainage hose. Note: If an external drainage hose is used, the condensation water tank does not have to be emptied anymore. A suitable hose holder and drainage hose are available as optional accessories. Option 2 Fig.

If no drainage hose for condensation water is used, the condensation water tank must be emptied after each use.

• Pull out the tank and empty it into a sink.

• Push the tank back into the dryer. Fig.

Connect the power plug to the mains. Preparation

• Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.

• For uniform drying result, sort the laundry according to fabric type and desired drying program.

• Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.

• Do not over dry the clothes, because over dried clothes can easily get creases or might shrink.

• Do not dry articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.

• The door may be opened only after the program of the dryer is completed. Do not open the door before the program finished, as skin may be scalded by steam or hot surface.

• Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.

• Do not dry clothes after chemical dry- cleaning. IM_KTD 83012 A2_170712_V04_HR.indb 20 12/7/17 4:52 pm21 English

• Consider below weight references: Blended Coats: about 800 g Jackets: about 800 g in cotton Jeans: about 800 g Towel Quilts: about 900 g in cotton Single Sheets: about 600 g in cotton Work Clothes, upper and lower: about 1120 g in cotton Pajamas: about 200 g Shirts: about 300 g in cotton Undershirts: about 180 g in cotton Underpants: about 70 g in cotton Socks: about 30 g in blended material Operation Drying clothes Fig.

For drying clothes follow below instructions:

1. Open the door, fill the drum with

your clothes and close the door. Note: The drum is illuminated if the door is opened. This function eases filling and emptying the drum. The LED full load (Volle Ladung) indicates that the drum is filled up to its maximum capacity.

2. Switch on the appliance with ON/

OFF button (Ein/Aus).

3. Chose your program, refer to

starts the drying process at the preset conditions and the operation indicator LED is flashing.

6. By pushing the Start/Pause button

again, if necessary twice, the dryer stops and the operation control LED is continuously on. To continue the drying process push the Start/ Pause button again, if necessary twice. Fig.

8.0 kg Drying level: for ironing

Jeans 5.0 kg To dry jeans or leisure clothes that are spun at high speeds in the washing machine Mix 3.5 kg If you cannot determine what the clothing’s material is, please choose Mix Sport 3.0 kg To dry sportswear, thin fabrics, polyester, which are not ironed Fein (fine) 1.0 kg For drying delicate Synthetics For non-iron clothes made of synthetic and blended fabrics, cotton. Extra 3.5 kg To dry thick or multi-layered synthetic fabrics. Drying level: extra dry Standard 3.5 kg To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes, socks. Drying level: cupboard dry Kalt (Cold) -- To air clothes without blowing hot air in 10 minutes Aurischen (refresh) -- For refreshing or gently cleaning textiles with commercially available dry cleaning products. Schnell 45‘ (quick 45‘) 0.6 kg To dry up to 3 shirts in 45 minutes Warm 60‘ (quick 60‘) -- To warm clothes with hot air in 60 minutes Warm 30‘ (warm 30‘) -- To warm clothes with hot air in 30 minutes Babybekleidung (baby clothes)

1.0 kg To dry thin baby clothes

Caution The door may only be opened if the appliance is not running, e.g. after drying process is finished. Do not try to open the door when the appliance is running to avoid burns or scalding caused by hot steam or hot surfaces. There is also a mechanical danger due to the rotating drum. Note:

• The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of inserted clothes and measured moisture.

If you wish to postpone the drying process, a time delay can be set. Use the time delay button (Startzeitverzögerung) to set a postponed start between 3-12 hours. The dryer starts the drying process after the preset time elapsed.

1. Fill the drum with your clothes and

2. Switch ON the appliance with the

On/O switch (Ein/Aus).

3. Chose your program and an

additional function if needed (e.g. Anti-Crease).

4. Push button Delay

(Startzeitverzögerung) for as many times as needed to set the time delay in hours (h) which is indicated by the LED in the time delay display. 3, 6, 9 and 12 hours time delay can be chosen.

5. Push button Start/Pause.

The dryer is activated and will start the drying process once the preset time has elapsed.

Once the child protection is activated, the setting cannot be changed. In that case the dryer can only be switched o by pushing the On/O switch (Ein/ Aus). The child protection can only be activated if the dryer operation was started or is running either directly or by time delay.

1. Activation: Press anti-crease

button (Knitterschutz) and gentle button (Startzeitverzögerung) at once and for more than 2 seconds. The corresponding LED of the control panel indicates the child protection (Kindersicherung).

2. De-activation: Press again anti-

This function is used to minimize the appearance of crease after the drying process is finished. The standard time for this function is 30 minutes. The drum rotates intermittently in order to minimize formation of crease.

• Press anti-crease (Knitterschutz) and the related LED lights on. IM_KTD 83012 A2_170712_V04_HR.indb 23 12/7/17 4:52 pm24 English Cleaning and care Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

• Switch o the tumble dryer and let it cool down completely before cleaning.

• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches). Cleaning the lint filter The LED Filter on the control panel will indicate when the air inlet needs to be cleaned. Fig.

Pull out the filter and open it. Remove lint and fibers by hand. Wash the filter with tap water in order to remove remaining lint or particles. Reassembling is done in reverse order. Cleaning the air condenser The air condenser must be cleaned regularly from time to time. Warning Before opening the service flap, place a big cloths in front and below the flap. Large amounts of water may leak when opening the flap. Fig.

Push down both clips of the service flap and open it. Pull the levers of the sealing cap into the correct direction in order to unlock the cap. Take o the sealing cap. Pull out the air condenser. If necessary clean the air condenser with a soft brush and rinse thoroughly. Warning During reassembling make sure the sealing cap fits correctly and that it is correctly locked by the two levers in order to avoid water leakage. Cleaning air inlet Fig.

The LED Filter on the control panel will indicate when the lint filter needs to be cleaned. Regularly from time to time check the air inlet opening at the front side is free from obstacles and not clogged or blocked. Take of the service flap. Make sure the air inlet grill and foam filter are clean. Remove obstacles and particles if any. Install the service flap.. IM_KTD 83012 A2_170712_V04_HR.indb 24 12/7/17 4:52 pm25 English Bulb replacement Warning

• Ensure that the appliance is switched o before replacing the lamp to avoid the possibility of an electric shock.

• Before changing the interior light of the oven, the cavity and the bulb must be completely cooled down. Remove both cross-head screws of the lamp cover, take it o and remove the defective bulb. Insert a new bulb type E14/15W and screw the lamp cover. Error indication and troubleshooting Error indication shown in display and remedy. Follow below table to understand error messages and to remedy. Error messages are shown in display during use. Error message Reason Remedy Volle Ladung LED lights in Water tank full or pump error • Empty condensation water tank.

• Check drainage and make sure it is not blocked

• If the error code is sill shown there, contact your service agent. LED on: Kindersicherung + 3h Error of heating system

• Check fuses of you electric supply Dryer doesn‘t start • Make sure the door is closed

• Chose correct program and push button Start/Pause Water leakage • Align dryer horizontally.

• Check air condenser, sealing cap and drainage and make sure it is installed correctly.

• If the problem persists contact your service agent. Door opens by itself or cannot be closed

• Close door slowly until it clicks. Do not slam the door.

• Remove clothes if overloaded Humidity in the room increasing significantly

• Ventilate room adequately.

• Clean the air inlet grille.

• Ensure that the air condenser has been inserted. Degree of dryness not reached or drying time too long

• Clean lint filter and wash condenser.

• Empty condensation water tank.

Rated capacity in kg of cotton laundry for the standard cotton programme at full load

Energy eciency class … on a scale of A (more ecient) to G (less ecient)

Energy consumption “X” kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used

Energy consumption of the standard cotton programme at full and partial load

Power consumption of the o-mode (P

) and of the left-on mode (P

) for the standard cotton programme at full load

If the household tumble drier is equipped with a power management system, the duration of the ‘left-on mode’

Indication that the ‘standard cotton programme’ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this Programme is suitable for drying normal wet cotton laundry and that it is the most ecient programme in terms of energy consumption for cotton

The weighted programme time (T

) of the ‘standard cotton programme at full and partial load’ in minutes and rounded to the nearest minute as well as the programme time of the ‘standard cotton programme at full load’ (T dry ) and the programme time of the ‘standard cotton programme at partial load’ (T dry ) in minutes and rounded to the nearest minute

If the household tumble drier is a condenser tumble drier, the condensation eciency class in accordance with point 2 of Annex VI, expressed as ‘condensation eciency class ‘X’ on a scale from G (least ecient) to A (most ecient)’; this may be expressed by other means provided it is clear that the scale is from G (least ecient) to A (most ecient)

If the household tumble drier is a condenser tumble drier, the average condensation eciency

dry and C dry½ of the standard cotton programme at full load and partial load and the weighted condensation eciency (C

) for the ‘standard cotton programme at full and partial load’, as a percentage and rounded to the nearest whole percent
