Product Type	Washer-dryer combination
Brand	Koenic
Model	KWDR 84612 A
Dimensions (W x D x H)	595 x 565 x 850 mm
Rated Voltage	220 - 240 V~, 50 Hz
Rated Power (Washing)	1900 W
Rated Power (Drying)	1300 W
Max. Washing Capacity	8 kg
Max. Drying Capacity	6 kg
Max. Spin Speed	1400 rpm
Energy Efficiency Class	A
Water Pressure Range	0.05 - 1 MPa
Protection Degree	IPX4
Programs	Cotton ECO, Sport Wear, Quick, Delicate, Wool, Colors, Jeans, Spin only, Rinse & Spin, Baby Care, Dry only, Mix, Synthetic, Cotton, 1 Hour W/D
Special Features	Child lock, Delay start (1-24h), Adjustable temperature, Spin speed selection, Drying level selection, My Cycle memory
Cleaning	Lint filter (frequent), Detergent drawer, Inlet filter (every 3 months), Drain pump filter (monthly)
Safety	Child lock, Door lock, Overheating protection, Anti-flood system
Noise Level (Washing)	58 dB(A)
Noise Level (Spinning)	78 dB(A)
Noise Level (Drying)	62 dB(A)

Frequently Asked Questions - KWDR 84612 A Koenic

How do I clean the lint filter?

The lint filter should be cleaned frequently. Open the door, locate the filter at the bottom of the door opening, pull it out, remove lint by hand or with a soft brush, rinse under water if necessary, dry, and reinsert.

What does error code E30 mean?

Error E30 indicates a door lock problem. The door is not closed properly. Close the door firmly and restart the cycle. If the error persists, check for obstructions or contact service.

Can I wash and dry in one cycle?

Yes, the KWDR 84612 A is a washer-dryer. Select a combined program like 'Cotton' with drying option or '1 Hour W/D' for a quick wash and dry. Make sure not to overload, max drying capacity is 6 kg.

How to activate the child lock?

Press and hold the TEMP. and SCHLEUDERN buttons simultaneously for at least 3 seconds. The child lock symbol will appear on the display. To deactivate, repeat the same action.

What is the maximum spin speed?

The maximum spin speed is 1400 rpm. You can adjust it using the SCHLEUDERN button. Lower speeds are recommended for delicate fabrics.

What does the TROCKENGRAD button do?

The TROCKENGRAD button selects the drying level. Options are 'normal dry', 'gentle dry', or 'very dry'. Press repeatedly until the desired level indicator lights up.

How do I disable the alarm sound?

With the appliance switched on, press and hold the TEMP. button for at least 3 seconds. The alarm will be permanently disabled. Repeat to turn it on again.

What should I do if the drain pump filter is clogged?

Open the maintenance flap at the bottom front, place a container beneath, unscrew the filter cover counterclockwise, clean the filter under running water, reinsert and tighten clockwise. Ensure proper sealing.

What type of detergent should I use?

Use only detergents suitable for automatic washing machines. Follow the manufacturer's dosage instructions. Do not use bleach. For the main wash, use compartment A (powder or liquid). Do not fill compartment C (pre-wash).

How to level the appliance?

Adjust the four feet by unscrewing the lock nuts with a 17 mm wrench, then turn the feet right to lower or left to raise. Use a spirit level to check. Once level, tighten the lock nuts.

USER MANUAL KWDR 84612 A Koenic

Front view of a white three-wheeled washing machine (no visible text or labels)

Deutsch 3:10

15

M. KATARIE, 18270, A38, 495-65, 18279, 18278

M. 2017-03-17, 18276, 578, 449, 18276, 18276

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
• Keep the product and its cord out of reach of children aged less than 8 years.
• Children of less than 3 years should be kept away unless continuously supervised.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the tumble dryer.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires.
• Do not dry unwashed items in the tumble dryer.

Safety instructions

• Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• Warning: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

English

Safety instructions

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
• The maximum mass of dry cloth to be used in the product is 8 kg for washing and 6 kg for drying.
• For products with ventilation openings in the base, the openings must not be obstructed, e.g. by a carpet.
• This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about installation for detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets. Hose-sets are generally available.

Safety instructions

- The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

- Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
• Never leave the product unsupervised while it is switched on.
• Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped during installation, etc.).
• The mains voltage must match the information on the rating label of the product.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

• Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

• when the product is not being used,

• in case of malfunctions,
• before attaching / detaching accessories and

• before cleaning the product.

• Use this product in dry indoor areas only and never outdoors.
  • Never use, expose or put the product near to:

• direct sunlight and dust;

• fire (fireplace, grill, candles), water (water splashes, vases, bath tub) or heavy moisture.
• This product is not intended for commercial use. It is designed for household use only.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is designed for washing and drying clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Disposal

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Delivery contents

1 x Washer-dryer
1 x User manual
1 x Warranty card

Controls and components

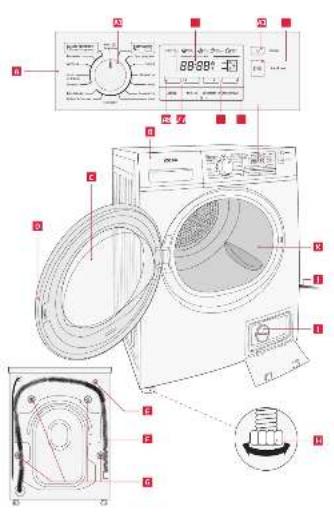

A Control panel

A1 Program selector
A2 Display
A3 Ein-/Aus switch
A4 Start/Pause button
A5 TROCKENGRAD button
A6 Spin speed button SCHLEUDERN
A7 Temperature button TEMP.
A8 Timer button STARTZEIT VERZÖGERT

B Detergent drawer
C Door with window
D Door handle
E Water connection
F Sewage hose
G Transport restraint
H Adjustable feet
Lint filter
Power cord with plug
K Washing drum

Caution

Transport restraints must be removed before the first use as described in chapter Installation.

Installation

Note:

The washer-dryer is equipped with power cord and plug and needs sewage and tap water connection. Make sure before installation that a wall outlet, sewage and tap water connection are available at the desired place of installation. Consider the dimension (chapter Technical data) of the product for placing and installation.

Caution

• Before initial operation the transport restraints must be removed from the backside of the unit. Operating the washer-dryer with mounted transport restraints leads to serious damages.
• Keep the transport restraints for later use. Never transport the device without correctly mounted transport restraints!

Fig. 1 Loosen the four transport restraints with a wrench (13 mm) and unscrew them completely. Insert the 4 supplied blind plugs in the holes.
Fig. 2 Place the appliance on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out.

- Unscrew the lock nuts with a open-end wrench (17 mm).

- Turn the feet to the right to screw them in and to the left to unscrew them.

- Use a spirit level to check whether the appliance is leveled. If the appliance is not standing horizontally or is tilting the feet must be adjusted again.

- If the unit is leveled and does not tilt, tighten the nuts with the open-end wrench.

Fig. 3 The washer-dryer must be connected to a drain.

• The drain hose is already fixed to the sewage connection. Pull the hose out of the clamps and unwind it.
• Connect the other end to the drainpipe (Option B, hose end at least 60cm high) or place the end of the hose in a sink or washbasin (Option A, end of hose at a maximum height of 100cm).

Note:

Suitable hose holders are available as optional accessories.

English

Fig. 4 Connect the water inlet to the water system (3/4") using the supplied hose and make sure that everything is connected correctly and firmly. The water pressure must be between 0.05 MPa and 1 MPa. A pressure reducing valve must be used if the water pressure is exceeds 1 MPa.

Note:

• If the water pipes are new or have not been used for an extended period of time, allow a certain amount of water to drain until you are sure that the water is clear and free of foreign objects.
• If this point is not observed, there is a risk that the water inlet will become clogged and the unit will be damaged.
• The sewage and tap water connection should be checked on a regular basis.

Fig. 5 Plug the mains plug into a suitable socket.

Preparation

Before first use

• Make sure the transport restraints on the back of the unit have been removed.
- Remove all accessories and other materials from the washing drum.
- Before washing cloth for the first time, run the appliance without any cloth but some detergent in the "Cotton 60°C" program, see

Start washing.

Operation

Fig. 6 Preparation of the garments

Caution

• Do not wash and dry fabrics that are not suitable for machine wash or drying. Observe the instructions on the care label of the laundry.
• Hard or pointed foreign objects (e.g. nails, coins) can damage laundry and washer-drier.

• Never wash and dry laundry soaked with gasoline, thinner, alcohol or solvents.

• Check the pockets of all laundry and empty them.

• Before washing remove dirt, stains and hair from the laundry, e.g. by pre-soaking and pre-washing by hand.
• Sort the laundry according to colors and the washing procedures and washing temperatures indicated on the care labels. Do not wash white laundry together with coloured laundry but separate. Newly bought coloured laundry must be washed separately, to avoid inadvertent discoloration of other garments.
• Turn applications such as buttons and embroideries inwards. If necessary, close zippers, buttons or hooks before washing, and tie loose straps or loops together.

• Wash brassiere in a laundry bag to prevent the steel hangers from loosening. In particular, fine textiles such as curtains, crochet work or small articles (socks, handkerchiefs, neckties, etc.) should be washed in a closed laundry bag.
  • Always remove removable parts such as hooks, eyelets, e.g. from curtains.

• During the washing of large and heavy single items such as bedclothes, covers, bath towels, jeans, lined winter jackets, etc., the drum can become unbalanced especially during spinning. To minimize imbalances always wash several clothes together as one load.

• Linting clothes should be washed and dried separately, otherwise you will have visible lint on all clothes, especially on black clothes.

Fig. 7 Fill the laundry

• Untangle the garments and place them neatly into the washing drum.
• If possible use the max. loading capacity. Do not overload the washing machine. Do not cram the laundry in the washing drum but load it in a way that the laundry is still being circulated during the washing process. Different sizes and thicknesses of the laundry influence the loading capacity.
• Close the door, making sure that no laundry is trapped between the door and the seal.
• Make sure to avoid imbalances when washing heavy/ bigger pieces of laundry.

Select and filling in detergent

Caution

• Keep detergents out of the reach of children!
• Observe the instructions of the detergent regarding dosage and storage.
  • Detergent compartment C has no function and must not be filled!

- Only use detergents suitable for washing machines and make the right selection, taking into account the kinds of laundry to be washed (cotton, colored, white etc.).

- Do not use bleach, as it can damage the washer-dryer and laundry.

Fig. 8 1. Open the detergent drawer.

Note the different compartments:

A: Detergent for main wash, option 1 for washing powder, option 2 for liquid detergent
B: Fabric softener for rinsing
C: Detergent for pre-wash (no function, do not fill!)

1. Fill in laundry detergent and fabric softener according to manufacturer's instructions.

Note on foam detection: If too much detergent is used, excessive foam is formed. The foam formation is checked and excessive foam is removed.

1. Close the detergent drawer by pushing it in completely.

English

Start washing and drying

1. Turn on the washing machine with the Ein-/Aus switch.
2. Use the program selector to select a suitable program and, if necessary, a suitable additional function. Please refer to the following Program table.
3. Use the TEMP. button to change the temperature if the preset temperature does not meet your requirements. The higher the temperature the more energy is consumed.
4. If necessary use the SCHLEUDERN button to select a different spin speed if the preset speed does not meet your requirements. The higher the spin speed, the drier but also more creased the laundry is. High spin speeds also reduce the life of the washing machine.

Note:

Only use low spin speeds for delicate garments.

1. By pressing the TROCKENGRAD button, select the drying level. Three levels can be selected: normal dry ◦ gentle dry , ◦ very dry ◦ indicated by both indicator lights of symbols ◦

2. Start the washing process by pressing the Start/Pause button.

3. Press the timer button Startzeit verzögert to set a later time for the machine to start. By pressing the button several times a start time of 1 to 24 hours can be set in 1-hour increments. To do so, follow the steps 1 to 5, then use the STARTZEIT
   VERZÖGERT button to set the start time, wait until the display shows the wash time and then press the Start/Pause button. If the preset time has elapsed, the washing machine will automatically turn on and the washing time will be shown on the display.

4. You can also create your own program and save it under program point Mein Programm (My cycle). Turn the program selector to your desired program. Set the required temperature, spin speed and special functions. Then press the SCHLEUDERN button for 3 seconds to save the settings. The program remains stored and can be changed at any time as described above.

Caution

The door may only be opened if the appliance is not running, e.g. after program is finished. Do not try to open the door while the appliance is running.

Note:

The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of inserted clothes and measured moisture.

1. For drying clothes washed elsewhere or wet clothes chose the program Trocknen (drying) and start drying with the Start/Pause button.

Fig. 9 Washing program table
Note: The max. filling capacity for washing is 8 kg and for drying 6 kg. Before operation read the instructions about weights of clothes in table Clothes.

Program KWDR 84612 A
Program nameShort explanation of the program and for which fabrics it's suitable	Max washing/drying load in kgTemperature that can be selectedSpin speed than can be selectedOther settings can selected with this program
Cotton ECOHard-wearing fabrics, heat resistant fabrics made of cotton or linenNote: washing temperature is pre-set to 30°C	Max load in 8.0/- kgCold/20/30/40/600/400/600/800/1000/1200/1400TimerNote:Standard temperature: 30°CStandard time (h:mm): 1:07
Sport WearSports and leisure wear made from microfiber fabricsNote:Laundry must not be treated with fabric softenerClean the detergent drawer thoroughly	Max load in 4.0/-kgCold/20/30/400/400/600/800/1000/1200/1400TimerNote:Standard temperature: 40°CStandard time (h:mm): 1:19
QuickExtra short program of approx. 15 minutes, suitable for small items of lightly soiled laundry	Max load in 2.0/- kgCold/20/30/400/400/600/800/1000/1200/1400TimerNote:Standard temperature: ColdStandard time (h:mm): 0:15
DelicateFor delicate, washable fabrics, e.g. made of silk, satin, synthetic fibers or blends (e.g. silk blouses, silk scarves)Note: Use a detergent suitable for machine-washing delicate or silk	Max load in 2.5/- kgCold/20/300/400/600TimerNote:Standard temperature: 30°CStandard time (h:mm): 1:00
WoolHand or machine washable fabrics that are made of wool or contain woolNote: Wool is of animal origin, e.g. Angora, alpaca, sheepUse a detergent that is suitable for machine washing wool	Max load in 2.0/- kgCold/20/30/400/400/600TimerNote:Standard temperature: 40°CStandard time (h:mm): 1:07

English

Program KWDR 84612 A
ColorsWashing brightly colored clothes, it can protect the colors better	Max load in 8.0/- kgCold/20/300/400/600/800/1000/1200/1400TimerNote:Standard temperature: ColdStandard time (h:mm): 1:00
JeansSpecially for jeans	Max load in 8.0/- kgCold/20/30/40/600/400/600/800/1000/1200/1400TimerNote:Standard temperature: 40°CStandard time (h:mm): 1:48
Spin onlyExtra spin with selectable spin speed.	Max load in 8.0/- kgNA0/400/600/800/1000/1200/1400TimerNote:Standard temperature: --Standard time (h:mm): 0:12
Rinse & SpinExtra rinse or spin with speed than can be selected	Max load in 8.0/- kgNA0/400/600/800/1000/1200/1400TimerNote:Standard temperature: --Standard time (h:mm): 0:31
Baby CareWashing the baby's clothes, to ensure soft and smooth clothes to protect the babies skin	Max load in 8.0/- kgCold/20/30/40/60/900/400/600/800/1000/1200/1400TimerNote:Standard temperature: 60°CStandard time (h:mm): 1:45
Dry onlySelect it to dry clothes, the temperature can be adjusted. The drying time differs according to the load	Max load in - /6.0 kgCold0/400/600/800/1000/1200/1400Timer, Dry levelNote:Standard temperature: 60°CStandard time (h:mm): 4:28
MixMixed load of cottons and synthetic fabrics	Max load in 8.0/4.0 kgCold/20/30/400/400/600/800/1000/1200/1400Timer, Dry levelNote:Standard temperature: 40°CStandard time (h:mm): 1:13
SyntheticWash synthetic articles, for example: shirts, coats, blending, While washing the knitting textiles, detergent quantity should be reduced due to its loose string construction and easily forming bubbles.	Max load in 4.0/4.0 kgCold/20/30/40/600/400/600/800/1000/1200Timer, Dry levelNote:Standard temperature: 40°CStandard time (h:mm): 2:20
Cotton *Hard-wearing fabrics, heat resistant fabrics made of cotton or linen	Max load in 8.0/6.0 kgCold/20/30/40/60/900/400/600/800/1000/1200/1400Timer, Dry levelNote:Standard temperature: 40°CStandard time (h:mm): 2:40
1 Hour W/DFor small synthetic clothes or shirts, load limitation is 1 kg (about 4 shirts). When you have an urgent appointment but no more clean shirt left in your cupboard, this program will help you. Time duration is only 1 hour including wash and dry.Note:Big towels or jeans is not suitable for this program, they will enlarge the time duration and affect the moisture content.	Max load in 1.0/1.0 kgCold1400Normal dryTimerNote:Standard temperature: ColdStandard time (h:mm): 1:00

* Standard program: Cotton 60°C.
With full and partial load, these are the standard wash programs to identify the information on the energy label. These programs are suitable to clean normally soiled laundry and of combined energy and water consumption most efficiently.

English

Clothes

	Blended Coats:about 800 g
	Jackets:about 800 g in cotton
	Jeans:about 800 g
	Towel Quilts:about 900 g in cotton
	Single Sheets:about 600 g in cotton
	Work Clothes, upper and lower:about 1120 g in cotton
	Pajamas:about 200 g
	Shirts:about 300 g in cotton
	Undershirts:about 180 g in cotton
	Underpants:about 70 g in cotton
	Socks:about 30 g in blended material

Child protection

Fig. 10 Once the child protection is activated, the setting cannot be changed. The appliance can only be switched off with the Ein/Aus switch, whereby settings and wash progress are saved and the washing process can be continued after switching the machine back on. The child protection can only be activated if the appliance operation was started or is running either directly or by time delay.

1. Activation: Press TEMP. and SCHLEUDERN buttons at once for at least 3 seconds. The corresponding symbol of the control panel indicates the child protection

2. De-activation: Press again TEMP. and SCHLEUDERN buttons at once for at least 3 seconds. The corresponding symbol of the control panel turns off.

Disabling the alarm sound

To permanently deactivate the signal tone, press the TEMP. button for at least 3 seconds while the washing machine is switched on. To turn on the beep, press the TEMP. button again for at least 3 seconds while the appliance is on.

Cleaning and care

Warning

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Switch off the appliance and let it cool down completely before cleaning.
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).

Fig. 11 Cleaning the detergent drawer

• Pull out the drawer. Press the tab marked with an arrow above the fabric softener compartment and pull out the drawer completely.
• Wash the chambers with water.
• If necessary, use a soft brush to clean the housing.
• Insert the detergent drawer.

Fig. 12 Clean the filter of the lye pump

Caution

• Never operate the appliance without a filter.
• The filter of the lye pump prevents foreign objects from affecting the pumping system.
• Clean or check the filter regularly depending on the frequency of use, approximately once a month.
• Check the filter if the water is not pumped out or if the noise is increased during pumping.
• Before opening the service flap, place a big cloth in front and below the flap. Large amounts of water may leak when removing the filter.

• Make sure that all water has been pumped out during the previous wash cycle and then turn off the power and unplug the power cord.
- Open the maintenance flap.
- Place a collecting tray in front of it to catch any leaking water.
- Turn the filter cover to the left. Catch leaking water!
• Clean the filter under running water.
- Insert the filter and turn it to the right. Make sure that the filter is properly fixed so that no water can leak.
- Close the maintenance flap.

English

Fig. 13 Clean the inlet filter

Caution

• Close the water supply!
  • After cleaning, always make sure that the water hose is properly installed and no water leaks.

Filter at the water tap

Clean the filter if there is an insufficient flow of water when the water tap is open.

• Unscrew the supply hose from the water tap.
• Wash the inlet filter under running water.
  • Reconnect the supply hose.

Supply filter at the washing machine

Clean the filter regularly, approximately every three months.

• Unscrew the supply hose on the back of the unit.
  • Clean the filter with a small brush.
  • Reconnect the supply hose.

Technical data

Rated Voltage : 220 - 240 V\~, 50 Hz

Rated power : 1900 W (washing) 1300 W (drying)

Protection class : I

Max. capacity : 8 kg (washing) 6 kg (drying)

Dimensions : 595 x 565 x 850 mm

Protection degree : IPX4

Inlet water pressure : 0.05 - 1 MPa

Error codes

Code	Meaning Possible causes Solution
E30 Door lock problem Door is not closed properly Restart after the door is closed again.
E10 Water injection problem while washing	Tap is closed or water flows too slow.Inlet valve filter is blocked.Inlet pipe is twisted	Open the tap or wait till the water supply becomes normalCheck the inlet valveStraighten the pipe
E21 Drain problem during washing	Outlet hose is blocked or twistedDrain pump is blocked	Clean and straighten the outlet hose.Clean drain pump filter
E12 Water overflow • Water remains in the appliance		Restart the appliance

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work and/or indicator/display does not light	Interrupted power supply	Check the power supply
Door cannot be opened• Machine's protection mechanism is active		Disconnect from the power
Heating fault• NTC (temperature sensor) is damaged and heating pipe is aging		Contact the service center
Water leakage• Connection between inlet pipe or outlet hose and tap or washing machine is not tight.Drain pipe is blocked		Check and fasten the water pipesClean up outlet hose
Water is overflow from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage	Fix the inlet pipeReplace the drain hose
Washing result is not satisfied	The clothes are to dirtyInsufficient detergent quantity	Select a proper programAdd proper detergent quantity
Abnormal noise Great vibration	Check if transport restraints have been removedMachine is installed on solid floorCheck if any metal parts (e.g. from embroideries) are inside the drumAdjust the feet of the machine

English

The information stated in this fiche are given in accordance with annex II of the Commission Directive 96/60/EC implementing Council Directive 92/75/EEC with regard to energy labelling of household combined washer-driers.

1 Supplier's trade mark KOENIC
2 Model identifier KWDR 84612 A
3	Energy efficiency class[scale: A (more efficient) to G (less efficient)]	A
4 Community Eco-label pursuant to Regulation (EEC) No 880/92 n/a

		Symbol Value Unit
5	Energy consumption for washing, spinning, and drying per complete operating cycle	C 5,44 kWh/cycle
6	Energy consumption for washing and spinning only 0,88 kWh/cycle
7	Washing performance class [scale: A (higher) to G (lower)] A
8	Water remaining after spin 44 %
9	Maximum spin speed attained U/min 1 400 min		-1
10	Washing capacity of appliance for a standard 60°C cotton washing cycle		8,0 kg
11	Drying capacity of appliance for a standard 'dry cotton' drying cycle		6,0 kg
12	Water consumption for washing, spinning and drying per complete operating cycle		152 l
13	Water consumption for washing and spinning only per standard 60°C cotton washing		64 l
14	Program time for complete operating cycle (60°C cotton washing and 'dry cotton' drying)		645 min
15	Estimated annual energy consumption for a four-person household , always using the drier (200 cycles)		1088,00 kWh/year
	Estimated annual water consumption for a four-person household, always using the drier (200 cycles )		30 400 l/year
16	Estimated annual energy consumption for four-person household, never using the drier (200 cycles )		176,00 kWh/year
	Estimated annual water consumption for four-person household, never using the drier (200 cycles )		12 800 l/year
17	Noise during usage of the standard 60°C cotton washing cycle and 'dry cotton' drying cycle:
	during washing cycle		58 dB(A) re 1 pW
	during spinning cycle		78 dB(A) re 1 pW
	during drying cycle		62 dB(A) re 1 pW
