SKO 40 A1 - Wireless Earbuds SILVERCREST - Free user manual and instructions

Brand	SilverCrest
Model	SKO 40 A1
Product type	Wired stereo headphones
Impedance	32 Ω +/- 4 Ω at 1 kHz
Frequency range	20 Hz - 20 kHz
Connector	3.5 mm jack
Cable length	1.5 m
Dimensions (L x D x H)	approx. 190 x 165 x 75 mm
Weight	approx. 166 g (with cable)
Storage temperature	0 - 45 °C
Maximum humidity	85 %
Included accessories	Cable with 3.5 mm jack plugs, user manual
Intended use	Home audio device
Warranty	3 years
Customer service (France)	0800 919270
Customer service (Switzerland)	0842 665566
Repairability	Repairs only by a specialized workshop
Cleaning	Soft, slightly damp cloth
Safety	Minimum distance of 10 cm from pacemakers
Origin	Germany (HOYER Handel GmbH)

Frequently Asked Questions - SKO 40 A1 SILVERCREST

How to connect the SKO 40 A1 headphones?

Connect one stereo jack plug of the cable into the headphone port (4) and the other plug into the audio source (e.g., MP3 player, phone). First set a low volume on the source.

How to adjust the volume?

The volume is adjusted directly on the connected audio source (smartphone, computer, etc.). Adjust it so that you can always hear ambient sounds.

Can I use these headphones while cycling or driving?

No, because surrounding noises are altered. This poses an accident risk. Do not use the headphones during activities that require attention to your surroundings.

What to do if no sound comes out of the headphones?

Check the connection between the audio source and the headphones. Make sure the jack plugs are fully inserted. Also check the volume and balance settings on the source.

How to clean the headphones?

Use a soft, slightly damp cloth. Do not use acidic or abrasive detergents. Protect the device from drops and splashes.

What is the impedance of the headphones?

The impedance is 32 Ω +/- 4 Ω at 1 kHz, making it compatible with most portable audio devices.

Is the cable replaceable?

Yes, the cable with 3.5 mm jack plugs is detachable and can be replaced by a standard cable of the same type. It is included in the delivery.

Is there a warranty?

Yes, the headphones come with a 3-year warranty from the date of purchase. Keep the receipt as proof.

How to dispose of the headphones at end of life?

Do not dispose of it in household waste. Take it to a collection point for electrical and electronic equipment (WEEE) in accordance with Directive 2012/19/EU.

Can I connect the headphones to a phone?

Yes, if your phone has a 3.5 mm jack. Simply plug in the cable and adjust the volume on the phone.

USER MANUAL SKO 40 A1 SILVERCREST

Operating instructions

IAN 110635

DE AT CH FR IT GB

Chere cliente, cher client,

1. Overview 38
2. Intended purpose 40
3. Safety information 40
4. Items supplied 42
5. Operation 42
6. Cleaning / storing 43
7. Disposal 43
8. Problem-solving 44
9. Technical specifications 45
10. Warranty of the HOYER Handel GmbH 46

1. Overview

Please observe the illustrations on the fold-out page.

1 Headset
2 Headphone earpieces R/ L (right/left),adjustable
3 Cable with 3.5mm stereo TRS connectors
4 Socket for 3.5mm TRS connectors

38

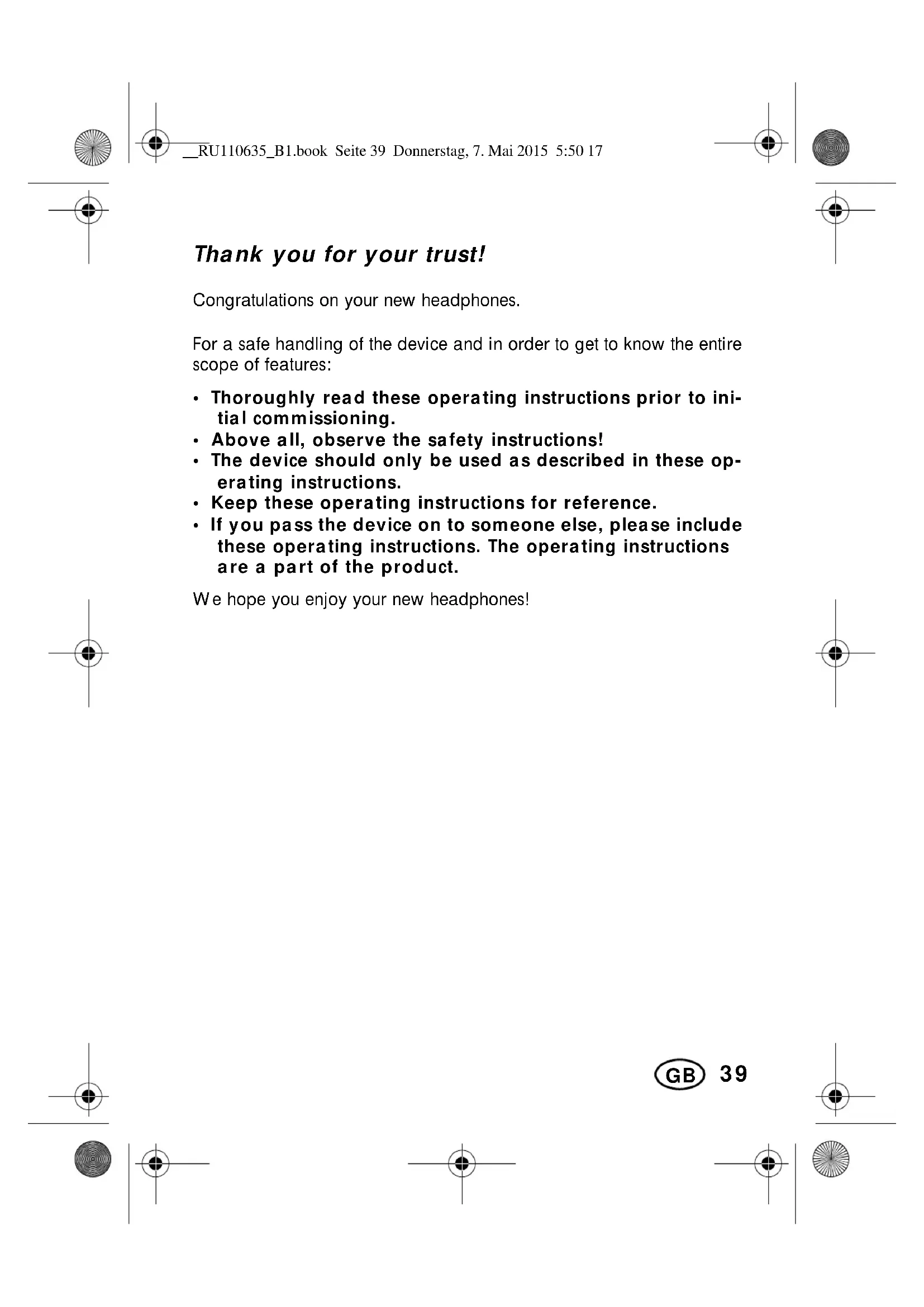

Thank you for your trust!

Congratulations on your new headphones.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
• The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions. The operating instructions are a part of the product.

We hope you enjoy your new headphones!

2. Intended purpose

This is a consumer electronics device. The headphones are intended for sound playback from audio devices at a normal listening volume. The device is designed for use in private households. This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following symbols and warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER for children and people with disabilities

• Packing materials are not children's toys. Children must not play with the packing material: there is a risk of suffocation.
• This device is not designed to be used by people (including children) with limited physical, sensory or mental capabilities or people without adequate experience and/ or understanding, unless they are supervised by someone responsible for their safety or are instructed by them on how to use the device.
  Children must be supervised to ensure that they do not play with the device.
• Keep the device out of the reach of children.

40

DANGER of accidents due to impaired perception

• Surrounding noises may sound different than usual. Never use the headphones during activities when you must be attentively aware of your surroundings, particularly when operating machinery or vehicles in traffic. (This also applies to bicycles.) You must also comply with the legal provisions and regulations of the country in which you are using the device.

DANGER of affecting cardiac pacemakers

• The magnetic fields generated by the headphones may impair the functioning of cardiac pacemakers and implanted defibrillators. You must therefore maintain a minimum distance of 10cm between the headphones and the cardiac pacemaker / defibrillator.

WARNING! Risk of hearing damage

• Set a low volume on the audio device before you connect the headphones to the sound source.
• Avoid excessive volumes, particularly over extended periods or in the case of frequent use. Excessive volume can result in permanent hearing damage.

WARNING! Risk of material damage

Protect the device against damage, e.g. from:

• drips and splashes of water
• heat, direct sunlight and open flames (e.g. candles)
• impacts and similar violent effects

Protect the cable against damage, e.g. from:

• s har p e d g e s
  hot places
• clamping or crushing

Do not use any astringent or abrasive cleaning agents.
- To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

4. Items supplied

1 Set of headphones
1 Cable with 3.5 mm stereo TRS connectors 3
1 Operating instructions

If the delivery is incomplete, the customer should contact the manufacturer.

5. Operation

• Remove all packing material.
• Check that the device is undamaged.

Connecting

1. Set the sound source to a low volume.
2. Plug one of the cable's stereo TRS connectors 3 into the socket 4 on the headphones and the other into the headphone socket of the sound source (e.g. MP3 player, telephone).

Put on the headphones

1. Put on the headphones in such a way that the marking R is on the right and L is on the left.
2. Adjust the size of the headphones to your head size by moving the two adjustable headphone earpieces 2.
3. Set the volume of the sound source. Make absolutely sure that you are still able to hear the surrounding sounds.

6. Cleaning / storing

WARNING! Risk of material damage!

Protect the device from water drops and water spray.
Do not use any astringent or abrasive cleaning agents.

• If necessary, clean the device with a soft, damp cloth.
• When no longer using the device, store it in a place where neither high temperatures nor moisture can affect it.

7. Disposal

This product is subject to the provisions of European Directive 2012/ 19/ EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with

normal household waste, but have to be taken to a collection point for recycling electric and electronic devices. This disposal is free of charge. Protect the environment and dispose of waste properly. Further information can be obtained from your local disposal service or city/ municipal administration.

Packaging

The packaging is made from recyclable materials. Dispose of the packaging sorted by materials. When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

8. Problem-solving

If your headphones fail to function as required, please try this checklist first.

Perhaps there is only a minor problem, and you can solve it yourself.

WARNING! Risk of material damage!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes / Action
No sound	Check the connection between the sound source and the headphones. Check the settings on your sound source.
Sound only on one side of the headphones	Check the balance settings on your sound source. Make sure that the cable's stereo TRS connectors 3 are fully inserted into the sockets 4 of the headphones and the sound source.

9. Technical specifications

Model: SKO 40 A1
Resistance:	32 Ω +/- 4 Ω at 1 kHz
Broadband ID voltage (WBCV): 130	mV +/- 10%
Transmission range: 20 Hz - 20 kHz
Plug: 3.5 mm TPS connector
Cable length: 1.5 m
Dimensions (W xDxH): approx. 190 x 165 x 75 mm
Weight: approx. 0.166 kg (with cable)	3)
Storage temperature: 0 - 45 °C
Maximum humidity: 85%

Subject to technical modification.

CE

Declaration of conformity

A complete declaration of conformity can be requested from

HOYER Handel GmbH, see Service Centre.

10. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use

and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 110635 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/ Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/ Min., (peak))

(0,06 EUR/ Min., (off peak))

E-Mail: [e-mail]

IAN:110635

47

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnhöfe 5

22761 Hamburg

Germany

48

HOYER HANDEL GMBH

Kühnehöfe 5

22761 Hamburg

Germany
