USER MANUAL SRGS 1300 B2 SILVERCREST

Congratulations on the purchase of your new product. You have selected a high-quality product. The operating instructions are a constituent part of this product. They contain important information about safety, use and disposal. Familiarize yourself with all the operating and safety instructions before using the product. Use the product only as described and for the stated spheres of application. If you pass the product on to a third party, always pass on all the documentation as well.

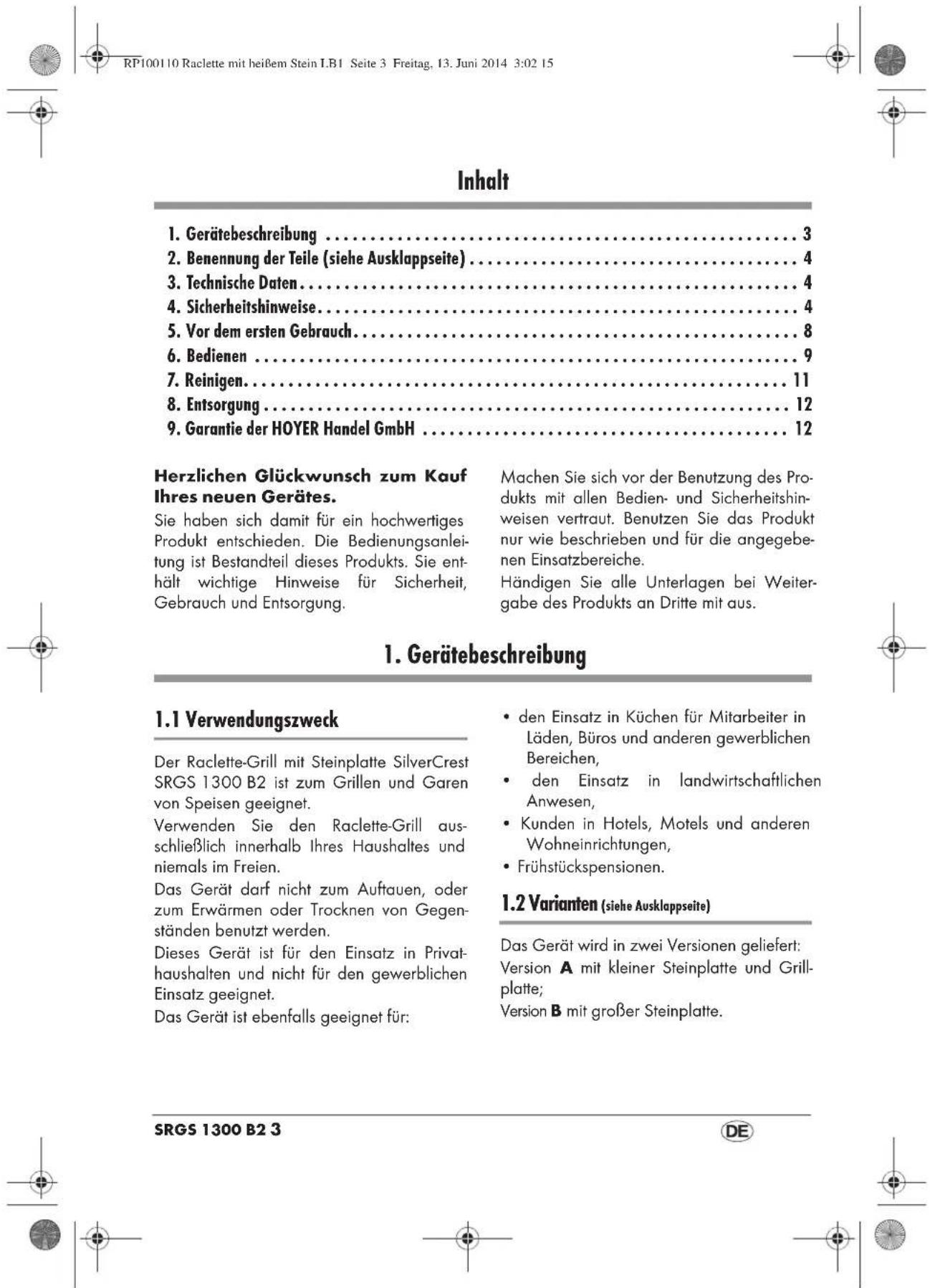

1. Appliance description

1.1 Intended purpose

The raclette with stone grill plate SilverCrest SRGS1300B2 is suitable for grilling and cooking food. Only use the raclette grill indoors, never use outside. The appliance must not be used for thawing, warming or drying items. This product is intended for use in private households and is not suitable for commercial purposes. The appliance is likewise suitable for:

• use in staff kitchens in shops, offices and other commercial areas,

• use in agricultural settings,

• customers in hotels, motels and other accommodation,

• bed-and-breakfast establishments.

1.2 Variants (see foldout)

• 1 copy of the user instructions Version A:

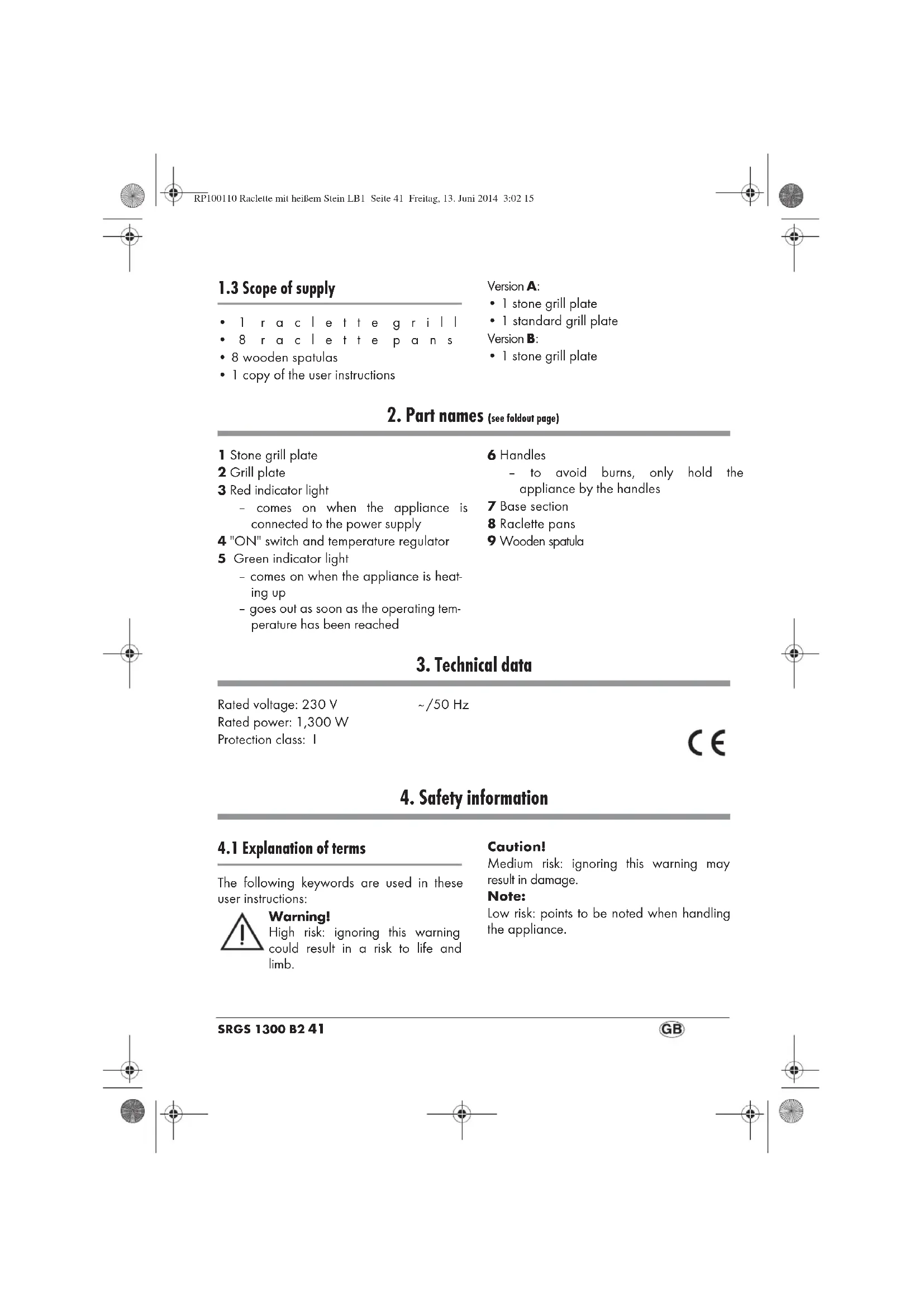

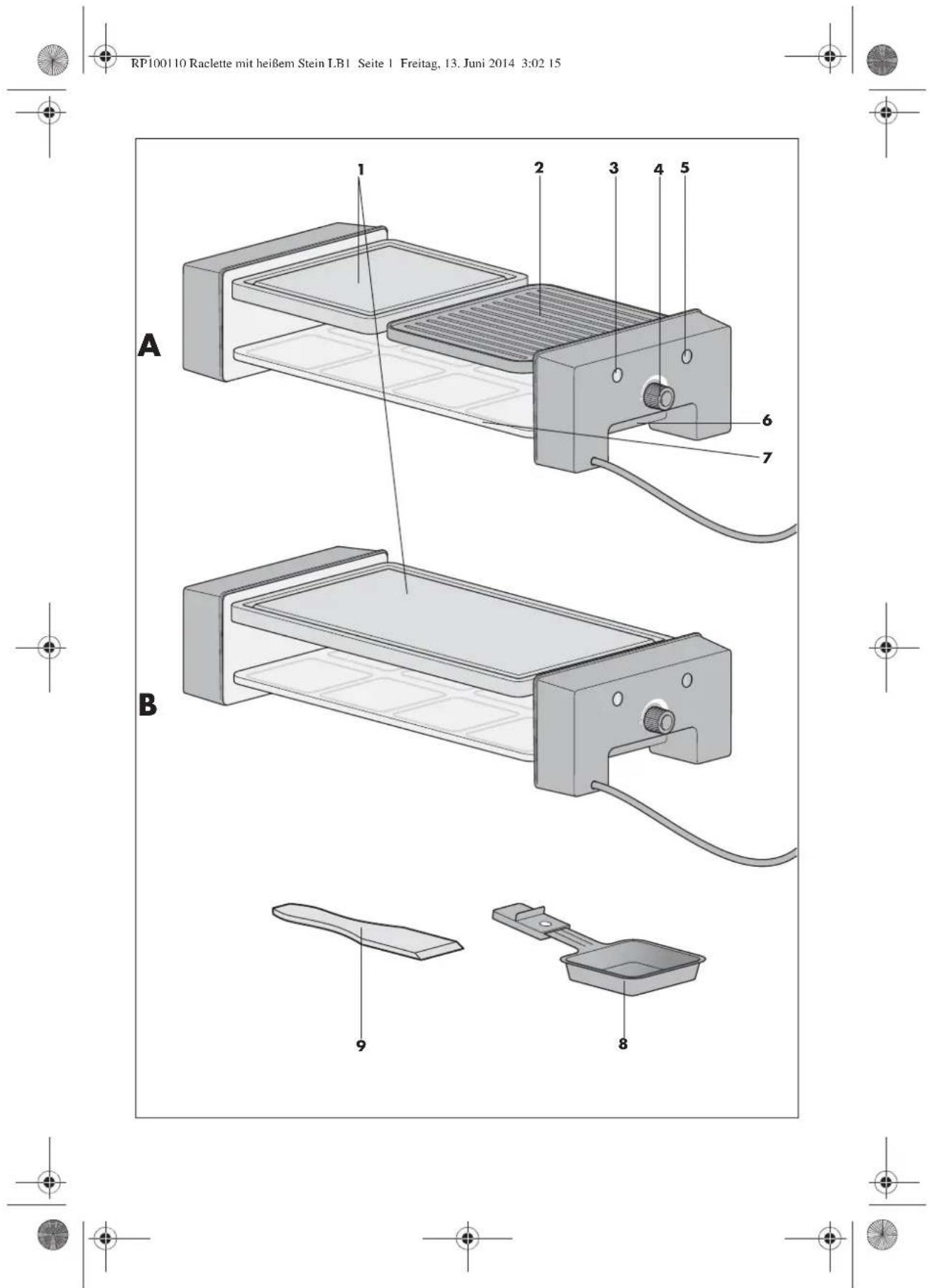

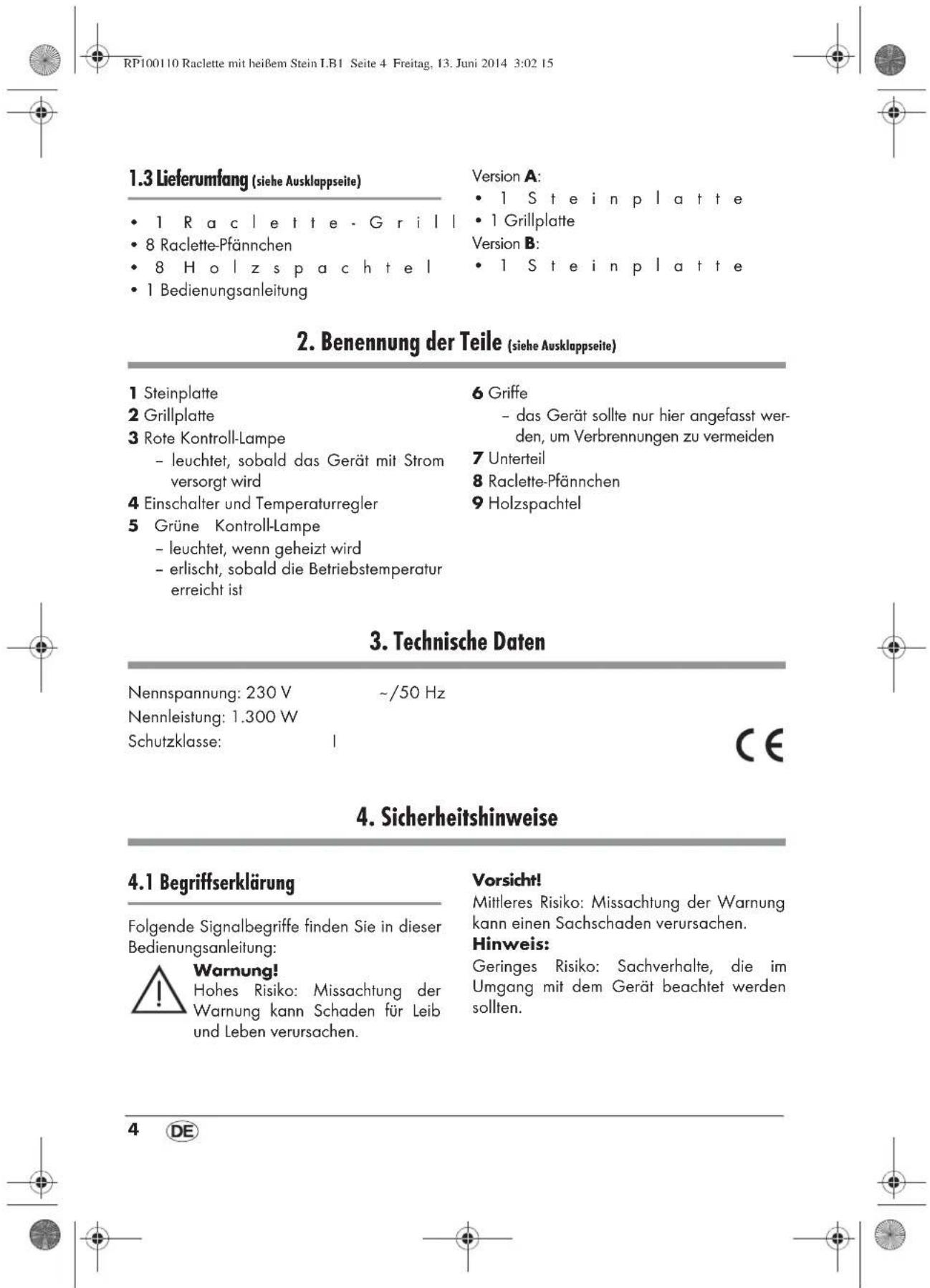

2. Part names (see foldout page)

1 Stone grill plate 2 Grill plate 3 Red indicator light – comes on when the appliance is connected to the power supply 4 "ON" switch and temperature regulator 5 Green indicator light – comes on when the appliance is heat- ing up – goes out as soon as the operating tem- perature has been reached 6 Handles – to avoid burns, only hold the appliance by the handles 7 Base section 8 Raclette pans 9 Wooden spatula

Rated voltage: 230 V

/50 Hz Rated power: 1,300 W Protection class: I

4. Safety information

4.1 Explanation of terms

The following keywords are used in these user instructions: Warning! High risk: ignoring this warning could result in a risk to life and limb. Caution! Medium risk: ignoring this warning may result in damage. Note: Low risk: points to be noted when handling the appliance. RP100110 Raclette mit heißem Stein LB1 Seite 41 Freitag, 13. Juni 2014 3:02 1542

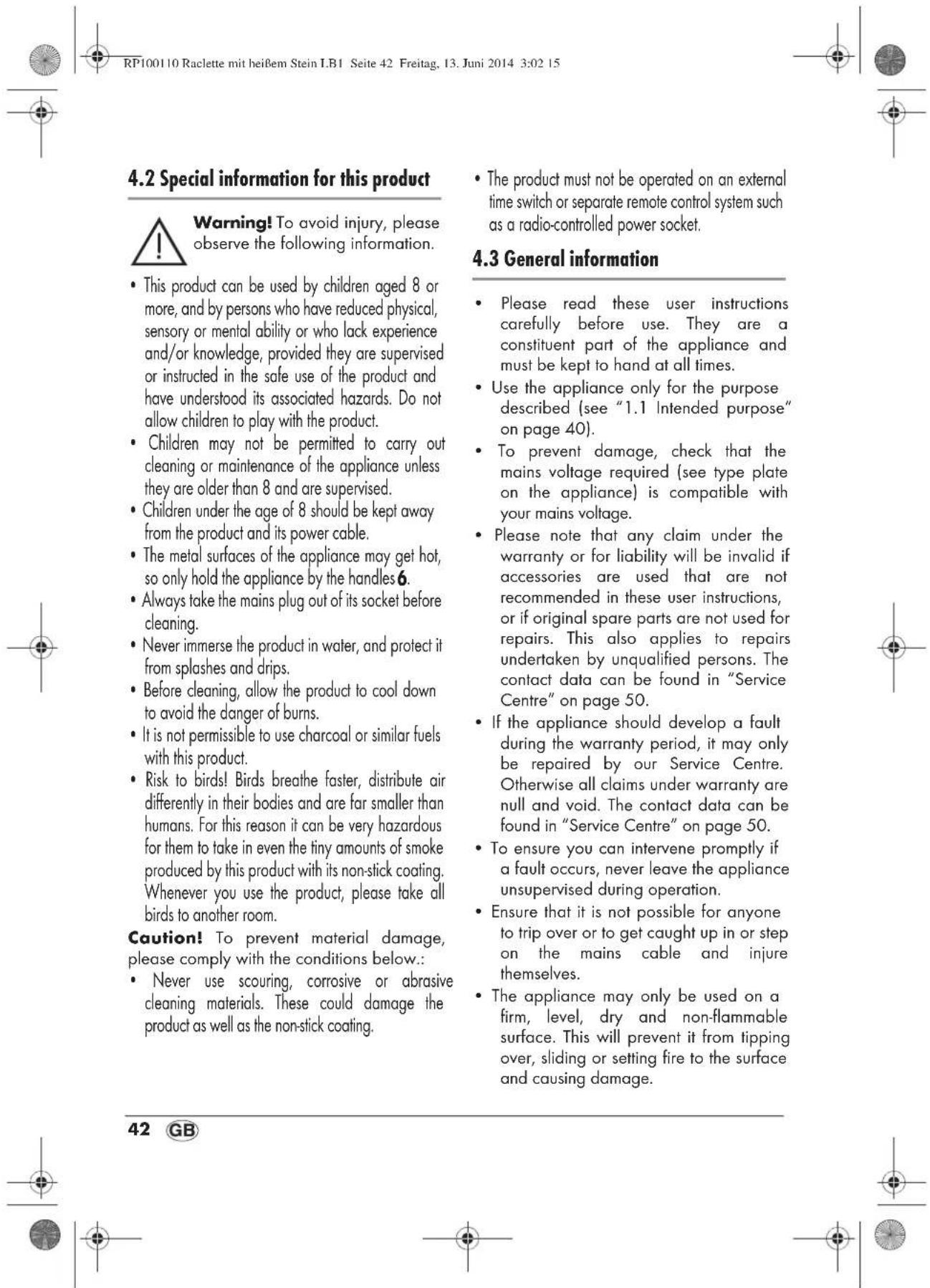

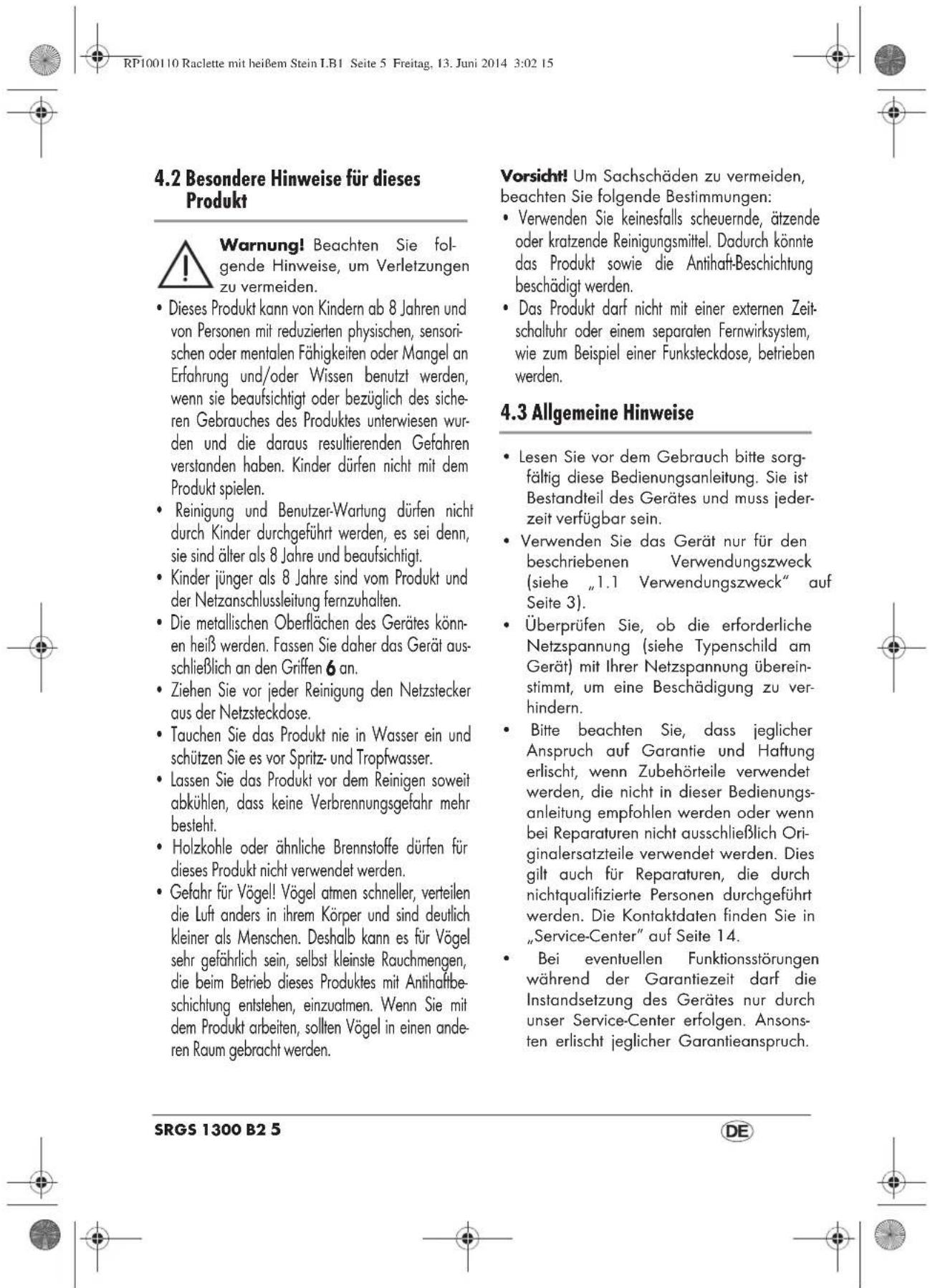

4.2 Special information for this product

Warning! To avoid injury, please observe the following information.

• This product can be used by children aged 8 or more, and by persons who have reduced physical, sensory or mental ability or who lack experience and/or knowledge, provided they are supervised or instructed in the safe use of the product and have understood its associated hazards. Do not allow children to play with the product.

• Children may not be permitted to carry out cleaning or maintenance of the appliance unless they are older than 8 and are supervised.

• Children under the age of 8 should be kept away from the product and its power cable.

• The metal surfaces of the appliance may get hot, so only hold the appliance by the handles

• Always take the mains plug out of its socket before cleaning.

• Never immerse the product in water, and protect it from splashes and drips.

• Before cleaning, allow the product to cool down to avoid the danger of burns.

• It is not permissible to use charcoal or similar fuels with this product.

• Risk to birds! Birds breathe faster, distribute air differently in their bodies and are far smaller than humans. For this reason it can be very hazardous for them to take in even the tiny amounts of smoke produced by this product with its non-stick coating. Whenever you use the product, please take all birds to another room. Caution! To prevent material damage, please comply with the conditions below.:

• Never use scouring, corrosive or abrasive cleaning materials. These could damage the product as well as the non-stick coating.

• The product must not be operated on an external time switch or separate remote control system such as a radio-controlled power socket.

4.3 General information

• Please read these user instructions carefully before use. They are a constituent part of the appliance and must be kept to hand at all times.

• Use the appliance only for the purpose described (see “1.1 Intended purpose” on page 40).

• To prevent damage, check that the mains voltage required (see type plate on the appliance) is compatible with your mains voltage.

• Please note that any claim under the warranty or for liability will be invalid if accessories are used that are not recommended in these user instructions, or if original spare parts are not used for repairs. This also applies to repairs undertaken by unqualified persons. The contact data can be found in “Service Centre” on page 50.

• If the appliance should develop a fault during the warranty period, it may only be repaired by our Service Centre. Otherwise all claims under warranty are null and void. The contact data can be found in “Service Centre” on page 50.

• To ensure you can intervene promptly if a fault occurs, never leave the appliance unsupervised during operation.

• Ensure that it is not possible for anyone to trip over or to get caught up in or step on the mains cable and injure themselves.

• The appliance may only be used on a firm, level, dry and non-flammable surface. This will prevent it from tipping over, sliding or setting fire to the surface and causing damage. RP100110 Raclette mit heißem Stein LB1 Seite 42 Freitag, 13. Juni 2014 3:02 15SRGS1300B2 43

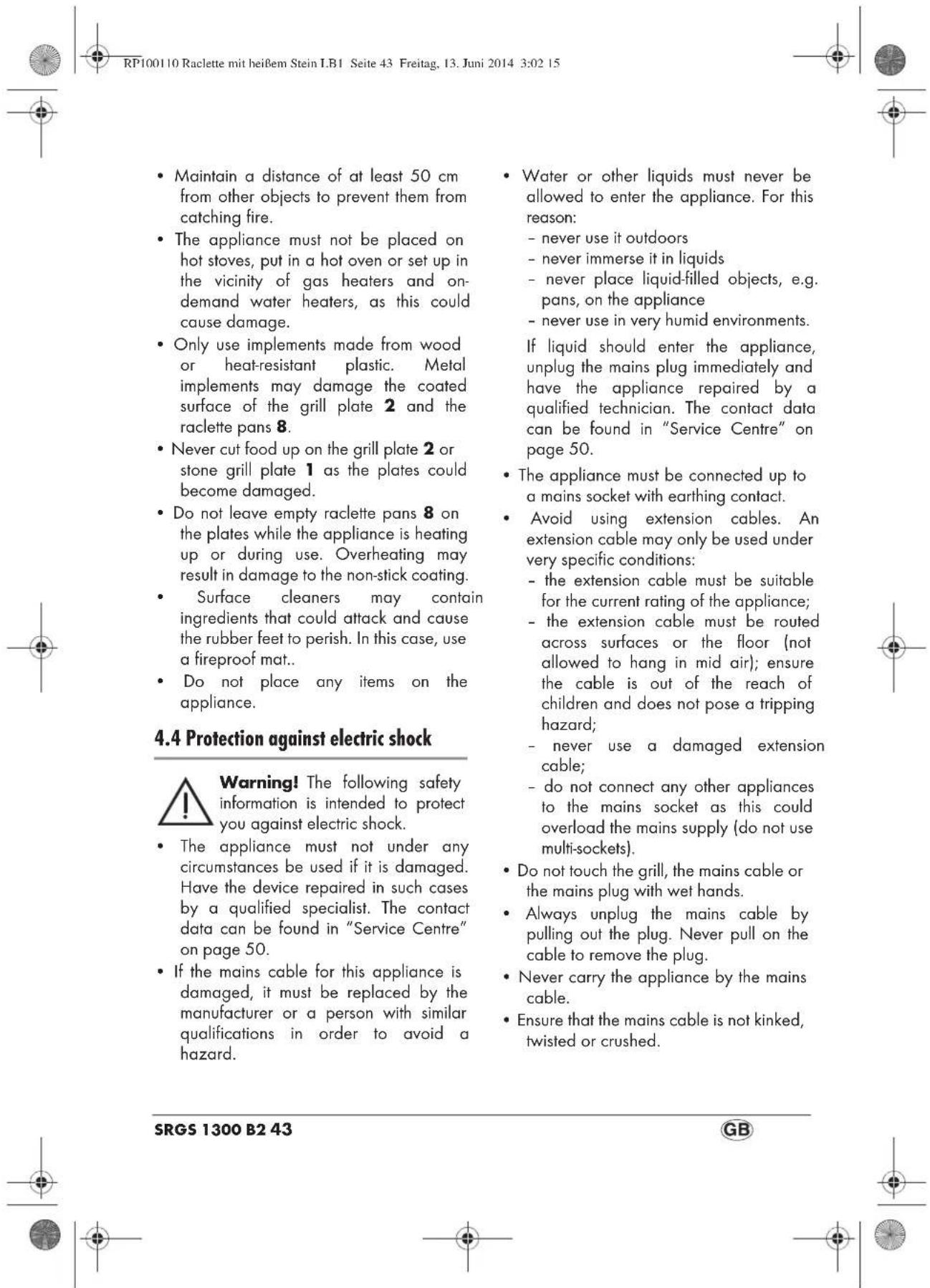

• Maintain a distance of at least 50 cm from other objects to prevent them from catching fire.

• The appliance must not be placed on hot stoves, put in a hot oven or set up in the vicinity of gas heaters and on- demand water heaters, as this could cause damage.

• Only use implements made from wood or heat-resistant plastic. Metal implements may damage the coated surface of the grill plate 2 and the raclette pans 8.

• Never cut food up on the grill plate 2 or stone grill plate 1 as the plates could become damaged.

• Do not leave empty raclette pans 8 on the plates while the appliance is heating up or during use. Overheating may result in damage to the non-stick coating.

• Surface cleaners may contain ingredients that could attack and cause the rubber feet to perish. In this case, use a fireproof mat..

• Do not place any items on the appliance.

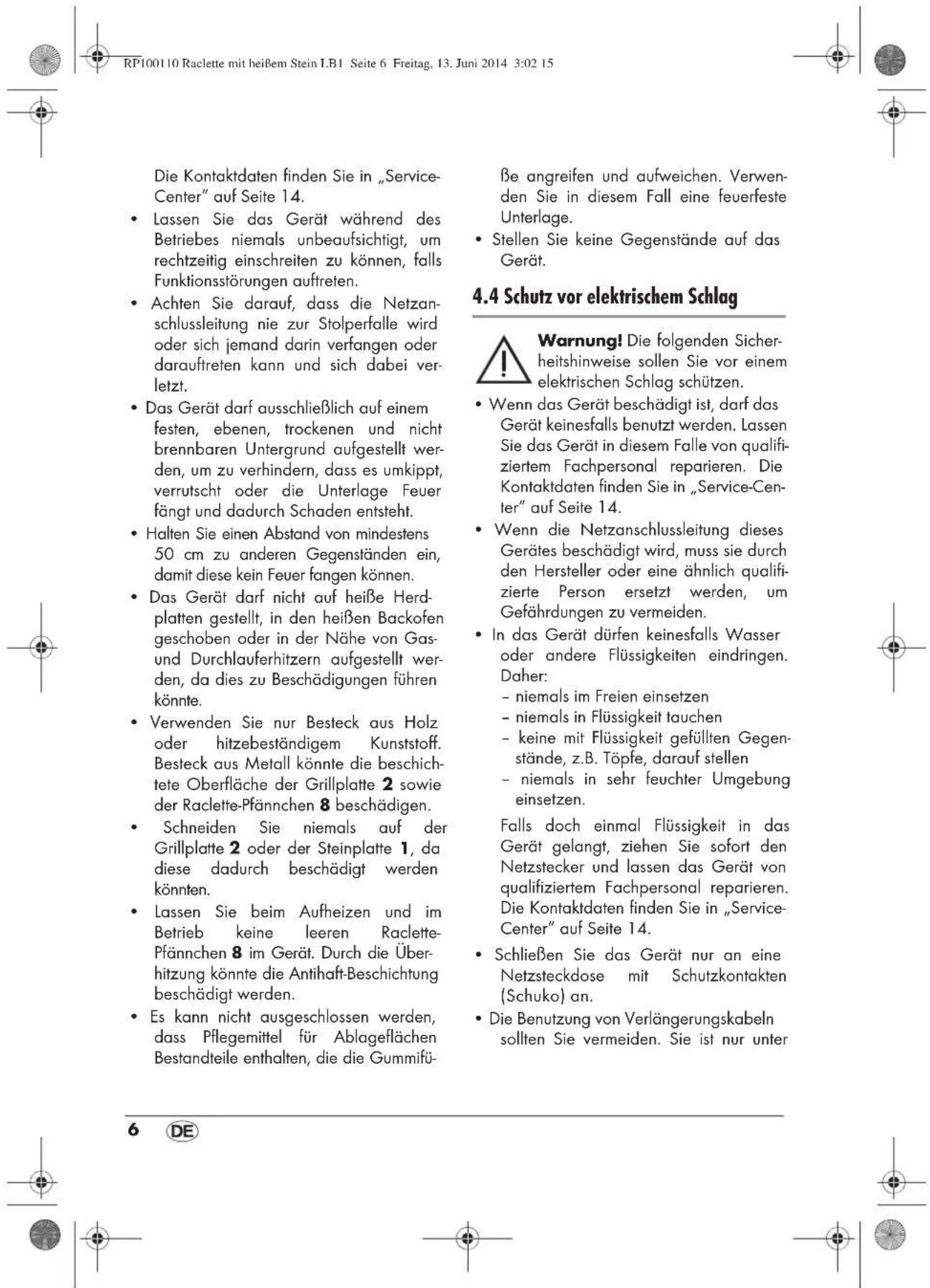

4.4 Protection against electric shock

Warning! The following safety information is intended to protect you against electric shock.

• The appliance must not under any circumstances be used if it is damaged. Have the device repaired in such cases by a qualified specialist. The contact data can be found in “Service Centre” on page 50.

• If the mains cable for this appliance is damaged, it must be replaced by the manufacturer or a person with similar qualifications in order to avoid a hazard.

• Water or other liquids must never be allowed to enter the appliance. For this reason: – never use it outdoors – never immerse it in liquids – never place liquid-filled objects, e.g. pans, on the appliance – never use in very humid environments. If liquid should enter the appliance, unplug the mains plug immediately and have the appliance repaired by a qualified technician. The contact data can be found in “Service Centre” on page 50.

• The appliance must be connected up to a mains socket with earthing contact.

• Avoid using extension cables. An extension cable may only be used under very specific conditions: – the extension cable must be suitable for the current rating of the appliance; – the extension cable must be routed across surfaces or the floor (not allowed to hang in mid air); ensure the cable is out of the reach of children and does not pose a tripping hazard; – never use a damaged extension cable; – do not connect any other appliances to the mains socket as this could overload the mains supply (do not use multi-sockets).

• Do not touch the grill, the mains cable or the mains plug with wet hands.

• Always unplug the mains cable by pulling out the plug. Never pull on the cable to remove the plug.

• Never carry the appliance by the mains cable.

• Ensure that the mains cable is not kinked, twisted or crushed. RP100110 Raclette mit heißem Stein LB1 Seite 43 Freitag, 13. Juni 2014 3:02 1544

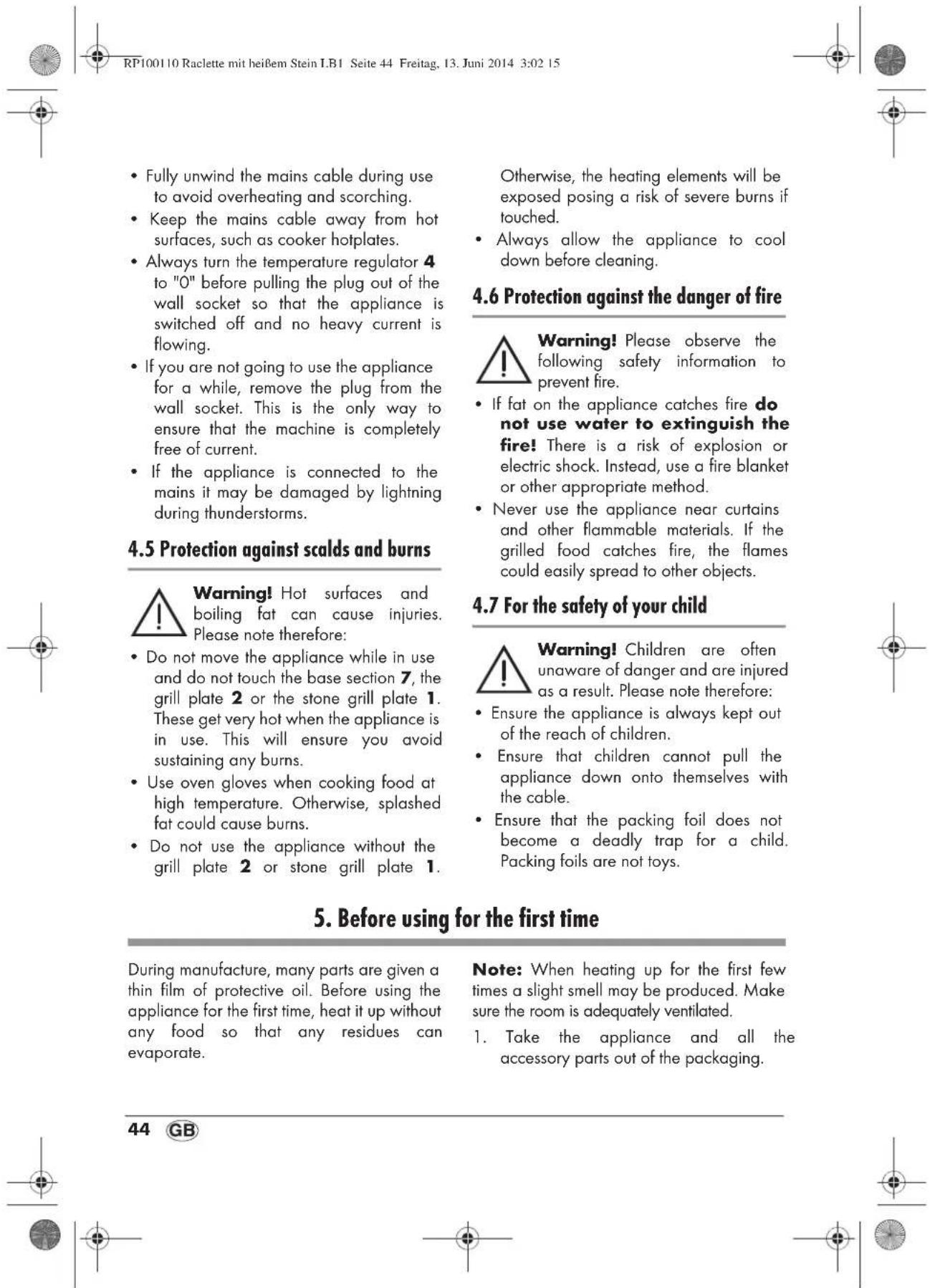

• Fully unwind the mains cable during use to avoid overheating and scorching.

• Keep the mains cable away from hot surfaces, such as cooker hotplates.

• Always turn the temperature regulator 4 to "0" before pulling the plug out of the wall socket so that the appliance is switched off and no heavy current is flowing.

• If you are not going to use the appliance for a while, remove the plug from the wall socket. This is the only way to ensure that the machine is completely free of current.

• If the appliance is connected to the mains it may be damaged by lightning during thunderstorms.

4.5 Protection against scalds and burns

Warning! Hot surfaces and boiling fat can cause injuries. Please note therefore:

• Do not move the appliance while in use and do not touch the base section 7, the grill plate 2 or the stone grill plate 1. These get very hot when the appliance is in use. This will ensure you avoid sustaining any burns.

• Use oven gloves when cooking food at high temperature. Otherwise, splashed fat could cause burns.

• Do not use the appliance without the grill plate 2 or stone grill plate 1. Otherwise, the heating elements will be exposed posing a risk of severe burns if touched.

• Always allow the appliance to cool down before cleaning.

4.6 Protection against the danger of fire

Warning! Please observe the following safety information to prevent fire.

• If fat on the appliance catches fire do not use water to extinguish the fire! There is a risk of explosion or electric shock. Instead, use a fire blanket or other appropriate method.

• Never use the appliance near curtains and other flammable materials. If the grilled food catches fire, the flames could easily spread to other objects.

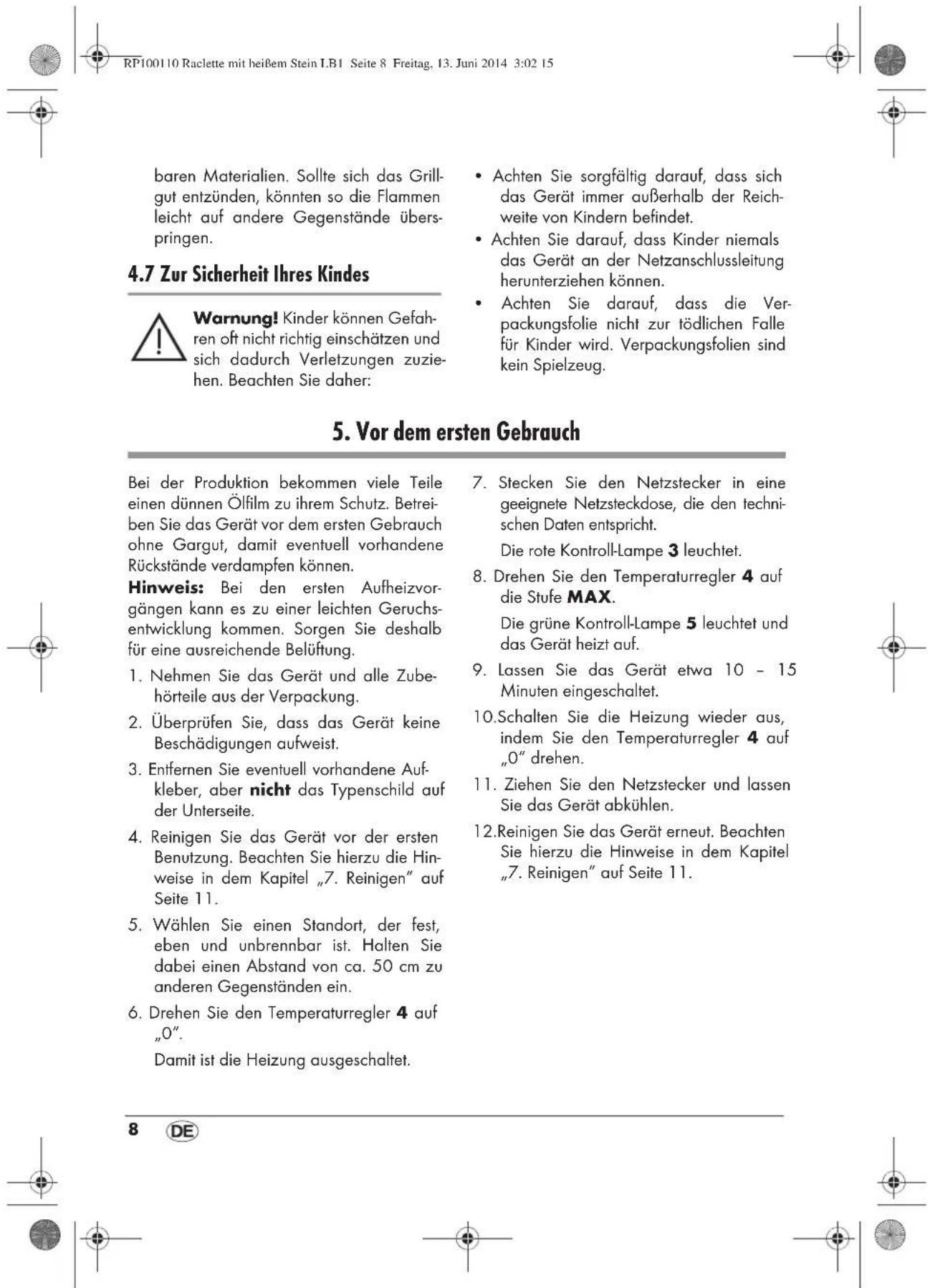

4.7 For the safety of your child

Warning! Children are often unaware of danger and are injured as a result. Please note therefore:

• Ensure the appliance is always kept out of the reach of children.

• Ensure that children cannot pull the appliance down onto themselves with the cable.

• Ensure that the packing foil does not become a deadly trap for a child. Packing foils are not toys.

5. Before using for the first time

During manufacture, many parts are given a thin film of protective oil. Before using the appliance for the first time, heat it up without any food so that any residues can evaporate. Note: When heating up for the first few times a slight smell may be produced. Make sure the room is adequately ventilated.

1. Take the appliance and all the

accessory parts out of the packaging. RP100110 Raclette mit heißem Stein LB1 Seite 44 Freitag, 13. Juni 2014 3:02 15SRGS1300B2 45

2. Check that the appliance shows no signs

the type plate on the underside).

4. Clean the appliance before using it for

the first time. Observe the information in the section entitled “7. Cleaning” on page 48.

5. Select a location that is firm, level and

not flammable. Maintain a distance of approx. 50 cm from other objects.

6. Turn the temperature regulator 4 to "0".

This switches the heater off.

7. Insert the mains plug into a suitable wall

socket which complies with the technical data. The red indicator light 3 comes on.

8. Turn the temperature regulator 4 to

MAX. The green indicator light 5 lights up, and the appliance starts to heat up.

9. Leave the appliance switched on for

around 10 - 15 minutes. 10.Switch the heater off by turning the temperature regulator 4 to "0".

11. Take out the mains plug and allow the

appliance to cool down. 12.Clean the appliance again. Observe the information in the section entitled “7. Cleaning” on page 48.

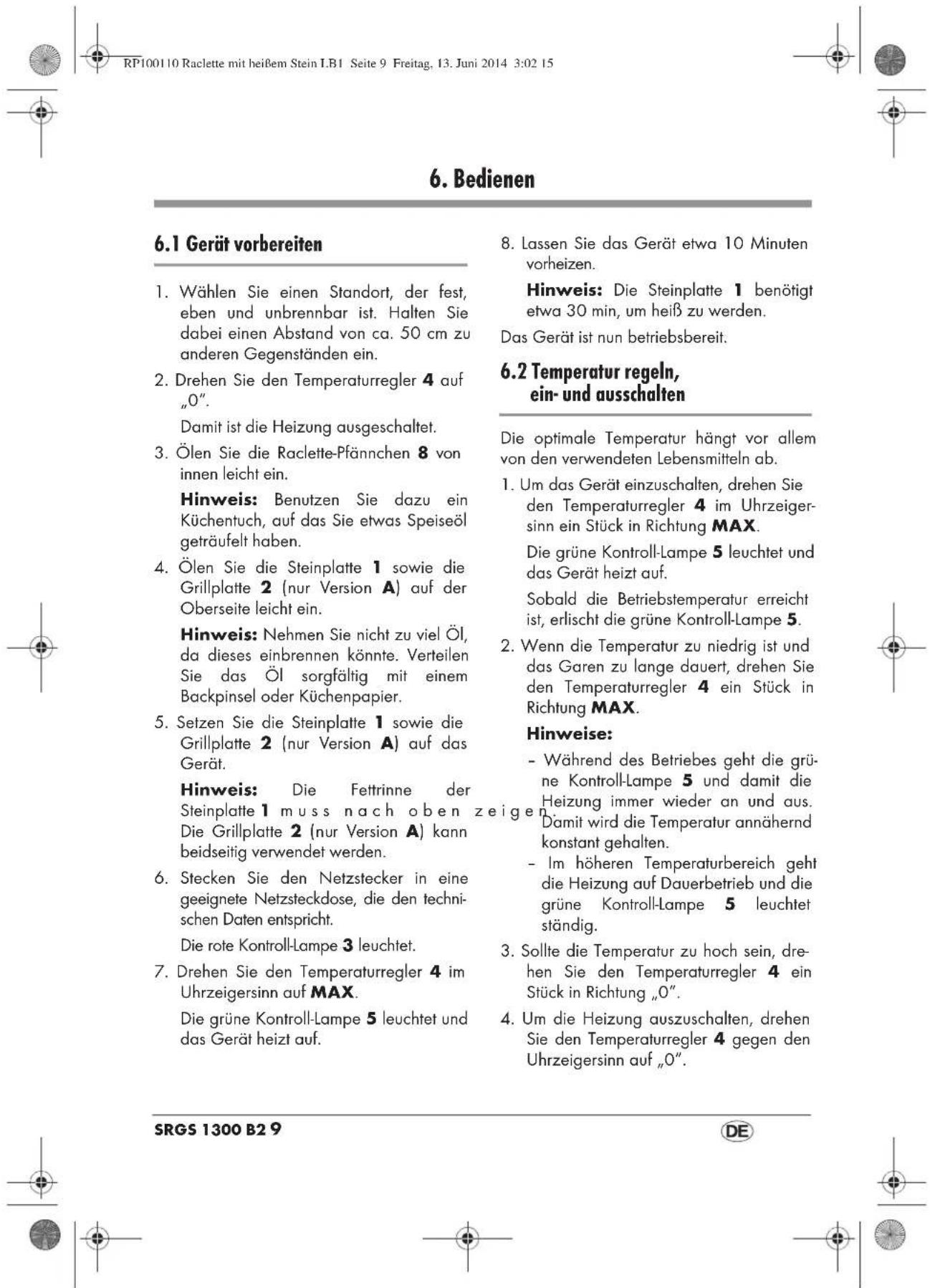

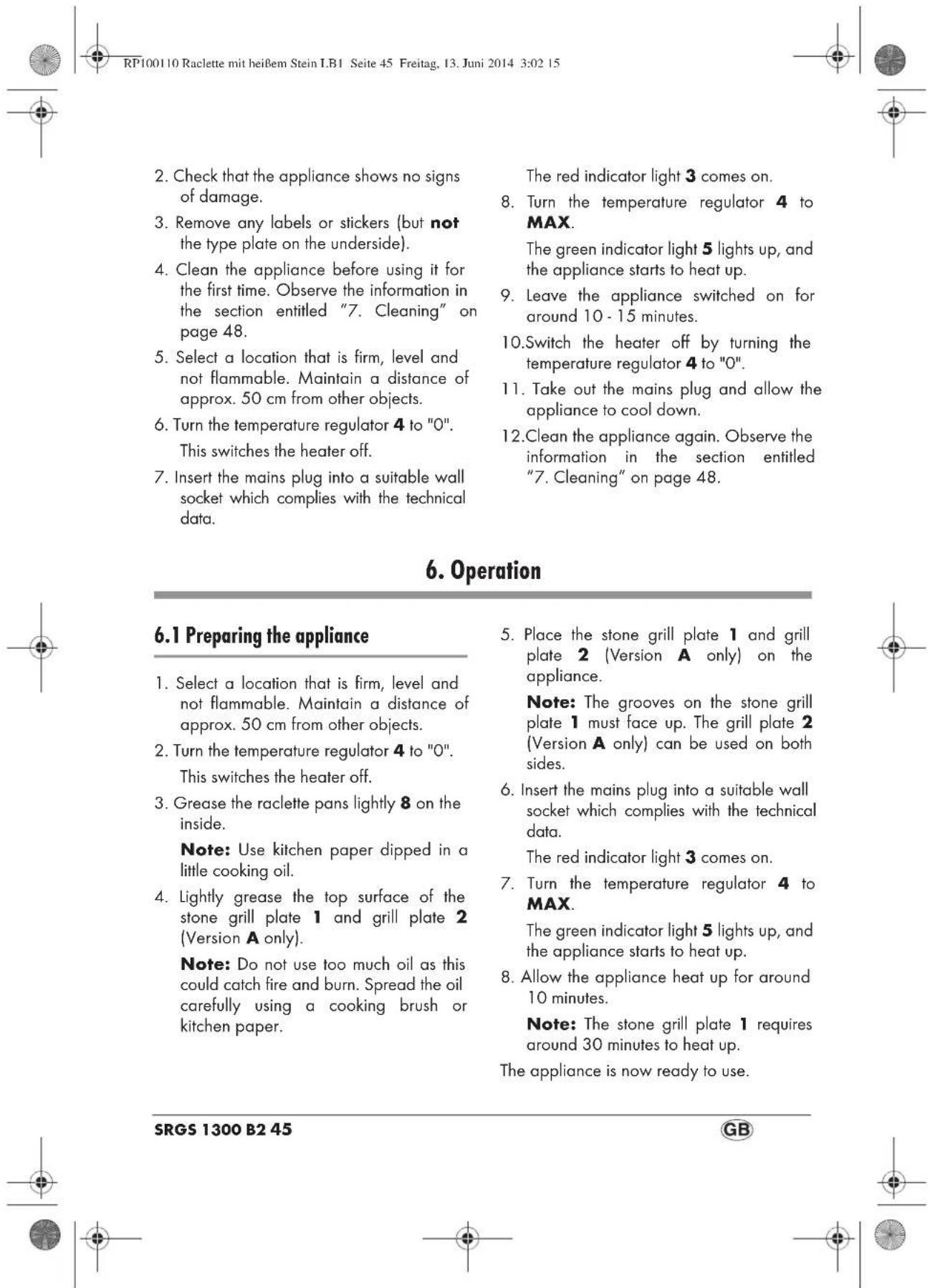

6.1 Preparing the appliance

1. Select a location that is firm, level and

not flammable. Maintain a distance of approx. 50 cm from other objects.

2. Turn the temperature regulator 4 to "0".

This switches the heater off.

3. Grease the raclette pans lightly 8 on the

inside. Note: Use kitchen paper dipped in a little cooking oil.

4. Lightly grease the top surface of the

stone grill plate 1 and grill plate 2 (Version A only). Note: Do not use too much oil as this could catch fire and burn. Spread the oil carefully using a cooking brush or kitchen paper.

5. Place the stone grill plate 1 and grill

plate 2 (Version A only) on the appliance. Note: The grooves on the stone grill plate 1 must face up. The grill plate 2 (Version A only) can be used on both sides.

6. Insert the mains plug into a suitable wall

socket which complies with the technical data. The red indicator light 3 comes on.

7. Turn the temperature regulator 4 to

MAX. The green indicator light 5 lights up, and the appliance starts to heat up.

8. Allow the appliance heat up for around

10 minutes. Note: The stone grill plate 1 requires around 30 minutes to heat up. The appliance is now ready to use. RP100110 Raclette mit heißem Stein LB1 Seite 45 Freitag, 13. Juni 2014 3:02 1546

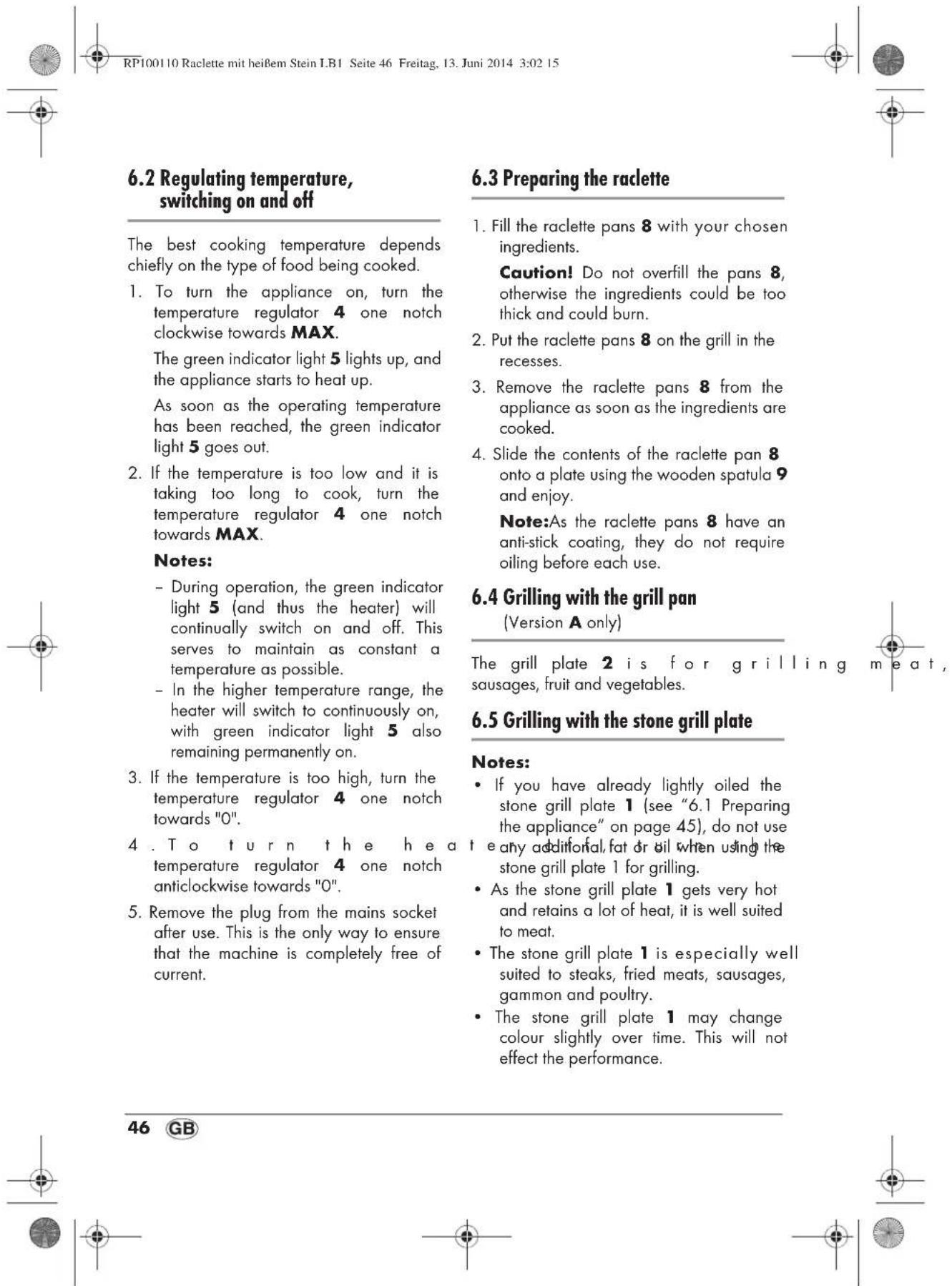

6.2 Regulating temperature,

switching on and off The best cooking temperature depends chiefly on the type of food being cooked.

1. To turn the appliance on, turn the

temperature regulator 4 one notch clockwise towards MAX. The green indicator light 5 lights up, and the appliance starts to heat up. As soon as the operating temperature has been reached, the green indicator light 5 goes out.

2. If the temperature is too low and it is

taking too long to cook, turn the temperature regulator 4 one notch towards MAX. Notes: – During operation, the green indicator light 5 (and thus the heater) will continually switch on and off. This serves to maintain as constant a temperature as possible. – In the higher temperature range, the heater will switch to continuously on, with green indicator light 5 also remaining permanently on.

3. If the temperature is too high, turn the

temperature regulator 4 one notch towards "0". 4.To turn the heater off, turn the temperature regulator 4 one notch anticlockwise towards "0".

5. Remove the plug from the mains socket

after use. This is the only way to ensure that the machine is completely free of current.

6.3 Preparing the raclette

1. Fill the raclette pans 8 with your chosen

ingredients. Caution! Do not overfill the pans 8, otherwise the ingredients could be too thick and could burn.

2. Put the raclette pans 8 on the grill in the

3. Remove the raclette pans 8 from the

appliance as soon as the ingredients are cooked.

4. Slide the contents of the raclette pan 8

onto a plate using the wooden spatula 9 and enjoy. Note:As the raclette pans 8 have an anti-stick coating, they do not require oiling before each use.

6.4 Grilling with the grill pan

(Version A only) The grill plate 2 is for grilling meat, sausages, fruit and vegetables.

6.5 Grilling with the stone grill plate

• If you have already lightly oiled the stone grill plate 1 (see “6.1 Preparing the appliance” on page 45), do not use any additional fat or oil when using the stone grill plate 1 for grilling.

• As the stone grill plate 1 gets very hot and retains a lot of heat, it is well suited to meat.

• The stone grill plate 1 is especially well suited to steaks, fried meats, sausages, gammon and poultry.

• The stone grill plate 1 may change colour slightly over time. This will not effect the performance. RP100110 Raclette mit heißem Stein LB1 Seite 46 Freitag, 13. Juni 2014 3:02 15SRGS1300B2 47

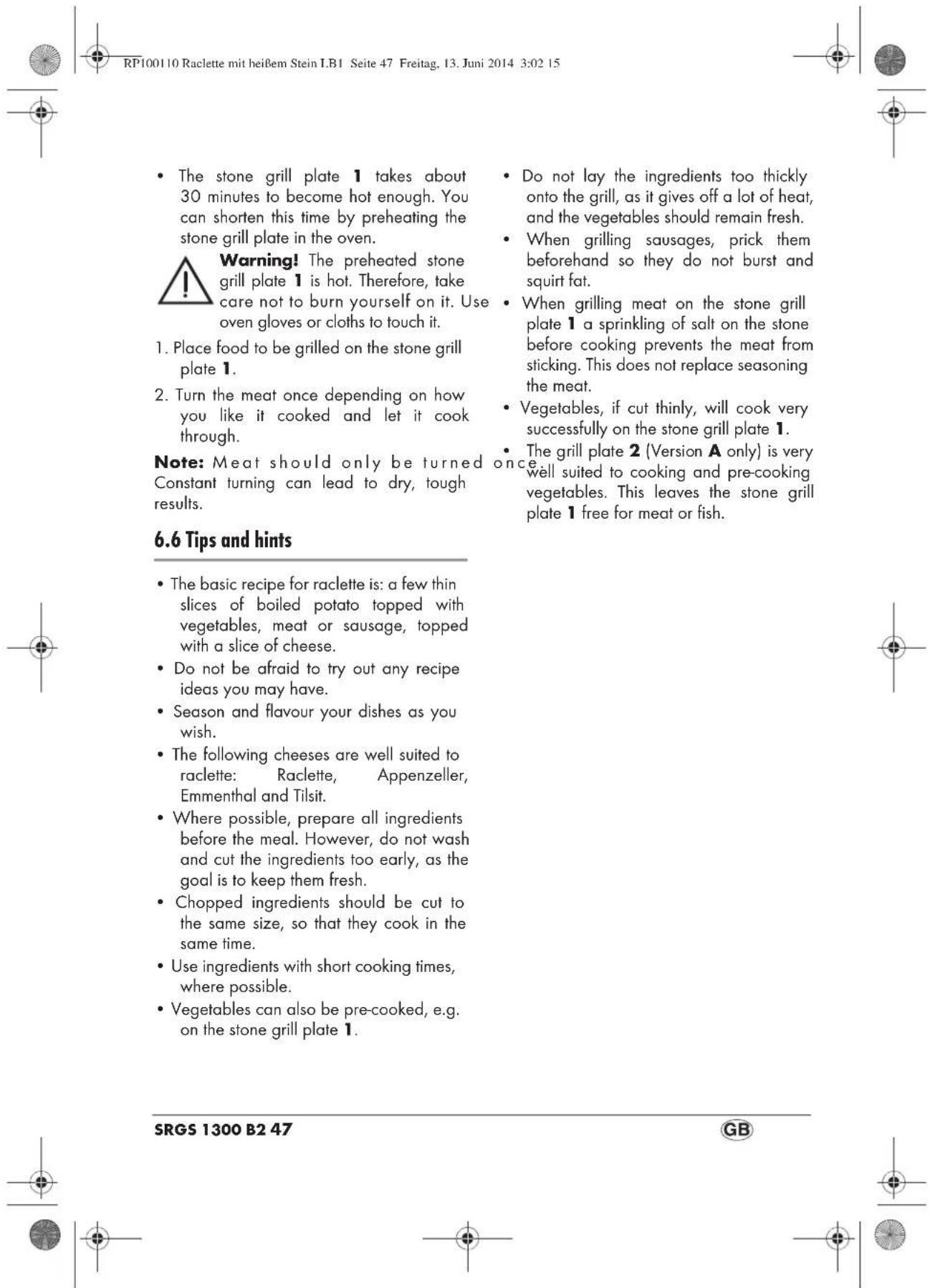

• The stone grill plate 1 takes about 30 minutes to become hot enough. You can shorten this time by preheating the stone grill plate in the oven. Warning! The preheated stone grill plate 1 is hot. Therefore, take care not to burn yourself on it. Use oven gloves or cloths to touch it.

1. Place food to be grilled on the stone grill

2. Turn the meat once depending on how

you like it cooked and let it cook through. Note: Meat should only be turned once. Constant turning can lead to dry, tough results.

• The basic recipe for raclette is: a few thin slices of boiled potato topped with vegetables, meat or sausage, topped with a slice of cheese.

• Do not be afraid to try out any recipe ideas you may have.

• Season and flavour your dishes as you wish.

• The following cheeses are well suited to raclette: Raclette, Appenzeller, Emmenthal and Tilsit.

• Where possible, prepare all ingredients before the meal. However, do not wash and cut the ingredients too early, as the goal is to keep them fresh.

• Chopped ingredients should be cut to the same size, so that they cook in the same time.

• Use ingredients with short cooking times, where possible.

• Vegetables can also be pre-cooked, e.g. on the stone grill plate 1.

• Do not lay the ingredients too thickly onto the grill, as it gives off a lot of heat, and the vegetables should remain fresh.

• When grilling sausages, prick them beforehand so they do not burst and squirt fat.

• When grilling meat on the stone grill plate 1 a sprinkling of salt on the stone before cooking prevents the meat from sticking. This does not replace seasoning the meat.

• Vegetables, if cut thinly, will cook very successfully on the stone grill plate 1.

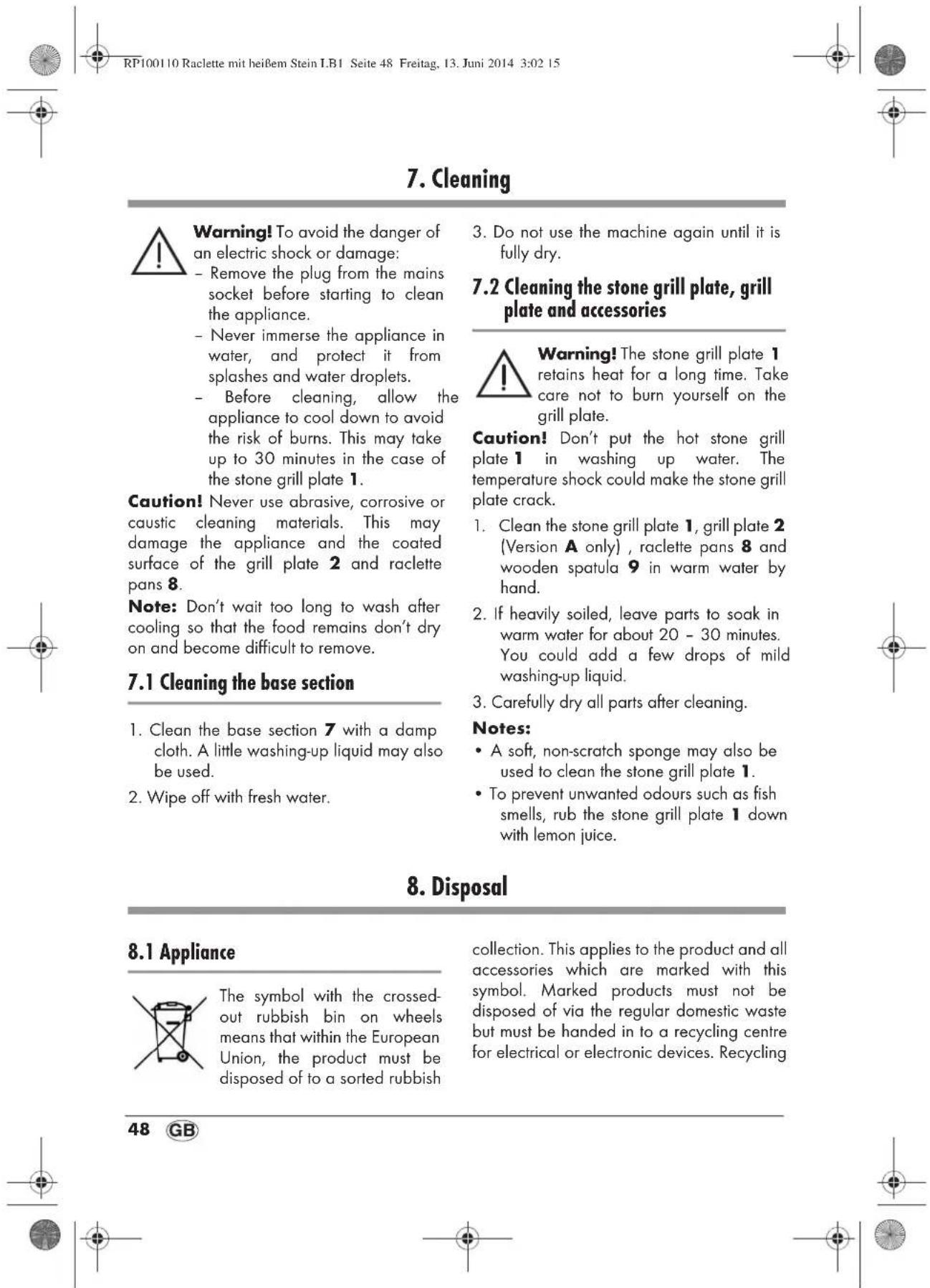

Warning! To avoid the danger of an electric shock or damage: – Remove the plug from the mains socket before starting to clean the appliance. – Never immerse the appliance in water, and protect it from splashes and water droplets. – Before cleaning, allow the appliance to cool down to avoid the risk of burns. This may take up to 30 minutes in the case of the stone grill plate 1. Caution! Never use abrasive, corrosive or caustic cleaning materials. This may damage the appliance and the coated surface of the grill plate 2 and raclette pans 8. Note: Don’t wait too long to wash after cooling so that the food remains don’t dry on and become difficult to remove.

7.1 Cleaning the base section

1. Clean the base section 7 with a damp

cloth. A little washing-up liquid may also be used.

2. Wipe off with fresh water.

3. Do not use the machine again until it is

plate and accessories Warning! The stone grill plate 1 retains heat for a long time. Take care not to burn yourself on the grill plate. Caution! Don’t put the hot stone grill plate 1 in washing up water. The temperature shock could make the stone grill plate crack.

1. Clean the stone grill plate 1, grill plate 2

(Version A only) , raclette pans 8 and wooden spatula 9 in warm water by hand.

2. If heavily soiled, leave parts to soak in

warm water for about 20 – 30 minutes. You could add a few drops of mild washing-up liquid.

3. Carefully dry all parts after cleaning.

• A soft, non-scratch sponge may also be used to clean the stone grill plate 1.

• To prevent unwanted odours such as fish smells, rub the stone grill plate 1 down with lemon juice.

The symbol with the crossed- out rubbish bin on wheels means that within the European Union, the product must be disposed of to a sorted rubbish collection. This applies to the product and all accessories which are marked with this symbol. Marked products must not be disposed of via the regular domestic waste but must be handed in to a recycling centre for electrical or electronic devices. Recycling RP100110 Raclette mit heißem Stein LB1 Seite 48 Freitag, 13. Juni 2014 3:02 15SRGS1300B2 49 helps to reduce the use of raw materials and to relieve the environment. It is therefore imperative that you follow the disposal regulations applicable in your country.

If you wish to discard the packaging, please observe the applicable environmental regulations in your country.

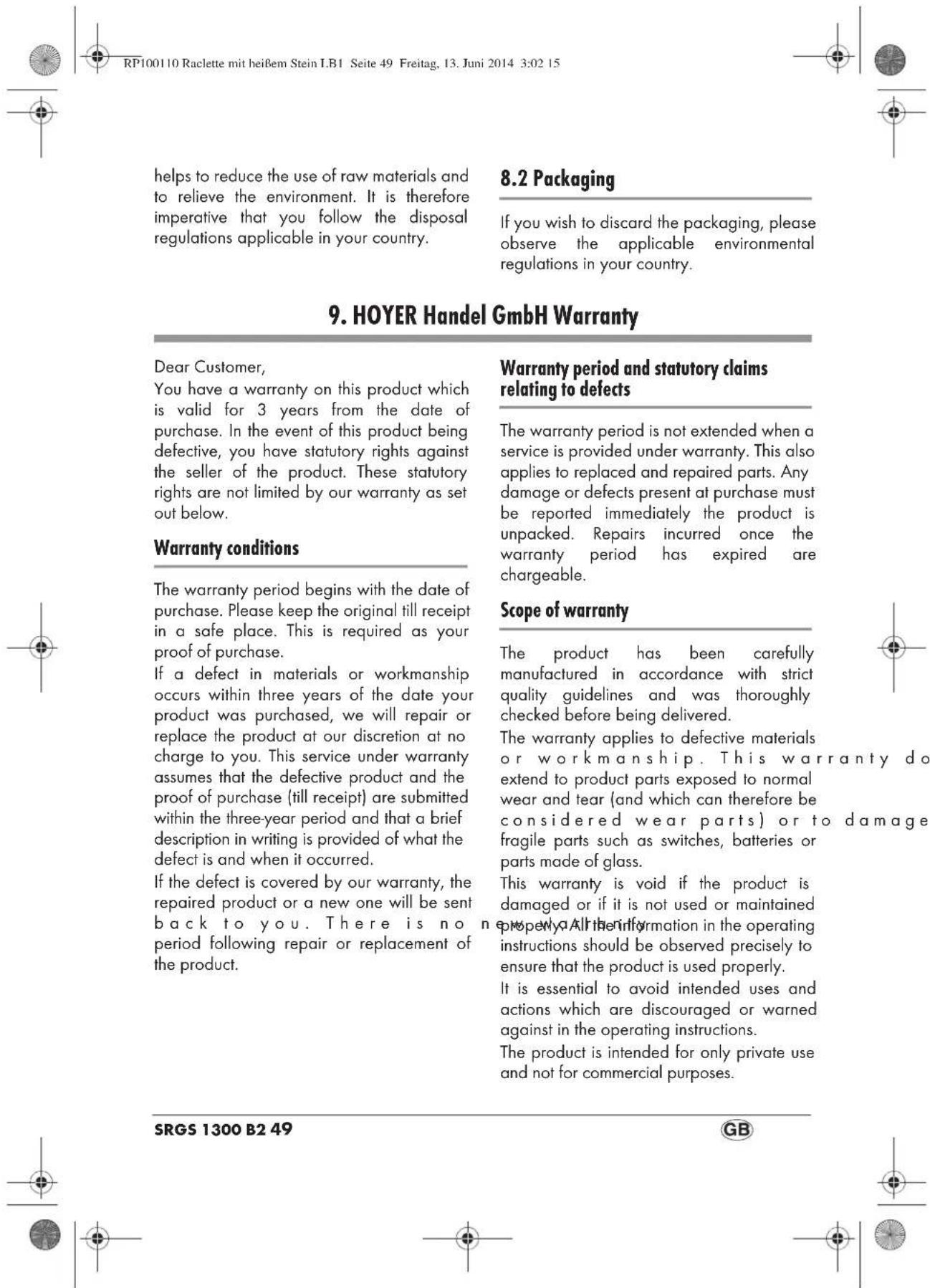

9. HOYER Handel GmbH Warranty

Dear Customer, You have a warranty on this product which is valid for 3 years from the date of purchase. In the event of this product being defective, you have statutory rights against the seller of the product. These statutory rights are not limited by our warranty as set out below. Warranty conditions The warranty period begins with the date of purchase. Please keep the original till receipt in a safe place. This is required as your proof of purchase. If a defect in materials or workmanship occurs within three years of the date your product was purchased, we will repair or replace the product at our discretion at no charge to you. This service under warranty assumes that the defective product and the proof of purchase (till receipt) are submitted within the three-year period and that a brief description in writing is provided of what the defect is and when it occurred. If the defect is covered by our warranty, the repaired product or a new one will be sent back to you. There is no new warranty period following repair or replacement of the product. Warranty period and statutory claims relating to defects The warranty period is not extended when a service is provided under warranty. This also applies to replaced and repaired parts. Any damage or defects present at purchase must be reported immediately the product is unpacked. Repairs incurred once the warranty period has expired are chargeable. Scope of warranty The product has been carefully manufactured in accordance with strict quality guidelines and was thoroughly checked before being delivered. The warranty applies to defective materials or workmanship. This warranty does not extend to product parts exposed to normal wear and tear (and which can therefore be considered wear parts) or to damage to fragile parts such as switches, batteries or parts made of glass. This warranty is void if the product is damaged or if it is not used or maintained properly. All the information in the operating instructions should be observed precisely to ensure that the product is used properly. It is essential to avoid intended uses and actions which are discouraged or warned against in the operating instructions. The product is intended for only private use and not for commercial purposes. RP100110 Raclette mit heißem Stein LB1 Seite 49 Freitag, 13. Juni 2014 3:02 1550 The warranty is void in the event of misuse, incorrect treatment, use of force or interference by anyone other than our authorized service centre. Warranty process Please follow the instructions below to ensure that your claim is processed quickly.

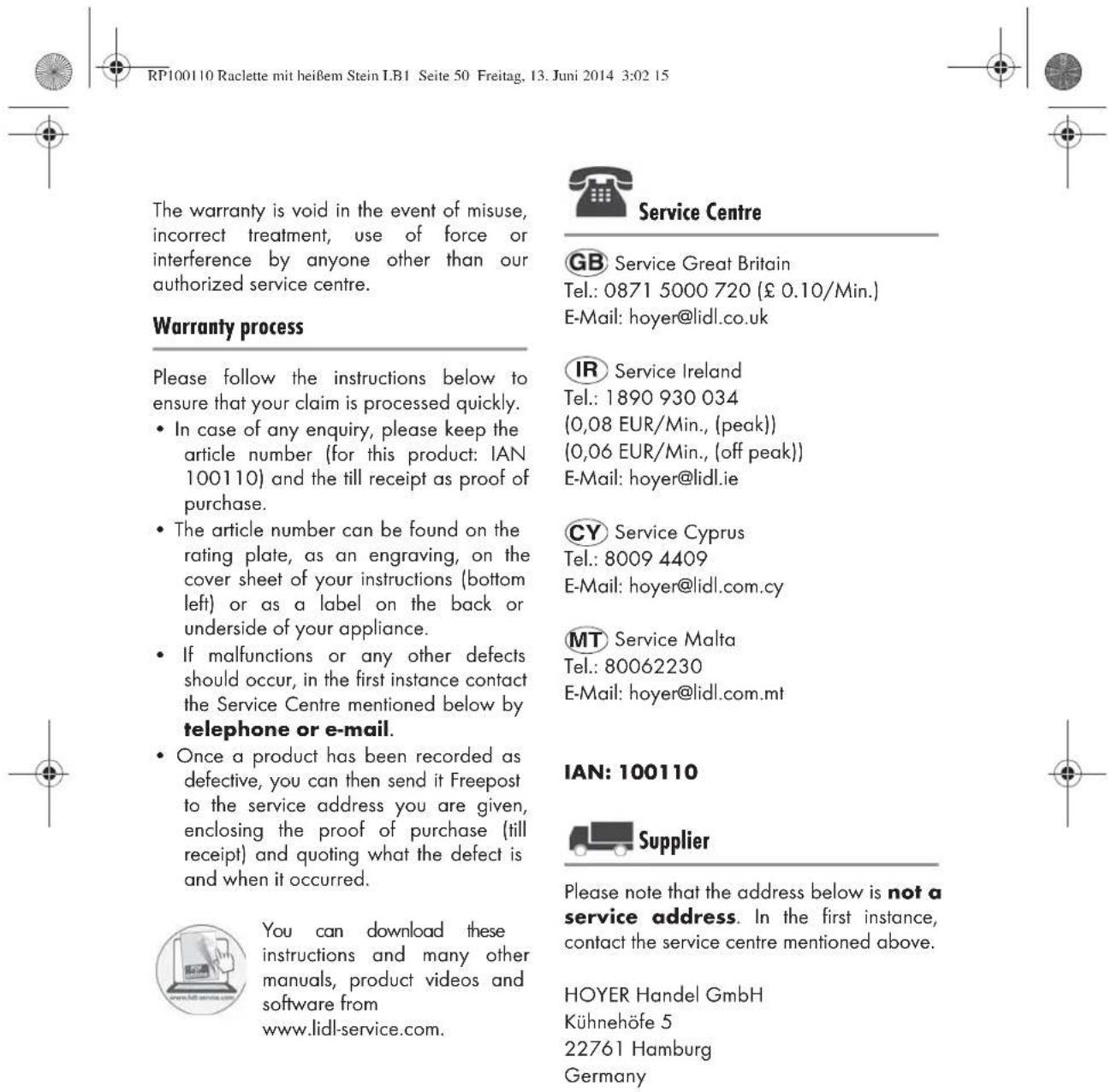

• In case of any enquiry, please keep the article number (for this product: IAN 100110) and the till receipt as proof of purchase.

• The article number can be found on the rating plate, as an engraving, on the cover sheet of your instructions (bottom left) or as a label on the back or underside of your appliance.

• If malfunctions or any other defects should occur, in the first instance contact the Service Centre mentioned below by telephone or e-mail.

• Once a product has been recorded as defective, you can then send it Freepost to the service address you are given, enclosing the proof of purchase (till receipt) and quoting what the defect is and when it occurred. You can download these instructions and many other manuals, product videos and software from www.lidl-service.com. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie Service Cyprus Tel.: 8009 4409 E-Mail: hoyer@lidl.com.cy Service Malta Tel.: 80062230 E-Mail: hoyer@lidl.com.mt IAN: 100110 Supplier Please note that the address below is not a service address. In the first instance, contact the service centre mentioned above. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
