SRG 1200 A2 - Raclette grill SILVERCREST - Free user manual and instructions

Product type	Raclette appliance
Brand	SilverCrest
Model	SRG 1200 A2
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W
Dimensions (L x D x H)	Approx. 45 x 25 x 15 cm
Weight	Approx. 2.5 kg
Package contents	1 raclette-grill appliance with removable plate, 8 raclette pans, 8 wooden spatulas, 1 instruction manual
Plate material	Non-stick steel (estimated)
Pan material	Non-stick steel (estimated)
Number of settings	8 people
Temperature control	Rotary thermostat from 0 to MAX
Power indicator	Indicator light
Usage	Household use only
Safety distance	At least 50 cm from other objects
Installation surface	Solid, flat, non-flammable surface
Cleaning	Plate and pans hand washable with a soft sponge. Do not immerse the appliance
Maintenance	Lightly oil the plate and pans before first use
Accessories	Wooden spatulas provided
Safety	Do not use charcoal. Do not leave unattended. Keep out of reach of children.
Color	Black/Steel (estimated)
Warranty	3 years (estimated, as SilverCrest often offers 3 years)

Frequently Asked Questions - SRG 1200 A2 SILVERCREST

How to turn on the SRG 1200 A2 appliance?

Turn the temperature dial to the MAX position. The power indicator lights up and the appliance heats up. Let it preheat for about 10 minutes before use.

What is the power of the appliance?

The power is 1200 W (estimated based on the model SRG 1200).

How many pans are included with the appliance?

The appliance comes with 8 raclette pans and 8 wooden spatulas.

Can I use metal utensils on the plate?

It is recommended to use the provided wooden spatulas to avoid scratching the non-stick coating.

How to clean the grill plate and pans?

Let the appliance cool down. Wash the plate and pans by hand with a soft sponge and dish soap. Do not put them in the dishwasher and never immerse the appliance in water.

Can the appliance be used on a wooden table?

Yes, provided the table is stable and heat-resistant. Keep a distance of at least 50 cm from other flammable objects.

What to do if the power indicator does not light up?

Check that the appliance is properly plugged in and that the temperature dial is not set to 0. If the problem persists, contact customer service.

Can I use the appliance for something other than raclette?

This appliance is designed exclusively for raclette and grilling. Do not use it to defrost, heat, or dry objects.

How to store the appliance after use?

Wait until the appliance is completely cool. Clean it and store it in a dry, dust-free place. Do not wrap the power cord around the appliance.

Where to find spare parts for the SRG 1200 A2?

Spare parts are available from SilverCrest customer service or on their website. Refer to the manual for contact details.

USER MANUAL SRG 1200 A2 SILVERCREST

Operating instructions

NL

GOURMETSET

Gebruiksaanwijzig

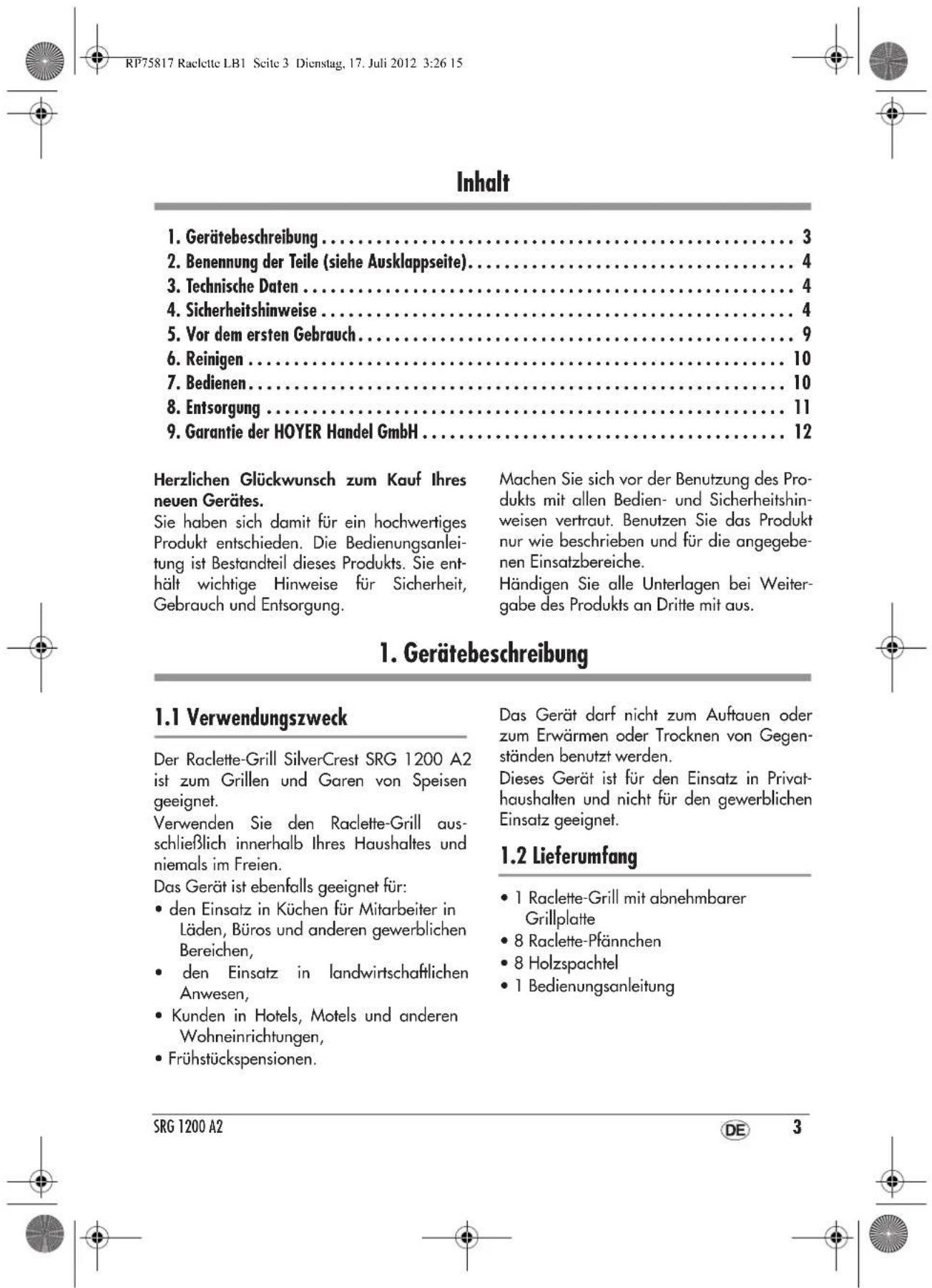

1.1 Intended purpose The raclette grill SilverCrest SRG 1200 A2 is suitable for grilling and cooking food. Only use the raclette grill indoors, never use outside. The appliance is likewise suitable for: • use in staff kitchens in shops, offices and other commercial areas, • use in agricultural settings, • customers in hotels, motels and other accommodation, • bed-and-breakfast establishments. The appliance must not be used for thawing, warming or drying items. This product is intended for use in private households and is not suitable for commercial purposes.

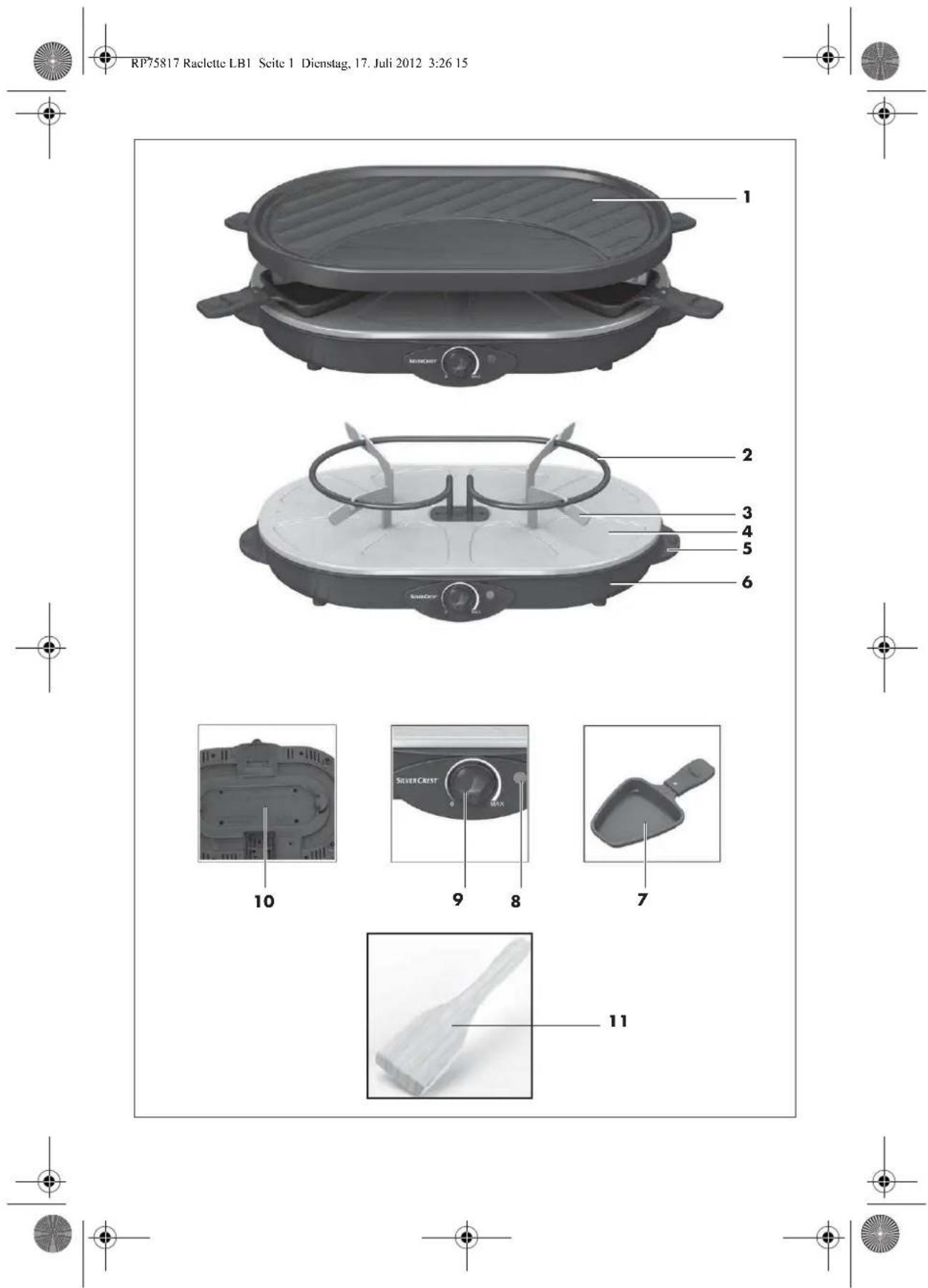

1.2 Scope of supply • 1 raclette grill with removable grill plate • 8 raclette pans • 8 wooden spatulas • 1 set of user instructions

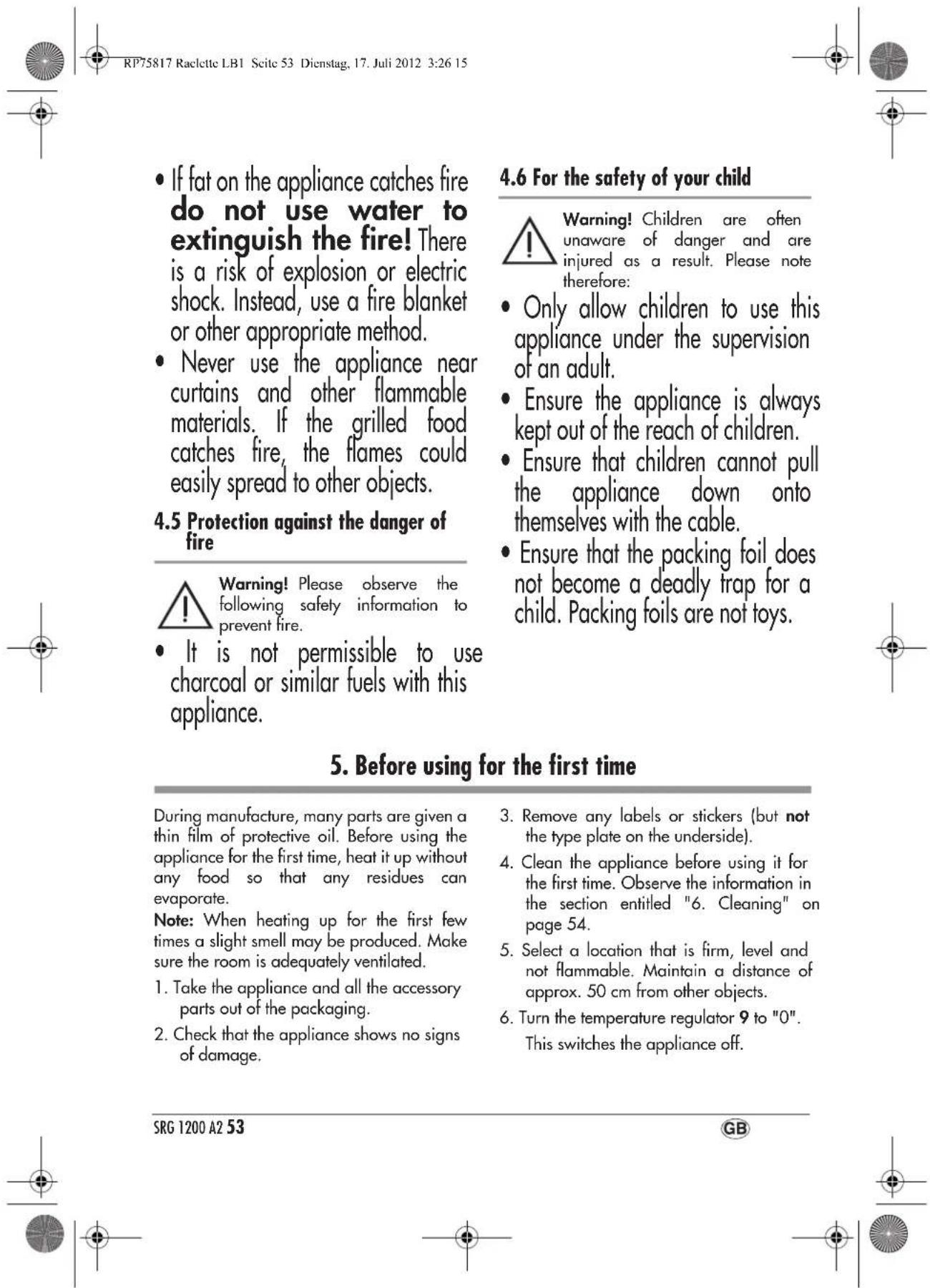

7.1 Preparing the appliance, switching on and off	2. Turn the temperature regulator 9 to "0". This switches the appliance off.
1. Select a location that is firm, level and not flammable. Maintain a distance of approx. 50 cm from other objects.	3. Grease the raclette pans lightly 7 on the inside. Lightly grease the top surface of the grill plate 1.
Note: Use kitchen paper dipped in a little cooking oil. 4. Plug the mains plug into a suitable mains socket that corresponds to the technical data. 5. Turn the temperature regulator 9 clockwise to MAX. The indicator lamp 8 lights up and the appliance heats up. 6. Allow the appliance heat up for around 10 minutes. The appliance is now ready to use. 7. To turn the appliance off, turn the temperature regulator 9 one notch anticlockwise towards "0". 8. Remove the plug from the mains socket after use. This is the only way to ensure that the machine is completely free of current. 7.2 Regulating temperature The best cooking temperature depends chiefly on the type of food being cooked. Note: When maintaining a steady temperature to reheat food the indicator lamp will always show 8. 1. If the temperature is too high, turn the temperature regulator 9 one notch towards "0".	2. If the temperature is too low and it is taking too long to cook, turn the temperature regulator 9 one notch towards MAX. 7.3 Preparing the raclette 1. Fill the raclette pans 7 with your chosen ingredients. Caution! Do not overfill the pans 7, otherwise the ingredients could be too thick and could burn. 2. Put the raclette pans 7 on the grill in the recesses 4. 3. Remove the raclette pans 7 from the applicance as soon as the ingredients are cooked. 4. Slide the contents of the raclette pan 7 onto a plate using the wooden spatula 11 and enjoy. Note:As the raclette pans 7 have an anti-stick coating, they do not require oiling before each use. 7.4 Grilling with the grill pan The grill plate 1 is for grilling meat, sausages, fruit and vegetables.

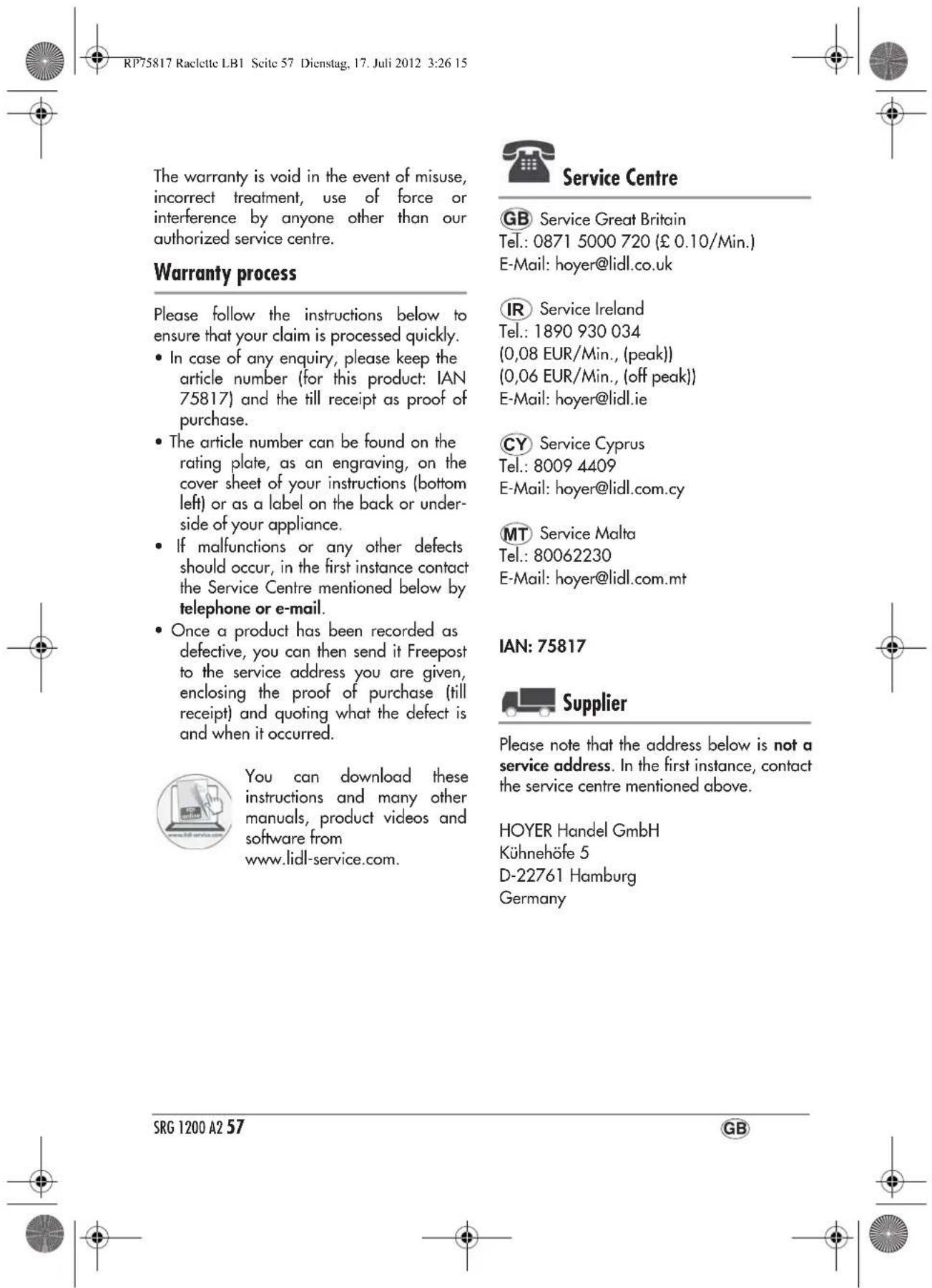

HOYER HANDEL GMBH
