Product type	Juice extractor (centrifugal juicer)
Brand	Fritel
Model	JE 2550
Strainer material	Stainless steel
Juice container capacity	500 ml (graduated glass included)
Pulp container	Integrated, can be lined with a freezing bag
Power supply	230 V ~ 50 Hz
Power	Not specified (estimated 400-800 W)
Cord length	Approximately 1 m
Dimensions (W x D x H)	Approximately 30 x 25 x 40 cm
Weight	Approximately 3.5 kg
Main functions	Juice extraction from fruits and vegetables
Safety	Safety lock, non-slip feet, automatic shut-off in case of overload
Maintenance and cleaning	Parts washable under running water (except motor block), do not put in dishwasher, clean the strainer with a nylon brush
Spare parts and repairability	Pusher, strainer, juice container, top part, pulp container, graduated glass; repairs by an authorized service (J. van Ratingen NV)
Warranty	2 years, upon presentation of purchase receipt
Intended use	Domestic only

Frequently Asked Questions - JE 2550 FRITEL

How to correctly assemble the Fritel JE 2550 juice extractor?

Place the juice container on the motor and secure it by turning. Insert the stainless steel strainer into the container. Place the top part and secure it by turning. Insert the pusher into the feed chute. Slide the pulp container under the top part and place the graduated glass under the spout.

What essential safety precautions should be taken with this extractor?

Never insert food with bare hands, always use the pusher. Do not touch the strainer blades. Do not leave the appliance unattended. Ensure the appliance is correctly assembled before turning it on. Never immerse the motor block in water.

The appliance does not start, what should I do?

Check that the safety lock is correctly engaged in the vertical position. If the problem persists, contact an authorized service.

How to get maximum juice?

Apply slow and steady pressure with the pusher. Do not overload the feed chute. For some foods, it may be helpful to alternate between different types of fruits and vegetables.

How to effectively clean the stainless steel strainer?

Rinse the strainer immediately after use under hot water. Use a nylon brush to remove residue. Do not use bleaching products. Soak in hot soapy water for 10 minutes for deep cleaning.

Can I put the parts in the dishwasher?

No, the parts are not dishwasher safe. Wash them by hand under running water. The motor block should be cleaned with a damp cloth.

What should I do if the motor stops during use?

This may be due to an overload of the pulp container or excessive pressure. Turn off the appliance, empty the pulp container, and remove excess residue from the strainer with a small spoon. Reduce pressure when using.

The pulp is too wet, how to remedy this?

Do not push food too quickly or with too much pressure. Introduce them gradually. If the problem persists, stop the machine and clean the strainer.

Where can I get my extractor repaired?

Contact an authorized repairer or your point of sale. The manufacturer is J. van Ratingen NV, located in Hasselt, Belgium ([e-mail]). The 2-year warranty is valid upon presentation of the receipt.

Can I use the extractor for professional purposes?

No, this appliance is designed for domestic use only. Professional use voids the warranty.

USER MANUAL JE 2550 FRITEL

USER MANUAL AND RECIPES

Congratulations! With this fantastic juice extractor, you will transform your fruit and vegetables into delicious juices. Please read this user manual and the guarantee terms attentively before using the juice extractor. Keep the manual carefully. Persons, who have not read this user manual, are not allowed to use this juice extractor.

10 9 7 6

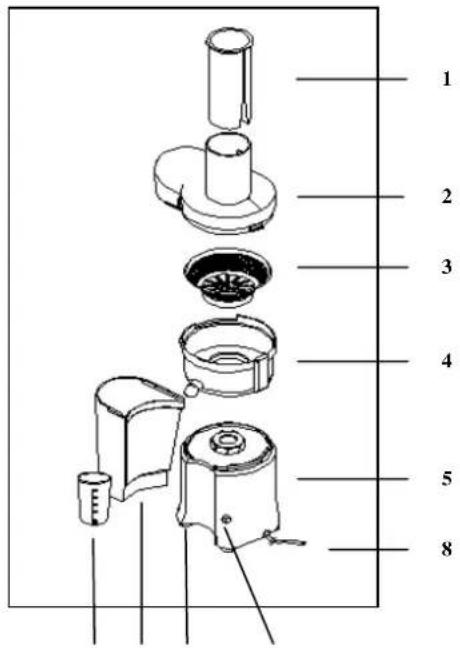

DESCRIPTION DE LA CENTRIFugeUSE

1. Pusher
2. Lid with filling shaft
3. Sieve in stainless steel
4. Juice bowl with juice spout
   5.Motor-housing
5. ON/OFF switch
6. Non-skid supporting feet
7. Power supply cord
8. Residue container
9. Measuring jug (500 ml)

NL - NEDERLANDS

GEBRUIKSAANWIJZING

CONDITIONS DE GARANTIE

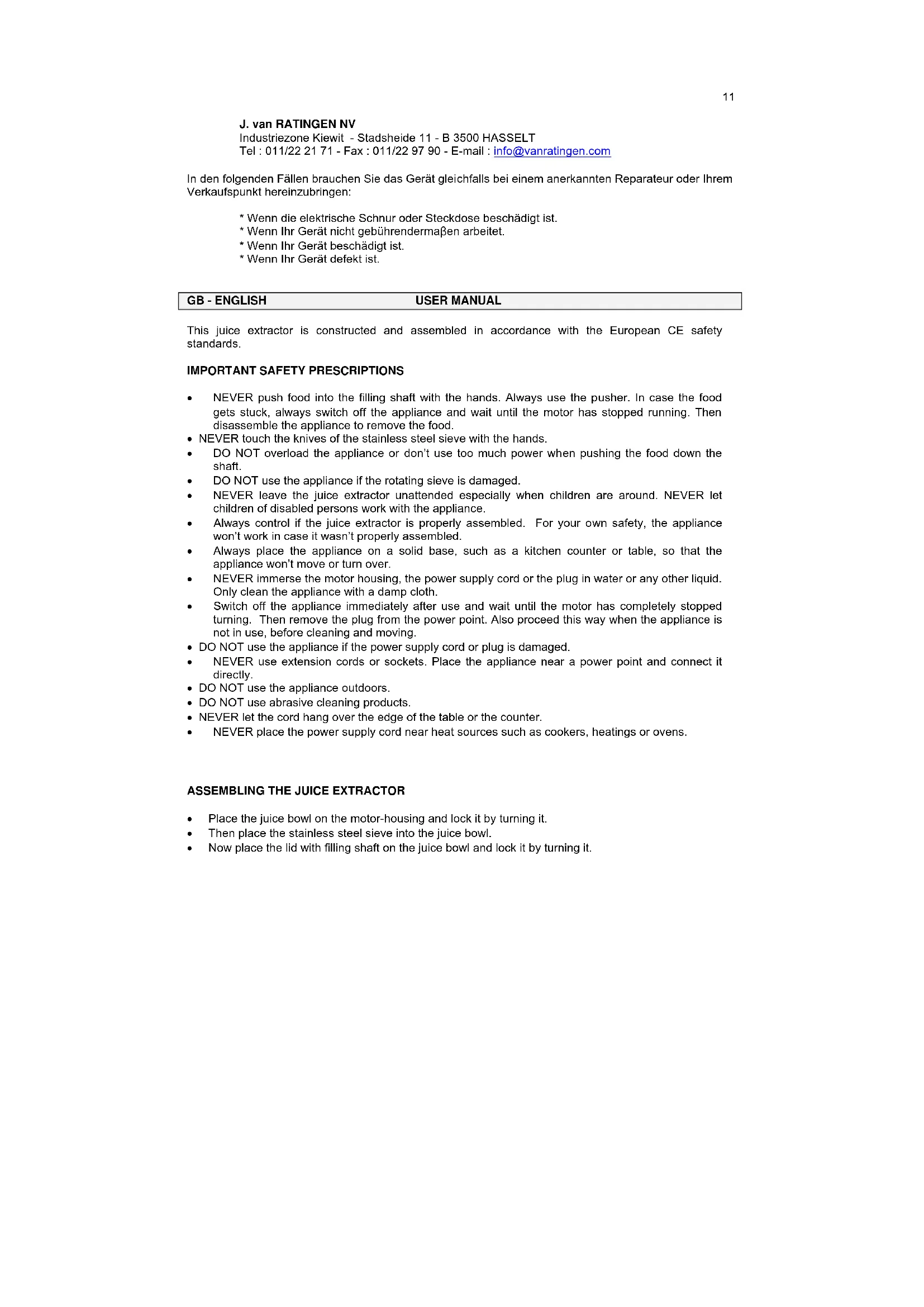

This juice extractor is constructed and assembled in accordance with the European CE safety standards.

IMPORTANT SAFETY PRESCRIPTIONS

• NEVER push food into the filling shaft with the hands. Always use the pusher. In case the food gets stuck, always switch off the appliance and wait until the motor has stopped running. Then disassemble the appliance to remove the food.
• NEVER touch the knives of the stainless steel sieve with the hands.
  DO NOT overload the appliance or don't use too much power when pushing the food down the shaft.
  DO NOT use the appliance if the rotating sieve is damaged.
• NEVER leave the juice extractor unattended especially when children are around. NEVER let children of disabled persons work with the appliance.
• Always control if the juice extractor is properly assembled. For your own safety, the appliance won't work in case it wasn't properly assembled.
  Always place the appliance on a solid base, such as a kitchen counter or table, so that the appliance won't move or turn over.
• NEVER immerse the motor housing, the power supply cord or the plug in water or any other liquid. Only clean the appliance with a damp cloth.
• Switch off the appliance immediately after use and wait until the motor has completely stopped turning. Then remove the plug from the power point. Also proceed this way when the appliance is not in use, before cleaning and moving.
  DO NOT use the appliance if the power supply cord or plug is damaged.
• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly.
  DO NOT use the appliance outdoors.
  DO NOT use abrasive cleaning products.
• NEVER let the cord hang over the edge of the table or the counter.
  NEVER place the power supply cord near heat sources such as cookers,加热器或oven.

ASSEMBLING THE JUICE EXTRACTOR

• Place the juice bowl on the motor-housing and lock it by turning it.

• Then place the stainless steel sieve into the juice bowl.
  Now place the lid with filling shaft on the juice bowl and lock it by turning it.

• Slide the pusher into the filling shaft.

• Slide the residue container under the outlet of the lid.

• Place the measuring jug under the juice spout.

PRACTICAL TIP: The cleaning process is being simplified by placing a plastic bag in the residue container. In this way, you can remove the pulp without spilling.

HOW TO USE THE JUICE EXTRACTOR

• First wash the fruit and vegetables under running water.

• Check if the juice extractor is assembled correctly.

• Pull the plug into the socket (230 V.). Switch on the button.

• As soon as the motor is running, take out the pusher of the filling shaft and fill it. Do not fill the shaft completely. Place back the pusher into the filling shaft and gently press down the food. With firmer apple varieties a.o., you could feel a little resistance. Briefly press harder the apple until it touches the grater. Then push gently again.

• The juice is running into the measuring jug and the residue into the residue container.

IMPORTANT: Make sure the residue container is not too full. In that case, the appliance will not work properly or can even get damaged. Always switch off the juice extractor before emptying the residue container.

DISASSEMBLING THE JUICE EXTRACTOR

• Switch off the juice extractor and pull the plug out of the socket.
• Remove the residue container from under the lid.
• Turn the lid towards you and lift it up.
• Turn the juice bowl within the stainless steel sieve to you and take it out. The stainless steel sieve is loose, pay attention to it that it won't drop out.
• Turn the juice bowl upside down on a plate or on the sink to remove the stainless steel sieve from the juice bowl.

IMPORTANT: The stainless steel sieve is built up of small sharp knives on the grater. NEVER touch the knives of the cutting surface with your hands. ALWAYS take the edge of the stainless steel sieve.

MAINTENANCE AND CLEANING

• Switch off the appliance and remove the power supply cord. Then disassemble the appliance.
• Slide the residue container out of the lid. Remove the lid, the juice bowl and the stainless steel sieve.
• Clean these parts under running water. NEVER clean the parts in the dish-washer.
  NEVER immerse the motor housing in water or any kind of fluid. The motor housing needs to be cleaned with a damp cloth.
• All the other parts may be cleaned in hot soapy water.
• The stainless steel sieve can be cleaned easily with a nylon washing-up brush in warm soapy water.
  NEVER immerse the stainless steel sieve in a bleaching product, you will damage your sieve.

PRACTICAL TIP: Strongly colouring food (e.g. beet, red cabbage, ...) can leave behind a colour. You can prevent this by cleaning the sieve immediately after use.

PRACTICAL TIP: The stainless steel sieve can be easily cleaned if you let it soak for about 10 minutes in hot soapy water. If the pulp dries on the stainless steel sieve, the fine holes can get clogged and the juice extractor won't work efficiently anymore.

GUARANTEE PRESCRITIONS

Your guarantee starts on the day of purchase and is valid for 2 years and will only apply after submitting the purchase invoice. The guarantee will expire irrevocably and immediately when the juice extractor is used for purposes other than domestic (i.e. professional).

• The guarantee covers every repair and/or replacement free of charge of the parts recognized defective by our technical department and if the damage is due to faulty manufacture, construction or material.
  The guarantee is only valid for the original user.
• Carriage, both ways, is for the purchaser's account.
  The guarantee expires in the following cases :
• Incorrect connection, e.g. electric voltages.
  Abnormal use, misuse handling, lack of care.
• Modifications or repairs made to the appliance by persons not authorized by us as manufacturer.
• When reference numbers altered or removed.

ASSISTANCE FOR MALFUNCTIONS

Problem analysis Possible solution
The appliance doesn't work when it is switched on.	For your own safety, the appliance will only work if the appliance is correctly assembled.
- The motor doesn't run when juicing. - The pulp is too wet and there is too little juice to collected. - The juice comes out between the lid and the juice bowl.	If you work too fast and the food is being pushed down too strong, the residue will collect under the lid. Don't push down the food too strongly with the pusher.
Residues are collecting in the stainless steel sieve.	Interrupt the process. Remove the lid from the appliance and carefully remove as much residue as possible from the sieve and rinse the sieve thoroughly. Replace the lid on the appliance. If possible, use other kinds of fruit and vegetables.

USEFUL TIPS

In case the above mentioned solutions remain without results, please return your juice extractor to a certified reparation centre or to your sales point or address directly to:

J.van RATINGEN NV

Industriezone Kiewit - Stadsheide 11 - B 3500 HASSELLT

Tel:[phone]-Fax:[phone]-E-mail:[e-mail]

Also return your appliance to a certified reparation centre or to your sales point in the following cases:

If the power supply cord or the plug is damaged.
If your appliance doesn't work properly.
If your appliance is damaged.
If your appliance is defect.

NL-RECEPTEN

Smoothies

1 pompelmoes / 2 sinaasappels / 1 ananas / 100 ml kokosmelk

1 grapefruit / 2 oranges / 1 pineapple / 100 ml coconut milk

Peel all the fruit and slice into pieces. Then add to the juice extractor with the coconut milk. (2 p)

Cocktails

2 peaches / 1 orange / 1 cs grenadine / 12 lemon / 100 ml champagne / ice cubes

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Pour over into a glass and add grenadine, champagne and ice cubes. (2 p)

Morning kick

2 oranges / 1% yellow melon / 1% pineapple / 1 kiwi

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Pour over into a glass.

Boost

2 carrots / 1/2 cucumber / 2 blanched celery / 1/2 red beet

Clean carrots and blanched celery and remove the tips. Clean the red beet and remove the fibrous underside. Slice the cucumber into pieces. First juice the red beet, then the carrot, blanched celery and cucumber. Poor over into a glass.

Perfect for lunch

1/4 water melon / 2 limes / clear honey / ice-cooled water to dilute

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Dilute it with the ice-cooled water and honey.

Perfect for diner

3 large tomatoes 1 12 lettuce /a piece of cucumber of 5 ~cm / a handful of parsley 1 % lemon

Slice everything into pieces and squeeze one after the other.

Nightcap

2 carrots / 2 blanched celery / a handful of watercress

Clean the carrots and the blanched celery and remove the tips. Wash the watercress. Juice all the ingredients together and pour over into a glass.

For more delicious recipes, surf to www.vanratingen.com
