USER MANUAL JE 3650 FRITEL

Fruit juice organizer with apple topping, surrounded by fresh fruits and a glass of juice against a green gradient background (no text or symbols visible)

USER MANUAL AND RECIPES

Congratulations! With this fantastic juice extractor, you will transform your fruit and vegetables into delicious juices. Please read this user manual and the guarantee terms attentively before using the juice extractor. Keep the manual carefully. Persons, who have not read this user manual, are not allowed to use this juice extractor.

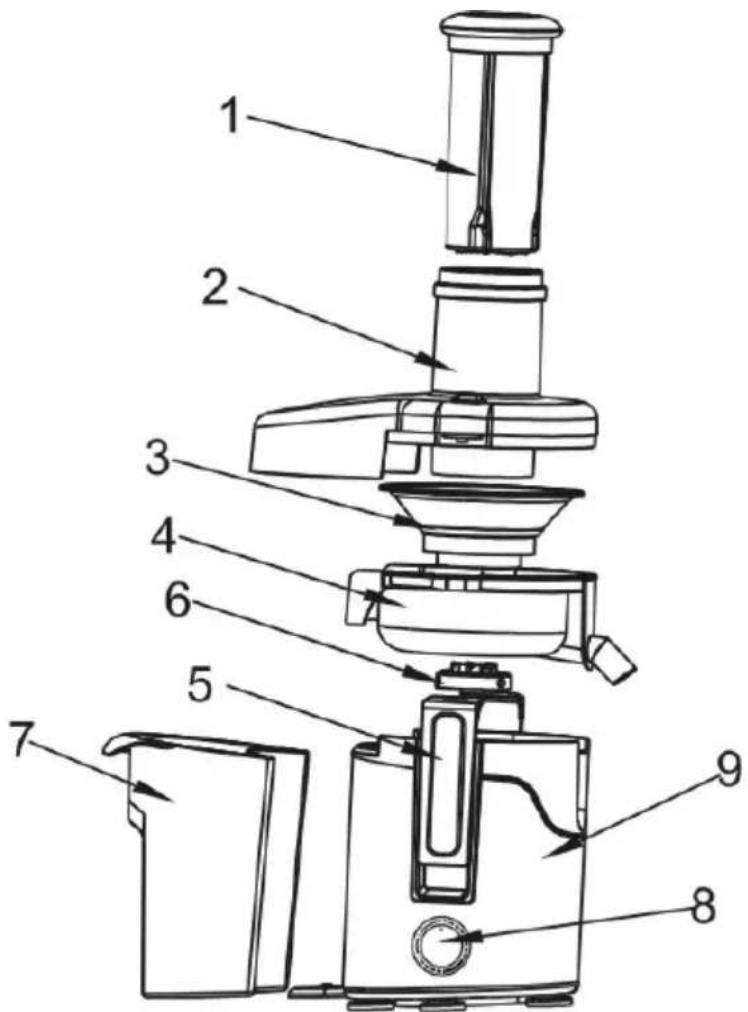

Exploded diagram of a blender with numbered parts for identification

PRODUCTBESCHRIJVING

1. Pusher
2. Lid with filling shaft
3. Stainless steel sieve
4. Bowl
5. Safety brackets
6. Clutch
7. Residue container
8. Continuously adjustable speed
9. Motorbase with stainless steel housing
10. Cleaning brush for sieve (not represented)

CONDITIONS DE GARANTIE

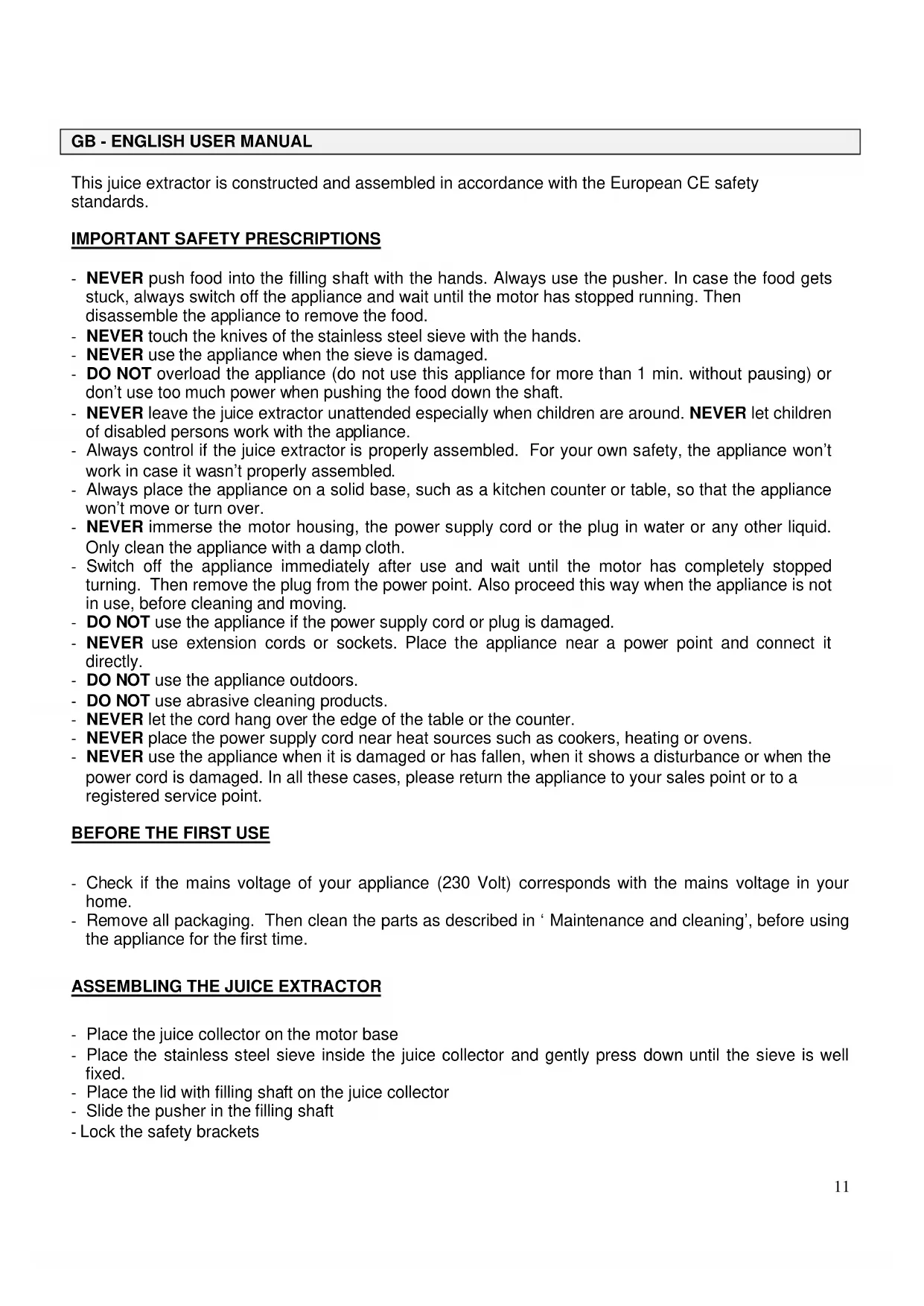

This juice extractor is constructed and assembled in accordance with the European CE safety standards.

IMPORTANT SAFETY PRESCRIPTIONS

• NEVER push food into the filling shaft with the hands. Always use the pusher. In case the food gets stuck, always switch off the appliance and wait until the motor has stopped running. Then disassemble the appliance to remove the food.
• NEVER touch the knives of the stainless steel sieve with the hands.
• NEVER use the appliance when the sieve is damaged.
• DO NOT overload the appliance (do not use this appliance for more than 1 min. without pausing) or don't use too much power when pushing the food down the shaft.
• NEVER leave the juice extractor unattended especially when children are around. NEVER let children of disabled persons work with the appliance.
• Always control if the juice extractor is properly assembled. For your own safety, the appliance won't work in case it wasn't properly assembled.
• Always place the appliance on a solid base, such as a kitchen counter or table, so that the appliance won't move or turn over.
• NEVER immerse the motor housing, the power supply cord or the plug in water or any other liquid. Only clean the appliance with a damp cloth.
• Switch off the appliance immediately after use and wait until the motor has completely stopped turning. Then remove the plug from the power point. Also proceed this way when the appliance is not in use, before cleaning and moving.
• DO NOT use the appliance if the power supply cord or plug is damaged.
• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly.
• DO NOT use the appliance outdoors.
• DO NOT use abrasive cleaning products.
• NEVER let the cord hang over the edge of the table or the counter.
• NEVER place the power supply cord near heat sources such as cookers, heating or ovens.
• NEVER use the appliance when it is damaged or has fallen, when it shows a disturbance or when the power cord is damaged. In all these cases, please return the appliance to your sales point or to a registered service point.

BEFORE THE FIRST USE

• Check if the mains voltage of your appliance (230 Volt) corresponds with the mains voltage in your home.
• Remove all packaging. Then clean the parts as described in ‘Maintenance and cleaning’, before using the appliance for the first time.

ASSEMBLING THE JUICE EXTRACTOR

- Place the juice collector on the motor base

- Place the stainless steel sieve inside the juice collector and gently press down until the sieve is well fixed.

- Place the lid with filling shaft on the juice collector

- Slide the pusher in the filling shaft

- Lock the safety brackets

• Place the residue container under the large outlet of the lid. Make sure that the bottom of the container is placed on the support piece on the juice extractor.
• Place a glass/carafe under the juice outlet

PRACTICAL TIP: The cleaning process is being simplified by placing a plastic bag in the residue container. In this way, you can remove the residue without spilling.

HOW TO USE THE JUICE EXTRACTOR

• First wash the fruit and vegetables under running water.
• Check if the juice extractor is assembled correctly.
• Make sure that the speed control button is on the OFF position. Pull the plug into the socket (230 V.).
• Select your speed position.

Low position = for very soft fruit and vegetables

Central position = for medium fruit and vegetables

High position = for very firm fruit and vegetables

• Take out the pusher of the filling shaft and fill it. DO NOT fill the shaft completely. Place back the pusher into the filling shaft and gently press down the food. With firmer apple varieties a.o., you could feel a little resistance. Briefly press harder the apple until it touches the grater. Then push gently again.
• The juice is running into the glass/carafe and the residue into the residue container.

IMPORTANT: Make sure the residue container is not too full. In that case, the appliance will not work properly or can even get damaged. Always switch off the juice extractor before emptying the residue container.

IMPORTANT: if the juice extractor gets overheated, the motor will shut down automatically (i.e. when you use the juice extractor for too long). After about 15 min. (depending on the room temperature) the motor has cooled off and you can continue juicing.

DISASSEMBLING THE JUICE EXTRACTOR

• Turn the speed control button on the OFF position and pull the plug out of the socket.

• Unlock the safety brackets

• Remove the lid with filling shaft and pusher.

• Remove the residue container from under the lid.
• Remove the stainless steel sieve from the juice collector by using the accessory brush. The extremity of the handle allows you to remove the sieve easily. Attention: do not touch the grater inside the stainless steel sieve with your hands, always take the sieve by the rim.
• Remove the juice collector

IMPORTANT: The grater in the stainless steel sieve is very sharp. NEVER touch the grater or the cutting surface with your hands. ALWAYS take stainless steel sieve by the rim.

MAINTENANCE AND CLEANING

• Turn the speed control button on the OFF position and pull the plug out of the socket.
• Then disassemble the appliance. (see 'disassembling the juice extractor')

• NEVER clean the parts in the dish-washer, but clean them in hot soapy water.

• NEVER immerse the motor housing in water or any kind of fluid. The motor housing needs to be cleaned with a damp cloth.

• The stainless steel sieve can be cleaned easily with the accessory cleaning brush or with a nylon washing-up brush in warm soapy water. NEVER immerse the stainless steel sieve in a bleaching product.

TIP: Strongly colouring food (e.g. beet, red cabbage, ...) can leave behind a colour. You can prevent this by cleaning the sieve immediately after use.

TIP: The stainless steel sieve can be easily cleaned if you let it soak for about 10 minutes in hot soapy water. If the pulp dries on the stainless steel sieve, the fine holes can get clogged.

GUARANTEE PRESCRIPTIONS

Your guarantee starts on the day of purchase and is valid for 2 years and will only apply after submitting the purchase invoice. The guarantee will expire irrevocably and immediately when the juice extractor is used for purposes other than domestic (i.e. professional).

• The guarantee covers every repair and/or replacement free of charge of the parts recognized defective by our technical department and if the damage is due to faulty manufacture, construction or material.
• The guarantee is only valid for the original user.
• Carriage, both ways, is for the purchaser's account.

The guarantee expires in the following cases :

• Incorrect connection, e.g. electric voltages.
• Abnormal use, misuse handling, lack of care.
• Modifications or repairs made to the appliance by persons not authorized by us as manufacturer.
• When reference numbers altered or removed.

ASSISTANCE FOR MALFUNCTIONS

Problem analysis Possible solution
The appliance doesn’t work when it is switched on.	For your own safety, the appliance will only work if the appliance is correctly assembled.
- The motor doesn’t run when juicing.- The pulp is too wet and there is too little juice to collected.- The juice comes out between the lid and the juice collector.	If you work too fast and the food is being pushed down too strong, the residue will collect under the lid. Don’t push down the food too strongly with the pusher.
Residues are collecting in the stainless steel sieve.	Interrupt the process. Remove the lid from the appliance and carefully remove as much residue as possible from the sieve and rinse the sieve thoroughly. Replace the lid on the appliance. If possible, use other kinds of fruit and vegetables.

USEFUL TIPS

In case the above mentioned solutions remain without results, please return your juice extractor to a certified reparation centre or to your sales point

DO NOT use the appliance in case of a malfunction of when the power cord is damaged. Please address your sales point immediately.

THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE GUARANTEE CONDITIONS EXPIRE UPON PROFESSIONAL USE;

DEFECT AND/OR DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE GUARANTEE.

ENVIRONMENT

DO NOT throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

LIABILITIES

All liabilities, towards both consumer(s) and third parties, that could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the deep fryer, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

1 grapefruit / 2 oranges / 1 pineapple / 100 ml coconut milk

Peel all the fruit and slice into pieces. Then add to the juice extractor with the coconut milk. (2 p)

Cocktails

2 peaches / 1 orange / 1 cs grenadine / 12 lemon / 100 ml champagne / ice cubes

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Pour over into a glass and add grenadine, champagne and ice cubes. (2 p)

Morning kick

2 oranges / 1/4 yellow melon / 1/4 pineapple / 1 kiwi

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Pour over into a glass.

Boost

2 carrots / 1/2 cucumber / 2 blanched celery / 1/2 red beet

Clean carrots and blanched selery and remove the tips. Clean the red beet and remove the fibrous underside. Slice the cucumber into pieces. First juice the red beet, then the carrot, blanched selery and cucumber. Poor over into a glass.

Perfect for lunch

14 water melon / 2 limes / clear honey / ice-cooled water to dilute

Peel all the fruit, slice into pieces and squeeze it in the juice extractor. Dilute it with the ice-cooled water and honey.

Perfect for diner

3 large tomatoes / ½ lettuce /a piece of cucumber of 5 cm / a handful of parsley / ½ lemon

Slice everything into pieces and squeeze one after the other.

Nightcap

2 carrots / 2 blanched selery / a handful of watercress

Clean the carrots and the blanched celery and remove the tips. Wash the watercress. Juice all the ingredients together and pour over into a glass.

For more delicious recipes, surf to www.vanratingen.com

J. van RATINGEN NV

Industriezone Kiewit

Stadsheide 11

B-3500 Hasselt

E-mail : [e-mail] - www.vanratingen.com
