Party Ball 2 BB10K - Docking station iDance - Free user manual and instructions

Product type	Docking station
Brand	iDance
Model	Party Ball 2 BB10K
Bluetooth Compatibility	Bluetooth A2DP for smartphones/tablets
Audio Inputs	1x Auxiliary (3.5 mm jack), 2x Microphone (6.35 mm jack)
Lighting Effects	Disco ball with integrated LED, activation via LED button
Power Supply	DC 5V, 800 mA via micro USB cable (not included)
Built-in Battery	Rechargeable lithium 3.7 V, 1000 mAh
Battery Life	Not specified, full charge recommended 10-12 h the first time
Output Power	1.8 W RMS (Master)
Total Harmonic Distortion	< 10%
Signal-to-Noise Ratio	> 41 dB
Device Holder	Built-in holder for smartphone or tablet
Control Buttons	Standby, Volume +/-, Echo, LED
LED Indicators	Blue for Bluetooth (flashing during pairing, solid when connected), Red for charging (turns off when fully charged)
Dimensions	Not provided
Weight	Not provided

Frequently Asked Questions - Party Ball 2 BB10K iDance

How to connect my smartphone via Bluetooth to the Party Ball 2 BB10K?

Turn on the device by pressing the STAND BY button. Press and hold this button to start Bluetooth pairing (the blue indicator flashes quickly). On your smartphone, enable Bluetooth and search for devices. Select BB10K from the list. Once connected, the blue indicator stays solid.

How to recharge the battery of the Party Ball 2 BB10K?

Use the supplied micro USB cable. Connect it to the device's micro USB port and to a USB power source (wall adapter, computer). The red indicator lights up during charging and turns off when the battery is full. The first charge should last 10 to 12 hours.

What to do if the sound is cut off or weak?

Check that the device is turned on (STAND BY button). Increase the volume using the VOLUME + button. Ensure that the volume on your Bluetooth device or auxiliary source is high enough. If the battery is low, recharge it.

How to use the echo effect?

Press the ECHO button to turn the effect on or off. The echo level is factory preset and cannot be adjusted.

Bluetooth disconnects or music skips, what to do?

The Bluetooth range is approximately 7 to 10 meters in open space. Remove metal obstacles or walls between the device and your smartphone. Avoid running other Bluetooth devices nearby. Remove your phone's metal case if it interferes with the signal.

How to clean the Party Ball 2 BB10K?

Use a dry, soft cloth to clean the device. Do not use liquids, abrasives, or chemical cleaners. Avoid water entering the inside.

Can I use a microphone with this device?

Yes, the device has two microphone inputs with 6.35 mm jacks. Plug in your microphones and use the echo function if desired.

How to activate the disco light ball?

Press the LED button to turn the disco light on or off. The disco ball rotates and projects light effects.

What to do if the device does not turn on?

Make sure the battery is charged. Connect the micro USB cable to a power source (5V/800mA minimum adapter). If the charge indicator does not light up, check the connection. If the problem persists, contact a qualified technician.

Can I use the device while charging?

Yes, you can use the Party Ball 2 BB10K while it is connected to a power source. However, it is recommended to fully discharge it before recharging to extend battery life.

USER MANUAL Party Ball 2 BB10K iDance

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.

Class II equipment symbol.

This symbol indicates that the unit has a double insulation system.

The exclamation mark inside an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert the user of the presence of un-insulated "hazardous voltage" within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons.

NOTES:

Please do not attempt to open the back cover or power adapter, as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled. There are no user-serviceable components inside.

NOTES:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTES: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for assistance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
17. The MAINS plugs used as the disconnect device, which shall remain readily operable.

FEATURES

Bluetooth wireless stereo audio streaming, supports A2DP profiles for most smartphones/laptops. Aux In input (3.5 mm stereo mini jack). 2x Mic In input (6.3mm jack). Disco ball with disco light effect. Micro USB jack for battery charging. Built-in rechargeable lithium battery.

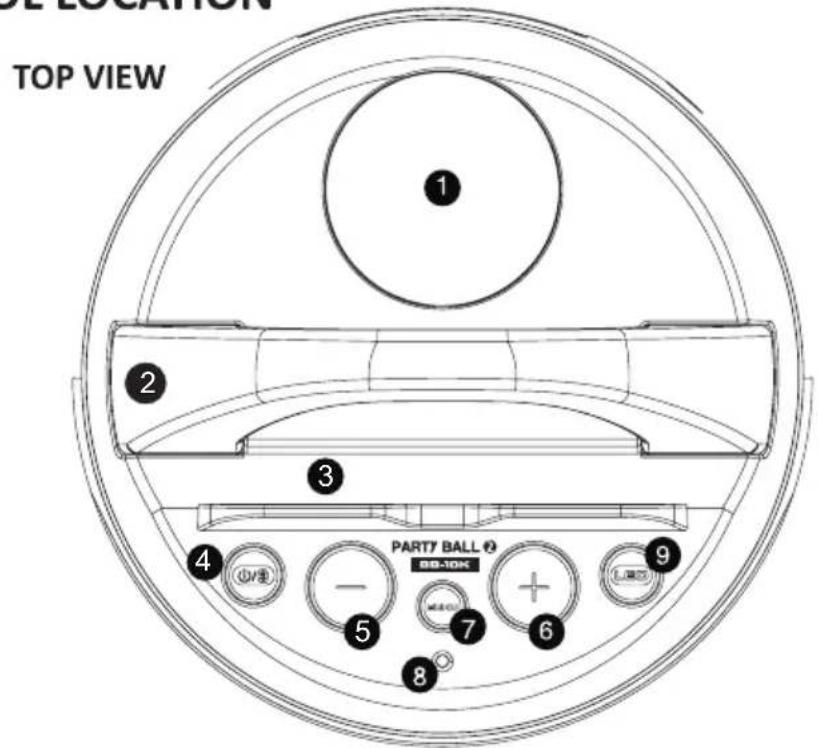

CONTROL LOCATION

CONTROL LOCATION

1. DISCO BALL

Disco ball with LED light show.

1. HANDLE

For easy carry to any occasion.

1. DEVICE CRADLE

For standing as a cradle for your smartphone or tablet.

1. STD BY Button

Press the button to turn on or off main power.

1. VOLUME - Buttons

Press to decrease the master volume sound level.

1. VOLUME + Buttons

Press to increase the master volume sound level.

1. ECHO Button

Press to turn on / off or adjust the echo sound effect. (Echo level is pre-programmed)

1. LED Indicator

Bluetooth Mode: The indicator will light when Bluetooth is paired successfully. The indicator will flash when Bluetooth starts pairing.

Battery Charging Mode: When BB10K is connected to USB power through the micro USB port, the LED indicator will turn red. The LED goes off after charging is complete.

1. LED Button

Press the button to turn on / off the disco light show.

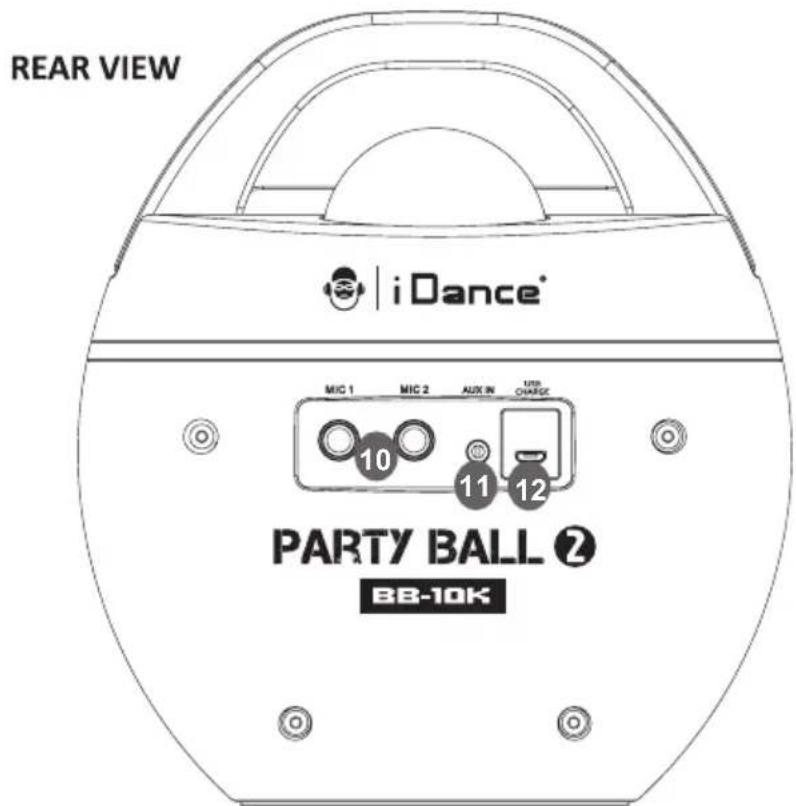

1. MIC INPUT (1/4" Jack)

6.3mm jack for connecting a microphone.

1. AUX In (Line Input / Audio Input) 3.5mm Input Jack

Connect a music device (MP3 player, etc.) to this socket with a 3.5mm mini jack audio cable to play through BB10K. The LED indicator flashes slowly.

1. MICRO USB JACK

Connect the USB cable to charge the built-in battery.

(Please ensure USB power is with minimum DC5V 800mA output)

GENERAL OPERATIONS

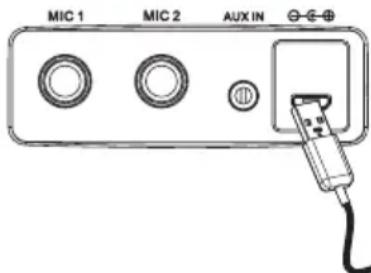

Connect to external adapter or computer USB port

Connect the micro USB plug of the USB cable to the main unit's micro USB jack, and plug the other end into a computer USB port or an external adapter's output port.

Charging Battery

1. Charge the built-in battery by connecting power for 10-12 hours prior to first use.
2. When the built-in battery is being charged, the LED indicator shows red.
3. The LED indicator turns OFF when charging is complete.
4. When the BB10K power is low, please recharge the battery to ensure product life.

Battery Safety Notes

1. To prolong the life of a rechargeable battery, it is recommended to completely discharge it before fully charging it again.
2. Do not dispose of the built-in battery in fire; the battery may explode or leak.
3. Do not open the built-in battery; it may explode.

REARVIEW

To External Power Adapter

Personal Computer

Connecting Bluetooth

1. Press the STAND BY button to turn on BB10K. Hold the button to start connecting (blue indicator flashes fast).
2. On your smartphone or tablet, turn on Bluetooth and enable device scanning.
3. When BB10K appears in the Bluetooth scan, select it to connect it to your device.
4. When both devices are successfully connected (indicator LED turns on), you are ready to play music wirelessly from your device.
5. Press the PLAY button on the external Bluetooth device to start music playback.
6. Press the NEXT or PREV (BLUETOOTH) button on the external Bluetooth device to switch between music tracks.
7. Hold the STAND BY button to reconnect another Bluetooth device.

Troubleshooting

If you have followed the instructions and are having difficulty operating the unit, locate the problem in the left column below. Check the corresponding possible cause and solution column to locate and fix the problem.

PROBLEM POSSIBLE CAUSE AND SOLUTION
Bluetooth cannot connect to BB10K	Make sure no other device from your friend or family is connected to BB10K. When BB10K Bluetooth is connected, press BLUETOOTH button would stay ON. So make sure BB10K indicating Bluetooth is ready to connect. Also make sure your smartphone / tablet is located close to BB10K less than 2 meters when pairing.Hold the BLUETOOTH button to reconnect again.
Intermittent Bluetooth music streaming	The wireless Bluetooth distance of BB10K is about 7-10 meter in open area. Below conditions could block you Bluetooth signal and please ensure you would get rid of those:Metal protection on case for your phone/tabletMetal or wall is blocking in between your phone / tablet and BB10KAnother Bluetooth device is working close toBB10K
No sound on selected source • Ensure that	the BB10K is powered ONCheck the ext. device volume Check the volume level on paired Bluetooth device Battery power low / connection USB cable and charging power again.

SPECIFICATIONS

DC IN Power DC 5V, 800mA ( for battery charging)
Built-In Battery 3.7V, 1000 mAh
SOUND SOURCE INPUT Bluetooth, 2x Mic in, Aux in,
Total Harmonic Distortion <10%
Signal to Noise Ratio Over 41dB
Master Power Output 1.8W RMS
