USER MANUAL Cube Nano iDance

The iDance CN2 is a Wireless all-in-one mini portable speaker with built-in lighting, re-chargeable battery, AUX-input and stereo Bluetooth wireless audio up to 10 meters. Only few simple steps to pair your device!!

The CN2 is perfect for bedroom, house / pool / yard party. Take your sound with you on the go!!

Thank you, and congratulations on your choice of iDance's CN2!

WARNING

The exclamation mark inside an equilateral triangle is intended to alert user of the presence of the important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol inside an equilateral triangle is intended to alert User of the presence of un-insulated "hazardous voltage" within the product's enclosure, which may be of sufficient magnitude to induce a risk of electric shock to persons

NOTES:

Please do not attempt to open the back cover or power adapter as opening or removing the covers may expose you to dangerous voltage or other hazards, and it will also cause the restricted servicing to be disabled: There are no user servicing components inside.

NOTES:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

NOTES:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and the receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
4. Consult the dealer or an experienced radio/TV technician for assistance.

WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE

CAUTION: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL

Class II equipment symbol

This symbol indicates that

the unit has a double system.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings.
7. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety of the polarized or the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacture, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Portable Cart Warning
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
17. The MAINS plugs used as the disconnect device, which shall remain readily operable.

FEATURES

Bluetooth wireless stereo audio streaming
Support A2DP Profiles for most smart phones / laptops
- Aux In input (3.5 mm Stereo Mini Jack)
- Microphone input (3.5 mm Stereo Mini Jack)
- disco ball with disco light effect
- Micro USB jack for battery charging
Built-in lithium-ion re-chargeable battery

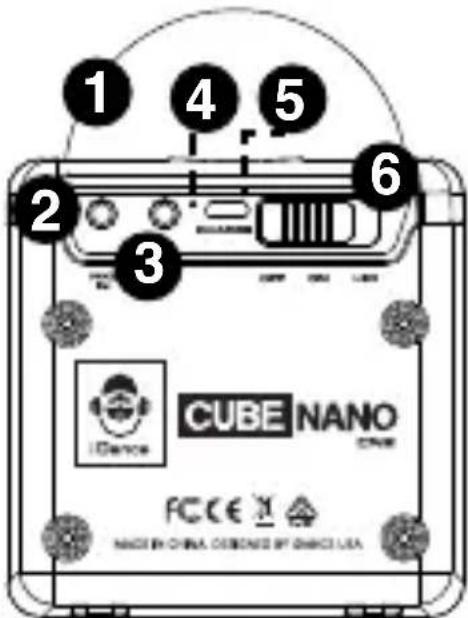

CONTROL LOCATION

1. DISCO BALL

For different color LED light show.

2. Mic-IN 3.5mm Jack

Connect 3.5mm mini jack to this port to sing or make voice announcement with CN2.

3. AUX In (Line Input / Audio Input) 3.5MM Input Jack

Connect a music device (MP3 player etc.) to this socket with a 3.5mm mini jack audio cable to play through CN2.

4. Battery Charging indicator:

Insert micro USB cable to this port and connect to USB port for charging, the indicator will turn red. The indicator will be light OFF after fully charged.

5. MICRO USB JACK

Connect the micro USB cable to charging the built-in battery.

6. Power, LED ON / OFF

Slide this switch to ON for turning on the CN2,

Slide to LED to turn CN2 ON with activated LED light show

GENERAL OPERATIONS

Connect to external adapter or computer USB port

Connect micro USB plug of USB cable to main unit micro USB jack and plug the other to computer USB output port or external adapter output port.

Charging Battery

1. Charging the built-in battery by connecting to USB power for 10-12 hours prior to first use.
2. When the built-in battery is being charged, the charging indicator light red.
3. If the charging indicator turn off when the built-in battery is fully charged.
4. Please charge to CN2 when battery power is low.

Battery Safety Notes:

1. To prolong the life of a rechargeable battery, it is recommended to completely discharge it before fully charging it again.
2. Do not dispose of built-in battery in fire, battery may be explode or leak.
3. Do not open the built-in battery may be explode.

Connecting Bluetooth to your Smartphone I Tablet

1. Slide the Power LED ON.OFF switch to ON to turn on CN2
2. On your smartphone / Tablet, turn on Bluetooth and enable device scanning.
3. When CN2 shows on the Bluetooth scan, select it to connect it to your device.
4. When both devices are successfully connected, you are ready to play music wirelessly from your device.
5. Press the PLAY button of external Bluetooth device to start music playback.
6. Press the NEXT / PREV (BLUETOOTH) of external Bluetooth device to switch between music tracks.
7. Hold the STAND BY button to reconnect other Bluetooth device.

SPECIFICATIONS

DC IN Power DC 5V , 1A
Built-In Battery 3.7V , 1200 mAh
SOUND SOURCE INPUT Bluetooth, Aux in,
Total Harmonic Distortion Below 10% at Standard Output
Signal to Noise Ratio Over 41dB
Master Power Output 5W

Specifications are typical, individual units might vary. They are subject to continuous improvement without notice and without incurring any obligation.
