USER MANUAL KF7600 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

DEG

Teile

Pouan/aalayn xpovou kaovotepnoC.

Enueiow: Av o xpnotnc dev natnoe iava to kouuni npovpaumatouo, n oovn ta eapavoei tnv tpexouoa wpa eta aio 5 deutepoIenta kai n puoiion tou xpovou kaovotepnoic thakupwEi.

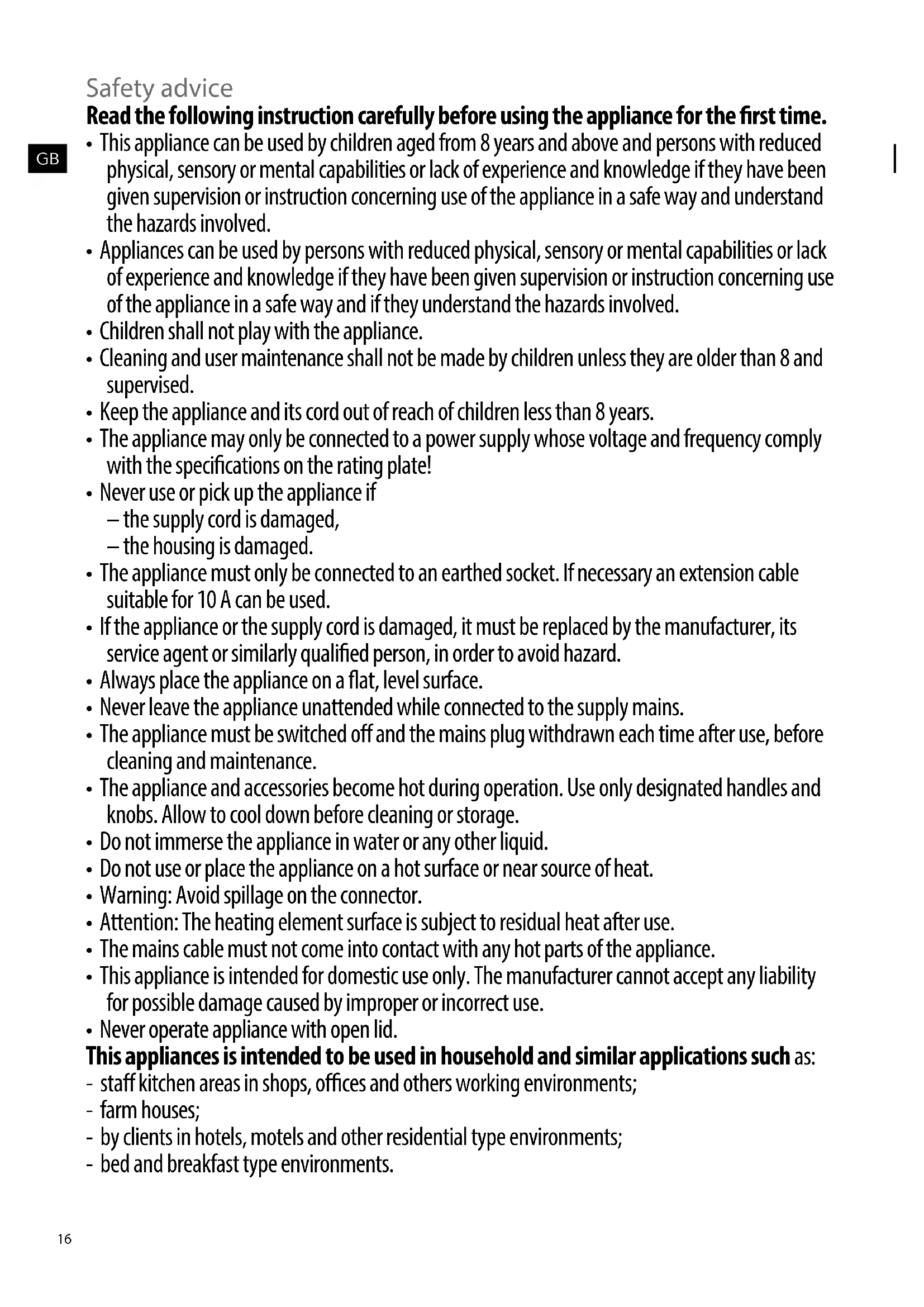

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!

• Never use or pick up the appliance if

• the supply cord is damaged,

• the housing is damaged.

• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10A can be used.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.

• Never leave the appliance unattended while connected to the supply mains.

• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.

• Do not immerse the appliance in water or any other liquid.

• Do not use or place the appliance on a hot surface or near source of heat.

• Warning: Avoid spillage on the connector.

• Attention: The heating element surface is subject to residual heat after use.

• The mains cable must not come into contact with any hot parts of the appliance.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

• Never operate appliance with open lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and others working environments;

-farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

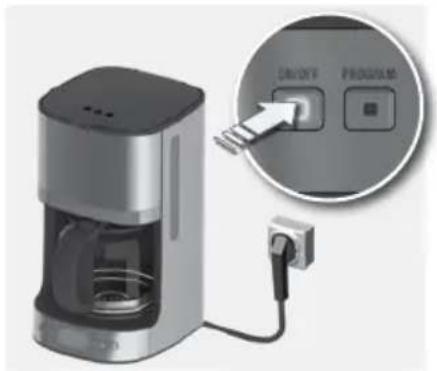

1. Place the machine on a flat surface. When starting the machine for the first time, fill the tank with cold water. Start the machine with the ON/OFF switch. Let a full tank of water pass through the machine once or twice to clean it, without using a paper filter or coffee.

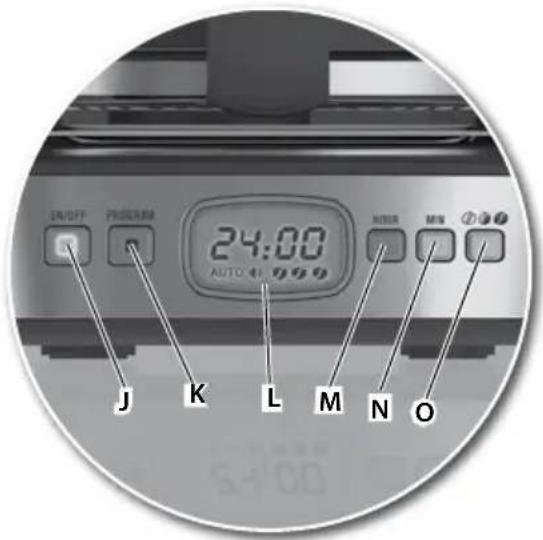

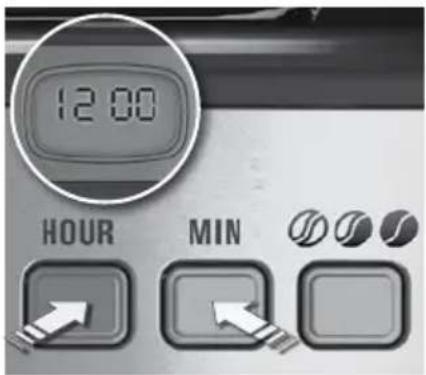

2. Setting/changing time. Plug in the machine, the display will flash the initial time showing: 12:00. Press the HOUR and MIN button to set the required time. Time can be changed at any time, even under program mode. Simply press the HOUR and MIN button, the time changes at once. Note: if you unplug the machine, the time needs so be set again.

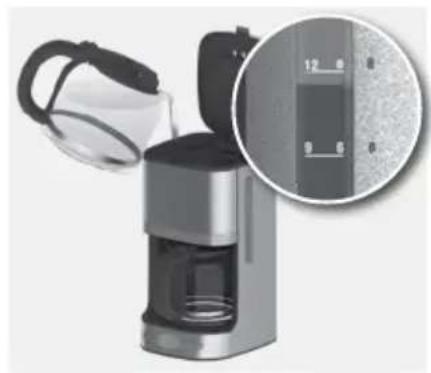

3. Making coffee: open the lid and fill the water tank with fresh cold water up to the desired level. There is a water level indicator on the water tank and on the coffee jug. (The machine must not be used with empty tank!)

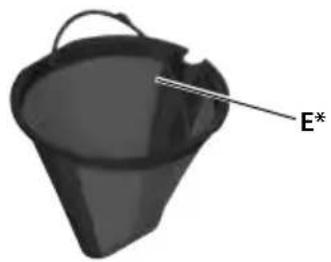

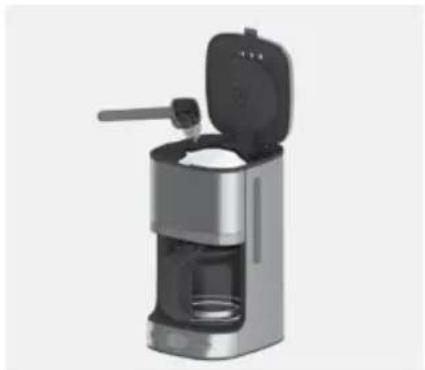

4. Insert the permanent filter* or a 1x4 size paper filter in the filter holder and fill it with grounded coffee. There is a gauge for recommended number of spoons of coffee next to the water gauge. For average strong coffee 1 measuring spoon (approx. 6-7 g) per cup is sufficient. Close the water tank lid and place the jug back (complete with lid).

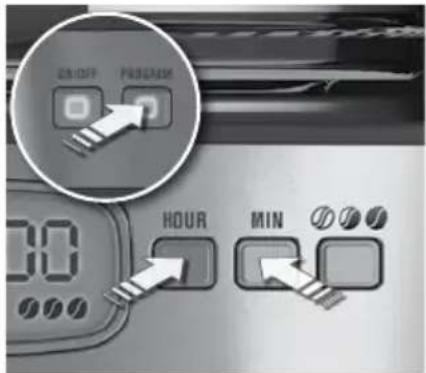

5. Setting/changing delay time. Press and hold PROGRAM button more than 1 second, then release the PROGRAM button, the green program light flashes, set hours by pressing the HOUR button. Then set minutes by pressing the MIN button. Press the PROGRAM button again to confirm, the display will go back to show the current time immediately, and display show "auto" symbol, green program light illuminate. Note: If user don't press program button again, the display will go back to show the current time after 5 seconds, and setting delay time is cancelled.

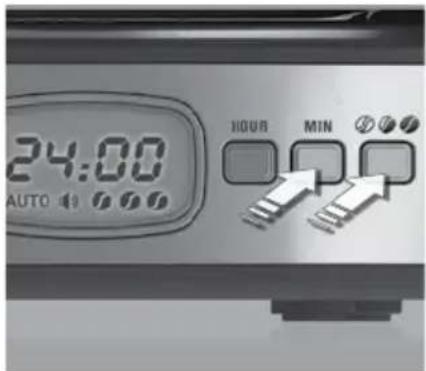

6. Sound alarm on/off: The bugle symbol flashes on the display by default. The symbol blinks, and it continues to light when brewing. The buzzer beeps 3 times when the coffee is ready. To turn on/off the sound alarm function, press and hold the MIN button and the button at same time. The sound alarm function can only be turned on/off on a nonworking mode, it cannot be changed during brewing. Note: The alarm shows by default when the machine is unplugged. Repeat this procedure to turn it off.

Getting started

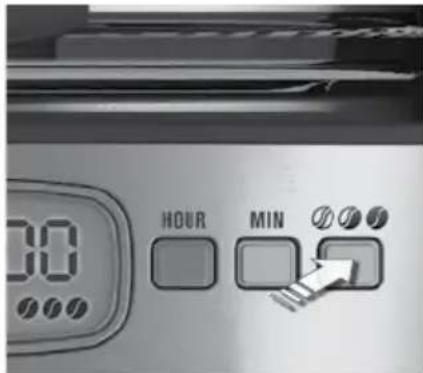

7. The Aroma Selector extends the brewing time to maximize the flavour extraction and get a stronger coffee for a small number of cups (normally less than 6). Press once for mild strength, twice for medium and 3 times for strong coffee.

8. Start the machine with the ON/OFF switch. The power indicator light will come on and hot water will flow into the filter. If the machine is not turned off manually, the Safety Auto-Off function turns it off 40 minutes after the end of brewing

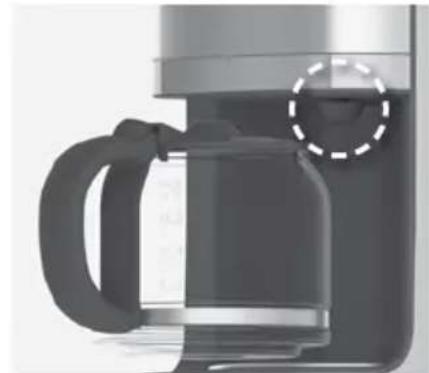

9. If the jug is removed, the filter valve prevents coffee from dripping onto the warming plate. (While preparing coffee, the jug must not be removed for longer than 30 seconds or the filter will overflow.)

Cleaning and care

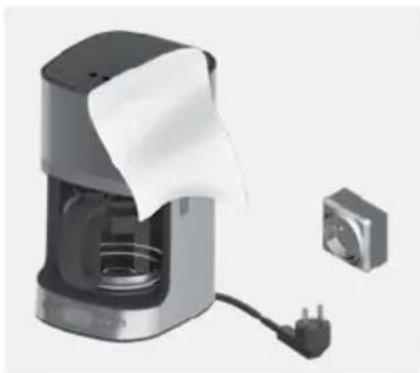

1. Turn the machine off and unplug the power cord. Wipe all outer surfaces with a damp cloth. Coffee jug and jug lid are dishwasher proof. Never use caustic or abrasive cleaners, and never immerse the machine in liquid!

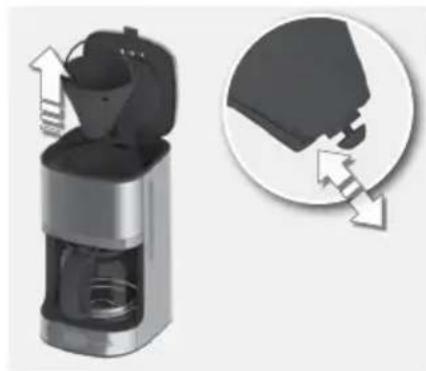

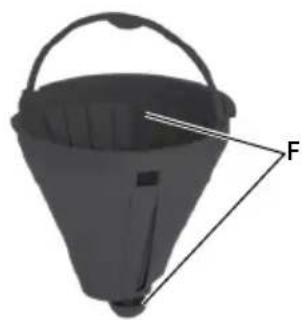

2. To clean the filter holder, lift up the handle and remove the filter holder. To clean the filter valve thoroughly, push it several times while it is being rinsed. The filter holder can also be washed in the dishwasher.

1. As a precaution we recommend.
descaling after 70 uses.Use only an environmentally friendly
descending agent and always follow the
manufacturer's instructions.

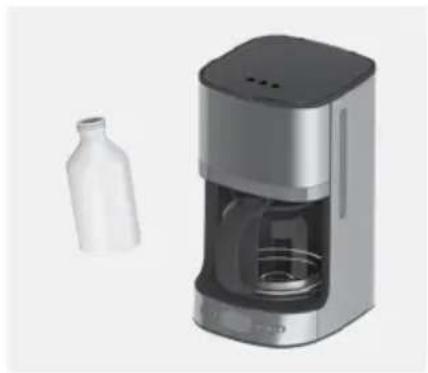

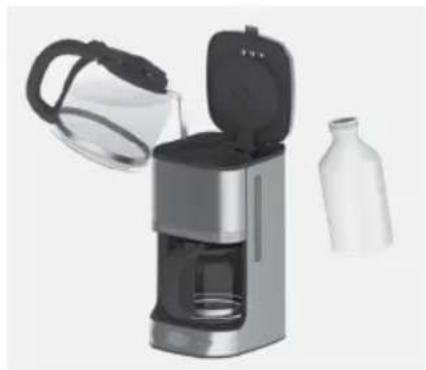

2. First fill the fresh water container with water and then add the descending agent. Place the coffee jug with the lid on the warming plate. Allow the descending solution to work for approximately 15 minutes, then switch on the appliance. Once the descending solution has percolated through, switch the appliance off. If necessary, repeat the descending procedure. Repeat the procedure at least twice using clear water.

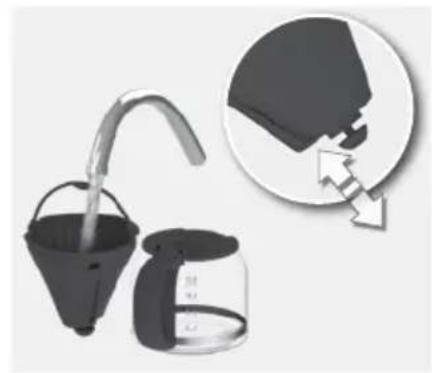

3. Rinse the coffee jug, jug lid and filter insert thoroughly under running water. Activate the anti-drip valve several times as it is rinsed.

Disposal

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
