USER MANUAL SCCB5311P SAMSUNG

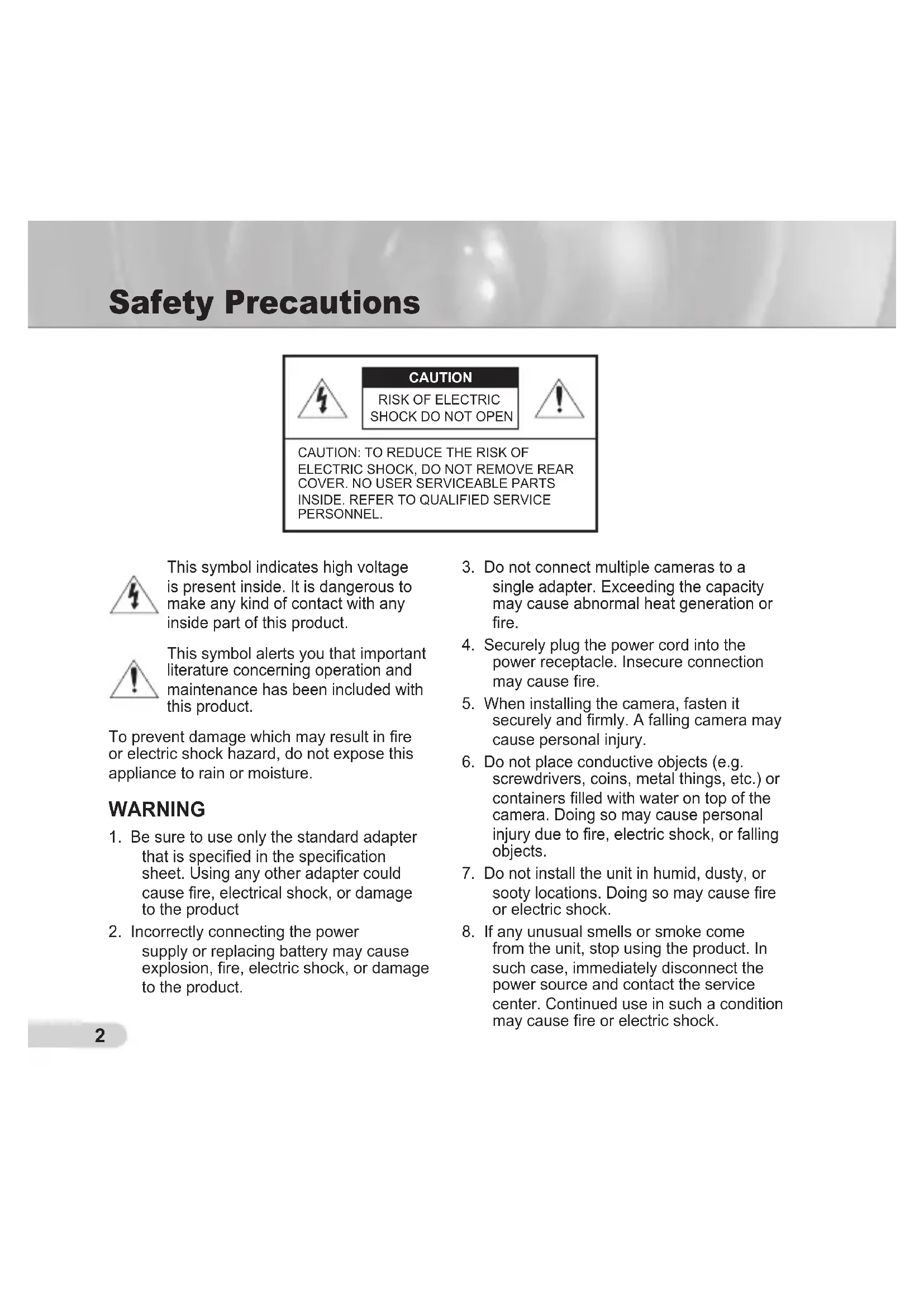

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. WARNING

1. Be sure to use only the standard adapter

that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product

2. Incorrectly connecting the power

supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.

3. Do not connect multiple cameras to a

single adapter. Exceeding the capacity may cause abnormal heat generation or fire.

4. Securely plug the power cord into the

power receptacle. Insecure connection may cause fire.

5. When installing the camera, fasten it

securely and firmly. A falling camera may cause personal injury.

6. Do not place conductive objects (e.g.

screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.

7. Do not install the unit in humid, dusty, or

sooty locations. Doing so may cause fire or electric shock.

8. If any unusual smells or smoke come

from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock. Safety Precautions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. CAUTION

9. If this product fails to operate normally,

contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

10. When cleaning, do not spray water

directly onto parts of the product. Doing so may cause fire or electric shock. CAUTION

1. Do not drop objects on the product or

apply strong shock to it. Keep away from a location subject to excessive vibration or magnetic interference.

2. Do not install in a location subject to

high temperature (over 122°F), low temperature (below 14°F), or high humidity. Doing so may cause fire or electric shock.

3. If you want to relocate the already

installed product, be sure to turn off the power and then move or reinstall it.

4. Remove the power plug from the

outlet when then there is a lightning. Neglecting to do so may cause fire or damage to the product.

5. Keep out of direct sunlight and heat

radiation sources. It may cause fire.

6. Install it in a place with good ventilation.

7. Avoid aiming the camera directly towards

extremely bright objects such as sun, as this may damage the CCD image sensor.

8. Apparatus shall not be exposed to

dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

9. The Mains plug is used as a disconnect

device and shall stay readily operable at any time. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful

2) This device must accept any interference

received including interference that may cause undesired operation. Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. AB68-00647D(01)Eng.indd 3 2007-05-14 ｿﾀﾈﾄ 4:33:034

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or been dropped. AB68-00647D(01)Eng.indd 4 2007-05-14 ｿﾀﾈﾄ 4:33:034 ENG

About this guide This user guide includes basic instructions for the product. It is recommended that all users read this guide before use. This guide is divided as follows:

Chapter 1, “Overview,” introduces the user guide and product related information. (This chapter)

Chapter 2, “Installation,” explains how to set and install the product.

Appendix, “Specifications,” provides the specifications of the product.

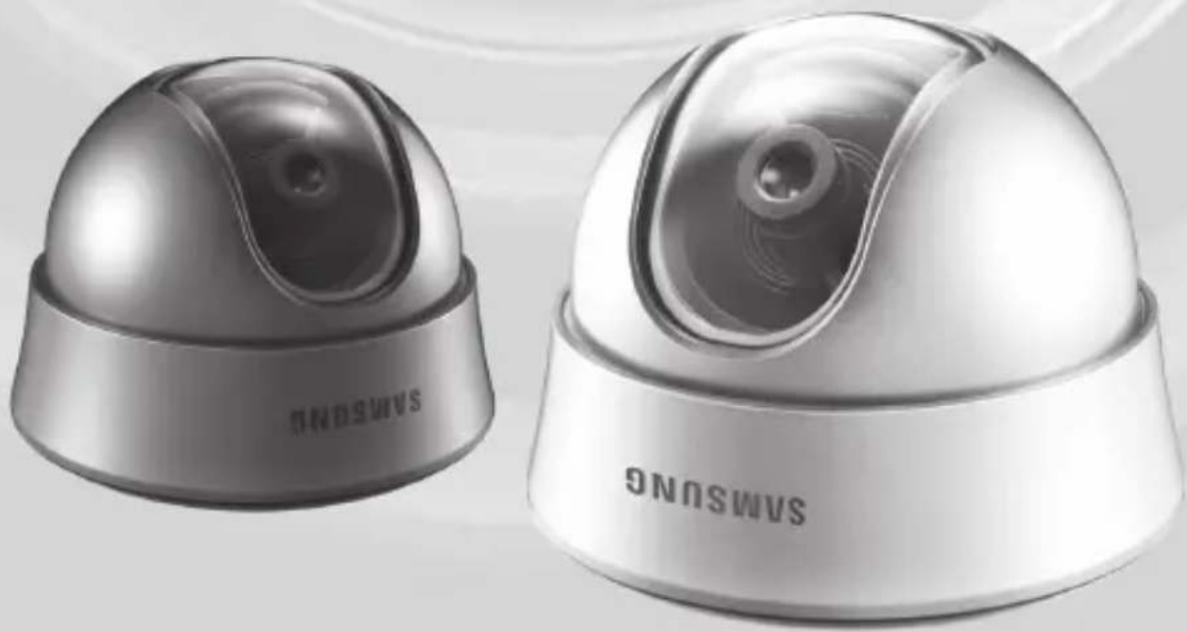

Product overview This is the high resolution dome camera equipped with a fixed focal lens, which has no dynamic delay when implementing motion pictures, and provides the features such as digital noise reduction (DNR) by real-time CCD defect compensation, low speed shutter (LSS: Auto x128) to implement clear picture quality, Day/Night color compensation, and the like.

Power: DC 12V/AC 24V Special functions Line lock (LL) control Auto white balancing Horizontal/vertical image reversing Auto gain control Low shutter speed control Backlight compensation control Automatic switching between color and black & white modes Digital noise reduction (DNR) Dynamic CCD defect compensation

Components Checking components in the package Please check your camera and accessories are included in the package. Those components are as shown below:Camera Test Monitor CableTab screw User’s Guide Note The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera to a monitoring display, use the BNC cable. Overview AB68-00647D(01)Eng.indd 6 2007-05-14 ｿﾀﾈﾄ 4:33:046 ENG

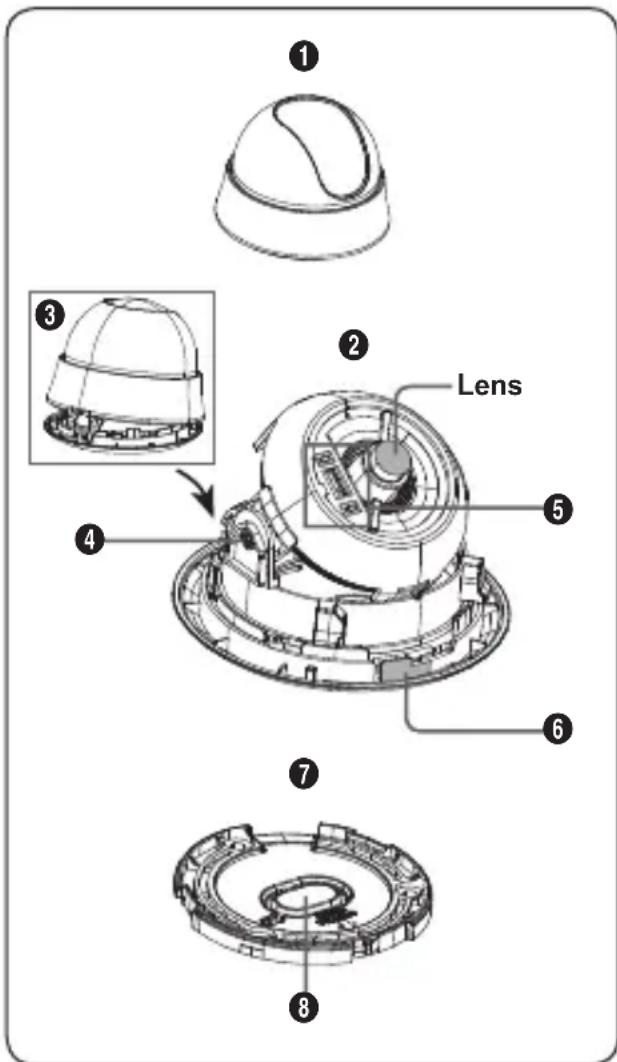

Components of your camera Your camera has the following components:1. Cover dome: Covers the lens and main body to protect them. 2. Main body: Includes a lens, a switch board, a PCB board, screws, and such.3. Locker: Used to open or close the Cover dome. To open the cover dome, press the locker.4. Tilt fixing screw: Using this screw, the slope of the lens can be adjusted and fixed.5. Switch board: Includes two kinds of control switches such as function switches and phase-control switches. The board has eight function switches in the middle and two phase-control buttons on each side of the function switch area.6. Lock releaser: Push it outward and rotate the main body in UNLOCK direction when you want to remove the mount bracket from the main body.7. Mount bracket: Used as a ceiling or wall fixture. It is fixed using three long tab screws provided in the package. 8. Ceiling mount opener: Remove it for line connection to the ceiling when it is installed on the ceiling.

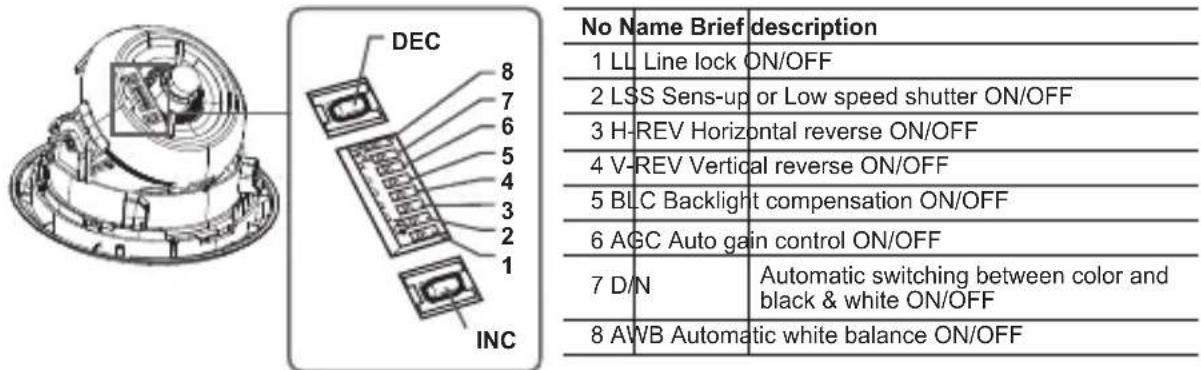

Setting switches Setting function switches To set the available functions on your camera, adjust eight switches as shown below: Installation No Name Brief description1 LL Line lock ON/OFF2 LSS Sens-up or Low speed shutter ON/OFF3 H-REV Horizontal reverse ON/OFF4 V-REV Vertical reverse ON/OFF5 BLC Backlight compensation ON/OFF6 AGC Auto gain control ON/OFF7 D/NAutomatic switching between color and black & white ON/OFF8 AWB Automatic white balance ON/OFF DEC INC

1. Switch 1 (LL): When this switch is set to OFF, the camera operates in the internal

synchronization mode, while when it is set to ON, the camera operates in the line lock mode. In the internal synchronization mode, the camera always uses an inside crystal oscillator for synchronization. However if multiple cameras are connected to a sequential switcher, picture rolling or flickering may occur when switching from one camera to another. In this case, you can set this switch to ON to solve this problem. The line lock mode allows the camera to use the phase of the AC power as the synchronization reference. In this mode, you can use the phase control buttons(INC/DEC). Note When you are using the DC 12V power, set this switch to OFF. The line lock feature will not normally operate even when the switch is set to ON.Set the LL switch to ON while the AC power is connected. If any picture roll happens, you have to adjust the phase using the phase-control buttons. Press the INC or DEC button to increase or decrease the phase by one degree. AB68-00647D(01)Eng.indd 8 2007-05-14 ｿﾀﾈﾄ 4:33:108 ENG

2. Switch 2 (LSS): This sens-up mode accumulates the image fields in memory to reduce

noise but increase the brightness and contrast rate. When this switch is set to ON, the camera automatically switches to a maximum of 128 times of image acquisition speed to implement a clear picture for darker image.

3. Switch 3 (H-REV): When this switch is set to ON, the camera image is reversed horizontally.

If you want to monitor your site using a mirror, you can use this feature to see the right image.

: When this switch is set to ON, the camera image is reversed vertically. If your camera reluctantly displays the vertically reversed image, you can use this feature to see the right image.

: When this switch is set to ON, you can view a clear image even though the camera faces any excessive light such as sunlight and fluorescent light. When it is set to OFF, the subject with excessive light is not clearly shown.

: When this switch is set to ON, the camera automatically increase the sensitivity by amplifying the video signal when the strength of the signal falls below a given value. When any dark images are expected, use this feature.

: When this switch is set to ON, the camera automatically switches between color and B&W according to the brightness of the vicinity.

8. Switch 8 (AWB): This switch adjusts white balancing. When this switch is set to

ON, this camera operates in ATW mode, and in case of OFF, this camera operates in AWC mode.

ATW (Auto Tracking White Balance): The color temperature is automatically adjusted according to the environmental change. (Approx. 2000°K to 11,000°K)

AWC (Auto White Balance Control): It stores the color temperature just when the switch is changed to OFF. Accordingly color temperatures are adjusted by the stored value. AB68-00647D(01)Eng.indd 9 2007-05-14 ｿﾀﾈﾄ 4:33:1110

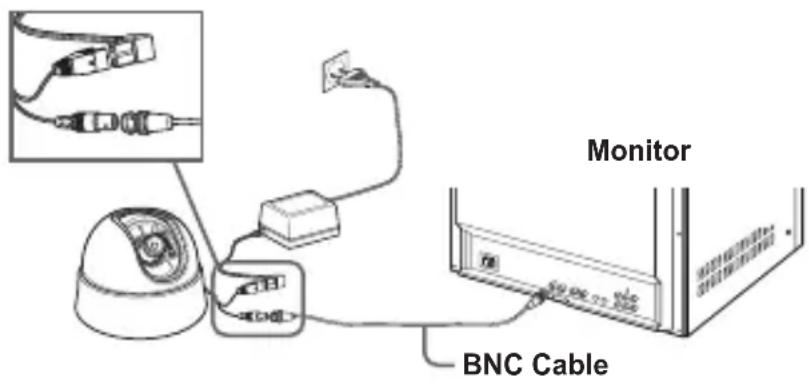

Connecting cables and setting switches To connect cables

1. Connect the BNC cable

to the Video connector attached on your camera.

2. Connect the BNC cable

to the Video Input on a monitor.

3. Connect the power

adapter to the Power connector attached on your camera. When the monitor is turned on, the camera image appears. To check the camera view and set the switches

1. Remove the Cover dome. For more details about the removing procedures, see “Installation

procedure,” in the Installing camera section on the next page.

2. Adjust the function of your camera using the Switch board while you are viewing the image

Installing camera Before installation Before installing your camera, you have to read the following cautions: You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire. When installing your camera, don’t allow any person to approach the installation site. If you have any valuable things under the place, move them away. Installation procedure To install your camera1. Press the Locker button on the bottom of your camera and remove the Cover dome from the Main body using the other hand. The Main body will be exposed to you. 2. As shown in the picture, push the Lock releaser outward and rotate the Main body in the UNLOCK direction to remove the Mount bracket. If it is not easily done, rotate the Mount bracket in the LOCK direction while holding small holes on the Mount bracket.3. Fix the Mount bracket to the location (ceiling or wall) with supplied three screws. Note The CAMERA FRONT sign on the Mount bracket should face the camera monitoring area.

Ceiling mount opener

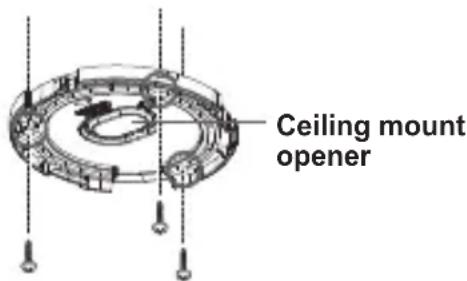

4. When you install the Mount bracket on the ceiling, remove the Ceiling mount opener by

pressing it hard to connect the line attached on your camera through the hole in the ceiling. Otherwise, you can use the empty space opposite to the CAMERA FRONT sign for line connection.

5. Now attach the Main body to the Mount bracket by rotating it in the LOCK direction after

aligning the Lock releaser on the Main body with the wide groove around the CAMERA FRONT inlay.

6. Adjust the camera direction. For more details on the direction control, see “Adjusting the

camera direction,” on the same page.

7. Finally attach the Cover dome to the Main body by pressing it until a “click” sound is heard

after aligning the wide groove at the lower part of the Cover dome with the Locker on the Main body.

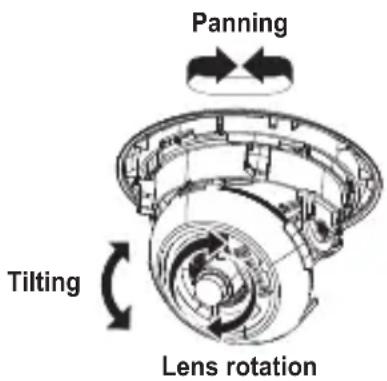

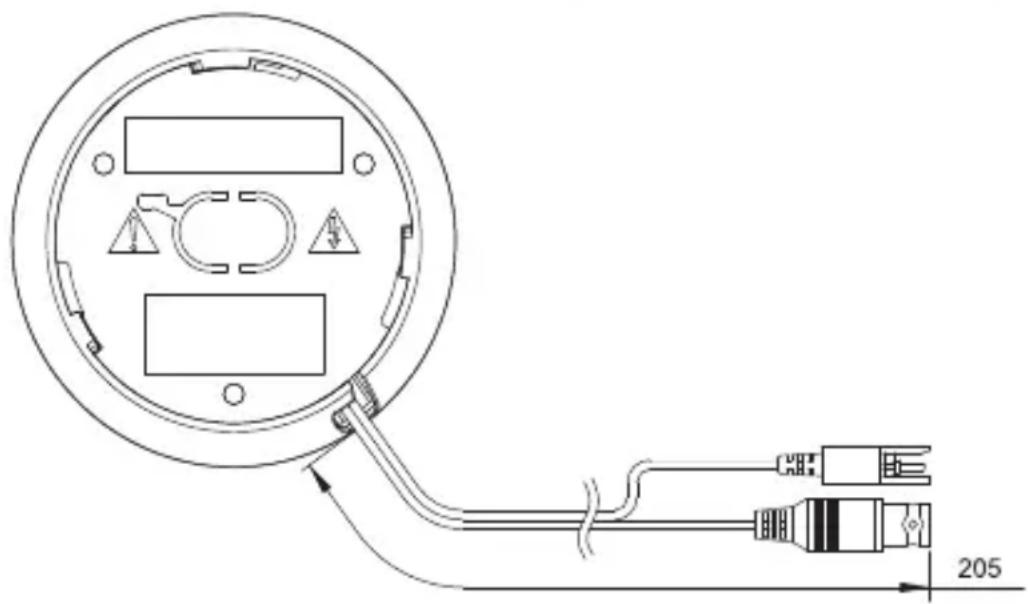

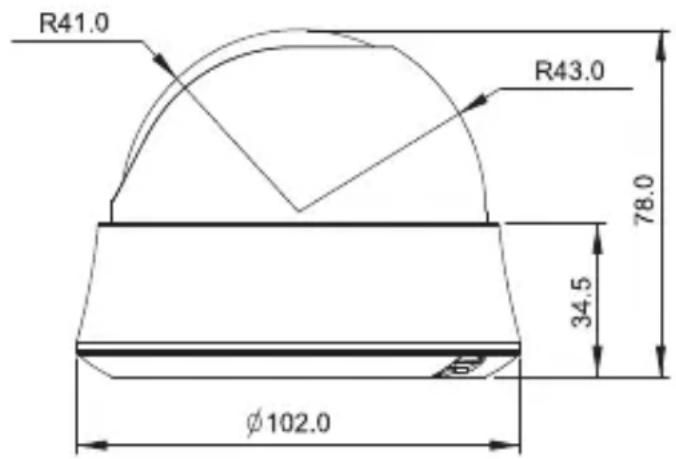

Adjusting the camera direction When the camera is fixed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting). In case of panning, the rotation limit of your camera is set to 340 degree (220 degree clockwise and 120 degree counterclockwise). The rotation is stopped by the Stopper inside of the camera. For panning control, first unfasten two screws located on the bottom and rotate in the direction you want, and then fasten them to fix the camera. When both fixing screws cannot be tightened, change the location of screws. When inevitable, just tightening one screw is alright. In case of tilting, you can change the slope of your camera from zero to 90 degree. When the slope angle is under 23 degree, you can encounter a partial image hide problem. To fix the location after adjusting the tilting angle, use the Tilt fixing screws. To adjust the focus of your camera, rotate the fixed lens for clear image. When you install the camera on the inclined ceiling or wall, you can rotate the camera lens to see a correct direction image. Panning Tilting Lens rotation AB68-00647D(01)Eng.indd 12 2007-05-14 ｿﾀﾈﾄ 4:33:1312 ENG

Appendix A: Specifications for NTSC Standard Item Details Product type CCTV color dome camera Power input AC 24V ± 10% (60Hz ± 0.3 Hz), DC 12V +10%/-5% Broadcast type NTSC Standard color system (525 Lines, 60 Fields) Power consumption Approx. 1.6W Image device 1/3 inch IT Type Super-HAD CCD Pixels

SCC-B5311N, B5313N, B5315N

SCC-B5310N Total: 811(H) x 508(V), 410,000 pixels Effective: 768(H) x 494(V), 380,000 pixels Total: 537(H) x 505(V), 270,000 pixels Effective: 510(H) x 492(V), 250,000 pixels Scanning mode 525 Lines, 2:1 Interlace Scanning line frequency Horizontal: 15.734Hz(INT)/15.750Hz(LL) Vertical : 59.94Hz(INT)/60Hz(LL) Synchronization mode INT/Line Lock (Adjusting the phase using INC/DEC button) Horizontal resolution

SCC-B5311N, B5313N, B5315N

SCC-B5310N 540 TV Lines 330 TV Lines Min. object illumination

SCC-B5311N, B5313N, B5315N

Item Details Controls Line Lock (LL) Sens-up; Low Speed Shutter(LSS) Horizontal Reverse (H-REV) Vertical Reverse (V-REV) Backlight compensation (BLC) Auto gain control (AGC) Switching between color and B&W by day and night change (D/N) Automatic white balancing (AWB) Digital noise reduction (DNR) Dynamic CCD defect compensation Product color SCC-B531xN : White / SCC-B531xBN : Black Operation temperature -10°C to +50°C Operation humidity Up to 90% Size 102(φ) x 78(H)mm Weight 190g AB68-00647D(01)Eng.indd 15 2007-05-14 ｿﾀﾈﾄ 4:33:1616

Appendix B: Specifications for PAL Standard Item Details Product type CCTV color dome camera Power input AC 24V ± 10% (50Hz ± 0.3 Hz), DC 12V +10%/-5% Broadcast type PAL Standard color system (625 Lines, 50 Fields) Power consumption Approx. 1.6W Image device 1/3 inch IT Type Super-HAD CCD Pixels

Item Details Controls Line Lock (LL) Sens-up; Low Speed Shutter(LSS) Horizontal Reverse (H-REV) Vertical Reverse (V-REV) Backlight compensation (BLC) Auto gain control (AGC) Switching between color and B&W by day and night change (D/N) Automatic white balancing (AWB) Digital noise reduction (DNR) Dynamic CCD defect compensation Product color SCC-B531xP : White / SCC-B531xBP : Black Operation temperature -10°C to +50°C Operation humidity Up to 90% Size 102(φ) x 78(H)mm Weight 190g AB68-00647D(01)Eng.indd 17 2007-05-14 ｿﾀﾈﾄ 4:33:16AB68-00647D(01)Eng.indd 18 2007-05-14 ｿﾀﾈﾄ 4:33:16Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. AB68-00647D(01)Eng.indd 19 2007-05-14 ｿﾀﾈﾄ 4:33:17AB68-00647D(01)Eng.indd 20 2007-05-14 ｿﾀﾈﾄ 4:33:17Digitale Dome-Farbkamera GER Benutzerh andbuch SCC-B531x(B) AB68-00647D(01)Ger.indd 1 2007-05-14 ｿﾀﾈﾄ 4:36:572

SCC-B5311N, B5313N, B5315N

SCC-B5310N Gesamt: 811(H) x 508(V), 410.000 Pixel Effektiv: 768(H) x 494(V), 380.000 Pixel Gesamt: 537(H) x 505(V), 270.000 Pixel Effektiv: 510(H) x 492(V), 250.000 Pixel Abtastmodus 525 TV-Linien, 2:1 Interlace Abtastrate Horizontal: 15,734Hz(INT)/15,750Hz(LL) Vertikal: 59,94Hz(INT)/60Hz(LL) Synchronisationsmodus INT/Line Lock (Einstellen der Phase mit der Taste INC/DEC) Horizontale Auflösung SCC-B5311N, B5313N, B5315N SCC-B5310N 540 TV-Linien 330 TV-Linien Min. Lichtstärke des Objekts

SCC-B5311N, B5313N, B5315N

SCC-B5311N, B5313N, B5315N

SCC-B5310N Total: 811(H) x 508(V), 410 000 pixels Effectif: 768(H) x 494(V), 380 000 pixels Total: 537(H) x 505(V), 270 000 pixels Effectif: 510(H) x 492(V), 250 000 pixels Mode de balayage 525 lignes, Entrelacement 2:1 Fréquence de la ligne de balayage Horizontal: 15,734Hz(INT)/15,750Hz(LL) Vertical: 59,94Hz(INT)/60Hz(LL) Mode de synchronisation INT/Verrouillage de ligne (Ajuster la phase à l’aide du bouton INC/DEC) Résolution horizontale

SCC-B5311N, B5313N, B5315N

SCC-B5310N 540 Lignes TV 330 Lignes TV Illumination mini. de l’ objet

SCC-B5311N, B5313N, B5315N

SCC-B5311N, B5313N, B5315N

SCC-B5310N Totales: 811 (H) x 508 (V), 410.000 píxeles Efectivos: 768 (H) x 494 (V), 380.000 píxeles Totales: 537 (H) x 505 (V), 270.000 píxeles Efectivos: 510 (H) x 492 (V), 250.000 píxeles Modo de escaneo 525 Líneas, Entrelazado 2:1 Frecuencia de la línea de escaneo Horizontal: 15,734 Hz (INT)/ 15,750 Hz (LL) Vertical: 59,94 Hz (INT)/ 60 Hz (LL) Modo de sincronización INT/Sincronismo de línea (Ajuste de fase mediante el botón INC/DEC) Resolución horizontal

SCC-B5311N, B5313N, B5315N

SCC-B5310N 540 líneas de TV 330 líneas de TV Iluminación mínima de la esena

SCC-B5311N, B5313N, B5315N

SCC-B5311N, B5313N, B5315N

SCC-B5310N Totale: 811(O) x 508(V), 410.000 pixel Effettivi: 768(O) x 494(V), 380.000 pixel Totale: 537(O) x 505(V), 270.000 pixel Effettivi: 510(O) x 492(V), 250.000 pixel Modalità di scansione 525 Linee, interlacciato 2:1 Frequenza linea di scansione Orizzontale: 15,734Hz(INT)/15,750Hz(LL) Verticale: 59,94Hz(INT)/60Hz(LL) Modalità di sincronizzazione INT/Line Lock (Adjusting the phase using INC/DEC button) Risoluzione orizzontale

SCC-B5311N, B5313N, B5315N

SCC-B5310N 540 linee TV 330 linee TV Illuminazione degli oggetti minima

SCC-B5311N, B5313N, B5315N

5. Anahtar 5 (BLC): Anahtar

ON konumundayken, kamera güneş ışığı floresan ışığı gibi aşırı bir ışıkla karşılaşsa bile net bir görüntü elde edebilirsiniz. OFF konumundayken aşırı ışığa sahip hedef görüntüyü net olarak göstermez.

6. Anahtar 6 (AGC): Anahtar

SCC-B5311N, B5313N, B5315N

SCC-B5310N Toplam: 811(H) x 508(V), 410,000 pixels Geçerli: 768(H) x 494(V), 380,000 pixels Toplam: 537(H) x 505(V), 270,000 pixels Geçerli: 510(H) x 492(V), 250,000 pixels Tarama modu 525 hat, 2:1 ara birim Taranan hat frekansı Yatay : 15.734Hz(INT)/15.750Hz(LL) Dikey: 59.94Hz(INT)/60Hz(LL) Senkronizasyon modu INT/hat Kilidi (INC/DEC düğmesi kullanılarak faz ayarlama) Yatay çözünürlük

SCC-B5311N, B5313N, B5315N

SCC-B5310N 540 TV hattı 330 TV hattı Min. obje aydınlatma

SCC-B5311N, B5313N, B5315N
