Cordless Pruning Saw FAAS 10.8 A2

Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The tool - normative sabre saw - with fixed stop (shoe) is intended for cutting wood, plastic and building materials. The tool is suitable for rough saw cuts, straight or curved cuts, and flush surface cuts. Used with the holding bracket the tool is suitable for cutting branches. Please note the information on saw blades and instructions on sawing. Any other use or modification of the tool is deemed improper use with serious risks. The manufacturer is not liable for damage caused by improper use. The tool is not intended for commercial use.

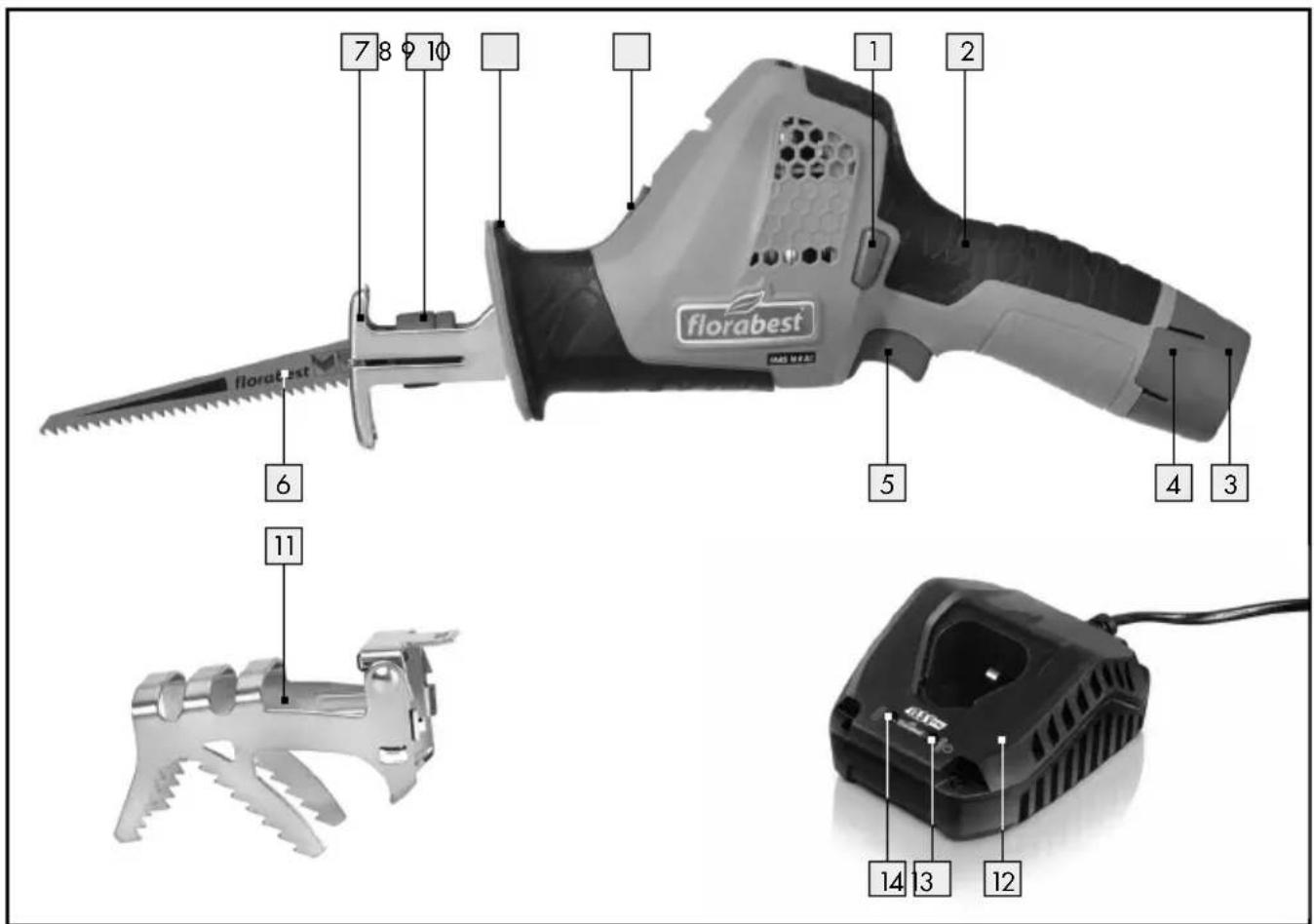

- Features

1 Switch lock
2 Handle
3 Battery pack
4 Release (battery pack)
5 ON-/OFF-switch
6 Saw blade
7 Shoe
8 Quick-action blade clamp
9 Hand guard
10 Release (holding bracket)
11 Holding bracket
12 Rapid charger
13 Status LED (green)
14 Status LED (red)

15 Battery indicator 16 Test button

- Scope of delivery

1 Cordless Pruning Saw FAAS 10.8 A2
1 Holding bracket
1 Battery pack
1 Rapid charger
1 Saw blade, wood 152mm 1 Instructions for use
1 Carrying case

Technical Data

Rated voltage: 10.8V
Rated idle stroke rate: n_0 0-2700 min-1
Stroke length: 20 mm
Max. cutting rate: Wood 80 mm

Battery pack FAAS 10.8 A2-1:

Type: LITHIUM-ION Rated voltage: 10.8V
Capacity: 1500 mAh

Rapid charger FAAS 10.8 A2-2:

Input: Rated voltage: 230 - 240V 50Hz Rated power: 30W

Output:
Rated voltage: 12.6V
Charging current: 1800mA
Charging time: approx. 60 min
Protection class: II/□

Noise and vibration data:

Measured data for noise is determined in accordance with EN 60745. The A-rated noise level of the power tool is typically:
Sound pressure level: 79 dB(A)
Sound power level: 90 dB(A)
Uncertainty K: 3 dB

Wear hearing protection!

Vibration emission values:

Vibration emission value (cutting boards):

$$ a _ {h, B} = 6. 6 m / s ^ {2} $$

Vibration emission value (cutting wooden beams):

$$ a _ {h, W B} = 1 2. 6 m / s ^ {2} $$

Uncertainty K = 1.5m / s^2

WARNING! The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare tools. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the power tool and in some cases, may exceed the value specified in these instructions.

Regularly using the power tool in such a way may make it easy to underestimate the vibration.

Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Where in all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

- General safety advice for electrical power tools

A WARNING! Read all the safety advice and instructions! Failure

to observe the safety advice and instructions may result in electric shock, fire and / or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the power tool (or on the power supply) must fit the mains socket. Never modify the plug in any way. Never use adapter plugs with earthed power tools. Unmodified plugs and the correct sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.

f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and

correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and

the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!
Protect the battery against heat, e.g., against continuous intense sunlight, fire, water and moisture. Danger of explosion.

6. Service

a) Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

- Safety notices specific to sabre saws

To prevent the risk of injury and fire, as well as health hazards:

Hold the tool by the insulated handles when performing work where the tool may hit hidden electrical wires. Contact with a live wire could cause metal parts of the tool to become live and lead to electric shock.
Use suitable detectors in order to search for hidden supply lines, or consult your local power authority. Contact with electric lines can lead to fire and electric shock. Damage to a gas line can result in explosion. Breaking a water line causes property damage.
Keep you hands away from the area of the saw blade. Do not grip the underside of the work piece. Contact with the saw blade may result in injury.
- Keep hands away from the lifting rod and the quick-action blade clamp. Contact with components poses a crushing risk.
Always switch on the power tool before placing it against the work piece. There is also the risk of kickback if the power tool becomes caught in the work piece.
Be sure the guide plate touches the work piece when sawing without holding bracket. The saw blade could catch, resulting in losing control over the power tool.
After finishing work switch off the power tool and only remove the saw blade from the cut once it has stopped. This will prevent kickback and allows you to safely put down the power tool.
Only use undamaged, defect-free saw blades. Bent or dull saw blades can brake, negatively impact the cut or cause kickback.

.../ Safety notices for chargers/Working instructions for sawing / Before using

After switching off do not stop the saw blade by pressing it sideways against an object. The saw blade could be damaged, brake, or cause kickback.
Secure the material well. Do not support the work piece with your hand or foot. Do not touch objects or the ground with the saw running. Risk of kickback.
- Secure the work piece. Use clamps or a vice to firmly hold the work piece. This results in a safer grip than with your hand.
Wait for the power tool to stop before putting it down. The tool being used could catch, resulting in losing control over the power tool.
Lock the on/off switch to the off position before working on the power tool (e.g. maintenance, tool change, etc.), and when transporting or storing. Risk of injury if the on/off switch is accidentally activated.
- Protect the power tool from heat, e.g. also from continuous sunlight, fire, water and moisture. Risk of explosion.
Wear the dust mask when using the tool.

- Safety notices for chargers

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Children should not be allowed to play with the device. Cleaning and user maintenance should not be performed by children without supervision.
The charger is only suitable for indoor use.
A WArHngate the device if the cable, mains cable, or plug are damaged. A damaged mains cable indicates a life-threatening danger due to electric shock.

- Working instructions for sawing

Check the material you wish to cut for foreign objects such as nails, screws, etc. and remove these.
- Immediately switch off the tool if the saw blade is jammed. Spread the previously cut slit with a suitable tool and remove the sabre saw.
Saw the material with an even feed motion.

- Original accessories/tools

Use only the accessories specified in the operating instructions. Using tools or accessories other than those recommended in the operating instructions could result in injury.

Information about saw blades

You can use any saw blade, provided it has the correct shank fitting - 12 (12.7 mm) universal shank. Saw blades in various lengths optimised for any sabre saw application are available from your retailer.

Note: TPI = teeth per inch = number of teeth per 2.54 cm

Before using

• Removing/charging/inserting the battery pack

Note: The battery is partly charged at the time of delivery. Charge the battery before use. Li-lon batteries can be charged at any time without reducing the life. Interrupting the charging process does not damage the rechargeable battery.

1. To remove the battery pack 3 press the release buttons 4 and slide the battery pack 3 out of the tool.
2. Insert the rechargeable battery pack 3 into the rapid charger 12.

3. Insert the mains plug into the mains socket. The status LED [14] will light up red.

4. The green status LED 13 shows charging is completed and the battery pack is 3 ready for use.

5. Slide the battery pack 3 into the tool.

- Checking the battery charge

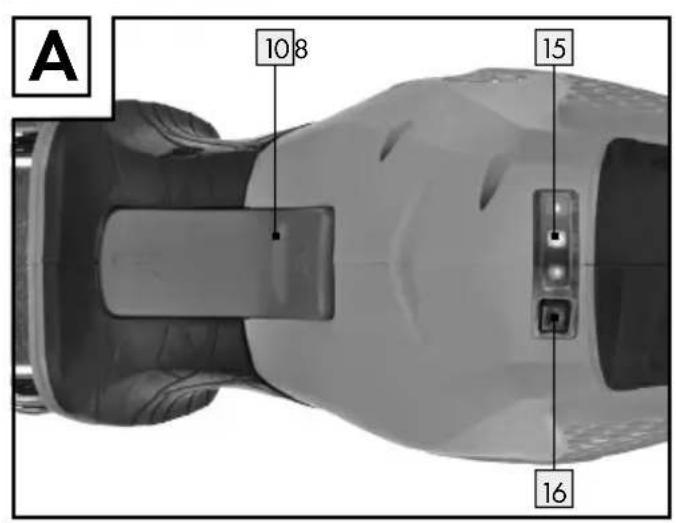

Press the test button 16 to check the battery condition (see Fig. A). The battery LED 15 indicates the condition and the remaining charge as follows: RED/ORANGE/GREEN = maximum charge/power RED/ORANGE = medium charge/power RED = low charge - recharge battery

- Attaching/Removing the holding bracket

Note: The retaining bracket cannot be installed / removed with the saw blade installed.

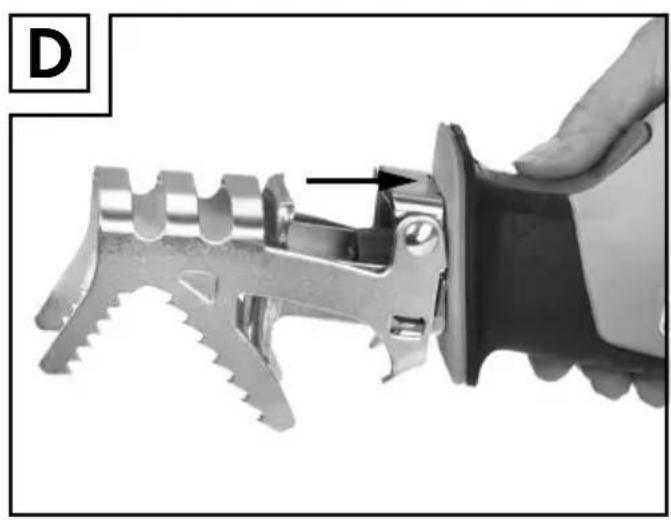

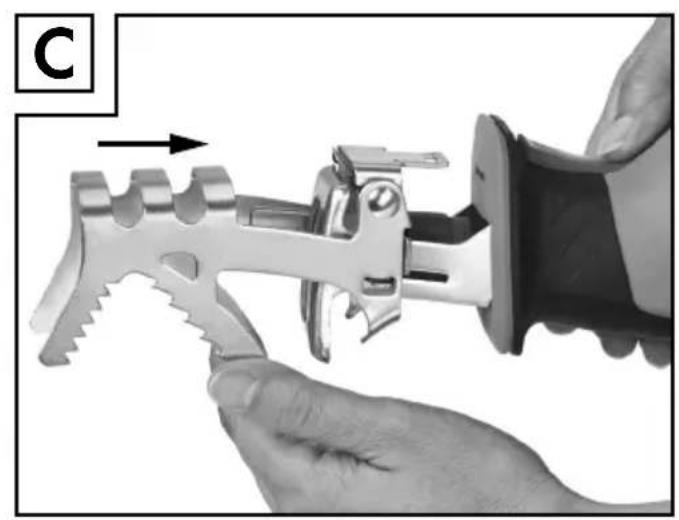

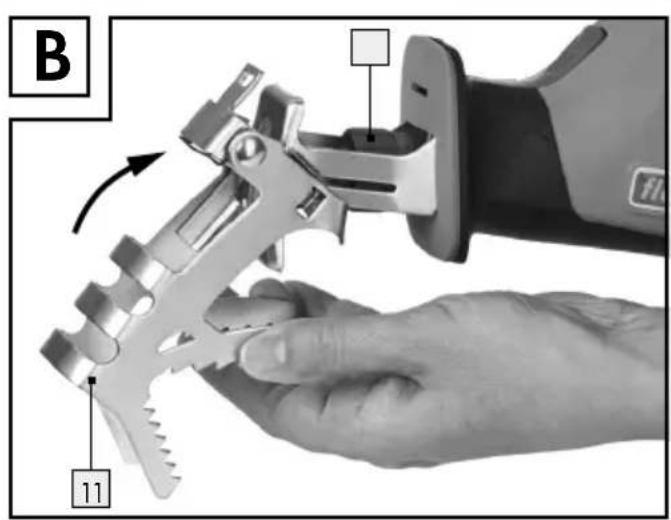

Attaching the holding bracket (see Fig. B-D):

Press the release button 10.
- Slide the holding bracket over the guides of the shoe into the tool.
Lock the release button 10.

Removing the holding bracket:

Press the release [10] and pull the holding bracket [11] forward and out of the guide.

- Installing/replacing the saw blade

Always wear safety gloves when installing /changing the saw blade.

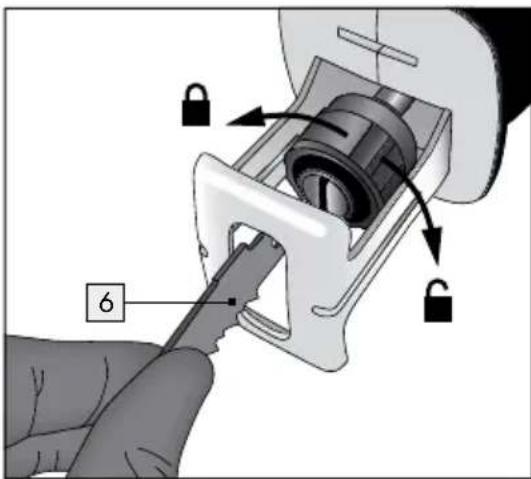

Turn the quick-release chuck 8 all the way in the direction of the arrow and keep it turned.
Push the selected saw blade all the way into the quick-action blade clamp.
ATTENTION! The teeth on the saw blade6 must be facing down!

Release the quick-action blade clamp 8, which must then return to its original position. The saw blade is now locked.

- Start-up

- Switching on and off

Switching on:

Press the switch lock 1.
Press the ON-/OFF switch 5.

Switching off:

Release the ON-/OFF switch 5.

Sawing techniques

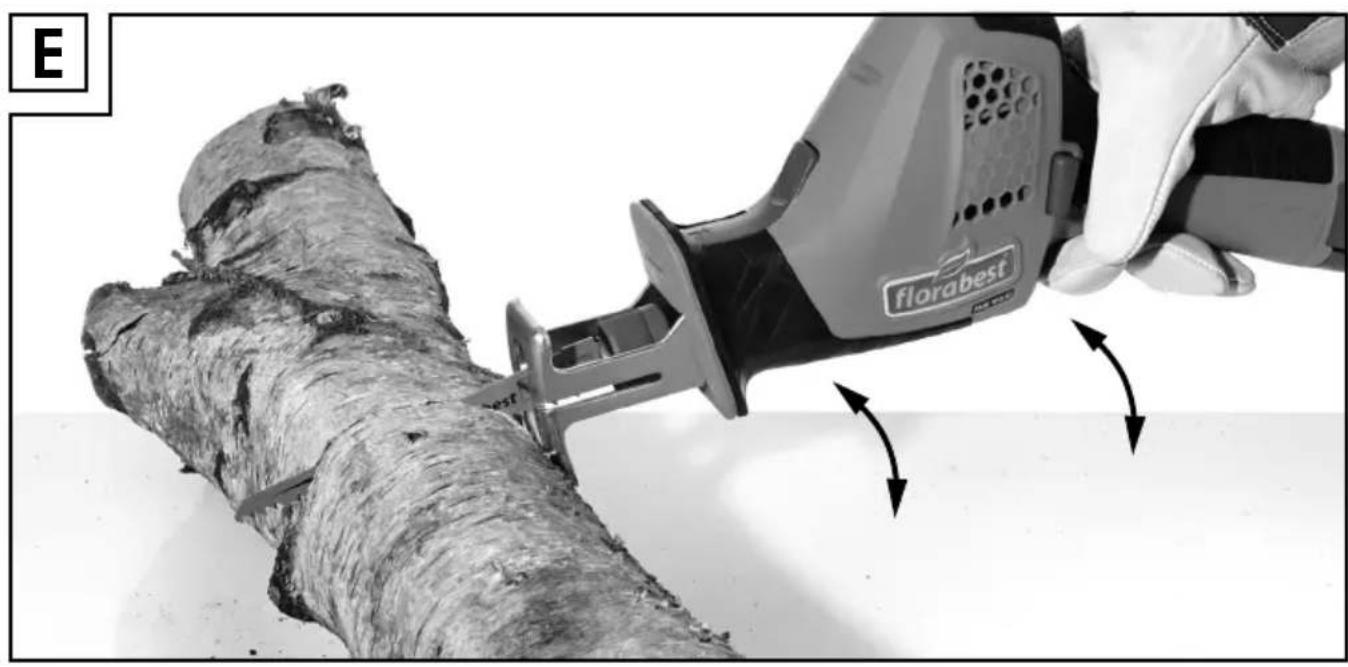

A) Working without holding bracket (see Fig. E):

• When cutting thicker branches or sawing wood, plastic or materials, work WITHOUT holding bracket. The piece to be sawed must touch the shoe. Use a rocking motion when cutting round pieces.

A1) Flush cuts:

When using flexible saw blades with the respective length you can cut protruding pieces, e.g. pipes, flush with the wall.

1. Place the saw blade directly against the wall.

2. Apply sideways pressure to the sabre saw, bending it so the foot plate touches the wall sideways.

3. Switch on the tool and saw through the work piece, applying consistent pressure.

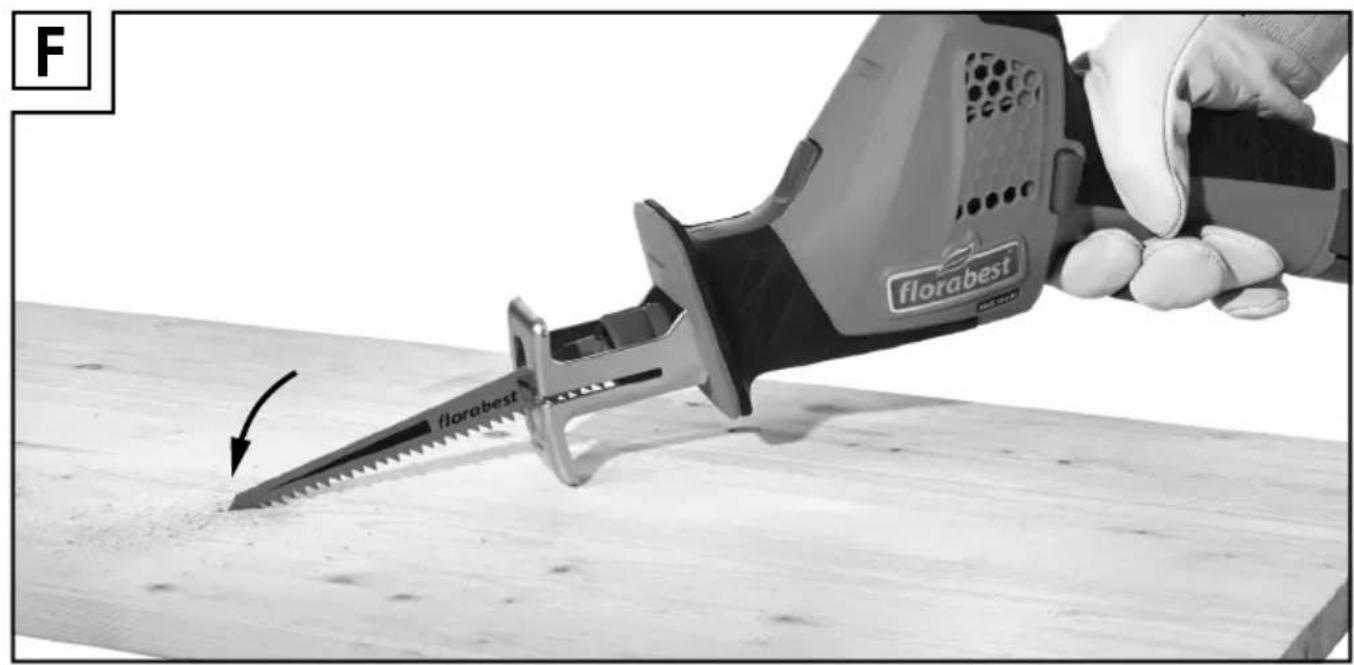

A2) Plunge sawing (see Fig. F):

CAUTION! RISK OF KICK-BACK! Only plunge saw soft work pieces (wood, etc.).

1. Place the bottom edge of the sabre saw shoe onto the work piece. Switch on the tool.
2. Tip the sabre saw forward and plunge the saw blade into the work piece.
3. Straighten the sabre saw into a vertical position and continue cutting along the cutting line.

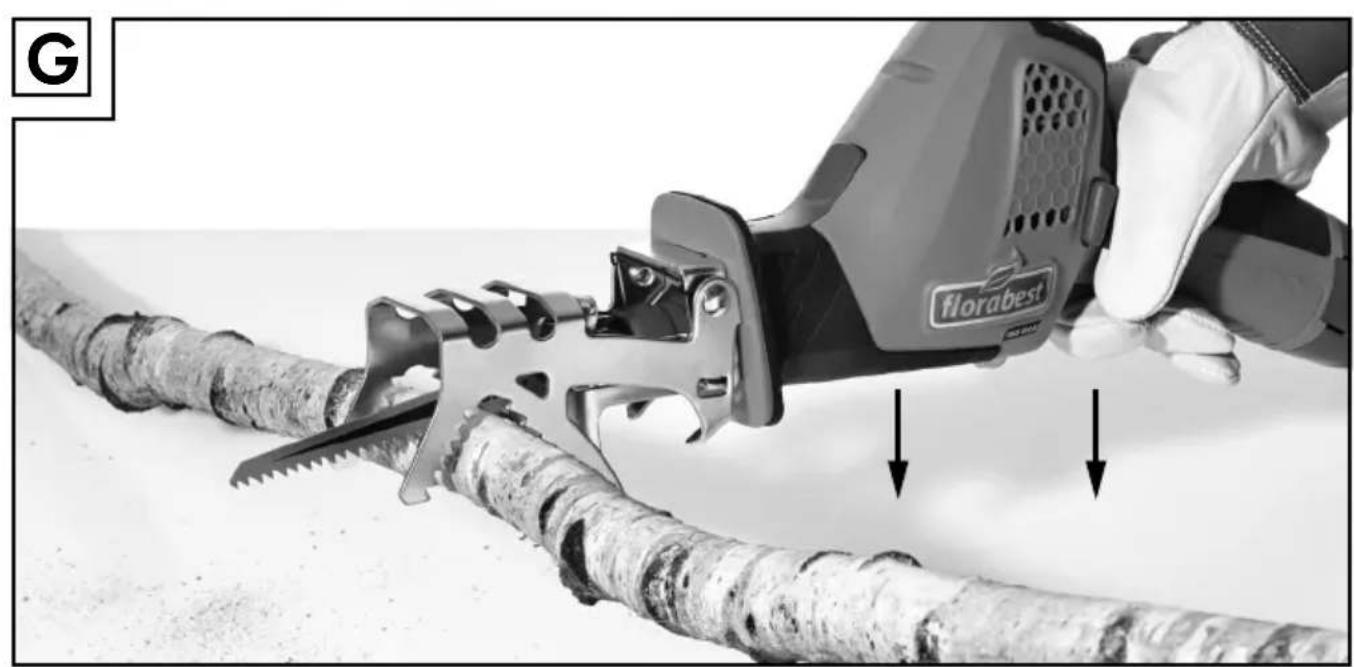

B) Using the holding bracket (see Fig. G):

Move the saw, applying slight downward pressure.

- Maintenance and Cleaning

Always disconnect the mains plug from the socket and remove the battery pack 3 before cleaning.
Always remove the saw blade before working on the power tool.
Always keep the tool and the ventilation louvres clean. Clogged ventilation louvres may result in the tool overheating and/or being damaged.
Clean the tool after finishing work.
Do not allow liquids to enter the tool. Please use a soft cloth for cleaning the housing. Never use petrol, solvents or cleaning agents that attack plastic.
Clean the saw blade holder, if necessary using a brush or blowing out with compressed air.
When storing a lithium-ion battery for extended the purchase date. Repairs made after the expiration periods, regularly check the charge. The optimal of the warranty period are subject to payment. charge is between 50% and 80% . The optimal storage climate is cooling and dry.
The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

Service

• On What You' r tool repaired by qualified professionals, and only using original manufacturer parts. This will maintain the safety of the tool.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

.../ .../ Translation of the original declaration of conformity / Manufacturer

GB

Service Great Britain

Tel.: [phone]

(0.10 GBP/Min.)

e-mail: [e-mail]

IAN 109793

Machinery Directive

(2006/42/EC)

EU Low Voltage Directive

(2006/95/EC)

Electromagnetic Compatibility

(2004/108/EC)

Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Do not dispose of power tools in household waste!

In accordance with European Directive 2012 / 19 / EU on waste electrical and electronic equipment and its implementation into national legislation, worn out power tools must be collected separately and recycled in an environmentally friendly fashion.

Return the tool to a local recycling facility.

Never dispose of rechargeable batteries in your household refuse!

Faulty or used rechargeable batteries must be recycled in accordance with Directive 2006 / 66 / EC. Return the rechargeable battery pack and / or the tool via the recycling facilities provided.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out tools.

Translation of the original declaration of conformity / Manufacturer (€

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG-STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

RoHS Directive (2011/65/EU)

The manufacturer is solely responsible for issuing this certificate of conformity.

The object of the declaration stated above meets the requirements of Directive 2011 / 65 / EU of the European Parliament and of the Council of 8th of June 2011, limiting the use of specific hazardous materials in electrical devices and electronics.

Applicable harmonized standards

EN 60745-1/A11:2010

EN 60745-2-11:2010

EN 62233:2008

EN 60335-1/A11:2014

EN 60335-2-29/A2:2010

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2/A2:2009

EN 61000-3-3:2013

Type/Device description:

Cordless Pruning Saw FAAS 10.8 A2

Date of manufacture (DOM): 03-2015 Serial number: IAN 109793

Bochum, 31.03.2015

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical modifications in the course of further development.

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

DEUTSCHLAND
