WK 3691 - Kettle CLATRONIC - Free user manual and instructions

Brand	Clatronic
Model	WK 3691
Product type	Electric kettle
Power supply	220-240 V ~ 50/60 Hz
Power	1850-2200 W
Maximum capacity	1.7 L
Net weight	Approx. 1.0 kg
Protection class	I
Automatic shut-off	Yes, after boiling
Control light	Yes, integrated in the switch
Swivel base	Yes
Limescale filter	Yes, on the lid
Cable storage	Yes, retractable under the base
Lid opening	Via button on the handle
Material	Plastic and stainless steel
Intended use	Domestic and similar (offices, hotels)
Warranty	24 months
Dimensions	Not specified

Frequently Asked Questions - WK 3691 CLATRONIC

What is the capacity of the WK 3691 kettle?

The maximum capacity is 1.7 liters of water. Never exceed the MAX mark.

How to descale the kettle?

Use a descaling agent based on citric acid (not vinegar). Follow the product instructions, then boil fresh water 3 to 4 times without additives before reusing the appliance. Do not consume this water.

What if the kettle does not turn on?

Check the socket with another appliance, plug the cord properly, and check the main circuit breaker. If the problem persists, the appliance may be defective: contact customer service.

Can I run the kettle without water?

No. If the appliance is turned on without water or with too little water, an overheating protection will shut it off. Let it cool for 15 minutes before reusing.

How to clean the limescale filter?

Clean the filter located on the lid with a nylon brush. Rinse the water compartment with fresh water and dry with a cloth.

How to open the lid?

Press the button on the handle to open the lid. To close it, press on the plastic part until it clicks into place.

What is the power of the kettle?

The electrical power is between 1850 and 2200 W depending on the supply voltage (220-240 V).

Can I heat liquids other than water?

No, this appliance is exclusively designed to heat and boil water. Heating other liquids or foods could cause injuries.

Does the kettle turn off automatically?

Yes, it turns off automatically after boiling. You can also switch it off manually by pushing the switch upwards.

How to store the power cord?

Wind the cord under the base of the appliance. A storage system is provided for this purpose.

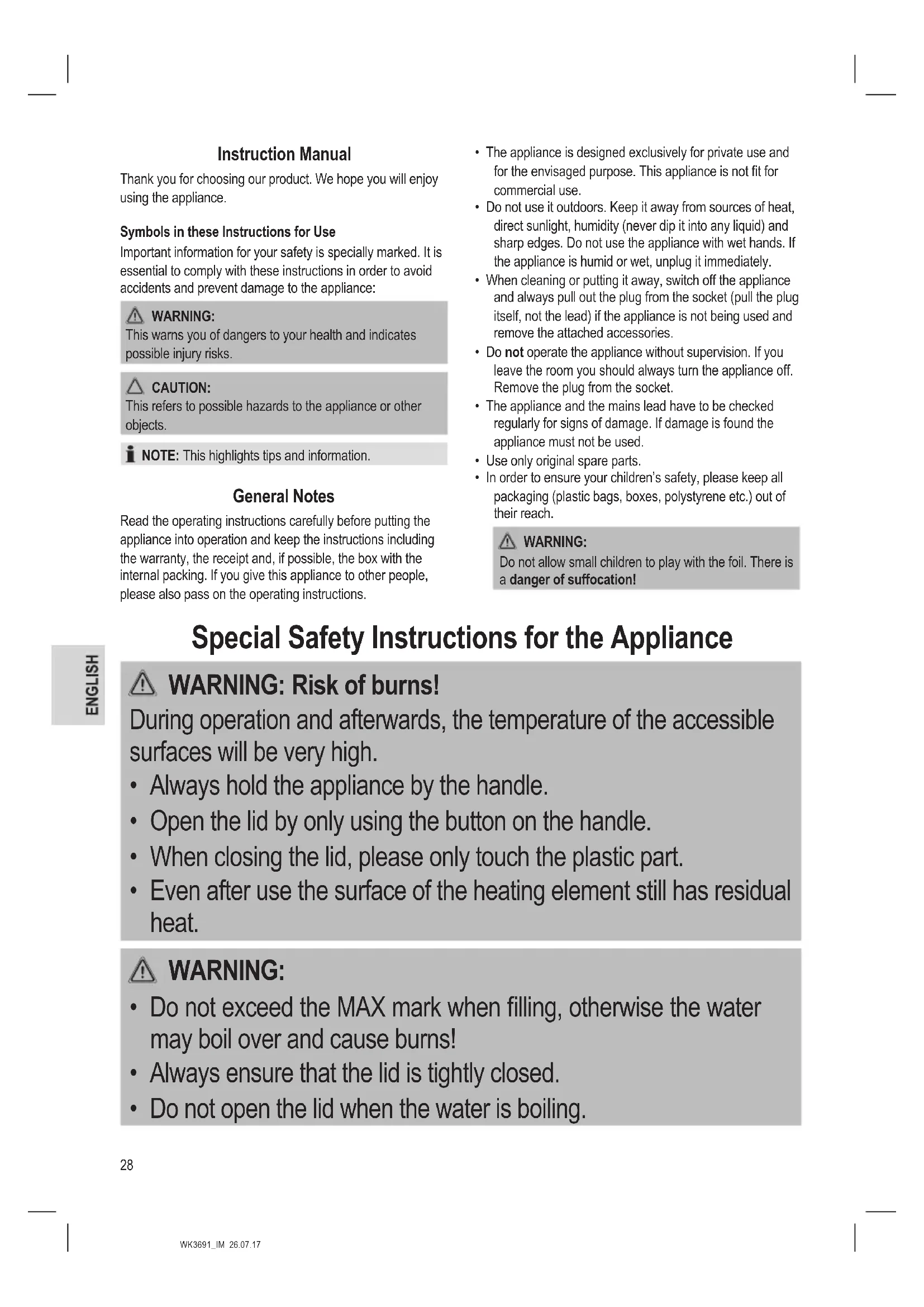

USER MANUAL WK 3691 CLATRONIC

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for the Appliance

WARNING: Risk of burns!

During operation and afterwards, the temperature of the accessible surfaces will be very high.

Always hold the appliance by the handle.
- Open the lid by only using the button on the handle.
- When closing the lid, please only touch the plastic part.
- Even after use the surface of the heating element still has residual heat.

WARNING:

• Do not exceed the MAX mark when filling, otherwise the water may boil over and cause burns!
• Always ensure that the lid is tightly closed.

• Do not open the lid when the water is boiling.

• The water level must be between the MAX and MIN marks.

• Use the appliance only on a level work surface.
• Do not move the appliance and do not touch it when it is working.
• Only use the kettle with the accompanying base.
• Switch the appliance off before removing it from the base!
• The base and exterior of the appliance must not become wet.
• Pay attention that no water comes in contact with the appliance adapter.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is used for heating and boiling water. Never use to heat up other fluids or foodstuffs. This can cause injury.

• Only use the appliance in a dry, indoor area. It is intended for domestic use and similar areas of use such as e.g.:

• In staff kitchens in shops, offices and other commercial areas;

• By guests in hotels, motels and other accommodation facilities.

It is not intended for use in farm accommodation or Bed & Breakfast establishments.

• The following symbols are shown on the product:

CAUTION:

Do not immerse the appliance into water for cleaning. Please follow the instructions as stipulated in the chapter "Cleaning".

Notes on Use

Preparation

Before using for the first time, boil fresh water at least three times in the appliance. Use only water without any additives or ingredients.

Mains Lead

Completely unwind the length of mains lead that you require from the bottom section of the base. Please ensure that the mains lead does not become tangled up.

Electrical Connection

Check whether the electrical voltage that you intend to use is the same as that of the appliance. Details are to be found on the label on the base.

Connected Wattage

The total power consumption of this appliance can be up to 2200 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this appliance is too powerful.

Switching On/Off

- Switching on:

Press the toggle switch downwards. The indicator light in the switch lights up.

- Switching off:

Press the toggle switch upwards. The indicator light in the switch goes off.

Use

NOTE:

Always use fresh water.

1. Place the appliance on a flat surface.
2. Press the button in the handle to open the kettle.
3. Then fill in the water (max. 1.7 litre). You can read the filling level on the water level indicator of the kettle.
4. Close the lid. To close the lid, press the plastic part down.
5. Place the kettle flush on the base.
6. Only connect the appliance to a properly installed safety socket.
7. Switch on the kettle by pressing the switch. The control lamp in the switch will light up.

Pausing/Terminating Operation

There are two options to interrupt the boiling process or to terminate it:

1. The appliance will shut off automatically after the boiling process. The indicator lamp will go out.
2. Push the rocker switch upwards to finish operation.

CAUTION:

Do not remove the appliance from the base without shutting it off first

The contacts on the base are not suitable for disconnecting the power supply.

WARNING: Danger of scalding!

• When pouring the water out, keep the lid closed.

• During operation the housing becomes hot. Do not touch it and allow the appliance to cool down before storing it away.

• Disconnect the power cord.

• Emptying the water container.

Mains Cable Take-Up Appliance

The mains cable can be wound up on the base.

Cleaning

WARNING:

• Always turn the appliance off before cleaning it and remove the mains plug. Wait until the appliance has cooled down.
• Never immerse the appliance or the base into water or other liquids. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.

• Do not use any acidic or abrasive detergents

• Clean the filter on the lid with a nylon brush.

• Rinse the water container out with clean water. Then dry it off with a cloth.
• Clean the housing after use with a slightly damp cloth.

Decalcification

The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used.
- If the appliance switches off before the water boils, it probably needs to be decalcified.
- Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions.

NOTE:

After descending the appliance boil fresh water in it several times (approximately 3 - 4 times) in order to remove any residues. Do not consume this water.

Troubleshooting

Problem Possible Cause Remedy
It is not possible to switch the appliance on.	The appliance has no power supply.	Check the socket with another appliance.
		Plug in the mains plug correctly.
		Check the main circuit breaker.
	The appliance is faulty.	Contact our service centre or a specialist.
It is not possible to switch the appliance on.	After being used without or with too little water the appliance has not cooled down sufficiently.	Allow the appliance to cool down for 15 min.

Problem Possible Cause Remedy
The appliance switches off before the water has boiled.	The inside of the water kettle is stained with excessive limestone or the circuit of the wall socket is overloaded.
	Check the mains connection.
The appliance does not switch off.	The lid is not closed. Close the lid until it locks into place.

Technical Data

Model: .WK 3691

Power supply: 220 - 240 V~, 50 / 60 Hz

Power rating: 1850-2200 W

Protection class: I

Capacity: max. 1.7 g

Net weight: approx. 1.0 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obslugi

CTC Clatronic Sp. zo.o.

Ul. Brzeska 1

45-960 Opole

Usuwanie

Yka3bIbaeT Ha BO3MOxHyO ONaCHOCTb IIN3DeNnI INpynx OKpyXaIOxN ppeDMetOB.

IPIMEUYAHNA:JaetcoBteuHnHOpMaunIO.

067a HhOpmaun

Ipeed hauanom 3Kcnnyataun npnbopa BHnmaTeJbHO npouHTaTe npnaraemyu INcTpyKUIO NO 3Kcnnyataum COxpaHNTe ee HnadeXHom MeCTe, BmecTe c rapaHTnHBIM TaHOOM, KaccOBbIM YekOM N, NO BO3MOXHOCTN, KAPTOHHO Kopo6kOcY naKOBOUYBM MaTePnaIOM. Ecn daTe kOMy IIn6o nonoB3ObaTbCn npnbOpom, O6ra3eTbHo daTe B npndaHy dAnHyIO INcTpyKUIO NO 3Kcnnyataun.

ПользунТecь пиборм TOлько чаТьIMобра3OMип НаЗнayehи. Пибор He п徳нЗнayeh Дя КOMМерчe- СКОTO ИСПЛБЗВАИ.
He noIb3yIeTcB npIbOp mO tKpbItbIM He6OM. PpeOxpaHnIe npIbOp OT xapbl, npIbIX cOnHeuHbIX nyuei, BnaXHoCTN (Hn B KOem Cnyae He nOrpyKaTe erO B BOdy) n ydApOB 06 octpIe yrIbI. He npIkaCaiTeCB K npIbOp BnaXHbIMn pykAMn. Ecn npIbOp yBaJaxHnICn IIN HAoK, TyT Xe BblTe BNkY n3 po3ETKn.
- Pocne 3KcPnyaTaUIM, MoTataKe npHaJnEeXHocTeN, HCTKE INI NIOLOMKe pnp60pa Bcerda BbIHMaHTe BNJKy n3 po3ETKN (TARHTe 3a BNJKY, a He 3a KaBeJIb).
He octabJrTe BkIoueHHbIe 3JIeKTPonpnp6Opbl6e3 npICMOtpa.BbIXoJa n3 NOMeUeHnB CcerDa BbIKIOuaTe np6Op.BbIHbTe WTeKepe n3 po3eTkn.
- Pn6bOp n Ka6eBcTeBOro nHTaHnHa Heo6xOIMOp peryIpaH0 o6CneDobAtb Ha hAInuHne CteNoB NOBpeKdEHH. Pn6OBnApUKeHH NOBpeKdEHH NoNb3OBAbCra Pn6bOpom 3aPepaetcR.
- IcnoIb3yIte ToIbKO opnHaHaJIbHbIe 3aIuaCTN.
- V3 coo6paXeHn 6e3oNaChOCTn IJIaTeNe He octabIyIeTaeYnaKOBky (IInaCTIKOBbie MeuKN, KapTOH, NeHONlact n T.D.) 6e3 npICMOTpa.

PENEUPPEKDEHNE:

He no3BOJnTe DeTmIrpaTb C nOIN3TNHeHOBOn nIeHKO. Onachocb ydybu!

CneuNbHbIe yka3aHnNo 6e3OnacHOCTN dJa 3TOro npnbopa

IpoIroTOBka K pa60Te

Ipeep nepBbIM noJIb3OBAHnEM 3JIeKTPoaynHKOM npOKnTtTe er0 3 pa3a c npImeHnEM TObKO CBexKe BODbl - NOJxnyicta, npImeHnTE TObKO uCTyU BDOy, Be3 DO6abOK.

CetBoW uHyp

IIOJHOCTbO OTMOTaHTe CeTeBOU Hyp co DnA 6a3OBoN NOCTABKN.ObpaTNTe BHHMaHHe Na IpOKNaDky CeTeBOrO UHypa.

3neKtpnueckoe nodknoohne

PpOBepbTe,coBnadaaetJHn HapRjKeHne cETN,KOTopoB Bbl nOJIb3yeTecb,Cyka3aHnAIMHa np6ope.3TN yka3aHnBaI MOXeTe HaITNa Ta6NIuKHe CΦIpMeHHbIM DaHHbIMn Ha OCHOBAHm np6opa.

Ptope6JnemMoUHocTb

Obuee notpe6nHeMe MoHocn np60pa MoKet DoCTnAtb 2200 BaTT. TaKyu Hapy3ky peKoMeHyETcN POKnHcyTbe Pe3 OTdJIbHyU 3JKeKTponPoBOKy, OChaSeHHyU aBTOMATOM OTKnIOHeHna 3JKeKTpOTok 16 A n yCtpoiCTBOM TOKOBI 3aunbl.

BHIMAHHE: Neperpy3ka!

-Пипьзовани удпнHTeNBbIMKa6eJIaMn cIeINTe 3a TeM,чTOБI nonepueyHoe ceeyHne Ka6eJIa 6blIO MmHmym 1,5 MM2.
He noIb3yIeCb pa3BETBHTeHbHbIMn 7TeNceJIbHbIMn pO3eTKAMn, TAK KAc 3OT npu6Op mMeet CInuKOM BbICOKU MOUHOCTb.

BkJIOUeHHe / BbIKJIIOUeHHe

BknHueHeN:

HaxMMTe nepeKIOUOaTeIb BHN3. KOHTpOJIbHaJ naMnOuKaB nepeKIOUOaTeIe 3arOpntc.

·BbiknHoueHne:

HaxMMte nepeKIOUaTeJIb BBepx. KoHTpoJIbHaJ lamNoUka B nepeKIOUaTeIe norachET.

Popraokpa60TbI

ПРИМЕЧАЦА:

Bcergda nCnOJb3yIte TOnbKO CBexkyo BDOy.

1. UctaHOBnTe npB6op Ha pOBHyIO NobepxHOCTb.
2. HaxMMte KhoNky Ha pyKke, YTO6bl OTKpbItb YaHnIK.
3. 3aJIeIte YnCTyIO BOy (MaKcIMaJIbHO 1,7NITpa). YpoBEnb BoIb Bi MoKeTe PNOBepuTb NO DaTuNKy yPOBnHa 6OKOBn CTOpOHe npi6opa.
4. 3aKpOte KpbIuKy. UTo6bI 3aKpbITb KpbIuKy, HaxMnTe Ha pnaTkoBvH YoacTb.
5. NocTabte np6op Ha ochOBaHne.
   6.ПодсоeДинITEпnpборКВСТроEHнВСоТВБТВИN CпpeДинсанЯМиштencьногposetkeC3aUHTbIM KOHTAKTOM.
6. BkHouHTe np6Op, HaxaB BkHouAtenb. 3arOpTcra KOHTpObnHa JAmNoUka Ha nepeKlnuOatene.

Pay3b1/BbIKJIOUeHHe

IIMEOTcA DBe BO3MOXHOCTN, YTO6bl IpepBaTb Ipocecc KINJYHeHn INI NpeKpaTb erO:

1. Pn6op OTKnIOHTcA BTOMaTNUeCKN NocIe TORO, KaK OH BCKINIT.NHnKaTopHaJ lamna NoracHeT.
2. HanaBte Ha KyIInChbI nepeKlnHouateJIb, YTO6bl 3aKOH-HTb pa60Ty.

BHIMAHINE:

He chImaTe TaHnK C OCHOBAHn, ecn OH He BbIKNoueH. KohtaTbHa OCHOBAHn He npEHa3HaueHbI DnA OTKnHOeHn 3JIeKtpoNTaHn.

PENEDYNPEXDEHNE:

Onachoctb nolyehn oxorob!

• Pa3nBaB a Body, DepeKInTe KpbIbUky 3aKpbIToi.
  Kopnyc npnbopa HarpBaetc Bo Bpemra pabo, He npikacaiTecb KHeMy N daIte OCTbITb Ipeed Tem KaK y6paTb

• OToCoeINHInTe CTeBOI uHyp.
  OnycToWInTe pe3epByap.

MecToHAMOTKcTeBOrOWHypa

CetBoI shHyp HamaTbIaETcHa npncnoc6JeHne Ha HxKHe Yactn np60pa.

UncTka

ПЕДУПЕЖДЕНЕ:

• Перацстков Серда Вькюаite пибор И Вьимаite сeteBOI wTekepbHbI pa3bE. ПождITE, noka пибop He OCTbIHET.
• Hn B koem clyuae He norgykaite pe3epByap nIi 6a30bYIO nOCTaBky B BODy IIN dpyrHe XnDkoCTN. 3TO MOKeT 6bITb pInHoi 3JIeKTPnueckoro ydapa nIi nOxapa.

BHIMAHNE:

He npimEnHnTe npoBOJOnHbIe 9eTKn nIn npEmeTbI c a6pa3NBbIM NOKpbITnEM.
He npmeHnTe CNbHbIe nIa6pa3NBbIe MOIOJIe cpeCTBa.

• BbIIOJIHnIe OUHCTky fIbItpa Ha KpbIuKe C nOmoIbHO HeJIoHOBOI UeTKN.
• PpOIOIOCHNTE EMKOCtB 3JIeKTPoauHnKa YIcTOn BDOJ. PpOTpnte erO hacyxo nOIoTeHcEM.
• ПО OKOHанп pa6oТы npotpnte kOpnyc cIeRka BlaJxHoi TpЯnkOi.

YdaJIeHHe HAKINN

• PernoDunHocTb ydaJIeHnHaKIN3aBcNt OT JKeCTKOcTn
• PnIMHeHReMoB BOIb I NT ChTOTb INCNoJIb3OBAHn
• npi6opa.
• Ecn npin6op otKIOUOaETcdoToro, KaK BOda 3aKnIaET, To HyxH0 ydaNTb HAcNtB do 3TOro cpoKa.
  He nCnoIb3yIte yKcyc; nOlb3yIteCb IMeIOUIMMCB B npoJaXe cpeCTBaMn dIy ydaJIeHnHa KAnPi Ha OCHOBe IIMOHHO KNCIObl. D03npuTe, NoxayIcTa, B COOTBe-CTBn C yka3aHnMn fIpMbI-N3rTOBNTeJIa.

IINPIMEYAHNIA:

Iocne ydaeneHn HAKINN BCKNNTNEB n3deJIHn HeckoIbKO pa3 BOy (npIM. 3 - 4 p3a), kaxdbpa3 MeHnae Ha CBexkyu, YTO6bl ydaIITb OCTaTK. 3Ty BOy B NmUy He ynotpe6JIb.

YcTaPaHHe HEnCnpaBHOCTe

aabaa aaaa aaaa aaaa aaaa

aalaae aae aee

J

jagllalacnuljaguuea aegaae jaeauaaiy

j4y1j 213 juie juiie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

4k > 0

（y4-3）0j 1

1.111111111111111111111111111

gla 151 151 8 8 8 8 8 8 8 8

aaii 1 j 5 6

8 15j 11 j00

1 8 g

JgJy JbV

aLacg a51r0g aiaiaa aaii aiaaa

pIeewy IaeelbI cIeLgI gI eYI pI gI dEeBgl Oaai joo gI oogd

.1a0a6b1jbl6b1g5r6l6gddaaabjgl

1

gJ 1JgW Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

.4yIyI yIyI yIyI yIyI yIyI yIyI yIyI

1 1

:Joo JooJooJooJoo

aJzI J501 1o Ie g g jkblg jllbblj

aLl lilj no Ig yIyIg dIeIyJd

Jgglgglgglaaa 15

:2161 4a 111 jg0jll g

"1 11111111111111111111111

101y 208g1 208g1 208g1 208g1 208g1

Jaaal Jaaal Iiaa 2200 jagai liq aiil

16 a jio 8j0 glbl yoo uia sjo h plu wiy

pa 1,5 agb jxuaa u5 dW yj xu Jc

3B^ S1 ≤ 26 < 3B^ S2

1. i 5g j 11i 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0

#

1

j 1000000000000000000000000000000000000000

CUGSGI GOLBI!GJ GJOBIO

a11

P 100

J 1

JoueJouJouJou

y

·

cuii 1000

10gdiSbU 100000000000000000000000000000000000000

:

cuiabj 0g jbjg jgi jia jia jai jia jia jia jia jia jia

aaii 100
