USER MANUAL TDW9960 TP-LINK

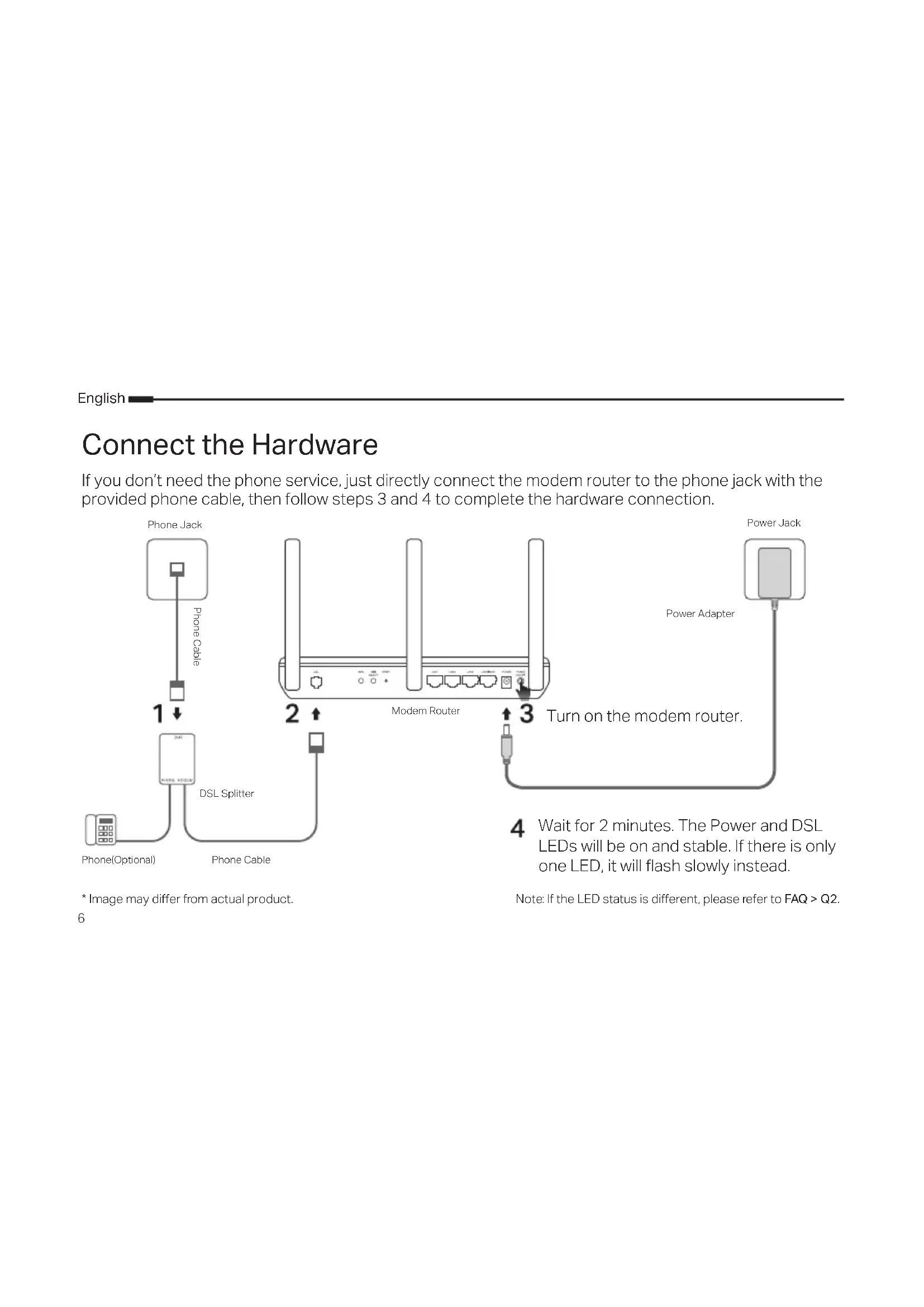

Connect the Hardware If you don’t need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

• Image may dier from actual product. Note: If the LED status is dierent, please refer to FAQ > Q2. Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will ash slowly instead. Phone Jack Phone Cable Modem Router Turn on the modem router. Power Jack DSL Splitter Phone(Optional) Phone Cable Power Adapter7 English Configure via Web Browser 2 Configuring the modem router via a web browser A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1. B Create a password for future login attempts, or use admin for both username and password for some routers. C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration. 1 Connecting your computer to the modem router via a wired or wireless connection Wired Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable. Wireless Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router. Now you can enjoy your internet. Ethernet CableEnglish

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up. 1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label. 2 Configuring the modem router via a web browser A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1. B Create a password for future login attempts, or use admin for both username and password for some routers. Already Have a Modem? 3 Connect the modem to the router’s WAN port via an Ethernet cable. 4 Go to WAN > WAN Conguration to change WAN PHYSICAL TYPE and nish the setup. Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link’s ocial website at www.tp-link.com. Ethernet Cable Modem Power Adapter9 English FAQ (Frequently Asked Questions) Q1. What can I do if the login page does not appear? A1. If the computer is set to a static or xed IP address, change the settings to obtain an IP address automatically from the modem router. A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter. A3. Use another web browser and try again. A4. Reboot your modem router and try again. A5. Disable and enable the active network adapter. Q2. What can I do if the LED status is not correct? A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter. A2. Restore your modem router to its factory default settings. A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then recongure the modem router by following the instructions in this Quick Installation Guide. A4. Contact your ISP to verify if the DSL line is in good status. A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support. Tether App The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, congure your wireless settings and more. Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play. Note: Tether is not supported by some routers. Please check the app description before downloading.English

Q3. What can I do if I cannot access the internet? A1. Make sure the telephone and Ethernet cables are plugged in correctly. A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router. A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again. A4. Restore the modem router to its factory default settings and recongure the modem router by following the instructions in this Quick Installation Guide. A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support. Q4. What can I do if I forget my password?

• Web management page password: A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

• Keep the device away from water, re, humidity or hot environments.

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

• Do not use damaged charger or USB cable to charge the device.

• Do not use any other chargers than those recommended.

• Do not use the device where wireless devices are not allowed.

• Adapter shall be installed near the equipment and shall be easily accessible. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk. For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/ support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS. TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link’ s guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.Español Información de Seguridad
