USER MANUAL SPB 5200 A1 SILVERCREST

Operating instructions and safety instructions

FR BE

CHARGEUR POWERBANK

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB / IE Operating instructions and safety instructions Page 1

SILVERCREST IN:5V=1.0A OUT:5V=2.1A OUT:5V=1.0A

Close-up of two USB connectors with a labeled connection point (10) between them, no text or symbols on the diagram itself.

SILVER CREST® 9 POWER BANK SPB 500 A1 POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG POWER BURG

Contents

Introduction....2

Information concerning these operating instructions. . . . . . 2

Copyright 2

Notes on trademarks 2

Intended use. 2

Warnings used 3

Safety....3

Basic safety guidelines 3

Descriptions of components .... 5

Operation 5

Check the package contents 5

Disposal of packaging materials 6

Charging the Power Bank 6

Checking the charge level. . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Handling and operation....7

Charging mobile devices with the Power Bank ..... 7

Troubleshooting 8

Cleaning 9

Storage when not in use 9

Disposal 9

Disposal of the device....9

Appendix....10

Technical data....10

Notes on the Declaration of Conformity. . . . . . . . . . 10

Warranty 10

Service 11

Importer....11

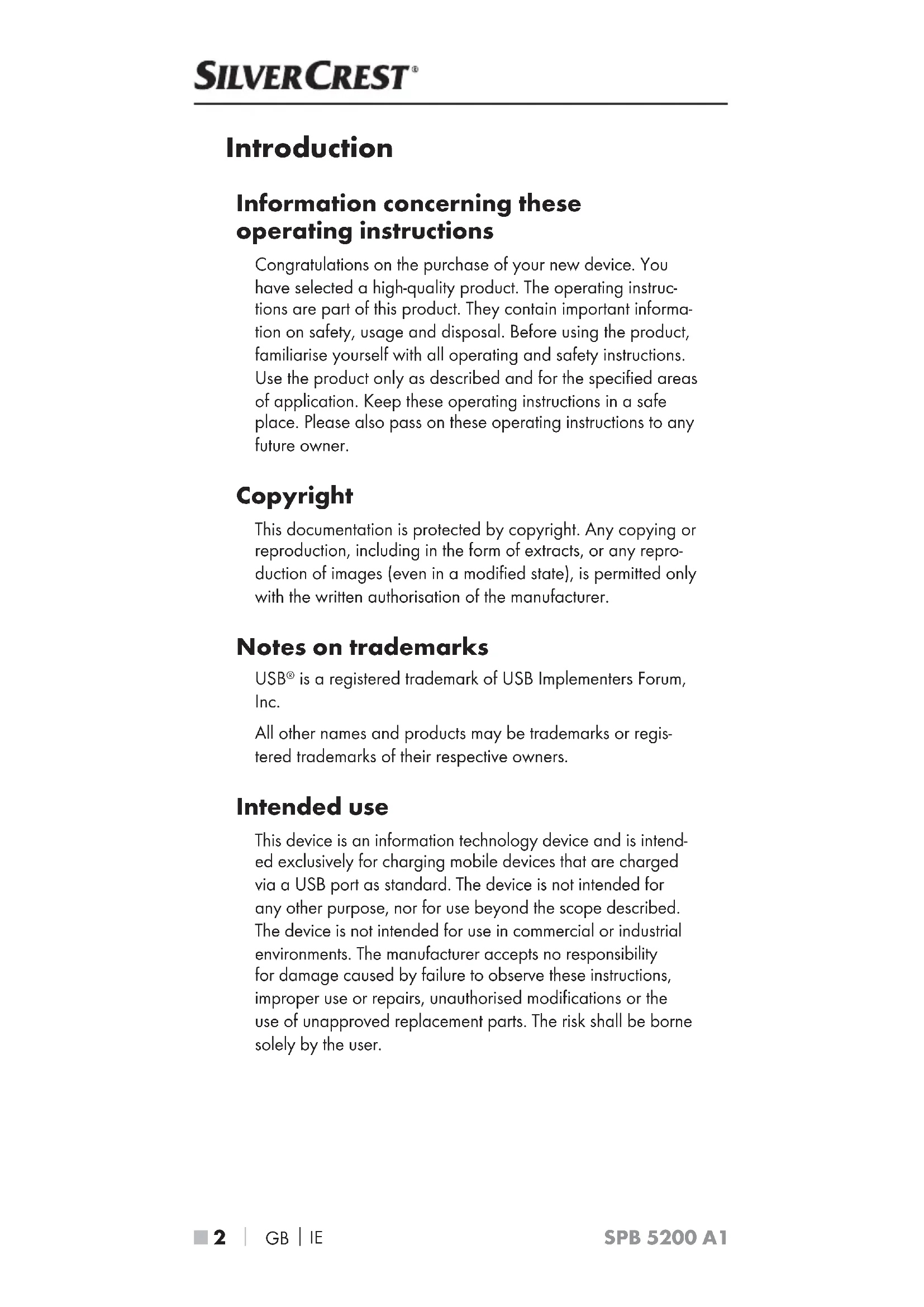

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new device. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Keep these operating instructions in a safe place. Please also pass on these operating instructions to any future owner.

Copyright

This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Notes on trademarks

USB ^® is a registered trademark of USB Implementers Forum, Inc.

All other names and products may be trademarks or registered trademarks of their respective owners.

Intended use

This device is an information technology device and is intended exclusively for charging mobile devices that are charged via a USB port as standard. The device is not intended for any other purpose, nor for use beyond the scope described. The device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.

Warnings used

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates an imminently hazardous situation.

Failure to avoid this hazardous situation could result in severe injuries or even death.

▶ Follow the instructions in this warning notice to avoid the risk of serious injuries or death.

CAUTION!

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning notice to prevent property damage.

NOTE

▶ A note provides additional information that will assist you in using the device.

Safety

This section contains important safety instructions for using the device. This device complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety guidelines

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

ADANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. Risk of suffocation!

- Check the device for visible external damage before use. Do not operate an device that has been damaged or dropped.

■ Always place the device on a stable and level surface. It can be damaged if dropped.

■ Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.

■ Do not place the product near heat sources such as radiators or other heat-generating devices.

■ Do not operate the device close to naked flames (e.g. candles).

■ The device is not designed for use in rooms with high temperatures or humidity (e.g. bathrooms) or where there is excessive dust.

■ Never expose the device to extreme heat. This particularly applies to storage in a car. Extreme temperatures can occur in car interiors and glove compartments during long periods of immobilisation. Remove electrical and electronic devices from the vehicle.

- Do not use the device immediately after moving it from a cold room to a warm room. Always allow the device to acclimatise before switching it on.

DANGER! Never open the housing of the device. There are no user-serviceable or replaceable components inside the device.

■ Do not make any unauthorised modifications or alterations to the device.

All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

- Do not expose the device to water spray or dripping water, and do not place liquid-filled objects such as vases or open drink containers on or near the device.

■ Switch the device off immediately and disconnect any connected charging cables from the device if you smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.

If you are using a USB power supply, the mains socket used must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation. You should also observe the operating instructions for the USB power supply.

ADANGER! Mishandling the batteries can cause fires, explosions, leakages or other hazards! Do not throw the device into a fire, since the integrated battery may explode.

■ Comply with all restrictions or prohibitions on use for battery-powered devices in locations with specific hazard risks, such as petrol stations, aeroplanes, hospitals, etc.

Descriptions of components

(See fold-out page for illustrations)

① Power Bank
② USB plug (input: 5 V, ⊥-Δ)
3 ON/OFF button
4 Micro-USB plug (output: 5 V, =A)
5 USB port (output: 5 V, 2±A)
6 Micro-USB port (input: 5 V, ⊥A)
⑦ USB port (output: 5 V, =A)
8 Charge level LEDs
9 Operating instructions

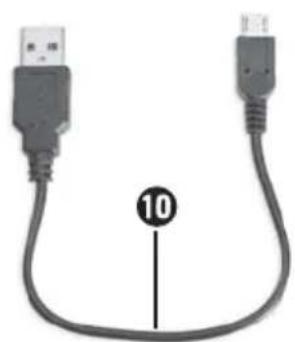

10 Cable (USB to microUSB)

Operation

Check the package contents

(See fold-out page for illustrations)

The following components are included:

● Power Bank SPB 5200 A1
- USB cable
• These operating instructions

◆ Remove all parts of the device from the packaging and remove all packaging materials.

NOTE

▶ Check the package for completeness and for signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see chapter entitled Service).

Disposal of packaging materials

kaging protects the device from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Charging the Power Bank

Before using the Power Bank, the integrated battery must be fully charged. The required charging time for the Power Bank is dependent of the charging source and its output (max. 5 V/1 A).

CAUTION!

▶ Only use mains adapters with an output voltage of 5 V and an output current of at least 1 A or a USB 3.0 port on your computer to charge the Power Bank. You can recognise the USB 3.0 port due to the blue marking.
▶ When charging via a USB port, ensure that at least one further USB port remains free. This also applies when using USB 3.0 ports.

Option A

Connect the USB plug of the Power Bank to a switched-on PC or a USB power supply (not supplied). The current charge level is shown during charging by means of the charge level LEDs 8

LED display	Charge level
One LED is flashing < 25%
One LED is on, the second LED is flashing 25-49%
Two LEDs are on, the third LED is flashing 50-74%
Three LEDs are on, the fourth LED is flashing 75-99%
All LEDs are on 100%

Option B

Connect the Micro-USB cable 10 to the Micro-USB input 6 on the Power Bank.

Connect the other end of the Micro-USB cable to a switched-on PC or a USB power supply (not supplied).

The current charge level is shown during charging by means of the charge level LEDs 8.

CAUTION!

▶ Do not use both charging options simultaneously as this could damage the Power Bank, your mains adapter or your computer.

Checking the charge level

You can also check the charge level of the Power Bank when it is not charged or while it is being used for charging.

◆ Press the ON/OFF button 3 briefly. The LEDs 8 how the current charge level of the Power Bank for about 20 seconds.

LED display	Charge level
All LEDs are on 100%
Three LEDs are on 75-99%
Two LEDs are on 50-74%
One LED is on 20-49%
One LED is flashing < 20%
All LEDs off 0%

Handling and operation

Charging mobile devices with the Power Bank

You can charge up to three devices at a time using the Power Bank. When all three outputs are being used, the total charging current may not exceed 2.1 A.

Connect a suitable USB charging cable to the corresponding USB output (5r) 7 the Power Bank for each device being charged.

- Then connect the USB charging cable to the device to be charged. The charging process starts automatically.

If charging does not start automatically, press the ON/OFF button ③ briefly to start the charging process.

NOTE

▶ If the device to be charged has a Micro-USB, you can also use the Power Bank's Micro-USB charging cable ^4 .

During the charging process, the current charge level of the Power Bank is shown via the charge level LEDs ^8 .

To stop charging, disconnect the charging cable from the mobile device and the Power Bank. The charging status LEDs go off after about 20 seconds.

Troubleshooting

The Power Bank does not charge

◆ Connection may be faulty. Check the connection.

Sometimes, a USB 2.0 connection will not be sufficient for charging the Power Bank. If this is the case, use a USB 3.0 connection or a separate mains adapter.

- Some computers deactivate the power supply to the USB ports when they are switched off. Check that the computer is switched on.

A connected device will not charge

◆ The integrated battery is empty. Charge the battery.

◆ No connection to the device. Check the connection.

◆ Press the ON/OFF button ^3 to start the charging process.

The charging process stops after about 20 seconds

The charging current of the connected device is less than 45 mA. This device cannot be charged with the Power Bank.

The Power Bank does not react when several devices are connected even though the battery is charged

The power consumption of the connected devices is too high. This has triggered the internal overcurrent protection. Reduce the number of connected devices and press the ON/OFF button ③. If the Power Bank still cannot be switched on, you will need to connect it to the charger for a few seconds.

NOTE

▶ If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see chapter entitled Service).

Cleaning

CAUTION!

Possible damage to the device.

There are no serviceable parts or parts requiring cleaning inside the Power Bank. Penetrating moisture can cause damage to the device.

▶ To avoid irreparable damage to the device, ensure that no moisture can penetrate the device during cleaning.
▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device.

- Clean the housing of the device with a lightly moistened cloth and a mild detergent only.

Storage when not in use

◆ Store the device in a location which is clean, dry, dust-free and not in direct sunlight.

For long-term storage, the integrated battery should be fully charged to extend its operating life. During prolonged periods of non-use, you should top up the battery charge regularly. This is necessary to prolong the battery life.

Disposal

Disposal of the device

Recent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not be disposed of in normal household

waste at the end of its useful life, but must be brought to a specially set-up collection point, recycling depot or disposal company.

This disposal is free of charge for the user. Protect the environment and dispose of this device properly.

You can obtain further information from your local disposal company or the city or local authority.

Appendix

Technical data

Integrated battery	3.7 V/5200 mAh (lithium polymer)
Input voltage/current 5 V	---, max. 1 A
Output voltage, current	5 V---, 1 A / 5 V---, 2.1 A*
Minimum discharge current 45 mA
Operating temperature 5°C-+35°C
Storage temperature 0°C-+45°C
Humidity (no condensation) 10%-70%
Dimensions	approx. 12,6 x 6,2 x 1,5 cm
Weight approx. 150 g

* When all USB connections are being used at the same time, the total power consumption of the connected devices may not exceed 2.1 A.

Notes on the Declaration of Conformity

This device complies with the basic requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2004/108/EC and the RoHS Directive 2011/65/EU.

The complete original Declaration of Conformity is available from the importer.

Warranty

This device is provided with a 3-year warranty valid from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or rechargeable batteries.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty.

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.

Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 273784

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 273784

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
