USER MANUAL SLB 1.2 C2 SILVERCREST

PDF online www.lidl-service.com SILVERCRIST SILVERCRIST

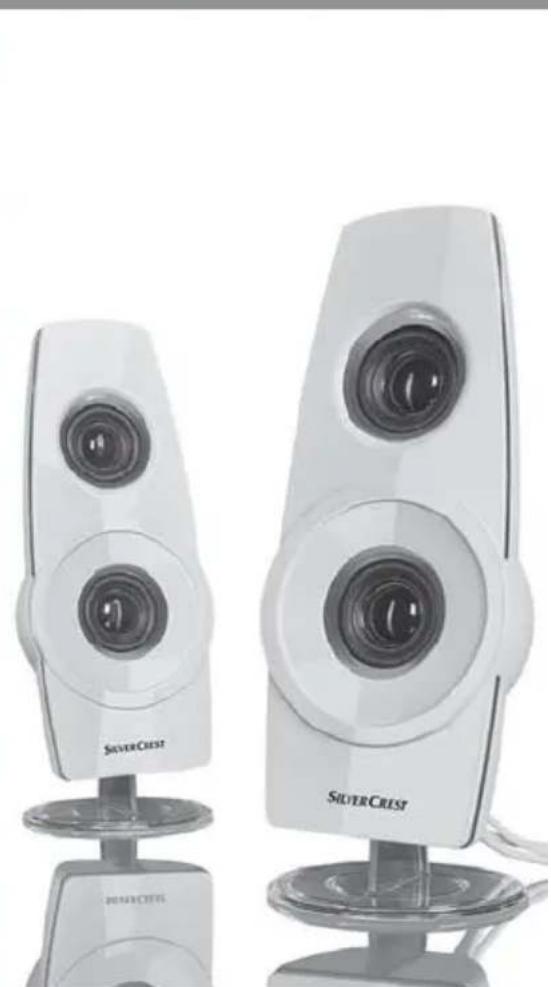

Two silver Silver Crest speakers standing upright, no visible text or symbols on the devices themselves.

AKTIV-LAUTSPRECHER / ACTIVE SPEAKERS ENCEINTES SLB 1.2 D2

DE AT CH

AKTIV-LAUTSPRECHER

Bedienungsanleitung

GB IE

ACTIVE SPEAKERS

Operating instructions

FR BE

ENCEINTES

Mode d'emploi

NL BE

ACTIEVE LUIDSPREKERS

Gebruiksaanwijzing

CZ

AKTIVNÍ REPRODUKTORY

Návod k obsluze

ES

ALTAVOCES ACTIVOS

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a step or motion sequence.

Abb. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table of contents

Introduction....16

Information concerning these operating instructions ..... 16

Copyright 16

Limitation of liability 16

Notes on trademarks....16

Warnings 16

Intended use....17

Safety....17

Basic safety instructions....17

Initial operation....19

Check scope of delivery 19

Disposal of packaging 19

Fitting the support feet 20

Installation site requirements 20

Controls....20

Handling and use 21

System requirements 21

Connecting the loudspeaker....21

Switching on/off and adjusting the volume ..... 2 1

Switching the light on and off 21

Switching bass and treble boost on/off 22

Connecting headphones 22

Fault rectification....23

Malfunction causes and remedies 23

Cleaning 24

Safety instructions 24

Storage/Disposal 24

Storage when not in use 24

Disposal of the device 24

Appendix 24

Technical details 24

Notes on the EU-Declaration of Conformity ..... 2 5

Information concerning these operating instructions

Congratulations on the purchase of your new device.

You have decided to purchase a high-quality product. The operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this device only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Limitation of liability

All technical information, data and information for installation, connection and operation contained in these operating instructions correspond to the latest version at time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using non-approved replacement parts.

Notes on trademarks

- USB® is a registered trademark of USB Implementers Forum, Inc.

All other names and products may be trademarks or registered trademarks of their respective owners.

Warnings

The following warnings are used in these operating instructions:

DANGER

A warning at this risk level indicates a potentially dangerous situation.

Failure to avoid this hazardous situation could result in physical injury or death.

▶ Follow the directives in this warning to avoid personal injuries.

CAUTION

A warning of this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

▶ Follow the instructions in this warning to prevent damage to property.

NOTE

▶ A note indicates additional information that will assist you in handling the device.

Intended use

These speakers are information electronics devices designed exclusively for connection to a PC, a notebook, or an audio device* (e.g. MP3 player) via a 3.5 mm jack plug. This device is exclusively for private use, and is not intended for industrial or commercial purposes. The device is not intended for any other use or for uses extending beyond those stated. Claims of any kind for damage arising as a result of non-intended use will not be accepted. The user is the sole bearer of the risk.

* If the loudspeaker is to be connected to a device without a USB connection, an external power supply with USB output is required (not included in delivery). The mains adapter should have the following specifications: 5 V=, min. 500 mA.

Safety

This section provides you with important safety information regarding the handling of the device. The device complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage.

Basic safety instructions

For safe handling of the device, follow the safety information below:

- Check device for visible external damage before use. Do not use devices that have been damaged or dropped.

■ Damaged cables or connections should be replaced by the Customer Service department.

■ Always grasp the connection cable by the plug. Do not pull on the power cable itself!

- Do not place any objects, furniture or similar on the connection cable and make sure that the cable is not trapped.

■ Never make a knot in the connection cable and do not bind it together with other cables. The power cable should be routed so that it cannot be stepped on or tripped over.

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

DANGER! Packaging materials such as plastic film or polystyrene must not be used by children as a plaything.

Risk of suffocation!

■ Only have repairs carried out by authorised specialist companies or the Customer Service department. Improper repairs can pose significant risks to the user. Warranty claims also become void.

■ Repairs to the device during the warranty period may only be carried out by a customer service department authorised by the manufacturer. Otherwise no additional warranty claims can be considered for subsequent damage.

■ Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety requirements are complied with if original replacement parts are used.

■ Never attempt to open the device. There are no parts which can be cleaned or maintained inside the device. Do not perform any modifications or changes to the device yourself.

■ Never operate the device in the vicinity of naked flames, and do not place candles on or next to the device.

■ Protect the device from moisture, spray and dripping water and the penetration of liquids. Do not place objects containing liquid (e.g. flower vases) on or near the device.

If liquid penetrates the device, switch it off, disconnect it from the power supply and have it inspected by qualified specialists before using it again.

If the device is moved from cold to warm surroundings, wait for approx. 2 hours until the device has reached the ambient temperature before switching it on.

If you are using a USB power supply, the mains socket used must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation. You should also observe the operating instructions for the USB power supply.

■ If you notice a burning smell or smoke coming from your device, unplug all connections immediately.

Initial operation

Check scope of delivery

(see fold-out page)

This device is supplied with the following components as standard:

• Loudspeaker6
  • 2 support fee7
  • This operating manual

◆ Remove all parts of the device and the operating instructions from the box.

◆ Remove all packaging material.

NOTE

▶ Check the contents for completeness and for signs of visible damage.
▶ If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the device from transport damage.

The packaging materials have been selected in accordance with their environmental friendliness and disposal attributes, and are therefore recyclable.

The recirculation of packaging into the material cycle saves raw materials and reduces the amount of waste generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations.

NOTE

▶ If possible, keep the original packaging during the warranty period so that the device can be properly packed for returning in the event of a warranty claim.

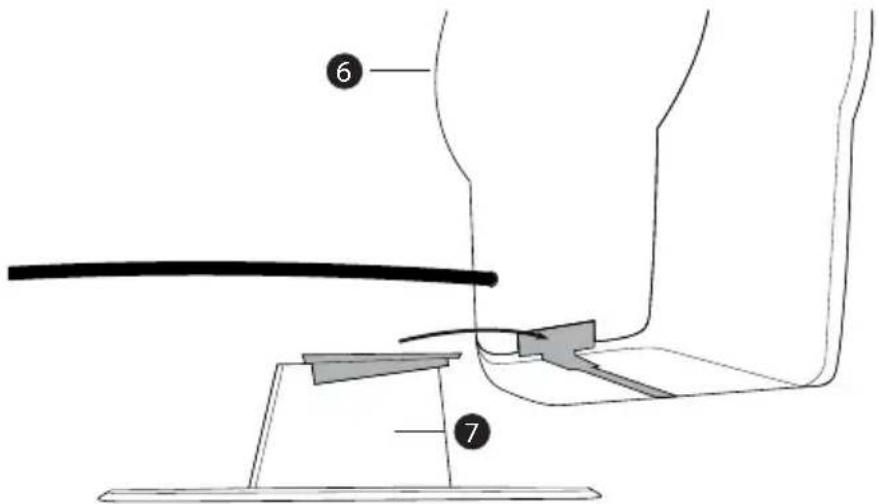

Fitting the support feet

♦ Slide the support feet ⑦ onto the loudspeaker guide rails from behind ⑥ (see fig. 1).

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a step or motion process.

Fig. 1

Installation site requirements

For safe and trouble-free operation of the device, the installation site must fulfil the following requirements:

■ The device must be placed on a firm, flat and level surface.

- Do not place the device in a hot, wet or extremely moist environment or in the vicinity of flammable materials.

■ Place the device so that it is not exposed to direct sunlight, strong artificial light or heated air.

Controls

1 LIGHT switch (ON / OFF)
2 TREBLE switch (ON / OFF)
3 BASS switch (ON / OFF)
4 Rotary switch (on/off and volume control)
5 Headphone socket (3.5 mm jack plug)
6 Loudspeaker
7 Support foot
8 Loudspeaker cable with 3.5 mm jack plug
9 Power supply cable with USB plug

Handling and use

This section provides you with important information on handling and using the device.

System requirements

- Computer with sound card and USB connection

or

● audio device with audio output (3.5 mm jack plug) and USB connection (alternatively with external USB power supply).

Connecting the loudspeaker

◆ Ensure that the rotary switch4 is in the "OFF" position.

◆ Plug the 3.5 mm jack plug 8 into the line out or headphone socket of your audio device (e.g. notebook, MP3 player). The audio signals are transmitted via this connection.

Plug the USB plug ^9 into a USB socket of your audio device (alternatively into the USB socket of an external USB power supply). The mains adapter should have the following specifications: 5 V min. 500 mA. The power supply for the loudspeaker ^6 is provided via this connection.

NOTE

The loudspeaker 6 do not work without a USB connection!

Switching on/off and adjusting the volume

- Turn the rotary switch 4 clockwise until a click is heard in order to switch the loudspeakers 6 on.

- Turn the rotary switch 4 further in a clockwise direction to increase the volume.

♦ Turn the rotary switch 4 anticlockwise to decrease the volume.

♦ Turn the rotary switch ④ anticlockwise until a click is heard (OFF position) in order to switch the loudspeakers ⑥ off.

Switching the light on and off

- Turn the LIGHT switch ① to the "ON" position in order to switch the loudspeaker ⑥ light on.

♦ Turn the LIGHT switch 1 to the "OFF" position in order to switch the loudspeaker 6 light off.

Switching bass and treble boost on/off

Turn the BASS switch 3 to the "ON" position in order to switch the loudspeaker 6 bass boost on.
Turn the BASS switch 3 to the "OFF" position in order to switch the loudspeaker 6 bass boost off.
Turn the TREBLE switch ② to the "ON" position in order to switch the loudspeaker ⑥ treble boost on.
Turn the TREBLE switch 2 to the "OFF" position in order to switch the loudspeaker 6 treble boost off.

Connecting headphones

DANGER

Loud music can lead to hearing damage.

- Avoid extremely loud sound levels, especially over long periods of time, when you are using headphones.

◆ Ensure that the rotary switch 4 is in the OFF position.
Insert the 3.5 mm jack plug of the headphones into the headphone socket 5.
Before placing the headphones on your head, switch the loudspeaker 6 on again and carefully increase the volume.

NOTE

▶ As soon as you connect the headphones, the loudspeaker will be muted.
The headphone output is passive, which means that the volume can be controlled using the rotary switch 4, but the maximum volume is specified by the computer or audio device. Please note that headphones may only be connected if the audio device has the necessary standard volume limitation applied to its output. Please refer to your audio device instruction manual for more information.

Fault rectification

This section contains important information on fault localisation and rectification. Observe the instructions in order to avoid risks and damage.

Malfunction causes and remedies

CAUTION

The loudspeakers may not be opened!

There are no parts which can be cleaned or maintained inside the device. Opening the loudspeakers will result in irreparable damage to the device.

The following table will help with localising and remedying minor malfunctions:

Defect Possible cause Rectification
	The volume control of the player or the loudspeaker 6 is set to the minimum volume.	Increase the volume at the audio device or the loudspeaker 6.
	The audio device has been muted.	Switch the audio device muting off again.
No sound.	Audio device or loudspeaker 6 not switched on.	Ensure that all devices are switched on.
	The 3.5 mm jack plug 8 is not fully inserted into the audio device's headphone socket.	Insert the 3.5 mm jack plug 8 fully into the socket.
	The 3.5 mm jack plug of the headphones is connected to the headphone socket 5.	Pull the 3.5 mm jack plug of the headphones out of the headphone socket 5.
No sound or volume too low on connected headphones.	The volume control of the audio device is set to the minimum volume.	Increase the volume at the audio device.
	Headphones defective.	Check the head-phone function on the audio device itself.

NOTE

▶ If the aforementioned solutions do not resolve the problem, please contact Customer Service (see chapter Service).

Cleaning

Safety instructions

CAUTION

Possible damage to the device

Penetrating moisture can cause damage to the device.

▶ To avoid irreparable damage, ensure that no moisture penetrates the device during cleaning.

■ Clean the housing of the device with a lightly moistened cloth and a mild detergent only.

Storage/Disposal

Storage when not in use

Store the device in a dry environment.

Disposal of the device

The symbol of a crossed-out wheelie bin means that this product is subject to European Directive 2012/19/EU and may not be disposed of in the domestic waste. The product must be taken to a dedicated collection point for electrical and electronic appliances.

This disposal is free of charge for the user. You will be helping to protect both the environment and your personal health and recycling valuable raw materials.

More information on disposal and the nearest collection point is available from your town council.

Appendix

Technical details

Output power 2 x 0.6 W
Voltage supply- input voltage- current consumption	via USB-A plug5 V ===max. 500 mA
Audio connection: 3.5 mm jack plug
Headphone connection 3.5 mm jack socket
Operating temperature +5 - +35°C
Storage Temperature 0 - +40°C
Humidity (no condensation) 15 - 75 %
Dimensions (W x H x D) approx. 8.5 x 22 x 8.5 cm
Weight 490 g approx.

Notes on the EU-Declaration of Conformity

With regard to conformity with the basic requirements and other relevant provisions, this device complies with the Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

The full EU-Declaration of Conformity is available from the importer.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 285664

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 28

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a procedure or assembly step.

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 42

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a step or motion sequence.

Afb. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod 54

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a step or motion sequence.

Obr. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Índice

Introducción....66

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a procedure or assembly step.

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Índice

Introdução....80

Technical diagram showing a mechanical assembly with labeled parts 6 and 7, likely illustrating a step or motion sequence.

Fig. 1

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones
