SGT 11 A1 - Keyboard SILVERCREST - Free user manual and instructions

Frequently Asked Questions - SGT 11 A1 SILVERCREST

USER MANUAL SGT 11 A1 SILVERCREST

GAMING-KEYBOARD GAMING KEYBOARD CLAVIER DE GAMING SGT 11 A1

DE AT CH

GAMING-KEYBOARD

Operation and safety notes

FR BE

CLAVIER DE GAMING

GB/IE Operation and safety notes Page 16

Simple icon of a Windows logo with two pixelated windows, no text or symbols present.

Simple speaker icon with sound waves inside a rectangular border (no text or symbols)

Simple icon of a calculator inside a rounded rectangle (no text or symbols)

Warnings and symbols used .... Page 17

Trademark notices.... Page 18

Scope of delivery ...... Page 18

Safety instructions.... Page 19

Description of parts ...... Page 21

Technical data Page 22

Before use.... Page 22

Operation Page 22

Storage when not in use ...... Page 25

Cleaning Page 25

Troubleshooting Page 26

Disposal...... Page 26

Simplified EU declaration of conformity ... Page 27

GAMING KEYBOARD

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is a consumer electronics device. This product may only be used privately and not for industrial or commercial purposes. Furthermore, this product may not be used in tropical climates. Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the product will be considered un-warranted. Any such use is at your own risk.

● Warnings and symbols used

These instructions for use contain the following warnings:

⚠️ DANGER!

This symbol with the signal word indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.

WARNING!

This symbol with the signal word indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.

CAUTION!

This symbol with the signal word indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTE:

A note provides additional information to improve product use.

Trademark notices

■ ^® USB registered trademark of USB Implementers Forum, Inc.
The SilverCrest trademark and trade name is the property of their respective owners.
■ Any other names and products may be trademarks or registered trademarks of their respective owners.
Windows registered trademark of Microsoft Corporation in the United States and other countries.

Scope of delivery

1 Gaming keyboard
1 Instructions for use

Safety instructions

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision. The product is not a toy.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.

- Keep the product away from moisture, dripping and splash water!

• Do not place burning candles or other open fire on or next to the product.

• Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
  If you notice smoke or unusual noise or odour, disconnect the USB connection.
  ■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!

• Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

• Do not throw the product into fire and do not expose to high temperatures.
• Do not try to open the product! It has no internal parts requiring maintenance.

⚠ WARNING! Ensure that

• no direct heat sources (e.g. heating) can affect the product.
  ■ the product is not exposed to bright artificial light.
  any contact with splashed and dripping water and corrosive liquids is avoided and the product is not operated in the vicinity of water. In particular, the product should never be submerged in liquid; do not place any vessels filled with liquid, for example, vases or drinks, on or near the product.

■ the product is not used in the immediate vicinity of magnetic fields (e.g. speakers).
■ no fire sources (e.g. burning candles) are placed on or near the product.
■ no foreign objects penetrate the product.

the product is never subjected to extreme temperature fluctuations as this could result in condensation and electrical short circuits. If the product were subjected to extreme temperature fluctuations, however, wait (approx. 2 hours) until the product has reached ambient temperature before use.

■ the product is never subjected to excessive shocks and vibrations.

■ the connected cables is always laid in such a manner that nobody can step on them or trip over it. There is a risk of injury.

no objects are placed on a connected cable and that a cable is not connected over sharp edges because it could be damaged otherwise.

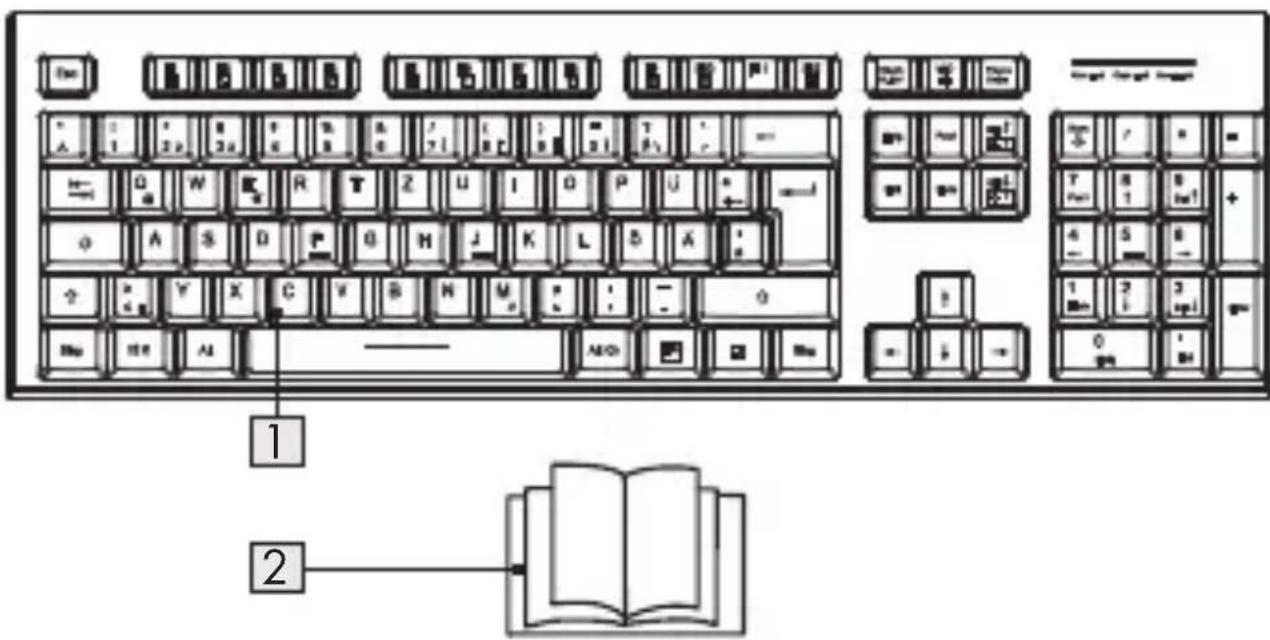

● Description of parts

1 Keyboard with LED effects

2 Instructions for use

* Regional keyboard layouts may differ

● Technical data

Operating systems: Microsoft

^® Windows ^® 7 / 8 / 10

Required hardware: 1 available USB port

Working voltage: 5 V

Working current: 260 mA (max.)

Dimension (L x W x H): 442 x 141 x 40 mm

Net weight: approx. 1053 g

The specification and design may be changed without notification.

Before use

NOTES:

All parts have to be unpacked and the packaging material has to be removed completely.

Before use, verify the package contents are complete and undamaged!

Operation

The keys in the top row are reserved for special functions.

Corresponding to the symbols used, they can be used to directly control program features such as media playback or volume.

Depending on the operating system used, the keys may have slightly different functions. Note that depending on the version of the operating system, some special keys may not work with the described function.

Key combinations

Key combinations Functions

Activating light effects.

Adjusting the backlight brightness.

Switching the keyboard backlight on / off.

Simple icon of a Windows logo with a square window and a circular symbol (no text or numbers)

Lock WIN and APP. Prevent switching between WIN and APP.

Function keys

To access these functions, press the FN key and the desired key simultaneously.

Keys Functions

Simple black musical note icon inside a rectangular border (no text or symbols)

Start the default media player programme.

Simple speaker icon inside a rectangular frame (no text or symbols)

Decrease the volume.

Keys Functions

Simple speaker icon with sound waves inside a rectangular border (no text or symbols)

Increase the volume.

Simple line drawing of a speaker icon inside a circle, no text or symbols present

Mute sound.

Simple black square centered within a white rectangle (no text or symbols)

Stop playback.

Two black left-pointing triangular arrows inside a rectangular border (no text or symbols)

Back to previous track.

Pure electrical circuit symbol for a play button (no text or numbers)

Play /pause track.

Two black right-pointing triangular arrows inside a rectangular border (no text or symbols)

Go to next track.

Simple line drawing of an envelope inside a rounded rectangle (no text or symbols)

Start the default e-mail programme.

Keys Functions

Simple line drawing of a house inside a rectangular frame (no text or symbols)

Start the default web browser and load the home web page.

Simple icon of a calculator inside a rectangular frame (no text or symbols)

Open the calculator.

● Storage when not in use

Store the appliance in a dry indoor location protected from direct sunlight, preferably in its original packaging.

Cleaning

■ Disconnect the USB connection before cleaning!
No acid, chafing or solvent cleaning agents should be used or the product can be damaged.
■ Only clean the outside of the product using a soft, dry cloth!
At persistent soiling, a mild cleaning agent can be used.

It is necessary to repair the product if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the device or if the product has been exposed to rain or moisture.

Repair work is also required if the device is not working properly or has been dropped. If smoke is produced, or there are any unusual sounds or smells, turn the product off immediately. In such cases, the product should not be used until they have been inspected by authorised service personnel. Only have the device repaired by qualified personnel. Never open the housing of the product.

■ Only use a clean, dry cloth for cleaning the product and never use any corrosive liquids. Use a slightly moistened cloth and a mild cleaning agent to remove stubborn dirt.

Troubleshooting

Problem Solution

The

appliance

does not

work

properly.

■ Option 1: Make sure the USB plug is fully plugged into a USB port and the computer is on or try to use a different USB port.

■ Option 2: Re-insert the USB plug into the USB port.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities. Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

Think about the environment and your personal health. Dispose empty batteries in separate collecting boxes. These can be found in many public buildings or in shops where batteries are sold.

● Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product GAMING KEYBOARD HG03091, is in compliance with Directives 2014/30/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com
