Product type	Gas barbecue
Brand	Hendi
Model	GrillMaster Quattro
Usage	Outdoor only
Power supply	Propane gas (recommended bottle >10 kg)
Ignition	Integrated piezo (ignition button)
Burner material	Stainless steel
Included accessories	Upper grill, lower grill, cooking plate, grease tank
Gas pressure	Suitable regulator (not specified in the manual)
Gas hose length	Max 1.5 m
Warranty	1 year
Maintenance	Regular cleaning after cooling, do not immerse
Safety	Do not use indoors, hot surface, keep out of reach of children
Spare parts available	Yes (plates, grills, tank, feet, wheels, ignition button, valve, burner, injector)
Repairability	Repair by authorized professional only
Hose replacement	Every 3 to 4 years or if damaged
Burner cleaning	At least once a year by a qualified installer

Frequently Asked Questions - GrillMaster Quattro Hendi

How to light the GrillMaster Quattro barbecue?

Place the upper grill, open the gas valve, turn the knob to the 'normal' position, press the ignition button several times until the burners ignite completely. Hold the button down for 10 seconds to keep the burners lit.

How to safely turn off the barbecue?

Turn the knob fully to the right. Wait about 10 minutes before relighting. Always close the gas valve and the appliance valve after turning off.

How to clean the barbecue after use?

Allow the appliance to cool completely. Clean the exterior with a damp cloth (water + mild detergent). Never immerse the appliance in water. The grill and cooking plate can be soaked in cleaning agent then scrubbed with a sponge or wire brush. Clean the ventilation openings with a vacuum cleaner.

Can I use the barbecue indoors?

No, the barbecue is exclusively designed for outdoor use. Using it indoors exposes to risks of fire and poisoning.

What type of gas to use with the GrillMaster Quattro?

Only use propane gas. The manual recommends bottles with a capacity greater than 10 kg.

What to do if the burner does not ignite?

Check that the gas bottle is not empty, the valve is open, the igniter is not defective, the spark plug is not dirty, and the hose is not kinked or blocked. If necessary, have the appliance checked by an authorized repairer.

How to replace the gas bottle?

Perform the replacement away from any ignition source. Attach the pressure regulator to the bottle by tightening the brass nut (left-hand thread). Check for leaks using soapy water.

What is the lifespan of the gas hose?

The gas hose must be replaced every 3 to 4 years (see date on hose) as it becomes porous. Check its condition at least once a year and replace it immediately if cracked.

What accessories are available for this barbecue?

The manual lists several accessories: cooking plates (Mini, Maxi/Quattro), grills (lower, upper), grease tank, feet, wheels, ignition button, gas valve and burner. The item numbers are provided in the manual.

How to maintain the barbecue burner?

The burner must be cleaned at least once a year by a qualified installer. Before each use, ensure that the burner holes are not blocked. Never use a high-pressure cleaner.

USER MANUAL GrillMaster Quattro Hendi

Exterior view of a stainless steel portable stove with control panel and side legs (no text or symbols visible)

Item: 154601

154618

154700

154717

154878

154908

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

FOOD CONTACT

Prohibition sign depicting a trash bin crossed out by diagonal lines, indicating no waste or discharge.

RoHS

CE

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Зграждс	154601 Bake-Master Mini PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarà / страна / Худо	NL/DE/AT/PL BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Мос nominarna /Puissance / Potenza / Putere / Мощность / Icevic	[HS] 5,8 kW [HS] 4,5 kW		[HS] 6,2 kW
Category / Categorie / Kategorie / Kategorie / Categorie /Categoría / Categorie / категория / Коткурю	| 3P (propane)	| 3P (propane)	| 3B/P ( butane /propane )
Consumation / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / потребление / Kotnyväsch	357 g/h 295 g/h		388 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour /Configurare / Configurarea / Настройка / Рэдурион	G31 - 50 mbar G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjyny / N°de série /N° seriale / Număr serial / Сарийный номер /АріБуєс осирєс

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Stoxxelo	154618 Bake-Master Maxi		PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarä / страна / Xiàpo	NL/DE/AT/PL	BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / loxúc	[HS] 11,6 kW	[HS] 9,7kW		[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categoría / Categoría / категория / Katnyopió	I3P (propane)	I 3P (propane)		I 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / NORpeblenje / Katovókuon	714 g/h	582 g/h		776 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour /Configurare / Configurarea / Настройко / Рубион	G31 - 50 mbar	G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjiny / N°de série /N° seriale / Numár serial / Серийный номер /АріБуáс осурас

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / Article / Articolo /Articol / пункт / Strouxcio	154700 Grill-Master Mini PIN : 006		3AR3273
Country / Land / Land / Kraj / Payes / Paese /tarã / страна / Хюра	NL/DE/AT/PL BE/FR/LU/GB/IE/GR			AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / Icexics	[HS] 5,8 kW [HS] 4,5 kW			[HS] 6,2 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categoría / Categoría / Катуорía	| 3P (propane)	| 3P (propane)		| 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / потребление / Капитоймост	357 g/h 295 g/h			388 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conçú pour /Configurare / Configurarea / Настрійка / Роброн	G31 - 50 mbar G31 - 37 mbar			G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serýny / N°de série /N° seriale / Număr serial / Сервійный номер /Арібурс звірає

HENDIFOOD SERVICE EQUIPMENTSteenoven 21, NL-3911 TX Rhenen www.hendi.eu				________
Item / Artikel / Item / Artykut / Article / Articolo /Articol / пункт / Stouxiol	154717 Grill-Master Maxi PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarā / странa / Xuρo	NL/DE/AT/PL BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / loxúç	[HS] 11,6 kW [HS] 9,7kW		[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categoría / Categoría / kategoría / Komyopia	| 3P (propane)	| 3P (propane)	| 3B/P ( butane/propane )
Consumption / Verbrauch / Verbruik / Zuzycle / Consommation /Consumo / Consum / погребление / Актувікціон	714 g/h 582 g/h		776 g/h
Set up / Auflegung / Inrichting / Przernacory na / Conçu pour /Configurane / Configuranea / Настрійна / Робуон	G31 - 50 mbar G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. senjny / N°de série /N° seriale / Număr serial / Серийньй номер /АртДуєс оз ріє

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21. NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / Article / Articolo /Articol / пункт / Strouzio	154878 Roast-Master Maxi		PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tară / страна / Хюра	NL/DE/AT/PL	BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мошность / loxúç	[HS] 11,6 kW	[HS] 9,7kW		[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categoría / Categoría / категория / Катуорía	| 3P (propane)	| 3P (propane)		| 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / потребление / Katovéktion	714 g/h	582 g/h		776 g/h
Set up / Auflegung / Inrichting / Przeznaczory na / Conçu pour /Configurana / Configurarea / Настройка / Робион	G31 - 50 mbar	G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjny / N° de série /N° seriele / Număr serial / Сервійный номер /Артирує осіріє

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Stouxcio	154908 Grill-Master quatro PIN : 0		063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarā / странa / Худо	NL/DE/AT/PL BE/FR/LU/GB/IE/GR			AT
Power / Belasting / Leistung / Mos nominaina /Puissance / Potenza / Putere / Мощность / loxúc	[HS] 22,0 kW [HS] 18,0 kW			[HS] 22,0 kW
Category / Categorie / Kategorie / Kategoria / Calégorie /Categoría / Categoría / категория / Коткурцю	I 3P (propane)	I 3P (propane)		I 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / norpebneka / Katavákuon	1440 g/h 1242 g/h			1440 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conpu pour /Configurare / Configurarea / Настройка / Рудион	G31 - 50 mbar G31 - 37 mbar			G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. seryjny / N°de séne /N° seriale / Număr serial / Сервійный номер /Артифідс осрός

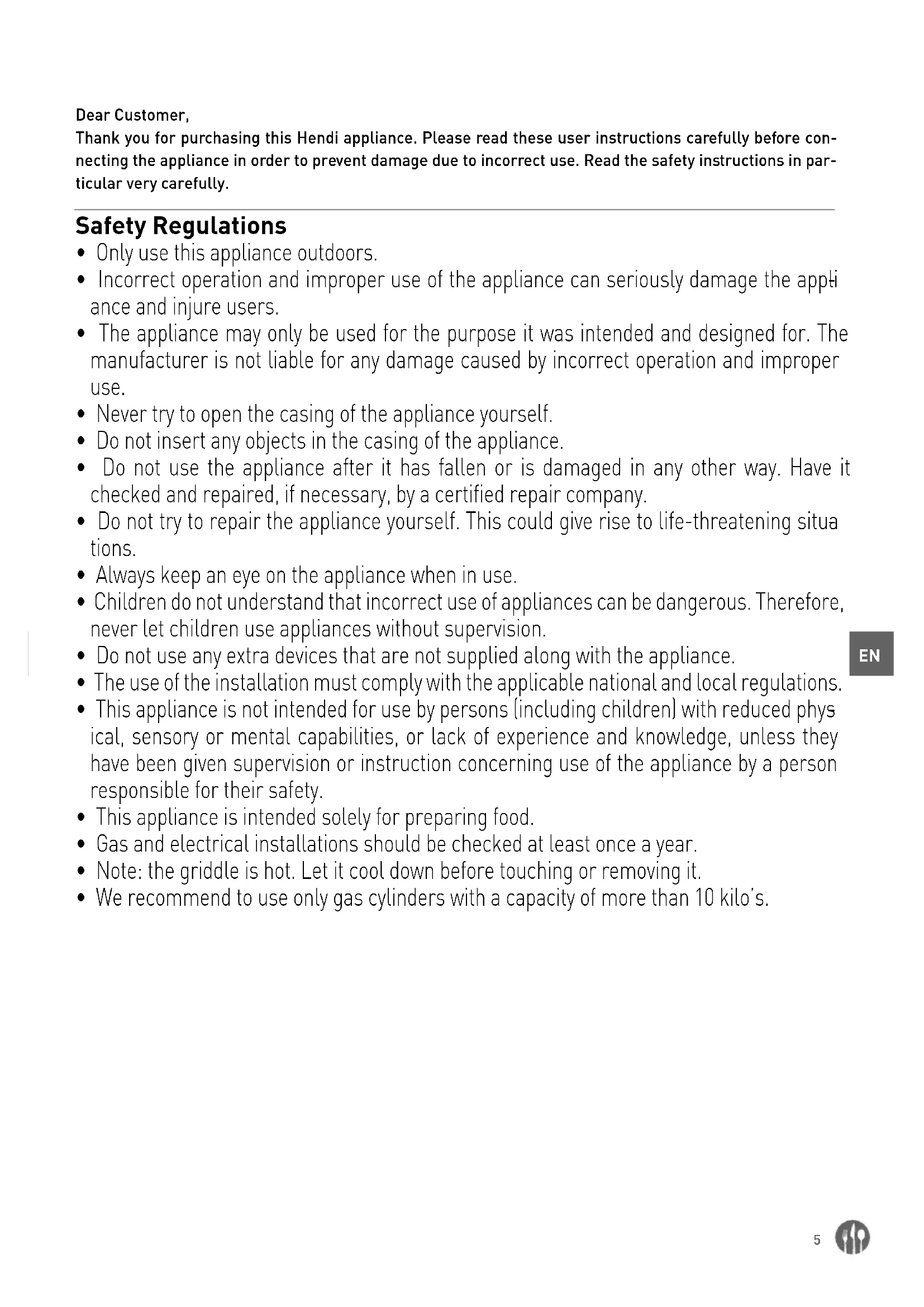

Dear Customer,

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  • Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilo's.

General instructions

• Necessary changes may only be done by a qualified technician
• Use only the supplied pressure regulator.
  • This appliance is only suited for propane gas.
• Check that there are no kinks in the gas hose.
• The length of the gas hose may not exceed 1.5 meters.
• Keep the appliance away from (easily) flammable material.
• Do not move the gas appliance during use.
• Always close the tap on the gas cylinder if the appliance is no longer being used.
• The user must not change parts of the appliance that are sealed by the manufacturer.
  • Install the appliance as level as possible.

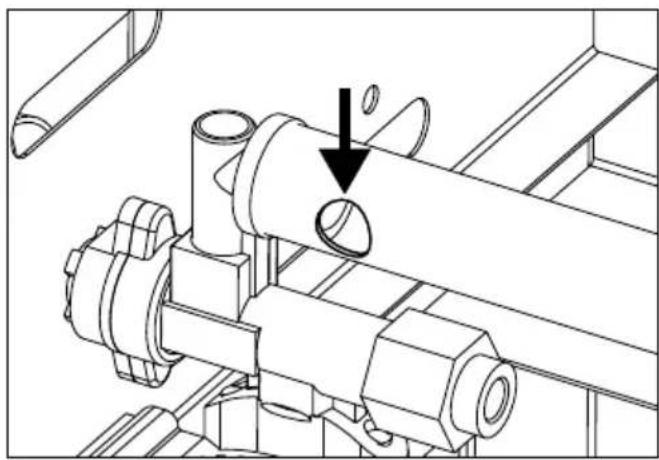

- Before each use, the user must always check whether the holes (pictured below) of the burner are clear of obstructions and not blocked.

Mechanical assembly diagram showing a pipe fitting with a circular component and an arrow indicating motion (no text or symbols present)

- Replacement of the gas bottle must be performed outside the range of any sources of ignition.

WARNING: Some parts of the appliance can become hot. Keep children away from the gas griddle.

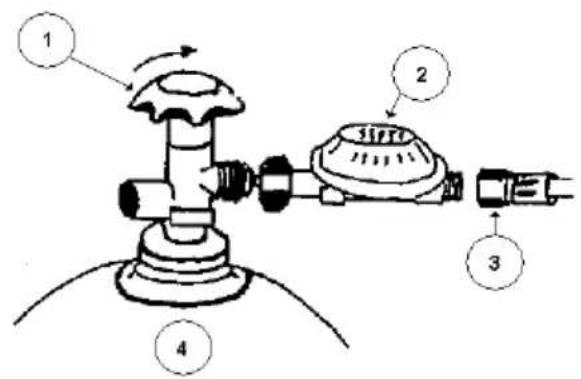

Connecting the gas bottle

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Check the connections for leaks using a soap and water solution.

Igniting the gas griddle

• Place the grill grid.
• Turn the knob to the "big flame" position. Keep the knob pressed and press the ignition button a few times until the burner is burning complete-

ly. Keep the knob pressed in for approximately a further 10 seconds. The burner will continue to burn.

Turning off the gas griddle

- Turn the knob completely to the right. The burner will go off.

Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners. After turning off the burners, always turn off the main tap on the gas cylinder and the tap on the appliance!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special barbecue cleaner, follow the instructions on the packaging.

• Clean the ventilation slots (if applicable) with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.
• Never use a high pressure cleaner.
• Maintenance after every use: Clean the griddle. Clean the grease holder.
• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 mm.

Fault

Fault Possible cause Fault Possible cause
Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost)

Note

- It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.
• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.

Accessories

Description Article no.
Baking tray Grill/Bake master Mini 154687
Baking tray Grill/Bake master Maxi/ Quattro 154656
Upper grid Grill master Mini 154663
Upper grid Grill master Maxi/ Quattro 154632
Lower grid Grill master Mini 154670
Lower grid Grill master Maxi/Quattro 154649
Grease holder Grill master Mini 154748
Grease holder Grill master Maxi/ Quattro 154755
Leg Grill master Mini 154823
Leg Grill master Maxi 154694
Leg Grill master Quattro 928226
Wheel Quattro 928233
Ignition button Grill/Bake master Mini/Maxi 153178
button Quattro 928240
Gas tap Grill/Bake master Mini / Maxi/ Quattro	154724
Burner Grill/Bake master Mini / Maxi / Quattro	154731

EN

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time. Throw packing materials like plastic and boxes in the appropriate containers.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Włączenie grilla

Mechanical assembly diagram showing a pipe fitting with a downward arrow indicating motion (no text or symbols present)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing a mechanical component with a highlighted part and arrow indicating motion (no text or symbols present)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

62-023 Gądki, Poland

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment GmbH

Central Barn, Hornby Road

Lancaster, LA2 9JX, United Kingdom

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment Romania Srl

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiFoodServiceEquipment

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
• Wijzigingen en drukfouten voorbehouden.
• Producent zastrzega sobie prawo do zmian oraz błędów drukarskich w instrukcji.

• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.

• Drepturi rezervate cu privire la modificări și greșeli de imprimare.
• Изменения, печати и верстки ошибки защищены.
• Με επιφύλαξη αλλαγών, λαθών εκτύπωσης και στοιχειοθεσίας.
