Product type	Gas barbecue
Brand	Hendi
Model	GrillMaster Maxi
Power supply	Propane gas
Ignition type	Integrated piezo
Main material	Stainless steel
Number of burners	1 (Maxi model)
Injector diameter	1.10 mm
Max. gas hose length	1.5 m
Recommended gas cylinder capacity	Greater than 10 kg
Usage	Outdoor only
Functions	Grill, plate cooking, fat collection tray
Included accessories	Upper grate, cooking plate (optional), fat tray
Cleaning	Damp cloth and mild detergent, soaking for grate
Annual maintenance	Check hose and regulator, professional burner cleaning
Spare parts available	Yes (plates, grilles, tray, feet, wheels, valve, burner, etc.)
Warranty	1 year
Safety standards	Compliant with local regulations

Frequently Asked Questions - GrillMaster Maxi Hendi

How to light the GrillMaster Maxi barbecue?

Open the gas valve, turn the knob to the 'normal' position, press the ignition button several times until the burners ignite. Hold the button for 10 seconds to stabilize the flame.

What type of gas to use?

Use exclusively propane gas. Do not use butane or other gas.

How to clean the cooking grate?

Let the appliance cool down, then soak the grate in a suitable cleaning agent. Scrub with a sponge or wire brush. Rinse and dry.

What to do if the burner does not light?

Check that the gas cylinder is not empty, the valve is open, the igniter is not dirty, and the thermocouple is working. Consult the manual for the troubleshooting table.

Can I use a pressure washer to clean the appliance?

No, never use a pressure washer as it could damage the appliance.

When to replace the gas hose?

The gas hose must be replaced every 3 to 4 years or immediately if cracked. Check the condition at least once a year.

What is the lifespan of the pressure regulator?

The lifespan is indicated by the date printed on the regulator. Replace it only with an original regulator.

Can I use the cooking plate without the grate?

Yes, but you must remove the fat tray and the lower/upper grate. Otherwise, a risk of heat propulsion may damage the appliance.

How to ensure safety during use?

Use the appliance outdoors, away from flammable materials. Do not move it while lit. Close the gas valve after use. Monitor the appliance while operating.

Where to find spare parts for the GrillMaster Maxi?

Spare parts (plates, grates, valve, burner, etc.) are available under article numbers listed in the manual. Contact the manufacturer or an authorized dealer.

USER MANUAL GrillMaster Maxi Hendi

Exterior view of a stainless steel portable kitchen appliance with control knobs and a flat top (no text or symbols visible)

Item: 154601

154618

154700

154717

154878

154908

You should read this user manual carefully before using the appliance.

READ MANUAL

Keep these instructions with the appliance.

FOOD CONTACT

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

RoHS

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Зграждс	154601 Bake-Master Mini PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarà / страна / Худо	NL/DE/AT/PL BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Мос nominarna /Puissance / Potenza / Putere / Мощность / Icevic	[HS] 5,8 kW [HS] 4,5 kW		[HS] 6,2 kW
Category / Categorie / Kategorie / Kategorie / Categorie /Categoría / Categorie / категория / Котуорía	| 3P (propane)	| 3P (propane)	| 3B/P ( butane /propane )
Consumation / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / потребление / Котойкsson	357 g/h 295 g/h		388 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour /Configurare / Configurarea / Настройка / Рэдурион	G31 - 50 mbar G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjny / N°de série /N° seriale / Număr serial / Сарийный номер /АріБрієс оса рєс

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Stoixelo	154618 Bake-Master Maxi PIN : 00		63AR3273
Country / Land / Land / Kraj / Payes / Paese /tarä / страна / Xiàpo	NL/DE/AT/PL	BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / Ioxúç	[HS] 11,6 kW [HS] 9,7kW			[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categorià / Categorie / kategoría / Kotinyopia	I3P (propane)	I 3P (propane)		I 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / NORpeblenje / Katavówion	714 g/h 582 g/h			776 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conçu pour /Configurare / Configurarea / Настройка / Рубион	G31 - 50 mbar	G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjyny / N°de série /N° series / Numár serial / Серийный номер /Арёбус, осирас

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykut / Article / Articolo /Articol / пункт / Stoixolo	154700 Grill-Master Mini		PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /jarā / strana / Xópo	NL/DE/AT/PL BE/FR/LU/GB/IE/GR			AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Mochnostb / loxúc	[HS] 5,8 kW	[HS] 4,5 kW		[HS] 6,2 kW
Category / Categorie / Kategorie / Kategorie / Categorie / Categorie / kateropia / Katnyopia	| 3P (propane)	| 3P (propane)		| 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consume / Consum / norgreženke / Katovátkson	357 g/h	295 g/h		388 g/h
Set up / Auflegung / Inrichting / Przeznaczany na / Conçu pour /Configurare / Configurarea / Hastróka / Pábrion	G31 - 50 mbar G31 - 37 mbar			G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serýny / N°de série /N° seriale / Numár serial / Серýйный номер /Ар.Вроє звріє

HENDIFOOD SERVICE EQUIPMENTSteenoven 21, NL-3911 TX Rhenen www.hendi.eu
Item / Artikel / Item / Artykut / Article / Articolo /Articol / пункт / Stouxiol	154717 Grill-Master Maxi PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tară / страна / Хіро	NL/DE/AT/PL BE/FR/LU/GB/IE/GR		AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / loxúç	[HS] 11,6 kW [HS] 9,7kW		[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categoría / Katnyopia	| 3P (propane)	| 3P (propane)	| 3B/P ( butane/propane )
Consumption / Verbrauch / Verbruik / Zuzycle / Consommation /Consumo / Consum / погребление / Копадмисп	714 g/h 582 g/h		776 g/h
Set up / Auflegung / Inrichting / Przernacory na / Conçu pour /Configurane / Configuranea / Настройка / Робуон	G31 - 50 mbar G31 - 37 mbar		G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. senjny / N°de série /N° seriale / Numár serial / Серийный номер /Адапус осврбс

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21. NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articola /Articol / пункт / Stouxcio	154878 Roast-Master Maxi PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tară / страна / Хюра	NL/DE/AT/PL	BE/FR/LU/GB/IE/GR	AT
Power / Belasting / Leistung / Moc nominsina /Puissance / Potenza / Putere / Мощность / loxuc	[HS] 11,6 kW [HS] 9,7kW		[HS] 12,0 kW
Category / Categorie / Kategorie / Kategoria / Categorie /Categoriça / Categorie / категория / Котмурю	I 3P (propane)	I 3P (propane)	I 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / потребление / Katovášwen	714 g/h 582 g/h		776 g/h
Set up / Auflegung / Inrichting / Przemnaczory na / Conçu pour /Configurana / Configurarea / Настройка / Робион	G31 - 50 mbar	G31 - 37 mbar	G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. serjny / N°de série /N° seriele / Număr serial / Сервійный номер /Арібірдос осердс

HENDI

FOOD SERVICE EQUIPMENT

Steenoven 21, NL-3911 TX Rhenen www.hendi.eu

Item / Artikel / Item / Artykul / Article / Articolo /Articol / пункт / Stouxcio	154908 Grill-Master quatro		PIN : 0063AR3273
Country / Land / Land / Kraj / Payes / Paese /tarā / странa / Худо	NL/DE/AT/PL BE/FR/LU/GB/IE/GR			AT
Power / Belasting / Leistung / Moc nominaina /Puissance / Potenza / Putere / Мощность / loxuc	[HS] 22,0 kW	[HS] 18,0 kW		[HS] 22,0 kW
Category / Categorie / Kategorie / Kategoria / Calégorie /Categoría / Categoría / Категория / Котмория	I 3P (propane)	I 3P (propane)		I 3B/P ( butane /propane )
Consumption / Verbrauch / Verbruik / Zuzycie / Consommation /Consumo / Consum / norpebneka / Kotrováwon	1440 g/h	1242 g/h		1440 g/h
Set up / Auflegung / Inrichting / Przeznaczony na / Conpu pour /Configurare / Configurarea / Настройка / Рудион	G31 - 50 mbar G31 - 37 mbar			G30/G31 - 50 mbar
Serial no. / Serien nr. / Serie nr. / Nr. senjny / N° de série /N° seriale / Numár serial / Сервійный номер /Аріївдос одріє:

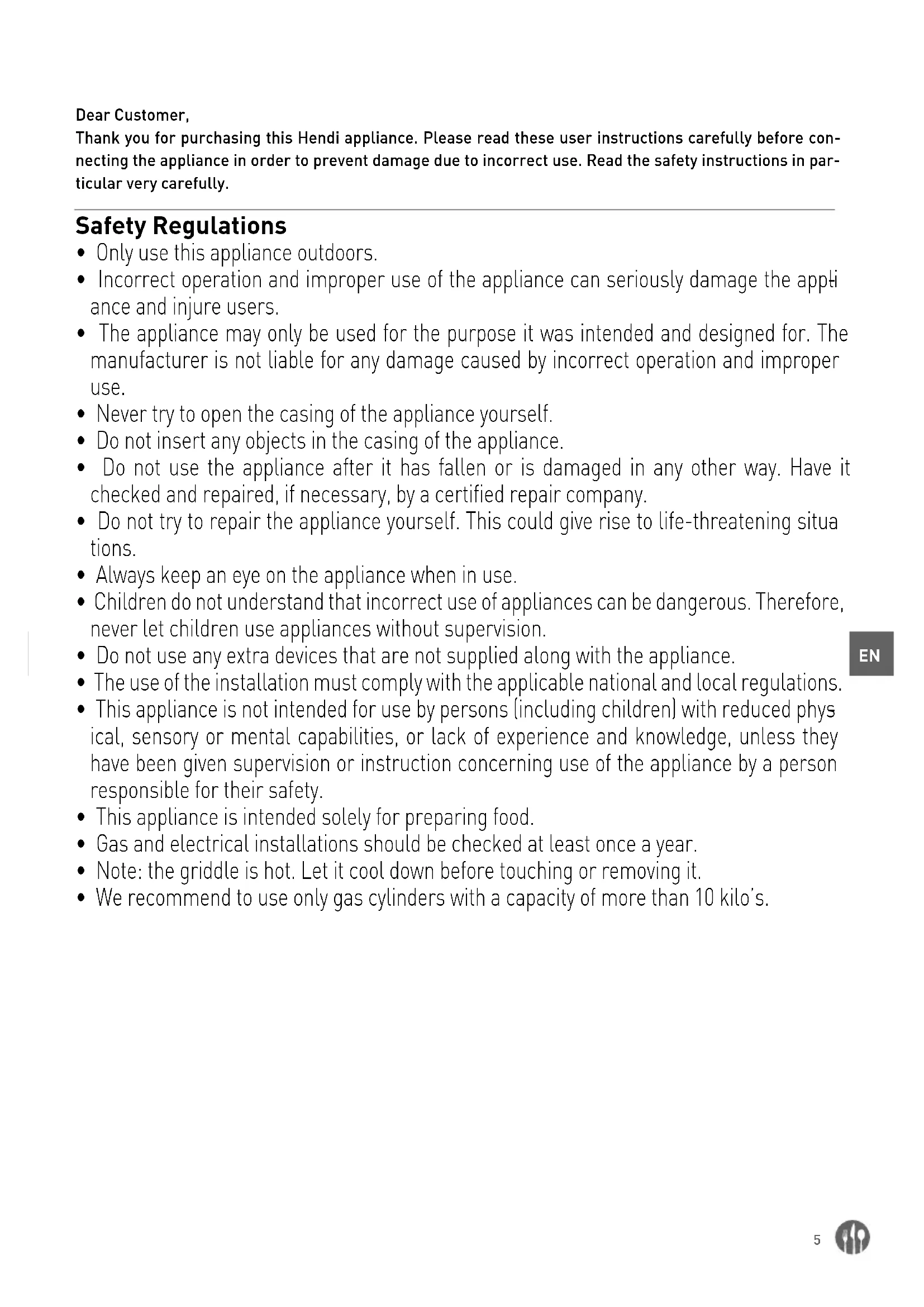

Dear Customer,

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
  • Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilo's.

General instructions

• Necessary changes may only be done by a qualified technician
• Use only the supplied pressure regulator.
  • This appliance is only suited for propane gas.
• Check that there are no kinks in the gas hose.
• The length of the gas hose may not exceed 1.5 meters.
• Keep the appliance away from (easily) flammable material.
• Do not move the gas appliance during use.
• Always close the tap on the gas cylinder if the appliance is no longer being used.
• The user must not change parts of the appliance that are sealed by the manufacturer.
  • Install the appliance as level as possible.

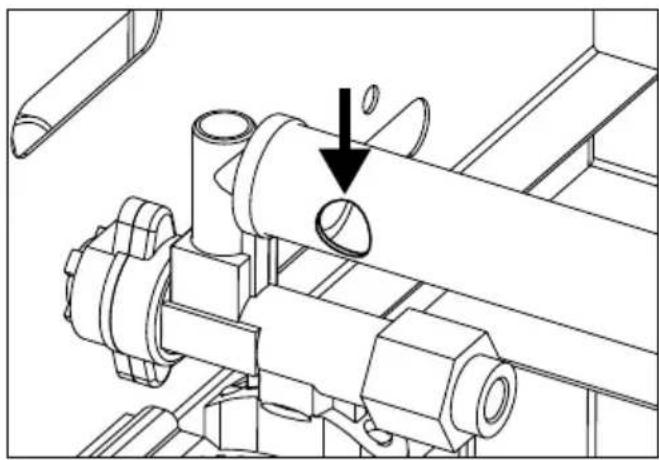

- Before each use, the user must always check whether the holes (pictured below) of the burner are clear of obstructions and not blocked.

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

- Replacement of the gas bottle must be performed outside the range of any sources of ignition.

WARNING: Some parts of the appliance can become hot. Keep children away from the gas griddle.

Connecting the gas bottle

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. (NB. This rubber washer is not required for UK-type pressure regulators). Tighten the nut well. Note that the nut has a left-hand thread.

Technical diagram of a mechanical device with labeled components and motion indicators

Check the connections for leaks using a soap and water solution.

Igniting the gas griddle

• Place the grill grid.
• Turn the knob to the "big flame" position. Keep the knob pressed and press the ignition button a few times until the burner is burning complete-

ly. Keep the knob pressed in for approximately a further 10 seconds. The burner will continue to burn.

Turning off the gas griddle

- Turn the knob completely to the right. The burner will go off.

Note! After turning off the burners, wait approximately 10 minutes before reigniting the burners. After turning off the burners, always turn off the main tap on the gas cylinder and the tap on the appliance!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special barbecue cleaner, follow the instructions on the packaging.

• Clean the ventilation slots (if applicable) with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.
• Never use a high pressure cleaner.
• Maintenance after every use: Clean the griddle. Clean the grease holder.
• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 mm.

Fault

Fault Possible cause Fault Possible cause
Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost)

Note

- It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.
• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.

Accessories

Description Article no.
Baking tray Grill/Bake master Mini 154687
Baking tray Grill/Bake master Maxi/ Quattro 154656
Upper grid Grill master Mini 154663
Upper grid Grill master Maxi/ Quattro 154632
Lower grid Grill master Mini 154670
Lower grid Grill master Maxi/Quattro 154649
Grease holder Grill master Mini 154748
Grease holder Grill master Maxi/ Quattro 154755
Leg Grill master Mini 154823
Leg Grill master Maxi 154694
Leg Grill master Quattro 928226
Wheel Quattro 928233
Ignition button Grill/Bake master Mini/Maxi 153178
button Quattro 928240
Gas tap Grill/Bake master Mini / Maxi/ Quattro	154724
Burner Grill/Bake master Mini / Maxi / Quattro	154731

EN

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time. Throw packing materials like plastic and boxes in the appropriate containers.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a mechanical device with labeled components and motion indicators

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Technical diagram of a mechanical device with labeled components and motion indicators

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Diagram of a mechanical device with labeled components and motion indicators

Włączenie grilla

Mechanical assembly diagram showing a pipe fitting with a downward arrow indicating motion (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and motion indicators

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and motion indicators

Mechanical assembly diagram showing a pipe fitting with a circular component and an arrow indicating motion (no text or symbols present)

Technical diagram showing a mechanical device with labeled components and motion indicators

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical device with labeled components and motion indicators

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical device with labeled components and motion indicators

62-023 Gądki, Poland

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment GmbH

Central Barn, Hornby Road

Lancaster, LA2 9JX, United Kingdom

Tel: [phone]

Email: [e-mail]

Hendi Food Service Equipment Romania Srl

PKS Hendi South East Europe SA

5 Metsovou Str.

18346 Moschato, Athens, Greece

Tel: [phone]

Email: [e-mail]

Hendi HK Ltd.

1208, 12/F Exchange Tower

33 Wang Chiu Road, Kowloon Bay, Hong Kong

Tel: [phone]

Email: [e-mail]

Find Hendi on internet:

www.hendi.eu

www.facebook.com/HendiFoodServiceEquipment

www.linkedin.com/company/hendi-food-service-equipment-b.v.

www.youtube.com/HendiEquipment

• Changes, printing and typesetting errors reserved.
• Änderungen und Druckfehler vorbehalten.
• Wijzigingen en drukfouten voorbehouden.
• Producent zastrzega sobie prawo do zmian oraz błędów drukarskich w instrukcji.

• Variations et fautes d'impression réservés.

• Errori di cambiamenti, di stampa e di impaginazione riservati.

• Drepturi rezervate cu privire la modificări și greșeli de imprimare.
• Изменения, печати и верстки ошибки защищены.
• Με επιφύλαξη αλλαγών, λαθών εκτύπωσης και στοιχειοθεσίας.
