USER MANUAL AWG 912 SPRO WHIRLPOOL

TRANSPORT ET MANUTENTION

PROBLÈME CAUSE POSSIBLE SOLUTION

L'appareil ne démarre pas, aucun voyant ne s'illumine Pas branché à l'alimentation principale Insérez la che dans la prise La prise ou le fusible ne fonctionnent pas Vériez la fonction avec une lampe, faite réparer la pièce fautive Panne de courant Le lave-linge repartira automatiquement lorsque l'alimentation électrique sera disponible de nouveau L'appareil ne démarre pas malgré l'activation de la touche «Départ/ Pause» La porte est-elle bien fermée Poussez la porte jusqu'à ce qu'elle soit bien enclenchée La clé de verrouillage est activée Appuyez la touche avec le symbole de la clé pour au moins 3 secondes pour désactiver la clé de verrouillage Le lave-linge s'arrête en cours de programme et Marche/Arrêt clignote Arrêt cuve pleine (= position de la touche d'essorage) est activé Terminez l'Arrêt cuve pleine avec la vidange de l'eau ou l'essorage du linge (voir « Arrêt cuve pleine » - FONCTIONS ET OPTIONS). Le programme a été interrompu; la porte a peut être été ouverte Assurez-vous que la porte est fermée Appuyez sur la touche «Départ/ Pause» pour poursuivre le programme Le système de sécurité a été activé : le voyant de panne s'illumine et/ou l'acheur indique une panne (F...); le robinet d'eau est peut être fermé Reportez-vous au paragraphe « Voyants de panne ». Assurez-vous que le robinet est ouvert et que le tuyau d'alimentation n'est pas plié. Des résidus de détergent sont encore présents dans le distributeur de détergent à la n du programme La pression de l'eau est insusante; le ltre à tamis du tuyau d'alimentation d'eau est peut être bouché Assurez-vous que le robinet d'eau est bien ouvert. Vériez les ltres à tamis du tuyau d'alimentation, voir ENTRETIEN ET NETTOYAGE / Nettoyage des ltres à tamis du tuyau d’alimentation Le lave-linge vibre durant l'essorage Les boulons de transport n'ont pas été enlevés (!) Enlevez les boulons de transport conformément aux directives dans les CONSIGNES D'INSTALLATION Le lave-linge n'est pas stable sur ses quatre supports Ajustez les supports (CONSIGNES D'INSTALLATION). Assurez-vous que le lave-linge est installé sur un sol stable et ferme. La vitesse d'essorage « 0 » clignote sur le panneau de commande et/ ou le linge est encore très humide Pour protéger le lave-linge, le cycle d’essorage de démarre pas à cause d’un déséquilibre de la charge de linge Si vous souhaitez essorer le linge humide, ajoutez plus d'articles de diérentes tailles, puis lancez le programme «Rinçage et essorage». Évitez les petites charges de linge composées de quelques gros articles absorbants / lavez des articles de diérentes tailles dans une charge Ces pannes sont généralement peu importantes et peuvent être résolues en quelques minutes.40

PROBLÈME CAUSE POSSIBLE SOLUTION

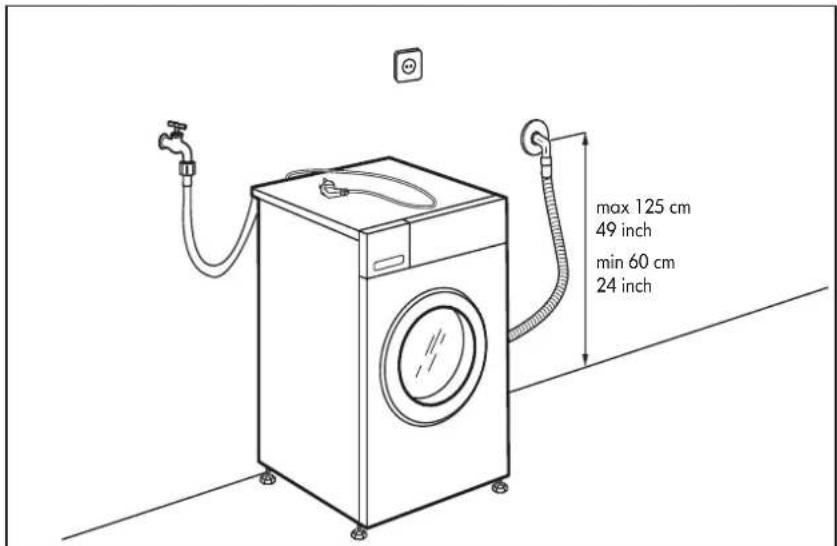

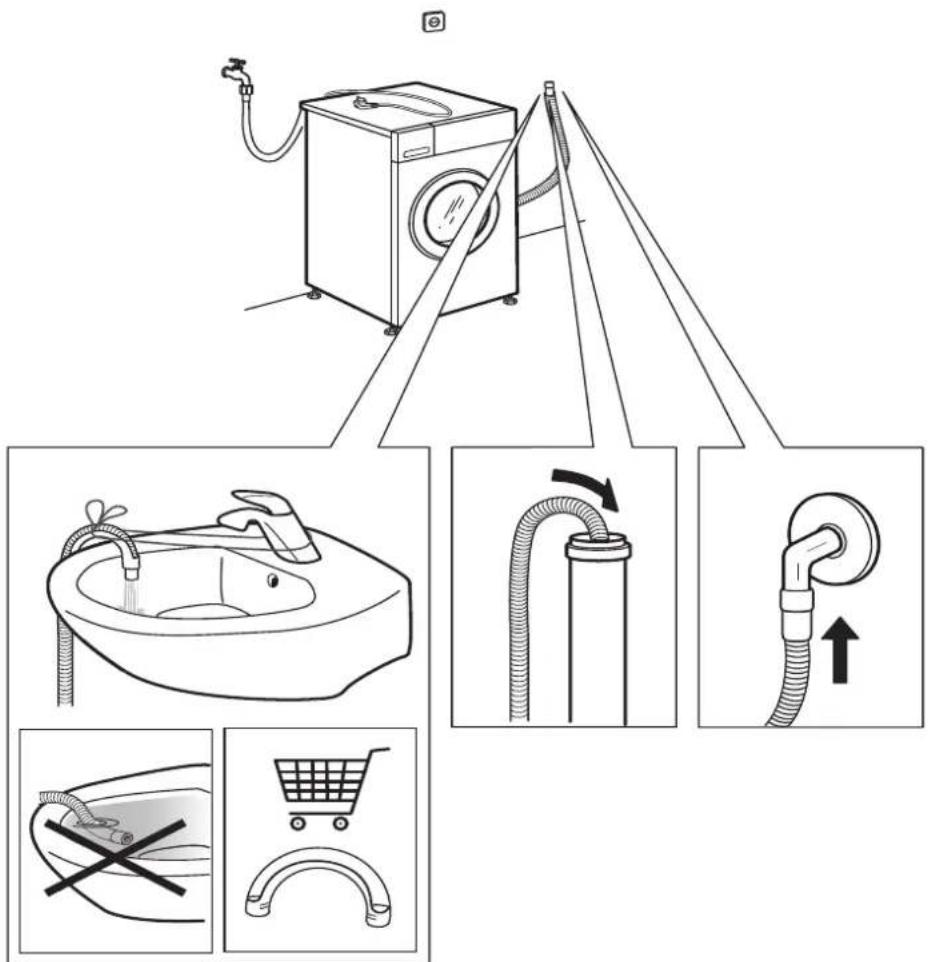

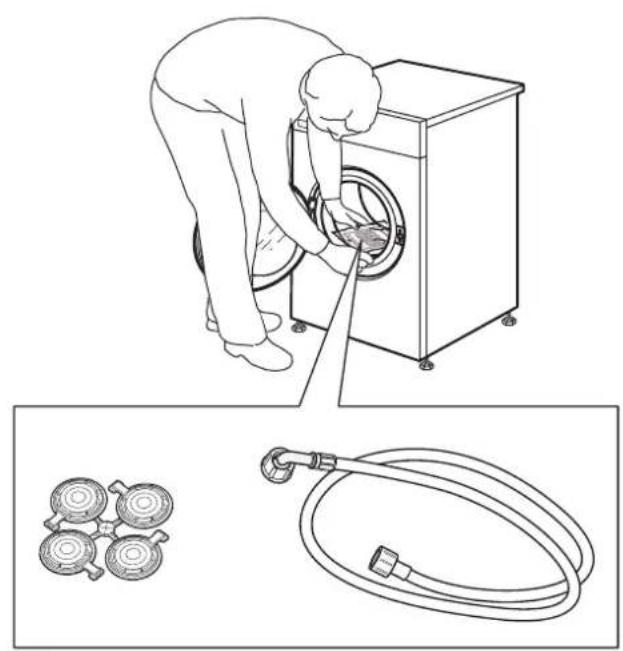

and INSTALLATION GUIDES THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive a more complete assistance, please register your appliance on www.whirlpool.eu/register Index Health and Safety Guide SAFETY INSTRUCTIONS ............................................................................177

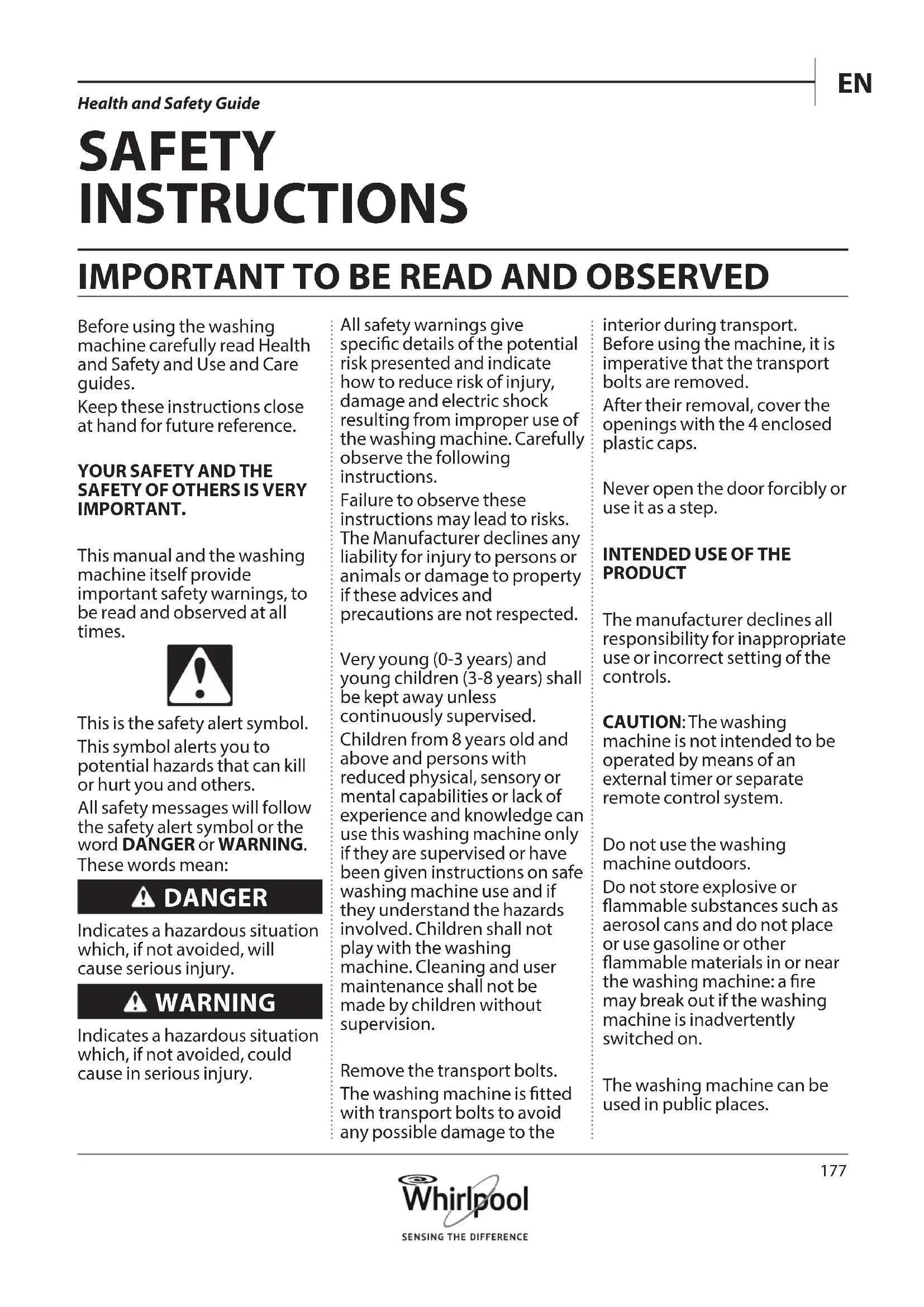

Before using the washing machine carefully read Health and Safety and Use and Care guides.Keep these instructions close at hand for future reference.YOUR SAFETY AND THE SAFETY OF OTHERS IS VERY IMPORTANT.This manual and the washing machine itself provide important safety warnings, to be read and observed at all times.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol or the word DANGER or WARNING. These words mean: DANGER Indicates a hazardous situation which, if not avoided, will cause serious injury. WARNING Indicates a hazardous situation which, if not avoided, could cause in serious injury.All safety warnings give specic details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the washing machine. Carefully observe the following instructions.Failure to observe these instructions may lead to risks. The Manufacturer declines any liability for injury to persons or animals or damage to property if these advices and precautions are not respected.Very young (0-3 years) and young children (3-8 years) shall be kept away unless continuously supervised.Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this washing machine only if they are supervised or have been given instructions on safe washing machine use and if they understand the hazards involved. Children shall not play with the washing machine. Cleaning and user maintenance shall not be made by children without supervision.Remove the transport bolts.The washing machine is tted with transport bolts to avoid any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed.After their removal, cover the openings with the 4 enclosed plastic caps.Never open the door forcibly or use it as a step.INTENDED USE OF THE PRODUCTThe manufacturer declines all responsibility for inappropriate use or incorrect setting of the controls.CAUTION: The washing machine is not intended to be operated by means of an external timer or separate remote control system.Do not use the washing machine outdoors.Do not store explosive or ammable substances such as aerosol cans and do not place or use gasoline or other ammable materials in or near the washing machine: a re may break out if the washing machine is inadvertently switched on.The washing machine can be used in public places.Health and Safety Guide178 accordance with the regulations of your local water company. For models dedicated only for cold water: Do not connect to the hot water supply. For models with hot ll: the hot water inlet temperature must not exceed 60°C. Make sure that the ventilation openings in the base of your washing machine (if available on your model) are not obstructed by a carpet or other material. The supply water pressure must be in range 0.1-1MPa. If you want to place a dryer on top of your washing machine, rst contact our After-Sales Service or your specialist dealer to verify if this is possible. This is only admitted if the dryer is xed on the washing machine by using an appropriate stacking kit available through our After- Sales Service or your specialist dealer. ELECTRICAL WARNINGS Make sure the voltage specied on the rating plate corresponds to that of your home. For installation to comply with current safety regulations, an omnipolar switch with minimum contact gap of 3mm is required. Regulation require that the washing machine is earthed. For washing machines with tted plug, if the plug is not This washing machine is exclusively destined to treat machine washable laundry. INSTALLATION Installation and repairs must be carried out by a qualied technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the washing machine unless specically stated in the user manual. Children should not perform installation operations. Keep children away during installation of the washing machine. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the washing machine. Use protective gloves to perform all unpacking and installation operations. After unpacking the washing machine, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. The washing machine must be handled and installed by two or more persons. Keep children away during installation of the washing machine. The location of the washing machine must ensure permanent visibility and accessibility of the power connection. The washing machine must be disconnected from the power supply before carrying out any installation operation. During installation, make sure the washing machine does not damage the power cable. Only activate the washing machine when the installation procedure has been completed. After installation of the device wait a few hours before starting it, to acclimatize to the environmental conditions of the room. Do not install your washing machine where it may be exposed to extreme conditions, such as: poor ventilation, high temperature or below 5°C or above 35°C. When installing the washing machine make sure that the four feet are stable and resting on the oor, adjusting them as required, and check that the washing machine is perfectly level using a spirit level. In case of wooden or so-called “oating oors” (for instance certain parquet or laminate oors), place the washing machine on a sheet of plywood at least 60x60cm wide/ deep and at least 3 cm thick which is secured to the oor. Use only new hoses to connect the washing machine to the water supply. Used hoses must not be used and should be discarded. Move the washing machine without lifting it by the worktop. Connect the water inlet hose(s) to the water supply in179

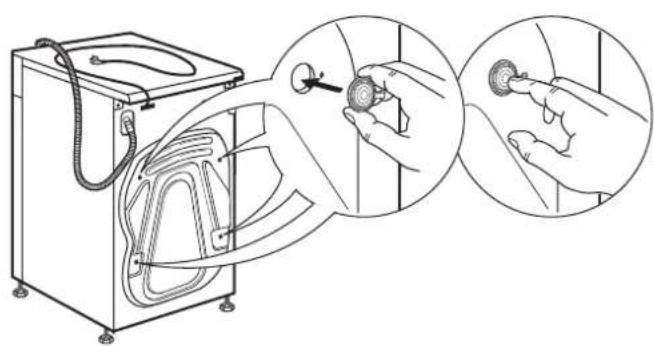

and current standard safety regulations. CORRECT USE After the installation of the washing machine has been completed, remove the transport bolts before using the appliance. Do not exceed the maximum load allowed. Check the maximum load allowed in the programme chart. Turn o the tap when not in use. If the washing machine appears to be damaged, contact the appliance owner or, if necessary, the After Sales Service. CLEANING AND MAINTENANCE The washing machine must be disconnected from the power supply before carrying out any cleaning or maintenance operation. Disconnection from the mains must be permanently controllable from each side of the washing machine. Make sure that the appliance is not plugged in accidentally during maintenance actions. For cleaning or maintenance, disconnection from the mains must be permanently controllable from each side of the washing machine. Never use steam cleaning equipment. suitable for you socket outlet, contact a qualied technician. Do not use extension leads, multiple sockets or adapters. Do not connect the washing machine to a socket which can be operated by remote control. Do not pull the power supply cable. If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced by a qualied technician in compliance with the manufacturer instruction and current safety regulations. Contact an authorized service centre. Do not operate this washing machine if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces. The electrical components must not be accessible to the user after installation. Do not touch the washing machine with any wet part of the body and do not operate it when barefoot. ELECTRICAL CONNECTION

FOR GREAT BRITAIN AND

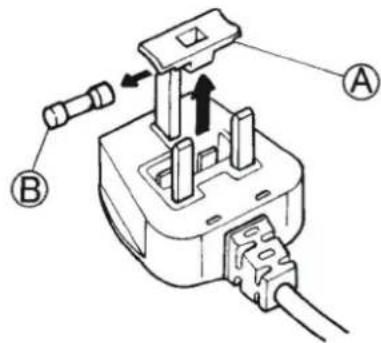

IRELAND ONLY Fuse replacement If the mains lead of this washing machine is tted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A .S .T .A . approved fuse to BS 1362 type and proceed as follows: 1 .Remove the fuse cover (A) and fuse (B). 2 .Fit replacement 13A fuse into fuse cover. 3 .Ret both into plug. Important: The fuse cover must be retted when changing a fuse and if the fuse cover is lost, the plug must not be used until a correct replacement is tted. Correct replacement are identied by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store. For the Republic of Ireland only The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type. Socket outlet/plug (valid for both countries) If the tted plug is not suitable for your socket outlet, contact After-Sales Service for further instruction. Do not attempt to change the plug yourself .This procedure needs to be carried out by a qualied technician in compliance with the manufacturer’s instructions180 children cannot easily climb inside and become trapped. This washing machine is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the washing machine. This washing machine is marked in compliance with European Directive 2012/19/ EU, Waste Electrical and Electronic Equipment (WEEE). SAFEGUARDING THE ENVIRONMENT

DISPOSING OF PACKAGING

MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol: The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal. SCRAPPING OF HOUSEHOLD APPLIANCES When scrapping the washing machine, make it unusable by cutting o the power cable and removing the doors and shelves (if present) so that By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment. Never use ammable substances to clean the washing machine. Do not use general purpose cleaner, window cleaner, scouring powder or similar agents to clean the washing machine, in particular the appliance’s control panel. For repairs, only original spare parts must be used. Repairs must be carried out by our authorized After Sales Service. Respect the cleaning intervals as indicated in section

CLEANING AND MAINTENANCE

in the Use and Care Guide.181

DECLARATION OF CONFORMITY This washing machine has been designed, constructed and distributed in compliance with the safety requirements of European Directives:

• 2006/95/EC Low Voltage Directive

• 2004/108/EC Electromagnetic Compatibility Directive.

• The noise level of the washing machine is below 70dB(A). We BAUKNECHT HAUSGERÄTE GmbH, D-73614 Schorndorf representing WHIRLPOOL EUROPE S.r.l. I-21025 COMERIO declare under our sole responsibility that the product washing machine WHIRLPOOL AWG812/PRO AWG912/PRO 12NC Code: 8592 122 01010 8592 123 01010 Approval type: D 430 P D 430 P to which this declaration relates is in conformity with the following standard(s) or other normative document(s) EN 60335-1:2012+A11:2014+AC:2014 EN 50571:2013 EN 61770:2009 EN 62233:2002+Ber.1:2008

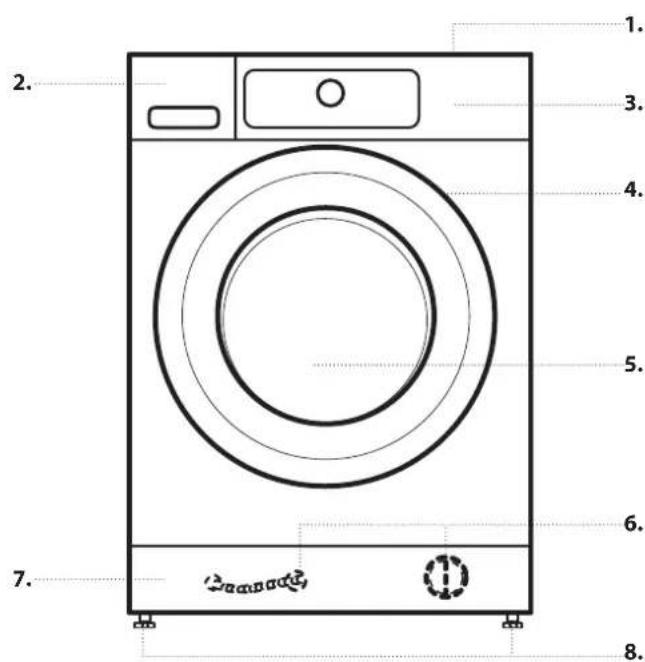

6. Water filter / Emergency drain hose

(if available) - behind plinth -

7. Plinth (removable)

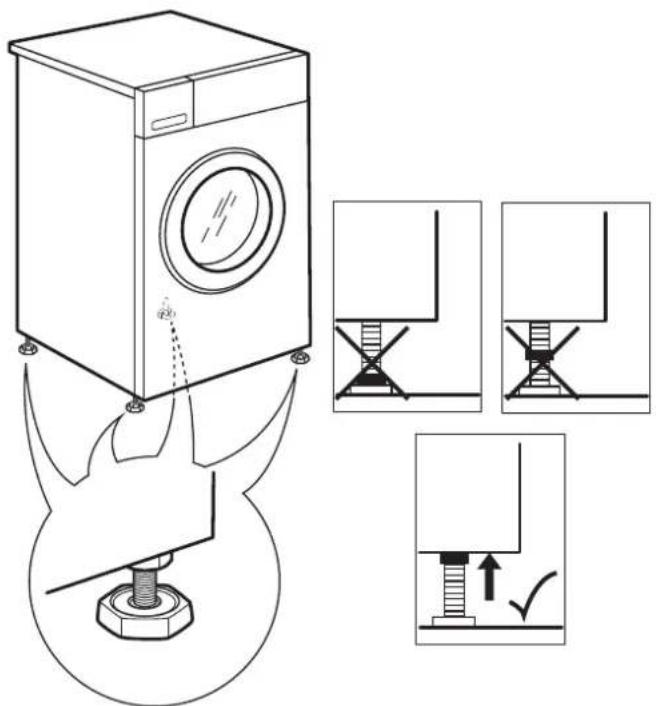

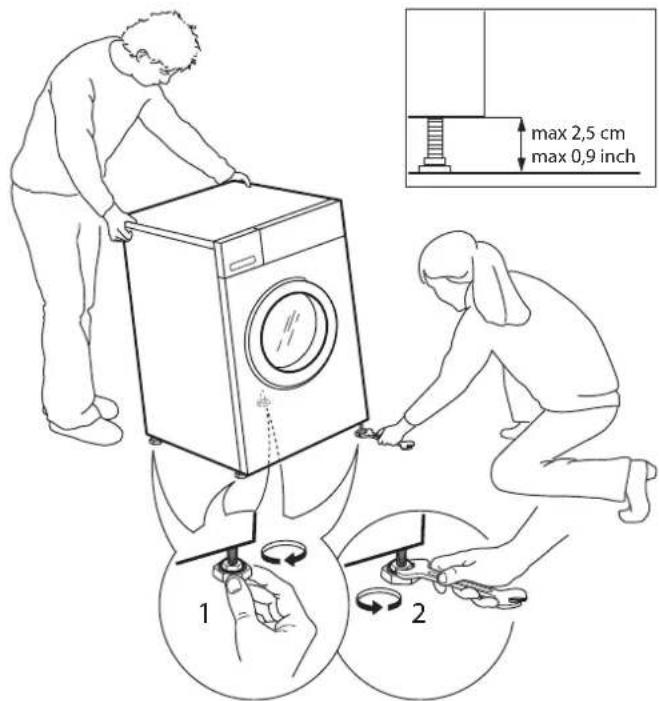

8. Adjustable feet (4)

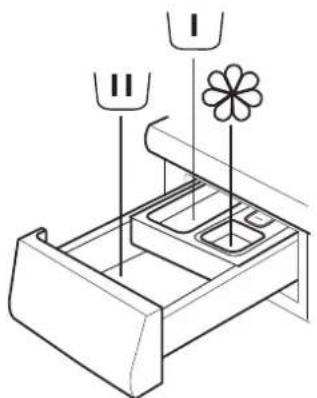

1. Main wash compartment

• Detergent for the main wash

2. Prewash compartment

• Detergent for the prewash

3. Softener compartment

• Liquid starch Pour softener or starch solution only up to the “MAX” mark.

(press to remove the detergent dispenser for cleaning) Use and Care guide

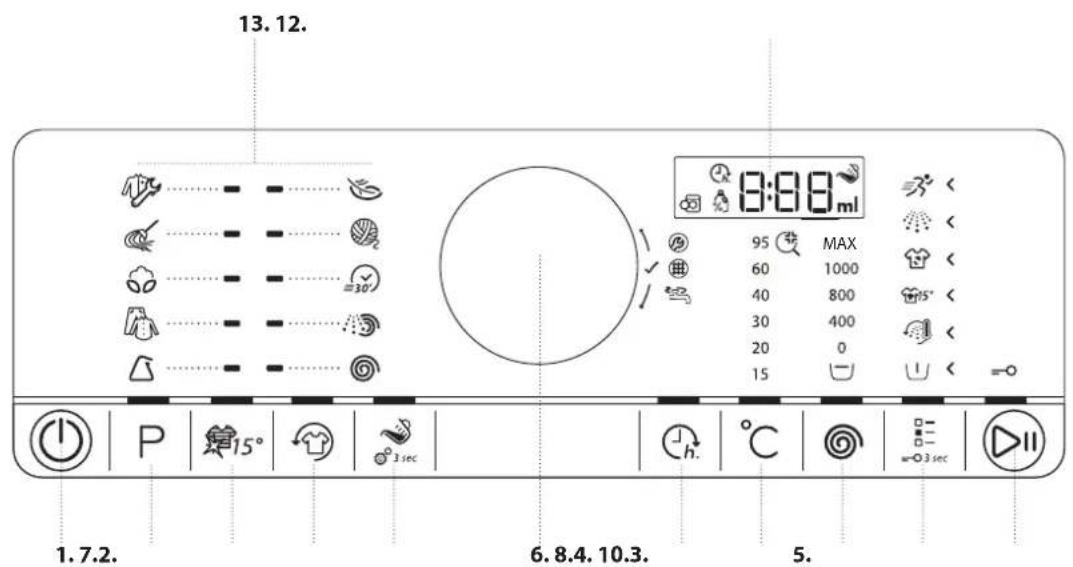

1. On/Off button (Reset/Drain if long pressed)

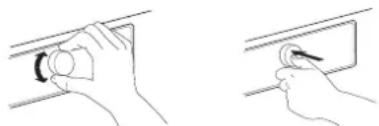

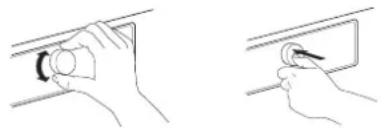

6. Knob (Turn to select / Press to confirm)

CONTROL PANEL detergent reCommendations for various types of laundry White robust laundry (cold-95°C) Heavy duty detergents White delicate laundry (cold-40°C) Mild detergents containing whitener and/or optical brighteners Light/pastel- shaded colours (cold-60°C) Detergents containing whitener and/or optical brighte- ners Intensive colours (cold-60°C) Colour detergents without whitener / optical brighte- ners Black/dark colours (cold-60°C) Special detergents for black/dark laundry MAX

• During programme selection: the light goes on for laundry loading

• After programme start, the light fades on and o while the laundry load is detected.

• After programme end, when you open the door, the light goes on for a while for unloading the laundry. Then it goes o to save energy; touch any button to switch it on again. Contact our After-Sales Service to check if the following accessories are available for your washing machine (and dryer) model

by which your dryer can be xed on top of your washing machine to save space and to facilitate loading and unloading your dryer in the higher position. To close the door, hold the handle and push so that you can hear it click shut.186

If you plug in the washing machine, it will switch on automatically. To remove residues from manufacturing,

1. Select programme “Cotton” with temperature

95°C. Consider the instructions in paragraph “DAILY USE”.

2. Add a small amount of heavy duty detergent

(maximum 1/3 of the quantity the detergent manufacturer recommends for lightly soiled laundry) to the main wash compartment of the detergent dispenser.

3. Start the programme without adding any

laundry. See information on how to select and start a programme in paragraph “DAILY USE”.187

• Coins, pins etc. can damage your laundry as well as parts of the washing machine.

• Objects like paper handkerchiefs will tear into small pieces which must be removed manually after the wash.

• Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a laundry bag or pillow case with zip fastener. Always remove curtain rings, or wash curtains with the rings safely tied inside a cotton bag.

3. TYPE OF FABRIC / CARE LABEL SYMBOL

Cottons, mixed bres, easy care / synthetics, wool, handwash items.

• Colour separate coloured and white items. Wash new coloured articles separately.

• Size Wash items of dierent sizes in the same wash load, to improve washing eciency and distribution of the articles in the drum.

• Delicates Wash delicate items separately; they require gentle treatment. DAILY USE

SORTING YOUR LAUNDRY188

Find more information regarding programmes in the Programme Chart. Change temperature, if needed If you want to change the temperature indicated on the display, make sure that the Temperature button « lights up. Turn the knob to select the desired temperature, then press the knob to conrm. Change spin speed, if needed If you want to change the spin speed indicated on the display, make sure that the Spin button lights up. Turn the knob to select the desired spin speed, or Rinse hold , then press the knob to conrm. If you select spin speed “0”, the programme ends with draining the rinse water. No nal spin cycle will be applied. If you select “Rinse hold”, the programme will stop after the rinse phase. The laundry will remain immerged in the last rinse water. See more information in section PROGRAMMES, OPTIONS AND FUNCTIONS / Rinse hold.

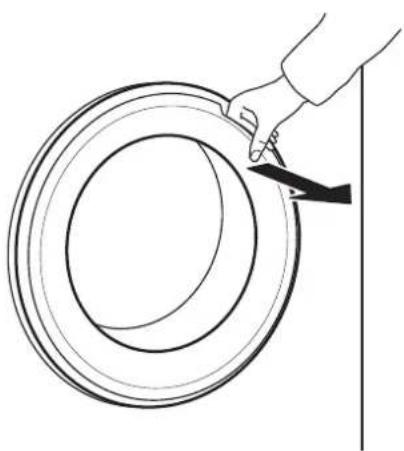

• Open the door and load the laundry. Observe the maximum load sizes given in the programme chart.

• Make sure that no laundry gets stuck between door glass and rubber seal.

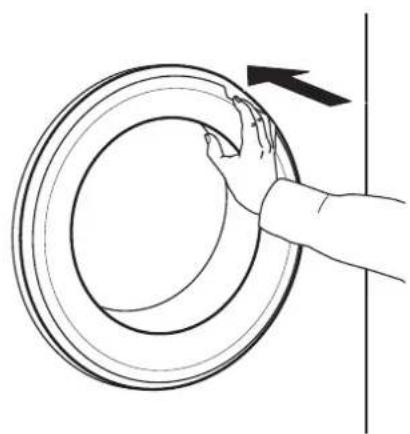

• Close the door so that you can hear it click shut.

• Make sure that the washing machine is connected to the mains.

• Press the On/O button until the programme button lights up. An animation will appear, and there will be a sound. Afterwards the washing machine is ready to be operated.

• The programme setting which you used last will appear on the control panel.

5. SET THE DESIRED PROGRAMME

GUIDED MODE the button light will guide you through setting a programme in the following order: selection of programme / temperature / spin speed / options. As soon as you conrm a selection by pressing the knob, the button light will jump to the next step. Select programme Make sure that the programme button lights up. Turn the knob to select the desired programme. The indicator next to the selected programme lights up. Conrm the desired programme by pressing the knob.

Select options, if needed If you want to select additional options, make sure that the options button lights up. The options which are selectable for your programme are indicated by lighting arrows. Turn the knob to select the desired options. The symbol of the selected option blinks. To conrm it, press the knob. Some options / functions can be selected by directly pressing the button: Refer to section PROGRAMMES, OPTIONS AND FUNCTIONS for more information. INDIVIDUAL MODE After you have switched on the washing machine, you are not forced to follow the GUIDED MODE. It is up to you which order you choose to set your programme. To do a setting, rst press the relevant button, then turn the knob to select, and nally press the knob to conrm. The range of temperatures, spin speeds and options depend on the programme selected. Therefore it is recommended to start your setting with selecting the programme.

• If you do not use the Dosing Aid function, pull out the detergent dispenser and add detergent (and additives/softener) now, as indicated in section DETERGENT DISPENSER. Observe the dosing recommendations on the detergent pack. If you have selected PREWASH or START DELAY, observe the instructions in section PROGRAMMES, OPTIONS AND FUNCTIONS. Afterwards carefully close the detergent dispenser again.

• If you use the “Dosing Aid” function, add detergent later, after you have started the programme. Refer to section DOSING AID/DAILY USE. Correct dosing of detergent / additives is important, because

• it optimizes the cleaning result

• it avoids irritating residues of surplus detergent in your laundry

• it saves money by avoiding waste of surplus detergent

• it protects the washing machine by avoiding calcication of components

• it respects the environment by avoiding unnecessary environmental burden

Press and hold Start/Pause until the button lights up solidly; the programme will start.

• If you have selected “Dosing Aid”, the washing machine will indicate the recommended detergent amount for your laundry load after programme start. – Add detergent to the main wash compartment of the detergent dispenser, close the dispenser and press “Start/Pause” to proceed with the programme

• If you have selected “Dosing Aid” and also “Prewash”, add the indicated detergent amount to the main wash compartment, and half of the indicated detergent amount also to the Prewash compartment.

• Close the detergent dispenser and press “Start/ Pause” to proceed with the programme. To avoid overow, do not open the detergent dispenser anymore.

• The remaining programme duration which is indicated on the display can vary. Factors like unbalance in the wash load, or foam formation, can have an eect on the programme duration. Whenever the remaining programme duration is calculated newly, an animation appears on the display.190

It is possible to change the settings while a programme is running. The changes will be applied, provided the respective programme phase has not nished yet.

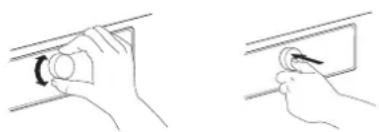

• Press the relevant button (for example the “Spin speed” button to change the spin speed). The selected value blinks for a few seconds.

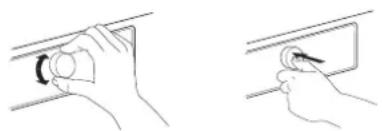

• While blinking, you can adjust the setting by turning the knob. If the value stopped blinking and you have not yet done the desired modication, press the button again.

• Press the knob to conrm the modication. If you do not conrm, the modication will be conrmed automatically – the modied setting will stop blinking. The programme will proceed automatically after you have changed the setting. To prevent that a running programme is changed by accident (for instance by children), use the “Key lock” (see paragraph PROGRAMMES, OPTIONS AND FUNCTIONS). To change the settings of a running programme, you can also

• Press “Start/Pause” to put the running programme on pause

• Change your settings

• Press “Start/Pause” again to continue the programme. If you have changed the programme, do not add detergent for the new programme.

Press “Start/Pause” to interrupt a running programme

• Provided water level or temperature is not too high, the “door open” indicator lights up. You can open the door, for example to add more laundry, or to remove laundry which was loaded by mistake.

• Press “Start/Pause” to proceed with the programme

• Press and hold the On/O button until the display shows “rES”. The water drains and the programme is ended. The door unlocks.

• „End“ will appear on the display, and the Door open indicator will light up – you can take out your laundry

• Press “On/O” to switch o the washing machine. If you do not switch it o, the washing machine will switch o automatically after a quarter of an hour after programme end, to save energy.

• Leave the door ajar, so that the inside of the washing machine can dry.191

PROGRAMMES AND OPTIONS For selecting the appropriate programme for your kind of laundry, always respect the instructions on the care labels of the laundry. PROGRAMME Type of Wash and Recommendations Care Labels Settings WORKING CLOTHES Dirty working clothes made of robust cotton material or cotton-synthetics blends. Options “Prewash” and “Intensive rinse” are preset in this programme - thus it is optimized to enable the best cleaning result. For extremely dirty garments, we recommend to shake them out thoroughly before putting them into the washing machine. - If you want, you can use a stain remover on oxygen basis max. load max temperature range Cold to 95°C max spin speed max selectable options Prewash, Hot Finish, Bio Stain 15°, Heavy Soil, Intensive Rinse, Rapid, Colours 15°, Fresh care, Dosing Aid, Start Delay MOPS AND TOWELS Normally to heavily soiled washable cleaning cloths, mops, towels and similar laundry made of robust cotton cloth types. Intensive wash programme with an included prewash; add detergent also to the prewash chamber of the detergent drawer in case of heavy soiling. Do not deselect Prewash, to ensure an optimum cleaning result. max. load 5.0 kg temperature range Cold to 60°C max spin speed max selectable options Prewash, Hot Finish, Bio Stain 15°, Intensive Rinse, Rapid, Colours 15°, Fresh care, Dosing Aid, Start Delay COTTON Normally to heavily soiled robust laundry made of cotton and linen, such as towels, underwear, table, bed linen etc. max. load max temperature range Cold to 95°C max spin speed max selectable options Prewash, Hot Finish, Bio Stain 15°, Intensive rinse, Rapid, Colours 15° MIXED Lightly to normally soiled robust laundry made of cotton, linen, articial bres and their blends. Eective one-hour programme. Only similar colours together in one wash load. max. load 6.0 kg temperature range Cold to 60°C max spin speed max selectable options Hot Finish, Bio Stain 15, Intensive Rinse, Rapid, Colours 15°, Fresh Care192 PROGRAMME Type of Wash and Recommendations Care Labels Settings SYNTHETICS Normally soiled laundry made of articial bres (like polyester, polyacrylics, viscose etc.) or their blends with cotton. max. load 3.5 kg temperature range Cold to 60°C max spin speed max selectable options Prewash, Bio Stain 15, Heavy Soil, Intensive Rinse, Rapid, Colours 15° DELICATES Fine laundry made of delicate fabrics, which needs gentle treatment. max. load 2.5 kg temperature range Cold to 40°C max spin speed 1000 selectable options Prewash, Rapid, Colours 15° WOOL Woolens, labeled with the Woolmark and identied as machine washable, as well as textiles made of silk, linen, wool and viscose marked as handwashable. Respect the manufacturers recommendations on the care label. max. load 2.0 kg temperature range Cold to 40°C max spin speed 1000 selectable options Rapid, Colours 15° RAPID 30’ 30’ Lightly soiled laundry without stains, made of cotton and/or synthetics. Refresh programme. max. load 3.0 kg temperature range Cold to 30°C max spin speed max selectable options Colours 15°, Fresh Care SPIN Separate intensive spin programme. Suitable for robust laundry. max. load max temperature range Cold max spin speed max selectable options Fresh Care RINSE&SPIN Separate rinse and intensive spin programme. Suitable for robust laundry. max. load max temperature range Cold max spin speed max selectable options Intensive Rinse, Fresh Care max = for washing machine model AWG812/PRO 8 kg (laundry load) 1200 rpm (spin speed) for washing machine model AWG912/PRO 9 kg (laundry load) 1200 rpm (spin speed)193

OPTIONS SELECTABLE BY THE OPTIONS

BUTTON PREWASH Helps to clean heavily soiled laundry by adding a prewash phase to the wash programme selected. For heavily soiled laundry, for example containing sand or granular dirt. Shake out the laundry thoroughly before loading it into the washing machine. Prolongs the programme by about 20 minutes. Add detergent also to the prewash compartment of the detergent dispenser, or directly into the drum. – When selecting “Prewash”, use powder detergent for the main wash, to ensure that the detergent stays in the detergent dispenser until start of the main wash phase. Respect the detergent manufacturer’s dosing recommendations, or use the “Dosing Aid” option. HOT FINISH The programme ends with a warm rinse phase. Relaxes the bres of your laundry. The laundry feels comfortably warm when taking it out a short time after programme end. BIO STAINS 15° Helps to remove all kinds of stains, except grease / oil. The programme begins with a cold water wash phase. Duration is prolonged by about 10 minutes. Pre-treatment recommended for obstinate stains. Not selectable for Cotton 95°C. The programme chart gives an overview of possible combinations of programmes and options. Not all combinations of programmes and options are selectable. Also certain options are not combinable. In this case, the indicator of the non-combinable option blinks and switches o again, and a signal sounds.194 HEAVY SOIL Helps to clean heavily soiled, stained laundry by optimizing the eciency of additives for stain removal. Add an appropriate amount of in-wash additive for stain removal (powder) to the main wash compartment, together with your detergent. Only use powder detergent with this option. Respect the manufacturer’s dosing instructions. Can prolong the programme by up to 15 minutes. Important: Appropriate for use of stain removers and bleaches on oxygen basis. Chlorine or perborate bleaches must not be used!. INTENSIVE RINSE Helps to avoid detergent residues in the laundry by a prolonged rinse phase. Particularly suitable for washing baby laundry, for people suering from allergies and for areas with soft water. RAPID Enables quicker washing. Shortens the programme duration while keeping a good wash result. Recommendable for only lightly soiled laundry. Not selectable for Cotton or Working Clothes at 95 °C.195

COLOURS 15° Helps to preserve the colours of your laundry by washing it with cold water (15°C). Saves energy for water heating, while keeping a good wash result. Suitable for lightly soiled coloured laundry without stains. Make sure that your detergent can be used with cold wash temperatures (15 or 20 °C). Not selectable for Cotton or Working Clothes at 95°C. FRESH CARE Helps to keep your laundry fresh if you cannot unload it soon after programme end. The washing machine starts to tumble the laundry periodically a few minutes after programme end. This tumbling will last up to approximately 6 hours after end of your wash programme. You can stop it at any time by pressing any button; the door unlocks and you can take out your laundry.

TEMPERATURE If you switch on the washing machine, the last used programme and temperature setting appears on the control panel. If you change the programme, the default temperature of the selected programme appears on the display. If you want to change the temperature, press the temperature button, turn the knob to select the desired temperature and conrm it by pressing the knob.196 RINSE HOLD To avoid automatic spinning of the laundry at the end of the programme. The laundry remains in the last rinse water, the programme does not proceed. Suitable for delicate laundry which is not appropriate for spinning, or which should be spun with a lower spin speed. Not appropriate for silk. To terminate the “Rinse hold”, choose between:

• draining the water, no spinning: turn the knob to select spin speed “0”, then press “Start/Pause”: the water will be drained and the programme ended

• spinning the laundry: the default spin speed blinks - start the spin cycle by pressing “Start/ Pause”. Or select a dierent spin speed by turning the knob, press it to conrm the selected spin speed, and press Start/Pause to start the spin cycle SPIN If you switch on the washing machine, the last used programme and spin speed setting will appear on the control panel. If you change the programme, the default spin speed of the selected programme will appear on the display. If you want to change the spin speed, press the Spin button, turn the knob to select the desired spin speed and press the knob to conrm. If you select spin speed “0”, the rinse water will be drained at the end of the programme, and there will be no nal spin cycle.197

FUNCTIONS ON/OFF To switch on the washing machine: press the button until the Start/Pause button lights up. To cancel a running programme: press and hold the button until “rES” appears on the display; the washing machine will perform a drain cycle to end the program. To switch o the washing machine after programme end: press the key until the lights go o. KNOB

• To select and conrm programmes and options

• To start the programme, after you have nished your settings

• To pause a running programme

• To continue a paused programme KEY LOCK This function allows you to lock the buttons and the knob of the control panel against unwanted operation, for example by small children. The washing machine must be switched on. Press and hold the option button; until the key symbol on the control panel lights. Knob and buttons are locked now. The only working function is “On/O” to switch the washing machine o. The key lock remains active also if you switch o and on again the washing machine. To unlock the buttons/knob, press and hold the option button again until the key symbol goes o.198 DOSING AID Helps to dose the right amount of detergent for your laundry load. Before using this option: The concentration of detergents available on the market diers considerably. For that reason, adapt the washing machine to the dosing amounts of the detergents which you use. Furthermore, check if the washing machine’s preset water hardness level (soft) corresponds to your local water hardness level – if not adapt it (see “DOSING AID / FIRST USE”). See separate section Dosing Aid – First use / Daily use START DELAY Moves the start of your programme to a later time. Helps to prot from more favourable energy rates (e.g.during the night), or to have the laundry ready at a certain time. Choose a delay up to 23 hours. Do not use liquid detergent with this function, to ensure that the detergent stays in the detergent dispenser until programme start.

• Select programme, temperature and options.

• Press the “Start delay” button – the start delay symbol on the display blinks.

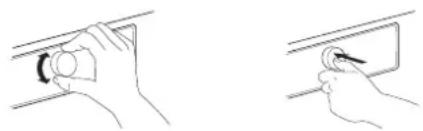

• Turn the knob to select a delay up to 23 hours, which will be shown on the display. Conrm the desired delay by pressing the knob. The start delay symbol on the display lights up solidly. Press Start / Pause - the display shows the countdown of the delay until start of the programme. The Start/Pause button lights up. The colon between hours and minutes on the display blinks. The door locks.

• If you have selected Dosing Aid, the washing machine will calculate the recommended detergent amount after you have pressed Start/ Pause. Add the detergent amount indicated on the display into the detergent dispenser; use powder detergent, to make sure that the detergent stays in the dispenser until start of the programme. Close the dispenser and press Start/Pause again, to start the countdown of the selected delay.

• After the delay has expired, the washing machine starts automatically. The display then indicates the remaining programme duration. To cancel the delay:

• press Start/Pause to cancel the start delay (and press “Start/Pause” again to start the selected programme immediately, if desired)

• or press and hold On/O to cancel the complete programme setting.199

• before you have started a programme

• when you have paused a programme and the water level is not too high, or the laundry is not too hot in that programme phase

• when a programme is nished and the laundry can be unloaded FAILURE: SERVICE See section TROUBLESHOOTING for more information FAILURE: WATER FILTER CLOGGED

To enable this function to calculate the detergent amount as precisely as possible, adapt the washing machine to the dosing values of the detergents you use, and also to your local water hardness. Check on the packs of your detergents the dosing amount for medium soil level and medium water hardness Water hardness soil level soft medium hard light medium ml heavy Detergent types: Colour Delicate Generic Programmes: Colours Wool, Delicates All other programmes201

1. Press and hold the Programme button and the

Dosing Aid button simultaneously. “1” appears on the display, which means water level “soft”.

2. Turn the knob to adjust the water level to.

2 = Medium 3 = Hard and press the knob to conrm. As soon as you conrm the water hardness setting, you automatically exit the water hardness setting mode.

The washing machine comes with preset water hardness level soft. Check your regional water hardness level, for example by consulting your local authorities or via internet. – If your local water hardness is not “soft”, adjust the washing machine as follows: To adjust the water hardness: To save these values in the washing machine:

1. Select the programme for which you

want to save the detergent value.

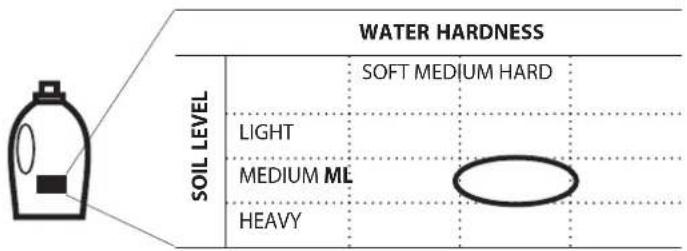

2. Press and hold the Dosing Aid button until

the bottle symbol on the display lights up. The indicators of all programmes for the detergent group light up.

to the one you have identied before on the detergent pack. Afterwards conrm it by pressing the knob.

4. Do this procedure for all three programme

groups. It is enough if you save the dosing value for one programme per group – it will then be automatically saved for all other programmes of this group. To return to the factory settings: select and conrm “rES” as described in step 3.202 Instead of adding detergent to the detergent dispenser, it can also be added directly to the drum, in a detergent ball. For programmes with prewash: prewash detergent can be added to the drum, main wash detergent must be added to the main wash compartment of the detergent dispenser. Use powder detergent for the main wash in this case, to ensure that it stays in the detergent dispenser until start of the main wash phase. After having added detergent, close the detergent dispenser (or door).

4. Close the detergent dispenser (or the

door) and press “Start/Pause” to continue the programme.

1. After you have selected programme and

options, press the “Dosing Aid” button; the Dosing aid symbol lights up on the display.

2. Then start the programme by pressing

“Start/Pause”. – The drum rotates to detect the laundry load, while the display shows an animation. Afterwards the display indicates the recommended detergent amount in ml.

3. Pull out the detergent dispenser and

pour the detergent quantity which is indicated on the display into the main wash compartment of the detergent dispenser. If you have selected “Prewash” option and you want to add detergent also for the prewash, pour half of the indicated detergent amount into the prewash compartment, in addition to the full amount which you have already added to the main wash compartment.

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size for the programmes, as indicated in the programme chart. Do not exceed the detergent dosages indicated in the detergents manufacturer’s instructions. Use the Dosing Aid function; prepare this function as indicated in “DOSING AID / FIRST USE”. Use “Prewash” for heavily soiled laundry only. Pretreat stains with stain remover, or soak dried in stains in water before washing, to reduce the necessity of a hot wash programme. SAVING TIPS Save energy by using a 60°C instead of a 95°C wash programme, or a 40°C instead of a 60°C wash programme. For cotton laundry, prefer using programme Eco Cotton with 40°C or 60°C. Save energy and time by selecting a high spin speed to reduce the water content in the laundry before using a tumble dryer. Use option “Colours 15°” for lightly soiled laundry, to save energy for water heating.204 CLEANING & MAINTENANCE

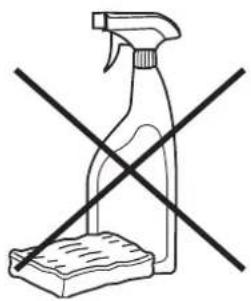

CLEANING THE OUTSIDE

OF THE WASHING MACHINE

Use a soft damp cloth to clean the outer parts of the washing machine.Do not use glass or general purpose cleaners, scouring powder or similar to clean the control panel – these substances might damage the printing. WARNING For any cleaning and maintenance, switch o and unplug the washing machine. Do not use ammable uids to clean the washing machine.205

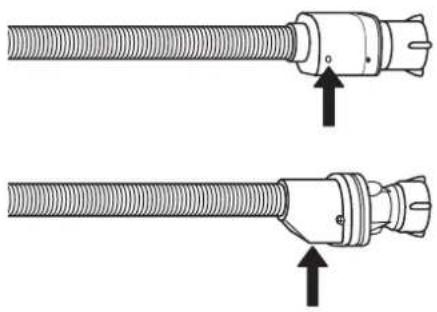

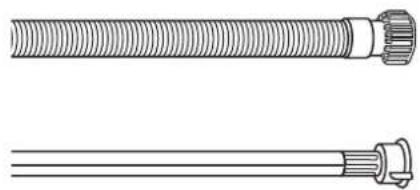

Check the inlet hose regularly for brittleness and cracks. If damaged, replace it by a new hose available through our After-Sales Service or your specialist dealer. Depending on the hose type: If the inlet hose has a transparent coating, periodically check if the colour intensies locally. If yes, the hose may have a leak and should be replaced. For water stop hoses: check the small safety valve inspection window (see arrow). If it is red, the water stop function was triggered, and the hose must be replaced by a new one. For unscrewing this hose, press the release button (if available) while unscrewing the hose.

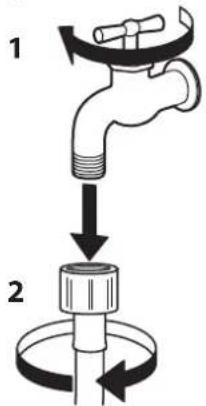

1. Close water tap and screw o the inlet hose.

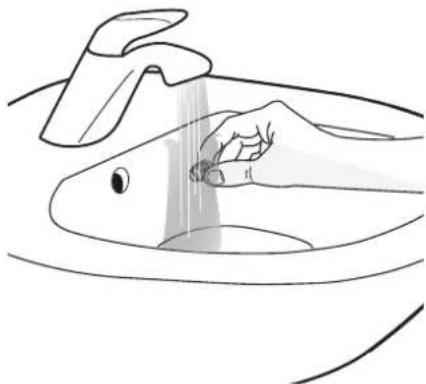

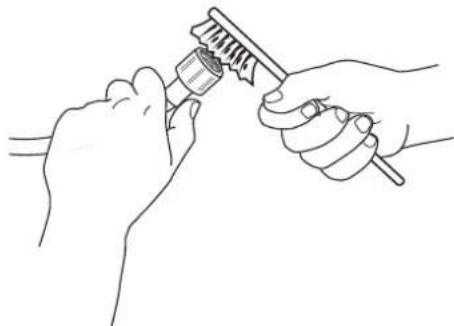

2. Clean the mesh lter at the hose’s end

carefully with a ne brush.

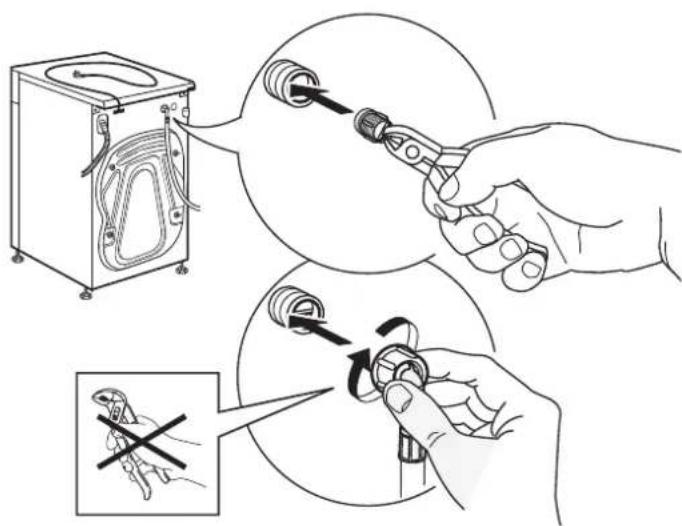

3. Now unscrew the inlet hose on the back of the

washing machine by hand. Pull out the mesh lter from the valve on the back of the washing machine with pliers and carefully clean it.

CLEANING THE MESH FILTERS

IN THE WATER SUPPLY HOSE

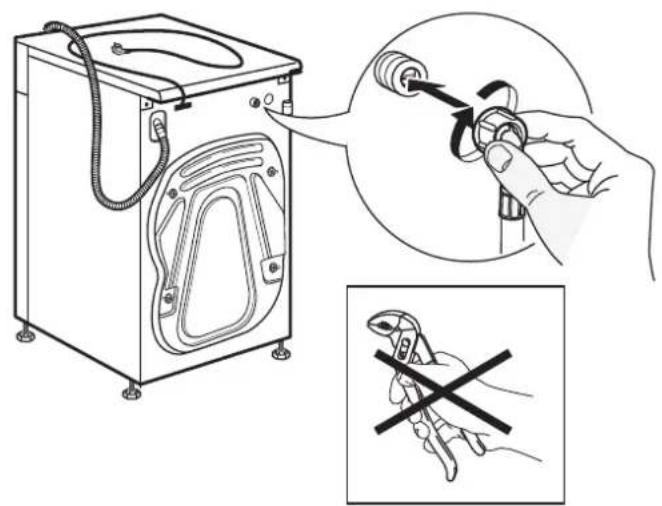

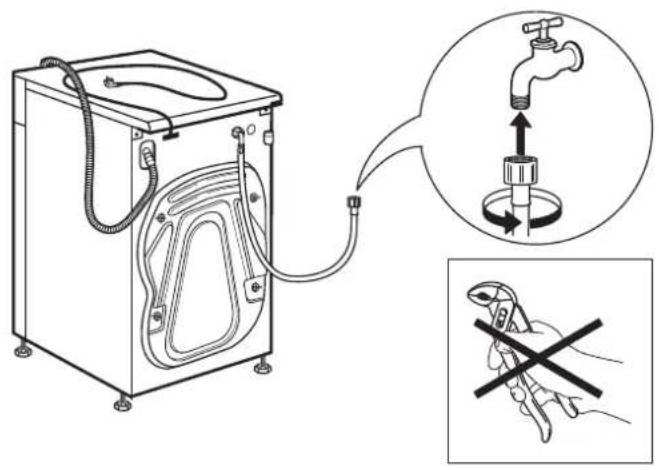

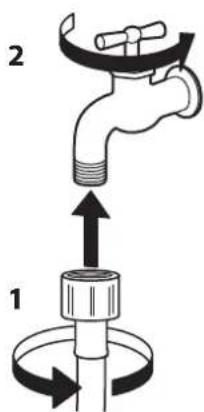

4. Insert the mesh lter again. Connect the inlet

hose to water tap and washing machine again. Do not use a tool to connect the inlet hose. Open the water tap and check that all connections are tight.

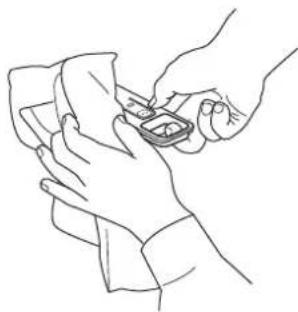

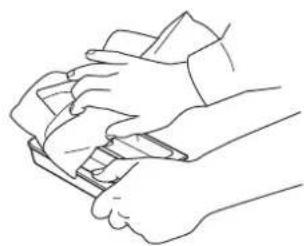

CLEANING THE DETERGENT

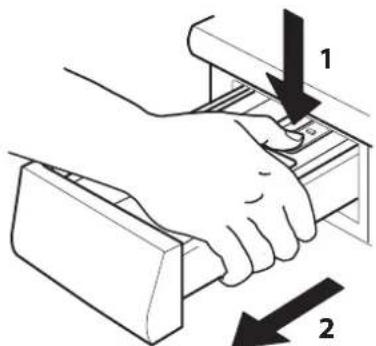

1. Remove the detergent dispenser by pressing

on the release button and at the same time pulling out the detergent dispenser.

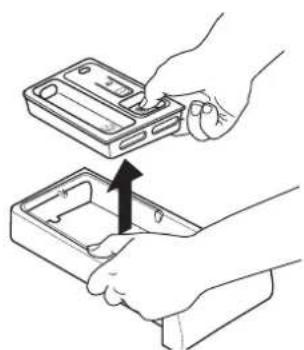

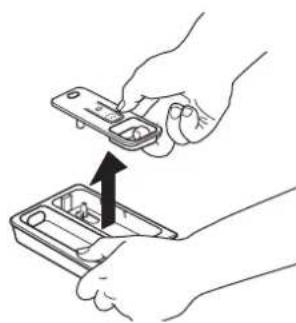

2. Remove the insert from the detergent

dispenser, as well as the insert of the softener compartment.

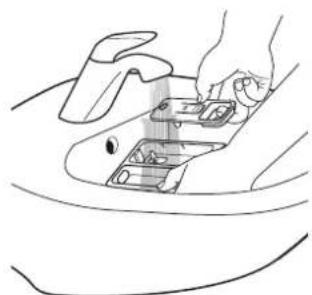

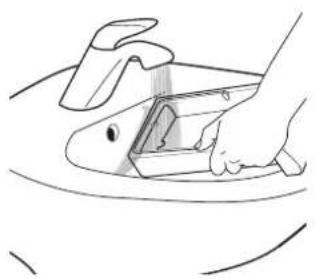

3. Clean all parts under running water, removing

all detergent or softener residues.

4. Wipe the parts dry with a soft cloth.

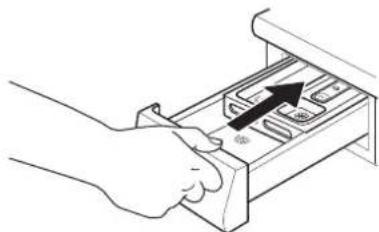

5. Reinstall the detergent dispenser and push it

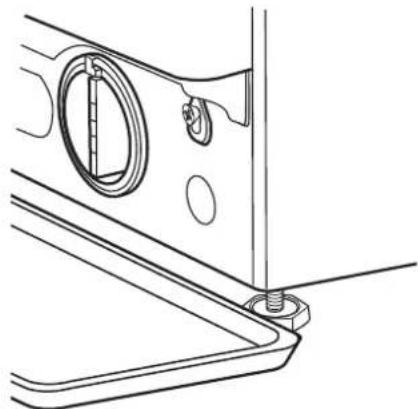

back into the detergent compartment.208 If your washing machine model has no emergency drain hose: Place a broad, at container beneath the water lter, to collect the drain water.

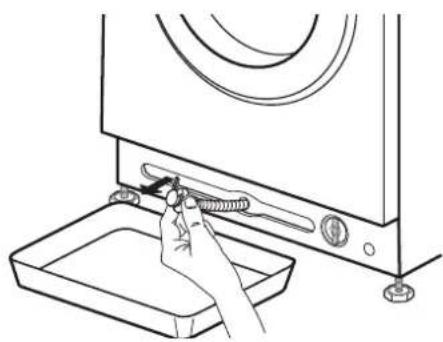

If your washing machine model has an emergency drain hose: Remove the stopper at the end of the hose and let the water ow into the container. When the container is full with water, plug the stopper to the hose end and empty the container. Repeat this procedure until no more water ows out. Afterwards rmly close the emergency drain hose with the stopper and reinsert the hose in the washing machine’s base. WARNING Switch o and unplug the washing machine before cleaning the water lter or draining residual water.If you used a hot wash programme, wait until the water has cooled down before draining any water. If the water cannot drain, the “Water lter clogged” failure indicator lights up. Clean the water lter at least once per month, to avoid that the water cannot drain after the wash due to clogging of the water lter.

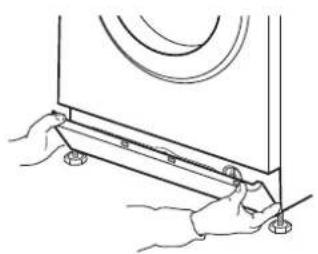

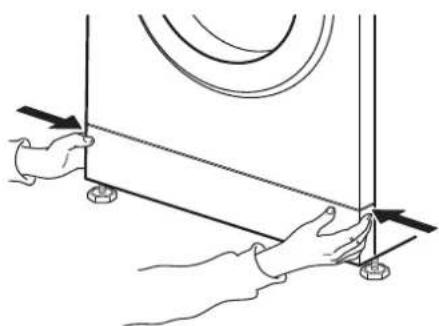

to release the plinth and remove it.

2. Container for drain water:

If your washing machine model has an emergency drain hose: Provide a at container for the drain water. Remove the emergency drain hose from the base of the washing machine209

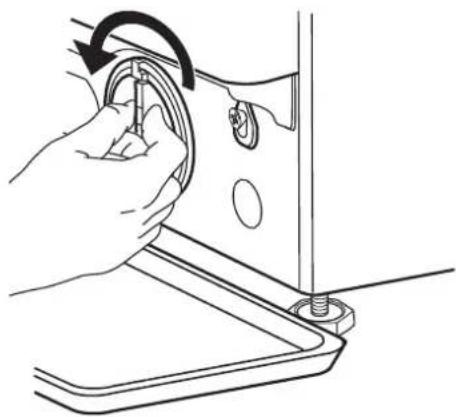

If your washing machine model has no emergency drain hose: Slowly turn the lter counterclockwise until water ows out. Let the water ow out, without removing the lter. When the container is full, close the water lter by turning it in clockwise. Empty the container. Repeat this procedure until all the water has drained.

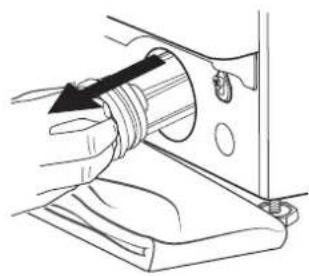

4. Remove lter: Lay a cotton cloth beneath the

water lter, which can absorb a small amount of rest water. Then remove the water lter by turning it out anticlockwise.

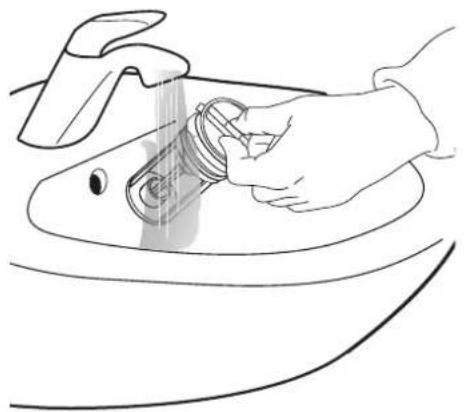

5. Clean the water lter: remove residues in the

lter and clean it under running water.

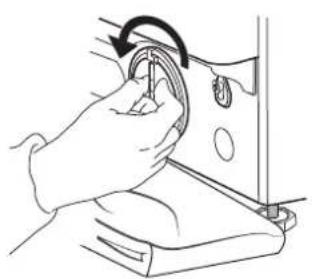

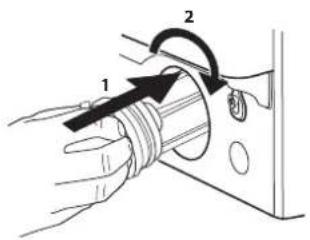

6. Insert the water lter and reinstall the plinth:

Reinsert the water lter again by turning it in clockwise direction. Make sure to turn it in as far as it goes; the lter handle must be in vertical position. To test water tightness of the water lter, you can pour about 1 liter of water into the detergent dispenser. Then reinstall the plinth.

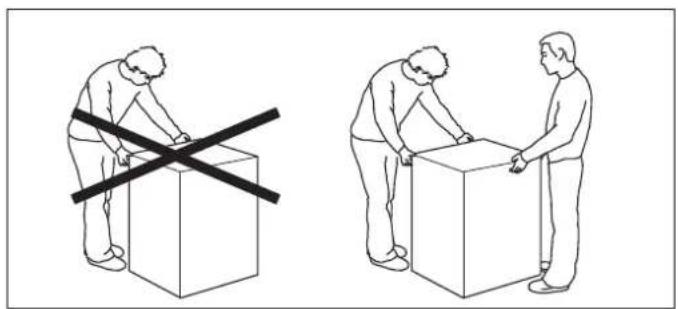

TRANSPORT AND HANDLING

1. Make sure that door and detergent dispenser

are properly closed.

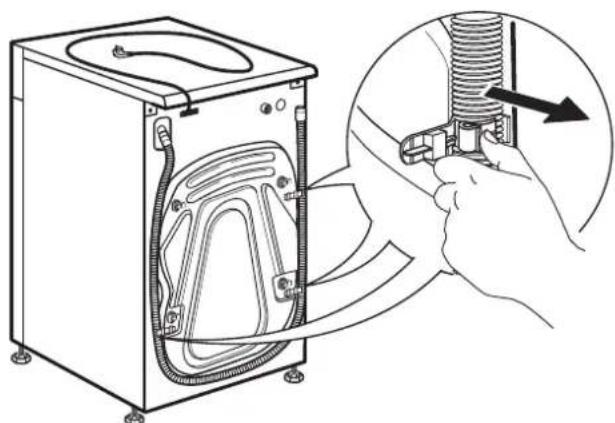

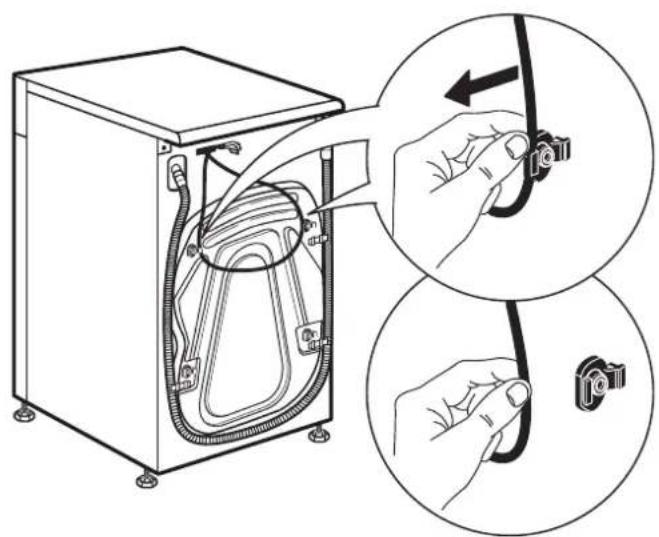

2. Disconnect the inlet hose from the water tap,

and remove the drain hose from your draining point. Remove all rest water from the hoses, and x them so that they cannot get damaged during transport. Unplug the washing machine and close the water tap.

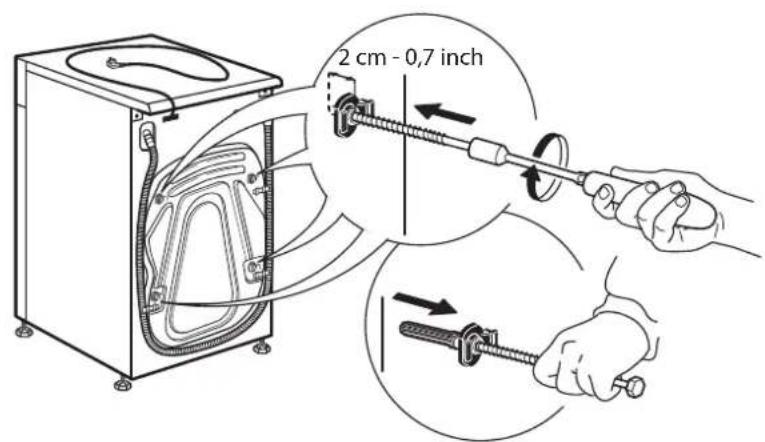

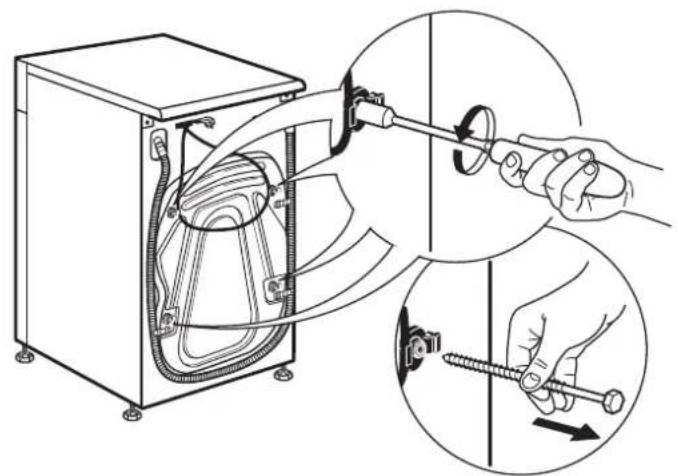

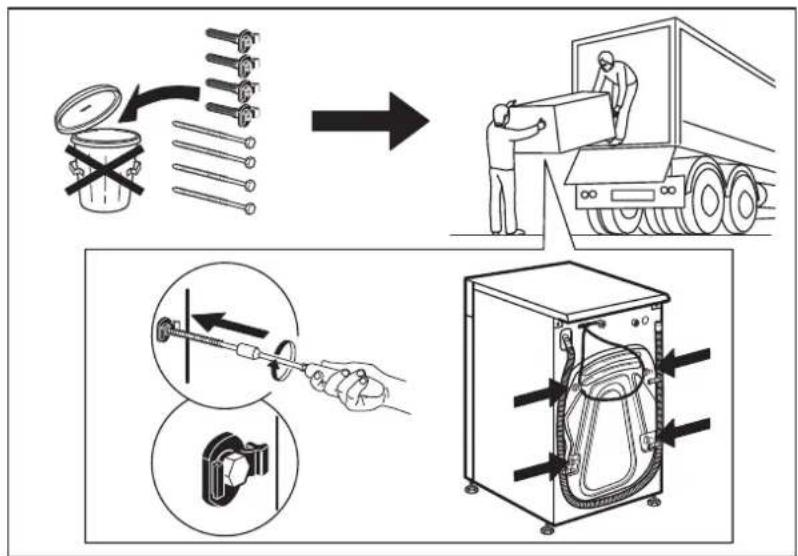

3. Ret the transport bolts. Follow the

instructions for removing the transport bolts in the Installation Guide in reverse order. Important: Do not transport the washing machine without having xed the transport bolts.211

Your washing machine is equipped with various automatic safety functions. These enable failures to be detected in good time and the safety system can react appropriately. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Washing machine does not start, no indicators are on Not connected to mains Insert plug into socket Socket or fuse does not function Test function with a lamp, have faulty part repaired Power breakdown The washing machine will automatically continue when power is available again Washing machine does not start, although “Start/Pause” has been pressed Door not properly closed Push door to close it until it clicks shut Key lock is activated Press the button with the key symbol at least 3 seconds to deactivate the key lock Washing machine stops during the programme, and “Start/Pause” blinks Rinse hold (= positon of spin button) is activated Terminate Rinse hold with draining the water or spinning the laundry (see “Rinse hold” – FUNCTIONS AND OPTIONS). Programme was interrupted, maybe door has been opened Make sure door is closed Press “Start/Pause” to proceed with the programme Safety system has been activated: failure indicator lights up and/or display shows failure (F…); water tap might be closed Refer to paragraph “Failure indicators”. Make sure that water tap is open and inlet hose has no kinks. Detergent dispenser contains detergent residues after programme end Inlet water pressure too low; mesh lter of the water supply hose may be blocked Make sure water tap is properly opened. Check mesh lters of inlet hose, see CLEANING AND MAINTENANCE / Cleaning the mesh lters of the inlet hose Washing machine vibrates during spinning Transport bolts have not been removed (!) Remove transport bolts according to the instructions in the INSTALLATION GUIDE Washing machine not standing level on all four feet Adjust feet (INSTALLATION GUIDE). Make sure that washing machine stands on level and rm underground. Spin speed “0” blinks on control panel and/or laundry still very wet Unbalance of laundry load prevented spin cycle, to protect the washing machine If you want to spin the wet laundry, add more laundry items of dierent sizes and start “Rinse&Spin” programme. Avoid small laundry loads consisting of few big, absorbent pieces of laundry / wash dierent sizes of articles in one load These failures are frequently so minor that they can be removed within a few minutes.212

PROBLEM POSSIBLE CAUSE SOLUTION

Spin result poor Spin button was set to a low spin speed. Select and start “Spin” programme with a higher spin speed (if selectable). Unbalance during spinning prevented nal spin cycle. See line above. Excessive foam formation prevented spinning. Start “Rinse&Spin” programme. Avoid excessive detergent dosing. Adjust and use the Dosing Aid function. Detergent residues on laundry after wash Too much powder detergent used / quality of detergent. Avoid detergent overdosing Brush out the fabric. Use “Intensive Rinse” option (if selectable). Use liquid detergent / use special detergent for black or dark laundry. Washing machine stands still during programme / programme seems not to proceed / during standstill, animation may appear on display Programme phases without drum movement. Standstill phases lasting up to about 2 minutes are normal in some wash programmes. Excessive foam formation (maybe by overdosage of detergent) interrupted the programme. Can be repeated several times until the foam reduction is sucient. The programme continues automatically, as soon as the foam reduction is sucient. If display shows Fod (=failure overdosage), refer to table FAILURE INDICATORS AND MESSAGES. Under- or overvoltage of mains might be detected. Programme will automatically continue as soon as the mains voltage is in the proper range. Programme duration is longer or shorter as initially indicated on the display / in the programme chart. Washing machine adapts to factors having an eect on duration, such as size of laundry load, excessive foam formation, load unbalance, prolonged heating time due to low inlet water temperature etc.. When programme duration is recalculated, an animation appears on the display. Avoid small laundry loads with absorbent, big pieces of laundry / add articles of dierent sizes. Avoid detergent overdosing – respect the dosing recommendations of the detergent manufacturer. Adjust and use the Dosing Aid function. Door is locked, with or without failure indication, and the programme does not run. Door is locked in case of power breakdown. Programme will continue automatically as soon as the mains is available again. Washing machine is in a standstill (as described in previous section “Washing machine stands still…). Programme will continue automatically after the origin of the standstill does not persist anymore. Water level or temperature too high, or electrical component failure. See instructions for failure “Service”: doorlock failure” / FdL / F29 in section Failure indicators. Drum light (if available) does not work anymore. Light bulb needs to be replaced. Call our After-Sales Service to exchange the light bulb.213

Below is a summary of possible failure causes and solutions. If the problem persists after having removed the cause of the failure, press and hold On/O for at least three seconds. If afterwards the failure indication still persists, close the water tap, switch o and unplug the washing machine and contact our After-Sales Service. Failure Indicator Possible Cause Solution

No or not sucient water supply

• Water tap pressure too low

• Mesh lters in inlet hose clogged

• Water inlet hose frozen up Open water tap Make sure there are no kinks in the inlet hose. Make sure water pressure is sucient. Clean mesh lters in inlet hose (CLEANING AND MAINTENANCE) Install washing machine at an ambient temperature of at least 5°C. After problem has been removed, press Start/Pause. If problem persists, press and hold On/O for at least 3seconds. CLEAN FILTER Waste water is not pumped out

• Drain hose blocked or frozen

• Pump blocked Check drain hose for kinks Install washing machine at an ambient temperature of at least 5°C. Clean water lter as described in section CLEANING THE FILTER. After problem has been removed, press Start/Pause. If problem persists, press On/O for at least 3seconds. Indication on display Possible Cause Possible Solution DOOR OPEN INDICATOR BLINKS The door cannot lock Firmly press the door in area of door lock, to properly close it. Then press Start/Pause. If the problem persists, press On/O for at least 3seconds.214 Display message Possible Cause Possible Solution FdL (or F29) The door cannot unlock. Firmly press the door on the area of the door lock, then press On/O for at least 3seconds. If hot cycle is selected, wait until cool down and press again On/O for at least 3seconds. Switch on the washing machine. If failure still appears, check and eventually remove possible cause as indicated for failure “Clean lter”. Then switch the washing machine on again. If door does not unlock, press On/O for at least 3seconds. If door still does not unlock, refer to section “DOOR – HOW TO OPEN IT IN CASE OF A FAILURE”. Before draining water / opening the door, wait until the water has cooled down (for hot wash programmes). Fod Excessive foam formation (maybe by overdosage of detergent) interrupted the programme. The interruption can be repeated several times until the foam reduction is sucient. Start “Rinse&Spin” programme, with option Intensive Rinse. Respect the dosing recommendations by the detergent manufacturer. Adjust and use the Dosing Aid function. Make sure that the water lter is clean.215

Failure indicator Display message Possible Cause Possible Solution SERVICE F20 or F60 Failure of an electronic com- ponent Switch o and unplug the washing machine; close the water tap. Call After-Sales Service F24 Too much laundry for a pro- gramme with small maxi- mum load Select and start programme “Rinse and Spin” to complete the interrupted wash programme. Do not overload the washing machine. Respect the maximum load size of the programmes indicated in the Programme Chart. Too much inlet water Turn o the water tap. Press and hold On/O for at least 3seconds to drain the water; wait until the drain phase has ended (End will appear on display). Turn on the water tap again. – If water immediately ows into the washing machine (without having started a programme), there is a failure of an electrical component. Close water tap, switch o and unplug the washing machine. Contact our After-Sales Service. F02 Water stop failure – water leakage detected in bottom tray. Press On/O for at least 3seconds. If failure persists, contact After-Sales Service. All other F.. failures Failure of an electrical component Press On/O button for at least 3 seconds to reset the failure. If problem persists, switch o and unplug washing machine. Close water tap. Call After-Sales Service. If a failure cannot be removed by the proposed solution, unplug the washing machine, close the water tap and inform the After Sales Service (observe section AFTER SALES SERVICE).216 DOOR – HOW TO OPEN IT IN CASE OF A

FAILURE, TO TAKE OUT YOUR LAUNDRY

Before opening the door as described in below section, refer to failure “Door is locked with or without failure indication, and the programme does not run”. The door may unlock by itself after conditions like for example a power breakdown do not persist anymore. If you want to take out your laundry immediately, rst try to unlock the door as described in FAILURE INDICATORS AND MESSAGES (FdL or F29). Only if the door cannot be opened as described in the section mentioned before, proceed as described below. In case of a power breakdown, the washing machine will proceed where it was interrupted as soon as power is available again. If a failure occurs on the washing machine and the door is locked, but you must take out your laundry:

1. First drain the residual water, as described in

section “Draining residual water”

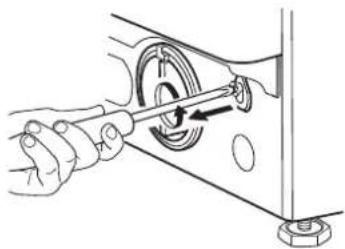

2. Remove the screw with a screwdriver.

3. Then pull downwards the strap marked with

“Door open”. You can now open the door and take out your laundry.

4. Afterwards x the strap again by rmly turning

in the screw with the screwdriver.

5. Reinstall the plinth

Switch o the washing machine and unplug it. Close the water tap. Wait until the drum has stopped rotating. Never open the door while the drum is in motion. Wait until water and laundry have cooled down when washing with high temperatures. Always drain the water before opening the door, either by pressing and holding On/O until "rES" appears on the display, or by doing it manually as described in section DRAINING RESIDUAL WATER.217

Call the number shown on the warranty booklet, or follow the instructions on website www.whirlpool.eu

1. Check if you can solve the problem yourself by

consulting section TROUBLESHOOTING GUIDE.

2. Switch the washing machine o and on again

to see if the failure persists. Always indicate

• A brief description of the failure

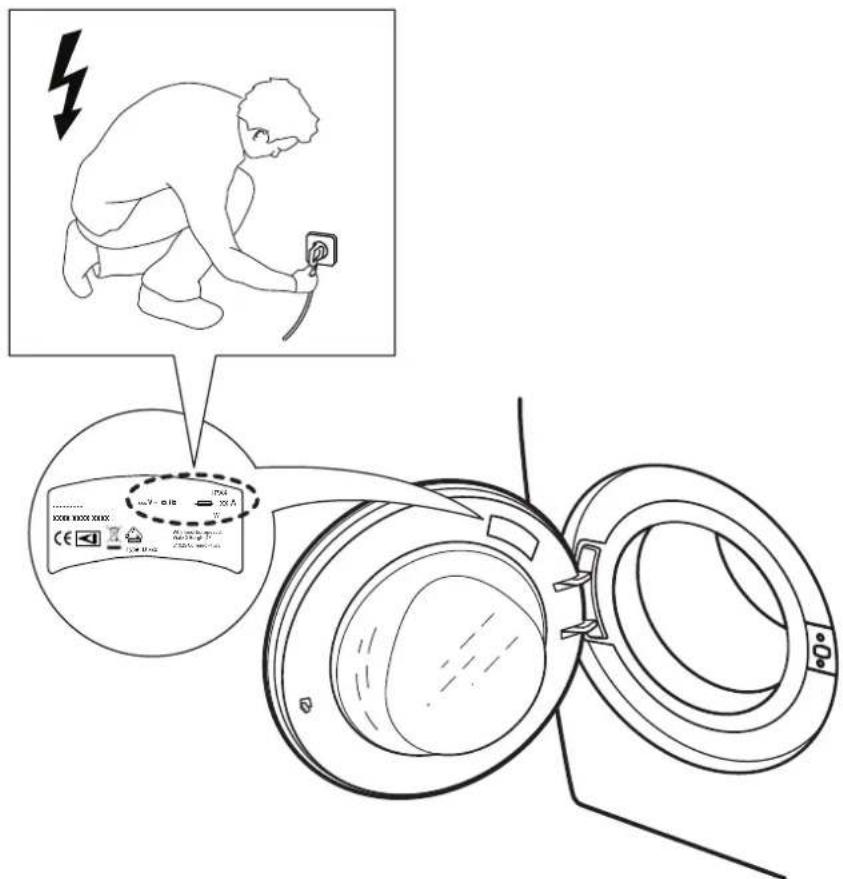

• Washing machine model (see rating plate inside door)

• Service number (on service sticker inside door; number after “Service”)

• Your full address and telephone number. For any repairs, use our authorized After Sales Service, to ensure proper repairing and use of original spare parts. Manufacturer: Whirlpool Europe s.r.l. Socio Unico Viale Guido Borghi 27 21025 Comerio (VA) Italy218
