Product Type	Portable CD player/recorder with stereo radio, cassette, and USB
Brand	Daewoo
Model	DBU51
Power Supply	6 C-type batteries or AC power adapter
Supported Formats	Audio CD, MP3 (CD-R/RW), USB
Radio	FM stereo, AM
Cassette Functions	Play, record, fast forward/rewind, pause, stop/eject
CD/MP3/USB Functions	Play, pause, skip, search, repeat (1, album, all), random, programming (up to 20 CD tracks, 99 MP3 tracks)
Recording	From radio, CD/MP3, or USB to cassette
Auto Standby	Yes, after 10 minutes in STOP, PAUSE, or no disc mode (CD/MP3/USB)
Display	Digital screen
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Maintenance & Cleaning	Clean CDs with a soft cloth; avoid moisture and heat sources
Safety	Class 1 laser; avoid exposure to rain or moisture; disconnect plug if not used for extended periods
Spare Parts / Repairability	Repair by qualified professional only; no user-serviceable parts inside
General Information	Manual available in multiple languages; CE compliance (low voltage and electromagnetic compatibility)

Frequently Asked Questions - DBU51 DAEWOO

How to connect a USB device to the Daewoo DBU51?

Insert or connect your USB device into the USB port on the unit. Set the function selector to CD/MP3/USB. If there is no CD in the compartment, the unit will automatically read the USB. Otherwise, press and hold the PLAY/PAUSE button for a few seconds to switch to USB mode.

How to program track playback in a custom order?

In CD/MP3/USB mode, make sure playback is stopped (press STOP). Press MODE until P01 blinks on the display. Use the SKIP + or SKIP - buttons to select the desired track, then press MODE again to store it. Repeat for up to 20 tracks (CD) or 99 (MP3). Press PLAY/PAUSE to start programmed playback.

What to do if the CD skips or does not play correctly?

A dirty or scratched CD may cause skipping. Clean the disc with a soft cloth from the center to the edge. If the problem persists, try another CD. Also check that the CD is properly positioned with the label facing up.

How to record a CD or radio onto cassette?

Insert a blank cassette into the cassette compartment. Select the source: for radio, set the selector to RADIO; for a CD, insert the CD and set the selector to CD/MP3/USB. Press the RECORD and PLAY buttons simultaneously to start recording. Press STOP/EJECT to stop.

The unit does not power on, what should I check?

Check that the power cord is properly plugged into a working outlet or that the batteries are correctly inserted and sufficiently charged. If using the AC adapter, make sure the voltage matches your region.

How to improve FM radio reception?

Extend and reorient the FM wire antenna for best signal. Move the unit away from sources of electronic interference. For FM stereo reception, select FM ST on the BAND selector.

Is it possible to play MP3 files on a burned CD?

Yes, the unit supports playback of MP3 files recorded on CD-R or CD-RW. Insert the disc with the label facing down, the unit will read and display the number of tracks. You can use album navigation and programming functions.

How to clean the unit?

Use a soft, dry cloth to clean the cabinet. Do not use chemical or abrasive products. For CDs, wipe them from the center to the edge with a soft cloth. Avoid touching the recorded side.

What does the auto standby function mean?

The unit automatically turns off after 10 minutes of inactivity in CD/MP3/USB mode (in STOP, PAUSE, or no disc) to save power. To turn it on again, set the function selector to OFF and then back to CD/MP3/USB or RADIO.

Can I use batteries of different types or brands?

No, use only identical type C batteries (same brand and type). Do not mix new and old batteries, nor alkaline with rechargeable batteries. Remove batteries if not using the unit for a long time to prevent leakage.

USER MANUAL DBU51 DAEWOO

1. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2. WARNING:To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects fllled with liquids, such as vases, shall be placed on apparatus.
3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

5. A visible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

1. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
2. No naked flame sources, such as lighted candles, should be placed on the apparatus.
3. Attention should be drawn to environmental aspects of battery disposal.
4. Use of the apparatus in moderate climates.
5. The rating and marking information are located at the bottom of the unit.
6. Excessive sound pressure from earphone and headphones can cause hearing loss.
7. The mains plug of unit should be obstructed or should be easily accessed during intended use.
8. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle, is used to indicate that a specific component shall be replaced only by the component specified in that documentation for safety reason.

ENG

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS1LASERPRODUCT LUOKAN1LASERLAITE KCLASS1LASERAPPPARAT

CLASS 1 LASER PRODUCT LABEL

This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION

This label is placed inside the unit. As shown in the illustration. To warn against further measures on the unit. The equipment contains a laser radiating laser rays according to the limit of laser product of class 1.

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS. All the safety and operating instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS. The safety and operating instruction should be retained for future reference.
3. HEED WARNINGS. All warnings on the appliance and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS. All operating instructions should be followed.
5. WATER AND MOISTURE. The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundrytub, swimming pool or in a wet basement.
6. VENTILATION. The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. HEAT. The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.
8. POWER SOURCE. The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
9. POWER CORD PROTECTION. Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
10. POWER LINES. An outdoor antenna should be located away from power lines.
11. OBJECT and LIQUID ENTRY. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

12. ESD WARNING. The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect after a few seconds.

13. DAMAGE REQUIRING SERVICE. The appliance should be serviced by qualifi ed service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure. c.

The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged. e. The appliance does not appear to operate normally.

1. SERVICING. The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel.

Notes:

a. Dirty or scratched CD may cause a skipping problem. Clean or replace the CD.
b. If an error display or malfunction occurs, disconnect the AC cord and remove all the batteries. Then turn the power back on.

BEFORE OPERATION

Notes: CONCERNING COMPACT DISCS.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the followings items:

a. Usable compact discs. Use only compact disc with the mark shown below.
b. CD compact disc only with digital audio signals.

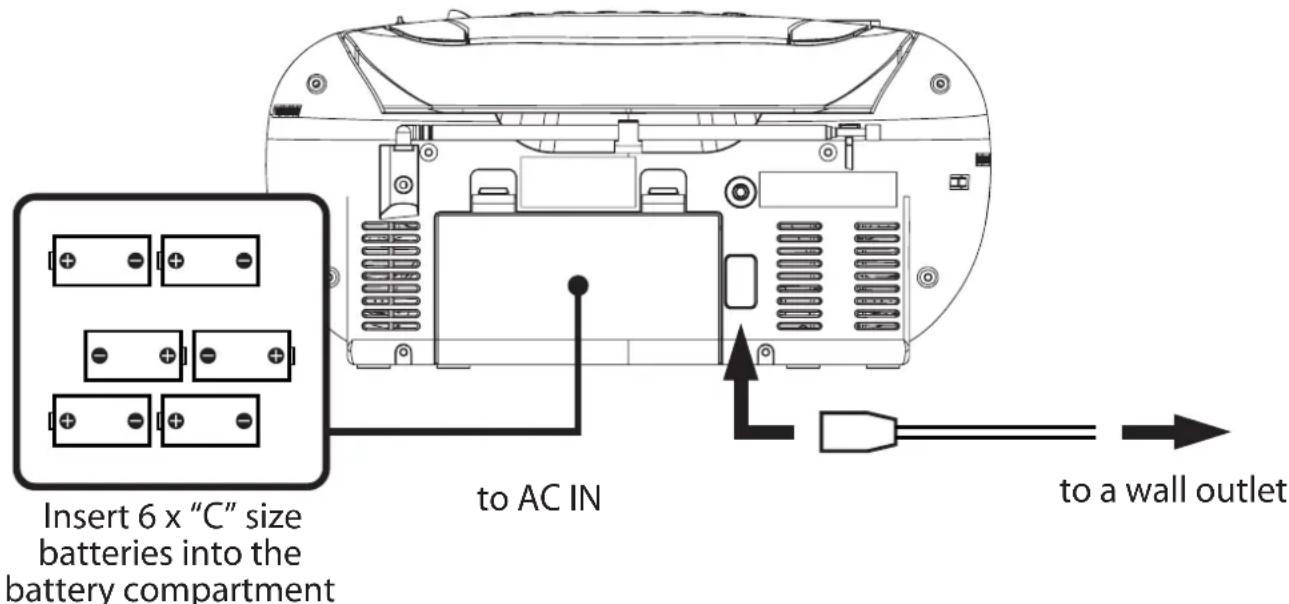

POWER SOURCES

AC POWER

You can power your portable system by plugging the detachable AC power cord into the AC inlet at the back of the unit and into a wall AC power outlet. Check that the rated voltage of your appliance matches your local voltage. Make sure that the AC power cord is fully inserted into the appliance.

BATTERY POWER

Insert 6 × "C" size batteries into the battery compartment. Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Notes:

• Use batteries of the same type. Never use different types of batteries together.
• To use the appliance with batteries, disconnect the AC power cord from it.

RADIO OPERATION

GENERAL OPERATION

1. Set the "FUNCTION" selector to "RADIO" mode.
2. Select desired band by using the "BAND" selector.
3. Adjust radio frequency to your desired station by using the "TUNING" control.
4. Adjust the "VOLUME" control to the desired level.

FM / FM-STEREO RECEPTION

• Set the "BAND" selector to FM mode for MONO reception.
• Set the "BAND" selector to FM ST. mode for FM STEREO reception. The Stereo indicator light up to show FM ST. mode.

FOR BETTER RECEPTION

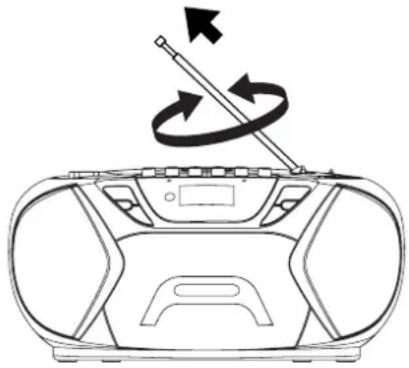

Reorient the antenna for better reception.

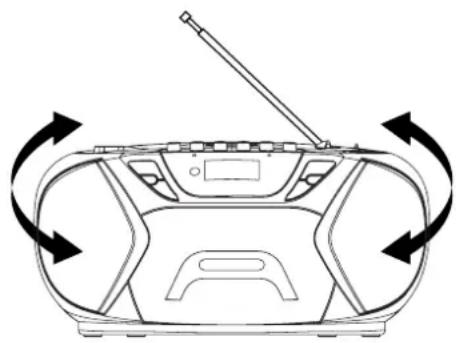

Reorient the appliance to get better AM reception.

TAPE OPERATION

GENERAL OPERATION

PAUSE III Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP/EJECT Press to stop tape operations.

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD & Press to start rapid tape winding either forward or reverse

REWIND

direction.

PLAY Press to start playing tape.

RECORD Press it together with "PLAY" button to start recording.

PLAYBACK

1. Set the "FUNCTION" selector to "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Adjust the "VOLUME" control to the desired level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.

To record from radio - Set the "FUNCTION" selector to "RADIO" mode and adjust the desired station. To record from CD / MP3 - Place a disc on the CD compartment. Set the "FUNCTION" selector to "CD / MP3 / USB" mode and select the desired track.

To record from USB - Plug or slot in USB device to the port. (Make sure no disc on disc tray.) Set the "FUNCTION" selector to "CD / MP3 / USB" mode and select the desired track.
3. Press the "RECORD" button together with the "PLAY" button to start recording.
4. Press the "STOP / EJECT" button when finished.

CD / MP3 OPERATION

GENERAL OPERATION

PLAY / PAUSE▶II Press to start playing CD / MP3 disc.

Press again to stop playing CD /MP3 operation temporarily. Press again to resume playback.

SKIP +▶& Press to go to the next track or back to the previous track.

SKIP - I Press and hold while playing until you find the point of the sound.

STOP Press to stop all CD/MP3 operation.

PLAYBACK

1. Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
2. Open the CD door and place a CD / MP3 disc with the label up on the CD compartment.
3. Close the CD door.
4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.
5. Playback will start automatically from the first track.
6. Adjust the "VOLUME" control to the desired level.
7. Press the "PLAY / PAUSE" button again when you want to stop playback temporarily.
8. Press the "STOP" button when fi nished.

CD / MP3 OPERATION

GENERAL OPERATION

Up to 20 tracks for CD disc, 99 tracks of MP3 disc can be programmed for disc play in any order. Be sure to press the "STOP" button before use.

1. Press the "MODE" button, the display will show "P01" and flash.
2. Select desired track by using the "SKIP +" or "SKIP -" button. (You may select a desired album by pressing the "ALBUM" button).
3. Press the "MODE" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed, press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
6. Press the "STOP" button twice to terminate programmed playback.

MODE

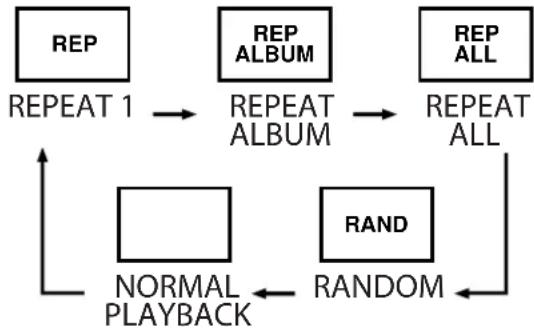

Press the "MODE" button before or during playing CD / MP3 disc, each press switches the mode function as follows:

1-REPEAT 1
2 - REPEAT ALBUM (*MP3 ONLY)
3 - REPEAT ALL
4-RANDOM
5-NORMAL PLAYBACK

USB OPERATION

GENERAL OPERATION

PLAY / PAUSE▶III Press to start playing tracks from the USB.

Press again to stop playing USB operation temporarily.

Press again to resume playback.

SKIP +▶I & Press to go to the next track or back to the previous track.

SKIP - Press and hold while playing until you find the point of the sound.

STOP Press to stop all USB operation.

PLAYBACK

1. Plug or slot in USB device to the port.
2. Set the "FUNCTION" selector to "CD / MP3 / USB" mode.
3. It will read and automatic playing USB, if no disc on disc tray.
4. It will read and automatic playing DISC, if have disc on disc tray.
5. Press and hold the "PLAY / PAUSE" button for a few seconds to entry USB mode.
6. Playback will start automatically from the first track.
7. Press the "STOP" button when finished.

PROGRAM MODE

The operation of PROGRAM, MODE are as the same as that of CD / MP3. Please refer to CD / MP3 OPERATION.

OTHER FEATURES

AUTO-OFF

This product is equipped with an auto power save function in the CD/MP3/ USB mode, if the unit remains in STOP, PAUSE or NO DISC mode for more than 10 minutes it will automatically switch off. Please set the "FUNCTION" selector to off mode, and then back to "CD/MP3/USB" or "Radio" mode to re-active the unit.

DECLARATION OF CONFORMITY

Flamagas, S.A. declares product DBU-51 complies with the essential protective requirements and objectives of:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

To check the entirely declaration of conformity of this model, visit www.electronicafl amagas.com
