R 1200 GS Adventure (2017) - Motorcycle BMW - Free user manual and instructions

Engine type	Two-cylinder boxer 4-stroke, liquid cooling
Displacement	1,170 cc
Bore x stroke	101 x 73 mm
Compression ratio	12.5:1
Maximum power	125 hp (91.2 kW) at 7,750 rpm
Maximum torque	125 Nm at 6,500 rpm
Distribution	DOHC, 4 valves per cylinder
Fuel system	Electronic injection with ride-by-wire
Gearbox	6-speed
Final drive	Shaft drive (cardan)
Clutch	Wet 8 discs, hydraulic anti-hopping
Fuel tank capacity	30 liters (including 4-liter reserve)
Seat height	890 mm / 910 mm (adjustable 2 positions)
Weight in running order	263 kg
Dry weight	229 kg
Front suspension	BMW Motorrad Telelever 37 mm, travel 210 mm
Rear suspension	BMW Motorrad EVO Paralever, travel 220 mm
Front brake	Double disc 305 mm, 4-piston calipers, ABS
Rear brake	Single disc 276 mm, ABS
Front tire	120/70-R19
Rear tire	170/60-R17
Wheelbase	1,510 mm
Length	2,255 mm
Width	980 mm
Starting system	Electric

Frequently Asked Questions - R 1200 GS Adventure (2017) BMW

How to start the BMW R 1200 GS Adventure 2017?

Ensure the side stand is up and the gearbox is in neutral. Turn the ignition key, wait for all the control lights to go out, then press the electric start button located on the right handlebar. In cold weather, starting may require a few extra seconds of preheating.

What is the fuel tank capacity and how to manage the reserve?

The aluminum tank holds 30 liters, including 4 liters of reserve. When the reserve light comes on, you still have about 4 liters left. Refuel promptly, especially when off-road where stations can be spaced out. The cap is located under the front panel of the tank.

How to adjust the seat height?

The seat is adjustable in two positions: 890 mm (low position) and 910 mm (high position). To change position, unlock and remove the seat, reposition or reverse the adjustment block under the seat, then replace it. The operation does not require any tools.

What riding modes are available and how to activate them?

As standard, the bike offers Rain and Road modes, accessible via the left switchgear. Dynamic, Enduro, and Enduro Pro modes are available if your bike is equipped with the Pro Riding Modes option. Each mode changes the throttle response, ASC traction control, and, if installed, the ESA suspension.

How to adjust the ESA (Electronic Suspension Adjustment) suspension?

If your bike is equipped with the ESA option, the suspension stiffness is adjustable from the dashboard without tools, either at a stop or while riding. Select the profile suited to your load:

• Comfort: solo rider on road
• Normal: mixed use or light luggage
• Sport: dynamic riding

In Enduro mode, the suspension is automatically softened.

What to do if the ABS or ASC light comes on while riding?

An ABS or ASC light that comes on outside of startup indicates a system fault. Safely come to a stop, turn off the ignition, and restart. If the light remains on, the bike is still usable but without the concerned electronic assistance. Have the fault code read by a BMW Motorrad dealer or with a compatible diagnostic tool (such as GS-911).

What is the service interval and which engine oil should be used?

BMW recommends servicing every 10,000 km or once a year, whichever comes first. Use a synthetic 4-stroke engine oil 15W-50 that meets BMW Longlife-01 standards, or a 10W-50 oil in extreme conditions. Check the level via the transparent gauge on the right side of the engine, with the engine warm and the bike upright.

How to prepare the BMW R 1200 GS Adventure for winter storage?

Fill the tank to avoid condensation. Disconnect the battery starting with the negative terminal (-), then the positive terminal (+), and keep it on a maintenance charger (such as CTEK). Cover the bike and store it in a dry, ventilated place. Upon return, check the tire pressure (120/70-R19 front, 170/60-R17 rear) and fluid levels before any ride.

How to check and adjust tire pressure?

Check the pressure cold, before any trip. The dimensions are 120/70-R19 at the front and 170/60-R17 at the rear. The recommended values according to the load are listed on the sticker on the frame and in the owner's manual. Incorrect pressure degrades road handling and accelerates tire wear.

Is it necessary to grease the final drive (shaft)?

No, the shaft drive does not require external greasing. However, check the oil level in the shaft housing and gearbox at each service (every 10,000 km). Use the recommended BMW Motorrad gear oil. This system is one of the GS Adventure's assets for long journeys, as it is free from routine maintenance.

USER MANUAL R 1200 GS Adventure (2017) BMW

routines. organise vehicule.

Motorrad.

Assistant .de changement38

de rapport

H2p Start .Control. 139

9:Maht

I'Hill Start Control

Condition préalable

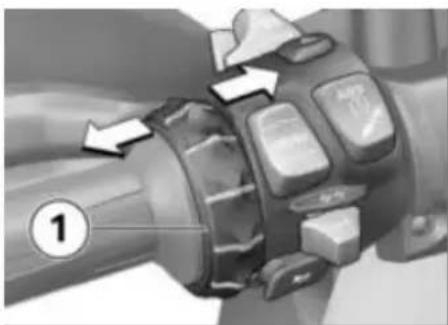

Confirmer la selection

PRO, I'ABS Pro est complete-sation routiere.

1,0 mm (Uniquement garniture friction sans plaque support.)

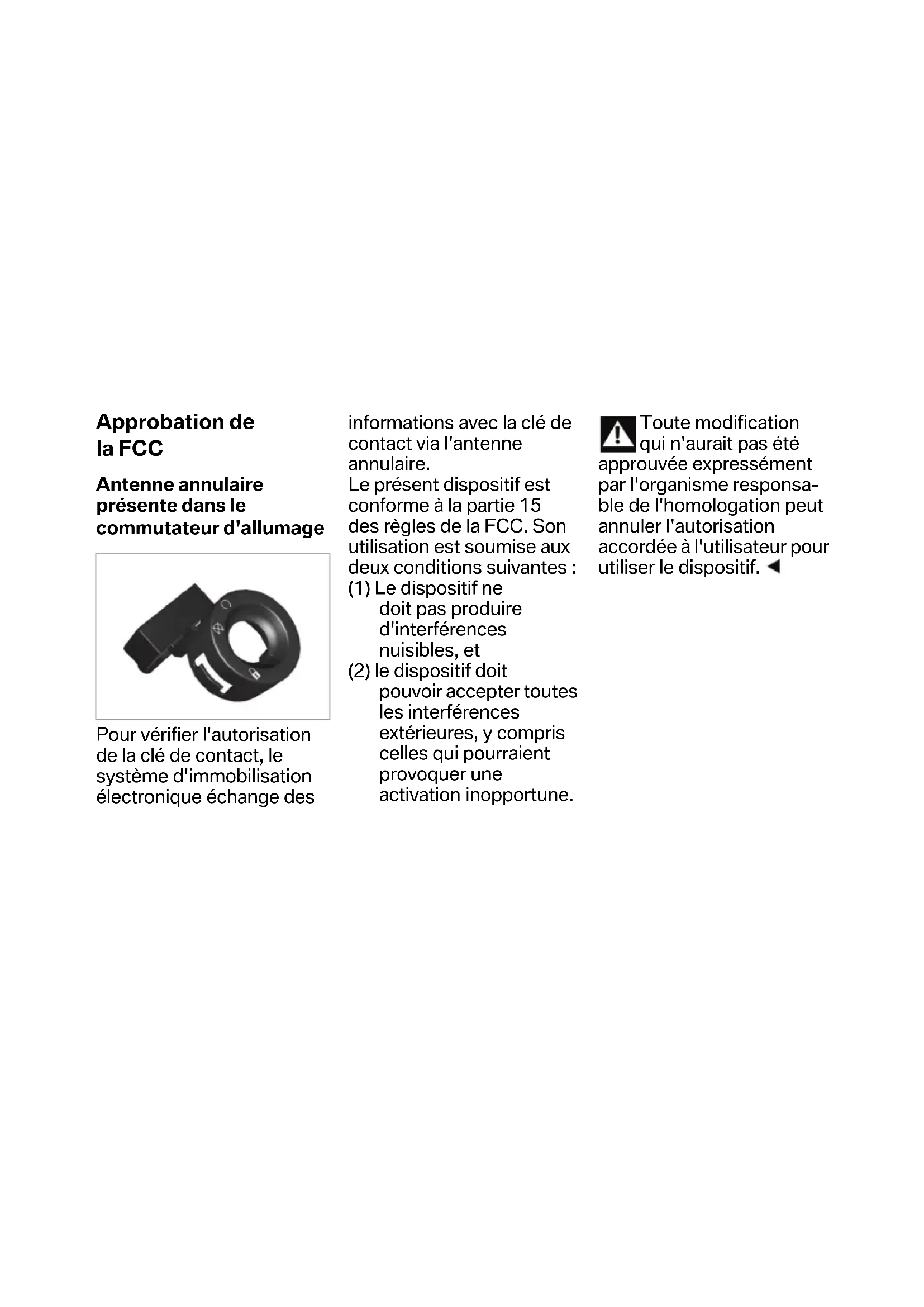

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Product name: BMW Keyless Ride ID Device

FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

complies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

EN 301 489-1 (V1 .9.2, 09/2011), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9kHz and 40GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)
   EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500mW Part 1: Technical characteristics and test methods. Part 2: Harmonized EN covering essential requirements under article 3.2 ofthe R&TIE directive

The product is labeted with the CE marking: C

Velbert, October 15 ^in , 2013

Benjamin A. Muller

Product Development Systems

Car Access and Immobilization - Electronics

Steeger Straße 17, D-42551 Velbert

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4
IC: 2546A-BC54MA4

FCC ID:MRXBC5A4 IC:2546A-BC5A4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range: 2402 - 2480 MHz

BT version: 4.2 (no BTLE)

BT output power: < 4 dBm

WLAN operating frq. Range: 2412 - 2462 MHz

WLAN standards: IEEE 802.11 b/g/n

WLAN output power: < 20dBm

Manufacturer and Address

Manufacturer:

Robert Bosch Car Multimedia GmbH

Adress: Robert Bosch Str. 200,

31139 Hildesheim, GERMANY

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Performances, 241
Poids, 240
