USER MANUAL VHHT010 VIETA

VIETA HOME

VH-HT010

Manual de usuario

Sintonizador FM/AM

User Manual

Tuner FM/AM

It's too warm!

CONEXIÓN ELÉCTRICA

220-240V AC~50Hz

Maximum 5m 30° 50°

Mando a distancia de funcionamiento total para unidad Vieta
VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100

Interruptor FM/AM

Estéreo / Mono

VIETA AUDIO S.A. guarantees its products for a period of 24 months. The guarantee period starts on the date of purchase of brand new products that have never been used by the first end user.

This guarantee covers any possible manufacturing flaws for any Vieta products sold on Spanish territory by authorised distributors. Vieta products acquired in other countries will be covered by the guarantee supplied by the local distributor.

This guarantee will only be valid when accompanied by an invoice for the product that includes the client's name, the distributor and the date of purchase. VIETA AUDIO S.A. agrees to repair any product with a problem occurring during normal use as detailed in the user's manual and when being used for the purpose for which it was designed.

The guarantee will not be extended because a component is changed or the product is replaced.

INCIDENTS THAT ARE EXEMPT FROM GUARANTEE:

1. The guarantee period exceeds the stipulated time.

2. When the product has been handled by centres or personnel that are not authorised by VIETA AUDIO S.A.

3. When the product has been damaged by incorrect handling or use for purposes other than those it is intended for and that are not contemplated in the user's manual, or when it has broken pieces, scratches, cracks, wear and tear, damage produced by particles of paint, sand, water or food within the unit.

4. This guarantee does not cover expenses or damages caused by transport.

5. Loss, robbery or accidents produced by fire, liquid, chemical substances, excessive heat, inadequate ventilation, vandalism, electrical storms, incorrect or excessive power supply, lightening, impact, other external forces, radiation.

6. Any additional cost related to installing or uninstalling the product.

7. Products purchased outside Spanish territory or from distributors that are not authorised.

8. The data contained on our products (photo files, music, digital support, etc.) are not covered by the guarantee under any circumstance: it is the client's responsibility to make back up files before giving us the product. Likewise, any incorrect configuration or installation of software or incompatibility issues with hardware belonging to other equipment, including drivers and controllers.

9. Maintenance, repairs or parts replacement due to use and wear and tear.

10. Rechargeable and/or disposable batteries (life cycle depends on usage frequency).

11. Small faults or variations in the quality of the product that do not affect its value or the purpose for which it was created.

12. Negligence.

13. Accessories:

- Plugs and cases.

- Connector cables.

Headband

- Earlip and sleeve kits

• Decorative finishes.

1. Any issue detected on receipt of the goods must be notified to customer care 902.367.607 or satogvietaees. In accordance with article 366 of trade law, VIETA AUDIO S.A. will not accept any claims regarding broken goods, impacts or missing packages 24 hours after the goods have been delivered.

CUSTOMER CARE / Tel. [phone] / Fax. [phone] / www.vieta.es

Contents

Safety precautions 20

Important information 21

Connection to the mains....22

Remote control

Installation of batteries....23

Function 24 - 25

Front panel and connections....26

Back panel and connections 27

Audio connection with amplifier 28

Operation and functions

ON, OFF and Standby....29

Adjusting the antenna 29

RDS 29

FM/AM 30

Stereo/mono....30

Memory and preset 30

Auto (autotune) 31

Tuning 31

Reset 31

Troubleshooting....32

Technical data....33

SAFETY PRECAUTIONS

A triangle with a lightning symbol draws the user's attention to "dangerous voltage" without insulation in the cabinet which may be high enough to entail a risk of electric shock.

A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the accompanying manual, which should be studied.

A symbol for CLASS II (double insulation)

WARNING: TO MINIMISE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET AS IT CONTAINS DANGEROUS VOLTAGE. ONLY QUALIFIED TECHNICIANS ARE ALLOWED TO CARRY OUT REPAIR AND SERVICE.

CAUTION: if the plug of the power cord needs to be replaced, it is important that the replacement is identical to the plug to be replaced, or that the new plug has been recommended by the manufacturer

TO AVOID ELECTRICAL SHOCK, IT IS IMPORTANT TO INSERT THE PLUG CORRECTLY INTO THE SOCKET.

IMPORTANT INFORMATION

Handling Instructions

• The top and back panel of the unit may become warm after prolonged use. This is not due to a defect.
• Turn off the power when the unit is not used.

Protect the power cord

• Follow the instructions below to prevent abnormal operation, electrical shock, fire or personal injury:
• Hold the plug firmly when inserting it into the socket.
• Avoid heat-producing devices.
• Do not place objects on the power cord.
• Do not carry out service work on or change the power cord.

Positioning

Do not place the unit in any of the fol. places: - In sunlight, close to heat-producing devices or in an enclosed rack.

• In places with high temperatures (40C or more) or high relative humidity (90% or more).
• In dirty places as some internal parts may be damaged.

Do not put your fingers or any other objects into the unit

• Touching the internal parts is dangerous and may cause injury or damage. Do not open the cabinet.
• Do not place any foreign matter in the unit.

Interference

Placing the unit near a television set, radio or video player may cause poor picture and sound quality. In that case, move the unit further away from the television set, radio or video player.

Condensation

Condensation may occur in the following cases:

• When the unit is moved directly from a cold to a warm place.
• When the unit is used in a room where the radiator has just been switched on or a place where the cold air from the air-conditioning system is directed at the unit.
• If the unit is used in the summer in a warm and humid room just after it has been moved from an air-conditioned room.
• If there is steam or a high level of humidity in the room.

In case of condensation, the unit will not work properly. Turn off the unit. Unplug the unit and leave it for 2-3 hours. The unit will then have adapted to the environment and any condensation will have disappeared.

It's too warm!

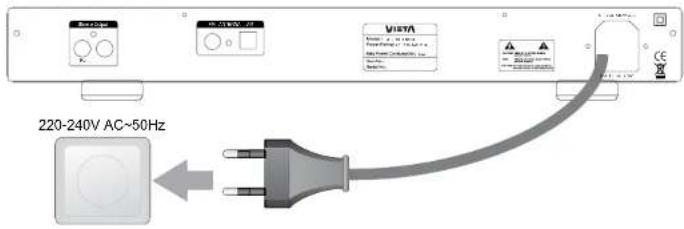

CONNECTION TO THE MAINS

220-240V AC~50Hz

Do not turn on the power before all connections have been made correctly. Check that all connections have been made correctly before turning on the power. Check that the mains voltage is 220-240V AC50Hz before turning on the power.

Connection to the Mains

Check that all other connections have been made correctly before inserting the mains plug into the wall socket.

Then insert the plug into a suitable socket.

If the unit is to be used abroad, you may need an adapter.

REMOTE CONTROL

Installation of batteries

1 Remove the cover as illustrated.

3 Replace the cover.

2 Position two batteries of the type AAA/R03/UM4 in the battery compartment. Make sure that the orientation of the batteries is correct (see drawing at bottom).

- Do not mix new and old batteries and do not use different types of batteries.

- If the remote control is not used for prolonged periods, remove the batteries from the remote control to avoid corrosion.

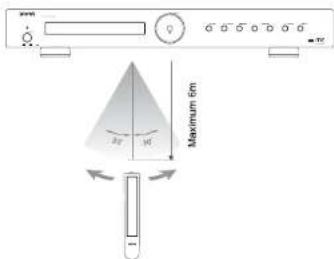

Using the remote control

Direct the remote control at the sensor on the front panel of the unit. When the remote control signal is received, the unit reacts accordingly. The remote control works within a range of 6 metres.

Maximum 6m 30° M

• Sometimes the remote control does not work well in strong light. You may have to move the unit if it is a problem.
• Malfunction may occur if other remote controls are used near the unit.
• Do not place any objects on the remote control, as the batteries may become flat if a key is depressed constantly.
• Make sure that there are no obstacles between remote control and unit.
• Do not position the unit behind tinted glass as it may reduce the maximum range of the remote control.

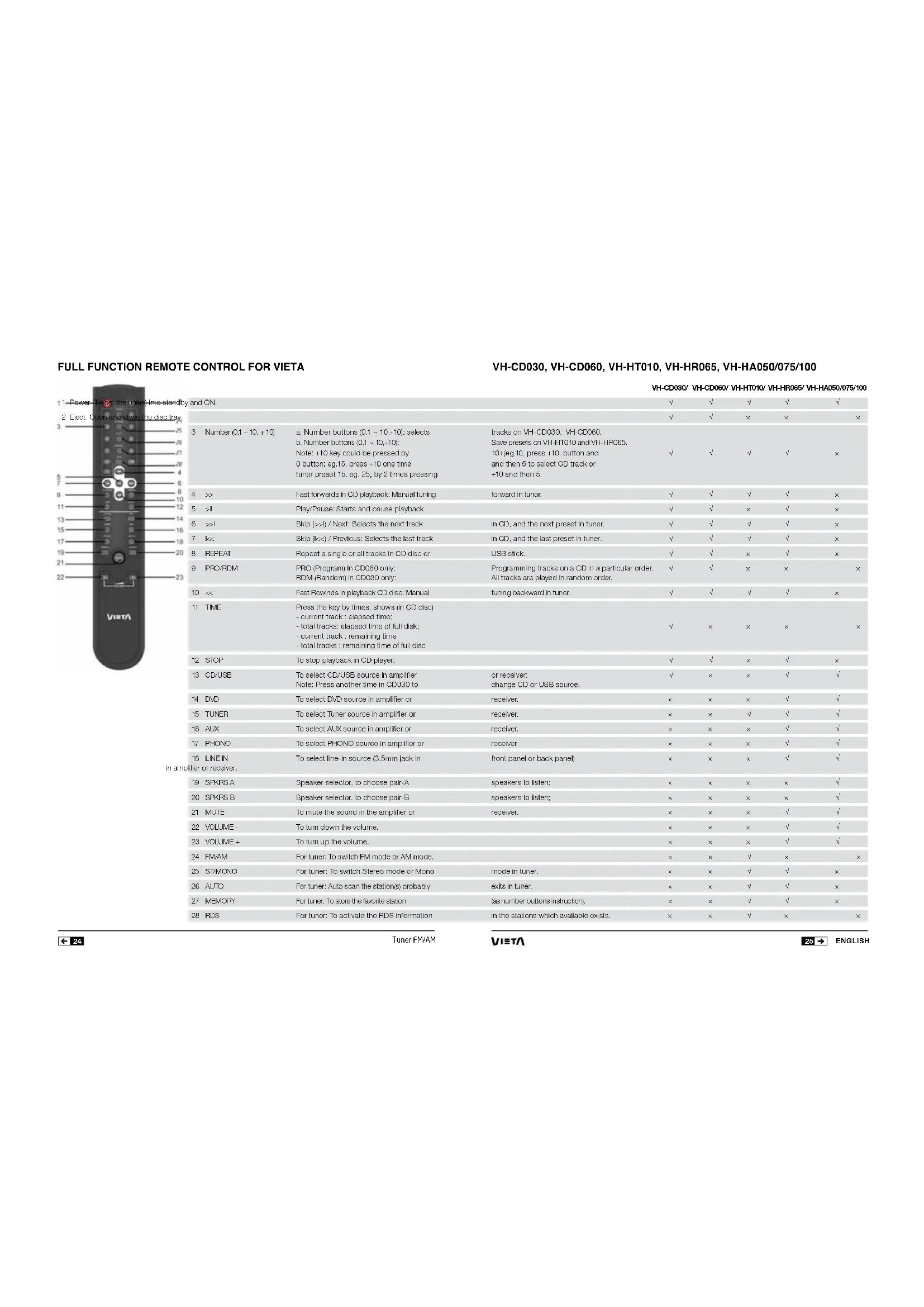

FULL FUNCTION REMOTE CONTROL FOR VIETA
VH-CD030, VH-CD060, VH-HT010, VH-HR065, VH-HA050/075/100

1-Power - Get the unit into standby and ON.				√	√	√	√	√
2 Eject Open and close the disc tray				√	√	×	×
3	Number (0,1-10, +10)	a. Number buttons (0,1-10,10): selects b. Number buttons (0,1-10,-10): Note: +10 key could be pressed by 0 button; og.15, press +10 one time tumor presol 15, og. 25, by 2 times pressing	tracks on VH-CD030, VH-CD060 Save presets on VH-HT010 and VH-HT065. 10+reg.10, press +10, button and and then 5 to select CD track or +10 and then 5.	√	√	√	√	×
4	>>	Fast forwards in CD playback. Manual tuning	forward in tuner.	√	√	√	√	×
5	>I	Play/Pause: Starts and pause playback.		√	√	×	√	×
6	>>I	Skip (>>I) / Next: Selects the next track	in CD, and the next preset in tuner.	√	√	√	√	×
7	I<=	Skip (I<=) / Previous: Selects the last track	In CD, and the last preset in tuner.	√	√	√	√	×
8	REPEAT	Repeat a single or all tracks in CD disc or	USB stick.	√	√	×	√	×
9	PRO/RDM	PRO (Program) in CD080 only: RDM (Random) in CD000 only:	Programming tracks on a CD in a particular order. All tracks are played in random order.	√	√	×	×
10	<<	Fast Rowinds in playback CD disc. Manual	tuning backward in tuner.	√	√	√	√	×
11	TIME	Press the key by times, snows (in CD disc) - current track : elapsed time; - total tracks: elapsed time of full disk; - current track : remaining time - total tracks : remaining time of full disc		√	×	×	×
12	STOP	To stop playback in CD prayer.		√	√	×	√	×
13	CD/USB	To select CD/USB source in amplifier Note: Press another time in CD030 to	or receiver; change CD or USB source.	√	×	×	√	√
14	DVD	To select DVD source in amplifier or	receiver.	×	×	×	√	√
15	TUNER	To select Tuner source in amplifier or	receiver.	×	×	√	√	√
16	AUX	To select AUX source in amplifier or	receiver.	×	×	×	√	√
17	PHONO	To select PHONO source in amplifier or	receiver.	×	×	×	√	√
18	LINE IN in amplifier or receiver.	To select line-in source (3.5mm jack in	front panel or back panel)	×	×	×	√	√
19	SPKRS A	Speaker selector, to choose pair-A	speakers to listen;	×	×	×	×	√
20	SPKRS B	Speaker selector, to choose pair-B	speakers to listen;	×	×	×	×	√
21	MUTE	To mute the sound in the amplifier or	receiver.	×	×	×	√	√
22	VOLUME-	To turn down the volume.		×	×	×	√	√
23	VOLUME+	To turn up the volume.		×	×	×	√	√
24	RMAX	For tuner: To switch FM mode or AM mode.		×	×	√	×
25	ST/MONO	For tuner: To switch Storco mode or Mono	mode in tuner.	×	×	√	√	×
26	AUTO	For tuner: Auto scan the station(s) probably	axis in tuner.	×	×	√	√	×
27	MEMORY	For tuner: To store the favorite station	(as number buttons instruction).	×	×	√	√	×
28	PDS	For tuner: To activate the PDS information	In the stations which available exists.	×	×	√	×

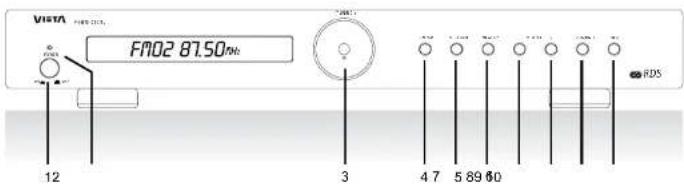

FRONT PANEL AND CONNECTIONS

Front panel

VISTA FM02 87.50Hz 12 3 4 7 5 89 60 FDS

1. Mains switch: Used to turn ON/OFF the power.
2. LED: If press POWER button on remote control, it makes the tuner into Standby mode, and blue LED lights; you need to press POWER button again to power on.
3. TUNING: For manual tuning, right tuning for high frequency, left tuning for lower frequency;
4. FM/AM: To switch FM or AM mode;
5. AUTOTUNE: Press it for scanning the exiting radio stations.
6. MEMORY: To save the tuned radio stations (together with number buttons on remote and PRESET buttons on front panel).
7. PRESET- : To choose the previous stored station; and to save the tuned station as a new preset number;
8. PRESET: To choose the next stored station; and to save the tuned station as a new preset number;
   9 ST/MONO: To switch the tuned FM station in stereo or mono mode;
9. RESET: Press it to clear all the stored stations.

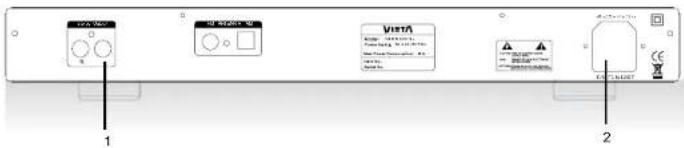

BACK PANEL AND CONNECTIONS

Connections

1 2

1. Stereo Output: Analogue stereo output. For connection to stereo amplifier or receiver with analogue input.
2. AC input: For connection of mains voltage. Make sure that the plug has been correctly inserted, and that the voltage corresponds to the text printed on the back panel of the cabinet.

Explanation of VFD display

This unit does not feature any OSD (On Screen Display). Instead it features a more descriptive VFD display that displays all the information required. Below you can see a picture of the display and an explanation of the various symbols.

FM02 87.50 KHz MHz Frequency KHZ is for AM frequency; MHz is for FM frequency; Preset number

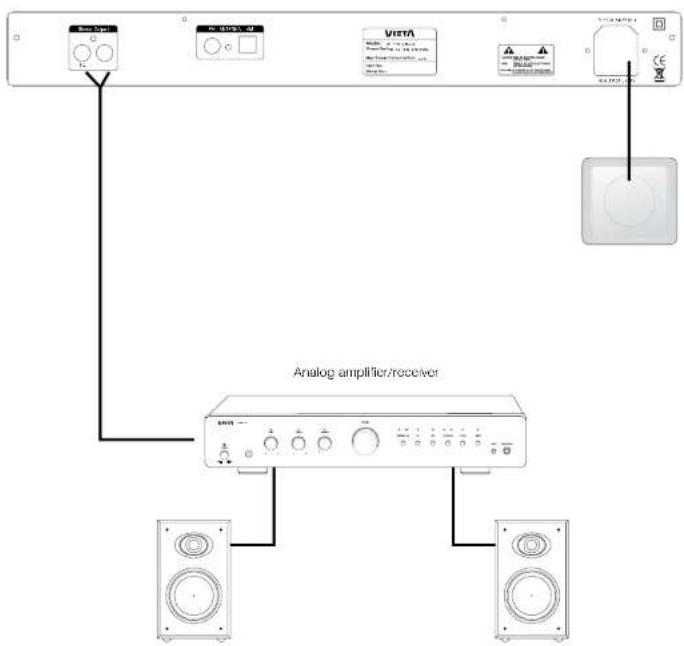

AUDIO CONNECTION WITH AMPLIFIER

Audio connection

This page only contains suggestions for connection of your VH-HT010. Note that the accessories in the pictures on this page are not included in the supply.

OPERATION AND FUNCTIONS

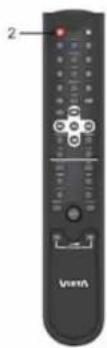

On, Off and standby

1 Turn on and off the unit by pressing the mains switch. 2 Press the Power (standby) button on the remote control to switch into standby mode and power on again. 3 If you wish to turn off the unit to avoid any power consumption, you must press the mains switch.

VISTA 1 3

1. Protect the environment and turn off the unit after use.

Adjusting the antenna

As it applies to all other radics, the sound quality depends on the signal strength of the antenna position and direction at the backpanel side. The position of the radio in relation to the transmitter thus directly influences the quality of the signal received. For an optimal result it is therefore very important that you make sure that the radio receives the best possible antenna signal.

RDS

This tuner features ROS on the FM receiver. To activate the Informations, you can press ROS button on the remote control, like Rado text, Station frequency, Station type, Time and Date. Note: If the ROS button is pressed and no ROS information displays, you need to check the strength of the signal and adjust the antenna position and direction; or the current station does not broadcast the information at all.

Adjusting the antenna Vista

OPERATION AND FUNCTIONS

FM/AM

As this tuner can receive both normal FM radio and AM, it features a function that can switch between the two reception types. To switch between FM and AM, you must either press the FM/AM button on the front panel or the FM/AM button on the remote control.

FW/AM switch

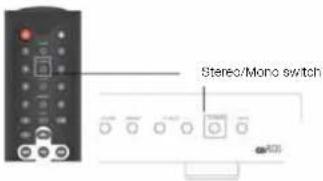

Stereo/Mono

In some areas not all stations can be received noise free, because it is not possible to get a strong enough antenna signal.

In this case there will be a lot of noise on some radio stations. It is possible to reduce the noise quite a bit by listening to the radio station in mono in stead of in stereo. This can make the radio station acceptable to listen to. Change to mono by pressing the ST/MO button on the remote or the ST/MONO button on the front panel. To change back to stereo again, simply press the button once again.

Note: there's only MONO in AM mode.

Stereo/Mono switch

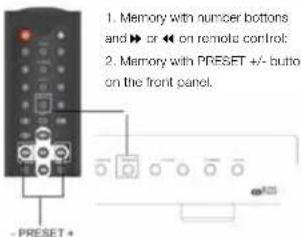

MEMORY and PRESET

1. When you have found the station and want to save a channel under one of the presets you must press the button on the remote control with the desired number 0,1-+10 on the remote control for 1 second.

Note:

-10 key could be pressed by 10+

e.g.10, press -10 button and 0 button;

eg. 15, press +10 one time and then 5 to save as preset 15i, eq. 25, by 2 times pressing +10 and then 5.

1. You can also save the tuned station by the buttons in the front panel, firstly to press PRESET or , then press MEMORY button.

1. Memory with number bottoms and ➕ or ← on remote control; 2. Memory with PRESET +/- button on the front panel. - PRESET +

AUTO (Autotune)

When the unit has been turned on, channels must be saved. This is done by means of the autotune function.

To use the autotune function through the front panel controls, press the AUTO button. All available channels on the current tumor band will be saved. You can also press the AUTO button on the remote control.

Autoture, auto scan the stations

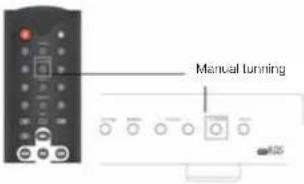

TUNING

When the unit is turned on for the first time, all settings will be default settings. The settings can be changed according to your preference. When the unit is turned off the next time, these settings will naturally be saved as the new default settings. This also applies if you unpug the unit.

If you want to manual tune a channel, you must press the ▶ or ◀ button on the remote control, or turn the tuning knob on the front panel.

For every push on the button, the frequency will change 0.05MHz on FM and 9 KHz on AM. To store the manually tuned channel, simply press the Memory button on the front panel or the Memo button on the remote. The channel will then be stored on the current preset.

Manual turning

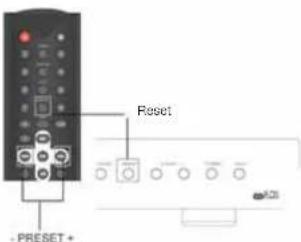

RESET

This tumor can be reset. This is used to delete channel stored in the unit.

Press the RESET button on the front panel to reset the unit.

Reset - PRESET +

TROUBLESHOOTING

PROBLEM	CAUSE/REMEDY
No power when the unit is turned on.	- In standby mode, you need to press TUNER button in remote control to re-activate the tuner.- Check that the plug has been correctly inserted into the socket.- The internal fuse has blown and must be replaced by a qualified service technician.- The power cord has been damaged and must be replaced.
No sound.	- The unit has not been turned on.- Incorrect connection to the amplifier.- No loudspeakers have been connected to the amplifier.- The tuner has not found any stations.
The display does not show ROS information.	- The tuner has not found any stations.- The selected station does not broadcast any information.- The antenna signal is too poor. See the section on adjusting the antenna.

TECHNICAL DATA

TECHNICAL DATA
RF section:
Tuner bands FM 87.5-108.0 MHz
AM 520-1710 KHz
Sensitivity FM 12 dBu @SN=20 dB
AM 55 dBu @SN=30 dB
Display: 1 line of 9 characters
	VFD
Presets 40
Audio outputs Stereo 2.5 Vpp
Voltage 220-240 V
Power consumption 20 W
Dimensions (H x W x D): 50 x 430 x 290 mm
Weight 2.60 kg

We reserve the right to change the technical data and the design of the product without notice as a result of further development.
