USER MANUAL N236004WH Tripp Lite

Pre-Configured Cat6 Surface-Mount Box

Models: N236-004-WH, N236-006-WH

Note: N236-006-WH model shown in the installation diagrams. Installation for the N236-004-WH model is the same.

Español 5 • Français 9 • Русский 13

Package Contents

• N236-004-WH or N236-006-WH Cat6 Surface-Mount Box
- Double-Sided Tape (x2)
- Cable Ties
o N236-004-WH (x4)
o N236-006-WH (x6)
- Screws (x2)

Installation

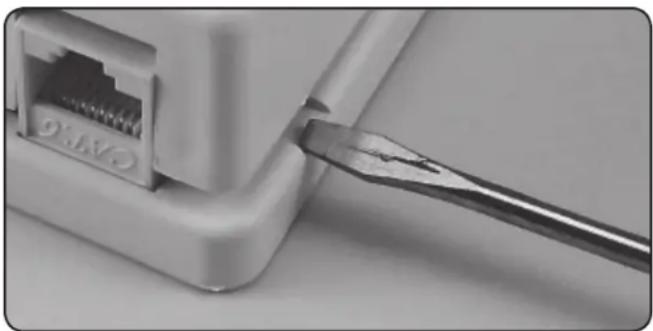

1 Use a flathead screwdriver to carefully pry apart the unit's housing.

Close-up of a white RJ4 network adapter with a metal screwdriver inserted, showing the cable being inserted (no text or symbols visible)

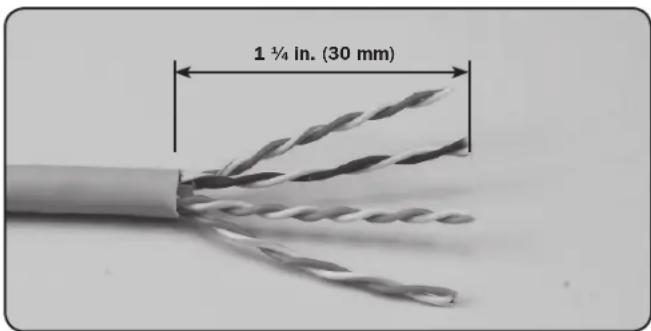

2 Strip the Cat6 cable's PVC jacket 1 14 inches (30 mm). Separate the cable wires into four pairs.

1 ¼ in. (30 mm)

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Installation

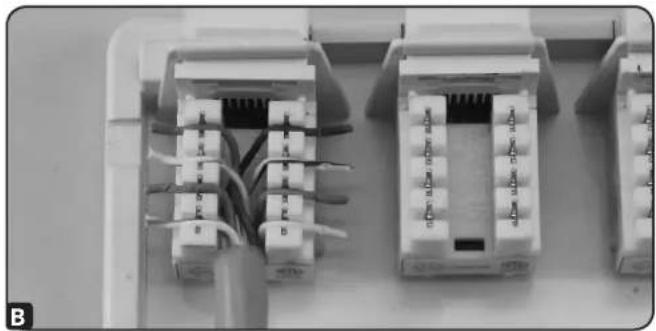

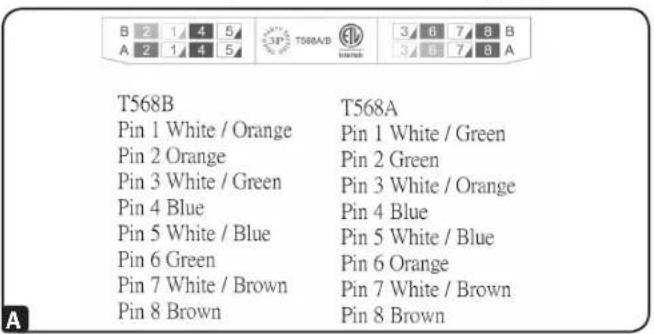

3 Follow the instructions on the color code sticker to position T568B or T568A wiring A. Insert the four wire pairs into the slots accordingly B.

B 2 1 4 5 A 2 1 4 5 T568A 3/6 7 8 B 3/6 7 8 A T568B Pin 1 White / Orange Pin 2 Orange Pin 3 White / Green Pin 4 Blue Pin 5 White / Blue Pin 6 Green Pin 7 White / Brown Pin 8 Brown T568A Pin 1 White / Green Pin 2 Green Pin 3 White / Orange Pin 4 Blue Pin 5 White / Blue Pin 6 Orange Pin 7 White / Brown Pin 8 Brown

Close-up of electrical connectors with visible wiring and terminal blocks (no text or symbols)

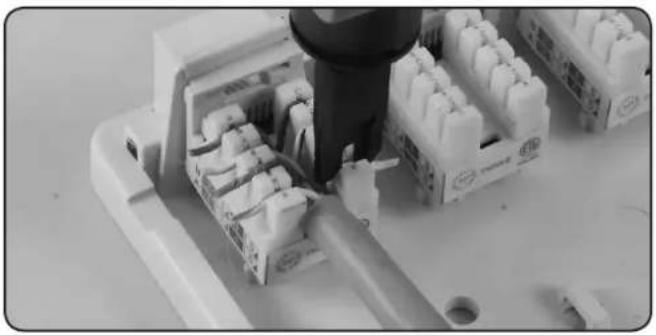

4 Use a punch-down tool (such as Tripp Lite model N046-000) to complete the terminations and cut off any excess wire.

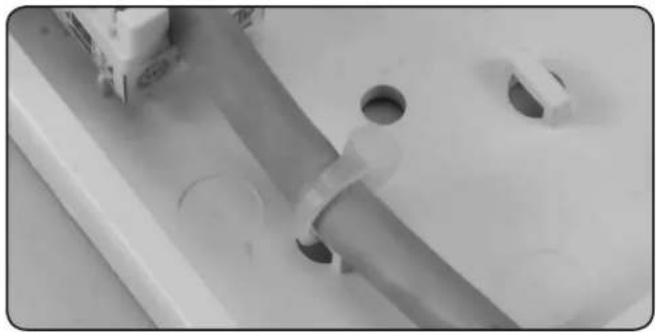

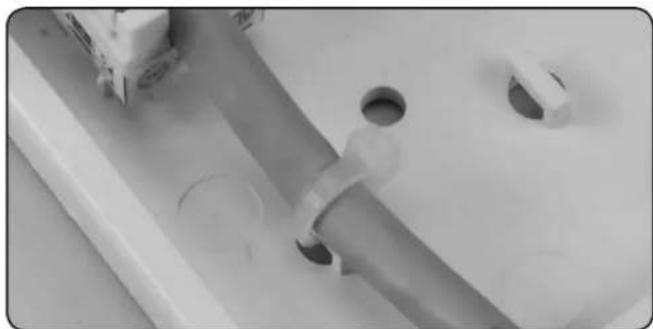

5 Use the included cable ties to secure the Cat6 cables to the unit's housing.

Close-up of a mechanical assembly with plastic connectors and a tool inserted (no visible text or symbols)

Close-up of a mechanical component with circular holes and a central shaft (no visible text or symbols)

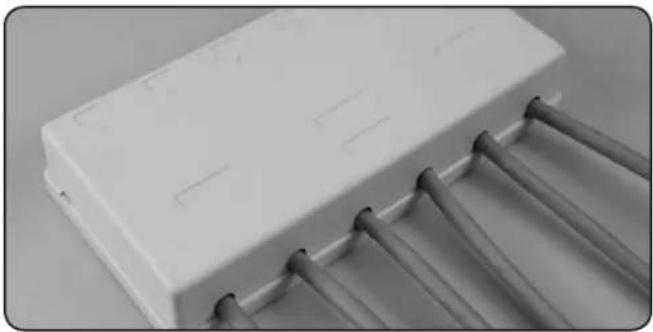

6 Once all cables are secured to the unit's housing, reattach the unit's top cover.

Close-up of a white electronic component with metallic pins, no visible text or symbols

Warranty & Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products including batteries to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. After 90 days from the date of purchase, TRIPP LITE's obligation under this warranty is limited to replacing parts on such defective products. To obtain service under this warranty, you must call TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. This warranty applies only to the original purchaser who must have properly registered the product within 10 days of purchase.

The warranties of all TRIPP LITE surge suppressors are null and void if they have been connected to the output of any UPS system. The warranties of all TRIPP LITE UPS Systems are null and void if a surge suppressor has been connected to its output receptacles.

EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
