USER MANUAL N236006WH Tripp Lite

Pre-Configured Cat6 Surface-Mount Box

Models: N236-004-WH, N236-006-WH

Note: N236-006-WH model shown in the installation diagrams. Installation for the N236-004-WH model is the same.

Espanol 5 • Français 9 • Pycckn 13

Package Contents

N236-004-WH or N236-006-WH Cat6 Surface-Mount Box
Double-Sided Tape (x2)
Cable Ties o N236-004-WH (x4) o N236-006-WH (x6)
- Screws (x2)

Installation

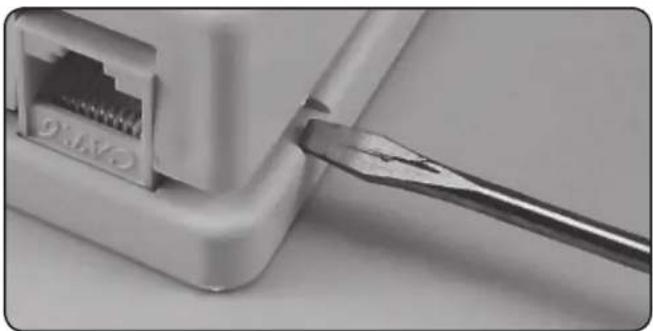

Use a flathead screwdriver to carefully pry apart the unit's housing.

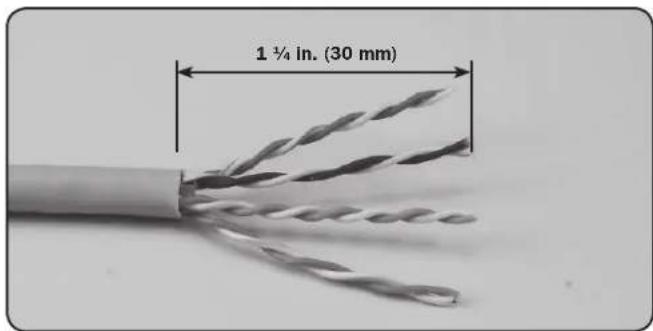

Strip the Cat6 cable's PVC jacket 114 inches (30 mm). Separate the cable wires into four pairs.

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

Manufacturing Excellence

1111 W. 35th Street, Chicago, IL 60609 USA · www.triplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Installation

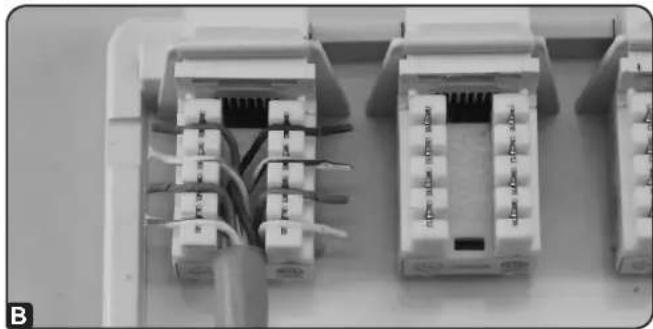

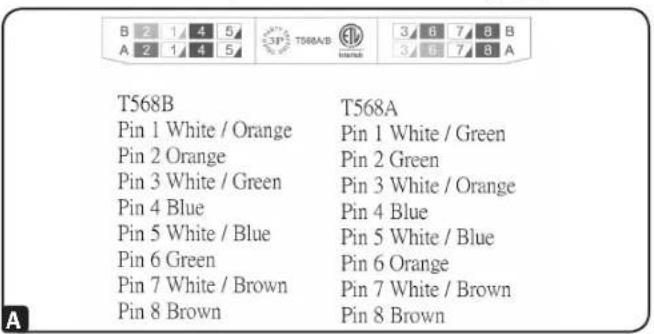

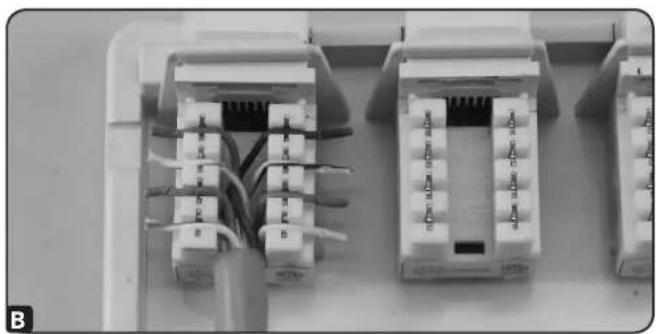

3 Follow the instructions on the color code sticker to position T568B or T568A wiring A. Insert the four wire pairs into the slots accordingly B.

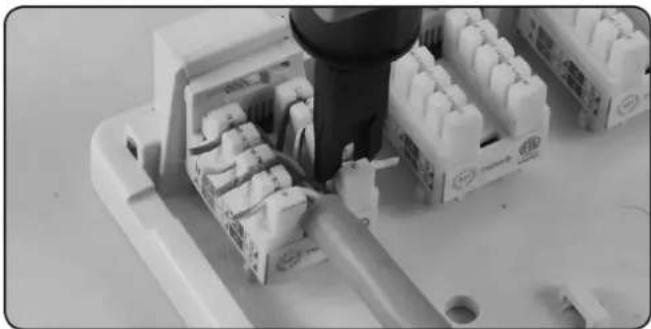

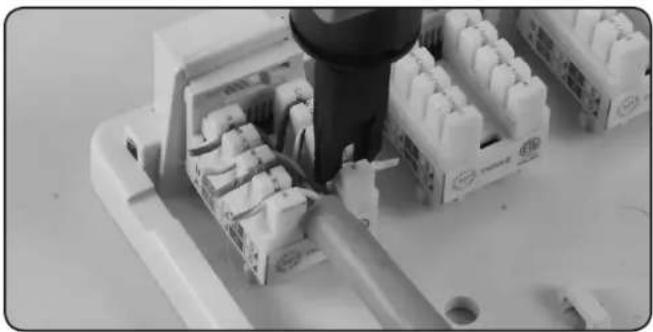

Use a punch-down tool (such as Tripp Lite model N046-000) to complete the terminations and cut off any excess wire.

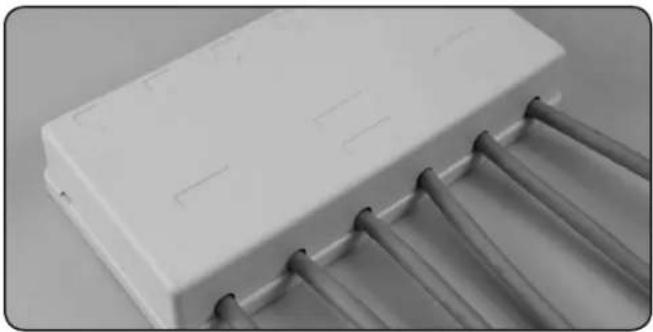

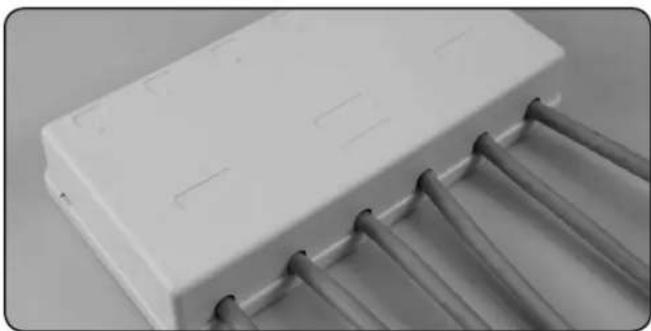

6 Once all cables are secured to the unit's housing, reattach the unit's top cover.

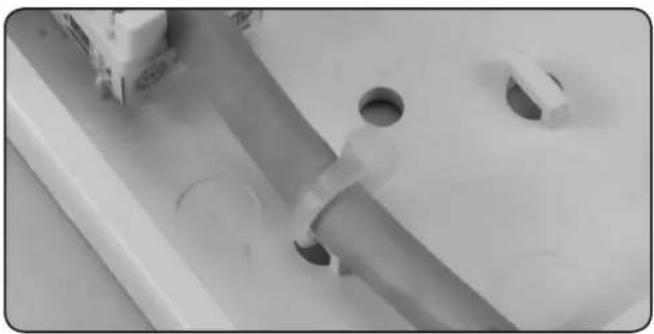

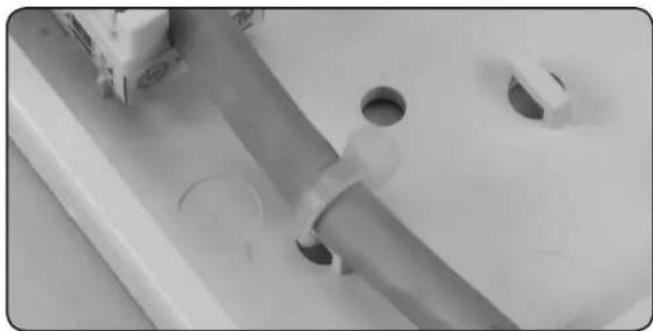

Use the included cable ties to secure the Cat6 cables to the unit's housing.

Warranty & Product Registration

3-Year Limited Warranty

TRIPP LITE warrants its products including batteries to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. After 90 days from the date of purchase, TRIPP LITE's obligation under this warranty is limited to replacing parts on such defective products. To obtain service under this warranty, you must call TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. This warranty applies only to the original purchaser who must have properly registered the product within 10 days of purchase.
