TLSG5412F - Network switch TP-LINK - Free user manual and instructions

Product Type	Network Switch
Brand	TP-Link
Model	TLSG5412F
Category	Network Switch
Ethernet Ports	12 RJ45 10/100/1000 Mbps ports
SFP Slots	4 SFP slots
Console Port	Yes (one console port)
Switch Type	Managed / Smart
Installation	Desktop or rack mount
Included Accessories	Rubber feet, mounting brackets, power cord, console cable
Power Supply	Mains (power cord included)
Management Interface	Web (http://192.168.0.1), CLI, utility
Default IP Address	192.168.0.1
Default Username	admin
Default Password	admin
Safety	Do not disassemble, do not use near water
Warranty	TP-Link Limited (see packaging for duration)
Maintenance and Cleaning	Clean with a dry, soft cloth
Spare parts and repairability	Not user repairable, contact support
Manual Languages	FR, DA, DE, EL, EN, ES, FI, IT, NL, PT, SV, TR

Frequently Asked Questions - TLSG5412F TP-LINK

How to configure the switch for the first time?

Connect your computer to the switch, set a static IP address in the same subnet (192.168.0.x). Open a browser and enter http://192.168.0.1. Use admin as username and password. You can then configure the switch via the web interface.

What is the default IP address of the switch?

The default IP address is 192.168.0.1.

How to reset the switch to factory settings?

Press and hold the Reset button (located on the front or back panel) for about 5 seconds until the LEDs flash. The switch will restart with factory settings.

Can I install the switch on a desktop?

Yes, place the switch on a flat, stable surface. Remove the protective covers from the included rubber feet and attach them to the four corners of the device to ensure stability.

How to mount the switch in a rack?

Attach the included mounting brackets on each side of the switch using the screws. Use appropriate bolts (not included) to secure the brackets to the rack. Ensure the rack is stable and grounded.

What types of cables to use for the SFP ports?

The SFP slots accept compatible SFP modules (fiber optic or copper). Insert the module into the port until it clicks. Use the appropriate cables for the module (fiber optic or RJ45 cable).

What to do if the switch does not power on?

Check that the power cord is properly connected to the switch and to a working power outlet. Ensure the power switch (if present) is in the on position. If the problem persists, contact TP-Link support.

Is the switch manageable?

Yes, the switch is manageable. You can configure it via the web interface, command line (CLI), or a dedicated utility (depending on the model). Refer to the user guide for more details.

What is the warranty period?

The TP-Link limited warranty duration is indicated on the product packaging. It is typically 2 to 5 years depending on the region. Check the packaging or the TP-Link website for the exact duration.

How to clean the switch?

Use a dry, soft cloth to wipe the exterior of the switch. Do not use chemicals, solvents, or damp cloths. Unplug the switch before cleaning.

USER MANUAL TLSG5412F TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch. 01
English. 06
Espanol. 11
Elambdaviká. 16
François. 21
Italiano 26
Portugues. 31
Suomi 36
Nederlands. 41
Svenska. 46
Norsk. 51
Dansk 56
Türkge. 61

Installation

- Tischmontage

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

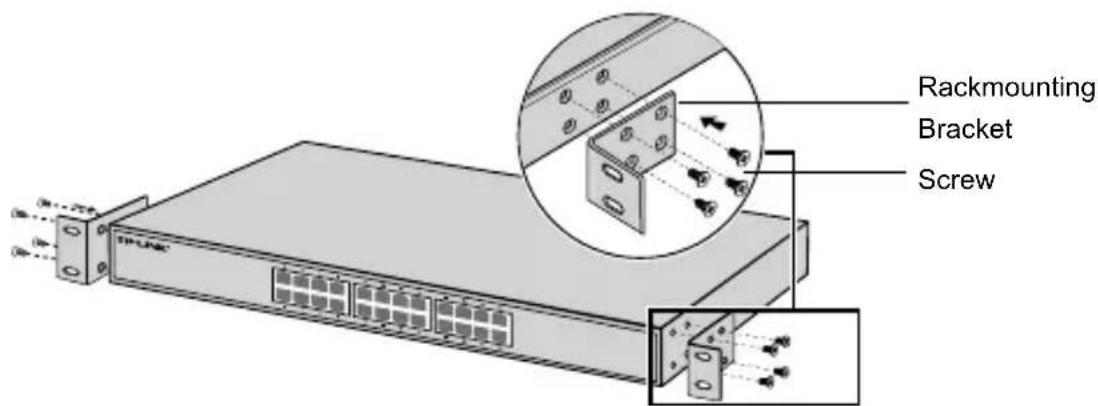

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

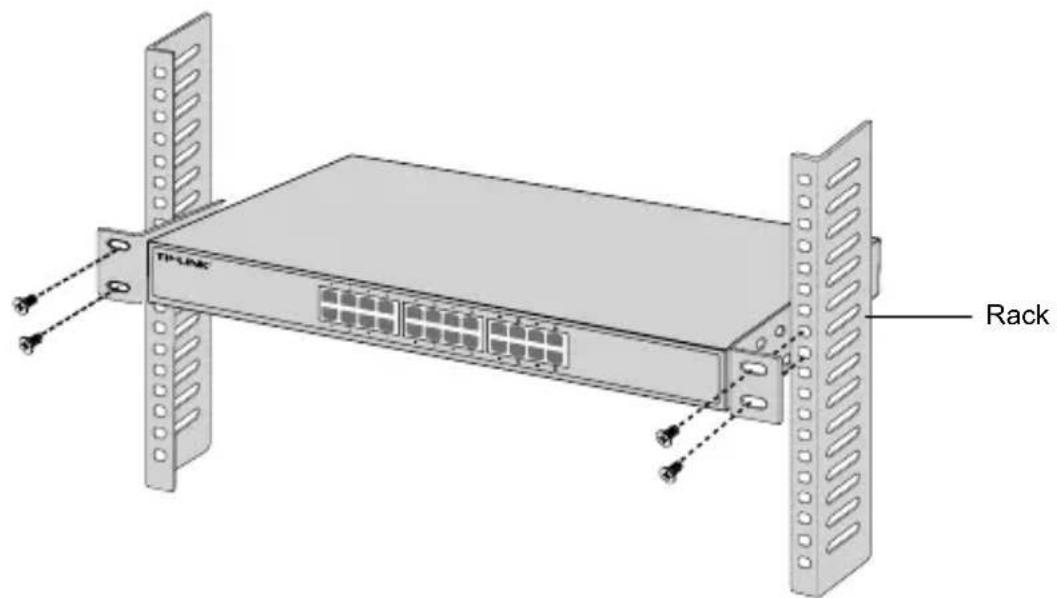

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

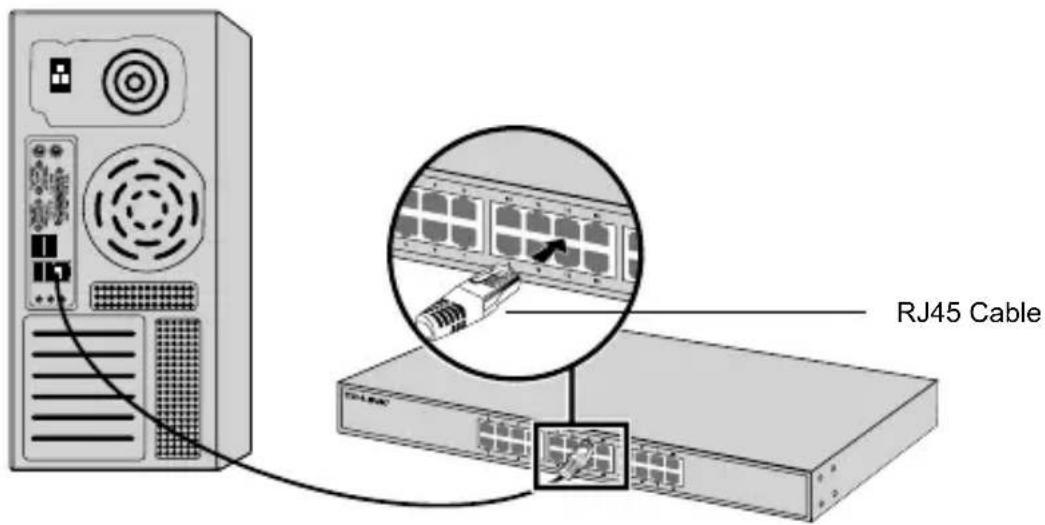

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

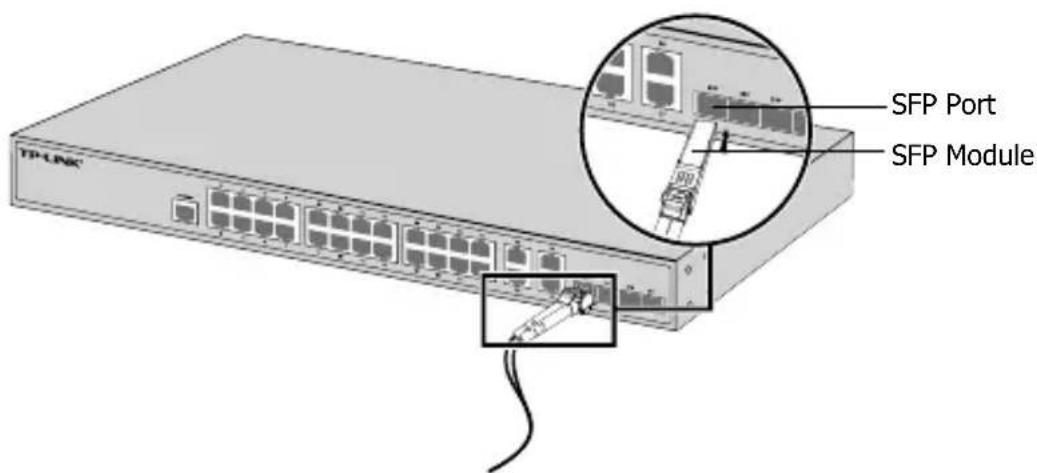

- SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

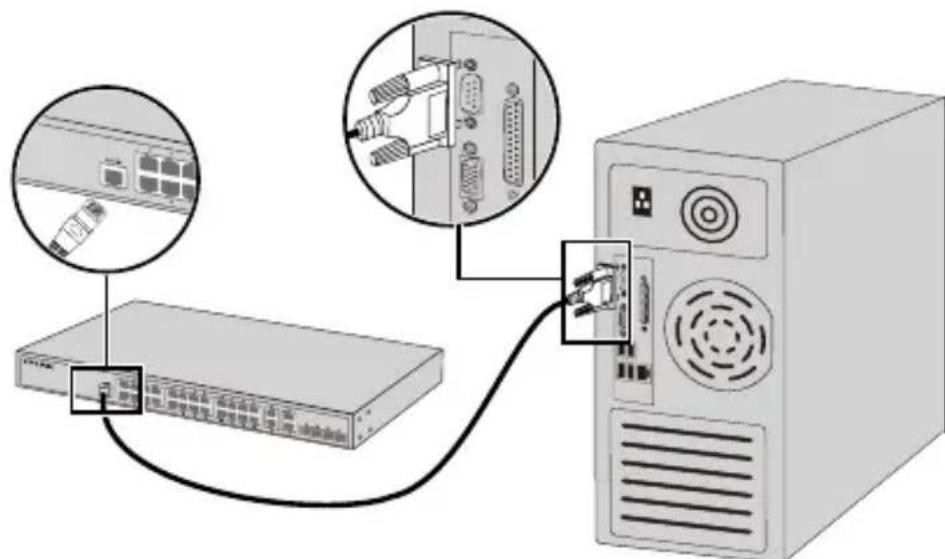

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

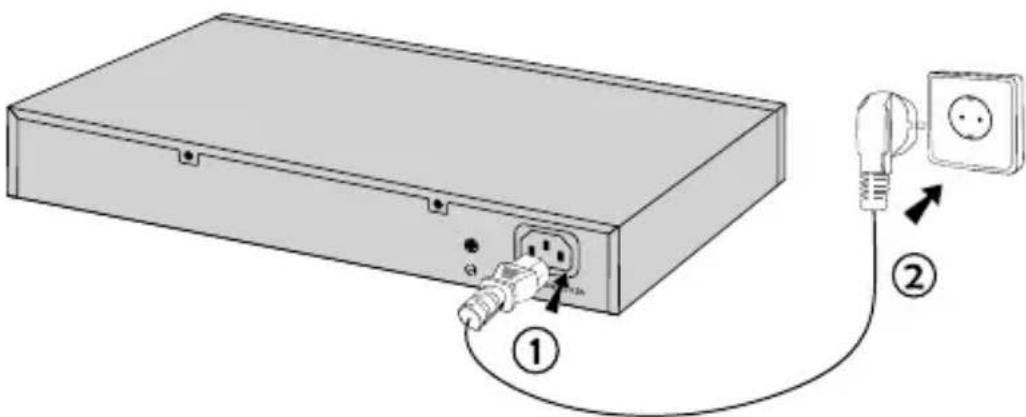

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

• TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
