GB / IE Operation and Safety Notes Page 21

EXPLOSIONSGEFAHR! Laden

Description of parts and features...... Page 22

Technical data......Page 23

Included items ...... Page 24

General safety instructions...... Page 24

Safety instructions for batteries...... Page 25

Before initial use...... Page 27

Setting up the device ...... Page 28

Operation......Page 28

Modes of the device...... Page 28

Clock mode Page 28

Timer mode......Page 29

Memory function ...... Page 31

Memory function of individual timers...... Page 31

Memory function for all timers ...... Page 31

Changing the batteries ...... Page 32

Troubleshooting Page 32

Cleaning and care Page 33

Disposal Page 33

Warranty Page 34

Kitchen Timer

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The digital timer is suitable for the acoustic display of simultaneous running of various time periods. In addition, it has a time display as well as a stopwatch. The device is suitable for indoor use at normal room temperature.

• Description of parts and features

1 Display
2 H key
3 M (12/24HR) key

4	S key
5	CLOCK (TIMER) key
6	START/ STOP (MEMORY) key
7	CLEAR key
8	T3 key
9	T2 key
10	T1 key
11	Stand
12	RESET hole
13	Magnet
14	Battery compartment cover
15	Time
16	Hundredths of a Second
17	Stopwatch
18	Timer 1
19	Timer 2
20	Timer 3

- Technical data

Operating voltage: 3 V (direct-current)

Battery type: 2 x 1.5 V, button cells, type LR44

Countdown area: 99 h: 59 M: 59 s - 1 s

Count up area: 1 s - 99 h: 59 M: 59 s

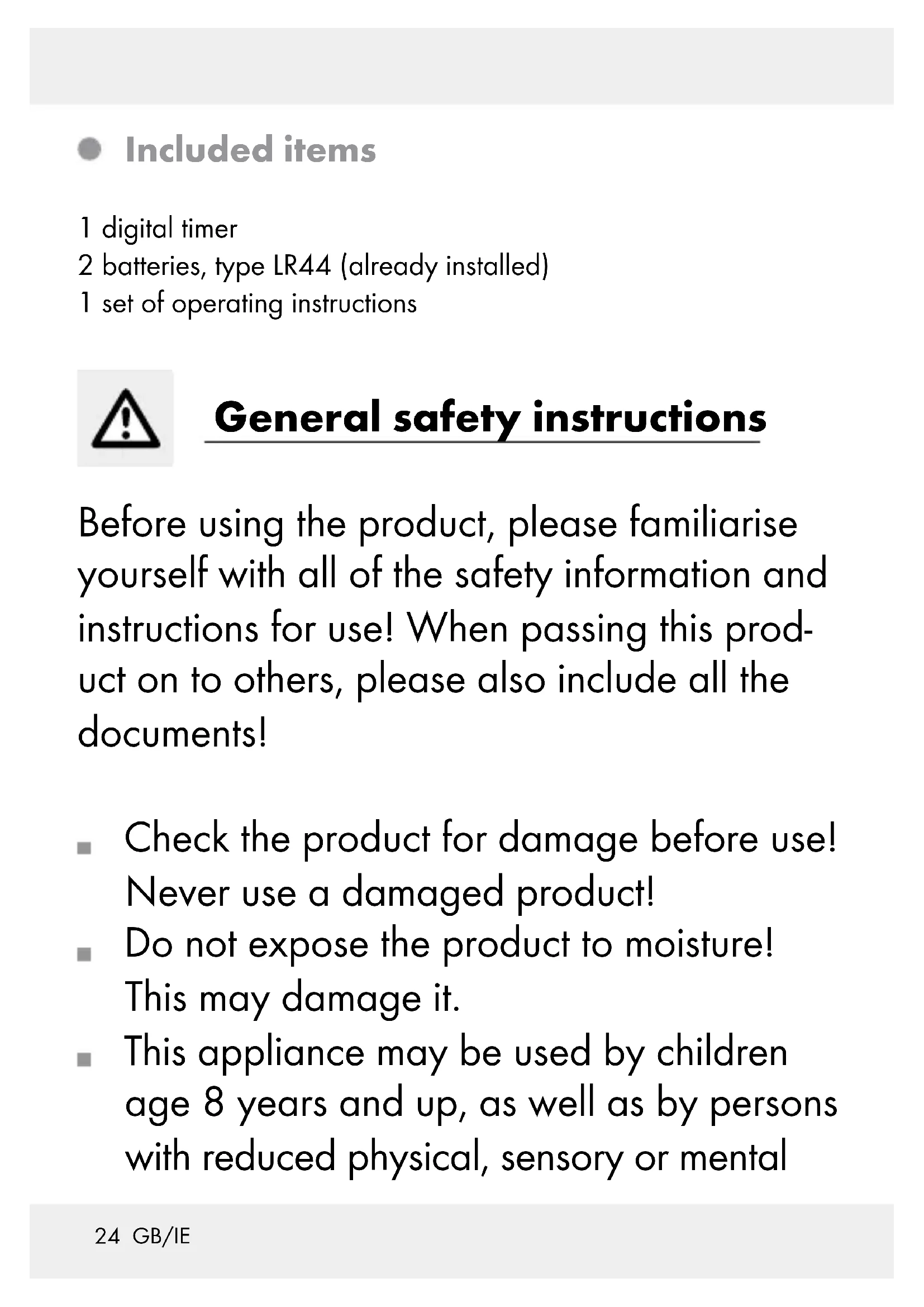

Included items

1 digital timer
2 batteries, type LR44 (already installed)
1 set of operating instructions

General safety instructions

Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!

• Check the product for damage before use! Never use a damaged product!
• Do not expose the product to moisture! This may damage it.
  This appliance may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental

capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks.

Children should not be allowed to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.

- Safety instructions for batteries

WARNING!

DANGER TO LIFE!

Batteries are not intended for children. If accidentally swallowed seek immediate medical attention!

EXPLOSIONHAZARD! Never

recharge non-rechargeable batteries, short-circuit and / or open batteries!

■ Never throw batteries into fire or water!

- Do not exert mechanical loads to batteries!

Risk of battery leakage

In the event of a battery leak, immediately remove it from the device to prevent damage!
- Avoid contact with the skin, eyes and mucous membranes! In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention!
- Only use the same type of batteries! Do not mix used and new batteries!
- Avoid extreme conditions and temperatures which may impact batteries, e.g. on radiators!
■ Remove the batteries from the device if they have not been used for a long period!

Risk of equipment damage

■ Only use the specified battery type!
- When inserting the battery ensure the correct polarity! This is shown on the battery compartment!
If necessary, clean the battery and device contacts before inserting the battery!
■ Promptly remove drained batteries from the product!

- Before initial use

Before initial use, remove the protective film from the device display 1.
An insulating strip protrudes from beneath the battery compartment lid 14.
Open the battery compartment cover by pushing it downwards. Remove the insulation strip.
☐ Close the battery compartment cover again.

Your digital timer is now ready for operation.

- Setting up the device

You can set up the device on horizontal, flat surfaces, by folding the stand 11 downwards (see Fig. B). Alternatively, you can use the magnet 13 to fasten the device to magnetic surfaces.

Operation

- Modes of the device

The digital time has two modes, which are displayed at the top of the display 1.

☐ Press the CLOCK (TIMER) key 5 to switch back and forth between the Clock and Timer modes.

Clock mode

In Clock mode, the time is shown in the top field of the display 1. The bottom two fields show the stopwatch time (Fig. C).

Setting the time

☐ In Clock mode, press and hold down the CLOCK (TIMER) key 5 for 3 Seconds. The top field of the display 1 flashes.

☐ Press the S key 4, the M (12 / 24 HR) key 3 or the H key 2 to change the displayed values for Seconds (S), Minutes (M) or hours (H) in steps.

TIP: Press and hold the key to make the numbers change more quickly.

☐ Press the CLOCK (TIMER) key briefly, in order to confirm the set time. The time does not flash.
☐ Press M (12/24 HR) key 3 to switch 12 or 24 HR mode.

Activating the stopwatch

☐ In Clock mode, press the START / STOP (MEMORY) key 6. The stopwatch begins in the bottom Section of the display 1 and shows the expired Seconds, Minutes and hours. The hundredths of a Second are counted in the middle Section of the display.
☐ Press the START / STOP (MEMORY) key to halt the stopwatch or to reactivate counting.
☐ When you have halted the stopwatch, you can reset it to 0 by pressing the CLEAR key 7.

Timer mode

In Timer mode, 3 time fields appear. A timer is provided in each of the three fields (Fig. D).

Setting the desired time

☐ Press and hold the T1 key 10 for 3 Seconds. The field next to the key flashes, thus signalling that a time can be set.
☐ Press the S key 4, the M (12/24HR) key 3 or the H key 2 to change the displayed values for Seconds (S), Minutes (M) or hours (H) in steps.

TIP: Press and hold the key to make the numbers change more quickly.

☐ Press the T1 key briefly to confirm your setting. The display of Timer 1 stops flashing and shows the set time.

Set the timers next to the T2 9 and / or T3 keys 8 in the same way.

Activating set timers

The timer is in Timer mode and the selected timer displays the selected time.

☐ Press the T1 key 10 again to activate the topmost timer. The counter now begins counting down to 0. When the set time has elapsed, a signal tone will sound for the period of one Minute. The timer display flashes, the message „TIME’S UP” flashes in the top left-hand corner above the timer and the timer begins counting up.

Press the T1 key or the START / STOP (MEMORY) key 6 to stop the timer's counting operation and the acoustic signal.

☐ Press the CLEAR key 7 to reset the counter to 0.

Set the timers next to the T2 9 and / or T3 keys 8 in the same way.

Interrupting the sequence of a timer

☐ Press the key next to the appropriate timer (T1, T2 or T3 key) to stop the time sequence of the appropriate counter at any time, and also to reactivate it.

● Memory function

• Memory function of individual timers

Each timer saves the most recently selected time. Pressing the T1, T2 or T3 key 10, 9 or 8 in Timer mode opens the most recently selected time for the appropriate timer in the display 1.

☐ Press the appropriate T1, T2 or T3 key again to activate the timer belonging to this key.
☐ Press the appropriate T1, T2 or T3 key to stop the acoustic signal.

• Memory function for all timers

☐ Press the START / STOP (MEMORY) key 6 to open the most recently selected times for all three timers.

☐ Press the START / STOP (MEMORY) key again to start all 3 times simultaneously. The acoustic signal can now be interrupted using the appropriate T key (T1, T2, T3) or the START / STOP (MEMORY) key.
☐ After all 3 times have elapsed, press the CLEAR key 7 to reset the countdowns 1 to 3 to 0, one after another.

● Changing the batteries

Note: If the legibility of the display 1 decreases due to diminishing contrast, then the inserted batteries are discharged and must be replaced.

Open the battery compartment cover 14 on the rear side of the device by pushing it downwards.
☐ Remove the old batteries. Use a thin, pointed object to lever the batteries out of the battery compartment.

Note: Make sure you insert the batteries the right way round (polarity). This is shown above the battery compartment.

☐ Close the battery compartment cover again, so that it engages audibly.

- Troubleshooting

The device contains delicate electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment

in the immediate vicinity. If the display 1 indicates a problem, move such objects away from it.

Electrostatic discharges can lead to malfunctions. In such cases, insert a thin, pointed object (e.g. the wire of a paperclip) into the RESET hole 12 and push it in gently. The device will briefly activate all the displays and will reset itself.

- Cleaning and care

☐ The device should only be cleaned on the outside with a soft dry cloth.

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipal authorities for details on how to dispose of your worn-out product.

In the interest of the environment, do not throw out your product with your household refuse. Take it to a suitable centre where it can be disposed of properly. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and/or the device via the recycling facilities provided.

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the

heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
