RE210 - Wifi repeater TP-LINK - Free user manual and instructions

Product type	WiFi Range Extender
Brand	TP-Link
Model	RE210
Dimensions (approx.)	110 x 65 x 48 mm
Weight (approx.)	0.2 kg
Power supply	100-240 V~, 50/60 Hz, 0.3 A
WiFi standard	IEEE 802.11 b/g/n
Max wireless data rate	300 Mbps
Ethernet port	1 x 10/100 Mbps (RJ45)
Buttons	Reset, WPS (depending on version)
LED indicators	Power, WLAN, Ethernet, WPS
Main functions	WiFi network extension, access point mode, wired repeater (WiFi client)
Configuration	Tether app (iOS/Android) or web browser (http://tplinkrepeater.net)
Wireless security	WEP, WPA/WPA2-PSK
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% (non-condensing)
Care and cleaning	Unplug before cleaning; use a dry cloth; avoid moisture
Safety	Do not expose to water or fire; do not disassemble; use an easily accessible outlet
Warranty	3 years (limited)
Spare parts and repairability	No user-serviceable parts; for repair, contact customer service

Frequently Asked Questions - RE210 TP-LINK

How to set up the TP-Link RE210 range extender?

Plug the extender into an outlet halfway between your router and the area to cover. Connect your computer to the extender's WiFi network (e.g., TP-Link_Extender). Open a browser and go to http://tplinkrepeater.net or use the TP-Link Tether app. Create an administrator password, then follow the instructions to select your WiFi network and enter the password.

What to do if I cannot access the configuration page?

Make sure your computer is connected to the extender's WiFi network. Check that your computer obtains an IP address automatically (DHCP). Try the alternative IP address http://192.168.0.254. If the problem persists, reset the extender by holding the Reset button until the LEDs briefly turn off.

How to reset the extender to factory settings?

With the device powered on, press and hold the RESET button (usually on the side or back) for about 5 seconds until all LEDs briefly turn off. Release the button. The extender will reboot with default settings.

The extender cannot connect to the router, what to do?

Check that the router is on and emitting a WiFi signal. Place the extender closer to the router (in the same room) for testing. Make sure you enter the correct WiFi password. If the extender's WiFi LED is solid, the connection is established. Otherwise, reset the extender and restart the configuration.

Can I use the Ethernet port to connect a wired device?

Yes, the RE210 extender has an Ethernet port. You can connect a non-WiFi device (TV, console, computer) via a network cable. The extender will then act as a WiFi client and provide a wired connection to the device.

How to optimize the extender's position for better signal?

Place the extender halfway between your router and the dead zone. Avoid metallic or thick obstacles (walls, furniture). The signal LED (often a bar) indicates quality: green = good, orange = medium, red = poor. Adjust the position until you get a green LED.

The extender's LEDs are blinking, what do they mean?

The LEDs indicate status: WiFi blinking = network activity; Ethernet blinking = data transfer; WPS blinking = pairing attempt; Power blinking = issue (contact support). Refer to the manual for exact details.

How to update the extender's firmware?

Log in to the configuration page (http://tplinkrepeater.net). Go to System Tools > Firmware Update. Click 'Check for updates'. If a new version is available, follow the instructions to download and install. Do not power off during the update.

Is it normal for the extender to heat up?

It is normal for the extender to warm up slightly during continuous operation. However, if it becomes very hot to the touch, ensure it is well ventilated (do not cover it) and not in direct sunlight. If the temperature is excessive, unplug it and contact TP-Link support.

What to do if I forgot the administrator password?

You must reset the extender to factory settings (hold the Reset button for 5 seconds). After reset, use the default credentials (admin/admin) or create a new password during setup. Write down the password this time.

USER MANUAL RE210 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL
16-18 avenue Morane Saulnier
78140 Velizy-Villacoublay France

TP-Link Hellas Ltd.
Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. 口 link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch- 1
English 4
Espanol -7
Eλληνικα- 10
Francais- 13
Italiano 16
Portugues 19
Suomi 22
Nederlands 25
Svenska- 28
Norsk- 31
Dansk 34

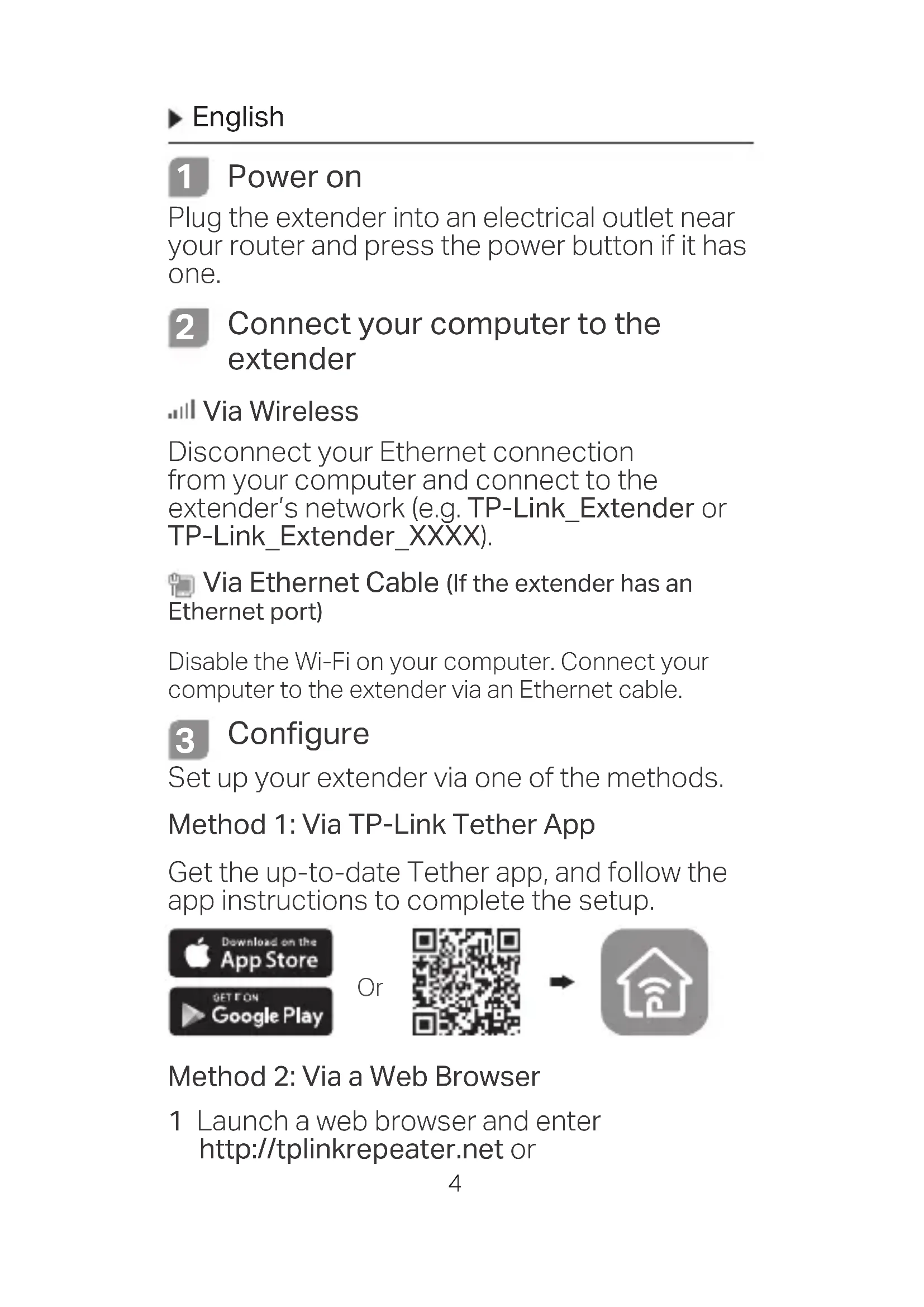

1 Einsatzen

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

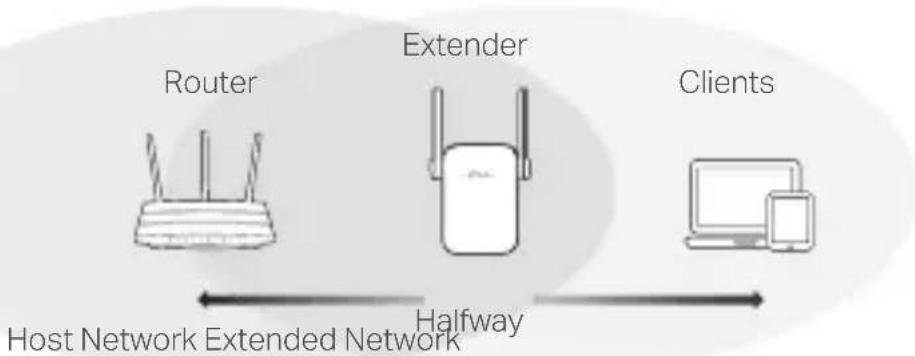

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

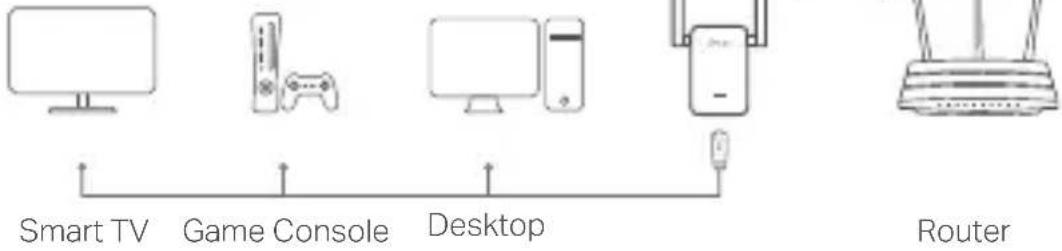

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.

• Do not use the device where wireless devices are not allowed.

• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol
