Product Type	Counterfeit Bill Detector
Brand	Royal Sovereign
Model	RCD-1000
Detection Technology	Ultraviolet (UV) Rays
UV Bulb	5 W
Power Supply Voltage	110 V / 60 Hz (US, CA) or 220-240 V / 50 Hz (EU)
Power Consumption	20 W
Dimensions (L x W x H)	268 x 116 x 107 mm
Weight	Approximately 500 g
Operating Temperature	0 to 40 °C
Operating Humidity	40 to 90 %
Box Contents	Counterfeit Bill Detector, user manual
Main Features	UV counterfeit detection, lightweight and compact
Recommended Use	Banknotes, official documents (credit cards, driver's licenses, traveler's checks, passports, green cards)
Operating Instructions	Turn the switch to "I", place the bill under the UV bulb, observe fluorescence.
Care and Cleaning	Clean regularly with alcohol and a dry cloth for the bulb. Unplug before cleaning.
Safety	Do not expose eyes directly to UV rays for extended periods.
Troubleshooting	If bulb does not work, replace with a 5 W UV bulb.
Spare Parts	UV Bulb 5 W
Warranty	3 years, limited, for original purchaser
Repairability	Repairs possible through manufacturer after obtaining a return authorization number
Manufacturer	Royal Sovereign International, Inc., 2 Volvo Drive, Rockleigh, NJ 07647, USA

Frequently Asked Questions - RCD1000 Royal Sovereign

How to use the RCD1000 counterfeit bill detector?

Place the switch to the "I" position to turn on the device. Place the bill or document under the UV bulb. If the bill glows, it contains fluorescent fibers or ink, indicating possible counterfeiting. Do not use the device in direct sunlight.

What if the UV bulb does not light up?

Make sure the switch is set to "I". If the bulb remains off, replace it with a 5 W UV bulb of the same type.

How to clean the RCD1000 detector?

Unplug the device. Clean the surface with a cloth dampened with alcohol. For the bulb, use a dry cloth to remove dust. Avoid abrasive products.

What is the warranty of the Royal Sovereign RCD1000?

The product has a limited three-year warranty for the original purchaser, covering defects in materials and workmanship. It excludes bulbs and cosmetic parts.

What types of documents can I detect with this detector?

The device detects counterfeits on banknotes, credit cards, driver's licenses, traveler's checks, passports, green cards and other official documents with fluorescent markings.

What is the power of the UV bulb?

The UV bulb has a power of 5 W. For replacement, use exactly the same type.

How to replace the UV bulb of the RCD1000?

Ensure the device is unplugged. Remove the old bulb and insert a new 5 W UV bulb. Follow the instructions in the manual.

Is the detector easy to transport?

Yes, it is lightweight and compact (268 x 116 x 107 mm, approximately 500 g), making it easy to move or store.

What power supply voltage should I use?

The model operates on 110 V / 60 Hz for the United States and Canada, or 220-240 V / 50 Hz for Europe. Check the label on your device.

Where can I buy spare parts for the RCD1000?

You can order parts, including the 5 W UV bulb, from Royal Sovereign via www.royalfullfillmentcorp.com or contact customer service.

USER MANUAL RCD1000 Royal Sovereign

Please read and retain these instructions.

To register your product, please go to www.royalsovereign.com USA. Click the Customer Support Tab, then the Registration Tab.

www.royalsovereign.com

Royal Sovereign International, Inc.

SAFETY INSTRUCTIONS

Warning

Do not expose your eyes directly to ultraviolet light source (bulb) for extended periods of time.

BOX CONTENTS

Counterfeit Detector

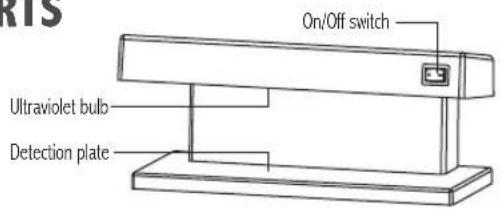

PARTS

FEATURES

Ultraviolet Counterfeit Detection

Ultraviolet light can detect if paper currency and other official documents (including credit cards, driver's licenses, travelers checks, passports, and green cards) are authentic or counterfeit. The ultraviolet light allows you to see fluorescent strips, dots, or other markings used on authentic bills and documents. The special fibrous paper that currency is made from is not fluorescent, where as a counterfeit bill printed on bleached or white paper will reflect ultraviolet light, causing the bill to glow.

Compact, Portable Design

This unit is lightweight and compact, easily moved from place to place.

OPERATION

1. Turn the power on by flipping the switch from "0" to "1" position.
2. Place the bill or document under the UV lamp on the detection plate. If the bill has fluorescent ink or fibers, the bill will glow.

Note: Avoid using the counterfeit detector under strong sunlight, as it will affect the ultraviolet light.

TROUBLESHOOTING

Symptom Solution
Switch is powered on but bulb is not working. Replace with new 5W Ultraviolet bulb.

MAINTENANCE

1. Use alcohol to clean the counterfeit detector regularly, and clean the dust on the ultraviolet tube with a dry towel to maintain ultraviolet light quality.
2. Be certain to switch power off when finishing detection to ensure long bulb life.
3. Disconnect power cord for cleaning or maintenance if the unit will not be used for a long time.

SPECIFICATIONS

Model RCD-1000
Ambient Temperature 0~40°C
Ambient Humidity 40~90%
Power Voltage 110V/60Hz (US, CA) or 220~240V/50Hz (EU)
Power Consumption 20W
Unit Size 268 x 116 x 107 (mm)/10.6 x 4.6 x 4.2 (in)

LIMITED THREE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for three years from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. This warranty excludes both parts and labor for bulbs and cosmetic parts (cabinet). Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfullfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

www.royalsovereign.com

www.royalsovereign.com

Royal Sovereign International, Inc.

www.royalsovereign.com

Royal Sovereign International, Inc.
