Product Type	Currency Detector
Model	RCD-2120
Brand	Royal Sovereign
Detection Methods	UV (Ultraviolet), MG (Magnetic), IR (Infrared)
Display	LED indicators for detection results
Currency Support	Multiple world currencies (USD, EUR, GBP, JPY, etc.)
Dimensions (approx.)	7.5 x 5.0 x 3.0 inches (19 x 12.7 x 7.6 cm)
Weight (approx.)	1.5 lbs (0.68 kg)
Power Supply	AC adapter (input 100-240V, output 9V DC)
Power Consumption	5W (max)
Warm-Up Time	Instant
Operating Temperature	32°F to 104°F (0°C to 40°C)
Key Functions	Counterfeit detection, denomination recognition, counting
Audible Alarm	Yes, for suspicious bills
Auto Shut-off	After 5 minutes of inactivity
Maintenance	Clean UV sensor and rollers with soft cloth; avoid liquids
Safety Features	Overheat protection, CE and FCC certified
Package Contents	Detector unit, AC adapter, user manual
Spare Parts Availability	UV lamp, rollers, sensor module (contact support)
Warranty	1 year limited warranty

Frequently Asked Questions - RCD-2120 Royal Sovereign

How to clean the UV sensor on RCD-2120?

Turn off the device. Use a soft, dry cloth to gently wipe the UV sensor window. Avoid using any liquids or abrasive cleaners.

What does a continuous alarm mean?

A continuous alarm usually indicates a suspicious bill detected. Verify the bill manually and check for security features.

Can RCD-2120 detect all currencies?

It supports major world currencies like USD, EUR, GBP, JPY, and more. For specific currency support, consult the manual.

Why is the detector not turning on?

Check the AC adapter connection and ensure the outlet is working. Try a different power source. If still off, contact support.

How to replace the UV lamp?

Turn off and unplug the device. Open the lamp cover, remove the old lamp, and insert a new one. Use only Royal Sovereign UV lamp.

Is the RCD-2120 suitable for high-volume use?

It is designed for medium to low volume (e.g., retail counters). For heavy use, consider a higher-end model.

What does the green and red light indicate?

Green light means genuine bill. Red light indicates a potential counterfeit. Follow the audible alarm if present.

Can I use rechargeable batteries?

No, the device uses an AC adapter only. Battery operation is not supported.

How often should I calibrate the detector?

Regular calibration is not required. However, if detection becomes inconsistent, clean the sensor or contact support.

Does it have a counting function?

Yes, it can count bills as they are inserted, but it does not have a totalizer display. Counting is indicated by LED flashes.

USER MANUAL RCD-2120 Royal Sovereign

Please read and retain these instructions. To register your product, please go to www.royalsovereign.com USA. Click the customer Support Tab, then Registration Tab.

www.royalsovereign.com

Thank you for your purchasing our product.

We recommend reading all information in this user manual thoroughly before operating the unit in order to become familiar with all its functions.

INTRODUCTION

The RCD-2120 is a portable quick scan counterfeit detector which uses infrared, magnetic, color spectrum, & image verification to instantly detect counterfeit bills. It's fast and easy operation saves time and compact design allows it to fit almost anywhere.

OPERATION

Fig. 1

Fig. 2

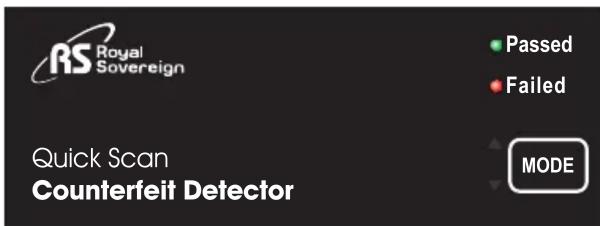

• Press "MODE" button to choose the bill exiting direction, "▲" is front forwards, "▼" is back forwards. (Fig 1)
• Process bill as shown on sticker - face side up and front forward. (Fig 2)
• If bill is valid the bill will exit with "Passed" green indicator lighting up.
• If bill is suspicious the "Failed" red indicator will light up and beep alarm will go off.

SPECIFICATION

Model RCD-2120
Detection Infrared, Magnetic, Color Spectrum, & Image verification
Speed insert space after 0.5
Power Source 12V
Power Consumption 6.6W (MAX)
Power Adaptor 100-240V 50/60Hz
Net Weight 0.66 lbs / 0.30 kg
Unit Size (L x W x H) 4.92" × 3.46" × 2.32" / 125 × 88 × 59 (mm)

WARNING

• Avoid using the machine under high temperature, moisture and dust.
• Periodically clean the dust inside of the machine with blow drier from the banknote entrance.
• USB interface is for software upgrade.

Fig. 1

Fig. 2

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one years from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:
