USER MANUAL SPD2204BD PHILIPS

How to... for Internal IDE Drives

EN Install Guide 3+32

Exterior view of a Philips DVD drive (no visible text or symbols beyond branding)

PHILIPS

How to install?

Please refer to your PC manual or contact your local dealer for more information.

O

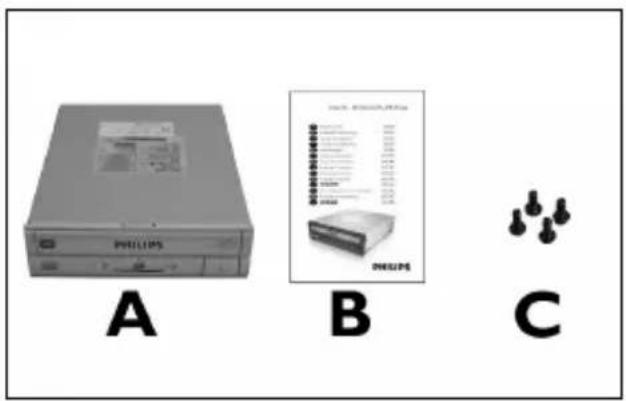

EN This can be found in the box:

A: Your new drive

B: This manual

C: 4 screws in a small bag

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

2

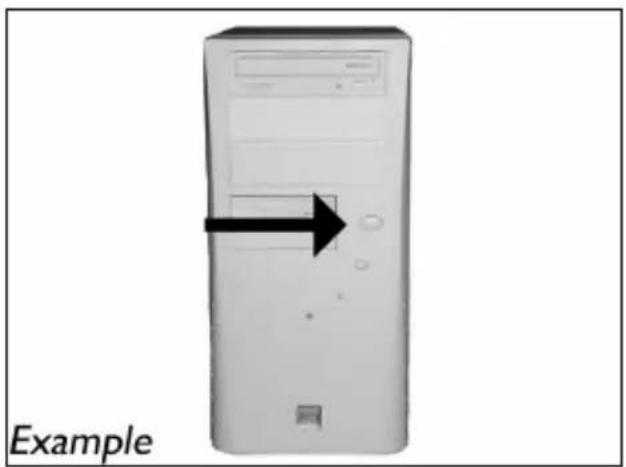

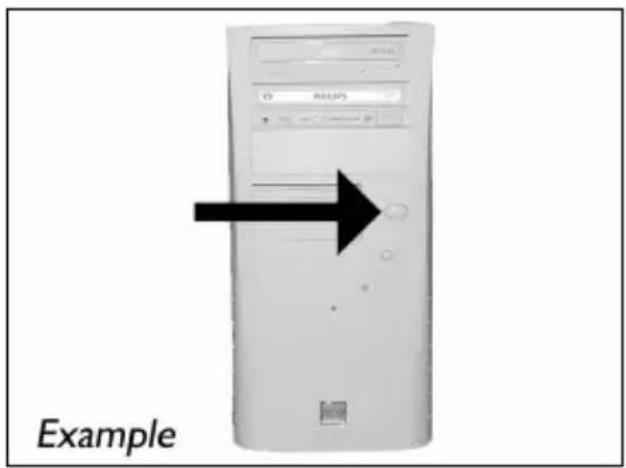

EN Switch your computer off.

Close-up of a computer tower with a cable inserted, showing the front panel and internal components (no text or symbols visible)

3

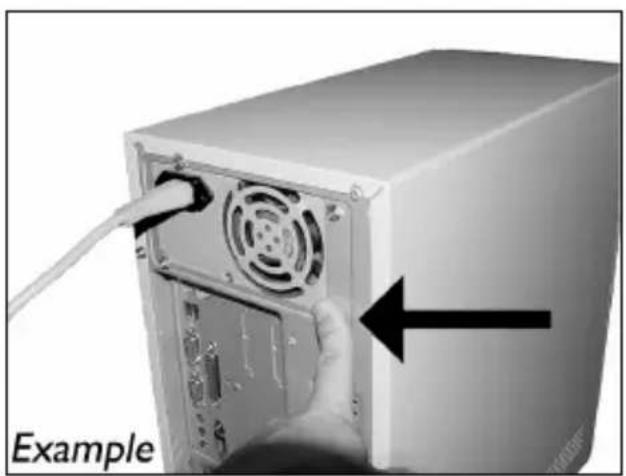

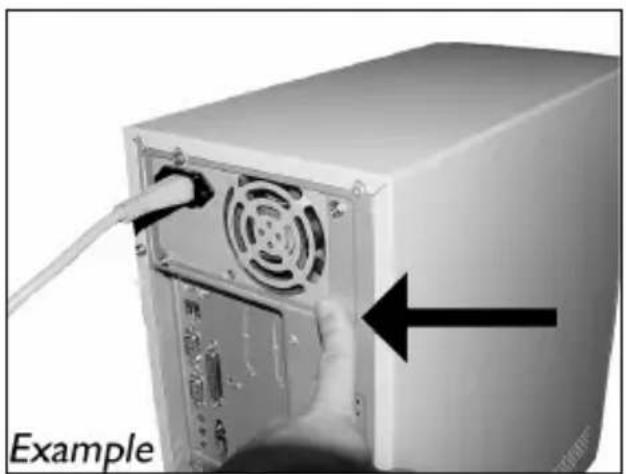

EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case).

This will avoid any damage to your computer by electrostatic discharge.

Close-up of a computer tower with a white connector and fan, showing a black arrow pointing to the component (no text or symbols on the device itself)

5

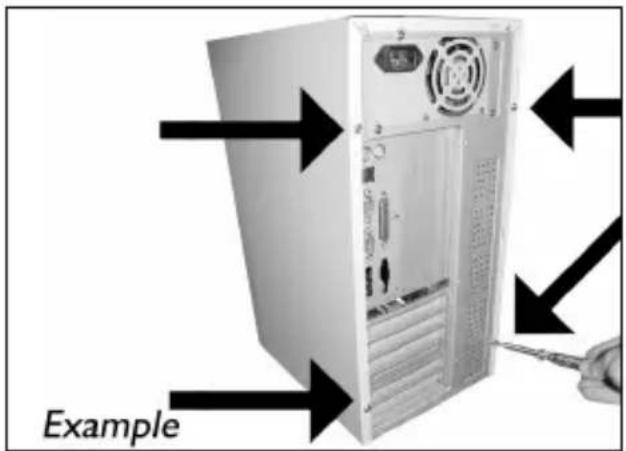

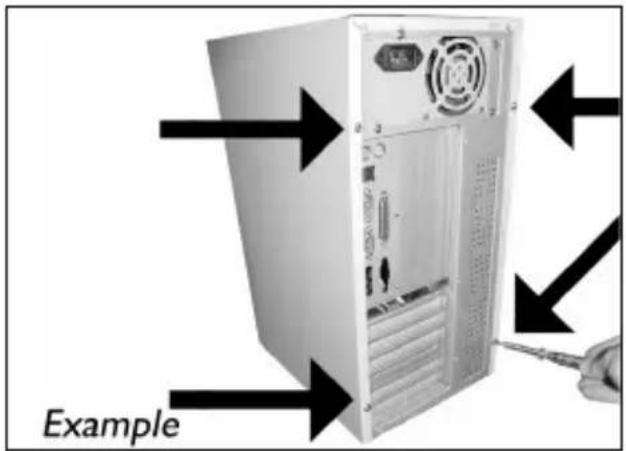

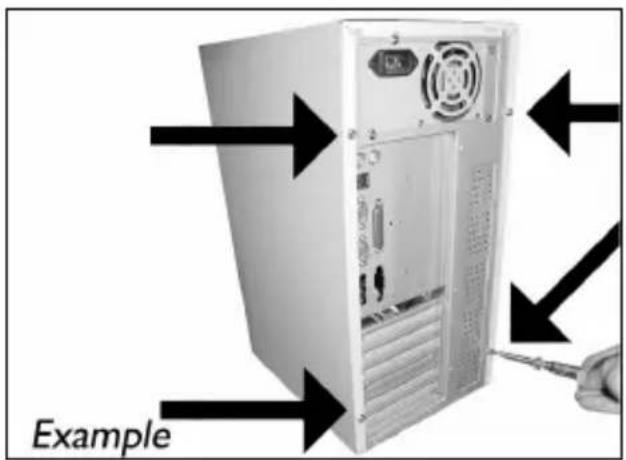

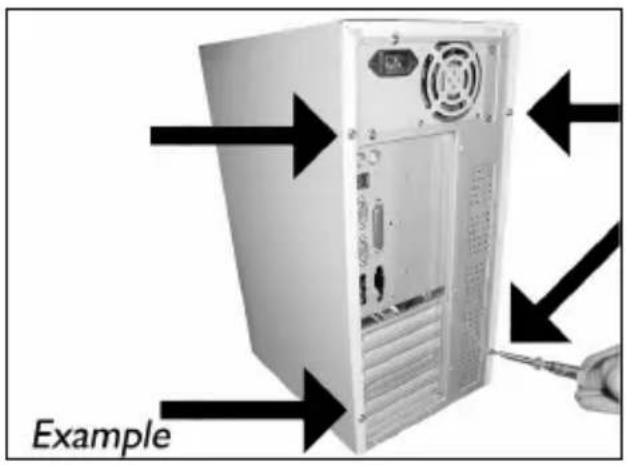

EN Open your computer. You may have to unleash screws which are mostly located at the back of your computer.
▶ See your computer manual for more details.
DE Öffnen Sie Ihren Computer. Eventuell müssen Sie hierzu Schrauben herausdrehen, die sich meistens an der Rückseite Ihres Computers befinden.
▶ Weitere Informationen hierzu finden Sie in Ihrem Computerhandbuch.
FR Ouvrez l'ordinateur. Pour cela, il peut être nécessaire de dessérer une ou plusieurs vis à l'arrière de l'ordinateur.
Pour plus de détail, reportez-vous au mode d'emploi de l'ordinateur.
IT Aprire il computer. È possibile che si dovranno svitare delle viti che in genere si trovano sul pannello posteriore del computer.
▶ Per ulteriori informazioni fare riferimento al manuale del computer.
NL Maak uw computer open. Meestal moet u de schroeven aan de achterkant van uw computer losschroeven.
▶ Raadpleeg de handleiding van uw PC voor details over het openen van de PC.

Example

6

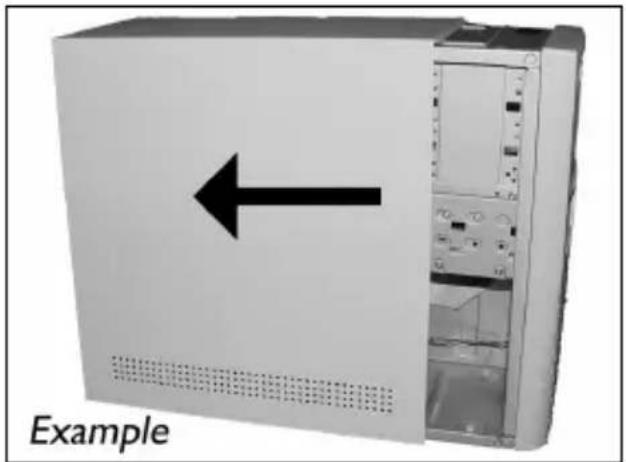

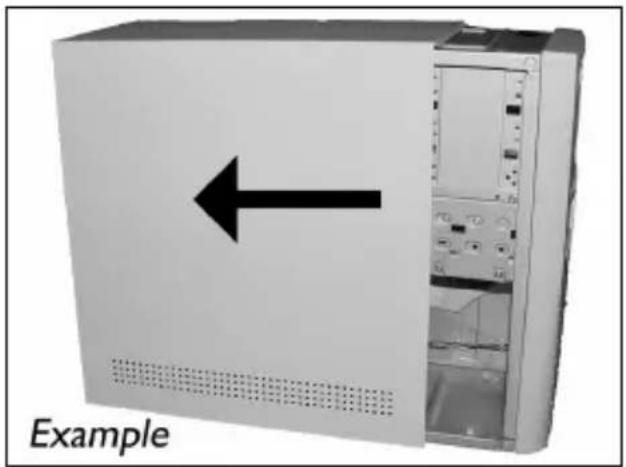

EN Take off the cover of the computer.
DE Nehmen Sie die Abdeckung des Computers ab.
FR Retirez le capot de l'ordinateur.
IT Togliere il coperchio del computer.
NL Verwijder de kast van de computer.

Exterior view of a white server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

EN If you replace a drive, take it out and check which setting it has ("Master" or "Slave"). Remember this setting and go to step 10.

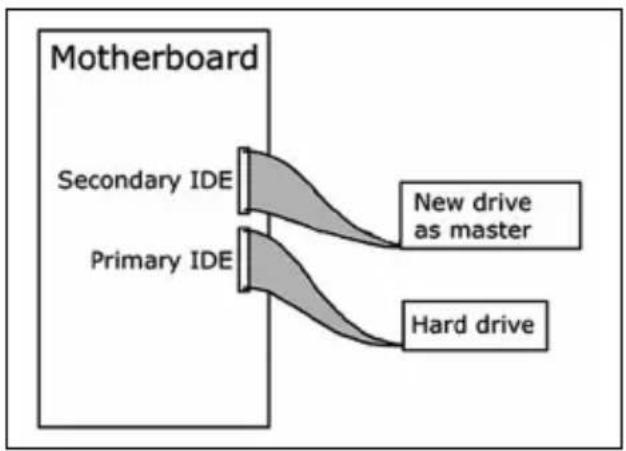

EN If you have no drive installed, remember "Master" and go to step 10.


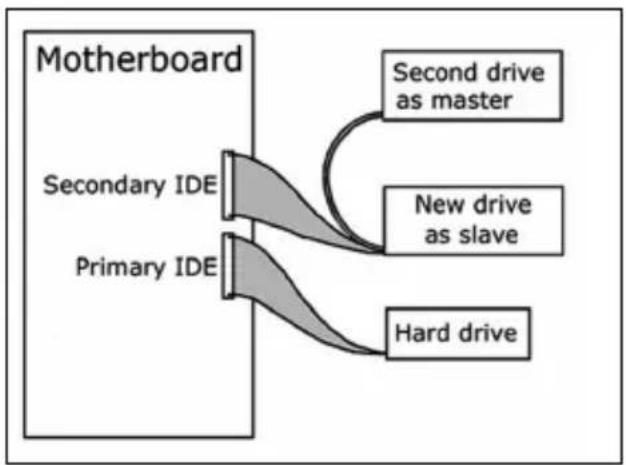

EN If you add a drive, check the drive has which remains in the PC ("Master" or "Slave", see step 11), remember the OTHER setting.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

11

Interior view of a computer tower case showing internal components and a black arrow pointing to a specific area, labeled 'Example' (no readable text or symbols beyond label)

A B C Example

B: Notch and closed hole.

C: Pin1.

EN Find a free power cable like this example.

Please note the edges of the connector.

Close-up of a hand holding a white connector with wires, labeled 'Example' (no other text or symbols)

17

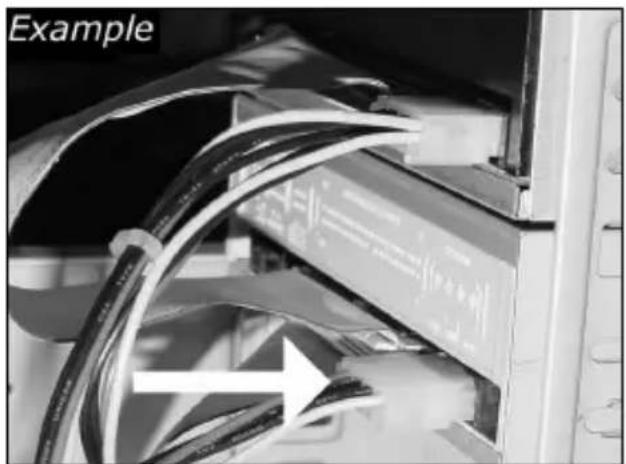

EN Connect the power cable into your drive

(the edges from step 16 will be on top).

Close-up of cable routing inside a device (no visible text or symbols)

Close-up of hands using a screwdriver to adjust internal components in a computer case (no text or symbols visible)

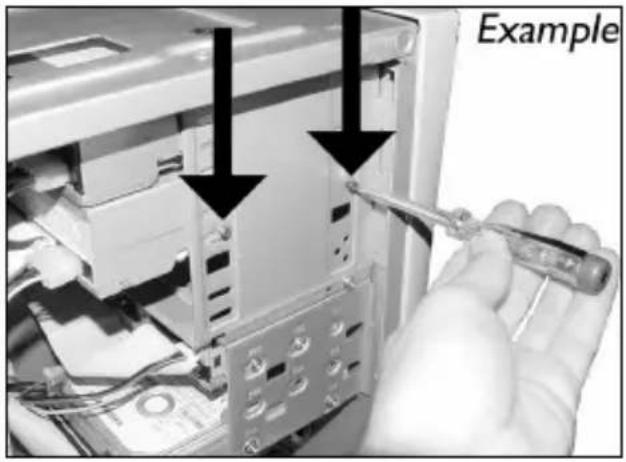

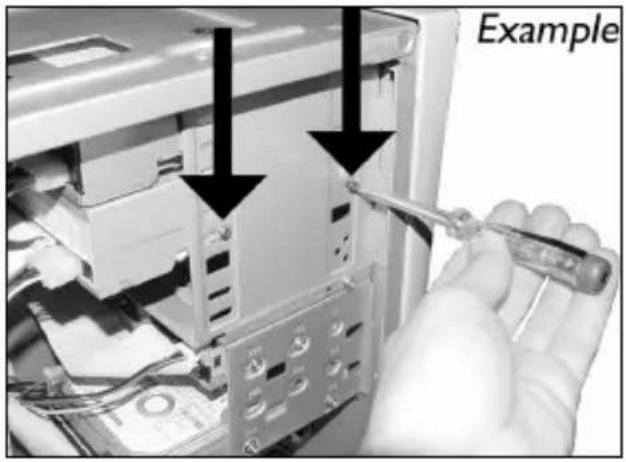

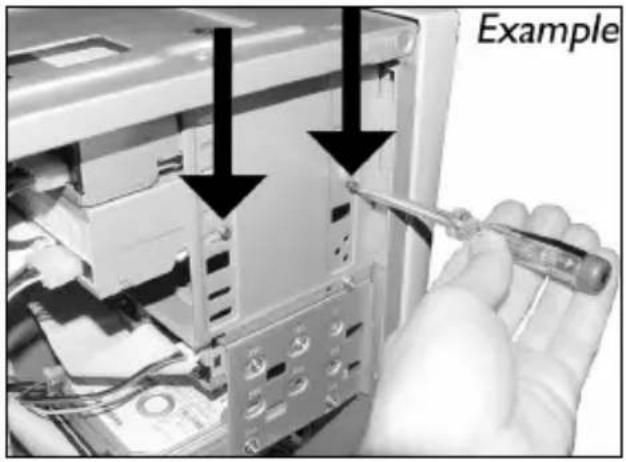

EN Secure the drive with the screws (if possible on both sides).
DE Befestigen Sie das Laufwerk mit den Schrauben (wenn möglich an beiden Seiten).
FR Fixez l'appareil à l'aide des vis (si possible des deux côtés).
IT Fissare l'unità con le viti (se possibile su entrambi i lati).
NL Schroef het station vast (zo mogelijk aan beide zijden).

Exterior view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

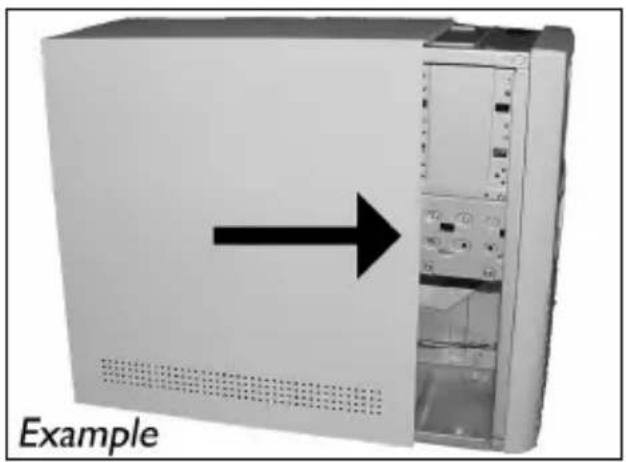

EN Put the cover you took off in step 5 back on.
DE Setzen Sie die in Schritt 5 abgenommene Abdeckung wieder auf.
FR Replacez le capot que vous avez retiré à l'étape 5.
IT Rimettere il coperchio tolto al punto 5.
NL Plaats de in stap 5 verwijderde kast weer terug.

Example

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

Close-up of a computer tower with a cable inserted, showing the front panel and internal components (no text or symbols visible)

ES Apague el ordenador.
PT Desligue o seu computador.
TR Bilgisayarınızı kapatın.
PL Wyłącz komputer.
sv Stäng av datom.

Close-up of a computer tower with a white cable plugged into the ventilation grille, showing a black arrow indicating direction (no text or symbols on the device itself)

5

ES Abra el ordenador. Tendrá que quitar los tornillos que suelen ir colocados en la parte posterior del ordenador.
▶ Consulte el manual del ordenador donde econtrará más detalles.
PT Abra o computador. Pode ter que desapertar parafusos que, na sua maioria, se encontram na parte de trás do computador.
Para obter mais informações, consulte o manual do computador.
TR Bilgisayarınız açın. Çoğunlukla bilgisayarınızın arkasında bulunan vidaları gevşetmeniz gerekebilir.
▶ Ayrıntılar için bilgisayarınızın el kitabına bakın.
PL Otwórz komputer. Prawdopodobnie konieczne będzie odkręcenie śrub, które zazwyczaj znajdują się z tyłu komputera.
▶ Więcej informacji można znaleźć w instrukcji obsługi komputera.
SV Öppna datom. Du kan behöva lossa skruvar, oftast på datorns baksida.
▶ Mer information finns i datorns handbok.

Example

6

ES Quite la carcasa del ordenador.
PT Retire a cobertura do computador.
TR Bilgisayarın kapağını çıkarın.
PL Zdejmij obudowę komputera.
sv Avlägsna datorns hölje.

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

ES Si no tiene una unidad instalada, seleccione "Master" y vaya al paso 10.
PT Caso não tenha nenhuma unidade instalada, memorize a definição "Master" e vá para a etapa 10.
TR Eğer kurulu bir sürücünüz yok ise, "Ana" ("Master") yi anımsayıp 10. adıma geçiniz.
PL Jeśli nie masz zamontowanego żadnego napędu, zapamiętaj ustawienie "Master" i przejdź do punktu 10.

ES Si está añadiendo una unidad, compruebe la unidad que permanece instalada en el PC ("Master" o "Slave", consulte el paso 11), seleccione la configuración OTHER.
PT Se adicionar uma unidade, verifique a que permanecer no computador ("Master" ou "Escravo" ("Slave"), consulte a etapa 11), memorize a OUTRA definição.
TR Eğer bir sürücü ekledi iseniz, PC'de kalan sürücüyü kontrol ediniz ("Ana" ("Master") ya da "Bağümli" ("Slave"), 11. adıma bakınız), DIGER ayarı anımsayınız.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

11

Interior view of a computer tower with visible drive bays and an arrow pointing to a component (no text or symbols on the main image)

A B C Example

Close-up of a hand holding a white terminal block with wires, labeled 'Example' (no other text or symbols)

17

Close-up of cable routing inside a device (no visible text or symbols)

Close-up of a hand holding a screwdriver inside a computer case, with arrows pointing to the components (no text or symbols visible)

ES Asegure la unidad con los tomillos (si es posible en ambos lados).
PT Utilize os parafusos para fixar a unidade (se possível, de ambos os lados).
TR Sürücüyü vidalarla iyice sıkıştırın (mümkünse her iki tarafı).
PL Przymocuj napęd śrubami (jeżeli jest to możliwe, obustronnie).
sv Säkra enheten med skruvar, om möjligt på båda sidorna.

Exterior view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

ES Vuelva a instalar la carcasa que quitó en el paso 5.
PT Recoloque a cobertura que tirou no passo 5.
TR 5. adımda çıkardığınız kapağı yerine takın.
PL Nałoż z powrotem obudowę, zdjęta w punkcie 5.
sv Sätt tillbaka höljet du avlägsnade i steg 5.

Example

ES Ponga los tomillos (si hay alguno) en la parte posterior y vuelva a conectar los cables.
PT Coloque os parafusos (se havia algum) de volta no lugar e reconecte os cabos.
TR Vidalan (eger varsa) yerine koyun ve kabloları tekrar bağlayın.
PL Wkręć śrubki (jeśli zostały wykręcone) i podłącz kable.
sv Sätt tillbaka skruvarna (om sådana finns) och återanslut kablarna.

21

ES Reinicie el ordenador.
PT Reinicie o computador.
TR Bilgisayarınız yeniden başlatın.
PL Uruchom ponownie komputer.
sv Starta datom.

Example

如何安装？

Please refer to your PC manual or contact your local dealer for more information.

PHILIPS A B C

SC 可在包装盒中找到以下物件：

A: 新驱动器。

B: 本手册。

C: 小袋装的4颗螺钉。

EN This can be found in the box:

A: Your new drive B: This manual C: 4 screws in a small bag

Front view of a desktop computer tower with an arrow pointing to the front panel (no text or symbols on the tower itself)

sc 关闭计算机。

EN Switch your computer off.

Close-up of a computer tower with a cable inserted, showing the front panel and internal components (no text or symbols visible)

EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case).

This will avoid any damage to your computer by electrostatic discharge.

4

sc 断开计算机电源。
RU Отсоедините кабель питания от вашего PC.
DK Tag strømkablet fra computeren ud.
TC 拔掉電腦電源線。

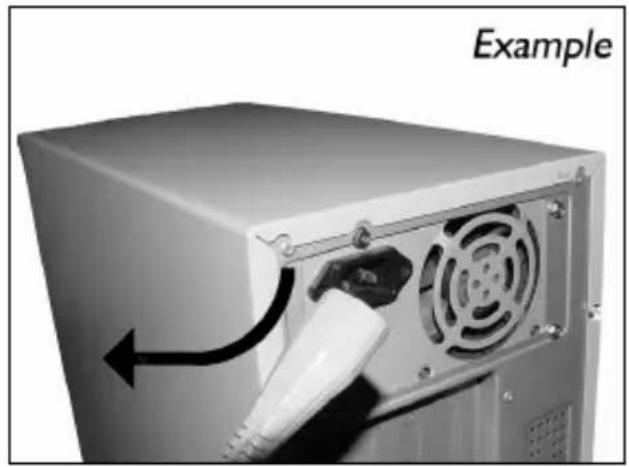

EN Disconnect the power cable from the PC.

Close-up of a computer power adapter with a white plug inserted, showing airflow direction (no text or symbols on the device itself)

5

SC 打开计算机。可能需要松开计算机最后面的螺钉。
▶ 有关详细信息，请参阅您的计算机手册。
RU Откройте компьютер. Для этого нужно отпустить винты, расположенные чаще всего на задней стенке компьютера.
▶ Более подробно см. в руководстве по компьютеру.
DK Åbn computeren. Du skal muligvis løsne nogle skruer, der ofte sidder bag på computeren.
▶ Find mere information i manualen til din computer.
TC 拆開您的電腦。您可能需要拆下螺絲，通常位於您電腦的背面。
▶ 請參閱您的電腦手冊以取得更多資訊。
EN Open your computer. You may have to unleash screws which are mostly located at the back of your computer.
▶ See your computer manual for more details.

Example

6

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

EN If you replace a drive, take it out and check which setting it has ("Master" or "Slave"). Remember this setting and go to step 10.

EN If you have no drive installed, remember "Master" and go to step 10.

EN If you add a drive, check the drive has which remains in the PC ("Master" or "Slave", see step 11), remember the OTHER setting.

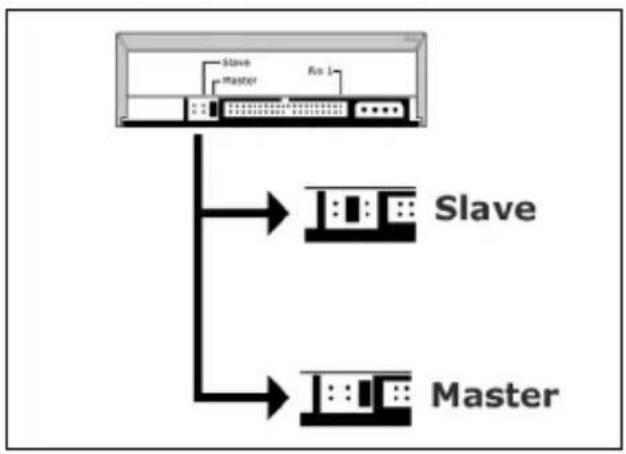

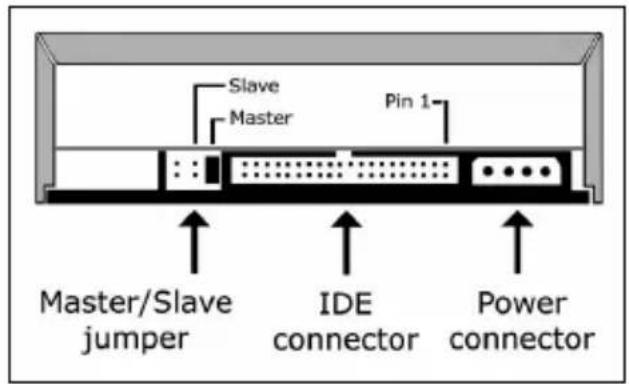

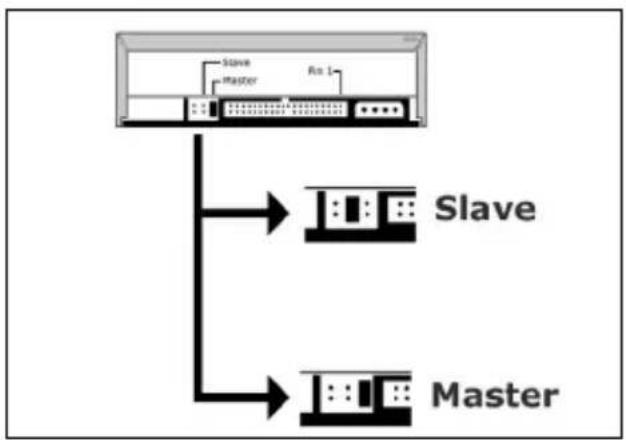

EN These are the connections (on the back of your drive) you will have to use for connecting the drive to the computer.

Slave Master Pin 1 Master/Slave jumper IDE connector Power connector

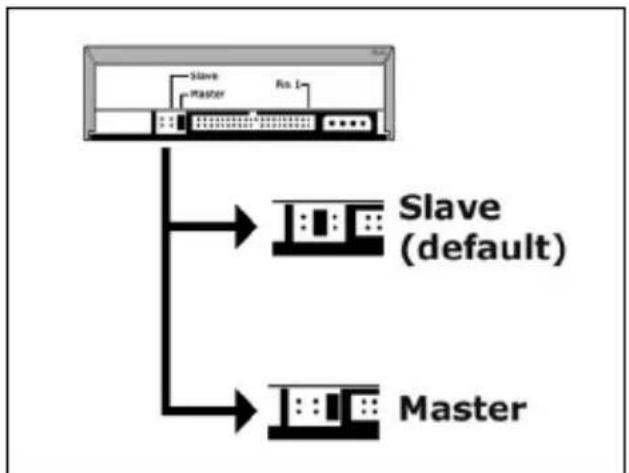

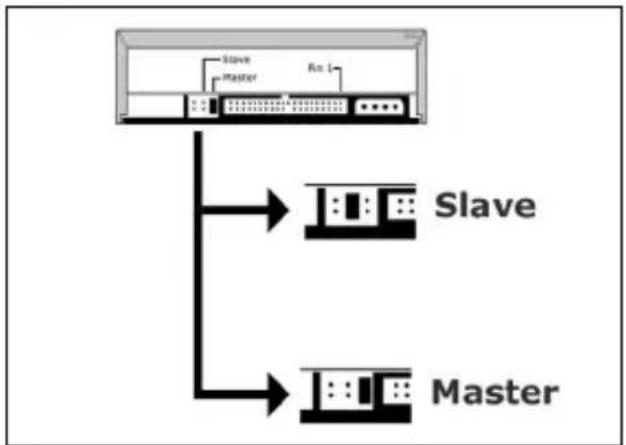

EN Choose "Master" or "Slave" for the jumper, as seen in steps 7, 8 or 9.

12 SC 将驱动器放入计算机。

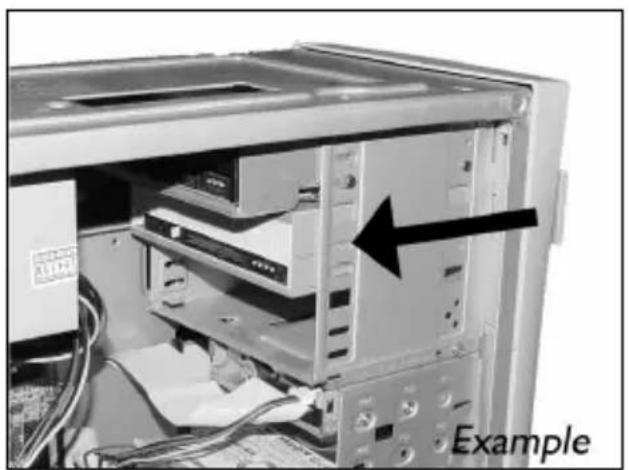

EN Put the drive into your computer.

Interior view of a computer tower case showing internal components and a black arrow pointing to a specific area, labeled 'Example' (no readable text or symbols beyond label)

A B C Example

sc 找到如此例所示的 IDE 线缆：

A: 彩色线缆。

B: 槽口或封闭的孔。

C: 第1针。

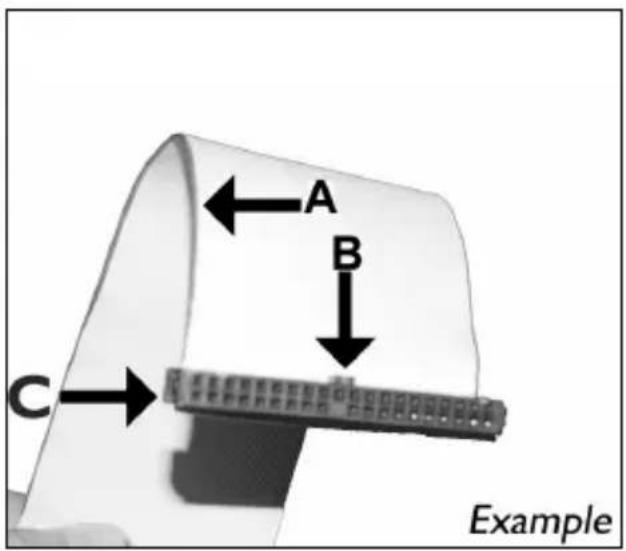

EN Find the IDE-cable which may look like this example:

A: Coloured line.

B: Notch and closed hole.

C: Pin1.

[Non-Text]

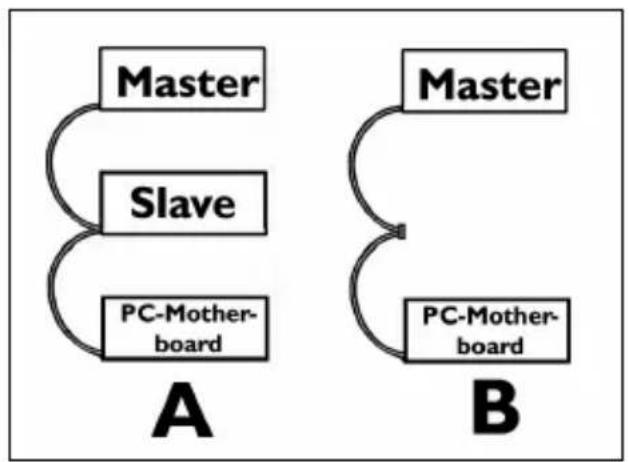

EN Connect the IDE cable like in A (2 devices) or B (only 1 device).

Do not choose 2 "Master" or 2 "Slave" devices on 1 cable.

15

sc 连接IDE线缆

A: Coloured line.
B: Notch and closed hole.
C: Pin1.

16

Close-up of a hand holding a white electrical connector with wires, labeled 'Example' (no other text or symbols)

Close-up of cable routing inside a device (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust or install electronic components in a computer case (no text or symbols visible)

sc 用螺钉固定驱动器(如可能，同时固定两边)。
RU Закрепите дисковод винтами (по возможности с обеих сторон).
DK Fastgør drevet med skruerne (om muligt på begge sider).
TC 使用螺絲固定光碟機 (可能的話，請固定兩側)。
EN Secure the drive with the screws (if possible on both sides).

Exterior view of a white server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

Be responsible Respect copyrights

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.

环使用期限 Environmental Protection Use Period

This logo refers to the period ( 10 years )

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these substances or elements will not result in any severe environmental pollution, any bodily injury or damage to any assets.

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

Be responsible Respect copyrights

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

FCC 15.105 rule:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

FCC 15.19 rule:

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

(1) this device my not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE

Electric-, Magnetic- and Electromagnetic Fields ("EMF")

1. Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.
2. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3. Philips is committed to develop, produce and market products that cause no adverse health effects.
4. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Safety Precautions

USA/Canada: This player is for use only with IBM compatible UL listed Personal Computers or Macintosh UL listed workstations, weighing less than 18 kg.

LASER SAFETY

This unit employs a laser. Do not remove the cover or attempt to service this device when connected due to the possibility of eye damage.

LASER-SICHERHEIT

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS LASER RADIATION EXPOSURE.

WARNUNG

CLASS 1 LASER PRODUCT

LUOKAN I LASERLAITE

KLASSE 1 LASER-PRODUKT

CAUTION INVISIBLE LASER RADIATION. WHEN OPEN AVOID EXPOSURE TO BEAM

VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN

WARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN ADVERSEL USYNLIG LASERSTRÅLING NÄR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN DANGER INVISIBLE LASER RADIATION. WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM VORSICHT UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

LASER

Type Semiconductor laser GaAlAs

Wave length 775-795 nm (CD) - 660 nm (DVD)

Output power

(measured above the objective lens)

Read: 1,4 mW - 2,5 mW

Write: 90 mW (CD) - 27 mW (DVD)

Beam divergence

60 degree

Additional information available at our website: www.philips.com/storageupdates www.philips.com/storage

Specifications subject to change without notice. All dimensions shown are approximate. © 2008 Koninklijke Philips Electronics N.V.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
