USER MANUAL SPD6107BD PHILIPS

How to... for Internal S-ATA ReWriters using Nero 7 and LightScribe

EN Install Guide
DE Installationsanleitung
FR Guide d'installation
IT Guida d'installazione
NL Installatiegids
ES Guía de instalación
PT Guia de Instalação
TR Kurulum Kılavuzu
PL Instrukcja montażu
sv Installationsguide
sc 安装指南
RU Инструкция по инсталляции
DK Installationsvejledning
TC 安装指南

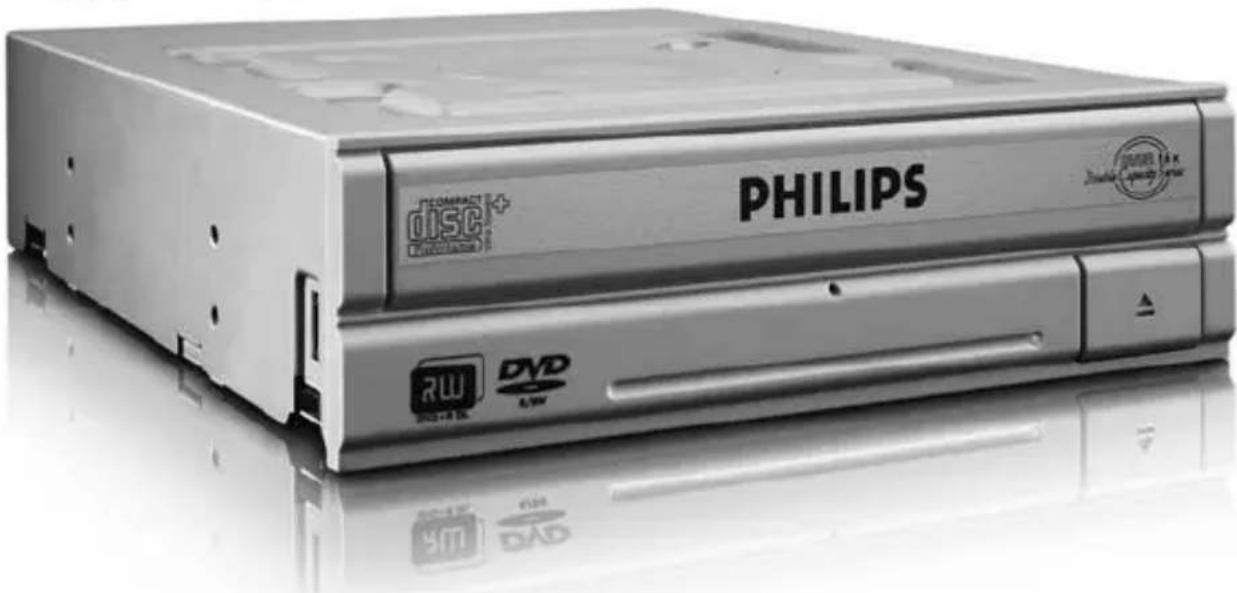

Exterior view of a Philips DVD drive with visible branding and control buttons (no readable text beyond branding)

PHILIPS

EN

Contents

How to install? 5

Up to date? 13

How to print a label using LightScribe? 17

How to make a video disc? 23

How to make a data or audio disc? 31

How to copy a disc? 35

More info or help needed 38

DE

Inhalt

How to install? 81
Up to date? 89
How to print a label using LightScribe? 93
How to make a video disc? 99
How to make a data or audio disc? 107
How to copy a disc? 111
More info or help needed 119

How to install?

EN This can be found in the box:

A: Your new B: This manual C: The Nero drive software disc

D: 4 screws in a small bag

Computer tower with monitor and control buttons, labeled 'Example' (no other text or symbols)

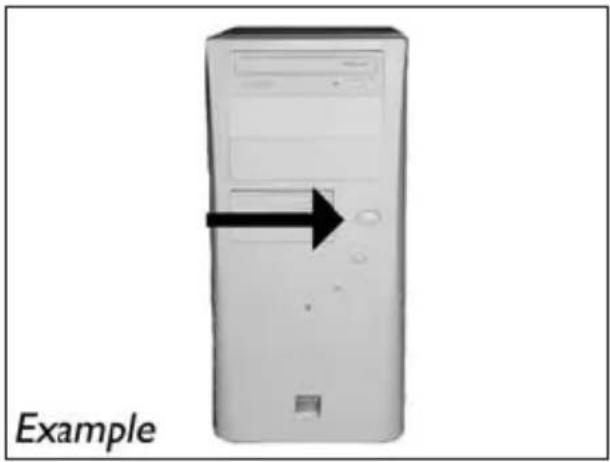

EN Switch your computer off.
DE Schalten Sie Ihren Computer aus.
FR Éteignez l'ordinateur.
IT Spegnere il computer.
NL Zet de computer uit.

Close-up of a computer tower with a cable inserted, showing the front panel and internal components (no text or symbols visible)

EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case). This will avoid any damage to your computer by electrostatic discharge.

Close-up of a computer power adapter with a black arrow pointing to the outlet (no text or symbols on the device itself)

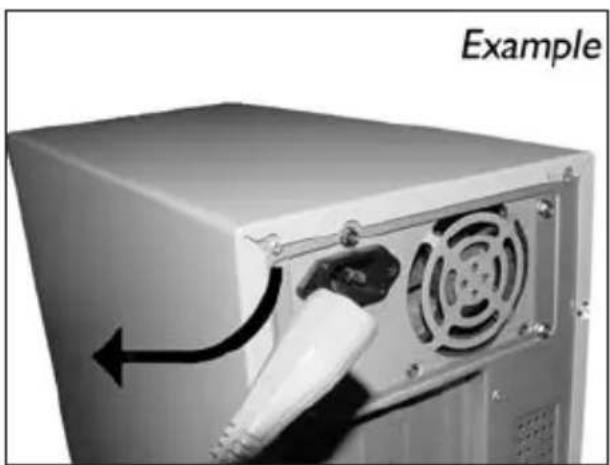

EN Disconnect the power cable from the PC.
DE Ziehen Sie das Netzkabel vom Computer ab.
FR Débranchez le câble d'alimentation de l'ordinateur.
IT Disconnettere il cavo di alimentazione dal PC.
NL Trek de netstekker uit de PC.

5

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

7

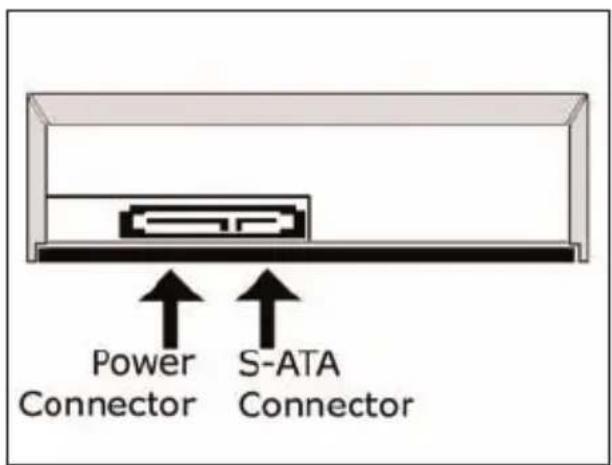

EN These are the connections (on the back of your drive) you will have to use for connecting the drive to the computer.
DE Das sind die Anschlüsse (an der Rückseite Ihres Laufwerks), die Sie für den Anschluss Ihres Laufwerks an den Computer verwenden müssen.
FR Ce sont les connecteurs (à l'arrière de votre appareil) que vous devrez utiliser pour raccorder l'unité à l'ordinateur.
IT Queste sono le connessioni (sul retro dell'unità) che dovranno essere utilizzate per collegare l'unità al computer.
NL Dit zijn de aansluitingen (op de achterkant van het station) die u gebruikt om het station op de computer aan te sluiten.

Power Connector S-ATA Connector

Interior view of a computer tower case showing internal components and a black arrow pointing to a component labeled 'Example' (no readable text or symbols beyond label)

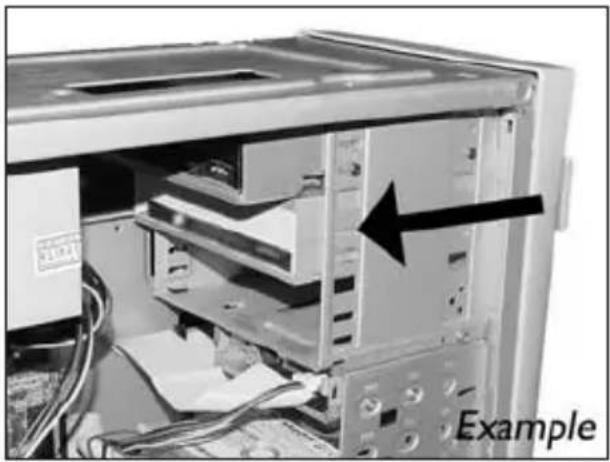

EN Put the drive into your computer.
DE Schieben Sie das Laufwerk in Ihren Computer.
FR Montez l'appareil dans l'ordinateur.
IT Mettere l'unità nel computer.
NL Schuif het station in uw computer.

Example

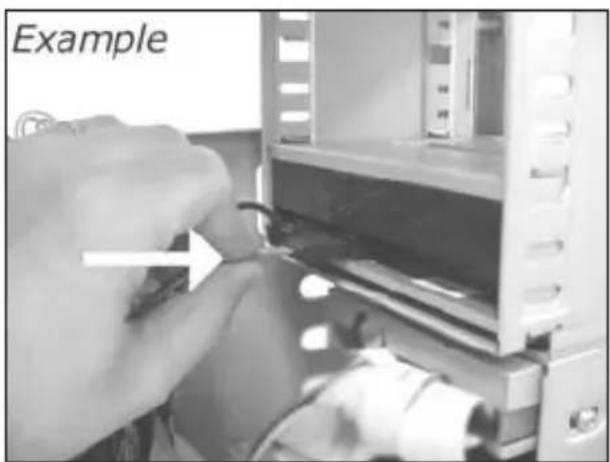

EN Attach a S-ATA Power Cable to your drive.
DE Schließen Sie ein S-ATA-Stromkabel an Ihr Laufwerk an.
FR Branchez un câble d'alimentation S-ATA à votre lecteur.
IT Collegare un cavo di alimentazione S-ATA alla propria unità.
NL Sluit een S-ATA-stroomkabel aan op uw station.

Example

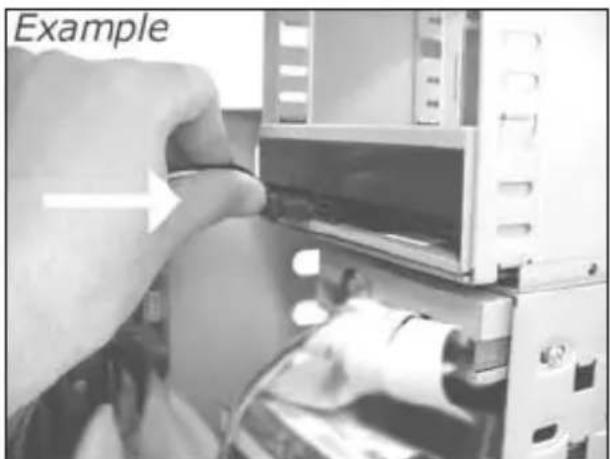

EN Attach the S-ATA data cable to your drive.
DE Schließen Sie das S-ATA-Datenkabel an Ihr Laufwerk an.
FR Branchez le câble de données S-ATA à votre lecteur.
IT Collegare un cavo dati S-ATA alla propria unità.
NL Sluit de S-ATA-gegevenskabel aan op uw station.

11

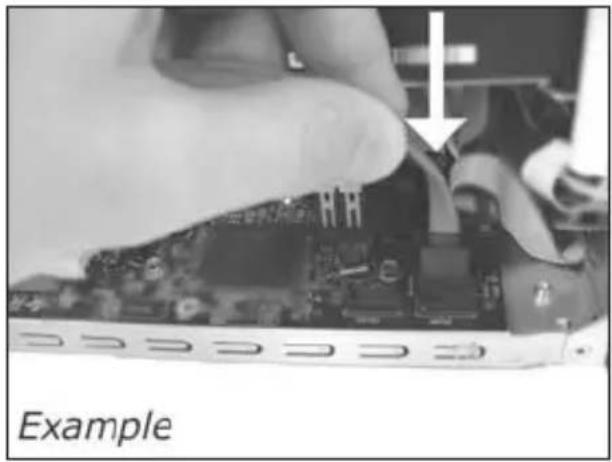

EN Connect the S-ATA data cable to your motherboard.
DE Schließen Sie das S-ATA-Datenkabel an Ihre Hauptplatine an.
FR Connectez le câble de données S-ATA sur la carte mère.
IT Collegare il cavo dati S-ATA alla propria scheda madre.
NL Sluit de S-ATA-gegevenskabel aan op uw moederbord.

Close-up of a hand inserting a component into a computer motherboard (no visible text or symbols)

12

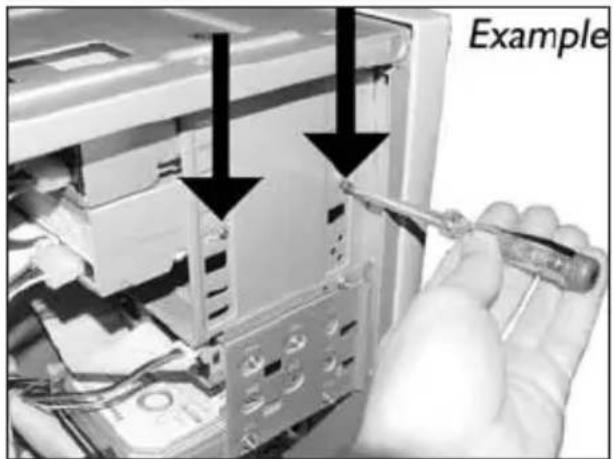

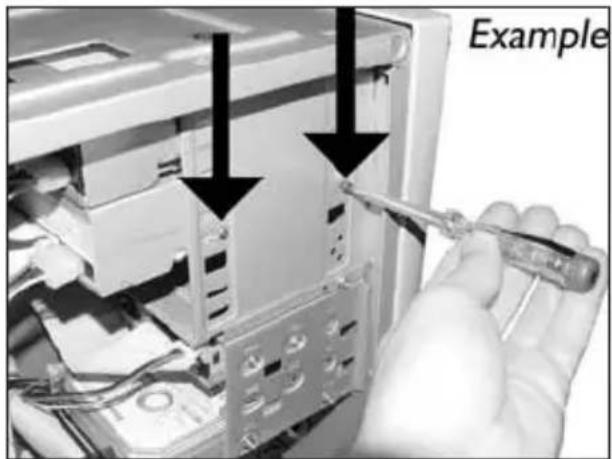

EN Secure the drive with the screws (if possible on both sides).
DE Befestigen Sie das Laufwerk mit den Schrauben (wenn möglich an beiden Seiten).
FR Fixez l'appareil à l'aide des vis (si possible des deux côtés).
IT Fissare l'unità con le viti (se possibile su entrambi i lati).
NL Schroef het station vast (zo mogelijk aan beide zijden).

Example

13

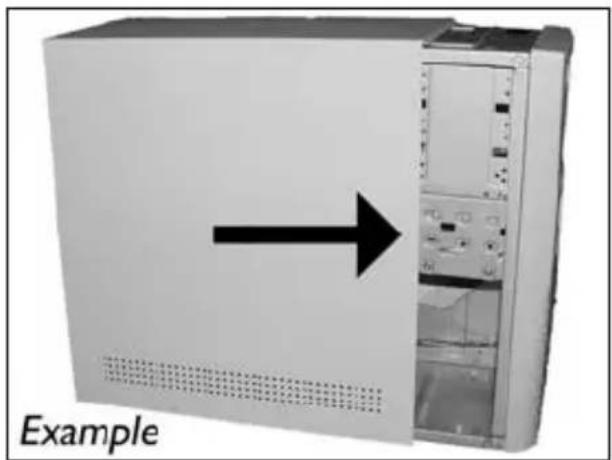

EN Put the cover you took off in step 5 back on.
DE Setzen Sie die in Schritt 5 abgenommene Abdeckung wieder auf.
FR Replacez le capot que vous avez retiré à l'étape 5.
IT Rimettere il coperchio tolto al punto 5.
NL Plaats de in stap 5 verwijderde kast weer terug.

Exterior view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

Example

EN Choose "Nero 7 Essentials" and follow the instructions on the screen. When finished, continue with the next chapter.

start Recycle Hit New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New New Next

2

EN Click "Check for updates".

Philips Intelligent Agent Products Options 349 Unknown for your Philips products. Product: Installed version: Latest version [ ] PHILIPS CHECKSAL - [ author ] PS.A Philips Intelligent Agent 1.0 The last successful product update check was performed on 2006-08-11 [10-40] AP The automatic product update check is validated. Check for update [349 the suitable check for product updates.

Philips Intelligent Agent E-mail: Options Help Loading to your Philips products Products Installed version Latest version [2.1] PHILIPS/DRK16.5 - [MYAT] F1.3 F2.3 Pulpys Intelligent Agent 1.3 1.3 The last successful product update (check not performed in 2004-PR-C) 1.27:16 PR; The automatic product update (check is deleted) Check for update Product update information was accessible returned from the server.

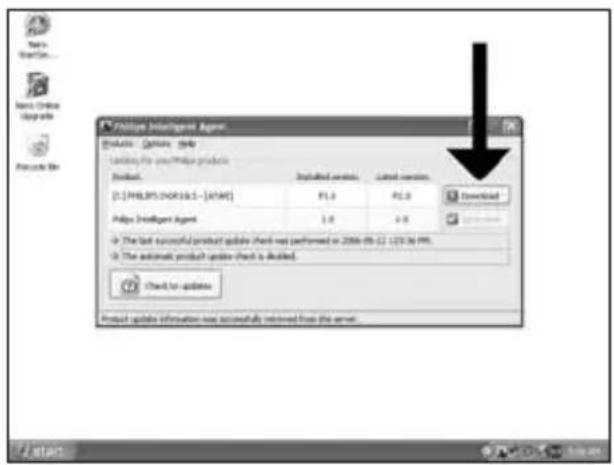

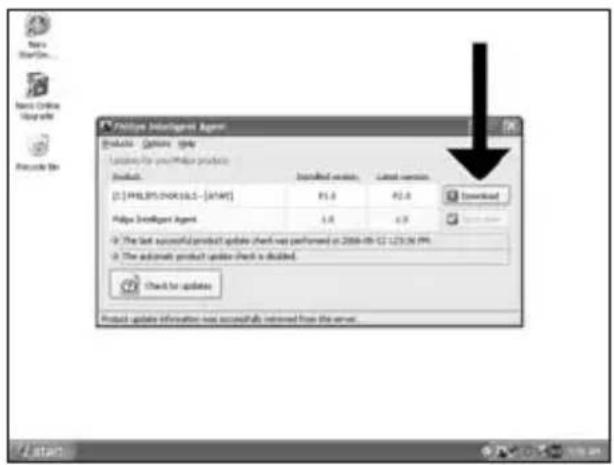

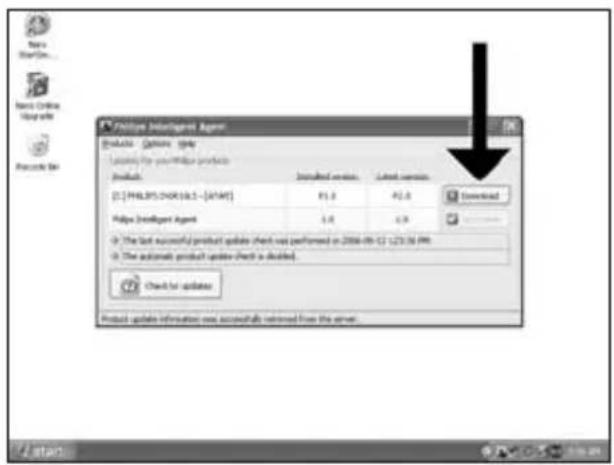

EN Download the updates and install them.

New Market Ecosystem 3 Tobacco Deferred E-mail New Start/Start Menu All Programs f2 start New Framework Audio Data Labels Format Photo and Video Plan Share Tools New Hines Ecosystem 2 New Online Library New Market Setup New Deal New Bar/Show Elements

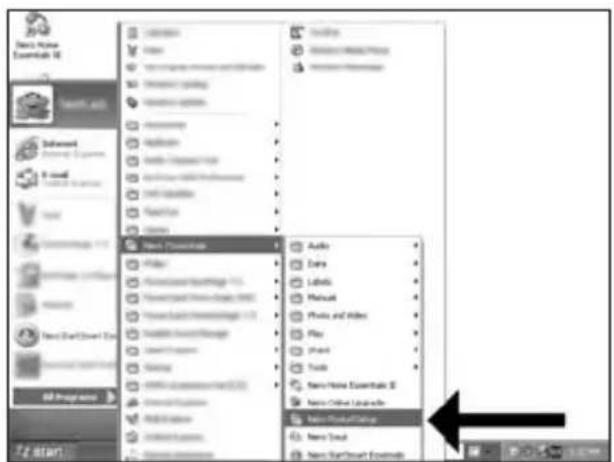

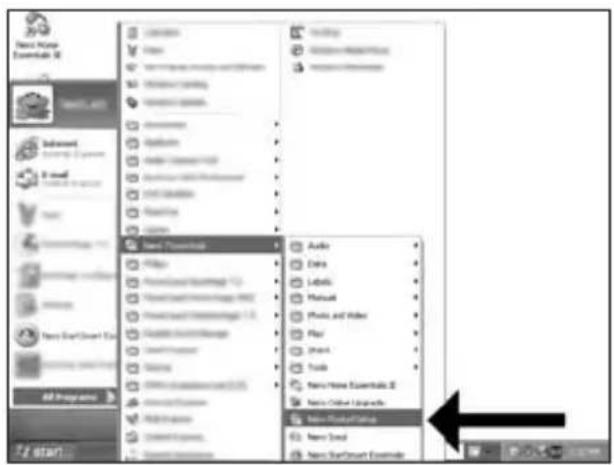

EN Choose "Start", "(All) Programs", "Nero 7 Essentials", "Nero ProductSetup".

DE Wählen Sie "Start", "(Alle) Programme", "Nero 7 Essentials", "Nero ProductSetup".

FR Sélectionnez "Démarrer", "(Tous les) Programmes", "Nero 7 Essentials", "Nero ProductSetup".

IT Scegliere "Start", "Tutti i programmi", "Nero 7 Essentials", "Nero ProductSetup".

NL Kies "Start", "(Alle) Programma's", "Nero 7 Essentials", "Nero ProductSetup".

New ProductSetup Please select one of the actions and click Next to continue Modify your New product. Use this option to enable additional features of your installed new products. Remove your New products. This option will give you first choose to remove the installed new products completely from your system. Browse new product(s) Included include the latest version of new product(s) for your installed new products. Add previous additional languages Here you can add previous support for particular languages for your new products. Next

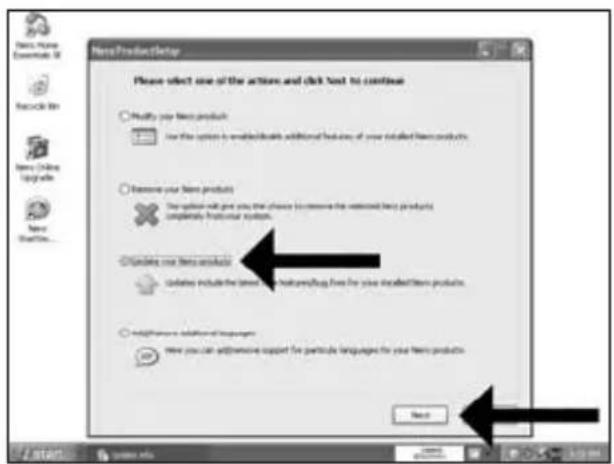

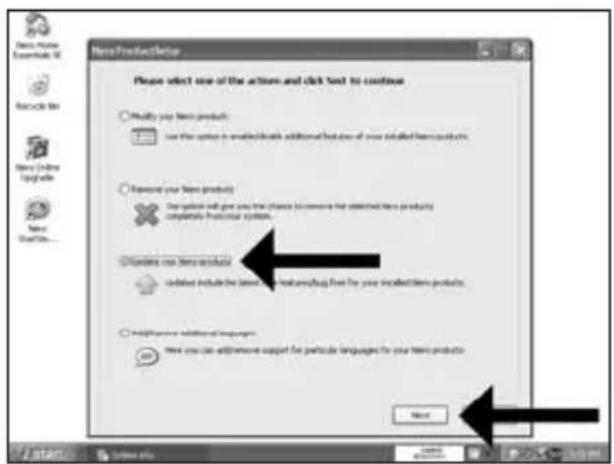

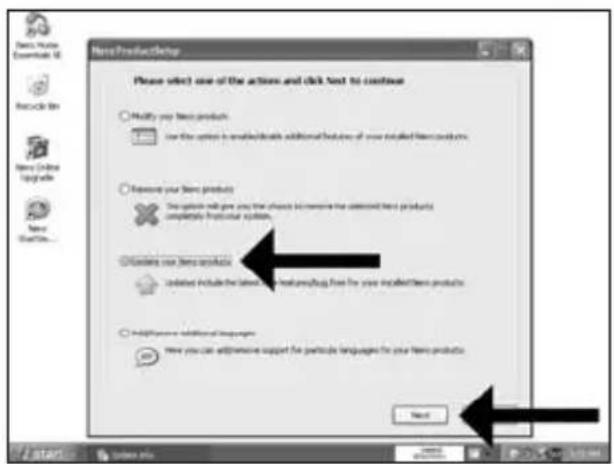

EN Choose "Update your Nero products" and "Next".

New Import Ensemble 3D Recycle Kit New Online Web sites New Update Info File Downloaded The following file products have been detected. - None ? To update all new products on your computer it is necessary to connect to the Internet. If you do not want to allow the installation signed by content to the Internet, please call Next. You will be offered about the amount of data that needs to be transferred in the next step and you will have the chance to cancel the Download. If you do OK or are ready to start this user (this user's email or sender), please follow the instructions on the user to simple Internet access for the installation started. OK

7

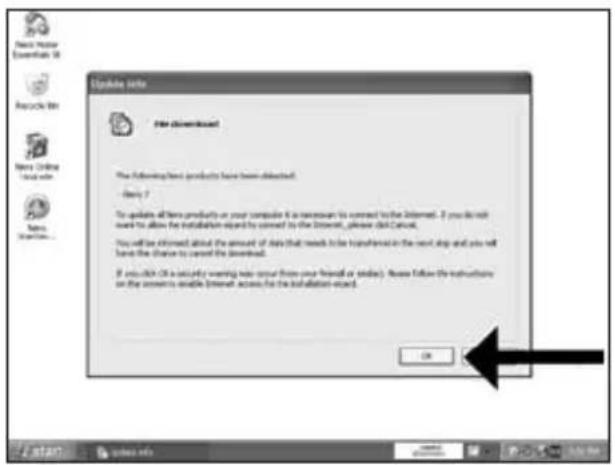

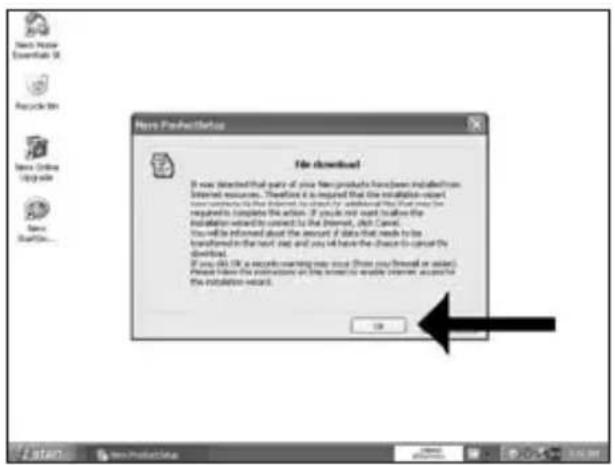

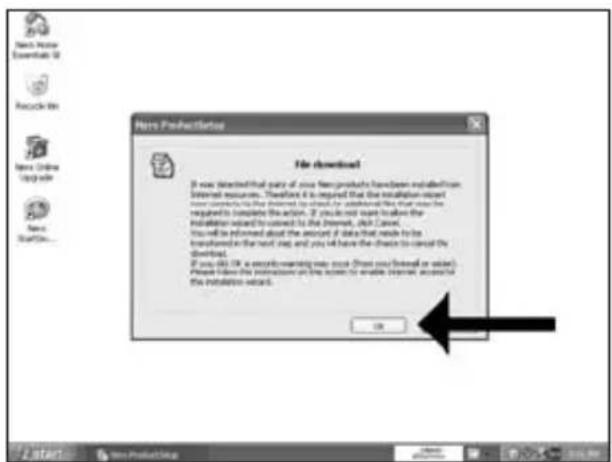

New ProductSetup File download! If now started that part of your new products have been installed from Internet resources. Therefore it is required that the installation will see details to the intended to check for additional fees that may be required to complete the action. If you do not want to allow the Installation required to convert to the Internet, click Cancel. You will be informed about the amount if data that needs file transferred in the next job and you will have the access to convert the download. If you call OK a useful warning into user (that your friend or user). Please have the instructions on the screen for enable users access to the installation record. OK

8

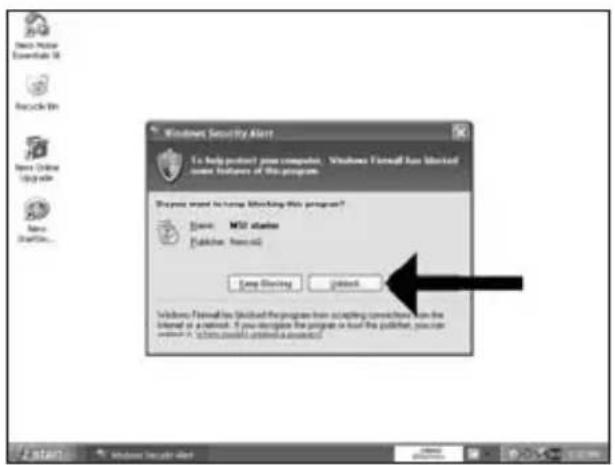

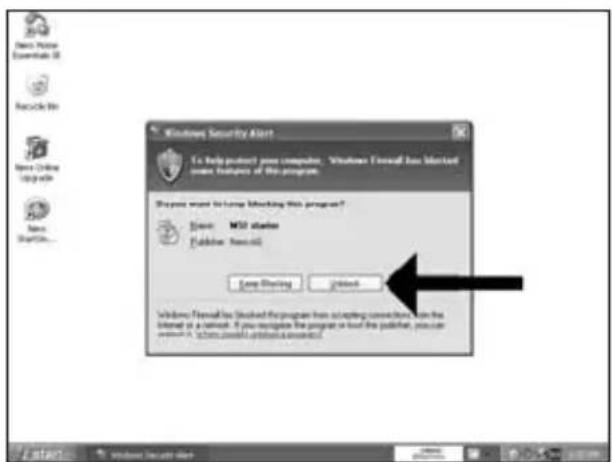

EN The Windows Firewall may warn you. Click "Unblock" to allow your Nero to be updated.
DE Sie erhalten evtl. eine Warnung von der Windows Firewall. Klicken Sie auf "Sperre deaktivieren", damit sich Nero aktualisieren kann.
FR Le pare-feu de Windows affichera peut-être un avertissement. Cliquez sur "Débloquer" pour activer la mise à jour de Nero.
IT È possibile Windows Firewall visualizzi un messaggio di avvertimento. Fare clic su "Unblock" (Sblocca) per consentire l'aggiomamento di Nero.
NL De Firewall van Windows kan een waarschuwing geven. Klik op "Uitschakelen", zodat uw Nero kan worden bijgewerkt.

Windows Security Alert To help protect your computer. Microsoft FrontPage has listed some features of this program. What want to have blocking this program? Store: MSU server Publisher: Microsoft Save Existing Get Back Windows FrontPage has installed the program from executing connection, on the Internet at a network. If you recognize the program or load the publisher, you can continue in order to access any account.

Name: Newer Downloaded 36 Recycle Web Name: Online Downloading Name: Newer ProductTransfer The updates are being downloaded 1. Comwriting 2. Checking engine 3. Preparing installation 4. Optimizing download rate 5. Downloading file 6. Publishing Close

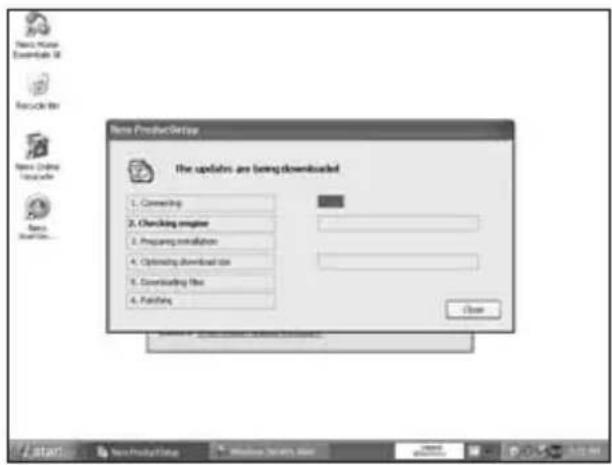

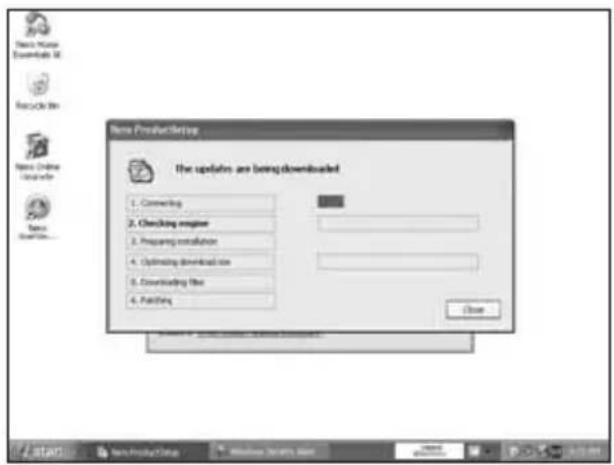

EN Nero downloads and updates itself.
DE Nero führt den Download und die Aktualisierung selbstständig durch.
FR Nero télécharge et se met à jour automatiquement.
IT L'aggiornamento di Nero viene scaricato ed eseguito.
NL Nero gaat automatisch downloaden en bijwerken.

How to print a label using LightScribe?

Be responsible Respect copyrights

1

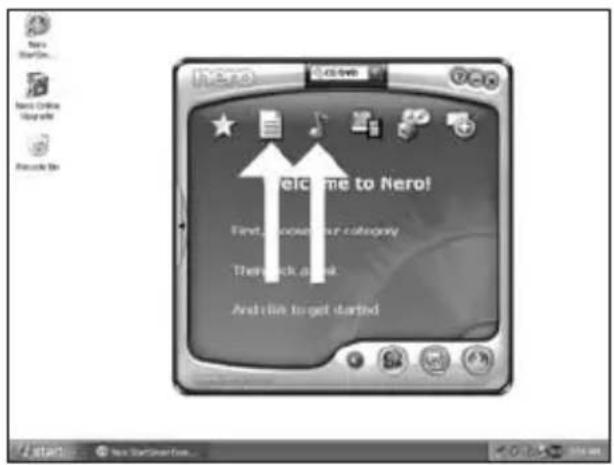

EN Start "Nero StartSmart Essentials".
DE Starten Sie "Nero StartSmart Essentials".
FR Lancez "Nero StartSmart Essentials".
IT Avviare "Nero StartSmart Essentials".
NL Start "Nero StartSmart Essentials".

Menu Main Course Search Book Search Online Upgrade Prepare Info

M-340 12.5.200 Extras Get App Store Info Market Label or Texts Market Info Command Entity's Name Express 12 Express Image Files... Physical, Audio Systems Free Search/Video Label start New StartSmartBox...

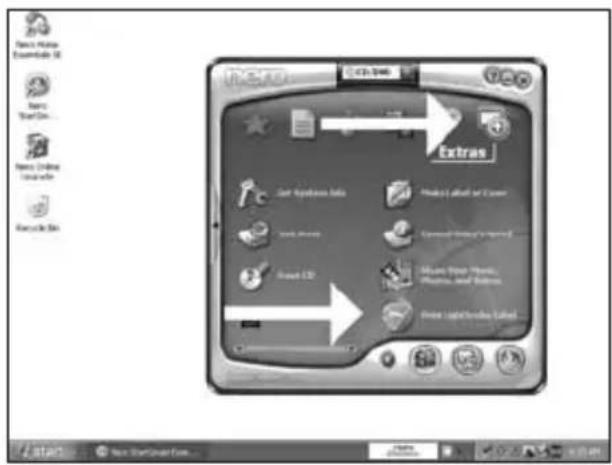

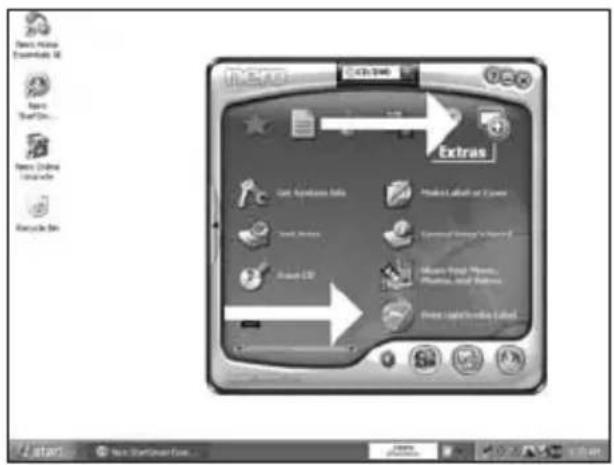

EN Choose "Extra" and "Print LightScribe label".

Pure diagram of a white ring shape with a black arrow pointing to its center, displayed within a software interface (no text or symbols on the shape itself)

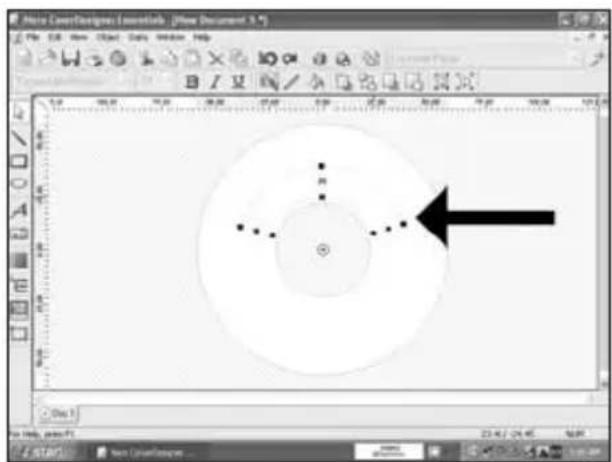

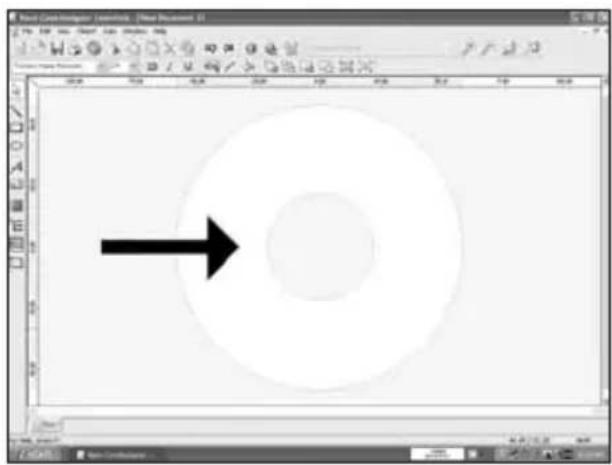

EN To insert a full image, doubleclick on the empty CD area.

Times New Planen Background Properties Brush Image Image source File... Sketch curve • Adjust to lower size • Procedural line drawing • Procedural line image Name: OK Cancel Help

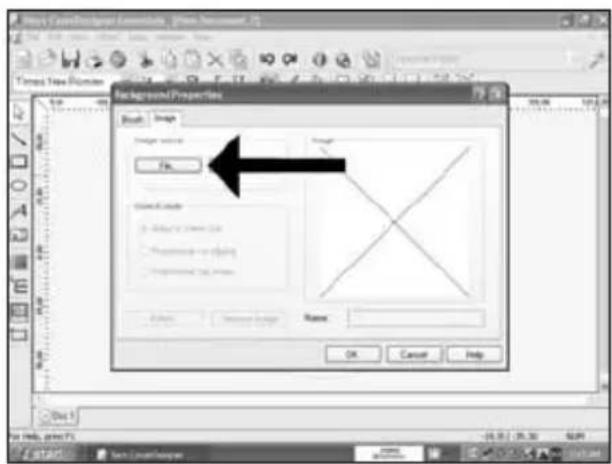

EN Click "File" and open your image.

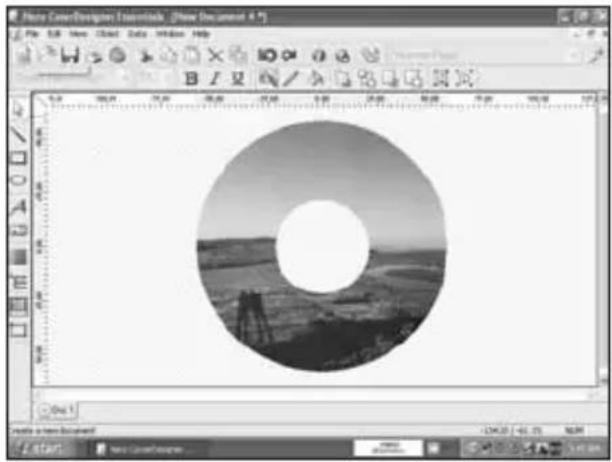

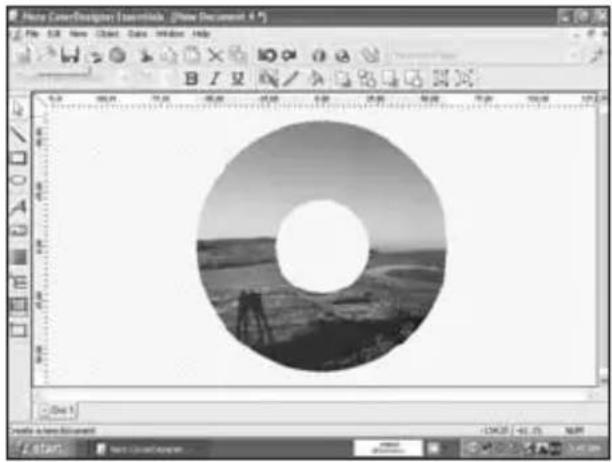

EN Your image will be aligned to the printable area.

Screenshot of a photo editing software interface displaying a circular black-and-white landscape image (no text or symbols on the landscape itself)

6

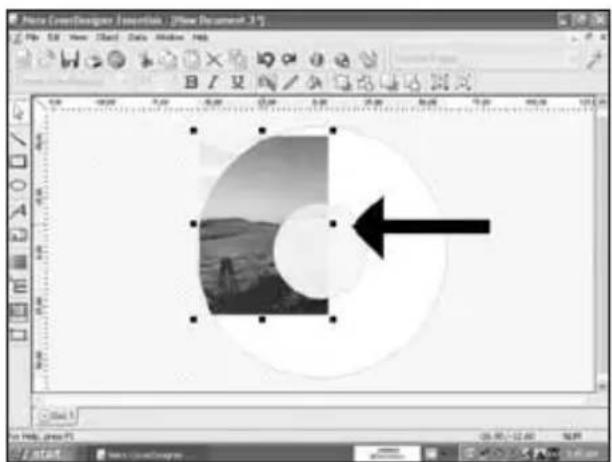

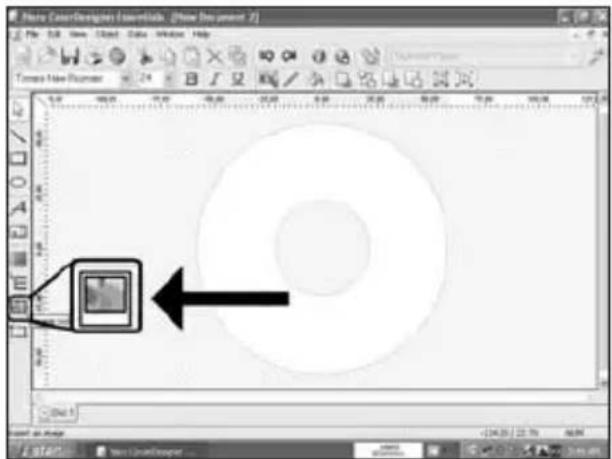

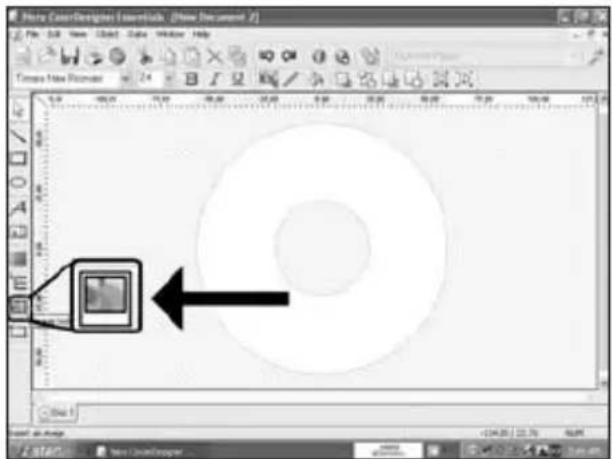

EN To insert an image on a part of the disc, start the "image tool".

EN Open your image and place it where you want it on the CD surface.

Photo CressDesigner Essentials - [New Document 3*] File Edit View Insert Tools Window Help 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 in H86.psd 25.56/12.68 取消 OK Cancel OK OK

File Edit View Object Tools Window Help Times New Document 24 a1

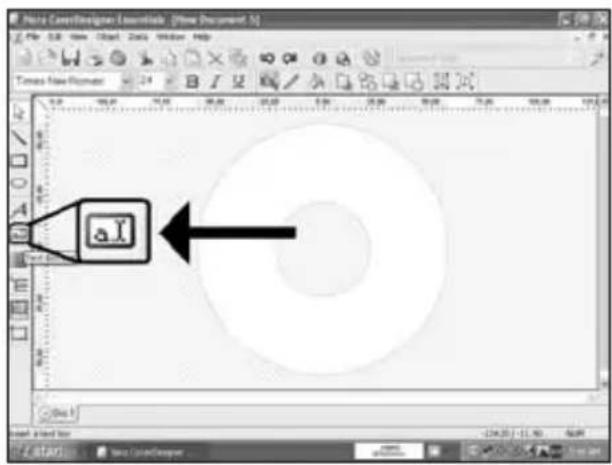

EN To enter text, choose the "Text Box Tool".
DE Um Text einzugeben, wählen Sie das "Textbox-Werkzeug".
FR Pour entrer un texte, choisissez "Outil Boîte de texte".
IT Per inserire un testo, selezionare lo "Strumento riquadro testo".
NL Kies "Tekstvak" om tekst in te voegen.

New CreateDesigns - NewTitle - [View Document 3.7] File Edit View Insert Tools Window Help View Fines View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8 View 9 View 10 View 11 View 12 View 13 View 14 View 15 View 16 View 17 View 18 View 19 View 20 View 21 View 22 View 23 View 24 View 25 View 26 View 27 View 28 View 29 View 30 View 31 View 32 View 33 View 34 View 35 View 36 View 37 View 38 View 39 View 40 View 41 View 42 View 43 View 44 View 45 View 46 View 47 View 48 View 49 View 50 View 51 View 52 View 53 View 54 View 55 View 56 View 57 View 58 View 59 View 60 View 61 View 62 View 63 View 64 View 65 View 66 View 67 View 68 View 69 View 70 View 71 View 72 View 73 View 74 View 75 View 76 View 77 View 78 View 79 View 80 View 81 View 82 View 83 View 84 View 85 View 86 View 87 View 88 View 89 View 90 View 91 View 92 View 93 View 94 View 95 View 96 View 97 View 98 View 99 View 100

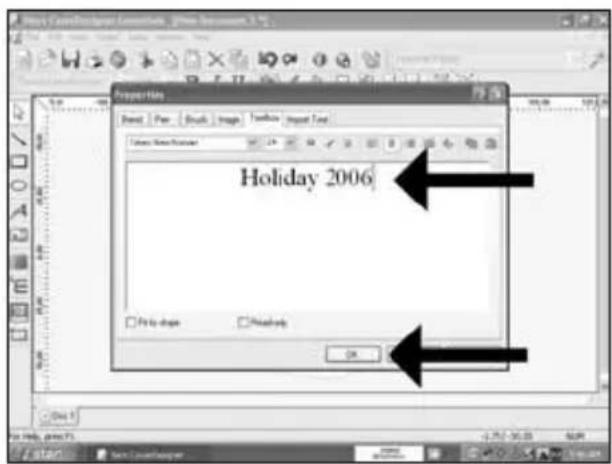

EN Draw the area where to put the text. A smaller area will print faster.
DE Zeichnen Sie die Fläche, in die Sie Text schreiben möchten. Eine kleinere Fläche wird schneller bedruckt.
FR Dessinez la zone où placer le texte. Unezone plus petite s'imprime plus rapidement.
IT Tracciare l'area in cui inserire il testo. Un'area più piccola verrà stampata molto rapidamente.
NL Teken het gebied waar u de tekst wilt plaatsen. Een kleiner gebied kan sneller worden afgedrukt.

Holiday 2006 File to shape Locking OK

Print Consensus Formulas - (free version 5.1) Times New Process File For the Print Properties New Controls Draft Normal Edit Number of copies: Drive [ Phil.SPL CIVRTELS] Total Spread Programs Automatically And Write PC when done Next Save

13

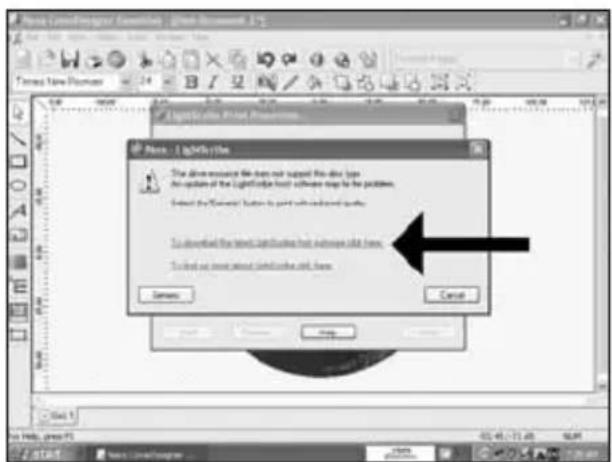

EN In case your LightScribe software is out of date, you will have to update your software.
DE Falls Ihre LighScribe-Software nicht mehr auf dem neuesten Stand ist, müssen Sie ein Update durchführen.
FR Si votre logiciel LightScribe est dépassé, vous devrez le mettre à jour.
IT Nel caso in cui il software LightScribe a disposizione sia obsoleto, sarà necessario aggiomarlo.
NL Als uw LightScribe-software is verouderd, moet u uw software updaten.

New: LightFile Files The download file does not support the disc type. An update of the LightFile tool's software map to the problems. Select the following buttons to print with additional details: To download the disc applications but access some disk files. To find out more important disk icons and files. Cancel OK Cancel

Home, LightScript First process completed successfully. OK Automatically but done the PC when done Finish Finish Help About

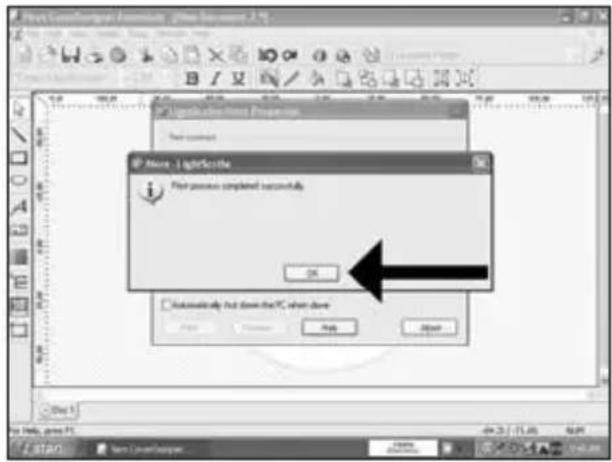

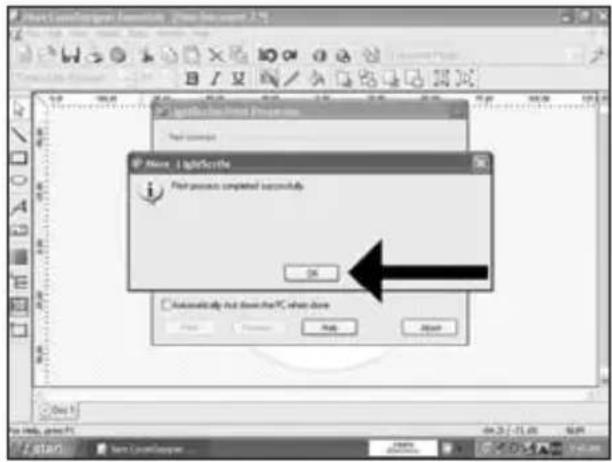

EN Congratulations, your disc has been printed successfully. You may exit the application now.
DE Glückwunsch, Ihre Disc wurde erfolgreich bedruckt. Sie können jetzt die Anwendung verlassen.
FR Félicitations, le disque a été imprimé avec succès. Vous pouvez maintenant quitter l'application.
IT Congratulazioni, è stata completata la stampa del disco. Ora è possibile uscire dall'applicazione.
NL Gefeliciteerd, uw cd is met succes bedrukt. U kunt de toepassing nu afsluiten.

How to make a video disc?

Be responsible Respect copyrights

1

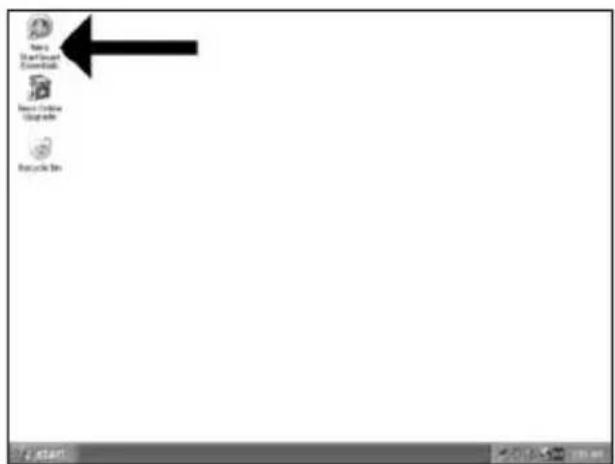

EN Start "Nero StartSmart Essentials".
DE Starten Sie "Nero StartSmart Essentials".
FR Lancez "Nero StartSmart Essentials".
IT Avviare "Nero StartSmart Essentials".
NL Start "Nero StartSmart Essentials".

Save Start Menu Enter Web Save Connection Update Web Update Bin

Photo and Video Make Image (A) Make Image (B) Make Image (C) Make Image (D) Make Image (E) Make Image (F) Make Image (G) Make Image (H) Make Image (I) Make Image (J) Make Image (K) Make Image (L) Make Image (M) Make Image (N) Make Image (O) Make Image (P) Make Image (Q) Make Image (R) Make Image (S) Make Image (T) Make Image (U) Make Image (V) Make Image (W) Make Image (X) Make Image (Y) Make Image (Z) Make Image (A)

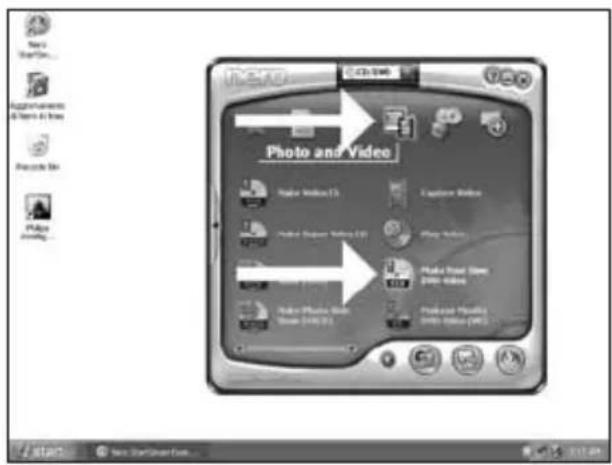

EN Choose "Photo and Video" and "Make your own DVD-Video".

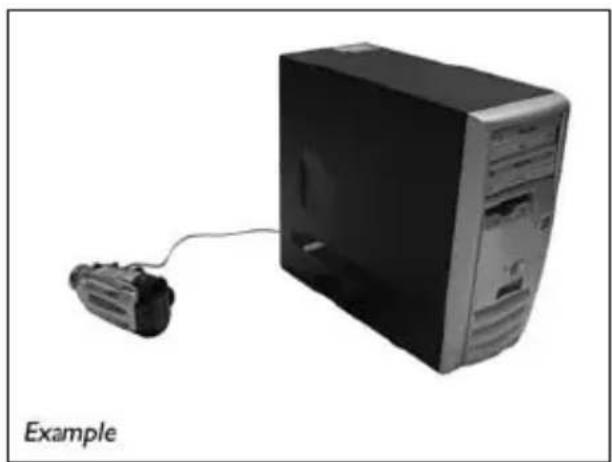

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

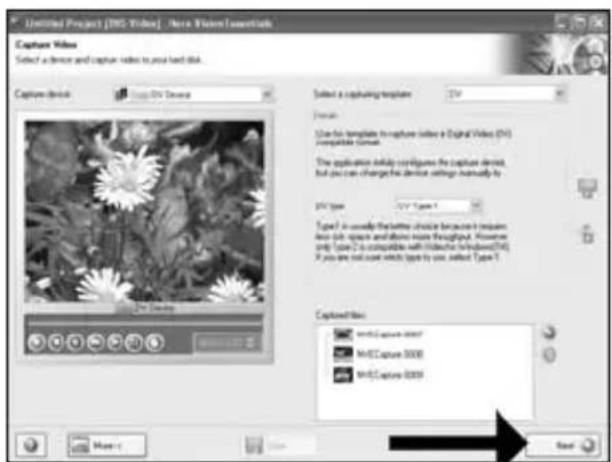

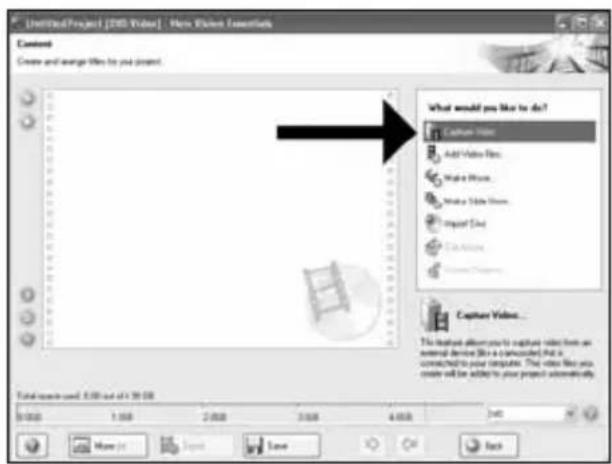

EN If you want to capture video from a camera, connect it to your PC. Otherwise go to step 8.

UntitledProject [TMS Video] - Max Picture Essentials Capture Video Select a device and capture video to avoid hard disk. Capture Device: Top 37V Driver Capture Use the template to capture video in Digital Video (DVI) compatible format The application initially configures the capture devices but you can change the device settings manually by DVI type: DVI Type 1 Type 1 is usually the below choice because it requires free disk speed and allows more throughput. However, option Type 2 is compatible with video for Windows(TM) If you are not used which type 3 uses, offset Type 1 Top 37V Driver Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 37V Top 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

6

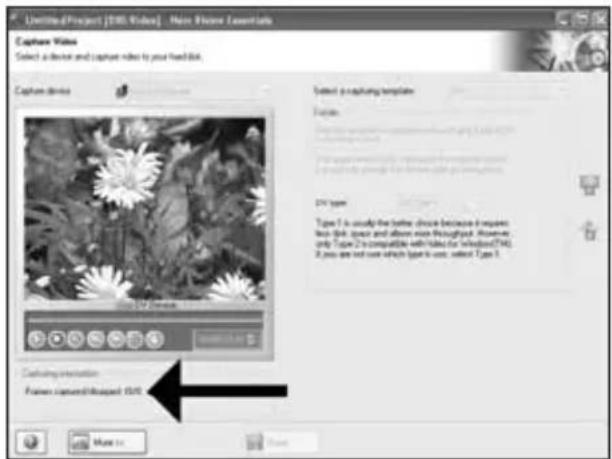

EN During capturing, you will see the progress here.
DE Während der Aufnahme sehen Sie hier den Fortschritt.
FR Pendant la capture, l'avancement s'affiche ici.
IT Durante il processo di cattura, qui sarà possibile visualizzare l'avanzamento.
NL Tijdens het laden ziet u hier de voortgang.

UntitledProject [1980 Videos] - More Picture Essentials Capture Video Select a device and capture video to your hard disk. Capture Device Select a capturing template Templates: Type 1 is useful for the better choice because it requires free disk space and allows more throughput. However, only Type 2 is compatible with type for throughput (74). If you are not sure which type is used, select Type 1. Capture Environment Frames captured/missed disk

7

Untitled Project [1952-Video] - New Window Installable Capture Video Select a device and capper video to put hard disk. Capture drive: Stop UV Device Selected a capturing template: 0%+0% Format: Use this template to capture select a Digital Video (DVI) compatible format. The application also involves the capture device, but you can change the device settings manually to. DVI type: UV Type 1 Type 2 is used for the other choice because it requires box files, space and lines have throughout. However only: Table 2 is compatible with radioactive Windows(DVI). If you are not use which type to use select Type 2. Captured files: MNTC Capture 0007 MNTC Capture 0008 MNTC Capture 0009 Ready

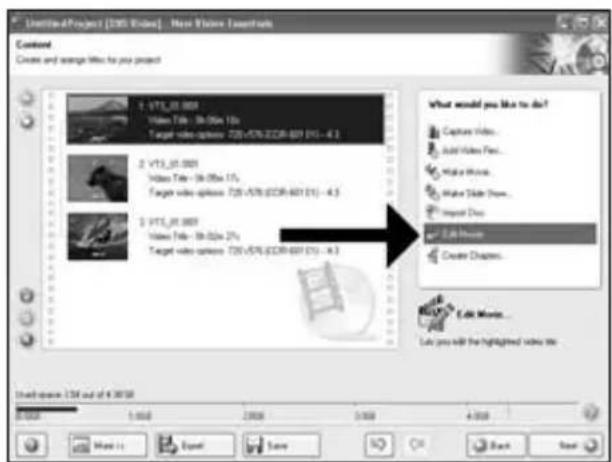

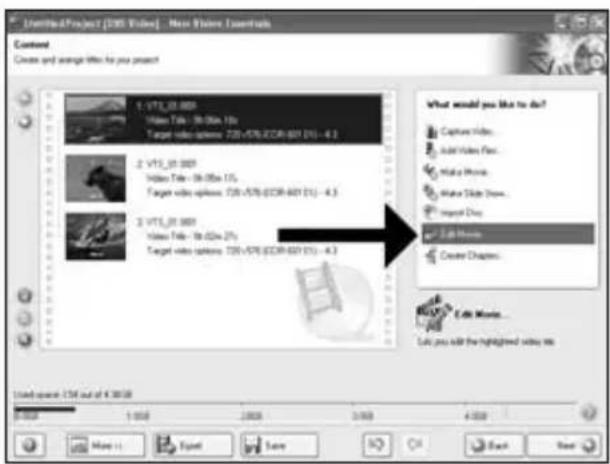

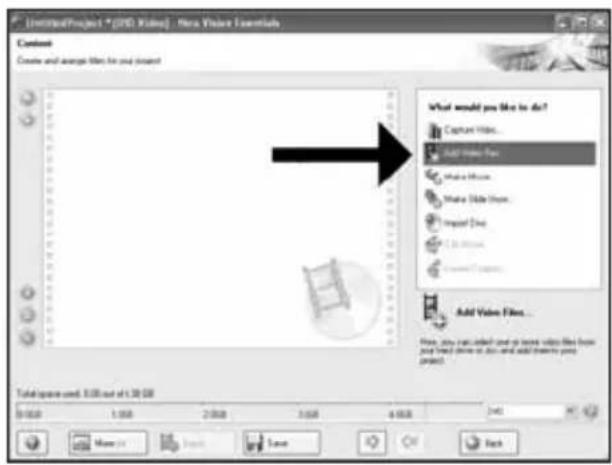

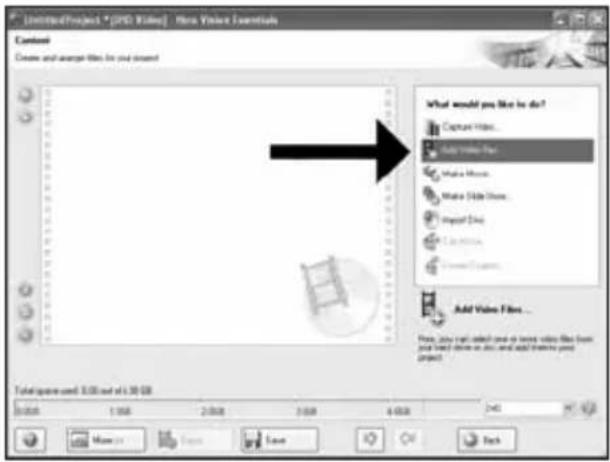

UntitledProject * [DVD Video] - New Video Essentials Context Create and analyze files for your content What would you like to do? Capture Video... Copy Video File Make Image... Make Slide Save... Import Drive Add Video Files... Add Video Files... New, you can add one or more video files from your text file into the main and add more new project. Total space used: 3.06 out of 1.30 GB 0.000 1.000 2.000 3.00 4.00 5.00 More than Save Save Back

Open Create an Modules New Solid Desktop My Documents My Computer My Options Flares File name: File of System: All Supported Index Files Open Cancel

Unrealized Project [100] Video - New Video / NewTech Content Create and arrange video for you present 1. VIT_01 007 Video Title - 16.00x 15s Target video options: 720+VIT5/DCR-601 (1%) - 4.3 2. VIT_01 007 Video Title - 16.00x 15s Target video options: 720+VIT5/DCR-601 (1%) - 4.3 3. VIT_01 007 Video Title - 16.00x 2% Target video options: 720+VIT5/DCR-601 (1%) - 4.3 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Slide Maps... Import Day... Edit Movies... Create Chapters... Let you add the highlighted video list Only search: 15M out of 4.3008 1:000 2:000 3:000 4:000 More... Equal Save Next Next

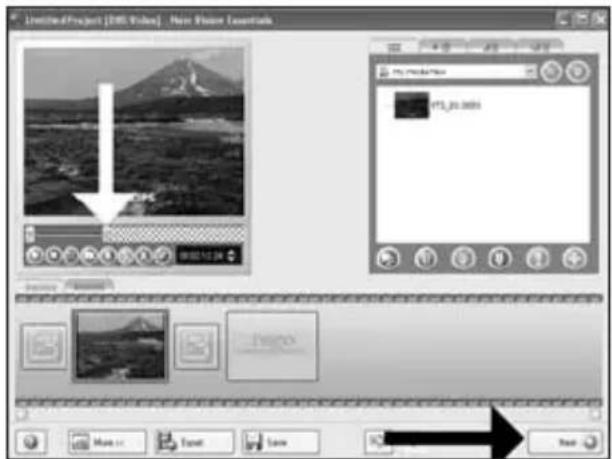

Limiting Project [100 Vites] - Stee Vision Leavertown File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Preview

13

Untitled Project1 [RMS Videos] - New Vision Essentials Content Create and update files to your project. 1. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 2. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 3. VIT_0.0009 Video Files - 36.0007 Target video options T26 x 576-ECX-801 (D1) - 41 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Solar Views... Export Docs... Sub Movies... Create Chapters... Under search: 36 out of 4.0009 1:000 1:000 2:000 3:000 4:000 Name: Export Law Next

Unlimited Proport [VISA] Video | New Video Essentials Select None Select main menu and file name. Select options: High Media Holiday 2005 1 VTE, 81.2007 Video: Holiday 2005 Edit Media... Save Next Next

UntitledProject [1981 Videos] - New iPhone SaveInfo Edit Money Customize new options. Holiday 2005 What would you like to change? Layout Background Software Card Presets/Factor Card Disability Administration Information Colors Save Save

UntitledProject [1985 Video] - New Window Japart.com Pharose Explore the works of your page of future learning 6. Holiday 2005

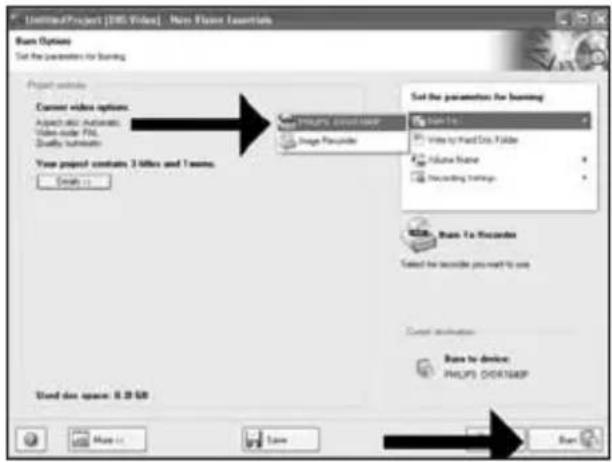

UntitledProject [EMS Video] - Max Flange Essentials Run Options Set the parameters for learning Project website Current video options Aspect also Automatic Video icon TTL Quality settings View project contains 3 filters and 1 name. Email: Start the parameter for learning Run To: Write by Hard Copy Folder Volume Name Recording Settings Run To Recorder Selected the recorder you want to use Start applications Run to device: PHILIPS ORDERER Used disc space: 0.29 GB Save

18

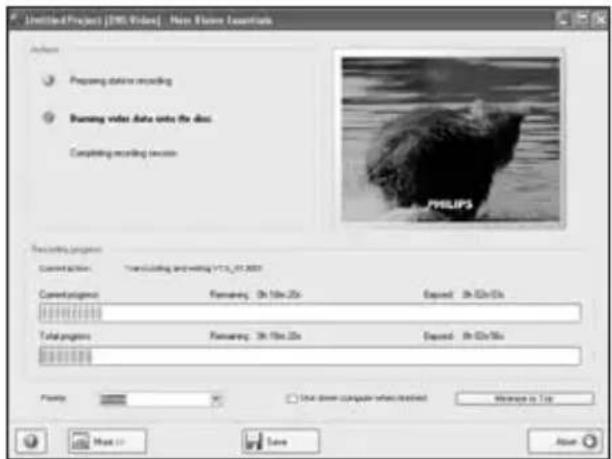

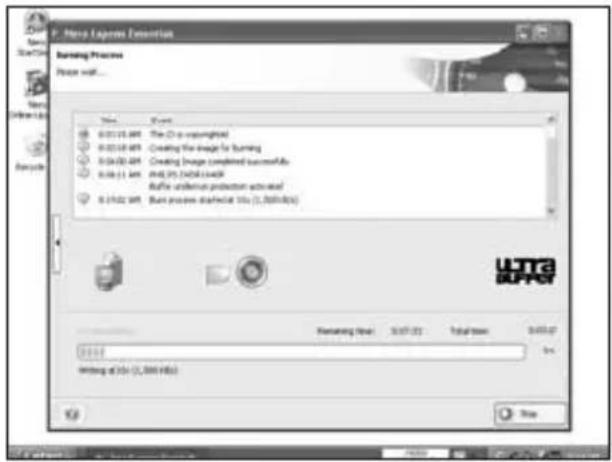

EN NeroVision Express is transcoding and burning your disc.
DE NeroVision Express führt ein Transcoding durch und brennt Ihre Disc.
FR NeroVision Express procède au transcodage et grave le disque.
IT NeroVision Express esegue la codifica intermedia e la masterizzazione del disco.
NL NeroVision Express transcodeert en brandt uw cd.

LimitedProject [100 Video] - New Future Documents Analysis Preparing default encoding Running video data onto the disc Completing recording session PHILIPS Recording project Current action: Transcribing and editing V1.5_01.0007 Current progress: Forwarding 3h 10m.25s Expired 3h 02m.05s Total progress: Forwarding 3h 10m.25s Expired 3h 02m.05s Preview: Not done computer when installed Welcome to Top Next >> Save

19

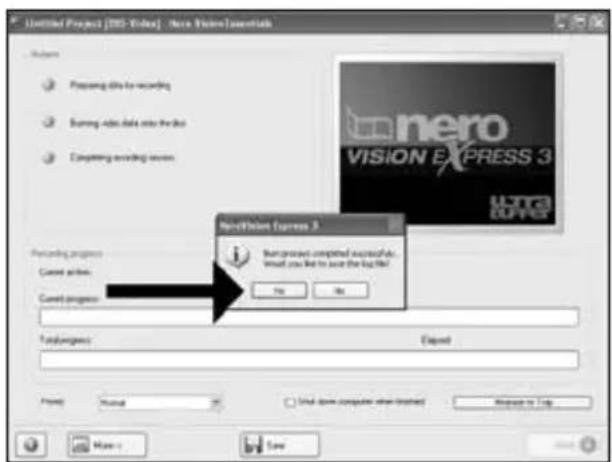

EN Congratulations, your disc has been written successfully. You may exit the application now.
DE Glückwunsch, Ihre Disc wurde erfolgreich beschrieben. Sie können jetzt die Anwendung verlassen.
FR Félicitations, le disque a été gravé avec succès. Vous pouvez maintenant quitter l'application.
IT Congratulazioni, è stata completata la scrittura del disco. Ora è possibile uscire dall'applicazione.
NL Gefeliciteerd, uw cd is met succes geschreven. U kunt de toepassing nu verlaten.

Untitled Project [MS Video] - New Video Installants Options Preparing data for recording Burning video data into the disc Completing recording services Non-Video Express 3 New process completed successfully. What you like to save the log file: No No Recording progress Current action: Current progress: 1st progression: Expired Preview: Normal Used down computer when printed Manage to Top More... Save

How to make a data or audio disc?

Be responsible Respect copyrights

1

EN Start "Nero StartSmart".

Welcome to Nero! First, you should not Category Thank you for And like to get started

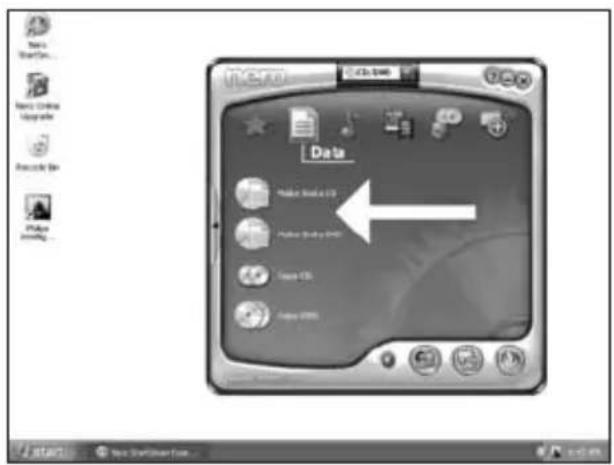

EN Choose "Data" or "Audio".
DE Wählen Sie "Daten" oder "Audio".
FR Choisissez "Données" ou "Audio".
IT Selezionare "Dati" o "Audio".
NL Kies "Data" of "Audio".

Data Make Excel 2017 Make Excel 2016 Start CS Make 2015

Audio Make Audio CD Play Audio Audio MP3.03 Audio MP3.04 Options to play music on all CDs, playing and running PC. Make Music Broadcast Audio 12.03

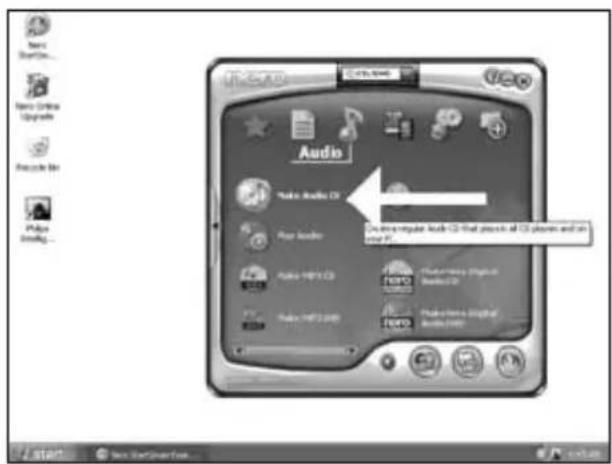

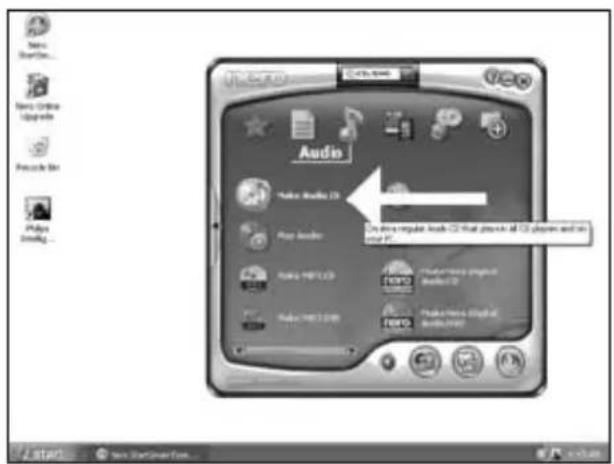

EN For an audio disc, choose "Make Audio CD".
DE Für eine Audio-Disc wählen Sie "Audio-CD erstellen".
FR Pour créer un disque audio, choisissez "Créer un CD audio".
IT Per un disco audio, selezionare "Crea CD Audio".
NL Voor een audio-cd, kies "Audio-cd maken".

5

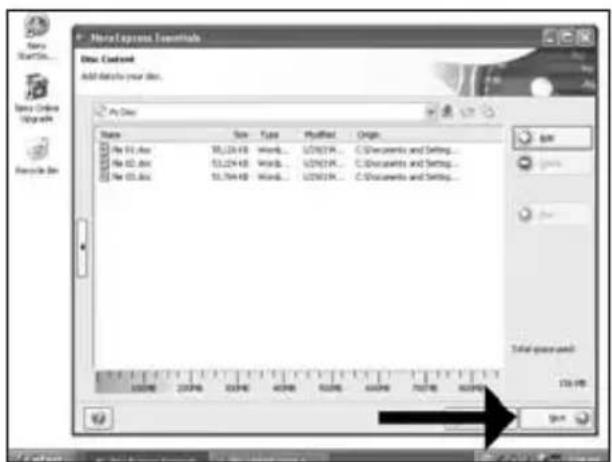

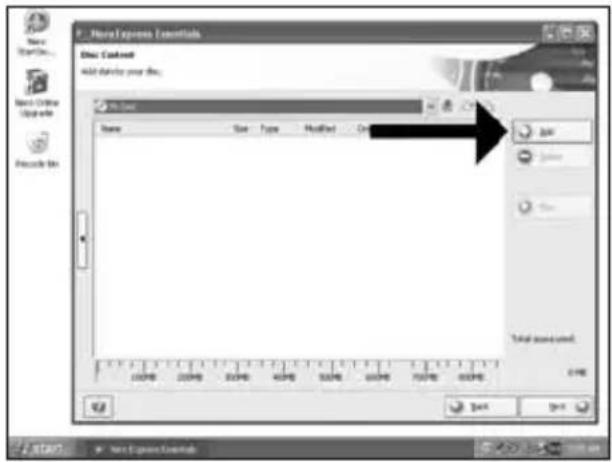

New Express Essentials Edit Content Add Existing your this... New Text Name Size Type Modified On Save Save Total extracted. 2 KB Get Get

6

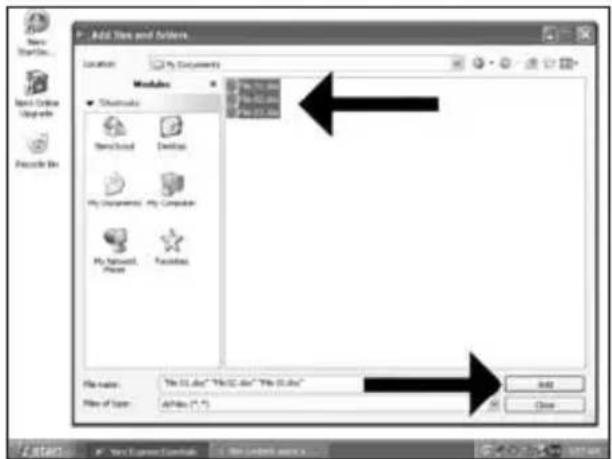

Add Text and Buttons Location My Documents Modules ● Refreshable New Third Device1 My Documents My Computer My Outlook Phone Refresher File type: "My 01.doc" "My 02.doc" "My 03.doc" File of type: Airbox (*.*)

7

Next Express Elements Find Store Settings Click Start to start the recording process Data format: My One Number of types: Modify data on disc after turning Allow file to be added time (multimension disc) OK Apply

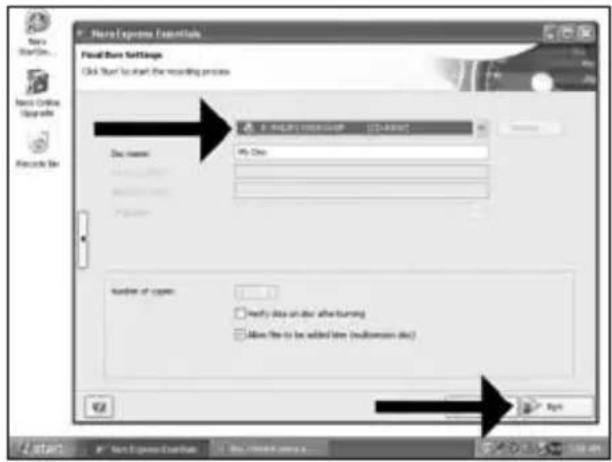

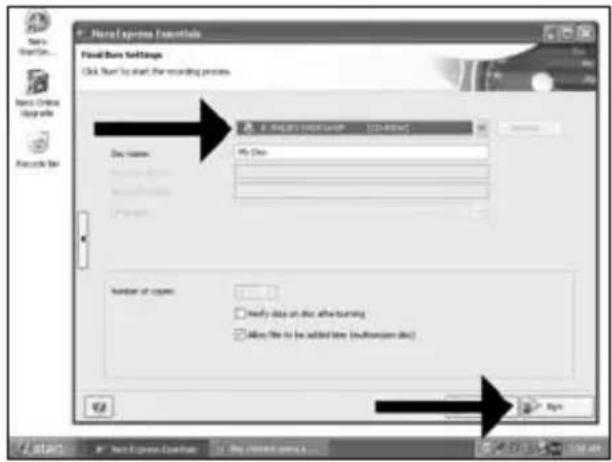

EN Choose your recorder and click "Burn".

New Express Event Hall Warning Process Please wait... Test Event 4:00-95 AP PHILIPS CHISSUE Buffer undersea protection activated 4:00-95 AP Cache of New started 4:00-95 AP Cache of New completed 4:00-95 AP Run uncompleted at site 3.700 MHz UTC B2168 Network: 200 MHz Stop

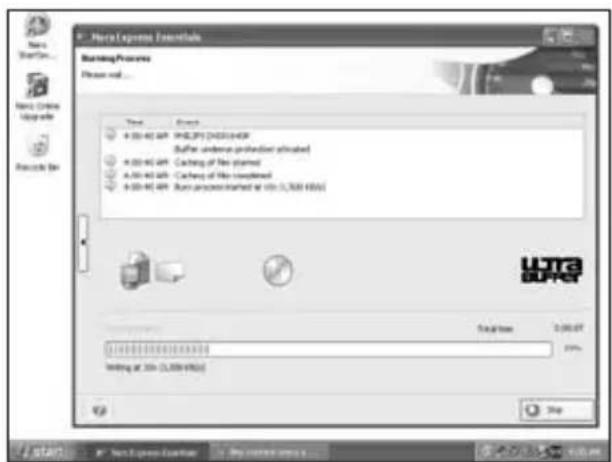

EN Nero is burning your disc.

New Express Descent Starting Process File Edit • 0:00-01.00 GMT/2013/12/2014 • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Express descent version installed • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New Access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT • New access DESCENT USG BURGER

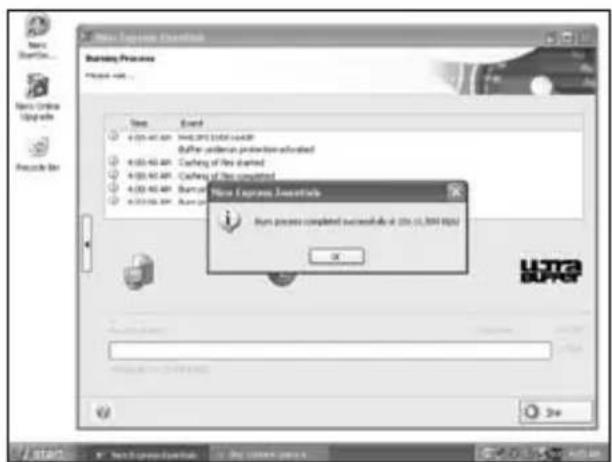

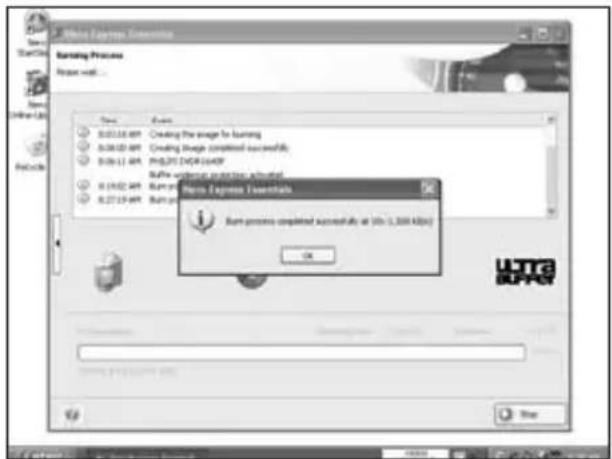

EN Congratulations, your disc has been written successfully. You may exit the application now.

Be responsible Respect copyrights

1

EN Start "Nero StartSmart Essentials".
DE Starten Sie "Nero StartSmart Essentials".
FR Lancez "Nero StartSmart Essentials".
IT Avviare "Nero StartSmart Essentials".
NL Start "Nero StartSmart Essentials".

Menu Start Menu ExerciseButton Menu Window 启用程序 Options Menu

USSAO CD: 596 Favorites PAdobe Studio 13 PAdobe Image Store DVD - PAdobe PAdobe Studio 1997 Cinema 127 PAdobe Audio 13 PAdobe Puzzle 13 PAdobe Music Audio Music CD:202

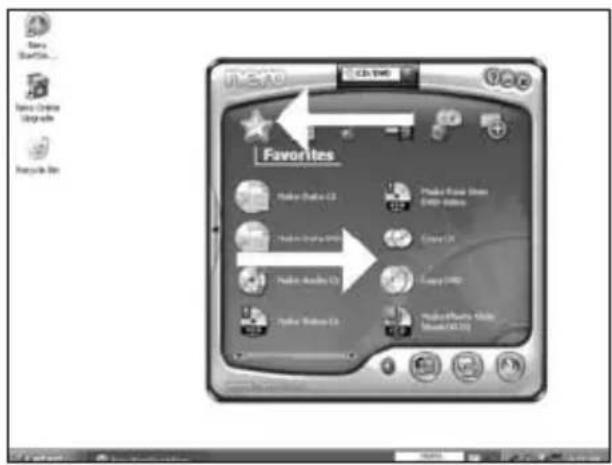

EN Choose "Favorites" and "Copy CD" or "Copy DVD".

Select Source and Destination Please select source and destination drivers and insert source disk. Source drive: E:\PLGPS\HKEYCORP Destination drive: E:\PLGPS\HKEYCORP [14:45W] Cashout: Save data cannot be copied. Then may be saved protected at customer's. If you are not sure if your file can be copied, please run a form simulation code (eBook or Advanced) or select Simulation. Writing gain: Maximum Number of copies: 1 Find the data in the after opening. Drop No: Documents and Settings/Chips/AlkPy Discover Open

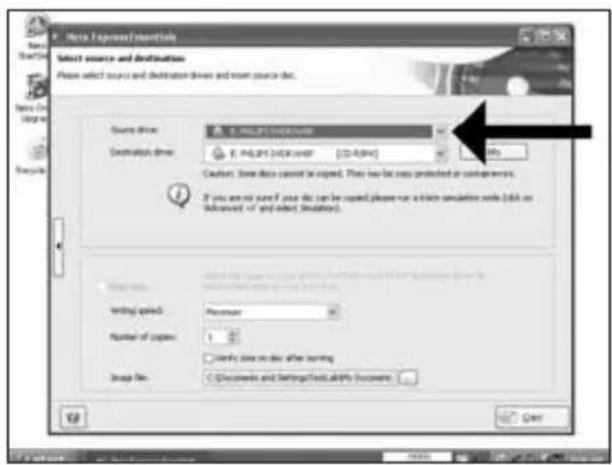

EN Select the source drive.

F:\Movie Express\Transport Select source and destinations Name: select source and destination drives, and insert source list. Source drive: F:\MP3.P51.DXK2448P Destination drive: F:\MP3.P51.DXK2448P - 1.000000 Cauding: Some device must be copied. They may be copied or filtered at any other sites. If you can add some if you like the can be copied, please run a template simulation mode (bit on "Advanced" or "and selected Simulations") Writing speed: Number: □ Verify data on the other setting. Insert File: □ Documents and https://mtp3.p51.dxk2448P Document OK

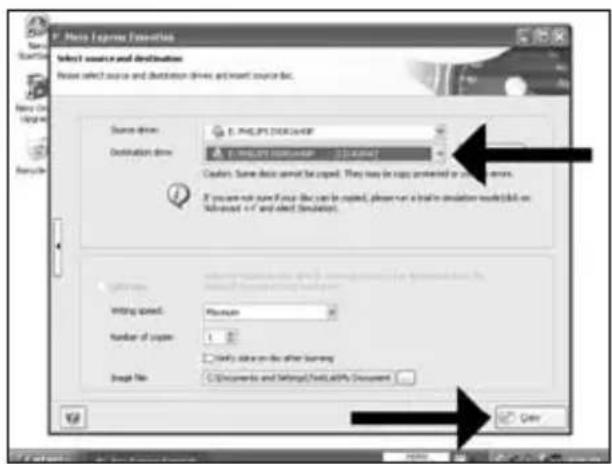

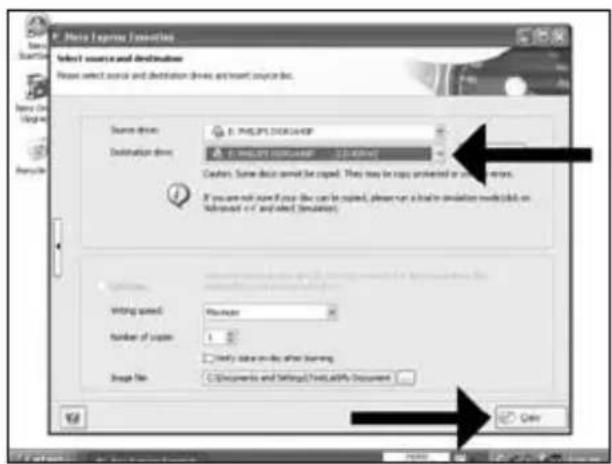

EN Select the destination drive and click "Copy".

P. New Express Options Burning Process Page walk... View Next 0.01.15.497 The CD is copyrighted 0.01.16.497 Creating the image for burning 0.04.20.497 Creating images completed successfully 0.08.11.497 PAS 2013/08/2008 0.15.02.497 Rupt process blockchain info (1,300 files) UFTE UPPER Texting time 10:07:02 TOTAL TIME 0:00:07 OK Writing at info (1,300 files)

6

EN Congratulations, your disc has been written successfully. You may exit the application now.
DE Glückwunsch, Ihre Disc wurde erfolgreich beschrieben. Sie können jetzt die Anwendung verlassen.
FR Félicitations, le disque a été gravé avec succès. Vous pouvez maintenant quitter l'application.
IT Congratulazioni, è stata completata la scrittura del disco. Ora è possibile uscire dall'applicazione.
NL Gefeliciteerd, uw cd is met succes geschreven. U kunt de toepassing nu sluiten.

Micro Express Seminars Running Process Up to Next... Save... Edit... 0.03.26 .8PF 0.06.02 .8PF 0.06.11 .8PF 0.19.02 .8PF 0.27.19 .8PF Creating the image for running Creating Image completed successfully PROJET (DVR) 5.04XP Buffi software on the project installed Burr Micro Express Seminars Burn process completed successfully at 0% (1,000 KB) OK UTR UPAC

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

▶ Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Be responsible Respect copyrights

Computer tower with monitor and control panel, labeled 'Example' (no other text or symbols)

ES Apague el ordenador.
PT Desligue o seu computador.
TR Bilgisayarınızı kapatın.
PL Wyłącz komputer.
SV Stäng av datom.

Computer tower internal panel with ventilation slots and a hand inserting a cable (no text or symbols visible)

Close-up of a computer power adapter with a black arrow pointing to the outlet (no text or symbols visible)

ES Desconecte el cable de alimentación del PC.
PT Desligue o cabo de alimentação do PC.
TR Güç kablosunu bilgisayardan çıkann.
PL Odłącz kabel zasilający od komputera.
SV Dra ut nätsladden från datom.

5

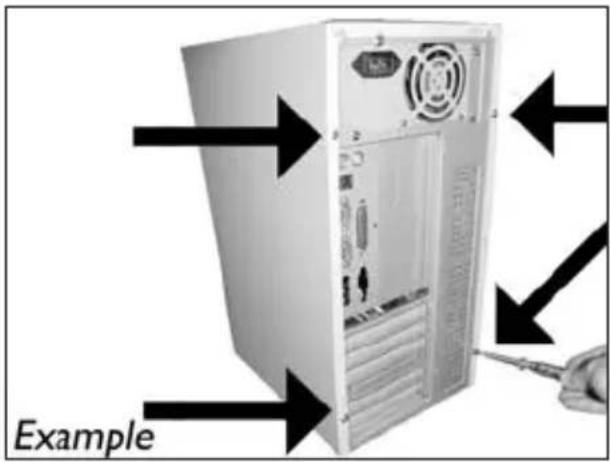

Exterior view of a server rack unit with an arrow pointing left and labeled 'Example' (no other text or symbols)

7

Power Connector S-ATA Connector

Interior view of a computer tower case showing internal components and a black arrow pointing to a specific area, labeled 'Example' (no readable text or symbols beyond label)

ES Ponga la unidad en el ordenador.
PT Coloque a unidade no computador.
TR Sürücüyü bilgisayannıza yerleştirin.
PL Włóż napęd do komputera.
SV Sätt i enheten i datom.

Close-up of hands inserting a cable into a device component (no visible text or symbols)

ES Conecte un cable de alimentación S-ATA al equipo.
PT Conecte um cabo de alimentação S-ATA em sua unidade.
TR Sürücünüze bir S-ATA Güç Kablosu bağlayın.
PL Podłącz kabel zasilający S-ATA do napędu.
SV Anslut en S-ATA-nätkabel till enheten.

Example

ES Conecte el cable de datos S-ATA al equipo.
PT Conecte o cabo de dados S-ATA em sua unidade.
TR Sürücünüze S-ATA veri kablosunu bağlayın.
PL Podłącz kabel danych S-ATA do napędu.
sv Anslut S-ATA-datakabeln till din enhet.

11

ES Conecte el cable de datos S-ATA a la tarjeta principal.
PT Conecte o cabo de dados S-ATA em sua placa-mãe.
TR Ana kartınıza S-ATA veri kablosunu bağlayın.
PL Podłącz kabel danych S-ATA do płyty głównej.
sv Anslut S-ATA-datakabeln till ditt moderkort.

Close-up of a hand holding a computer motherboard with an arrow pointing to a component (no visible text or symbols)

12

ES Asegure la unidad con los tomillos (si es posible en ambos lados).
PT Utilize os parafusos para fixar a unidade (se possível, de ambos os lados).
TR Sürücüyü vidalarla iyice sıkıştırın (mümkünse her iki tarafı).
PL Przymocuj napęd śrubami (jeżeli jest to możliwe, obustronnie).
SV Säkra enheten med skruvar, om möjligt på båda sidorna.

Example

13

ES Vuelva a instalar la carcasa que quitó en el paso 5.
PT Recoloque a cobertura que tirou no passo 5.
TR 5. adımda çıkardığınız kapağı yerine takın.
PL Nałoż z powrotem obudowę, zdjęta w punkcie 5.
sv Sätt tillbaka höljet du avlägsnade i steg 5.

Exterior view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

Example

New Options... New Online Upgrade Recycle Bin Latam

2

Philips Intelligent Agent Product: (2019) 2046 Options for your Product version: Product: Installed version: Latest version: [ ] PHILIPS CHOR [HLS] - [ATM] 81.0 Philips Intelligent Agent 3.5 The last successful product update check was performed in 2004-05-12 (1:40:47) API. The automatic product update check is blocked. Check for update Clarify button to check for product updates.

Philips Intelligent Agent E-mail: Options Help Loading for your Philips product Product: Installed version: Latest version: [01] PHILIPS/PHILIPS-5 - [XVAT] 41.6 42.8 Downloaded Helps Intelligent Agent 1.8 2.9 The last successful product update (check not performed on 2006-09-C2 123:34 PM) The automatic product update (check is deleted. Check for updates Product update information was successfully retained from the server.

ES Descargando las actualizaciones e instalándolas.
PT Faça o download das atualizações e instale-as.
TR Günclemeleri indir ve kur.
PL Pobierz i zainstaluj aktualizacje.
SV Ladda ner uppdateringarna och installera dem.

New Home Essentials 3 Current Default E-mail New StartSmart Key All Programs My Start New Computer Audio Data Labels Format Photo and Video Plan Share Tools New Home Essentials 2 New Global Settings New Deal New Bar/Smart Estimate

ES Elija "Inicio", "(Todos) Programas", "Nero 7 Essentials", "Nero ProductSetup".
PT Seleccione "Iniciar", "(Todos os) Programas", "Nero 7 Essentials", "Nero ProductSetup".
TR Sırasıyla "Başlat", "(Tüm) Programlar", "Nero 7 Essentials", "Nero ProductSetup" seçeneklerini belirleyin.
PL Kliknij "Start", "(Wszystkie) Programy", "Nero 7 Essentials", "Nero ProductSetup".
sv Välj "Start", "(Alla) Program", "Nero 7 Essentials", "Nero ProductSetup".

New ProductSetup Please select one of the actions and click text to continue Modify your New products. Use the option to enable additional features of your installed new products. Remove your new products. This option will give you how much to remove the installed new products completely from your system. Remove your new products. Install include the latest version of new product files for your installed new products. Add new additional languages. Here you can add more support for particular languages for your new products. Next

ES Elija "Update your Nero products" (Actualice sus productos Nero) y "Next" (Siguiente).
PT Seleccione "Actualizar produtos Nero" e "Seguinte".
TR "Update your Nero products" (Nero ürünlerinizi güncelleyin) ve "İleri"yi seçin.
PL Wybierz "Uaktualnij produkty Nero" i kliknij "Dalej".
sv Välj "Uppdatera Nero-produkter" och "Nästa".

6

ES Haga clic en "OK".
PT Clique em "OK".
TR "Tamam"ı tıklatın.
PL Kliknij "OK".
sv Klicka på "OK".

New Author Essential 3D Recycle Kit New Online Internet New Update Info File Downloaded The following text products have been detected. - Items ? To update all new products on your computer it is necessary to connect to the Internet. If you do not want to allow the installation required by command to the Internet, please call Next. You will be offered about the amount of data that needs to be transferred in the next step and you will have the blank to contain the downloaded. If you did OK in security working into your home (you would or close), please follow the instructions on the screen to enable Internet access for the installation required. OK

7

ES Haga clic en "OK".
PT Clique em "OK".
TR "Tamam"ı tıklatın.
PL Kliknij "OK".
sv Klicka på "OK".

New ProductStatus File download! If now started that part of our new products have been installed from Internet resources. Therefore it is required that the installation required will be required to be installed to check for additional items that you must be required to complete the action. If you do not want to allow the installation required to convert to the Internet, click Next. You will be informed about the amount if data that needs to be transferred in the next step, and you will have the direction to convert the downloads. If you do OK a security warning may need (that you need or value). Please have the instructions on the system to enable access to the installation record. OK

8

ES Es posible que el Firewall de Windows le dé un mensaje. Haga clic en "Unblock" (Desbloquear) para permitir que Nero se actualice.
PT A Firewall do Windows pode avisá-lo. Clique em "Desbloquear" para permitir a actualização do Nero.
TR Windows Firewall sizi uyarabilir. Nero'nun güncellenmesi için "Unblock" (Engelleme) seçeneğini belirleyin.
PL Może pojawić się ostrzeżenie zapory systemu Windows. Kliknij "Odblokuj", aby umożliwiać aktualizację programu Nero.
SV Windows Firewall kan varna dig. Klicka på "Sluta blockera" så att Nero kan uppdateras.

Windows Security Alert To help protect your computer. Windows Outlook has blocked user features of the program. What would have blocking this program? Store: M37 server Publisher: Microsoft Save Existing Cancel Windows Outlook has blocked the program from accepting commands, can the Internet or network. If you recognize the program or load the publisher, you can write a .com/susit.cptset as needed.

New ProductSet The updates are being downloaded 1. Connecting 2. Checking engine 3. Preparing installation 4. Optimating download size 5. Downloading file 6. Completing Close

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart Essentials".
PT Inicie o "Nero StartSmart Essentials".
TR "Nero StartSmart Essentials"1 başlat.
PL Uruchom program "Nero StartSmart Essentials".
sv Starta "Nero StartSmart Essentials".

Save Start Menu Refresh Save Options Help else Apply Tools

Banc, Home Downloadable: 12 Banc StartBox... Banc Online Log农业科技 Recycle Bin UCSAD Up to Done 70°C Extras Get Synthesis file Market available at Home Banc Services External Service Enabled Free Capture Brands Free Capture Brands Linked Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L3 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L4 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L5 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L6 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L7 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8 Banc L8

ES Elija "Herramientas" e "Imprimir etiqueta LightScribe".
PT Selezione "Extras" e "Imprimir etiqueta do LightScribe".
TR "Ekstra"yi seçin ve "LightScribe etiketini yazdırın".
PL Kliknij "Dodatki" i "Wypal etykietę LightScribe".
SV Välj "Extra" och "Skriv ut LightScribe-etikett".

Pure diagram of a circular shape with an arrow, displayed in a graphic editing interface (no text or symbols on the shape itself)

ES Para introducir una imagen completa, haga doble clic en la zona vacía del CD.
PT Para inserir uma imagem completa, clique duas vezes na área vazia do CD.
TR Tam bir görüntü eklemek için, boş CD alanına çift tıklayın.
PL Aby wstawić cały obraz, dwukrotnie kliknij pusty obszar CD.
SV Dubbelklicka på det tomma CD-området för att infoga en fullständig bild.

Background Properties Brush Design Preview selected File... Preview Close Activity • Update to Screen Size • Preview to Image • Preview to Text Finish Cancel Help OK Cancel Help View Web page 71 New Document 24

ES Haga clic en "Archivo" y abra la imagen.
PT Clique em "Arquivo" e abra sua imagem.
TR "Dosya"ya tıklayın ve görüntüüzü açın.
PL Kliknij "Plik" i otwórz obraz.
SV Klicka på "Fil" och öppna bilden.

5

ES La imagen se ajustará a la zona de impresión.
PT Sua imagem estará alinhada com a área imprimível.
TR Görüntünüz yazdınlabilir alanda hizalanacaktır.
PL Obraz zostanie dopasowany do obszaru drukowania.
SV Din bild riktas in i utskriftsområdet.

Black and white photo of a circular donut-shaped object with a landscape background, displayed within a file browser interface (no readable text or symbols on the image itself)

6

ES Para introducir una imagen en una parte del disco, inicie la opción "Herramienta Imagen".
PT Para inserir uma imagem em uma parte do disco, inicie a "Ferramenta imagem".
TR Diskin bir kısmına bir görüntü eklemek için "Görüntü Aleti" ni açın.
PL Aby wstawić obraz na fragmencie płyty, uruchom "Narzędzie do wstawiania obrazu".
SV Om du vill infoga en bild på en del av skivan startar du "Bildverktyg".

Photo Color/Designed Documents - [New Document 2] File Edit View Insert Tools Window Help Times New Document 24 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10:30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30 10.30

7

ES Abra su imagen y colóquela en la zona del CD que desee.
PT Abra sua imagem e coloque-a onde desejar que ela fique na superfície do CD.
TR Görüntünüzü açın ve CD yüzeyinde istediginiz yere yerleştirin.
PL Otwórz obraz i umieść go w żądanym miejscu na powierzchni płyty.
sv Öppna bilden och placera den på önskad plats på CD-ytan.

Photo Cover/Designer Essentials - [New Document 3*] File Edit View Insert Tools Window Help View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 100% View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1 View 1

File Edit View Object Tools Window Help Times New Document 24 a1

ES Para introducir texto, elija "Herramienta Cuadro de texto".
PT Para inserir texto, selecione a "Ferramenta caixa de texto".
TR Metin girmek için "Yazı Kutusu Aleti"ni seçin.
PL Aby wpisać tekst, kliknij "Narzędzie wstawiania pola tekstowego".
SV Om du vill skriva in text väljer du "TextBoxverktyg".

New CookDesigns - Book14 - [View Document 3.7] File Edit View Insert Tools Window Help View 1 View 2 View 3 View 4 View 5 View 6 View 7 View 8 View 9 View 10 View 11 View 12 View 13 View 14 View 15 View 16 View 17 View 18 View 19 View 20 View 21 View 22 View 23 View 24 View 25 View 26 View 27 View 28 View 29 View 30 View 31 View 32 View 33 View 34 View 35 View 36 View 37 View 38 View 39 View 40 View 41 View 42 View 43 View 44 View 45 View 46 View 47 View 48 View 49 View 50 View 51 View 52 View 53 View 54 View 55 View 56 View 57 View 58 View 59 View 60 View 61 View 62 View 63 View 64 View 65 View 66 View 67 View 68 View 69 View 70 View 71 View 72 View 73 View 74 View 75 View 76 View 77 View 78 View 79 View 80 View 81 View 82 View 83 View 84 View 85 View 86 View 87 View 88 View 89 View 90 View 91 View 92 View 93 View 94 View 95 View 96 View 97 View 98 View 99 View 100

ES Marque la zona donde colocará el texto. Una zona pequeña se imprimirá más rápido.
PT Desenhe a área na qual o texto será colocado. Uma área menor será impressa mais rapidamente.
TR Metni koyacağını alanı çizin. Küçük bir alan daha hızlı yazdınlacaktır.
PL Narysuj obszar, w którym chcesz umieścić tekst. Drukowanie mniejszego obszaru zajmuje mniej czasu.
sv Rita upp området där texten ska placeras. Ett mindre område skrivs ut fortare.

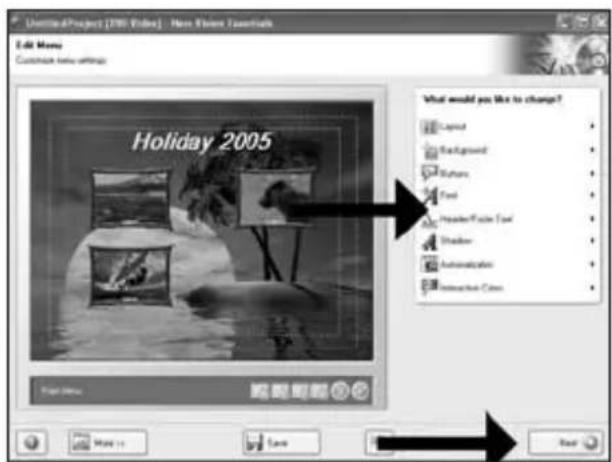

Holiday 2006 File Edit View Insert Tools Import Text Balance Sheet Finish Finish Finish OK

ES Haga doble clic en el área de impresión e introduzca el texto y luego haga clic en "OK".
PT Clique duas vezes na área de impressão criada, insira seu texto e clique em "OK".
TR Oluşturulan basılı Alana çift tıklayın, metni girin nter zve "Tamam"a tıklayın.
PL Dwukrotnie kliknij utworzony obszar druku, wpisz tekst i kliknij "OK".
SV Dubbelklicka på det skapade området, skriv in text och klicka på "OK".

11

Start Consensus Forecasts (free Increase 5.1) Temp: New Process Analog to the printer properties New Properties Draft Normal Out Number of cases: Drive [ Phil.PPL CHIR10L] Size Read Progress Automaticly did not use PC when done Send Save

13

New LightVis The drive-revenue file does not support this data type. This update of the LightVis file must have any steps to be replaced. Select the "Current" folder to print with user and audio. To download the latest installation has instructions click files. To find us more about your instructions click files. Cancel OK Cancel Help Help OK Cancel

Home, LightScript First process completed successfully. OK Automatically but does the PC when done Finish Finish Help About

ES Felicitaciones, su disco se ha imprimido correctamente. Ahora puede salir de la aplicación.
PT Parabéns, seu disco foi impresso com sucesso. Você pode sair do aplicativo agora.
TR Tebrikler, diskiniz başarıyla yazdırıldı. Şimdi uygulamadan çıkabilirsiniz.
PL Gratulacje! Drukowanie płyty zakończyło się pomyślnie. Możesz zakończyć pracę programu.
SV Grattis, du har bränt en skiva. Du kan stänga programmet nu.

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart Essentials".
PT Inicie o "Nero StartSmart Essentials".
TR "Nero StartSmart Essentials"İ başlat.
PL Uruchom program "Nero StartSmart Essentials".
sv Starta "Nero StartSmart Essentials".

Save Start Menu Enter Web Save Connection Update Web Update Bin

Photo and Video Make Image (C) Make Image (Image) (C) Make Image (Image) (Image) (Image)

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

Untitled/Project [TMS Video] - Max Picture Essentials Capture Video Select a device and capture video to save hard disk. Capture devices Top: TV Driver Options Use the template to capture video in Digital Video (DVI) compatible format The application will also configure the capture devices but you can change the device settings manually by DVI type DVI Type 1 Type 1 is usually the below choice because it requires free disk speed and often miss thoughts. Functions option Type 2 is compatible with video for Windows(TM) if you are not set which type 0 uses, offset Type 1 Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Driver Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Auto Top: TV Automatior

6

UntitledProject [1980 Videos] - More Picture Essentials Capture Video Select a device and capture video to your hard disk. Capture devices Capture: Type 1 is valid that the better choice because it requires free disk space and allows more throughput. However, only Type 2 is compatible with type for network(746). If you are not sure which type is used, select Type 3. Customization: Frames captured: Microsoft Outlook Save in Save

7

ES Haga clic en "Siguiente" cuando se hayan capturado todas las secuencias de vídeo.
PT Clique em "Avançar" quando todas as sequências de vídeo tiverem sido capturadas.
TR Tüm video sıraları yakalandığında "İleri"ye tıklayın.
PL Po przechwyceniu wszystkich sekwencji wideo, kliknij "Dalej".
SV Klicka på "Nästa" när alla videosekvenser har hämtats.

Untitled Project [1982 Videos] - New Vision Essentials Capture Video Select a device and capture video to post hard disk. Capture devices http://470 Devices Selected a capturing template: 374 Forms Use file template to capture a Digital Video (DVI) compatible format The application also configures the capture devices but you can change the device settings manually to: DVI type: DVI Type 1 Type 2. It usually be the other choice because it requires box files, so does and allows more throughput. However, only 1 line 2 is compatible with wireless Windows (IIS). If you are not sure which type is used, select Type 2. Captured files MNT/Capture 0007 MNT/Capture 0006 MNT/Capture 0009 None Next

UntitledProject * [DVD Viling] - New Video Essentials Context Create and analyze files for your content What would you like to do? Capture Images... Add Video Files Make Images... Make Slide Images... Import Data Edit Images... Add Video Files... New Video Files Total space used: 3.00 sq m at 1.30 GB 5,000 1,000 2,000 3,000 4,000 5,000 6,000 7,000 8,000 9,000 10,000 11,000 12,000 13,000 14,000 15,000 16,000 17,000 18,000 19,000 20,000 21,000 22,000 23,000 24,000 25,000 26,000 27,000 28,000 29,000 30,000 31,000 32,000 33,000 34,000 35,000 36,000 37,000 38,000 39,000 40,000 41,000 42,000 43,000 44,000 45,000 46,000 47,000 48,000 49,000 50,000 51,000 52,000 53,000 54,000 55,000 56,000 57,000 58,000 59,000 60,000 61,000 62,000 63,000 64,000 65,000 66,000 67,000 68,000 69,000 70,000 71,000 72,000 73,000 74,000 75,000 76,000 77,000 78,000 79,000 80,000 81,000 82,000 83,000 84, 85, 86 More...Save

UntitledProject [100] Video - More Videos Extracts Content Create and manage files for you present 1. VIT_01 009 Video Title - 16:00:15 Target video options: 720+VIT5 (2CM-841) (1): - 4.3 2. VIT_01 009 Video Title - 16:00:15 Target video options: 720+VIT5 (2CM-841) (1): - 4.3 3. VIT_01 009 Video Title - 16:00:25 Target video options: 720+VIT5 (2CM-841) (1): - 4.3 What would you like to do? Capture Video... Add Video Files... Make Movies... Make Slide Maps... Import Docs... Edit Movies... Create Chapters... Let you add the highlighted video file. Used space: I3M out of 4.3008 0:00 1:00 2:00 3:00 4:00 More... Equal Save Next Next Next

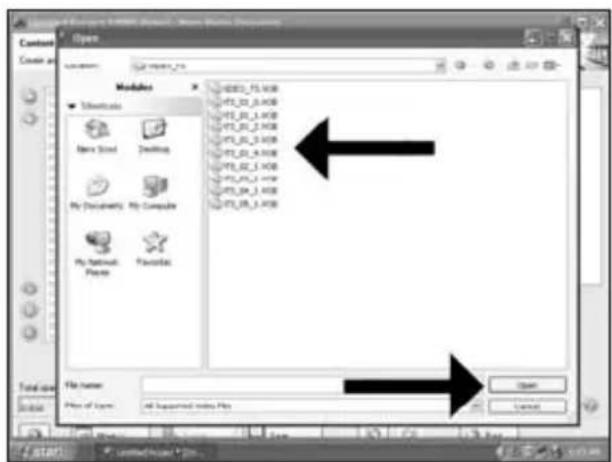

ES Seleccione los ficheros y haga clic en "Abrir".
PT Selecione os arquivos e clique em "Abrir".
TR Dosyaları seçin ve "Aç"a tıklayın.
PL Wybierz pliki i kliknij "Otwórz".
sv Markera filerna och klicka på "Öppna".

ES Puede editar las películas cargadas, escogiendo "Editar película".
PT Você pode editar os filmes carregados selecionando "Editar filme".
TR "Filmi Düzenle"yi seçerek yüklenen filmleri düzenleyebilirsiniz.
PL Możesz edytować załadowane filmy, klikając "Edytuj film".
SV Du kan redigera de laddade filmerna genom att välja "Redigera film".

11

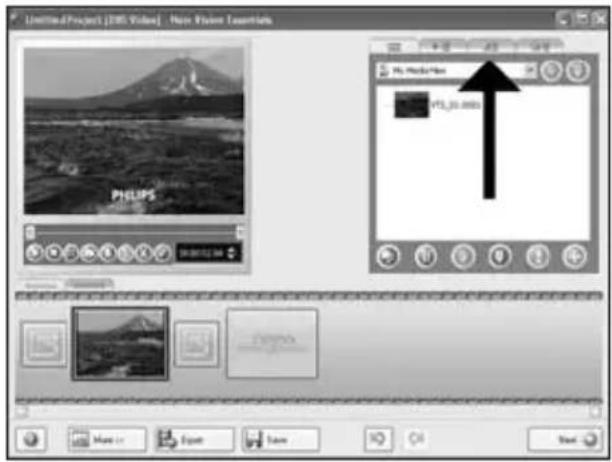

ES Aquí, puede añadir efectos de vídeo, efecto de texto y transiciones.
PT Aqui você pode adicionar efeitos de vídeo, efeitos de texto e transições.
TR Video efektlerini, metin efektlerini ve geçişleri buraya ekleyebilirsiniz.
PL Tutaj możesz dodać efekty wideo, efekty tekstowe i przejścia.
SV Här kan du lägga till videoeffekter, texteffekter och övergångar.

LimitedProject [1980] Video | New Vision Ascertainment PHILIPS PHILIPS VIE_26.0000 Movie Export Save OK Cancel

12

ES Puede recortar el vídeo grabado desplazando los marcadores. Cuando haya terminado, elija "Siguiente".
PT Você também pode cortar o vídeo gravado deslizando os marcadores. Quando tiver terminado, clique em "Avançar".
TR Aynca işaretleyicileri kaydırarak kaydedilen görüntüyü kırpabilirsiniz. Bittiğinde, "İleri"yi seçin.
PL Możesz również przycinać nagrany film, przesuwając wskaźniki. Po zakończeniu kliknij "Dalej".
SV Du kan också trimma den inspelade video genom att skjuta markörerna. När du är klar väljer du "Nästa".

Limiting Project [100 Vites] - New Window Mountains File Edit View Tools Help 100 Vites VIT_20.0000 Movie 10 Event Save See

13

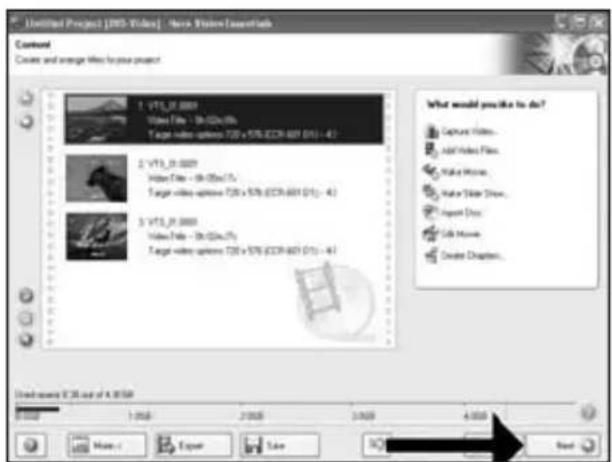

ES Después de editar todos los ficheros, elija "Siguiente".
PT Após ter editado todos os arquivos, clique em "Avançar".
TR Tüm dosyaları düzenledikten sonra, "İleri"yi seçin.
PL Po zakończeniu edycji wszystkich plików kliknij "Dalej".
sv När du har redigerat alla filer väljer du "Nästa".

Untitled Project1 [RMS Videos] - New Vision Installations Content Create and update files to your project. 1. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 2. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 3. VIT3_0.0001 Video Files - 36.000x75 Target video options T28 x 576 (ECR-801) (1): - 41 What would you like to do? Capture Videos... Add Video Files... Make Movies... Make Solar View... Report Docs... Edit Movies... Create Chapters... Under search: 36 out of 4.000M 1:000 1:000 2:000 3:000 4:000 Name: Export Tools Help

Unlimited Proport [VISA] Video | New Video Essentials Select None Select main menu and file name. Select options: High Media Holiday 2005 1 VTE, 81.2007 Video: Holiday 2005 Edit Media... Save Next Next

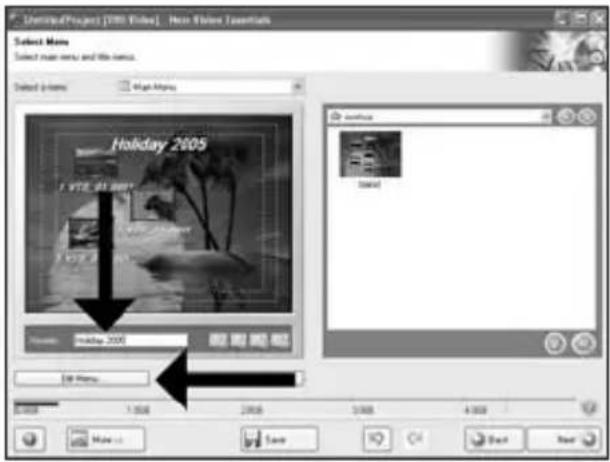

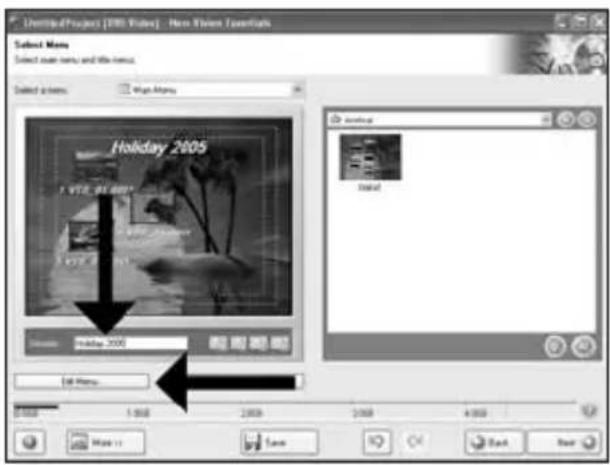

ES Ponga el título en el campo "Cabecera" y haga clic en "Editar menú".
PT Digite o título no campo "Cabeçalho" e clique em "Editar menu".
TR "Başlık" alanına başlığı girin ve "Menü Düzenle"ye tıklayın.
PL Wpisz tytuł w polu "Nagłówek" i kliknij "Edycja menu".
SV Ange titeln i fältet "Rubrik" och klicka på "Redigera Meny".

UntitledProject [1981 Video] - New iPhone SaveInfo Edit Memory Customize new options. Holiday 2005 What would you like to change? Layout Background Balance Font Presidential/Factor Font Shadow Automatications Internet-Cases Page 1/2 Save Home

ES Puede cambiar el diseño, fondo, añadir títulos,... aquí. Cuando haya terminado, elija "Siguiente" dos veces.
PT Você pode alterar o layout, o fundo, adicionar títulos,... aqui. Quando tiver terminado, selecione "Avançar" duas vezes.
TR Yerleşimi, arkaplanı, başlıkları ekle'yi, ... buradan değiştirebilirsiniz. Bittiğinde, "İleri"yi iki kez seçin.
PL Tutaj możesz zmienić układ, tło oraz dodać tytuły. o zakończeniu kliknij dwukrotnie "Dalej".
SV Här kan du ändra layout, bakgrund, lägga till titlar osv. När du är klar väljer du "Nästa" två gånger.

Untitled Project [1985 Video] New Window Journals Phanyone Explore the works of your page future learning & Holiday 2005

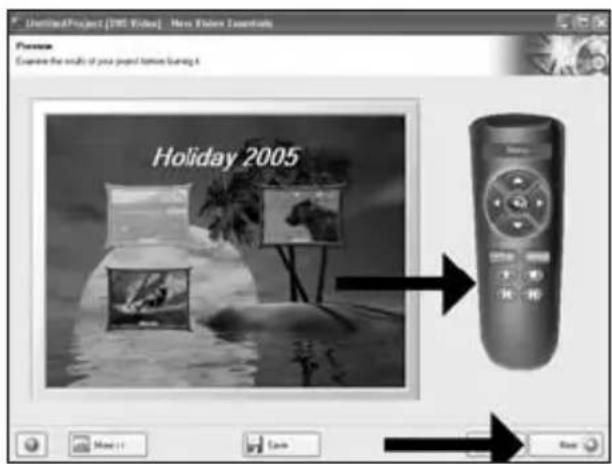

ES Previsualice su película. Haga clic en "Siguiente" para continuar.
PT Visualize seu filme. Clique em "Avançar" para continuar.
TR Filminizi önizleyin. Devam etmek için "İlen"ye tıklayın.
PL Obejrzyj fragment filmu. Kliknij "Dalej", aby kontynuować.
SV Förhandsgranska filmen. Klicka på "Nästa" för att fortsätta.

17

ES Elija "Grabar en", elija su grabador y elija "Grabar".
PT Seleccione "Gravar em", seleccione seu gravador e seleccione "Gravar".
TR "Farklı Yazdır"yu seçin, kaydedicinizi seçin ve "Yaz" seçeneğini seçin.
PL Kliknij "Nagraj na", wybierz nagrywarkę i kliknij "Nagraj".
SV Välj "Bränn med", markera din brännare och välj "Bränn".

UntitledProject [EMS Video] - Max Flange Essentials Run Options Set the parameters for learning Project website Current video options Aspect also Automatic Video-rot FSL Quality Software View project contains 3 filters and 1 name. Email: Start the parameter for learning Run To: Write by Hard Copy Folder Volume Name Recording Settings Run To Recorder Selected the recorder you want to use Start applications Run to device: PHILIPS ORDERER Used disc space: 0.29 GB Save

18

ES NeroVision Express está recodificando y grabando su disco.
PT O NeroVision Express está transcodificando e gravando seu disco.
TR NeroVision Express diskinizin kod aktarımını ve yakma işlemini gerçekleştirir.
PL Program NeroVision Express transkoduje i nagrywa płytę.
sv NeroVision Express kodar om och bränner skivan.

LimitedProject [DMS Video] - New Vision Essentials Analysis Preparing data encoding Running video data onto the disc Completing recording session PHILIPS Recording project Current action: Transcoding and editing V1.5_01.0007 Current project: Forwarding 3h 10m.20s Expand 3h 02m.02s Total project: Forwarding 3h 10m.20s Expand 3h 02m.02s Preview: Start down computer when installed Welcome to Top Next >11 Save About

19

ES Felicitaciones, su disco se ha grabado con éxito. Ahora puede salir de la aplicación.
PT Parabéns, seu disco foi gravado com sucesso. Você pode sair do aplicativo agora.
TR Tebrikler, diskiniz başarıyla yazdırıldı. Uygulamadan şimdi çıkabilirsiniz.
PL Gratulacje! Zapis płyty zakończył się pomyślnie. Możesz zakończyć pracę programu.
SV Grattis, du har bränt en skiva. Du kan stänga programmet nu.

Untitled Project [RMS Video] - New Vision Essentials Options Preparing data for recording Burning video data into the disk Completing recording errors Recycling progress Current action: Current progress: 1st progression Export New Vision Express 3 New process completed successfully. What you like to save the log file! No No Preview: Manual Used down computer when displayed Remove to Top More... Save

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart".
PT Inicie o "Nero StartSmart".
TR "Nero StartSmart"İ başlatın.
PL Uruchom program "Nero StartSmart".
sv Starta "Nero StartSmart".

Menu Start Menu Enter Subs Enter Print Print Info Recycle Bin

Welcome to Nero! First, you should not Category Thank you for And like to get started

ES Elija "Datos" o "Audio".
PT Seleccione "Dados" ou "Áudio".
TR "Veri" veya "Ses"yu seçin.
PL Kliknij "Dane" lub "Audio".
SV Välj "Data" eller "Audio".

2

Data Make Excel 2017 Make Excel 2018 Start 2019 Make 2020

ES Para datos, elija "Crear CD de datos" o "Crear DVD de datos".
PT Para dados, selecione "Criar CD de dados" ou "Criar DVD de dados".
TR Veriler için "Veri CD'si Yarat" veya "Veri DVD'si Yarat"ı seçin.
PL W przypadku danych, kliknij "Utwórz dysk CD z danymi" lub "Utwórz dysk DVD z danymi".
SV För data väljer du "Skapa Data-CD" eller "Skapa Data-DVD".

3

Audio Make Audio 13 Play Audio Audio HD/123 Make HD/12308 Do this regular Audio CD that plays all CD players and is start PC. Make Audio Digital Audio/12308 Make Audio Digital Audio/12308

ES Para un disco de audio, elija "Crear CD de audio".
PT Para um disco de áudio, selecione "Criar CD de áudio".
TR Ses diski için, "Müzik/Ses CD'si Yarat" seçin.
PL W przypadku płyty audio, kliknij "Utwórz Audio CD".
SV För en ljudskiva väljer du "Skapa Audio-CD".

4

5

ES Haga clic en "Añadir".
PT Clique em "Adicionar".
TR "Ekle"yi seçin.
PL Kliknij "Dodaj".
SV Klicka på "Lägg till".

New Express Essentials Edit Content Add Existing your this... New Text Name Size Type Modified On Save Save Total extracted. 2 KB Get Get

6

ES Seleccione todos los archivos a grabar y haga clic en "Añadir". Haga clic en "Cerrar" cuando termine.
PT Seleccione todos os arquivos a serem gravados e clique em "Adicionar". Clique em "Fechar" quando tiver terminado.
TR Yakacağını tüm dosyaları seçin ve "Ekle"ye tıklayın. Bittiğinde "Kapat"a tıklayın.
PL Wybierz wszystkie pliki do nagrania i kliknij "Dodaj". Po zakończeniu kliknij "Zamknij".
SV Markera alla filer som ska brännas och klicka på "Lägg till". Klicka på "Stäng" när du är klar.

Add Size and Action Location: My Documents Modules ● Downloads New/Build Desktop My Documents My Computer My Internet Phone Functions File name: "The 12.doc" "The 12.doc" "The 12.doc" File of type: All-View (*.txt) Add Close

7

ES Compruebe sus archivos y haga clic en "Siguiente".
PT Verifique seus arquivos e clique em "Avançar".
TR Dosyalarınızı kontrol edin ve "İleri"ye tıklayın.
PL Sprawdź pliki i kliknij "Dalej".
SV Kontrollera dina filer och klicka på "Nästa".

New Express Terminal Add Cadout Add Data for your Site. File Edit Name Size Type Modified Orign No 01.doc 35.224 KB Word... LDN21K... C:\Documents and Settings... No 02.doc 53.224 KB Word... LDN21K... C:\Documents and Settings... No 03.doc 55.764 KB Word... LDN21K... C:\Documents and Settings... Total progress unit: 123 KB Save

Next Express Elements Find Store Settings Click Start to start the recording process Doc name: My One Number of types: Modify data on disc after turning Allow file to be added time (multimension disc) OK Apply

New Express Event Hall Warning Process Please wait... Test Event 4:00:00 AP PROSLPT DISCUER Buffer undersea protection allowed 4:00:00 AP Cache of No started 4:00:00 AP Cache of No completed 4:00:00 AP Run uncorrected at site (1,358) MHz UTC BUTG Length: 3:00:07 25% Writing at site (1,358) MHz Stop

ES Nero está grabando su disco.

New Express Deserivids Banning Frames File Edit 4.03.40.491 1945.2013/06/2017 Buffer packets protection activated 4.03.40.491 1945.2013/06/2017 Buffer packets protection activated 4.03.40.491 1945.2013/06/2017 Buffer packets protection activated New Express Deserivids New process completed successfully at 15% (1,300 KB) OK LTG BUFFER

Be responsible Respect copyrights

1

ES Inicie "Nero StartSmart Essentials".
PT Inicie o "Nero StartSmart Essentials".
TR "Nero StartSmart Essentials"ı başlatın.
PL Uruchom program "Nero StartSmart Essentials".
sv Starta "Nero StartSmart Essentials".

Menu Start Menu ExerciseButton Menu Window 启用程序 Options Menu

VISA0 CD: 1940 Favorites Radio Guide 13 Radio Guide 1950 Radio Guide 1960 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950 Radio Guide 13 Radio Guide 1950

ES Elija "Favoritos" y "Copiar CD" o "Copiar DVD".
PT Seleccione "Favoritos" e "Copiar CD" ou "Copiar DVD".
TR "Sik Kullanılanlar" ve "CD Kopyala" veya "DVD Kopyala"yi seçin.
PL Kliknij "Ulubione" i "Kopiuj CD" lub "Kopiuj DVD".
sv Välj "Favoriter" och "Kopiera CD" eller "Kopiera DVD".

Here Express/Importing Select source and destination Please select source and destination drivers and render source disk. Source drive: E:\PLUG\IMPRESS Destination drive: E:\PLUG\IMPRESS\IMPRESS Cautism: Save data content in copied. Then have to copy protected or certificate. If you are not sure if you do can be copied, please run a similar simulation file (all on Advanced -1 and select Simulation). Writing speed: Maximum Number of copies: 1 Findy data in disc after writing Group file: Documents and Settings/Host Statistics Open

ES Seleccione la unidad de origen.
PT Seleccione a unidade de origem.
TR Kaynak sürücüyü seçin.
PL Wybierz napęd źródłowy.
sv Välj källenhet.

Select source and destination Select source and destination drives and insert source list. Source drive: E:\PHILIPS\DOCK349F Destination drive: E:\PHILIPS\DOCK349F - C:\DOCK349F Customs. Some device cannot be copied. They may be copied or deleted at any time. If you are not sure if you like can be copied, please run a library simulation model (bit on "Submodel" or "C") and select Simulation. Writing speed: Number: Number of copies: 1 ✓ Apply data on file after learning. Image file: C:\Documents and Settings\Test\allPh.Document OK

ES Seleccione la unidad de destino y haga clic en "Copiar".
PT Seleccione a unidade de destino e clique em "Copiar".
TR Hedef sürücüyü seçin ve "Kopyala"ya tıklayın.
PL Wybierz napęd docelowy i kliknij "Kopiuj".
sv Välj målenhet och klicka på "Kopiera".

5

ES Nero está ahora copiando su disco.
PT Agora o Nero copiará seu disco.
TR Nero artık diskinizi kopyalayacaktır.
PL Program Nero rozpocznie kopiowanie płyty.
SV Nero kopierar din skiva.

P. New Express Options Burning Process Page walk... View Start Help 8:01:15:497 8:02:16:497 8:04:30:497 8:06:11:497 8:10:02:497 File 1 (C:) is copyrighted Creating the image for burning Creating images completed successfully WRITE 25 (USB) access Buffer undefined protection achieved Burst process diagnostic info (1,300 files) Ultrac UPPER Texting list: 10.07.02 Total time: 0:00:07 Win Writing at info (1,300 files) Stop

6

ES Felicitaciones, su disco se ha grabado con éxito. Ahora puede salir de la aplicación.
PT Parabéns, seu disco foi gravado com sucesso. Você pode sair do aplicativo agora.
TR Tebrikler, diskiniz başarıyla yazıldı. Uygulamadan şimdi çıkabilirsiniz.
PL Gratulacje! Zapis płyty zakończył się pomyślnie. Możesz zakończyć pracę programu.
SV Grattis, du har bränt en skiva. Du kan stänga programmet nu.

Micro Express Seminars Burning Process Bump wall... Save Finish 0.03.16.497 Creeding the image for Operating 0.08.02.497 Creeding Image completed successfully 0.06.11.497 PROPS (DOP) 500K 0.19.02.497 Burn process completed successfully at 0% (1,000 KB) 0.27.19.497 Burn process completed successfully at 0% (1,000 KB) Micro Express Seminars Burn process completed successfully at 0% (1,000 KB) OK UTRE UPAC

Be responsible Respect copyrights

Be responsible Respect copyrights

EN This can be found in the box:

A: Your new B: This manual C: The Nero drive software disc

D: 4 screws in a small bag

Computer tower case with monitor and control buttons, labeled 'Example' (no text on device)

sc 关闭计算机。
RU Выключите ваш компьютер.
DK Sluk for din computer.
TC 將您的電腦關機。
EN Switch your computer off.

Close-up of a computer tower with a cable inserted, showing the front panel and internal components (no text or symbols visible)

TC 觸摸未塗漆的金屬部分 (例如，您的電腦外殼發熱或未塗漆的部分)。這可避免靜電釋放而損壞您的電腦。
EN Touch an unpainted metal part (eg. your heating or an unpainted part of your computer case). This will avoid any damage to your computer by electrostatic discharge.

Close-up of a computer power adapter with a white plug inserted, showing airflow direction (no text or symbols on the device itself)

sc 断开计算机电源。
RU Отсоедините кабель питания от вашего PC..
DK Tag strømkablet fra computeren ud.
TC 拔掉電腦電源線。
EN Disconnect the power cable from the PC.

5

EN Open your computer. You may have to unleash screws which are mostly located at the back of your computer. See your computer manual for more details.

Example

6

sc 打开计算机盖。

EN Take off the cover of the computer.

Exterior view of a server rack unit with an arrow pointing left, labeled 'Example' (no other text or symbols)

7

EN These are the connections (on the back of your drive) you will have to use for connecting the drive to the computer.

Power Connector S-ATA Connector

Interior view of a computer tower case showing internal components and a black arrow pointing to a specific area, labeled 'Example' (no readable text or symbols beyond label)

sc 将驱动器放入计算机。
RU Вставьте дисковод в ваш компьютер.
DK Sæt drevet ind i computeren.
TC 將光碟機放入您的電腦。
EN Put the drive into your computer.

Example

sc 将 S-ATA 电源线连接到驱动器。
RU Присоедините кабель питания S-ATA к вашему дисководу.
DK Tilslut et S-ATA strømkabel til drevet.
TC 將 S-ATA 電源線連接至您的光碟機。
EN Attach a S-ATA Power Cable to your drive.

Close-up of hands installing or adjusting a device into a rack (no visible text or symbols)

sc 将 S-ATA 数据线连接到驱动器。
RU Присоедините кабель данных S-ATA к вашему дисководу.
DK Forbind S-ATA datakablet til drevet.
TC 將 S-ATA 數據線連接至您的光碟機。
EN Attach the S-ATA data cable to your drive.

11

sc 将 S-ATA 数据线连接到主板。
RU Присоедините кабель данных S-ATA к материнской плате вашего компьютера.
DK Forbind S-ATA datakablet til bundkortet.
TC 將 S-ATA 數據線連接至您的主機板。
EN Connect the S-ATA data cable to your motherboard.

Close-up of a hand inserting electronic components into a computer motherboard (no visible text or symbols)

12

sc 用螺钉固定驱动器 (如可能，同时固定两边)。
RU Закрепите дисковод винтами (по возможности с обеих сторон).
DK Fissare l'unità con le viti (se possibile su entrambi i lati).
TC 使用螺絲固定光碟機（可能的話，請固定兩側）。
EN Secure the drive with the screws (if possible on both sides).

Close-up of a hand using a screwdriver to adjust internal components in an operating room (no text or symbols visible)

13

Exterior view of a server rack unit with an arrow pointing to the front panel (no text or symbols on the device itself)

Example

sc 重新装上螺钉(如有)并重新连接电缆。
RU Вставьте винты (если требуется) и присоедините кабели.
DK Skru eventuelle skruer i igen og tilslut kableme igen.
TC 裝回螺絲（如果有的話）並重新連接纜線。
EN Put the screws (if there were any) back in and reconnect the cables.

Example

New Multimeter nero 7 ESSENTALS installation New? Essentials End

EN Choose "Nero 7 Essentials" and follow the instructions on the screen. When finished, continue with the next chapter.

更新？

Актуализировать?

Opdatering

如何更新？

Up to date?

1

start start stop Recycle start

2

Philips Intelligent Agent Details Options: 349 Updates for next Philips products. Product: Analog version: Local version: [1] PHILIPSCHORSALS - [OART] P1.8 Philips Intelligent Agent 1.8 The last successful product update check was performed on 2000-05-11 [16-0412] API. The automatic product update check is disabled. Check for update Get the following to check for product updates.

Philips Intelligent Agent Products - Options Help Loading Pin user/Philips products Product Installed version Latest version. [1: [PHLIPS CHAK16.5 - [MYA)] Philips Intelligent Agent 1.0 2.0 To the last successful product update (check not performed on 2006-09-22 12:30:34 PM) To the automatic product update (check is available). Check for updates. Product update information was successfully retrieved from the server.

SC 下载并安装更新。
RU Загрузите актуализацию (updates) и выполните ее инсталляцию.
DK Download opdateringerne og installér dem.
TC 下載並安裝更新。
EN Download the updates and install them.

New Document File Document Description 1.1 Document Description 1.2 Document Description 1.3 Document Description 1.4 Document Description 1.5 Document Description 1.6 Document Description 1.7 Document Description 1.8 Document Description 1.9 Document Description 2.0 Document Description 2.1 Document Description 2.2 Document Description 2.3 Document Description 2.4 Document Description 2.5 Document Description 2.6 Document Description 2.7 Document Description 2.8 Document Description 2.9 Document Description 3.0 Document Description 3.1 Document Description 3.2 Document Description 3.3 Document Description 3.4 Document Description 3.5 Document Description 3.6 Document Description 3.7 Document Description 3.8 Document Description 3.9 Document Description 4.0 Document Description 4.1 Document Description 4.2 Document Description 4.3 Document Description 4.4 Document Description 4.5 Document Description 4.6 Document Description 4.7 Document Description 4.8 Document Description 4.9 Document Description 5.0 Document Description 5.1 Document Description 5.2 Document Description 5.3 Document Description 5.4 Document Description 5.5 Document Description 5.6 Document Description 5.7 Document Description 5.8 Document Description 5.9 Document Description 6.0 Document Description 6.1 Document Description 6.2 Document Description 6.3 Document Description 6.4 Document Description 6.5 Document Description 6.6 Document Description 6.7 Document Description 6.8 Document Description 6.9 Document Description 7.0 Audio Dairy Labels Printout Photo and Video Play Search Tools New Home Documents S New Online Library New Social Status New Search New Social Status Elements

Essentials", "Nero ProductSetup".

sc 选择 “开始”, “(所有)程序”, “Nero 7 Essentials”, “Nero ProductSetup”。
RU Выберите "Start", "(All) Programs", "Philips Intelligent Agent", "Philips Intelligent Agent".
DK Vælg "Start", "(Alle) Programmer", "Nero 7 Essentials", "Nero ProductSetup".
TC 選擇「Start (開始)」，「(All) Programs ((所有程式) 程式集)」，「Nero 7 Essentials」，「Nero ProductSetup」。
EN Choose "Start", "(All) Programs", "Nero 7

New ProductSetup Please select one of the actions and click Next to continue Modify your New product Use the option to enable additional features of your installed new products. Remove your new product The platform will give you that choices to remove the installed new products completely from your system. Validate our new product Validate include the new product features using the new installed new products. Add new product features Where you can add new support for particular languages for your new products. Next

sc 选择 “Update your Nero products (更新您的 Nero 产品)” 和 “Next (下一步)”。
RU Выберите "Update your Nero products" и "Next".
DK Vælg "Opdater dine Nero-produkter" og "Næste".
TC 選擇「Update your Nero products (更新您的 Nero 產品)」然後再按「Next (下一步)」。
EN Choose "Update your Nero products" and "Next".

6

sc 单击 “OK (确定)”。
RU Щелкните мышью на "ОК".
DK Klik på "OK".
TC 按一下「OK(確定)」。
EN Click "OK".

New Motor Ensembl 16 Recheck it New Online Web sites New Search... Update info File Download! The following text products have been deleted: Next 7 To update all new products on your computer it is necessary to convert to the Internet. If you do not want to allow the installation expand by convert to the Internet, please call Cancel. You will be ignored about the amount of data that needs to be transferred in the next step and you will have the chance to convert the Internet. If you didn't or a lotally warning how your home or friends are needed, please follow the instructions on the screen to enable Internet access for the installation Wizard. OK Last: www.ensembl.org

7

sc 单击 “OK (确定)”。
RU Щелкните мышью на "ОК".
DK Klik på "OK".
TC 按一下「OK(確定)」。
EN Click "OK".

New ProductSetup File download! It was detected that part of your new products have been installed from Internet resources. Therefore it is required that the installation required will be completed by the Internet. If you are required to complete the action, if you must not want to allow the installation required to connect to the Internet, click Cancel. You will be informed about the amount if data that needs to be transferred in the next step and you will have the choice to convert the download. If you did OK a record warning now since (since your friend or later). Please have the instructions on the request to create a new product account for the installation record. OK

8

sc Windows 防火墙可能会发出警告。单击“解除阻止”以允许 Nero 更新。
RU Windows Firewall может выдать предостережение. Щелкните мышью на "Unblock", чтобы разрешить актуализацию вашей версии Nero.
DK Windows' Firewall vil muligvis advare dig. Klik på "Fjern blokering" for at tillade, at Nero opdateres.
TC Windows 防火牆可能會提出警告。按一下「Unblock (取消封鎖)」以允許更新 Nero。
EN The Windows Firewall may warn you. Click "Unblock" to allow your Nero to be updated.

Windows Security Alert To help protect your computer. Windows Firewall has blocked some features of this program. Choose to switch to home blocking this program? Name: MST starter Publisher: New.mtl Open Closing Cancel Windows Firewall has blocked the program from adapting commands on the Internet or a network. If you ignore the program or how the publisher, you can choose it, where would print a password!

New ProductSetup The updates are being downloaded 1. Connecting 2. Checking engine 3. Preparing installation 4. Optimizing download file 5. Downloading file 6. Filtering Close

sc Nero 自行下载并更新。
RU Nero выполняет загрузку и актуализацию автоматически.
DK Nero downloades og opdateres af sig selv.
TC Nero 會自行下載和更新。
EN Nero downloads and updates itself.

How to print a label using LightScribe?

Be responsible Respect copyrights

1

sc 启动 “Nero StartSmart Essentials”。
RU Запустите "Nero StartSmart Essentials".
DK Start "Nero StartSmart Essentials".
TC 啟動 “Nero StartSmart Essentials”。
EN Start "Nero StartSmart Essentials".

Menu New Search SearchInfo Next Online Upgrade Prepare Info

Tec's Holog Easemable 3D Tec's StartBox... Tec's Online Local files Example 50 Extras Get Hypoem Info Market info at Event Send Home Command History's Email Event ID Square Tree Web... Physics, and EDITION Power Light/Chrome Labels

Software interface displaying a circular diagram with an arrow pointing to it, no text or symbols present.

Macromedia Designer Essentials - [New Document 2] Times New Roman Background Properties Brush Image Image source File... Image Sketch mode X: Add to a new node Proportional x: adding Proportional x: image Effects Passive Image Name: OK Cancel Help

EN Click "File" and open your image.

5

EN Your image will be aligned to the printable area.

Black and white photo of a circular donut-shaped object over a landscape with water and hills, displayed within a file viewer interface (no readable text or symbols on the image itself).

6

EN To insert an image on a part of the disc, start the "image tool".

EN Open your image and place it where you want it on the CD surface.

Photo CoverDesigner Essentials - [New Document 2*] File Edit View Insert Tools Window Help 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 Start New Creations

File Edit View Insert Tools Window Help Times New Document 24 a1

sc 要输入文本，请选择“Text Box Tool (文本框工具)”。
RU Для ввода текста выберите "Text Box Tool".
DK Vælg "Tekstboksværktøj" for at indtaste tekst.
TC 若要輸入文字，選擇「Text Box Tool (文字方塊工具)」。
EN To enter text, choose the "Text Box Tool".

File Edit View Insert Tools Window Help 12.0 10.0 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 0.0 12.0 10.0 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 1.0 12.0 10.0 9.0 8.0 7.0 6.0 5.0 4.0 3.0 2.0 12.0 10.0 9.0 8.0 7.0 6.0 5.0 4.0 12.0 10.0 9.0 8.0 7.0 6.0 5.0 12.0 10.0 9.0 8.0 7.0 6.0 12.0 10.0 9.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 10.0 12.0 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5

SC 拖曳出要输入文本的区域。区域越小，打印越快。
RU Овертите область для размещения текста. Меньшая область выводится на печать быстрее.
DK Tegn det område, hvor teksten skal være. En mindre område udskrives hurtigere.
TC 拖曳您要放置文字的區域。小區域的列印速度會比較快。
EN Draw the area where to put the text. A smaller area will print faster.

Holiday 2006 File to shape Readybox OK

SC 双击创建的打印区域，然后输入您的文本并单击“OK(确定)”
RU Щелкните дважды мышью на созданную область печати и введите ваш текст, а затем щелкните мышью на "ОК".
DK Dobbeltklik på det oprettede område, indtast din tekst og klik på "OK".
TC 連按兩下建立的列印區並輸入您的文字，然後按一下「OK(確定)」。
EN Doubeclick the created print area and enter your text and click "OK".

11

SC 标签准备就绪后，单击“Print LightScribe Label (打印 LightScribe 标签)”图标。
RU Если ваш ярлык готов к печати, щелкните мышью на значок "Print LightScribe Label".
DK Klik på ikonet "Udskriv LightScribe label", när din label er klar til udskrivning.
TC 當您準備要列印標籤時，按一下「Print LightScribe Label (列印 LightScribe 標籤)」圖示。
EN Click on the "Print LightScribe Label" icon when your label is ready to print.

Holiday 2006

12

SC 选择打印对比度并单击 “Print (打印)”。
RU Выберите контраст печати и щелкните на "Print".
DK Vælg udskriftskontrast og klik på "Udskriv".
TC 選擇列印對比度然後按一下「Print (列印)」。
EN Choose the print contrast and click "Print".

File Edit Parameters: Default Times New Document Import the Print Properties New Document Draft Normal Edit Number of copies: Size ( Phillips OVERALLS ) Size Ready Programs Automatically cut out the PC when close Next Cancel

13

SC 如果 LightScribe 软件版本过旧，您可能需要更新您的软件。
RU Если ваша программа LightScribe устарела, вам следует ее актуализировать.
DK Hvis din LightScribe-software er for gammel, skal du opdatere versionen.
TC 若您的 LightScribe 軟體為舊版，則需要更新軟體。
EN In case your LightScribe software is out of date, you will have to update your software.

LightFile Files The description is not supported for this type. This option of the LightFile file contains steps to be replaced. Select the "Normal" button to pick up with random settings. To download the latest file containing key instructions click here. To select us more about which it can have. Cancel

New LightScite First process completed successfully. OK Automatically but down the PC, which done. Finish Finish Help Help

SC 祝贺您，您的光盘已成功打印。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно распечатан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet udskrevet. Du kan nu afslutte programmet.
TC 恭喜，您的光碟已成功列印。您現在可以離開應用程式。
EN Congratulations, your disc has been printed successfully. You may exit the application now.

如何制作视频光盘？

How to make a video disc?

Be responsible Respect copyrights

1

sc 启动 “Nero StartSmart Essentials”。
RU Запустите "Nero StartSmart Essentials".
DK Start "Nero StartSmart Essentials".
TC 啟動 “Nero StartSmart Essentials”。
EN Start "Nero StartSmart Essentials".

Next Start Menu Refresh Next Update Update Date Remove Bin

Photo and Video Radio Motion (1) Radio Square Motion (2) Radio Photo (3) Radio Phone (4) Radio Photo (5) Radio Motion (6) Play Action Play Action (7) Play Action (8) Play Action (9) Play Action (10)

own DVD-Video".

SC 选择 “Photo and Video (照片和视频)” 和 “Make your own DVD-Video (制作您自己的 DVD 视频)”。
RU Выберите "Photo and Video" и "Make your own DVD-Video".
DK Vælg "Foto og video" og "Lav din egen dvd-video".
TC 選擇「Photo and Video (照片與視訊)」並按「Make your own DVD-Video (製作 DVD 視訊)」。
EN Choose "Photo and Video" and "Make your

Exterior view of a desktop computer tower connected to a cable, labeled 'Example' (no other text or symbols)

Unfiltered Project [2015] Video | New Video Essentials Content Create and manage files to you project. What would you like to do? Capture Video Add Video Files Make Images Make State Maps Import List Capture Video... Capture Video... This highlights allows your to capture video from an external device (like a connected) that is connected to your computer. The video files are created will be added to your project automatically. Total records used: 8.00 out of 13:00 9:00 1:00 2:00 3:00 4:00 5:00 More than Save Save Back

SC 如要捕获来自摄像机的视频，请将摄像机连接到 PC。否则转到步骤 8。
RU Если вы хотите записать видео с камеры, присоедините ее к вашему PC. В противном случае перейти к шагу 8.
DK Hvis du ønsker at optage video fra et kamera, skal du forbinde det til din computer. Gå i modsat fald til pkt. 8.
TC 如果您要從攝影機擷取視訊，請將它連接至您的電腦。否則，請至步驟8。
EN If you want to capture video from a camera, connect it to your PC. Otherwise go to step 8.

LimitfulProject [PMS Video] - Main Vision Essentials Capture Video Select a device and capture video to you hand back. Capture Device Use DVD Server Finish Use the template to capture select in Digital Video (DVI) compatible format. The application will be configured to capture devices, but you can change the device callings manually for DVD types. DVD Type 1 Type 1 is usually the below choice because it requires free disk space and allow user throughput. Numbers only Type 2 is compatible with IDs for Windows (PMS) if you are not used which type is used, without Type 1

6

sc 在捕获过程中，您将在此看到进度。
RU Во время записи здесь вы можете наблюдать за ходом процесса.
DK Under optagelsen kan du følge processen her.
TC 在擷取過程中，您會在此看到進度。
EN During capturing, you will see the progress here.

Untitled/Project [100] Video | More Picture Essentials Capture Vives Select a virtual and capture video to your headlink. Capture devices Selected a capturing template: Focus: Type 7 is usually the better choice because it requires two key images and allows more throughout. However, only Type 2 is compatible with images for window (74). If you are not sure which type 3 uses, select Type 3. Customs information Frames captured/Respect 100% Movie to Save

7

sc 捕获所有视频片段后，单击 “Next (下一步)”。
RU После записи всего видеоряда щелкните мышью на "Next".
DK Klik på "Næste", när alle videosekvenser er optaget.
TC 當已擷取所有視訊序列後，按一下「Next (下一步)」。
EN Fare clic su "Avanti" se tutte le sequenze video sono state catturate.

Unlimited Project [MRS Video] / New Vision Essentials Capture Video Select a device and capture video to put hand disk. Capture device Copy DVD Video Select a capture template Type1 Use file template to capture a Digital Video (DVI) compatible format The application will be configured the capture device, but you can change the device settings manually to: DVD Type: DVD Type 1 Type 2 is usually the other choice because it requires box (bit space and above) more throughput. However only (type 2) is compatible with inside-USB drive (DVI). If you are not sure which type is used, select Type 2. Captured files WNTiCapture-0001 WNTiCapture-0008 WNTiCapture-0009 Save... Add

CreatedProject * (DVD) Video | New Video Essentials Context Create and arrange files for you about! What would you like to do? Capture Images... Add Video Files... Make Images... Make Slide Files... Import Drive... Add Video Files... Add Video Files... How, you can add your new video files from your text file or image and add video files on the project. Total space used: 0.00 out of 1.30 GB 0.00 1.00 2.00 3.00 4.00 5.00 More than Save Save Back

sc 如要添加来自硬盘的文件，选择“Add Video Files (添加视频文件)”。
RU Если вы хотите добавить файлы с жесткого диска, выберите "Add Video Files".
DK Vælg "Tilføj videofiler", hvis du ønsker at tilføje filer fra harddisken.
TC 如果您要從硬碟新增檔案，請選擇「AddVideo Files (新增視訊檔案)」。
EN If you want to add files from the hard disk, choose "Add Video Files".

Open Create and Create and Modules Downloads New Store Desktop My Documents: My Computer My Outlook: From Previous File name: Files of Type: All Supported Index Files Open Cancel

sc 选择文件并单击 “Open (打开)”。
RU Выберите нужные файлы и щелкните на "Open".
DK Vælg filerne og klik på "Åbn".
TC 選擇檔案然後按一下「Open (開啟)」。
EN Select the files and click "Open".

Untitled-Project [2005 Video] - New Video Search Content Create and arrange files for your project 2. VTT_01.000 Video Title: 36.000x 1% Target video options: 720-V78/CDR-601 (1) - 4.1 2. V13_01.000 Video Title: 36.000x 1% Target video options: 720-V78/CDR-601 (1) - 4.1 2. VTT_01.000 Video Title: 36.000x 2% Target video options: 720-V78/CDR-601 (1) - 4.1 What would you like to do? Capture Videos... Sound Videos Fines... Water Movies... Water Slide Doors... Import Disc... Edit Movie... Create Chapters... Let you add the highlighted video site. Small-scale 1.5M out of 4.0M 5.000 1.000 2.000 3.000 4.000 Next > Back Next

sc 可选择 “Edit Movie (编辑影片)” 编辑加载的影片。
RU Вы можете редактировать загруженные фильмы, выбрав "Edit Movie".
DK Du kan redigere de indlæste film ved at vælge "Rediger film".
TC 您可選擇「Edit Movie (編輯影片)」來編輯載入的影片。
EN You can edit the loaded movies by choosing "Edit Movie".

11

SC 可在此处添加视频效果、文字效果和过渡。
RU Здесь вы можете добавить видеоэффекты, эффекты для текстов и переходы.
DK Her kan du tilføje videoeffekter, teksteffekter og overgange.
TC 您可在此處新增視訊效果、文字效果和轉場。
EN You can here add video effects, text effects and transitions.

LimitedProject [1950] Video | New Vision Teamatic PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIPS PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIP PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILIPC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCC PHILINCCC

12

SC 您还可以通过滑动标记来剪切录制的视频。完成后，选择“Next（下一步）”。
RU Вы можете также подготовить записанный видеоматериал для монтажа с помощью слайдов с маркерами. После завершения выберите "Next".
DK Du kan også beskære den optagede video ved at trække i markørerne. Vælg "Næste", når du er færdig.
TC 您也可以移動標記來修剪已錄製的視訊。完成後，選擇「Next (下一步)」。
EN You can also trim the recorded video by sliding the markers. When done, choose "Next".

LimitedProject [DRL Values] - New Poster Countdown File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Preview

13

Untitled Project [HSS Videos] - New Vision Assortics Content Create and manage files by your project. 1. VTL_01_0009 Video Files - 5th-20%VTL Target video options T20 x 576 ECR-801 (D1) - 41 2. VTL_01_0009 Video Files - 5th-20%VTL Target video options T20 x 576 ECR-801 (D1) - 41 3. VTL_01_0009 Video Files - 5th-20%VTL Target video options T20 x 576 ECR-801 (D1) - 41 What would you like to do? Capture Videos... Real Video Files... Make Movies... Make Slide Maps... Repack Docs... Edit Movies... Create Diagrams... Used space E38 out of A:35 GB $1.00 1.00% 2.00% 3.00% 4.00% 5.00% Next

Untitled Project [100] Video - New Vision Transform Select None Select movie menu and file menu. Selected articles: Movie Manager Holiday 2005 I VTE. BY 2005 Holiday 2005 Edit Menu... $500 1:000 2000 3:000 4:000 Save Next Next

SC 在 “Header (标题)” 字段输入标题，然后单击 “Edit menu (编辑菜单)”。
RU Введите в поле "Header" заголовок и щелкните мышью на "Edit menu".
DK Indtast titlen i feltet "Overskrift" og klik på "Rediger menu".
TC 在「Header (標頭)」欄位中輸入標題，然後按一下「Edit menu (編輯選單)」。
EN Enter the title in the "Header" field and click "Edit menu".

Untitled Project [2005] Video - New Video Downloads Edit Movies Customize new settings Holiday 2005 What would you like to change? Layout Background Surfaces Text Prepared Image Text Shader Automatication Unselected Color Save Next

SC 您可以在此更改布局、背景，添加标题等等。完成后，选择两次“Next（下一步）”。
RU Вы можете изменять шаблон, фон, добавлять заголовки,... здесь. После завершения выберите два раза "Next".
DK Du kan ændre layout og baggrund og tilføje titler...her. Vælg "Næste" to gange, når du er færdig.
TC 您可以在此改變版面、背景、新增標題...。完成後，選擇「Next (下一步)」兩次。
EN You can change the layout, the background, add titles,... here. When done, choose "Next" twice.

UnlimitedProject [1985 Video] - New Video SaveMeats Preview: Describe the results of your project features learning A Holiday 2005

sc 预览影片。单击“Next (下一步)”继续。16
RU Просмотрите ваш фильм. Для продолжения щелкните на "Next".
DK Kontrollér din film. Klik på "Næste" for at fortsætte.
TC 預覽您的影片。按一下「Next (下一步)」以繼續。
EN Preview your movie. Click "Next" to continue.

17

SC 选择 “Burn to (刻录到)”，选择刻录机然后再选择 “Burn (刻录)”。
RU Выберите "Burn to", ваше устройство записи, а затем "Burn".
DK Vælg "Brænd til", vælg optager og vælg "Brænd".
TC 選擇「Burn to (燒錄至)」，選擇您的燒錄器並選擇「Burn (燒錄)」。
EN Choose "Burn to", choose your recorder and choose "Burn".

UntitledProject [PMS Video] - New Vision Essentials Buen Options Set the parameters for learning. Project options Current video options Aspect data (Autodesk) Video mode: PSL Quality: submatics Voy project contacts 3 MWh and 1 Max. Send it... Buen Options Set the parameters for learning New Item: Write up Hard Core Folder Volume Name: Recording Settings Buen To Designer Selected the second order you need to use Cven optimization Buen to device: PHILIPS ODS/1008P Used this space: 9.39 GB Save

18

SC NeroVision Express 将转换代码并刻录到您的光盘。
RU NeroVision Express выполняет перекодировку и прожигает ваш диск.
DK NeroVision Express kodeomsætter og brænder din disc.
TC NeroVision Express 正進行光碟的轉碼和燒錄。
EN NeroVision Express is transcoding and burning your disc.

Untitled Project | PHILIPS | New Horizon Documents Analysis Preparing data recording Running video data into the disk Completing recording disk PHILIPS Tracking progress Current path: ToSELECTING AND WIDTH: 17.5 inch X 2007 Current progress: Flawing: 3h 10m-25s Expand: 3h 02m-15s Total progress: Flawing: 3h 10m-25s Expand: 3h 02m-55s Preview: Start down computer when installed Remove to Top Next >> Save About

19

SC 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

Untitled Project [MS-Video] - New Vision Essentials Options Preparing data to recording Burning extra data into the info Computing according to access Recording progress Current action Current progress New Vision Express 3 New process completed successfully. What you need to save the log file? No Yes Log progress: Export Preview: Next: new computer when installed Remove or Help Name: Save

如何制作数据或音频光盘？

How to make a data or audio disc?

Be responsible Respect copyrights

1

Welcome to Nero! First, now your category Thank back, again And like, to get started

SC 选择刻录机，然后单击“Bum (刻录)”。
RU Выберите "Data" или "Audio".
DK Vælg "Data" eller "Lyd".
TC 選擇您的燒錄器並按「Burn (燒錄)」。
EN Choose "Data" or "Audio".

Data Make Date 13 Make Date 14 Copy CS Copy PDF

sc Nero 开始刻录光盘。
RU Для данных выберите "Make Data CD" или "Make Data DVD".
DK Vælg for data "Lav data-cd" eller "Lav data-dvd".
TC Nero 會開始燒錄您的光碟。
EN For data, choose "Make Data CD" or "Make Data DVD".

Audio Make Audio CS Play audio Audio - HPS1 CD Make - HPS2 CD Do not run any audio CS that touch all CS players and can use PC. Play music or digital Audio CS Make Home Digital Audio CS

Add Files and folders Location: By Documents Modules Newland Desktop My Documents, My Computer My Audio, Print Favorites File name: "My 12.doc" "My 12.doc" "My 13.doc" File type: AutoPlay (*.*) Add Close

7

sc 检查文件并单击 “Next (下一步)”。
RU Проверьте ваши файлы и щелкните на "Next".
DK Kontrollér dine filer og klik på "Næste".
TC 選擇檔案然後按一下「Next (下一步)」。
EN Check your files and click "Next".

Home Express Essentials Edit Layout Add details your files... File Edit Name Save Type Modified Origin File 01.doc 35.224 KB Words... LOWSYK... C:\Documents and Settings... File 02.doc 35.224 KB Words... LOWSYK... C:\Documents and Settings... File 03.doc 35.794 KB Words... LOWSYK... C:\Documents and Settings... Total progress and 126 KB OK Next

New Express Documents Fixed Data Settings Click Next to start the recording process. File name: My Date Number of copies: Ready days on disc after turning Allow file to be added time (authenticom disc) Exit

SC 选择刻录机，然后单击“Bum (刻录)”。
RU Выберите ваше устройство записи и щелкните на "Вит".
DK Vælg optager og klik på "Brænd".
TC 選擇您的燒錄器並按「Bum (燒錄)」。
EN Choose your recorder and click "Burn".

None Express Eventbox Warning Process Press all... Test Event + 0.00-0.00 API: MULB3P1 (MULB3/46K) (Buffer undersea protection affiliated) + 0.00-0.00 API: Cacheq of New planned + 0.00-0.00 API: Cacheq of New completed + 0.00-0.00 API: Run uncompleted at info (L3588 HBX) LTTC BUTC Settings: 0:00:07 25% Writing at 25th (L3588 HBX) Stop

sc Nero 开始刻录光盘。
RU Nero прожигает ваш диск.
DK Herefter brænder Nero din disc.
TC Nero 會開始燒錄您的光碟。
EN Nero is burning your disc.

New Express Essentials Warning Process Preview 488 Time Event 0:25:45.48% HAC-2913 (100%) Buffer pattern protection activated 0:25:45.48% Caching of the shared 0:25:45.48% Caching of the shared 0:25:45.48% Burs process completed successfully at 25% (1,000 KB) OK Burs process completed successfully at 25% (1,000 KB) X UCTG BUFFER Start New Express Essentials - 3x software

sc 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

如何复制光盘?

Be responsible Respect copyrights

1

SC 启动 “Nero StartSmart Essentials”。

RU Запустите "Nero StartSmart Essentials".

DK Start "Nero StartSmart Essentials".

TC 啟動 “Nero StartSmart Essentials”。

EN Start "Nero StartSmart Essentials".

Start Menu Start Menu Enter Subs Enter Subs User filter Mouse filter Auto buttons

VISA CD: 1980 Favorites Mobile Data 12 Mobile Format 13 Mobile Audio 14 Mobile Audio 15 Mobile Audio 16 Mobile Format Audio Sound(12.0) Mobile Format Audio Sound(12.0)

DVD".

SC 选择 “Favorites (收藏夹)” 并选择 “Copy CD (复制 CD)” 或 “Copy DVD (复制DVD)”。
RU Выберите "Favorites" и "Copy CD" или "Copy DVD".
DK Vælg "Foretrukne" og "Kopiér cd" eller "Kopiér dvd".
TC 選擇「Favorites (常用功能)」，然後選擇「Copy CD (複製 CD)」或「Copy DVD (複製 DVD)」。
EN Choose "Favorites" and "Copy CD" or "Copy

Share Express/contents Select source and destination Please select source and destination drivers and insert source disk. Source drive: E.PILIPS 200000000 Destination drive: E.PILIPS 200000000 [14.4.99] Cashflow: Save disk cannot be copied. This may be easy protected in accordance. If you are not sure if your disk can be copied, please run a similar simulation mode (665 on Advanced -C and Select Simulation). Writing speed: Message Number of pages: 1 Help to drop on disc after learning. Image file: Documents and Settings/Chalks all/Ply Documents OK Cancel

F:\Moss Express Extension Select source and destination Select source and destination drives and insert source disk. Source drive: F:\Moss Express Extension Destination drive: Customs. Some device cannot be copied. They may be copied or created errors. If you are not sure if you can be copied, please run a brake simulation model (bit on Advanced + F and select Simulation). Writing speed: Maximum Number of copies: □ Notify data on the after scanning Draft No: □ Documents and https://data10/MyDocument 确定

P. New Express Definition Burning Process Please wait... Show Show 0.0213.499 0.0213.499 0.0613.499 0.0813.499 0.1502.499 New Process: BUTG BUFFER Texting time: 30:07:00; Total time: 3:00:07 2016 Writing at 10x (3,000 MHz) UTRG BUFFER

6

sc 祝贺您，您的光盘已成功写入。现在可以退出应用程序了。
RU Поздравляем, ваш диск был успешно записан. Теперь вы можете выйти из программы.
DK Tillykke – din disc er blevet brændt. Du kan nu afslutte programmet.
TC 恭喜,您的光碟已成功寫入。您現在可以離開應用程式。
EN Congratulations, your disc has been written successfully. You may exit the application now.

Ultra Express Essentials Starting Process Project wall... Start Event 0.01.03.497 0.04.02.497 0.06.11.497 0.10.02.497 0.27.13.497 Creating the image for saving Creating Image completed successfully. PHILIPS (HOP) 00488 Take-up to update the project's status! Hyper Express Essentials Hyper process completed successfully at 25h - 1,300 KBp OK Ultra MPAG Next

需要更多信息或帮助

访问 www.philips.com/storageupdates

SC

故障排除

Be responsible Respect copyrights

O. Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T 11363 - 2006

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T 11363 - 2006.

环保使用期限 Environmental Protection Use Period

This logo refers to the period (10 years)

This logo refers to the period (10 years) during which the toxic or hazardous substances or elements contained in electronic information products will not leak or mutate so that the use of these substances or elements will not result in any severe environmental pollution, any bodily injury or damage to any assets.

Be responsible Respect copyrights

Be responsible Respect copyrights

Be responsible Respect copyrights

More info or help needed

Visit www.philips.com/storageupdates

Troubleshooting

Philips optical disc drives are manufactured with utmost care. In case of problems, it often appears that the drive itself is not defective. You can simply solve most of these problems by using the support tools offered by Philips.

When you're experiencing problems:

1 Please check the information in the "How to..." manual.
2 Check the Philips support websites www.philips.com/storageupdates and www.philips.com/support for interactive support, troubleshooting, and the newest software updates.
3 Should you encounter any more difficulties during installation or use, please contact Philips Customer Care via the e-mail address or telephone numbers that can be found at www.philips.com/contact.

Prior to claiming a drive for warranty, you must request a return reference number at www.philips.com/support or contact Philips Customer Care.

▶ Additional warranty information is available in the "Philips Warranty" folder on the Nero software disc.

"The making of unauthorised copies of copy-protected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by following symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

FCC Compliance

FCC 15.105 rule:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

FCC 15.19 rule:

This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

(1) this device my not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CE

Electric-, Magnetic- and Electromagnetic Fields ("EMF")

1. Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.
2. One of Philips' leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3. Philips is committed to develop, produce and market products that cause no adverse health effects.
4. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5. Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Safety Precautions

USA/Canada: This player is for use only with IBM compatible UL listed Personal Computers or Macintosh UL listed workstations, weighing less than 18 kg.

LASER SAFETY

This unit employs a laser. Do not remove the cover or attempt to service this device when connected due to the possibility of eye damage.

LASER-SICHERHEIT

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS LASER RADIATION EXPOSURE.

WARNUNG

CLASS 1 LASER PRODUCT

LUOKAN I LASERLAITE

KLASSE 1 LASER-PRODUKT

CAUTION INVISIBLE LASER RADIATION. WHEN OPEN AVOID EXPOSURE TO BEAM VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN WARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN ADVERSEL USYNLIG LASERSTRÅLING NÄR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN DANGER INVISIBLE LASER RADIATION. WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM VORSICHT UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETZEN

LASER

Type Semiconductor laser GaAlAs

Wave length 775-795 nm (CD) - 660 nm (DVD)

Output power (measured above the objective lens)

Read: 1,4 mW - 2,5 mW

Write: 90 mW (CD) - 27 mW (DVD)

Beam divergence 60 degree

Additional information available on our website: www.philips.com/storageupdates www.philips.com/storage

Specifications subject to change without notice. All dimensions shown are approximate. © 2007 Koninklijke Philips Electronics N.V.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
