USER MANUAL LS1040FS MAKITA

90mm (3-9/16")25mm (1")90mm (3-9/16")107mm (4-7/32")90mm (3-9/16")107mm (4-7/32")

• To avoid injury from flying debris, keep holding the saw head down, after making cuts, until the blade has come to a complete stop.

• Do not place hand or fingers close to the blade.

• For your safety, remove the chips, small pieces, etc. from the table top before operation.

• Always set SUB-FENCE to left position when performing left bevel cuts. Failure to do so may cause serious injury to operator.

• Only for EU countries Do not dispose of electric equipment together with household waste material! In observance of the European Directive, on Waste Electric and Electronic Equipment and its imple- mentation in accordance with national law, electric equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

• Due to our continuing program of research and devel- opment, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• Weight according to EPTA-Procedure 01/2003 ENE004-1 Intended use The tool is intended for accurate straight and miter cut- ting in wood. With appropriate saw blades, aluminum can also be sawed. ENF002-2 Power supply The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated and can, therefore, also be used from sockets without earth wire. For Model LS1040F ENF100-1 For public low-voltage distribution systems of between 220 V and 250 V. Switching operations of electric apparatus cause voltage fluctuations. The operation of this device under unfavor- able mains conditions can have adverse effects to the operation of other equipment. With a mains impedance equal or less than 0.34 Ohms it can be presumed that there will be no negative effects. The mains socket used for this device must be protected with a fuse or protective circuit breaker having slow tripping characteristics. GEA010-1 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future refer- ence. ENB034-10

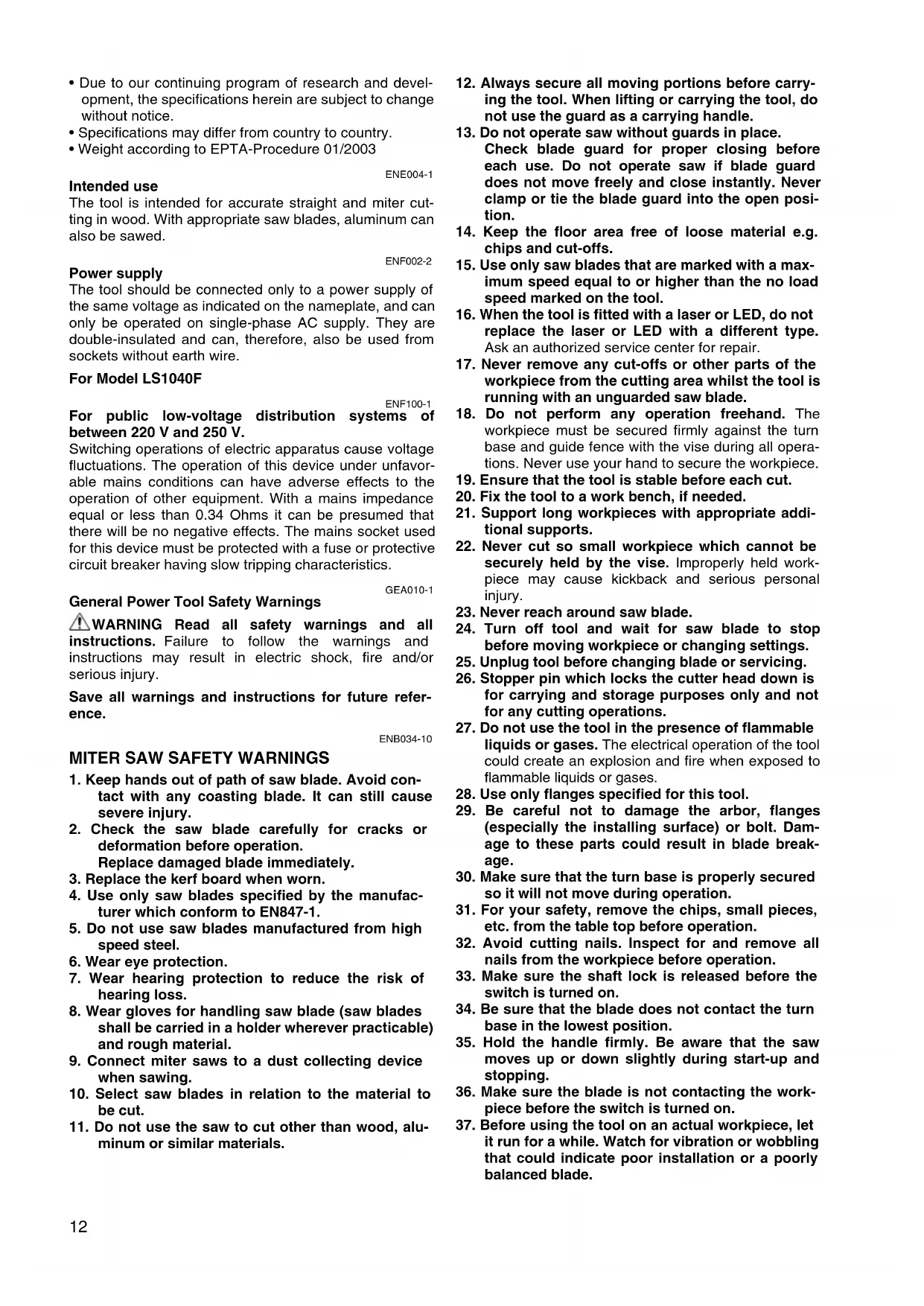

MITER SAW SAFETY WARNINGS

1. Keep hands out of path of saw blade. Avoid con-

tact with any coasting blade. It can still cause severe injury.

2. Check the saw blade carefully for cracks or

deformation before operation. Replace damaged blade immediately.

3. Replace the kerf board when worn.

4. Use only saw blades specified by the manufac-

turer which conform to EN847-1.

5. Do not use saw blades manufactured from high

7. Wear hearing protection to reduce the risk of

8. Wear gloves for handling saw blade (saw blades

shall be carried in a holder wherever practicable) and rough material.

9. Connect miter saws to a dust collecting device

10. Select saw blades in relation to the material to

11. Do not use the saw to cut other than wood, alu-

minum or similar materials.

12. Always secure all moving portions before carry-

ing the tool. When lifting or carrying the tool, do not use the guard as a carrying handle.

13. Do not operate saw without guards in place.

Check blade guard for proper closing before each use. Do not operate saw if blade guard does not move freely and close instantly. Never clamp or tie the blade guard into the open posi- tion.

15. Use only saw blades that are marked with a max-

imum speed equal to or higher than the no load speed marked on the tool.

16. When the tool is fitted with a laser or LED, do not

replace the laser or LED with a different type. Ask an authorized service center for repair.

17. Never remove any cut-offs or other parts of the

workpiece from the cutting area whilst the tool is running with an unguarded saw blade.

18. Do not perform any operation freehand. The

workpiece must be secured firmly against the turn base and guide fence with the vise during all opera- tions. Never use your hand to secure the workpiece.

19. Ensure that the tool is stable before each cut.

20. Fix the tool to a work bench, if needed.

21. Support long workpieces with appropriate addi-

22. Never cut so small workpiece which cannot be

securely held by the vise. Improperly held work- piece may cause kickback and serious personal injury.

23. Never reach around saw blade.

24. Turn off tool and wait for saw blade to stop

before moving workpiece or changing settings.

25. Unplug tool before changing blade or servicing.

26. Stopper pin which locks the cutter head down is

for carrying and storage purposes only and not for any cutting operations.

27. Do not use the tool in the presence of flammable

liquids or gases. The electrical operation of the tool could create an explosion and fire when exposed to flammable liquids or gases.

28. Use only flanges specified for this tool.

29. Be careful not to damage the arbor, flanges

(especially the installing surface) or bolt. Dam- age to these parts could result in blade break- age.

30. Make sure that the turn base is properly secured

so it will not move during operation.

31. For your safety, remove the chips, small pieces,

etc. from the table top before operation.

32. Avoid cutting nails. Inspect for and remove all

nails from the workpiece before operation.

33. Make sure the shaft lock is released before the

switch is turned on.

34. Be sure that the blade does not contact the turn

base in the lowest position.

35. Hold the handle firmly. Be aware that the saw

moves up or down slightly during start-up and stopping.

36. Make sure the blade is not contacting the work-

piece before the switch is turned on.

37. Before using the tool on an actual workpiece, let

it run for a while. Watch for vibration or wobbling that could indicate poor installation or a poorly balanced blade.13

38. Wait until the blade attains full speed before cut-

39. Stop operation immediately if you notice any-

40. Do not attempt to lock the trigger in the on posi-

41. Be alert at all times, especially during repetitive,

monotonous operations. Do not be lulled into a false sense of security. Blades are extremely unforgiving.

42. Always use accessories recommended in this

manual. Use of improper accessories such as abrasive wheels may cause an injury.

43. Take care when slotting.

44. Some dust created from operation contains

chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based-painted material and,

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depend- ing on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks that are specially designed to filter out micro- scopic particles.

45. To reduce the emitted noise, always be sure that

the blade is sharp and clean.

46. The operator is adequately trained in the use,

adjustment and operation of the machine. SAVE THESE INSTRUCTIONS.

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruc- tion manual may cause serious personal injury. INSTALLATION Installing auxiliary plate (Fig. 1 & 2) Install the auxiliary plate using the notch in the tool’s base and secure it by tightening the hex bolt. Installing the holders (Fig. 3 & 4) Install the holders on both sides of the base and secure them with screws. Adjust the adjusters so that they contact the floor surface. NOTE:

• In some countries, the holders may not have feet. Bench mounting When the tool is shipped, the handle is locked in the low- ered position by the stopper pin. Release the stopper pin by lowering the handle slightly and pulling the stopper pin. (Fig. 5) This tool should be bolted with two bolts to a level and stable surface using the bolt holes provided in the tool’s base. This will help prevent tipping and possible personal injury. (Fig. 6) FUNCTIONAL DESCRIPTION CAUTION:

• Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Blade guard (Fig. 7 & 8) When lowering the handle, the blade guard rises auto- matically. The guard is spring loaded so it returns to its original position when the cut is completed and the han- dle is raised. NEVER DEFEAT OR REMOVE THE BLADE GUARD OR THE SPRING WHICH ATTACHES TO THE GUARD. In the interest of your personal safety, always maintain the blade guard in good condition. Any irregular opera- tion of the blade guard should be corrected immediately. Check to assure spring loaded return action of guard. NEVER USE THE TOOL IF THE BLADE GUARD OR SPRING ARE DAMAGED, FAULTY OR REMOVED. DOING SO IS HIGHLY DANGEROUS AND CAN CAUSE SERIOUS PERSONAL INJURY. If the see-through blade guard becomes dirty, or sawdust adheres to it in such a way that the blade is no longer easily visible, unplug the saw and clean the guard care- fully with a damp cloth. Do not use solvents or any petro- leum-based cleaners on the plastic guard. If the blade guard is especially dirty and vision through the guard is impaired, use the supplied socket wrench to loosen the hex bolt holding the center cover. Loosen the hex bolt by turning it counterclockwise and raise the blade guard and center cover. With the blade guard so positioned, cleaning can be more completely and effi- ciently accomplished. When cleaning is complete, reverse procedure above and secure bolt. Do not remove spring holding blade guard. If guard becomes discolored through age or UV light exposure, contact a Makita ser- vice center for a new guard. DO NOT DEFEAT OR REMOVE GUARD. Kerf board (Fig. 9) This tool is provided with the kerf board in the turn base to minimize tearing on the exit side of a cut. If the kerf groove has not yet been cut in the kerf board by the fac- tory, you should cut the groove before actually using the tool to cut a workpiece. Switch on the tool and lower the blade gently to cut a groove in the kerf board. Maintaining maximum cutting capacity (Fig. 10 & 11) This tool is factory adjusted to provide the maximum cut- ting capacity for a 260 mm saw blade. When installing a new blade, always check the lower limit position of the blade and if necessary, adjust it as follows: First, unplug the tool. Lower the handle completely. Use the socket wrench to turn the adjusting bolt until the periphery of the blade extends slightly below the top sur- face of the turn base at the point where the front face of the guide fence meets the top surface of the turn base. With the tool unplugged, rotate the blade by hand while holding the handle all the way down to be sure that the blade does not contact any part of the lower base. Re- adjust slightly, if necessary.14 CAUTION:

• After installing a new blade, always be sure that the blade does not contact any part of the lower base when the handle is lowered completely. Always do this with the tool unplugged. Adjusting the miter angle (Fig. 12) Loosen the grip by turning counterclockwise. Turn the turn base while pressing down the lock lever. When you have moved the grip to the position where the pointer points to the desired angle on the miter scale, securely tighten the grip clockwise. CAUTION:

• When turning the turn base, be sure to raise the handle fully.

• After changing the miter angle, always secure the turn base by tightening the grip firmly. Adjusting the bevel angle (Fig. 13 & 14) To adjust the bevel angle, loosen the lever at the rear of the tool counterclockwise. Push the handle to the left to tilt the saw blade until the pointer points to the desired angle on the bevel scale. Then tighten the lever clockwise firmly to secure the arm. CAUTION:

• When tilting the saw blade, be sure to raise the handle fully.

• After changing the bevel angle, always secure the arm by tightening the lever clockwise. Switch action CAUTION:

• Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released.

• When not using the tool, remove the lock-off button and store it in a secure place. This prevents unauthorized operation.

• Do not pull the switch trigger hard without pressing in the lock-off button. This can cause switch breakage. For European countries (Fig. 15) To prevent the switch trigger from being accidentally pulled, a lock-off button is provided. To start the tool, raise the lever, depress the lock-off but- ton and pull the switch trigger. Release the switch trigger to stop. For all countries other than European countries (Fig. 16) To prevent the switch trigger from being accidentally pulled, a lock-off button is provided. To start the tool, depress the lock-off button and pull the switch trigger. Release the switch trigger to stop.

• NEVER use tool without a fully operative switch trigger. Any tool with an inoperative switch is HIGHLY DAN- GEROUS and must be repaired before further usage.

• For your safety, this tool is equipped with a lock-off but- ton which prevents the tool from unintended starting. NEVER use the tool if it runs when you simply pull the switch trigger without pressing the lock-off button. Return tool to a Makita service center for proper repairs BEFORE further usage.

• NEVER tape down or defeat purpose and function of lock-off button. Lighting up the lamps (Fig. 17 & 18) CAUTION:

• This is not a rainproof light. Do not wash the light in water or use it in a rain or a wet area. Such a conduct can cause an electric shock and fume.

• Do not touch the lens of the light, as it is very hot while it is lighted or shortly after it is turned off. This may cause a burn to a human body.

• Do not apply impact to the light, which may cause dam- age or shorted service time to it.

• Do not keep casting the beam of the light to your eyes. This can cause your eyes to be hurt.

• Do not cover the light with clothes, carton, cardboard or similar objects while it is lighted, which can cause a fire or an ignition. Push the upper position of the switch for turning on the light and the lower position for off. Move the light to shift an area of lighting. NOTE:

• Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of light, or it may lower the illumination. ASSEMBLY CAUTION:

• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool. Installing or removing saw blade CAUTION:

• Always be sure that the tool is switched off and unplugged before installing or removing the blade.

• Use only the Makita socket wrench provided to install or remove the blade. Failure to do so may result in overtightening or insufficient tightening of the hex bolt. This could cause a personal injury. To remove the blade, use the socket wrench to loosen the hex bolt holding the center cover by turning it coun- terclockwise. Raise the blade guard and center cover. (Fig. 19) Press the shaft lock to lock the spindle and use the socket wrench to loosen the hex bolt clockwise. Then remove the hex bolt, outer flange and blade. (Fig. 20) To install the blade, mount it carefully onto the spindle, making sure that the direction of the arrow on the surface of the blade matches the direction of the arrow on the blade case. Install the outer flange and hex bolt, and then use the socket wrench to tighten the hex bolt (left- handed) securely counterclockwise while pressing the shaft lock. (Fig. 21) CAUTION: For all countries other than European countries

• The silver ring 25.4 mm in outer diameter is factory- installed onto the spindle. The black ring 25 mm in outer diameter is included as standard equipment. Before mounting the blade onto the spindle, always be sure that the correct ring for the arbor hole of the blade you intend to use is installed onto the spindle.15 For European countries

• The ring 30 mm in outer diameter is factory-installed onto the spindle. The ring 25 mm in outer diameter is included as standard equipment. Before mounting the blade onto the spindle, always be sure that the correct ring for the arbor hole of the blade you intend to use is installed onto the spindle. Install the flange and hex bolt, and then use the socket wrench to tighten the hex bolt securely counterclockwise while pressing the shaft lock. Return the blade guard and center cover to its original position. Then tighten the hex bolt clockwise to secure the center cover. Lower the handle to make sure that the blade guard moves properly. Make sure shaft lock has released spindle before making cut. (Fig. 22) Dust bag (Fig. 23) The use of the dust bag makes cutting operations clean and dust collection easy. To attach the dust bag, fit it onto the dust nozzle. When the dust bag is about half full, remove the dust bag from the tool and pull the fastener out. Empty the dust bag of its contents, tapping it lightly so as to remove par- ticles adhering to the insides which might hamper further collection. NOTE:

• If you connect a Makita vacuum cleaner to this tool, more efficient and cleaner operations can be per- formed. Securing workpiece (Fig. 24)

• It is extremely important to always secure the work- piece properly and tightly with the vise. Failure to do so can cause the tool to be damaged and/or the work- piece to be destroyed. PERSONAL INJURY MAY ALSO RESULT. Also, after a cutting operation, DO NOT raise the blade until the blade has come to a com- plete stop. CAUTION:

• When cutting long workpieces, use supports that are as high as the top surface level of the turn base. Do not rely solely on the vertical vise and/ or horizontal vise to secure the workpiece. Thin material tends to sag. Support workpiece over its entire length to avoid blade pinch and possible KICK- BACK. Sub-fence (Fig. 25 & 26) This tool is equipped with the sub-fence. It should be positioned as shown in Fig. 25. CAUTION:

• When performing left bevel cuts, flip the fence over to the left position as shown in Fig. 26. Otherwise, it will contact the blade or a part of the tool, causing possible serious injury to the operator.

1. Vertical vise (Fig. 27)

The vertical vise can be installed in two positions on either the left or right side of the guide fence or the holder assembly (optional accessory). Insert the vise rod into the hole in the guide fence or the holder assembly and tighten the screw to secure the vise rod. Position the vise arm according to the thickness and shape of the workpiece and secure the vise arm by tight- ening the screw. If the screw to secure the vise arm con- tacts the guide fence, install the screw on the opposite side of vise arm. Make sure that no part of the tool con- tacts the vise when lowering the handle all the way. If some part contacts the vise, re-position the vise. Press the workpiece flat against the guide fence and the turn base. Position the workpiece at the desired cutting position and secure it firmly by tightening the vise knob. CAUTION:

• The workpiece must be secured firmly against the turn base and guide fence with the vise during all opera- tions.

2. Horizontal vise (optional accessory) (Fig. 28)

The horizontal vise can be installed on either the left or right side of the base. When performing 15° or greater miter cuts, install the horizontal vise on the side opposite the direction in which the turn table is to be turned. By turning the vise knob counterclockwise, the screw is released and the vise shaft can be moved rapidly in and out. By turning the vise knob clockwise, the screw remains secured. To grip the workpiece, turn the vise knob gently clockwise until the projection reaches its top- most position, then fasten securely. If the vise knob is forced in or pulled out while being turned clockwise, the projection may stop at an angle. In this case, turn the vise knob back counterclockwise until the screw is released, before turning again gently clockwise. The maximum width of the workpiece which can be secured by the horizontal vise is 130 mm. CAUTION:

• Grip the workpiece only when the projection is at the topmost position. Failure to do so may result in insuffi- cient securing of the workpiece. This could cause the workpiece to be thrown, cause damage to the blade or cause the loss of control, which can result in PER- SONAL INJURY.

3. Holders and holder assembly

(optional accessories) (Fig. 29) The holders and the holder assembly can be installed on either side as a convenient means of supporting work- pieces horizontally. Install them as shown in Fig. 29. Then tighten the screws firmly to secure the holders and the holder assembly. When cutting long workpieces, use the holder-rod assembly (optional accessory). It consists of two holder assemblies and two rods 12. (Fig. 30) CAUTION:

• Always support long workpieces level with the top sur- face of the turn base for accurate cuts and to prevent dangerous loss of control of the tool.16 OPERATION CAUTION:

• Before use, be sure to release the handle from the low- ered position by pulling the stopper pin.

• Make sure the blade is not contacting the workpiece, etc. before the switch is turned on.

• Do not apply excessive pressure on the handle when cutting. Too much force may result in overload of the motor and/or decreased cutting efficiency. Push down handle with only as much force as is necessary for smooth cutting and without significant decrease in blade speed.

• Gently press down the handle to perform the cut. If the handle is pressed down with force or if lateral force is applied, the blade will vibrate and leave a mark (saw mark) in the workpiece and the precision of the cut will be impaired.

1. Press cutting (Fig. 31)

Secure the workpiece with the vise. Switch on the tool without the blade making any contact and wait until the blade attains full speed before lowering. Then gently lower the handle to the fully lowered position to cut the workpiece. When the cut is completed, switch off the tool and WAIT UNTIL THE BLADE HAS COME TO A COM- PLETE STOP before returning the blade to its fully ele- vated position.

Refer to the previously covered “Adjusting the miter angle”.

3. Bevel cut (Fig. 32)

Loosen the lever and tilt the saw blade to set the bevel angle (Refer to the previously covered “Adjusting the bevel angle”). Be sure to retighten the lever firmly to secure the selected bevel angle safely. Secure the work- piece with a vise. Switch on the tool without the blade making any contact and wait until the blade attains full speed. Then gently lower the handle to the fully lowered position while applying pressure in parallel with the blade. When the cut is completed, switch off the tool and WAIT UNTIL THE BLADE HAS COME TO A COM- PLETE STOP before returning the blade to its fully ele- vated position. CAUTION:

• Always be sure that the blade will move down to bevel direction during a bevel cut. Keep hands out of path of saw blade.

• During a bevel cut, it may create a condition whereby the piece cut off will come to rest against the side of the blade. If the blade is raised while the blade is still rotat- ing, this piece may be caught by the blade, causing fragments to be scattered which is dangerous. The blade should be raised ONLY after the blade has come to a complete stop.

• When pressing the handle down, apply pressure paral- lel to the blade. If the pressure is not parallel to the blade during a cut, the angle of the blade might be shifted and the precision of the cut will be impaired.

• Always set the sub-fence to the left position when per- forming left bevel cuts.

Compound cutting is the process in which a bevel angle is made at the same time in which a miter angle is being cut on a workpiece. Compound cutting can be performed at angle shown in the table.

When performing compound cutting, refer to “Press cut- ting”, “Miter cutting” and “Bevel cut” explanations.

5. Cutting aluminum extrusion (Fig. 33)

When securing aluminum extrusions, use spacer blocks or pieces of scrap as shown in Fig. 33 to prevent defor- mation of the aluminum. Use a cutting lubricant when cutting the aluminum extrusion to prevent build-up of the aluminum material on the blade. CAUTION:

• Never attempt to cut thick or round aluminum extru- sions. Thick aluminum extrusions may come loose dur- ing operation and round aluminum extrusions cannot be secured firmly with this tool.

6. Wood facing (Fig. 34)

Use of wood facing helps to assure splinter-free cuts in workpieces. Attach a wood facing to the guide fence using the holes in the guide fence. See Fig. 34 concerning the dimensions for a suggested wood facing. CAUTION:

• Use straight wood of even thickness as the wood fac- ing.

• Use screws to attach the wood facing to the guide fence. The screws should be installed so that the screw heads are below the surface of the wood facing.

• When the wood facing is attached, do not turn the turn base with the handle lowered. The blade and/or the wood facing will be damaged.

7. Cutting repetitive lengths (Fig. 35)

When cutting several pieces of stock to the same length, ranging from 240 mm to 400 mm, use of the set plate (optional accessory) will facilitate more efficient opera- tion. Install the set plate on the holder (optional acces- sory) as shown in Fig. 35. Align the cutting line on your workpiece with either the left or right side of the groove in the kerf board, and while holding the workpiece from moving, move the set plate flush against the end of the workpiece. Then secure the set plate with the screw. When the set plate is not used, loosen the screw and turn the set plate out of the way. NOTE:

• Use of the holder-rod assembly (optional accessory) allows cutting repetitive lengths up to 2,200 mm (7.2 ft.) approximately. Carrying tool Make sure that the tool is unplugged. Secure the blade at 0° bevel angle and the turn base at left miter angle fully. Lower the handle fully and lock it in the lowered position by pushing in the stopper pin. (Fig. 36) Carry the tool by carrying grip as shown in Fig. 37. If you remove the holders, dust bag, etc., you can carry the tool more easily. (Fig. 37) CAUTION:

• Always secure all moving portions before carrying the tool.

• Stopper pin is for carrying and storage purposes only and not for any cutting operations. Bevel angle Miter angle 45° Left and Right 0° – 45°17 MAINTENANCE CAUTION:

• Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

• Always be sure that the blade is sharp and clean for the best and safest performance. Adjusting the cutting angle This tool is carefully adjusted and aligned at the factory, but rough handling may have affected the alignment. If your tool is not aligned properly, perform the following:

1. Miter angle (Fig. 38)

Loosen the grip which secures the turn base. Turn the turn base so that the pointer points to 0° on the miter scale. Tighten the grip and loosen the hex bolts securing the guide fence using the socket wrench. Lower the handle fully and lock it in the lowered position by pushing in the stopper pin. Square the side of the blade with the face of the guide fence using a triangular rule, try-square, etc. Then securely tighten the hex bolts on the guide fence in the order from the right side. (Fig. 39)

Lower the handle fully and lock it in the lowered posi- tion by pushing in the stopper pin. Loosen the lever at the rear of the tool. Loosen the hex nut and turn the 0° bevel angle adjusting bolt on the right side of the arm two or three revolutions clockwise to tilt the blade to the right. (Fig. 40) Carefully square the side of the blade with the top sur- face of the turn base using the triangular rule, try- square, etc. by turning the 0° bevel angle adjusting bolt counterclockwise. Then tighten the hex nut to secure the 0° bevel angle adjusting bolt and tighten the lever securely. (Fig. 41) Make sure that the pointer on the turn base point to 0° on the bevel scale on the arm. If it does not point to 0°, loosen the screw which secures the pointer and adjust the pointer so that it will point to 0°. (Fig. 42)

Adjust the 45° bevel angle only after performing 0° bevel angle adjustment. To adjust left 45° bevel angle, loosen the lever and tilt the blade to the left fully. Make sure that the pointer on the arm points to 45° on the bevel scale on the arm holder. If the pointer does not point to 45°, turn the 45° bevel angle adjusting bolt on the left side of the arm until the pointer points to 45°. (Fig. 43) Replacing fluorescent tube (Fig. 44) CAUTION:

• Always be sure that the tool is switched off and unplugged before replacing the fluorescent tube.

• Do not apply force, impact or scratch to a fluorescent tube, which can cause a glass of the fluorescent tube to be broken resulting in a injury to you or your bystand- ers.

• Leave the florescent tube for a while immediately after a use of it and then replace it. If not, you may burn yourself. Remove screws, which secure Lamp box for the light. Pull out the Lamp box keeping pushing lightly the upper position of it as illustrated on Fig. 44. Pull out the fluorescent tube and then replace it with Makita original new one. Replacing carbon brushes (Fig. 45) Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. (Fig. 46) After use

• After use, wipe off chips and dust adhering to the tool with a cloth or the like. Keep the blade guard clean according to the directions in the previously covered section titled “Blade guard”. Lubricate the sliding por- tions with machine oil to prevent rust. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be per- formed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita service center.

• Steel & Carbide-tipped saw blade

• Some items in the list may be included in the tool pack- age as standard accessories. They may differ from country to country. ENG905-1 Noise The typical A-weighted noise level determined according to EN61029: Sound pressure level (

• The declared vibration emission value has been mea- sured in accordance with the standard test method and may be used for comparing one tool with another.

• The declared vibration emission value may also be used in a preliminary assessment of exposure.

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.

• Be sure to identify safety measures to protect the oper- ator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). ENH003-15 For European countries only EC Declaration of Conformity Makita declares that the following Machine(s): Designation of Machine: Compound Miter Saw Model No./ Type: LS1040F, LS1040FS Conforms to the following European Directives: 2006/42/EC They are manufactured in accordance with the following standard or standardized documents: EN61029 The technical file in accordance with 2006/42/EC is avail- able from: Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
