USER MANUAL PSBS 240 B2 PARKSIDE

BELT SANDER Translation of original operation manual

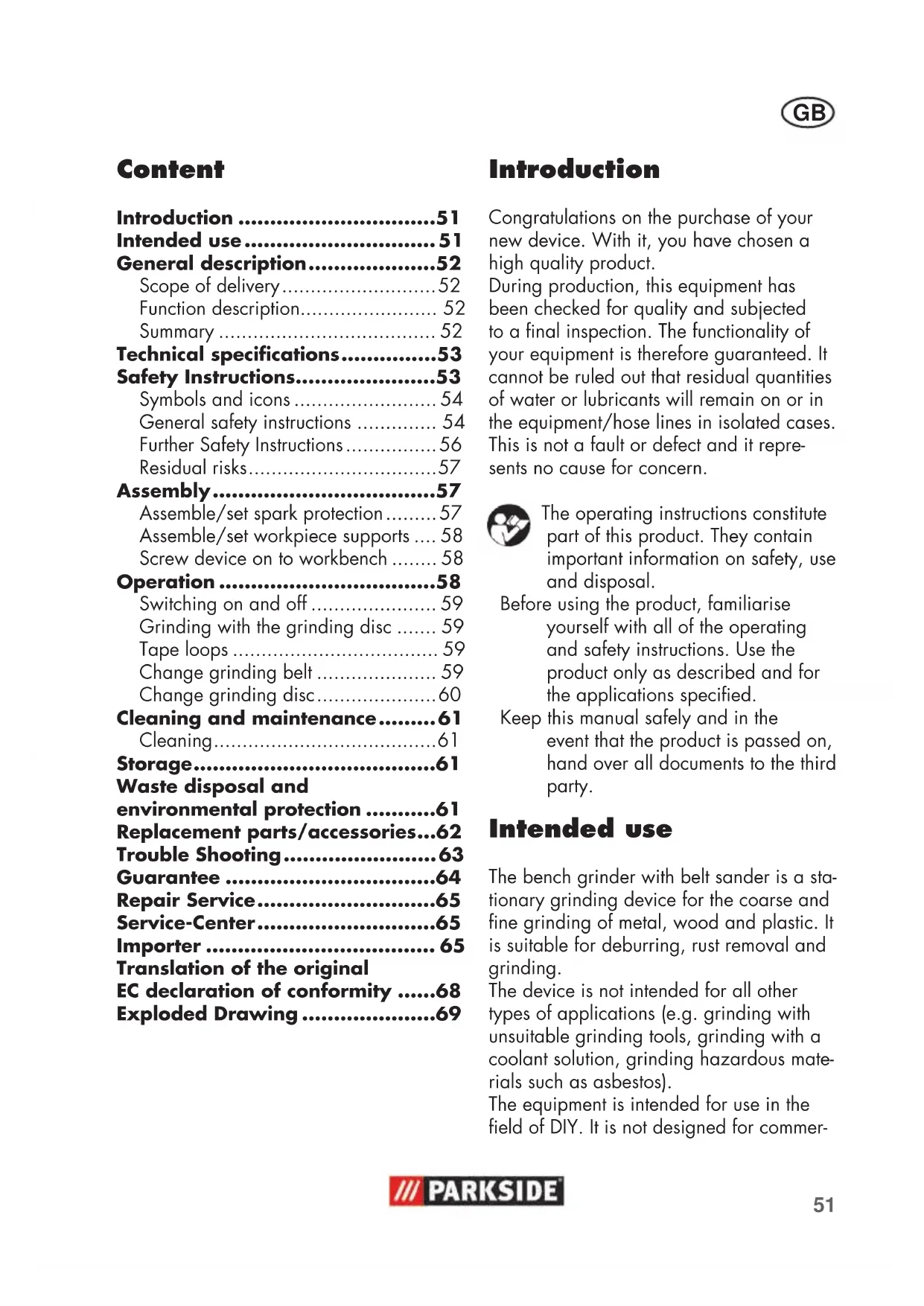

• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it repre- sents no cause for concern. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended use The bench grinder with belt sander is a sta- tionary grinding device for the coarse and ne grinding of metal, wood and plastic. It is suitable for deburring, rust removal and grinding. The device is not intended for all other types of applications (e.g. grinding with unsuitable grinding tools, grinding with a coolant solution, grinding hazardous mate- rials such as asbestos). The equipment is intended for use in the eld of DIY. It is not designed for commer- Content Introduction p. 51
• Intended use p. 51

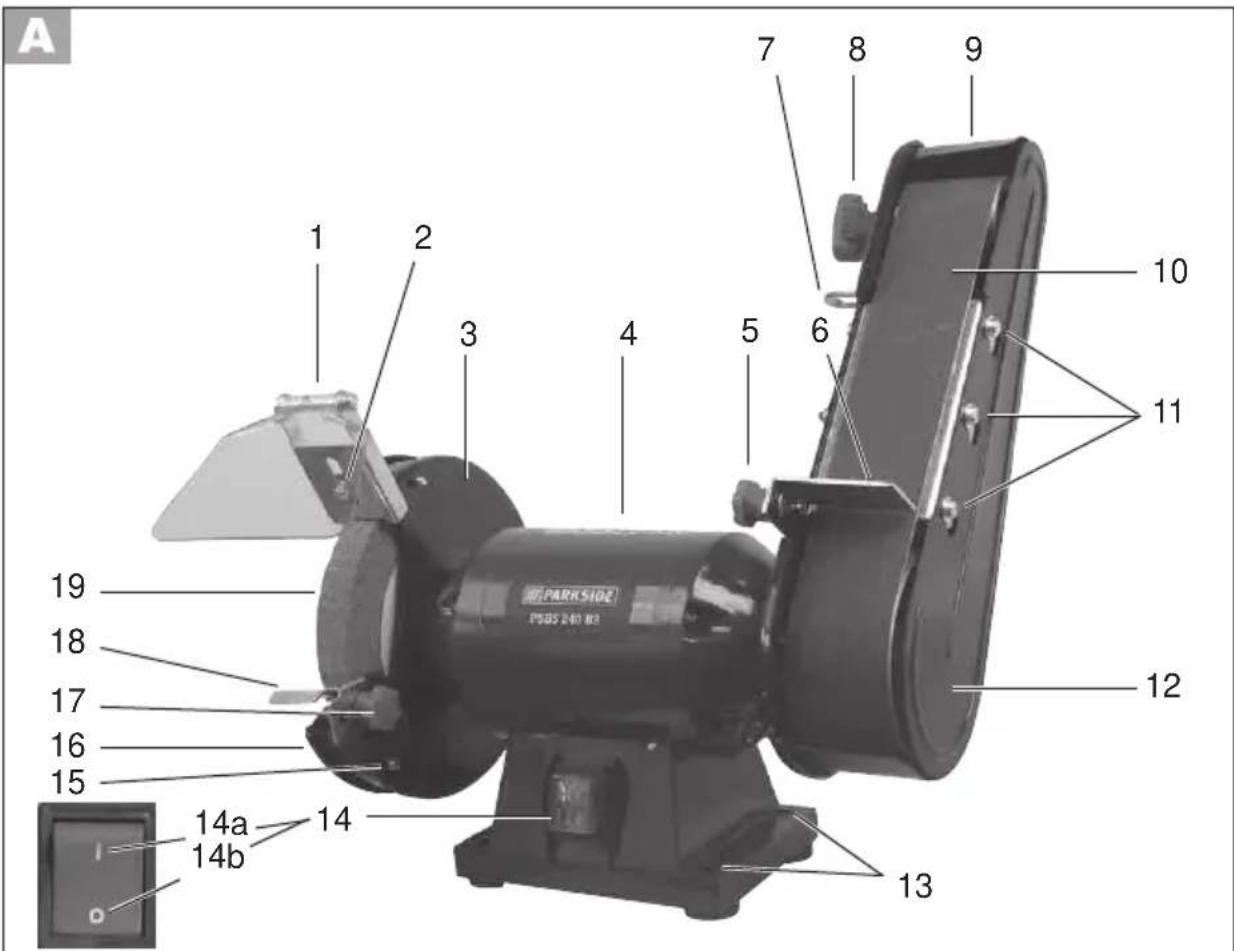

• General description p. 52
• Scope of delivery p. 52
• Function description p. 52
• Summary p. 52
• Technical specications p. 53
• Safety Instructions p. 53
• Symbols and icons p. 54
• General safety instructions p. 54
• Further Safety Instructions p. 56
• Residual risks p. 57
• Assembly p. 57
• Assemble/set spark protection p. 57
• Assemble/set workpiece supports p. 58
• Screw device on to workbench p. 58
• Operation p. 58
• Switching on and off p. 59
• Grinding with the grinding disc p. 59
• Tape loops p. 59
• Change grinding belt p. 59
• Change grinding disc p. 60
• Cleaning and maintenance p. 61
• Cleaning p. 61
• Storage p. 61
• Waste disposal and environmental protection p. 61
• Replacement parts/accessories p. 62
• Trouble Shooting p. 63
• Guarantee p. 64
• Repair Service p. 65
• Service-Center p. 65
• Importer p. 65
• Translation of the original EC declaration of conformity p. 68
• Exploded Drawing p. 6952

cial use. The equipment is designed for use by adults. Young people under the age of 16 are permitted to use the equipment only under supervision. The manufacturer shall not be liable for damages caused by use other than for the intended purpose or by incorrect opera- tion. General description The illustrations can be found on the front and rear fold-out pages. Scope of delivery Unpack the equipment and check that it is complete. Dispose of the packaging mate- rial correctly. - Appliance - Transparent spark protection (

- Adjusting screw for spark protection

2) (1 cross-drive screw incl. spring

washer and washer as well as nut) - 2 workpiece supports ( 6/18) with mounting material (2 star grip nuts

5/17), 2 screws, 2 washers, 2toothed lock washers - Instruction Manual Function description The bench grinder with belt sander is a combined device equipped with a grinding disc and an adjustable grinding belt. The device is provided with a spark protection and protective hoods for the protection of the user. For the function of the operating parts, please refer to the descriptions below. Summary 1 Spark protection (two-piece) 2 Adjusting screw for spark protec- tion 3 Protective hood grinding disc 4 Engine housing 5 Star grip nut to install the work- piece support grinding belt 6 Workpiece support grinding belt 7 Clamping lever grinding belt 8 Clamping screw for upper belt idler 9 Protective hood grinding belt 10 Grinding belt 11 Fixing screws for grinding disc cover 12 Grinding disc cover 13 Bore holes for table mounting 14 On/off switch 14a On switch 14b Off switch 15 Fixing screws for grinding disc cover 16 Grinding disc cover 17 Star grip nut to mount/adjust the workpiece support grinding disc 18 Workpiece support grinding disc 19 Grinding disc 20 Upper (a) and lower (b) roller 21 Adjusting screw tape run53

=3 dB(A) Sound power level (L

measured ..........102 dB(A); K

• A break is introduced after 30 minutes of uninterrupted operating duration until the de- vice temperature differs 2 K (2°C) less than room temperature. Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity. Technical and optical changes may be undertaken in the course of further develop- ment without notice. All dimensions, refer- ences and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment. Warning! The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protect- ing the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be consid- ered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). Safety Instructions WARNING! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and re. Please read all these instructions before using the electric tools and please keep the safety instructions.54

Symbols and icons Symbols on the device: Warning! Risk of injury from the rotating tool! Keep hands away. Risk of electric shock! Disconnect from the mains before carrying out maintenance and repair work. Read the instruction manual. Wear ear protection. Wear eye protection. Wear breathing protection. Risk of cuts. Wear cut-resistant gloves. Never use faulty grinding disks. Do not dispose of electrical equip- ment in household waste. Dimensions grinding disk Dimensions grinding belt Symbols in the manual: Warning symbols with in- formation on damage and injury prevention. Instruction symbols (the instruction is explained at the place of the excla- mation mark) with information on preventing damage. Help symbols with information on improving tool handling. General safety instructions Safe operation:

• Keep work area clear. Cluttered areas and benches invite injuries.

• Consider work area environ- ment. - Do not expose tools to rain. Do not use tools in damp or wet locations. Water entering a power tool will in- crease the risk of electric shock. - Keep work area well lit. - Do not use tools in the presence of ammable liquids or gases. Power tools create sparks which may ignite the dust or fumes.

• Guard against electric shock. Avoid body contact with earthed or grounded surfaces (e.g. pipes, radia- tors, ranges, refrigerators).

• Keep other persons away. Do not let persons, especially children, not involved in the work touch the tool or the extension cord and keep them away from the work area.

• Store idle tools. When not in use, tools should be stored in a dry locked- up place, out of reach of children.

• Do not force the tool. It will do the job better and safer at the rate for which it was intended.

• Use the right tool. - Do not force small tools to do the job of a heavy duty tool. - Do not use tools for purposes not intended; for example do not use cir- cular saws to cut tree limbs or logs. Use of the power tool for operations dif- ferent from those intended could result in a hazardous situation.55

• Dress properly. - Do not wear loose clothing or jewel- lery, they can be caught in moving parts. - Anti-slip footwear is recommended when working outdoors. - Wear protective hair covering to con- tain long hair.

• Use protective equipment. - Use safety glasses. - Use face or dust mask if working op- erations create dust.

• Connect dust extraction equip- ment. If the tool is provided for the connection of dust extraction and col- lecting equipment, ensure these are connected and properly used.

• Do not abuse the cord. Never yank the cord do disconnect it from the socket. Keep the cord away from heat, oil and sham edges.

• Secure work. Where possible use clamps or a vice to hold the work. It is safer than using your hand.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Maintain tools with care. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean for better and safer performance. - Follow instruction for lubricating and changing accessories. - Inspect tool cords periodically and if damaged have them repaired by an authorized service facility. - Inspect extension cords periodically and replace if damaged. - Keep handles dry, clean and free from oil and grease.

• Disconnect tools. When not in use, before servicing and when changing accessories disconnect tools from the power supply. Such preventive safety measures reduce the risk of starting the power tool acci- dentaIly.

• Remove adjusting keys and wrenches. Form the habit of check- ing to see that keys and adjusting wrenches are removed from the tool before turning it on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Avoid unintentional starting. Ensure switch is in “off” position when plugging in.

• Use outdoor extension leads. When the tool is used outdoors, use only extension cords intended for out- door use and so marked.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

• Check damaged parts. This will ensure that the safety of the power tool is maintained. - Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function. - Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other condi- tions that may affect its operation. - A guard or other part that is dam- aged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual. - Have defective switches replaced by56

an authorized service centre. - Do not use the tool if the switch does not turn it on and off. There is a risk of injury.

• Warning. The use of any accessory or attach- ment other than one recommended in this instruction manual may present a risk of personal injury.

• Have your tool repaired by a qualied person. This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualied persons using original spare parts, otherwise this may result in con- siderable danger to the user. Further Safety Instructions

• Connect the device only to a power point with a residual current protective device (RCD) with a measured residual current of not more than 30 mA.

• Keep the mains cable and extension cable away from the grinding disk and saw chain. In the event that it is dam- aged or severed, immediately discon- nect the plug from the socket. Do not touch the cable before it has been disconnected from the mains. Risk of electric shock.

• The replacement of the plug or the con- nection line must always be executed by the manufacturer of the electric tool or his/her customer service in order to avoid any hazards.

• Only switch the device on once it is safely xed to the worktop.

• For your own safety only use acces- sories and attachments which were stated in the operating instructions or recommended or specied by the tool manufacturer.

• Only use grinding tools recommended by the manufacturer. Do not use any saw blades. Ensure that the dimensions match those of the device.

• Only use grinding discs where the printed rotational speed is at least as high as what has been specied on the name plate of the device.

• Carry out a visual inspection of the grinding disc before use. Do not use any damaged or deformed grinding discs. Replace any damaged or worn grinding discs.

• Never operate the device without spark protection or protective hoods. Periodically readjust the spark protec- tion in order to offset the wear and tear of the grinding disc (distance max. 2 mm).

• Replace the grinding disc if the spark protection and the workpiece support can no longer be readjusted to a dis- tance of max. 2 mm at the latest.

• Make sure that the sparks produced by grinding do not present a danger, e.g. reach people or ignite ammable sub- stances.

• Always wear safety goggles, safety gloves, respiratory protection and ear protection when grinding, brushing and separating.

• Never keep the ngers between the grinding disc and spark protection or in close proximity to the protective hoods. There is a risk of crushing.

• The rotating parts of the device cannot be covered due to functional reasons. Therefore, proceed cautiously and hold the workpiece rmly in order to avoid slipping which could cause your hands to come into contact with the grinding belt or grinding disc.

• The workpiece gets hot during grinding. Do not touch the machined area, allow it to cool down. There is a risk of burn-57

Assembly Caution! Risk of injury! - Ensure that you have sufcient space in which to work, and that you do not endanger other peo- ple. - Always fasten the device on to the work surface with screws featuring the sufcient length and thickness in order to maintain control of the device. - All covers and protective devices must be assembled properly be- fore commissioning. - Disconnect the mains plug before changing the setting on the de- vice. Assemble/set spark protection

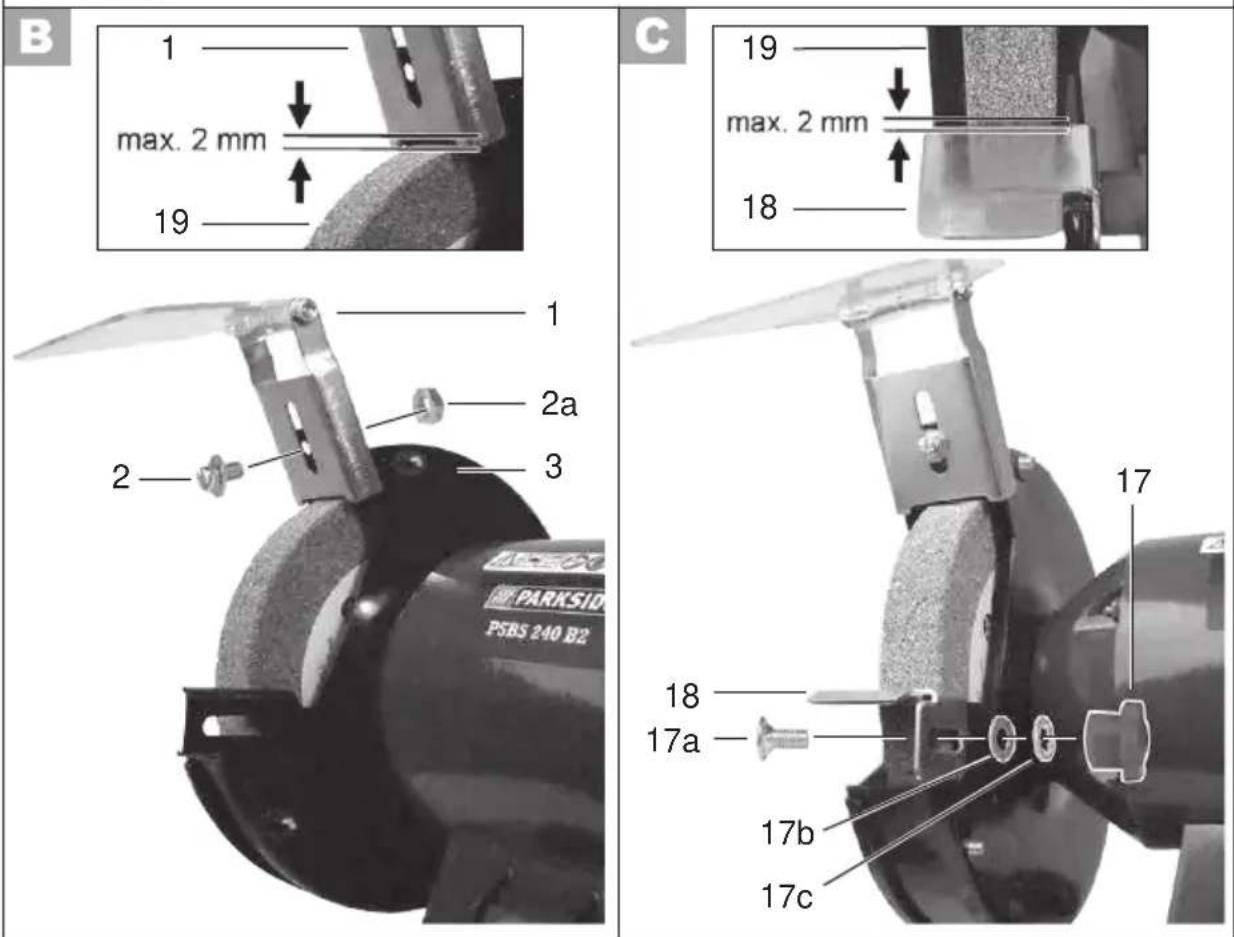

1. Screw the spark protection (1)

using the adjusting screw (2) and the nut (2a) on to the protective hood (3). To do so, you will need a screw- driver and a ring spanner, used to hold it in place.

2. Set the spark protection (1) with

the adjusting screw (2) so that the distance between the grinding disc (19) and the spark protection is max. 2 mm (see small image). Periodically readjust the spark pro- tection in order to offset the wear and tear of the grinding disc (dis- tance max. 2 mm). ing. Do not use coolants or the like.

• If you are tired or have consumed al- cohol or tablets, do not work with the device. Always have a break on time.

• Switch the device off and remove the mains plug - to loosen a blocked insertion tool, - if the connection line is damaged or entangled, - in case of unusual sounds. Residual risks Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Lung damage, if suitable respiratory protection is not worn. b) Hearing damage, if suitable ear pro- tection is not worn. c) Damages to health due to - touching the area of the grinding tool which was not covered; - the ejection of pieces from workpiece or damaged grinding discs. d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro- magnetic eld which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we rec- ommend that persons with medical implants consult their doctor and the manufacturer of their medical im- plant before operating the machine.58

Assemble/set work- piece supports

1. Screw the workpiece supports

(6/18) on to the device. 2 positions (see A + B) are possible for the tape loop.

2. To do so, use the screws

(5a/17a), washers (5b/17b), toothed lock washer (5c/17c) and star grip nuts (5/17) pro- vided.

3. Set the workpiece support of the

grinding belt (19) with the star grip nut (17) so that the distance between the grinding belt (19) and the workpiece support is max. 2 mm (see small image). Periodically readjust the workpiece support in order to offset the wear and tear of the grinding disc (dis- tance max. 2 mm). Screw device on to work- bench Screw the device onto the work- bench with 4 screws and nuts. Insert the screws through the 4 bore holes (13) on the base of the de- vice. The screws and nuts required for as- sembly are not part of the scope of delivery. Operation Caution! Risk of injury! - Always disconnect the plug from the mains socket before working. - Use only grinding disks and acces- sories recommended by the manu- facturer. The use of other insertion tools and other accessories may cause risk of injury. - Only use grinding tools which bear information about the manu- facturer, type of binding, dimen- sion and permitted number of revolutions. - Only use grinding discs where the printed rotational speed is at least as high as what has been specied on the name plate of the device. - Do not use broken, cracked or oth- erwise damaged grinding disks. - Never operate the device without the visual protection disk. - Always inspect the grinding disc before starting the device: Check the distance between the spark protection and grinding disc as well as workpiece support and grinding disc (distance maxi- mum 2 mm). - The grinding disc must be re- placed once the spark protection and workpiece support on the grinding disc do not have dis- tance of max. 2 mm. - Switch on the equipment only when it is safely installed on the work surface. Keep your hands away from the grinding disc and grind- ing belt when the device is in operation. Injury hazard!59

Switching on and off Ensure that the mains voltage matches the specications on the rating plate. Connect the equipment to the mains.

1. To switch on, press the “I” On switch

and the device starts up (see 14a).

2. To switch off, press the “0” off switch

and the device switches off (see 14b). After switching on the device, wait until the device has reached its max. speed. Only then must you start with the grinding. The disk will continue to run after the equipment is switched off. There is a risk of injury. Test run: Before starting work and after each change of grinding disk, carry out a test run of at least 60 seconds with no load. Switch off the equipment immediately if the disk runs lumpy, substantial vibrations oc- cur, or abnormal noises are generated. Grinding with the grinding disc The arrow on the protective hood

3) shows the direction of rota-

tion of the grinding disc.

• Place the workpiece on the workpiece support (

18) and slowly bring it to

its desired angle on the grinding disc

• Move the workpiece slightly from side to side in order to achieve an optimal grinding result. This way, the grinding disc is worn uniformly. Occasionally, allow the workpiece to cool down. Tape loops The arrow on the protective hood

9) shows the direction of rota-

tion of the grinding belt.

• Firmly hold the workpiece, do not exert any strong force.

• Move the workpiece slightly from side to side in order to avoid a one-sided wear of the grinding belt.

• Always grind the pieces of wood in the direction of the wood grain in order to avoid chipping. Change grinding belt

1. Loosen the 3 xing screws (11)

and hang out the grinding belt cover (12).

2. Loosen the clamping screw (8) by

3. Press the clamping lever (7) down-

wards and detract the grinding belt (10).

4. Place the new grinding belt (10)

in the centre on the upper (20a) and lower (20b) rollers and let go of the clamping lever (7).

5. Tighten the clamping screw (8) and

mount the grinding belt cover (12). Set the tape run:

6. Loosen the nut (21a) of the ad-

justable screw (21) with a ring spanner. The tape run accuracy is set by the turning the adjustable screw (21) with a screwdriver.

7. Check the tape run by manually

turning the grinding belt.

Change grinding disc Information on replace- ment:

• Never operate the device without protective equipment.

• Ensure that the rotation speed stated on the grinding disc (

19) is the same or higher than

the nominal rotation speed of the device.

• Ensure that the grinding disc dimensions match those of the device.

• Only use awless grinding discs (ringing test: when you strike the grinding disc with a plastic ham- mer, it results in a clear sound).

• Never re-drill a locating hole which is too small to make it larger.

• Never use separate bushings or adapters in order to make grind- ing discs whose hole is too large t the device.

• Do not use any saw blades.

• To clamp the grinding tools only use the clamping ange provid- ed. The pads between the clamp- ing ange and the grinding tools must be made of elastic materials e.g., rubber, soft cardboard etc.

• Always reassemble the device completely after replacing the grinding disc. Switch the device off and remove the mains plug. Allow the device to cool down. Wear protective gloves when changing the grinding discs in or- der to avoid cutting damages.

and remove the grinding disc cover (16).

3. Loosen the xing screws (11) and

(19a) in the clockwise direction, by holding the nut of the opposite roller of the grinding belt in place (see small image).

5. Remove the clamping ange

(19b) and the grinding disc (19).

6. Set up the new grinding disc (19)

and the clamping ange and manually screw the grinding disc nut (19a) in the anti-clockwise direction.

7. Screw the grinding disc cover

and the workpiece support (

18) so that the distance between

the grinding disc (19) is max. 2mm (see „Assembly“). The grinding disc nut must not be screwed too tightly in order to avoid a breaking of the grinding disc and nut. Test run: Before starting work and after each change of grinding disk, carry out a test run of at least 60 seconds with no load. Switch off the equipment immediately if the disk runs lumpy, substantial vibrations oc- cur, or abnormal noises are generated.61

Cleaning and maintenance Disconnect the plug before adjust- ment, maintenance or repair. Have any work not described in these instructions carried out by a specialist workshop. Use only original components. Allow the equipment to cool before carrying out any main- tenance and cleaning work. There is a risk of burns. Before each use, check the equipment for obvious defects such as loose, worn or damaged components and check that screws or other parts are sitting correctly. In particular, check the grinding disk ( 19). Replace damaged parts. Cleaning Do not use cleaning agents or sol- vents. Chemical substances may attack plastic parts of the equipment. Never clean the equipment under running water.

• Clean the equipment thoroughly after each use.

• Clean the ventilation openings and the surface of the equipment with a brush or cloth. Storage

• Store the appliance in a dry place well out of reach of children.

• Grinding disks must be stored dry and upright and are not to be stacked. Waste disposal and en- vironmental protection Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Machines are not to be place with domestic waste. Hand over the device at an utilization loca- tion. The plastic and metal parts employed can be separated out into pure materials and recycling can be implemented. Ask your Service Center about this. Defective units returned to us will be disposed of for free.62

Replacement parts/accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” page 65). Please have the order number mentioned below ready. Position Position Description Order Instruction Exploded number manual drawing 1,2 Set 3 Spark protection with adjusting screw 91103042 10 35 Grinding belt 91103044 Grinding belt, pack of 5 91103046 14 Set 2 On/off-switch 91103041 19 62 Grinding disk 91103043 19a,19b Set 1 Grinding disk nut and clamping ange 9110304063

Trouble Shooting Always disconnect the plug from the mains socket before working. Danger of electric shock. Problem Possible Cause Error correction Device doesn‘t start Mains voltage missing Main circuit breaker is tripped Check the socket, mains cable, line, mains plug, repairs to be carried out by qualied electri- cian if necessary, check main circuit breaker. On/off switch (

defective Repair by Customer Care Engine faulty Grinding tools do not move although the engine is run- ning Grinding disc nut ( 19a) loose Tighten grinding disc nut (see „Changing the grinding disc“) Grinding belt (

Increase grinding belt tension (see „Changing the grinding belt“) Drive is blocked Grinding belt (

ing drive Re-mount grinding belt (see „Changing the grinding belt“) Workpiece, remaining work- pieces or remaining grinding tools block drive Remove blockages Engine is slower and stops Device is overloaded through workpiece Reduce pressure on grinding tool Workpiece unsuitable Grinding disc does not rotate smoothly, abnormal noises can be heard Grinding disc nut ( 19a) loose Tighten grinding disc nut (see „Changing the grinding disc“) Grinding disc (

Change grinding disc Spark protection (1) or work- piece support ( 6/18) set incorrectly Set spark protection or work- piece support (see „Assembly“) Bad grinding out- put Grinding belt (

Change grinding belt64

Guarantee Dear Customer, this equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have stat- utory rights against the seller of the prod- uct. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defec- tive equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period be- gins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. grinding disks, carbon brushes, stop- per, protective screen) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper han- dling, use of force, or interventions not under- taken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identica- tion number (IAN 60097) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid65

acceptance problems and additional costs, please be sure to use only the ad- dress communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with ad- equate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: grizzly@lidl.co.uk IAN 60097 Importer Please note that the following address is not a service address. Please initially con- tact the service centre specied above. Grizzly Tools GmbH & Co. KG Am Gewerbepark 2 64823 Groß-Umstadt Germany www.grizzly-service.eu66

Translation of the original EC declaration of conformity We hereby conrm that the PSBS 240 B2 series bench grinder with belt sander serial number 201406000001-201406075620 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2004/108/EC • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied: EN 61029-2-4:2011 • EN 61029-1:2009/A11:2010 EN 55014-1/A2:2011 • EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 • EN 61000-3-3:2008 This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Am Gewerbepark 2 D-64823 Groß-Umstadt GERMANY

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Volker Lappas (Documentation Representative)69 Explosionszeichnung • Vue éclatée Disegno esploso • Exploded Drawing 2014-05-19_rev02-gs PSBS 240 B2 informativ, informativo, informative13
