USER MANUAL PSTD 800 B1 PARKSIDE

Translation of the original instructions

FR BE

SCIE SAUTEUSE PENDULAIRE

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

DK

GB/IE Translation of the original instructions Page 1

Intended use 2
Features 2
Technical details 2

General Power Tool SafetyWarnings 3

1.Work area safety 3
2. Electrical safety 3
3. Personal safety 4
4. Power tool use and care 4
5. Service 5

Appliance-specific safety instructions for jigsaws 5

Original accessories/auxiliary equipment 5

Information on saw blades 6

Initial operation 6

Fitting/changing the saw blade 6
Fitting the rip fence 6
Connecting the sawdust extraction device 6
Fitting the sliding shoe 6
Fitting the splinter guard 6
Adjusting the laser 6

Operation 7

Setting the cutting angle 7
Setting the stroke rate 7
Adjusting the pendulum stroke 7
Switching ON/OFF 7
Switching the laser/working light ON/OFF 7
Sawdust blowing function 7

Maintenance and cleaning 7

Kompernass Handels GmbH warranty 8

Service 9

Importer 9

Disposal 9

Translation of the original Conformity Declaration 10

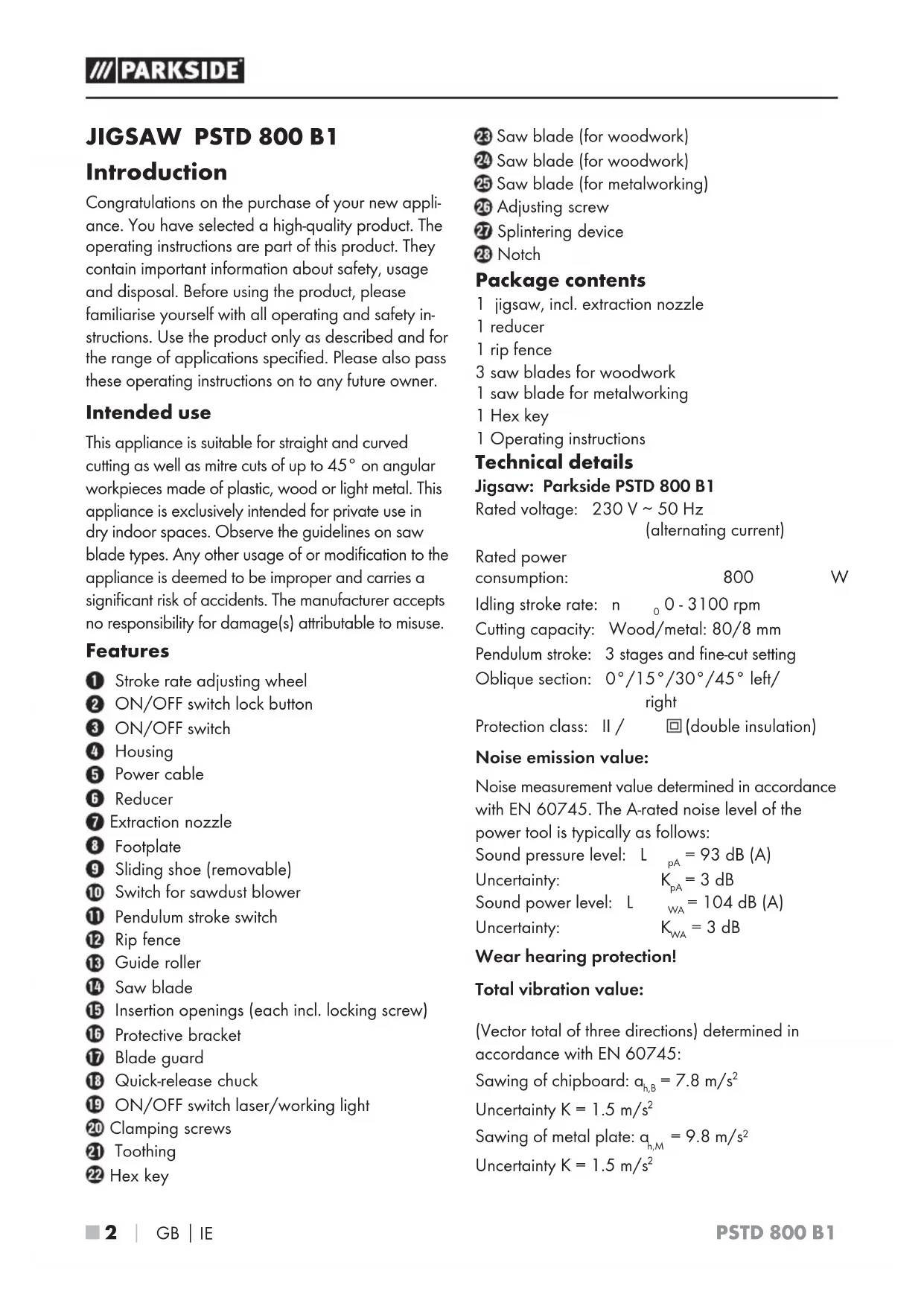

JIGSAW PSTD 800 B1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is suitable for straight and curved cutting as well as litre cuts of up to 45^ on angular workpieces made of plastic, wood or light metal. This appliance is exclusively intended for private use in dry indoor spaces. Observe the guidelines on saw blade types. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Features

Stroke rate adjusting wheel
ON/OFF switch lock button
3 ON/OFF switch
4 Housing
5 Power cable
6 Reducer
7 Extraction nozzle
8 Footplate
9 Sliding shoe (removable)
Switch for sawdust blower
Pendulum stroke switch
12 Rip fence
13 Guide roller
14 Sawblade
15 Insertion openings (each incl. locking screw)
16 Protective bracket
17 Blade guard
18 Quick-release chuck
15 ON/OFF switch laser/working light
20 Clamping screws
21 Tooting
Hex key

23 Saw blade (for woodwork)
24 Saw blade (for woodwork)
45 Saw blade (for metalworking)
Adjusting screw
Splintering device
Notch

Package contents

1 jigsaw, incl. extraction nozzle
1 reducer
1 rip fence
3 saw blades for woodwork
1 saw blade for metalworking
1 Hex key
1 Operating instructions

Technical details

Jigsaw: Parkside PSTD 800 B1

Rated voltage: 230V 50Hz (alternating current)

Rated power

consumption: 800

ldling stroke rate: n 0-3100 rpm

Cutting capacity: Wood/metal: 80 / 8mm

Pendulum stroke: 3 stages and fine-cut setting

Oblique section: 0^ / 15^ / 30^ / 45^ left/right

Protection class: II / (double insulation)

Noise emission value:

Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Sound pressure level: L _pA = 93 dB( A)

Uncertainty: K_pA = 3 ~dB

Sound power level: L WA=104 dB (A)

Uncertainty: K_WA = 3 dB

Wear hearing protection!

Total vibration value:

(Vector total of three directions) determined in accordance with EN 60745:

Sawing of chipboard: a_b,B = 7.8 m/s^2

Uncertainty K = 1.5m / s^2

Sawing of metal plate: q_bM = 9.8 m/s^2

Uncertainty K = 1.5m / s^2

NOTE

The vibration level specified in these instructions has been measured in accordance with the standardised measuring procedure specified in EN 60745 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate. The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration.

WARNING!

Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool SafetyWarnings

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools diligently. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for jigsaws

Hold the power tool by the insulated handles if carrying out work during which the power tool may come into contact with concealed power cables or its own power cable. Contact with a live wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

• Keep your hands away from the sawing area. Do not reach underneath the workpiece. Contact with the saw blade may result in injury.

• Keep your hands away from the stroke rod and the quick-release chuck. There is a risk of crushing if contact is made with these components.

Always switch on the power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback.

When sawing, ensure that the footplate is placed against the workpiece.

After completing your work, switch the power tool off and do not pull the saw blade out of the cut until it has come to a complete standstill. This prevents kickbacks, and allows you to put the tool down safely.

Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or may cause a kickback.

Do not try and slow the saw blade down after switching off by applying lateral pressure. The saw blade might be damaged, break or cause a kickback.

Secure the workpiece. Use clamps/a vice to hold the workpiece firmly. This is safer than simply holding it in your hand.

Always route the power cable towards the rear, away from the appliance.

Never work on moistened materials or damp surfaces.

Risks from dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction device.

Wear a dust mask!
■ Ensure there is sufficient ventilation.

WARNING! Protect yourself from laser radiation!

LASER 2

P max.: < 1 mW • λ: 650 nm • EN 60825-1:2014

Never look directly into the laser beam or the opening from which it emerges.

WARNING!

Looking at a laser beam through optical instruments (e.g. magnifying glasses etc.) can cause eye injuries.
Caution! If operating and adjustment equipment or procedures other than those specified here are used, this may result in hazardous radiation exposure.

Never aim the laser beam at reflective surfaces, people or animals. Even brief visual contact with a laser beam can result in eye injuries.

Original accessories/auxiliary equipment

Only use the accessories and additional equipment that are specified in the operating instructions and compatible with the appliance.

Information on saw blades

Parkside basic equipment includes saw blades principally for use with wood and metal.

• 3 saw blades for general wood cuts
• 1 saw blade for light metals up to 3mm

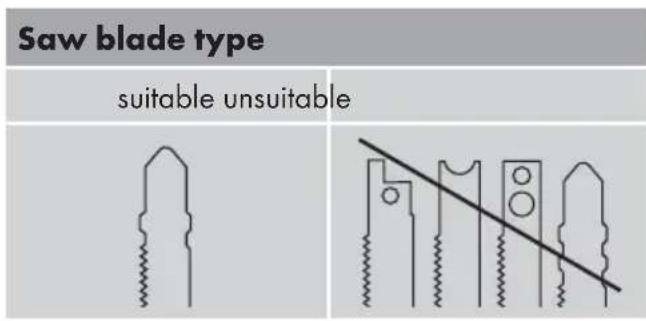

NOTE

You can use any saw blade, provided it is fitted with a suitable mounting (single-lug shank).

Initial operation

Fitting/changing the saw blade

Always remove the plug from the power socket before working on the appliance.

Remove the pivoting blade guard.
Turn the quick-release chuc18 and hold it in this position.
Push the required saw blade into the quick-release chuck 18 as far as the limit stop.
Release the quick-release chuck so that it returns to its initial position. The saw blade is now locked.

WARNING! The saw blade teeth must point forwards at this point (see foldout page)!

Replace the pivoting guard back onto the appliance.

Fitting the rip fence

The rip fence can be fitted on the left or right of the appliance.

Undo both the clamping screws on the insertion openings 15.
Push the rip fenc into the insertion openings 15
Retighten the two locking screws.

Connecting the sawdust extraction device

Push the reduce into the extraction nozzle until it is secured.
Attach an approved dust and sawdust extractor to the reducer 6 or extraction nozzle 7 directly.

Fitting the sliding shoe

When working on sensitive surfaces, you can fit the sliding shoe on the footplate prevent scratching the surface.

Mount the sliding sho onto the footplate 8 and press it up at the back until it clicks into place on the footplate 8
To remove the sliding sho, unfasten it at the rear of the footplate nd slide it off the front.

Fitting the splinter guard

The splinter guard 2an prevent fraying of the surface while sawing wood. The splinter guard 2an only be used for certain saw blade types, with the sliding shoe and only for cutting angles of 0^ .

Press the splinter guard from below into the sliding shoe (arrow facing upwards).

Adjusting the laser

If the laser line is not vertical in the note, you can adjust it by adjusting the position of screw 26.

Operation

Setting the cutting angle

Undo the clamping screw with the hex key 2nd pull the footplate to the rear.
Adjust the cutting angle to 0^ / 15^ / 30^ / 45^ with the aid of the markings on the footplate 8. Push the footplate 8b the front so that the locking pin engages in the toothing 2
Relighten the clamping screw with the Hex key 22

NOTE

When using a cutting angle of 15^ / 30^ / 45^ the pivoting blade guard 17 and splinter guard 2 must be detached beforehand!

Setting the stroke rate

Use the stroke rate adjusting wheel to set the required stroke rate.

Adjusting the pendulum stroke

You can use the pendulum stroke switch to adjust the pendular movement of the saw blade. You can achieve fine, clean-cut edges without pendular movement (setting "0"). Deactivate pendular movement when working on thin workpieces. You can achieve an increasingly fast work rate if the pendulum stroke is activated (settings 1-3).

Switching ON/OFF

Switching the appliance on:

Press the ON/OFF switch 3.

Switching the appliance off:

Release the ON/OFF switch 3.

Switching to continuous operation:

Press the ON/OFF switch 3 and lock it in this position with the ON/OFF switch lock button 2

Switching off continuous operation:

Press the ON/OFF switch 3 and release it again.

Switching the laser/working light ON/OFF

ON/OFF switch:

Press the ON/OFF switch 19 for the until the required function is active.

LASER and WORKING LIGHT WORKING LIGHT LASER SWITCH OFF

Sawdust blowing function

Switching the sawdust blowing function on:

Slide the sawdust blower function switch in the position

Supporting the extraction function:

Slide the sawdust blower function switch in the position "0".

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the appliance off and remove the power plug before starting any work on the appliance.

The appliance must always be kept clean, dry and free from oil or grease.
Use a soft, dry cloth to clean the housing.

WARNING!

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.
Replace the saw blade as soon as its teeth are too blunt for adequate sawing.
Clean the appliance after completing your sawing work.
Remove any dirt (e.g. sawdust). If necessary, clean the saw blade mount with a brush or compressed air.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

• Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
  If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
• You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

NOTE

• Replacement parts not listed (such as carbon brushes, switches) can be ordered via our service hotline.

GB

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 270827

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

Packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)

Applied harmonised standards:

EN 60745-1:2009 / A11:2010

EN 60745-2-11: 2010

EN 55014-1:2006/A2:2011

EN 55014-2:1997/A2:2008

EN 55014-2:2015

EN 61000-3-2: 2014

EN 61000-3-3:2013

Type designation of machine: Jigsaw PSTD 800 B1

Year of manufacture: 04 - 2016

Serial number: IAN 270827

Bochum, 04/02/2016

CE

Semi Uguzlu

• Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Indholdsfortegnelse

Indledning 12

Anvendelsesomrade 12
Udstyr 12
Pakkens indhold 12
Tekniske data 12

Finjustering of laser

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Bortskaffelse

Informations relatives aux lames 26

Mise en service 26

(courant alternative)

Informations relatives aux lames

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Mise au rebut

Directive Machines (2006/42/EC)

Directive RoHS (2011/65/EC)

• Responsible qualite -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Afvoeren

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

02/2016 Ident.-No.: PSTD800B1-022016-1
