USER MANUAL TX8250B ONKYO

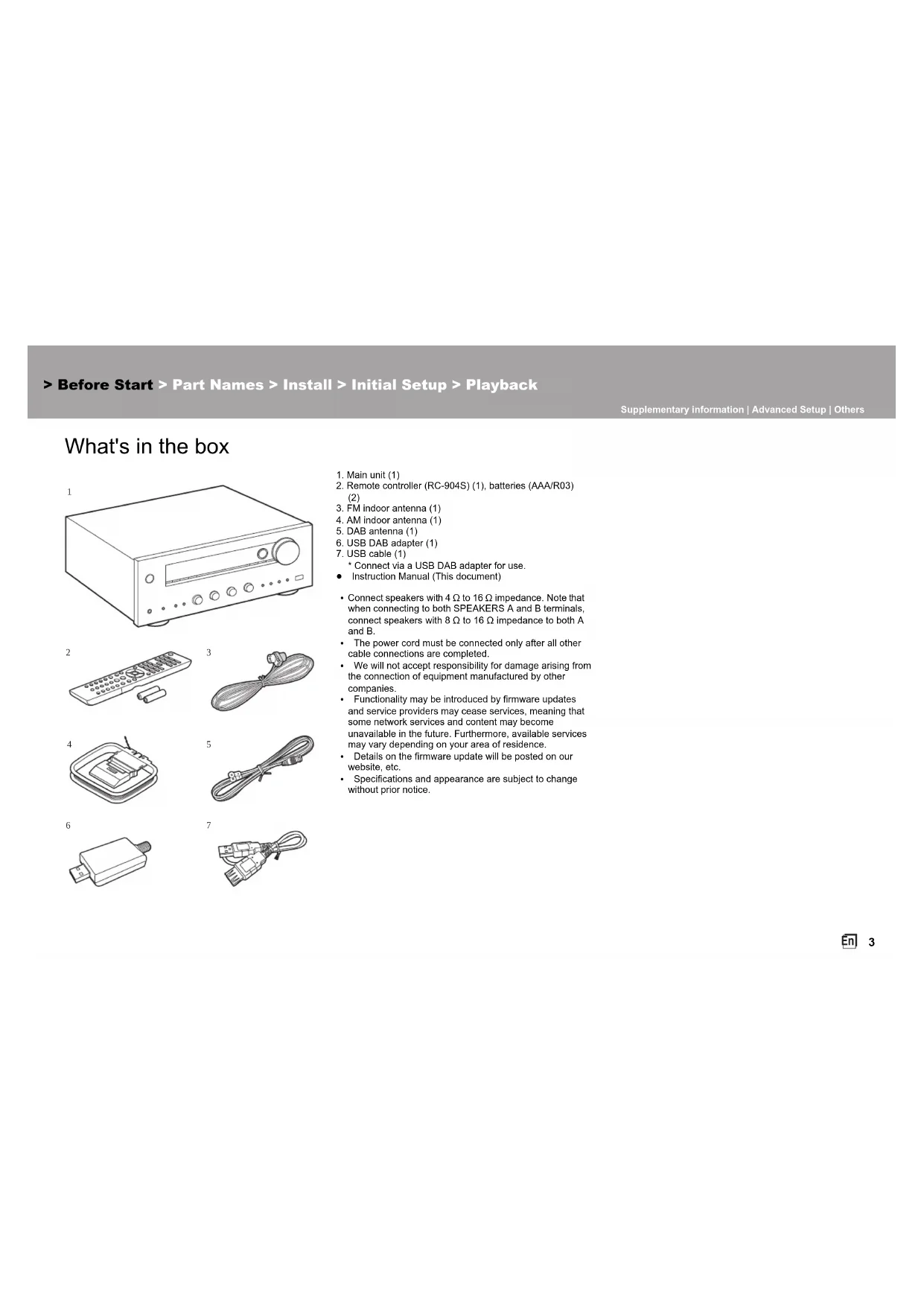

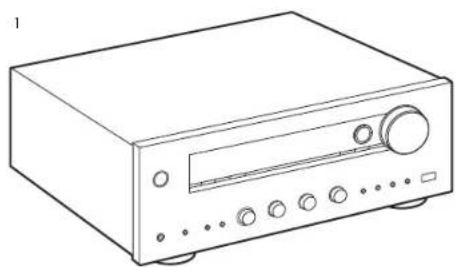

(2) 3. FM indoor antenna (1)4. AM indoor antenna (1)5. DAB antenna (1)6. USB DAB adapter (1)7. USB cable (1)* Connect via a USB DAB adapter for use.≥ Instruction Manual (This document) 0 Connect speakers with 4 ≠ to 16 ≠ impedance. Note that when connecting to both SPEAKERS A and B terminals, connect speakers with 8 ≠ to 16 ≠ impedance to both A and B.0 The power cord must be connected only after all other cable connections are completed.0 We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.0 Functionality may be introduced by firmware updates and service providers may cease services, meaning that some network services and content may become unavailable in the future. Furthermore, available services may vary depending on your area of residence.0 Details on the firmware update will be posted on our website, etc.0 Specifications and appearance are subject to change without prior notice. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

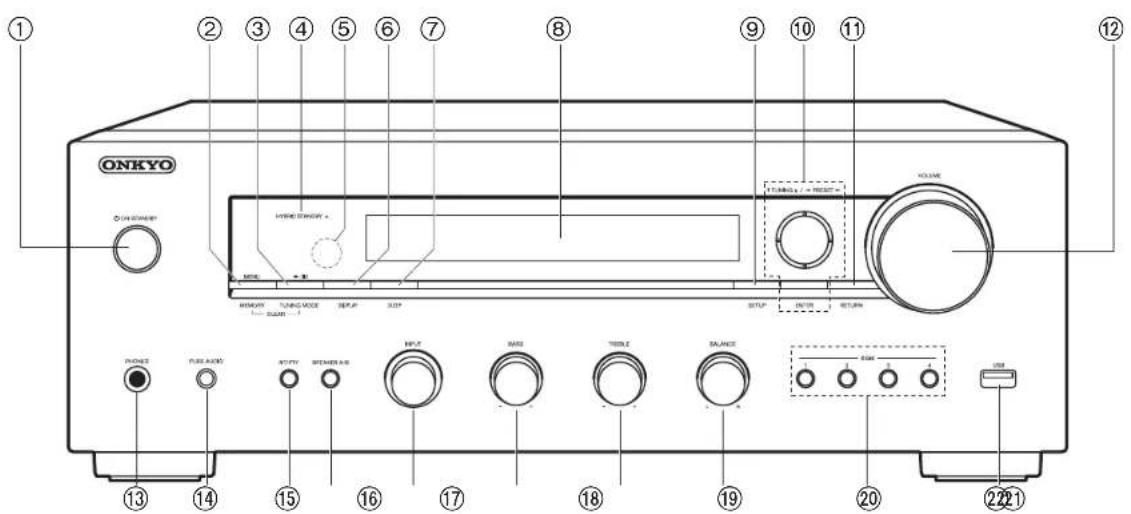

0 Used for play operations when playing Music Server or USB. 0 Switches tuning to an AM/FM station between automatic tuning and manual tuning, and allows you to select the order for displaying DAB stations.

4. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features

such as NET Stby are enabled that continue to work when this unit is in standby.5. Remote control sensor: Receives signals from the remote controller. 0 The signal range of the remote controller is within about 16y/5 m, at an angle of 20° on the perpendicular axis and 30° to either side.6. DISPLAY button: Switches the information on the display.

7. SLEEP button: Set the sleep timer. Press the button repeatedly to select the time. When

the time set (30, 60, or 90 minutes) has elapsed, the unit switches to standby. If SLEEP button is pressed after setting, the time remaining until sleep is displayed.8. Display (P5)

9. SETUP button: You can show advanced setting items on the display to provide you with

an even better experience (P30).

Cursors (D / C / B / A), ENTER button: Select the item with the cursors and press ENTER to confirm. Use them to tune to stations when using TUNER. RETURN button: Returns the display to the previous state during setting. VOLUME

PHONES jack: Connect stereo headphones with a standard plug (Ø1/4"/6.3 mm diameter). PURE AUDIO button/LED: Turns on or off the Pure Audio mode which provides a purer > Before Start >Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

sound and turns off the display. The LED lights when it is on, the display turns off, and the "Bass" and "Treble" settings are disabled. RT/PTY button: Used when receiving stations transmitting text information (P23). SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B. INPUT dial: Switches the input to be played. Turn the control to switch the source in the following order;

BD/DVD#CBL/SAT#PC#GAME#

TV/TAPE#CD#PHONO#AM#FM#DAB*#NET# BLUETOOTH* "DAB" can not be displayed if a USB DAB adapter has not been connected. BASS dial: Adjusts the bass. TREBLE dial: Adjusts the treble. BALANCE dial: Adjusts the balance of the sounds output from the left and right speakers. BGM 1/2/3/4 buttons: Preset your favorite DAB/AM/FM radio stations (P25). USB jack: A USB storage device is connected so that music files stored in it can be played. You can also supply power (maximum 5 V/0.5 A) to USB devices with a USB cable.0 When connecting a HDD that requires more than 5 V/0.5 A, connect to the USB port (maximum 5 V/1 A) on the rear of the unit. Display 1. The currently selected speaker system lights.2. Lights in the following conditions.Ë: When headphones are connected: When connected via BLUETOOTH: When connected by Wi-FiNET: When "NET" is selected with the input selector and the unit is connected to the network. It will flash if the connection to the network is not correct.USB: When "NET" is selected with the input selector and the unit is connected by USB and the USB device is selected. Flashes if the USB is not properly connected.DIGITAL: Digital signals are input and the digital input selector is selected.3. Lights according to the type of input digital audio signals.4. Lights in the following conditions.RDS: Receiving RDS broadcasting.TUNED: Receiving DAB/AM/FM radioFM ST: Receiving FM stereo.SLEEP: Sleep timer has been set.AUTO STBY: Auto Stby (P31) has been set.5. Flashes when muting is on.

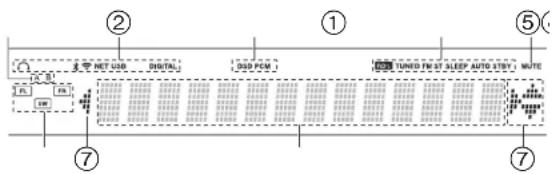

6. Speaker/Channel display: Displays the output channel of the speakers.

7. This may light when performing operations with the "NET" input

selector.8. Displays various information of the input signals.

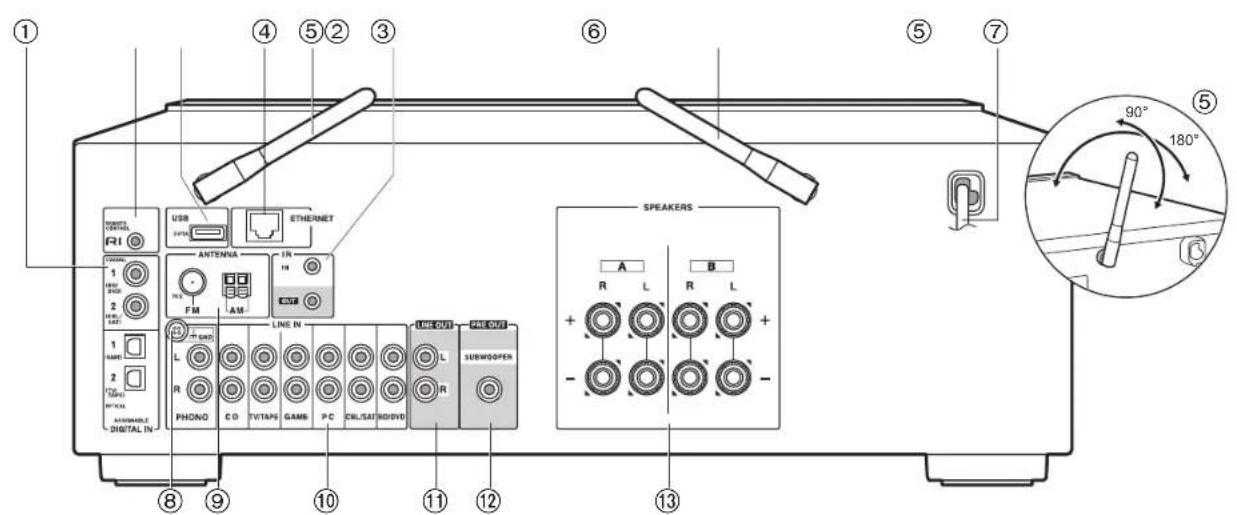

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input digital audio signals from an external device

with a digital optical cable or digital coaxial cable.

2. REMOTE CONTROL jack: An Onkyo product with RI jack can be connected and

synchronized with this unit (P10).

3. USB jack: A USB storage device is connected so that music files stored in it can be

played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable. To receive DAB radio, connect to a USB cable that has been connected to a USB DAB adapter.

4. ETHERNET jack: Connect to the network with an Ethernet cable.

5. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH wireless

technology enabled device. Adjust their angles according to the connection status.

6. IR IN/OUT terminals: Connected to the multi-room remote control kit. Special devices or

cables are necessary. For more information about preparation, contact the specialized stores.

8. GND jack: The ground wire of the turntable is connected.

9. FM 75Ω/AM ANTENNA jacks: Connect the supplied FM indoor antenna and AM indoor

LINE IN jacks: Input audio signals from an external device with an analog audio cable.

LINE OUT jacks: Connect a recording device, such as a cassette tape deck. Connect to the LINE IN jacks on the recording device using analog audio cable.

SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.

SPEAKERS jacks: Connect speakers with speaker cables. You can connect a set of left and right speakers to each of the A/B terminals. > Before Start >Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others 180° 90°

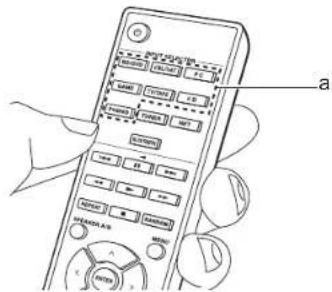

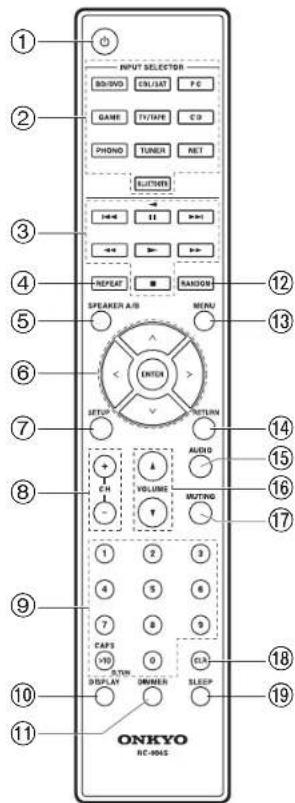

Remote Controller 1. Í ON/STANDBY button2. INPUT SELECTOR buttons: Switches the input to be played.3. Play buttons: Used to control play of a Music Server or device connected via USB, or of RI connected devices. 0 The , , and buttons can only be used when playing RI connected devices.

4. REPEAT button: Used for repeat play operations when playing Music Server or USB.

Each time you press the button, the mode switches from (1-track repeat) to (folder repeat).

5. SPEAKER A/B button: Select the terminals to output audio from between SPEAKERS A/B.

6. Cursors (Up / Down / Left / Right), ENTER button: Select the item with the cursors and

press ENTER to confirm.

7. SETUP button: You can show advanced setting items on the display to provide you with

an even better experience (P30).

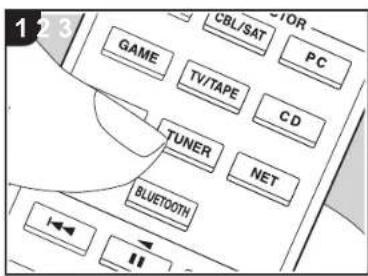

8. CH (i/j) buttons: Used to select DAB/AM/FM radio stations.

DISPLAY button: Switches the information on the display. You can display information such as the input source, volume, and input format when pressed repeatedly during play. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be turned off completely. RANDOM button: Used for random play operations when playing Music Server or USB. Random turns on or off each time you press the button . MENU button: Used to display the menu. RETURN button: Returns the display to the previous state during setting. AUDIO button: Use for setting "Bass", "Treble", etc. (P28). VOLUME MUTING button: Temporarily mutes audio. Press again to cancel muting. CLR button: Deletes all characters you have entered when entering text. (P15) SLEEP button: Set the sleep timer. Press the button repeatedly to select the time. When the time set (30, 60, or 90 minutes) has elapsed, the unit switches to standby. If SLEEP button is pressed after setting, the time remaining until sleep is displayed. > Before Start >Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

SN29403234A_TX-8250_En.book 7 ページ ２０１７年１０月１７日　火曜日　午後１時２９分8 Inst all Step1: Connect the Speakers You can connect two systems, Speaker A and Speaker B, as the Speaker System. When connecting only one set, connect to the SPEAKERS A terminals. With one set, use speakers with 4 ≠ to 16 ≠ impedance. Note that when connecting to both SPEAKERS A and B terminals, connect speakers with 8 ≠ to 16 ≠ impedance to both A and B. Connect the speaker cable so the wires do not protrude from the speaker jacks. If the exposed wires of the speakers touch the rear panel or the + and - wires touch each other, the protection circuit will be activated.(*)You can also connect a subwoofer with a built-in amplifier to the SUBWOOFER PRE OUT jack to boost bass playback even more. Use a subwoofer cable for connection. When only Speaker B is outputting audio, there will be no audio output from the powered subwoofer. > Before Start > Part Names >Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

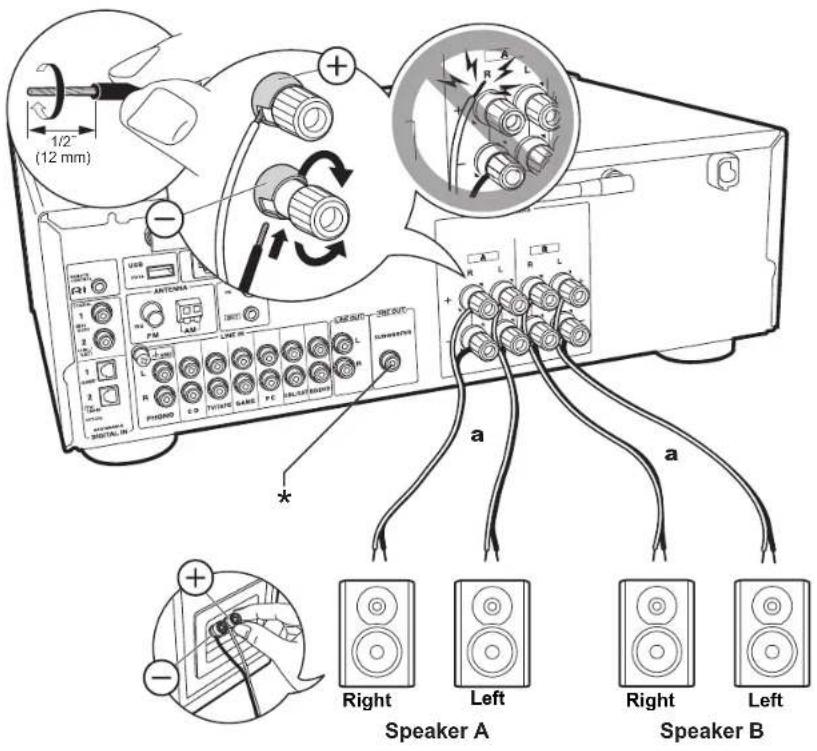

Speaker B Speaker A 1/2˝ (12 mm) Right Left Right Left a Speaker Cable Setup0 When connected as a Speaker B System, you can output the same audio as Speaker A System by switching with A/B/A+B. Press SPEAKER A/B on the remote control to switch. The selection changes in the order SPEAKER A, SPEAKER B, SPEAKER A+B with each press.0 If any of the connected speakers have an impedance of 4 ≠ or more to less than 6 ≠, or when speaker systems are connected to both of the SPEAKERS A/B terminal, after completing Initial Setup, you need to make some settings in the Setup menu. Press SETUP on the remote controller, and set "3. Hardware" - "SpImpedance" to "4≠". (P31) SN29403234A_TX-8250_En.book 8 ページ ２０１７年１０月１７日　火曜日　午後１時２９分9

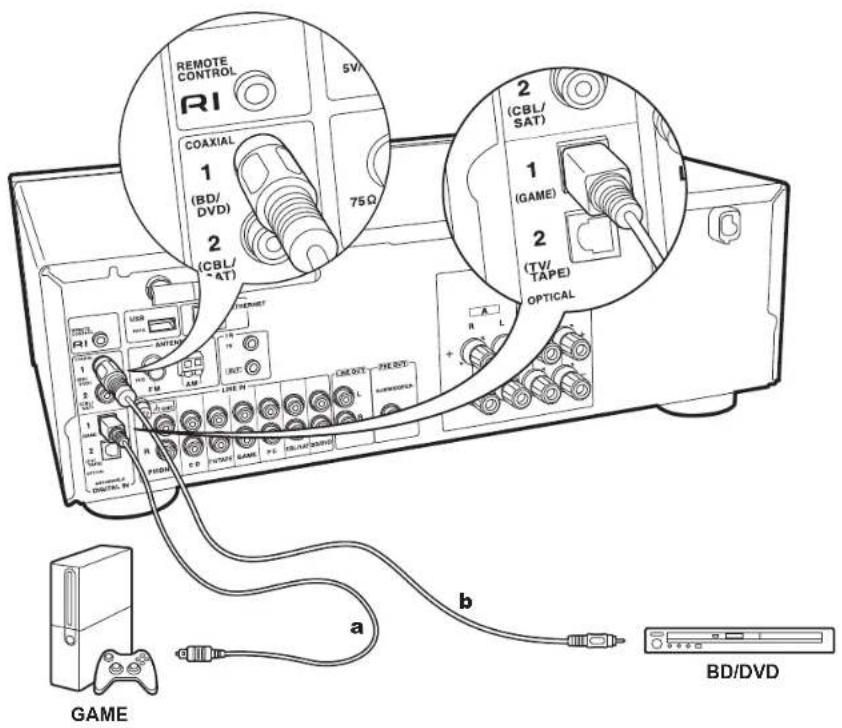

1. DIGITAL IN connection

Connect an external device with a digital optical cable or digital coaxial cable. Note that this unit is equipped with an "Opt1Wakeup feature" so that when play starts on an external device connected to the OPTICAL 1 (GAME) terminal, this unit comes on and the INPUT SELECTOR automatically changes. (P32)0 The default setting for "Opt1Wakeup feature" is "Off". To enable this function, press SETUP on the remote controller, then in the Setup menu displayed set "3. Hardware" - "Opt1Wakeup" to "On". (P32)0 Only PCM audio is supported for input through the DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio output on the external device to output PCM. > Before Start > Part Names >Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others GAME

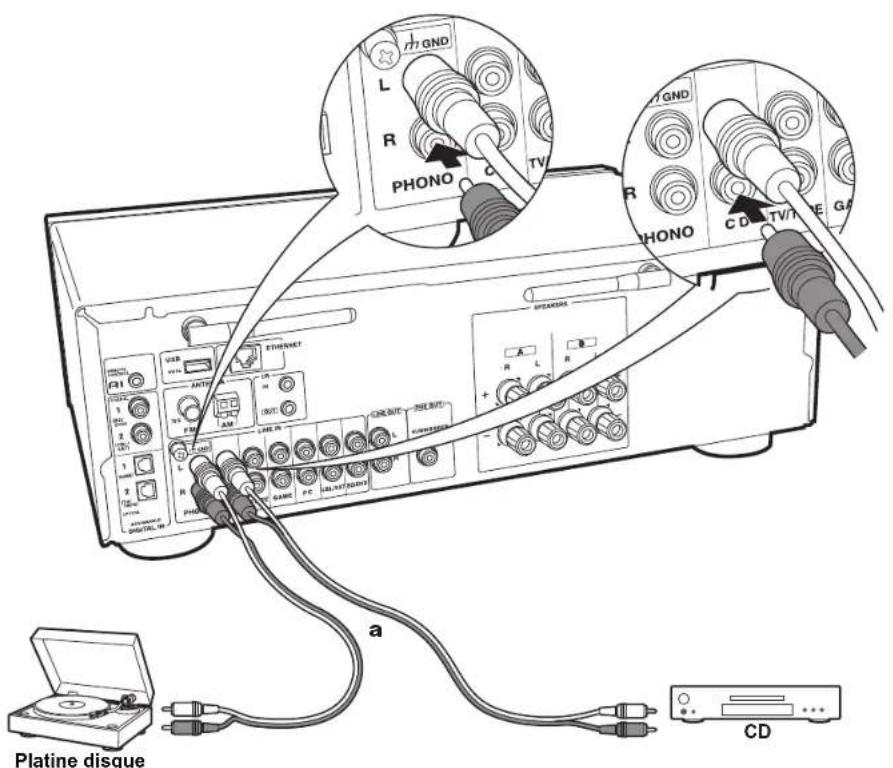

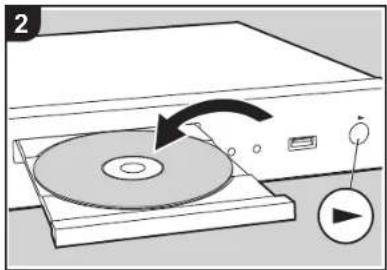

2. LINE IN connection

Connect an external device with an analog audio cable. You can connect a turntable that has an MM-type cartridge to the PHONO jack.0 If the turntable has a built-in audio equalizer, connect it to an LINE IN jack other than the PHONO jack. Also, if the turntable uses an MC type cartridge, install an audio equalizer compatible with the MC type cartridge between the unit and the turntable, then connect to any LINE IN jack other than the PHONO jack.If the turntable has a ground wire, connect it to the GND terminal. By connecting an Onkyo component with RI jack to the unit by using an RI cable and an analog audio cable, you can link the unit’s power and input selection and enable operation with this unit’s remote controller. For details, refer to the instruction manual of the component with the RI jack.0 Part of the function may not operate even if it is connected via RI depending on the equipment.0 When connecting an RI dock, you must rename the input selectors on the unit to make the system link work. Select the GAME input selector to display "GAME" on the main unit display. Then press and hold RETURN on the main unit for 3 seconds to switch the display to "DOCK". > Before Start > Part Names >Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

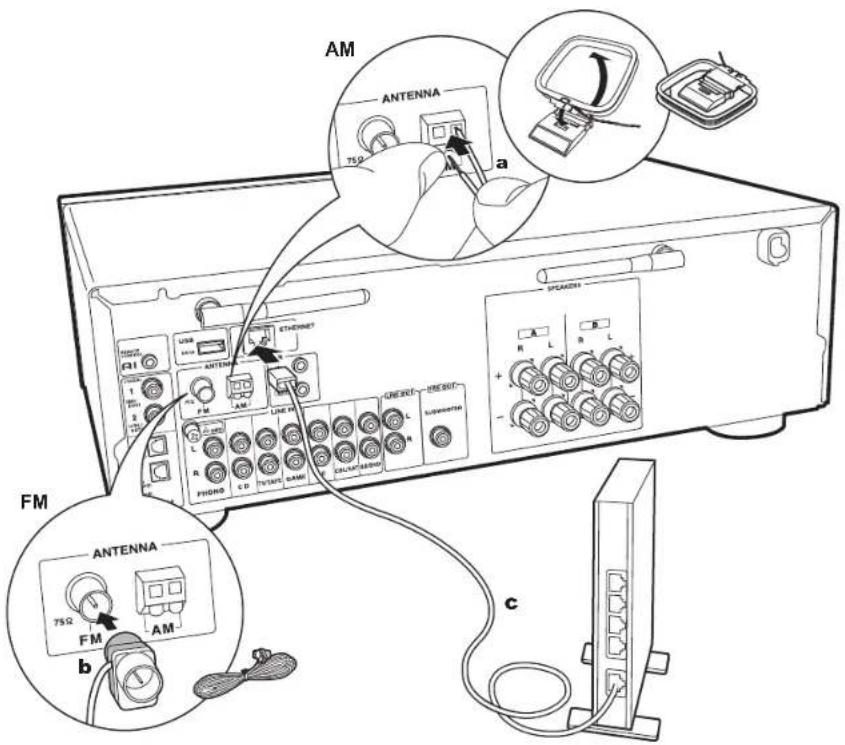

Step3: Connect Other Cables 1. Network HookupConnect this unit to the network using wired LAN or Wi-Fi (wireless LAN). You can enjoy Network Functions such as internet radio by connecting to the network. If you connect by wired LAN, connect to the router with an Ethernet cable to the ETHERNET port as shown in the illustration. To connect by Wi-Fi, after selecting "Wi-Fi" in Initial Setup (P13), select the desired setting method to configure the connection.2. AM, FM Antenna HookupMove the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the FM Indoor antenna to a wall.FM indoor antenna > Before Start > Part Names >Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

Move the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the DAB antenna to a wall.

4. Power Cord Hookup

The power cord must be connected only after all other connections are completed. > Before Start > Part Names >Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

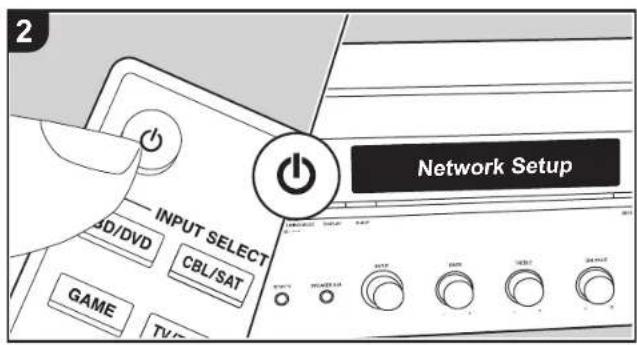

Initial Setup Initial Setup with Auto Start-up Wizard Starting up: When you press Í, "Now Initializing..." is displayed on the display. After this, when "Now Initializing..." goes out, you can start operating the unit.Wi-Fi connection settingsWhen you first turn the power on, the Network Setup display is displayed automatically, allowing you to easily make Wi-Fi connection settings.To set, select the item with the cursors on the remote controller and press ENTER to confirm.0 To return to the previous display, press RETURN.1. Press ENTER when "Network Setup" is displayed.2. To make Wi-Fi settings, select "Wi-Fi". If you have connected with an ethernet cable, select "Wired(Exit)" with Up/Down on the remote controller and press ENTER.3. If you selected "Wi-Fi", select the setting method with Up/ > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Network Setup

Network Setup Wi-FiWired ( Exit ) SN29403234A_TX-8250_En.book 13 ページ ２０１７年１０月１７日　火曜日　午後１時２９分14 Down on the remote controller and press ENTER. 0 To redo the initial settings, press SETUP on the remote controller, and set "5. Network" - "Wi-Fi" to "On". Select "Wi-Fi Setup" after this. ∫ Scan Networks From the list of SSID for access points such as wireless LAN routers, select the required SSID and make the settings.

1. Select the SSID of the access point you want to connect

with Up/Down on the remote controller and press ENTER.

2. Select "Enter Password" or "Push Button" with Up/Down

on the remote controller and press ENTER. If the access point has an automatic connection button, by selecting "Push Button" you can connect without entering a password.

3. If you select "Enter Password", enter the password of the

access point. For details on how to enter text, refer to "Entering text" (P15). If you select "Push Button", then after pressing and holding the automatic setting button on the access point for the required amount of time, press ENTER on the remote controller.

4. After "Now Connecting" is displayed, the information of

the display switches when the Wi-Fi settings are complete. 0 If "Retry" appears on the display, press ENTER to retry the settings. When the access point is not displayed Press the Right button on the remote controller to select "Other...", then press ENTER. Set by entering the SSID of the access point you want to connect.

1. Enter the SSID. For details on how to enter text, refer to

"Entering text" (P15).

2. Select the authentication method with Up/Down on the

remote controller and press ENTER. 0 If you select "None", proceed to step 3. If you select "WEP", "WPA", or "WPA2", enter the password and confirm.

3. After "Now Connecting" is displayed, the information of

the display switches when the Wi-Fi settings are complete. 0 If "Retry" appears on the display, press ENTER to retry the settings. ∫ Use iOS device Set by sharing the iOS device's Wi-Fi settings with this unit. This unit supports iOS device versions iOS7 and later.

1. Connect the iOS device by Wi-Fi.

2. Select this device in the "SET UP NEW AIRPLAY

SPEAKER..." item on the screen of the iOS device and select "Next". 0 This unit is displayed as "Onkyo TX-8250 XXXXXX".

3. After "Now Connecting" is displayed on this unit, when

> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Entering text Text entry, for passwords, etc., uses the following procedure.1. Select the characters or symbols with Up/Down/Left/Right (a).2. Press ENTER (a) to confirm the selected character. Repeat this to enter text.0 Press CAPS (b) to change the characters to be enter, for example to switch between upper and lower case.0 Press CLR (c) to delete all the input characters.3. After completing input, select "OK" with Up/Down/Left/Right (a) and press ENTER (a). Characters that can be entered Space: A single space the size of a character is entered.A/a: Switches between characters displayed. (a A) (left) / (right) : Select to move the

cursor.BS (backspace): Removes a character on the left of the cursor. The cursor moves left.OK: Confirms the entered content. SN29403234A_TX-8250_En.book 15 ページ ２０１７年１０月１７日　火曜日　午後１時２９分16 Playback > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Playing audio from a connected device Basic OperationsYou can play the audio from external devices such as Blu-ray Disc players through this unit.Perform the following procedure when the unit is on.1. Press the input selector (a) on the remote controller with the same name as the jack to which you connected the player to switch the input.For example, press the BD/DVD button to play the player connected to the BD/DVD jack. Press TV/TAPE to listen the TV's sound.2. Start play on the connected player.

Playback You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device. Perform the following procedure when the unit is on.Pairing1. When you press the BLUETOOTH button, "Now Pairing..." is displayed on this unit's display, and the pairing mode is enabled.2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH wireless technology enabled device, then select this unit from amongst the devices displayed. If a password is requested, enter "0000".0 This unit is displayed as "Onkyo TX-8250 XXXXXX".0 To connect another BLUETOOTH wireless technology enabled device, press and hold BLUETOOTH until "Now Pairing..." is displayed, then perform step 2. This unit can store the data of up to eight paired devices. 0 The coverage area is 48y/15 meters. Note that connection is not always guaranteed with all BLUETOOTH wireless technology enabled devices.Playing Back1. Perform the connection procedure on the BLUETOOTH wireless technology enabled device.The input on this unit automatically switches to "BLUETOOTH".2. Play the music files. Increase the volume of the BLUETOOTH wireless technology enabled device to an appropriate level.0 Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH wireless technology enabled device. OnkyoTX-8250XXX

> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Internet Radio You can use internet radio services such as TuneIn Radio, Pandora, Deezer, and TIDAL by connecting this unit to a network that has an internet connection.0 The network needs to be connected to the internet in order to play internet radio services.0 Depending on the internet radio service, the user may need to register from their computer first. Refer to the websites for each of the services for details about them.0 Functionality may be introduced by firmware updates and service providers may cease services, meaning that some network services and content may become unavailable in the future.Playing BackPerform the following procedure when the unit is on.1. Press NET (a) on the remote controller.2. With the Up/Down cursors (b) on the remote controller, select "TuneIn Radio", for example, and then press ENTER (b).3. Use the Up/Down cursors (b) on the remote controller to select radio stations and programs, then press ENTER to play (b).0 To return to the previous display, press RETURN (c). TuneIn Radio

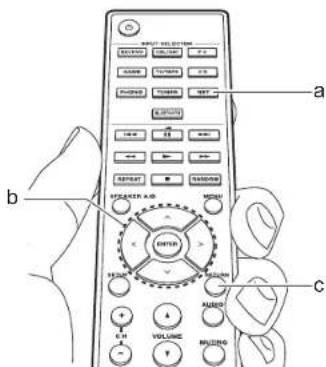

PandoraDeezerPandoraPandoraTuneIn RadioDeezerTIDALInternet Radio Service MenusYou can register certain stations as your favorites or delete stations you have registered from your favorites. The menu displayed depends on the service currently selected.A menu is displayed on the display when you press MENU on the remote controller while playing a radio station.To operate, press Up/Down on the remote controller to select the menu and press ENTER to confirm your selection.Regarding the TuneIn Radio AccountCreating an account on the TuneIn Radio website (tunein.com) and logging in from the unit allows you to automatically add your favorite radio stations and programs to your "My Presets" on the unit as you follow them on the website. "My Presets" are displayed in the level under TuneIn Radio.To display a radio station registered in "My Presets", you must log into TuneIn Radio from the unit. To log in, select "Login" - "I have a TuneIn account" in the "TuneIn Radio" top list on the unit, and then enter your user name and password.0 If you select "Login" on this unit, you can use the displayed registration code to associate this device on the My Page section of the TuneIn Radio website so that you can login to "Login" - "Login with a registration code" without having to enter your user name and password.

SN29403234A_TX-8250_En.book 17 ページ ２０１７年１０月１７日　火曜日　午後１時２９分18 Spotify Spotify Connect play is possible by connecting this unit to the same network as a smart phone or tablet.0 To play Spotify Connect, you need to install the Spotify application on your smartphone or tablet. You also need to create a Spotify premium account.– Refer to the following for Spotify settings: www.spotify.com/connect/ Playing Back 1. Connect the smartphone to the access point that this unit is connected to.2. Start the Spotify app.3. Play the track in the Spotify app, then after switching to the screen for controlling play, tap "Devices Available" at the bottom of the screen.4. Select this unit.5. This unit turns on automatically and the input selector changes to NET and streaming of Spotify starts.0 If "3. Hardware" - "NET Stby" is set to "Off" in the Setup menu, manually turn the unit on and then press NET on the remote controller. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Wi-FiDevicesAvailable Device OnkyoTX-8250XXX

Basic OperationsYou can wirelessly enjoy the music files on an iPhone , iPod touch , or iPad

connected to the same access point as this unit.0 Update the OS version on your iOS device to the latest version.0 There may be some differences in the operations screens and how operations are performed on the iOS device depending on the iOS version. For details, see the operating instructions for the iOS device.1. Connect the iOS device to the access point.2. Press NET.3. Tap the AirPlay icon in the play screen of the music app on the iOS device and select this unit from the list of devices displayed.4. Play the music files on the iOS device.0 The default status is for the NET Stby feature to be on, so when you do steps 3 and 4 above, this unit automatically comes on and input switches to "NET". To reduce the amount of power consumed in standby mode, press the SETUP button on the remote controller, then in the Setup menu displayed set "3. Hardware" -"NET Stby" to "Off".0 Due to the characteristics of AirPlay wireless technology, the sound produced on this unit may slightly be behind the sound played on the AirPlay-enabled device.You can also play the music files on a computer with iTunes (Ver. 10.2 or later). Before operation, make sure this unit and the PC are connected to the same network, then press NET on this unit. Next, click the AirPlay icon in iTunes, select this unit from the list of devices displayed, and start play of a music file. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Wi-FiOnkyoTX-8250XXXXXX iPhone

e.g., iOS 10 SN29403234A_TX-8250_En.book 19 ページ ２０１７年１０月１７日　火曜日　午後１時２９分20 USB Storage Device Basic OperationsYou can play music files stored on a USB storage device.Perform the following procedure when the unit is on.1. Plug your USB storage device with the music files into the USB port either on the front panel or rear panel of this unit.2. Press NET (a) on the remote controller.3. Press the Up/Down cursors (b) on the remote controller, select "USB Front" or "USB Rear" on the display, and then press ENTER (b).0 If the "USB" indicator flashes on the display, check whether the USB storage device is plugged in properly.0 Do not unplug the USB storage device while "Connecting..." is on the display. This may cause data corruption or malfunction.4. Press ENTER on the remote controller after reading is complete.5. Press the Up/Down cursors on the remote controller to select the folder and music file, and then press ENTER to start playback.0 To return to the previous display, press RETURN (c).0 The USB port of this unit conforms with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, which may cause some interruption in sound.Supported Audio FormatsThis unit supports the following music file formats. Note that sound files that are protected by copyright cannot be played on this unit.MP3 (.mp3/.MP3): 0 Supported formats: MPEG-1/MPEG-2 Audio Layer 30 Supported sampling rates: 44.1 kHz, 48 kHz 0 Supported bitrates: Between 8 kbps and 320 kbps and VBRWMA (.wma/.WMA): 0 Supported sampling rates: 44.1 kHz and 48 kHz0 Supported bitrates: Between 5 kbps and 320 kbps and VBR0 WMA Pro/Voice/WMA Lossless formats are not supportedWAV (.wav/.WAV): WAV files include uncompressed PCM digital audio. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others USB Front

0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit AIFF (.aiff/.aif/.AIFF/.AIF): AIFF files include uncompressed PCM digital audio. 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/ .M4A/.MP4/.3GP/.3G2): 0 Supported formats: MPEG-2/MPEG-4 Audio 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz 0 Supported bitrates: Between 8 kbps and 320 kbps and VBR FLAC (.flac/.FLAC): 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit Apple Lossless (.m4a/.mp4/.M4A/.MP4): 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 16 bit, 24 bit DSD (.dsf/.dff/.DSF/.DFF): 0 Supported formats: DSF/DSDIFF 0 Supported sampling rates: 2.8 MHz and

0 Variable bit-rate (VBR) files are supported. However, playback times may not be displayed correctly. 0 This unit supports the gapless playback of the USB storage device in the following conditions. When playing WAV, FLAC and Apple Lossless, and the same format, sampling frequency, channels and quantization bit rate are played continuously. Device Requirements 0 Note that operation is not guaranteed with all USB storage devices. 0 This unit can use USB storage devices that comply with the USB mass storage device class standard. The unit is also compatible with USB storage devices using the FAT16 or FAT32 file system formats. 0 If the USB storage device has been partitioned, each section will be treated as an independent device. 0 Up to 20,000 tracks per folder can be displayed, and folders may be nested up to 16 levels deep. 0 USB hubs and USB storage devices with hub functions are not supported. Do not connect these devices to the unit. 0 USB storage devices with security function are not supported on this unit. 0 If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it. 0 Media inserted to the USB card reader may not be available in this function. Furthermore, depending on the USB storage device, proper reading of the contents may not be possible. 0 We accept no responsibility whatsoever for the loss or damage to data stored on a USB storage device when that device is used with this unit. We recommend that you back up your important music files beforehand. SN29403234A_TX-8250_En.book 21 ページ ２０１７年１０月１７日　火曜日　午後１時２９分22 Listening to the AM/FM Radio You can receive AM/FM radio stations on this unit with the built-in tuner. Perform the following procedure when the unit is on. ∫ Tuning into a Radio Station Tuning Automatically1. Repeatedly press TUNER (a) on the remote controller and select "AM" or "FM".2. Press TUNING MODE on the main unit so that "TunMode:Auto" appears on the display.3. When you press the cursor Up/Down buttons (b) on the remote controller, automatic tuning starts, and searching stops when a station is found. When tuned into a radio station, the "TUNED" indicator on the display lights. When tuned into a stereo FM radio station, the "FM ST" indicator lights.When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" in the following section. Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.Tuning ManuallyIf you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.1. Repeatedly press TUNER (a) on the remote controller and select "AM" or "FM".2. Press TUNING MODE on the main unit so that "TunMode:Manual" appears on the display.3. While pressing the cursor Up/Down buttons (b) on the remote controller, select the desired radio station.0 The frequency changes by 1 step each time you press Up/Down buttons. The frequency changes continuously if the button is held down and stops when the button is released. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

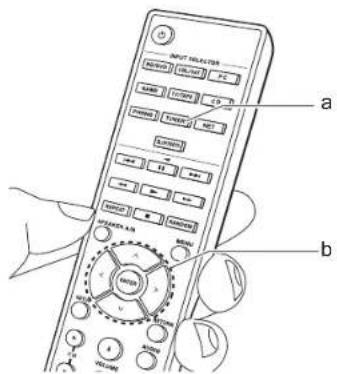

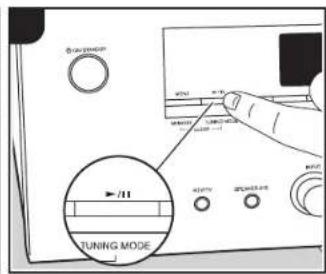

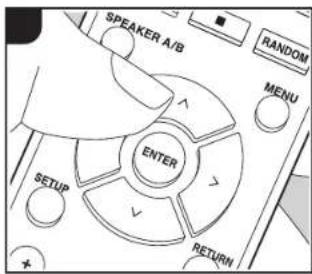

Tuning into Stations by Frequency It allows you to directly enter the frequency of the radio station you want to listen to.1. Press the TUNER button (a) of the remote controller repeatedly to select either "AM" or "FM".2. Press D.TUN button (c) on the remote controller.3. Using the number buttons (b) on the remote controller, enter the frequency of the radio station within 8 seconds.0 To enter 87.5 (FM), for example, press 8, 7, 5 or 8, 7, 5, 0. If the entered number is incorrect, press the D.TUN button again and re-enter the number.AM Frequency step setting: Press SETUP on the remote controller, then use the cursor buttons and ENTER on the remote controller to select "3. Hardware" - "AM Freq", and select the frequency step for your region. Note that when this setting is changed, all radio presets are deleted. ∫ Using RDS RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. In regions using RDS, the radio station name is displayed when you tune into a radio station broadcasting program information. Further, when you press RT/PTY on the main unit in this state, you can use the following functions. Displaying Text Information (Radio Text) 1. While the name of the station is being displayed on the display, press RT/PTY on the main unit once.Text information broadcast by the station (Radio Text) is displayed scrolling across the display. "No Text Data" is displayed when no text information is available. Search for Stations by Program Type 1. While the name of the station is being displayed on the display, press RT/PTY on the main unit twice.2. Press the cursors Left/Right on the remote controller to select the Program Type you want to find, then press ENTER to start the search.0 The Program Types displayed are as follows: None / News (News reports) / Affairs (Current affairs) / Info (Information) / Sport / Educate (Education) / Drama / Culture / Science (Science and technology) / Varied / Pop M (Pop music) / Rock M (Rock music) / Easy M (Middle of the road music) / Light M (Light classics) / Classics (Serious classics) / Other M (Other music) / Weather / Finance / Children (Children’s programmes) / Social (Social affairs) / Religion / Phone In / Travel / Leisure / Jazz (Jazz music) / Country (Country music) / Nation M (National music) / Oldies (Oldies music) / Folk M (Folk music) / Document (Documentary)0 The information displayed may sometimes not match the content being broadcast by the station.3. When a station is found, the station flashes on the display. Press ENTER while this is happening to start receiving that station. If you don't press ENTER, the unit continues to search for another station.0 If no stations are found, the message "Not Found" is displayed.0 Unusual characters may be displayed when the unit receives unsupported characters. However, this is not a malfunction. Also, if the signal from a station is weak, information may not be displayed.

SN29403234A_TX-8250_En.book 23 ページ ２０１７年１０月１７日　火曜日　午後１時２９分24 Listening to DAB Digital Radio Basic Operations1. Repeatedly press TUNER (a) on the remote controller and select "DAB".0 The very first time you select DAB, the Auto Tuning function automatically scans the DAB Band 3 for the multiplexes (i.e., stations) available in your area. Once the scanning process is complete, the first station that was detected is selected.2. Select the desired radio station with Up/Down (b) on the remote controller.0 If a new DAB station is introduced, or you move to a new area, press SETUP on the remote controller, then use the cursors and ENTER button to run the "DAB Auto Scan" in "3. Hardware".Changing the order stations are displayed: You can sort the available stations alphabetically or by multiplex.1. Press TUNING MODE on the main unit repeatedly to set the method for sorting the display order from the following.Alphabet (default setting): Sort stations alphabetically.Multiplex: Sort stations by multiplex.Displaying DAB Radio Information: 1. Press the DISPLAY button (c) repeatedly to display more information about the selected DAB station.DLS (Dynamic Label Segment): When tuned to a station that's broadcasting DLS text data, the text will scroll across the display.Program Type: Displays the type of program.Bit Rate and Audio Mode: Displays the station's bit rate and audio mode (Stereo, Mono).Quality: Displays the signal quality.0 - 59: Poor reception60 - 79: Good reception80 - 100: Excellent receptionMultiplex Name: Displays the name of the current multiplex.Multiplex Number and Frequency: Displays the number and frequency of the current multiplex. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others ABC-Station Scan: 100% DAB

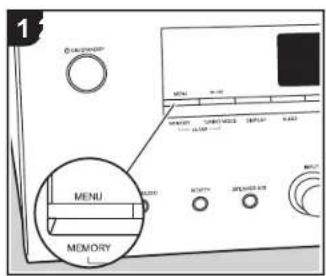

Registering a station You can register up to 40 of your favorite radio stations (AM, FM, DAB).RegisteringAfter tuning into the radio station you want to register, perform the following procedure.1. Press MEMORY on the main unit so that the preset number on the display flashes.2. While the preset number is flashing (about 8 seconds), repeatedly press the cursor Left/Right buttons (b) on the remote controller to select a number between 1 and 40.3. Press MEMORY again on the main unit to register the station.When the station is registered, the preset number stops flashing. Repeat this procedure for all of your favorite radio stations.Selecting a Preset Radio Station1. Press TUNER (a) on the remote controller.2. Press the cursor Left/Right buttons (b) on the remote controller to select a preset number.Deleting a Preset Radio Station1. Press TUNER (a) on the remote controller.2. Press the cursor Left/Right buttons (b) on the remote controller to select the preset number to delete.3. While pressing MEMORY on the main unit, press TUNING MODE to delete the preset number. When deleted, the number on the display goes off.Registering Stations in the BGM ButtonsYou can register up to 4 of your favorite radio stations to the BGM buttons on the main unit. By registering to BGM buttons, you can start reception with one press of a button. After tuning into the radio station you want to register, perform the following procedure.1. Press and hold one of the BGM buttons 1 to 4 on the main unit."Preset Written" is displayed on the display and the station being received is registered. If there is already a radio station registered, it is replaced. Note that the stations registered in BGM buttons 1 to 4 are registered in preset numbers 37 to 40 respectively.0 Press the BGM buttons 1 to 4 to listen to the stations you have preset. If you press these buttons when the unit is in standby mode, it comes on and starts receiving the station. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

SN29403234A_TX-8250_En.book 25 ページ ２０１７年１０月１７日　火曜日　午後１時２９分26 > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others Music Server It is possible to stream music files stored on PCs or NAS devices connected to the same network as this unit.0 The network servers compatible with the Music Server feature are those PCs with players installed that have the server functionality of Windows Media Player 11 or 12, or NAS that are compatible with home network functionality. Note that with PCs, only music files registered in the library of Windows Media Player can be played.0 You may need to make some settings on the PC in advance to use Windows Media Player 11 or 12 with the Music Server feature. ∫ Windows Media

Player settings On Windows Media Player 111. Turn on your PC and start Windows Media Player 11.2. In the "Library" menu, select "Media Sharing" to display a dialog box.3. Select the "Share my media" check box, and then click "OK" to display the compatible devices.4. Select this unit, click "Allow" and put a check mark next to the icon for this unit.5. Click "OK" to close the dialog.0 Depending of the version of Windows Media Player, there may be differences in the names of items you can select.On Windows Media Player 121. Turn on your PC and start Windows Media Player 12.2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box. Music Server 0 If media streaming is already turned on, select "More streaming options..." in the "Stream" menu to list players in the network, and then go to step 4.3. Click "Turn on media streaming" to list players in the network.4. Select this unit in "Media streaming options" and check that it is set to "Allow".5. Click "OK" to close the dialog.0 Depending of the version of Windows Media Player, there may be differences in the names of items you can select. ∫ Playing Back Before performing the operations below, start the server (Windows Media Player 11, Windows Media Player 12, or NAS device) containing the music files to play, and make sure that the PCs and/or NASs are properly connected to the same network as this unit.Perform the following procedure when the unit is on.1. Press NET (a) on the remote controller.2. Select "Music Server" with the Up/Down cursors on the remote controller and press ENTER to confirm your selection (b). 3. With the Up/Down cursors on the remote controller, select the server you want and then press ENTER.4. With the Up/Down cursors on the remote controller, select the music file to play, and then start playback with ENTER.0 To return to the previous display, press RETURN (c).0 If "No Item." is displayed, check whether the network is properly connected.0 Depending on the server and share settings, the unit may not recognize it, or may not be able to play its music files. Furthermore, the unit cannot access pictures and videos stored on servers.0 For music files on a server, there can be up to 20,000 tracks per folder, and folders may be nested up to 16 levels deep.

∫ Controlling Remote Playback from a PC You can use this unit to play music files stored on your PC by operating the PC inside your home network. The unit supports remote playback with Windows Media

1. Turn on your PC and start Windows

2. Open the "Stream" menu and check that

"Allow remote control of my Player..." is checked. Click "Turn on media streaming" to list players in the network.

3. Select and right-click the music file to

play with Windows Media

Player 12. To remotely play a music file on another server, open the target server from "Other Libraries" and select the music file to play.

4. Select this unit in "Play to" to open the

"Play to" window of Windows Media

Player 12 and start playback on the unit. If your PC is running on Windows

8.1, click "Play to", and then select this unit. If your PC is running on Windows

10, click "Cast to Device", and select this unit. Operations during remote playback are possible from the "Play to" window on the PC.

5. Adjust the volume using the volume bar

on the "Play to" window. 0 Sometimes, the volume displayed on the remote playback window may differ from that appeared on the display of the unit. Also, when the volume is adjusted from this unit, this is not reflected in the "Play to" window. 0 Remote playback is not possible when using a network service or playing music files on a USB storage device. 0 Depending of the version of Windows

there may be differences in the names of items you can select. Supported Audio Formats This unit supports the following music file formats. Remote play of FLAC and DSD is not supported. MP3 (.mp3/.MP3): 0 Supported formats: MPEG-1/MPEG-2 Audio Layer 3 0 Supported sampling rates: 44.1 kHz, 48 kHz 0 Supported bitrates: Between 8 kbps and 320 kbps and VBR WMA (.wma/.WMA): 0 Supported sampling rates: 44.1 kHz, 48 kHz 0 Supported bitrates: Between 5 kbps and 320 kbps and VBR 0 WMA Pro/Voice/WMA Lossless formats are not supported. WAV (.wav/.WAV): WAV files include uncompressed PCM digital audio. 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit AIFF (.aiff/.aif/.AIFF/.AIF): AIFF files include uncompressed PCM digital audio. 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/ .M4A/.MP4/.3GP/.3G2): 0 Supported formats: MPEG-2/MPEG-4 Audio 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz 0 Supported bitrates: Between 8 kbps and 320 kbps and VBR FLAC (.flac/.FLAC): 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz 0 Quantization bit: 8 bit, 16 bit, 24 bit LPCM (Linear PCM): 0 Supported sampling rates: 44.1 kHz and 48 kHz 0 Quantization bit: 16 bit Apple Lossless (.m4a/.mp4/.M4A/.MP4): 0 Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz 0 Quantization bit: 16 bit, 24 bit DSD (.dsf/.dff/.DSF/.DFF): 0 Supported formats: DSF/DSDIFF 0 Supported sampling rates: 2.8 MHz, 5.6 MHz 0 Variable bit-rate (VBR) files are supported. However, playback times may not be displayed correctly. 0 Remote playback does not support the gapless playback. SN29403234A_TX-8250_En.book 27 ページ ２０１７年１０月１７日　火曜日　午後１時２９分28 > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others AUDIO Menu By pressing AUDIO on the remote controller during play, you can adjust frequently used settings, such as the sound quality.1. Press AUDIO (c) on the remote controller.2. Select the item with the Up/Down buttons (a) on the remote controller.3. Select the setting value with the Left/Right buttons (a) on the remote controller.0 To return to the previous display, press RETURN (b) . ∫ Direct Enable or disable the Direct feature which outputs pure sound as it was intended by bypassing the tone control circuits during play. ∫ Bass Enhance or moderate the bass range of the speakers. Select between j10 dB and i10 dB in 1 dB increments. (default value: 0 dB)0 It cannot be set if the Pure Audio mode or Direct mode is selected. ∫ Treble Enhance or moderate the treble range of the speakers. Select between j10 dB and i10 dB in 1 dB increments. (default value: 0 dB)0 It cannot be set if the Pure Audio mode or Direct mode is selected. ∫ Balance Adjust the balance of the sounds output from the left and right speakers. Select between Li10 and Ri10 in 1 steps increments. (default value: 0)

Supplementary information Supplementary information for player functions Due to firmware (the software for the system) updates after you make your purchase or firmware changes during production of the product, there may be additions or changes to the features available compared to what is in the instruction manual. For information about player functions that have been added or changed or the operation of FireConnect, see the following references. http://www.onkyo.com/manual/sup/17onkply01.pdf > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others SN29403234A_TX-8250_En.book 29 ページ ２０１７年１０月１７日　火曜日　午後１時２９分30 Advanced Setup Setup Menu The unit allows you to configure advanced settings to provide you with an even better experience.1. Press SETUP (b) on the remote controller.

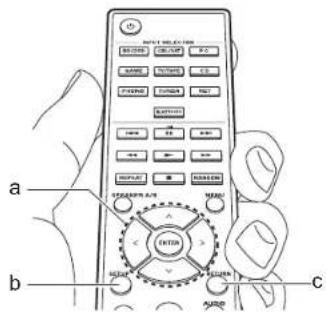

2. Select the item with the Up/Down buttons (a) on the remote controller and press ENTER

(a) to confirm your selection.

3. Select the submenu with the Up/Down buttons (a) on the remote controller.

4. Select the setting value with the Left/Right buttons (a) on the remote controller and press

ENTER (a) to confirm your selection.0 To return to the previous display, press RETURN (c) .5. To exit the settings, press SETUP (b) .

You can change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks. If you do not assign a jack, select "---". > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others

0 Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz,

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, 24 bit, 176.4 kHz, 192 kHz/16 bit,

COAX2 "BD/DVD", "CBL/SAT", "GAME", "PC", "CD", "TV/TAPE", "PHONO": Allocate an input selector to the DIGITAL IN COAXIAL 2 jack. (Default Value is "CBL/SAT") OPT1 "BD/DVD", "CBL/SAT", "GAME", "PC", "CD", "TV/TAPE", "PHONO": Allocate an input selector to the DIGITAL IN OPTICAL 1 jack. (Default Value is "GAME") OPT2 "BD/DVD", "CBL/SAT", "GAME", "PC", "CD", "TV/TAPE", "PHONO": Allocate an input selector to the DIGITAL IN OPTICAL 2 jack. (Default Value is "TV/TAPE") Max Vol Set the maximum value to avoid too high volume. Select "Off (default value)" or a value between "50" to "99". POn Vol Set the volume level of when the power is turned on. Select "Last (default value)" (volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max". 0 You cannot set a higher value than that of "Max Vol". HP Lvl Adjust the output level of the headphones. Select from "-12.0 dB" to "+12.0 dB". (Default Value is "0.0 dB") SpImpedance Set the impedance of the connected speakers. "4≠": When any of the connected speakers have 4 ≠ or more to less than 6 ≠ impedance, or when speaker systems are connected to both of the SPEAKERS A/B terminals "6≠ (default value)": When the connected speakers all have 6 ≠ or more impedance 0 Note that when connecting to both SPEAKERS A and B terminals, connect speakers with 8 ≠ to 16 ≠ impedance to both A and B. 0 For impedance, check the indications on the back of the speakers or their instruction manual. Auto Stby This setting places the unit on standby automatically after 20 minutes of inactivity without any audio input. (When "NET Stby" is on, this becomes the HYBRID STANDBY mode which reduces the increase in power consumption to a minimum.) "On": The unit will automatically enter standby mode. "AUTO STBY" lights on the display. "Off": The unit will not automatically enter standby mode. 0 "Auto Stby" is displayed on the display 30 seconds before the Auto Standby comes on. 0 Default values vary depending on the regions. NET Stby When this feature is turned "On (default value)", you can turn on the power of the unit via the network using an application that can control this unit. 0 When using "NET Stby", power consumption increases even when this unit is on standby, however, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only essential circuits are operating. 0 When the connection to the network is lost, "NET Stby" is disabled to reduce power consumption. Use the power button on the remote controller or main unit to turn the unit on if this happens. SN29403234A_TX-8250_En.book 31 ページ ２０１７年１０月１７日　火曜日　午後１時２９分32 > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others

BT Wakeup This function wakes up the unit on standby by connecting a BLUETOOTH wireless technology enabled device. "On": When this function is to be used "Off (default value)": When this function is not to be used 0 When this setting is turned "On", power consumption increases even when this unit is on standby, however, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only essential circuits are operating. 0 The setting is fixed to "Off" if "6. Bluetooth" - "AutoChange" is set to "Off". Opt1Wakeup When an audio signal is input through the OPTICAL 1 terminal while this unit is in standby, this feature automatically detects it. "On ": This unit is turned on and outputs the audio. "Off (default value)": The function is disabled. 0 When a cable is connected to the OPTICAL 1 terminal and this setting is enabled, power consumption increases even when the unit is on standby, however, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only essential circuits are operating. AM Freq Select a frequency step depending on your area of residence. Select "9 kHz (default value)" or "10 kHz". 0 When this setting is changed, all radio presets are deleted. DAB Auto Scan You can run the auto scan when new DAB stations are added or when you move house. 0 This can not be set if a USB DAB adapter has not been connected. DAB DRC With the DRC (Dynamic Range Control) setting, you can reduce the dynamic range of DAB digital radio so that you can still hear quiet parts even when listening at low volume levels - ideal for listening to the radio late at night when you don't want to disturb anyone. "Off (default value)": DRC off "Large": Large reduction in dynamic range "Small": Small reduction in dynamic range 0 This can not be set if a USB DAB adapter has not been connected. Initialize DAB This initializes the USB DAB adapter. Initialize the USB DAB adapter when disposing of it, giving it to another person, or if operation becomes unstable.

1. Press ENTER when "Start" is displayed.

2. Select "Yes" with the Up/Down buttons on the remote

controller and press ENTER. 0 The scan information is deleted when you initialize the adapter. 0 This can not be set if a USB DAB adapter has not been connected. Intelli Adjust the volume level difference between the devices connected to the unit. Select the input selector to configure. Select from "-12 dB" to "+12 dB". Set a negative (j) value if the volume of the target device is larger than the others and a positive (i) value if smaller. To check the audio, start playback of the connected device. (Default Value is "0 dB") Name Edit Set an easy name to each input. The set name will be shown on the main unit display. Select the input selector to configure. For details on how to enter text, refer to "Entering text" (P15). 0 To name a preset radio station, press TUNER on the remote controller, select AM/FM and select the preset number. (Preset names cannot be given to DAB stations) 0 It cannot be set if the "NET" or "BLUETOOTH" input is selected. SN29403234A_TX-8250_En.book 32 ページ ２０１７年１０月１７日　火曜日　午後１時２９分> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others

0 When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. Further, to assign fixed IP addresses to each component, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway. 0 Wait for a while if "Network" cannot be selected. It will appear when the network feature is started.

Wi-Fi Connect the unit to network via wireless LAN router. "On": Wireless LAN connection "Off (default value)": To connect via wired LAN Wi-Fi Setup You can configure wireless LAN settings by pressing ENTER when "Start" is displayed. 0 This is displayed only when "On" is selected in "Wi-Fi". 0 Refer to Initial Setup (P13) for Wi-Fi settings. SSID The SSID of the connected access point Signal The signal strength of the connected access point Stat The status of the connected access point MAC Address This is the MAC address of this unit. This value is specific to the component and cannot be changed. DHCP "Enable (default value)": Auto configuration by DHCP "Disable": Manual configuration without DHCP If "Disable" is selected, you must set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually. IP Address Displays/Sets the IP address. Subnet Mask Displays/Sets the subnet mask. Gateway Displays/Sets the gateway. DNS Server Displays/Sets the primary DNS server. Proxy URL Displays/Sets the proxy server URL. Proxy Port Displays/Sets the proxy server port number when you enter "Proxy URL". Friendly Name Change the device name for this unit which is shown on other devices connected to the network to an easily recognized name. This is set to Onkyo TX-8250 ****** at the time of purchase. (* stand for alphanumeric characters identifying each unit) For details on how to enter text, refer to "Entering text" (P15). AirPlay PW You can set a password of up to 31 characters so that only registered users can use AirPlay. For details on how to enter text, refer to "Entering text" (P15). Network Check You can check the network connection. Press ENTER when "Start" is displayed. Bluetooth Select whether or not to use the BLUETOOTH function. "On (default value)": Enables connection with a BLUETOOTH wireless technology enabled device by using the BLUETOOTH function. Select "On" also when making various BLUETOOTH settings. "Off": When the BLUETOOTH function is not to be used AutoChange The input of the unit will automatically be switched to "BLUETOOTH" when connection is made from a BLUETOOTH wireless technology enabled device to the unit. "On (default value)": The input will automatically become "BLUETOOTH" when a BLUETOOTH wireless technology enabled device is connected. "Off": The function is disabled. 0 If the input is not switched automatically, set to "Off" and change the input manually. SN29403234A_TX-8250_En.book 33 ページ ２０１７年１０月１７日　火曜日　午後１時２９分34 > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others 0 Wait for a while if "Bluetooth" cannot be selected. It will appear when the BLUETOOTH function is started up.

0 Wait for a while if "Firmware Update" cannot be selected. It will appear when the network feature is started.

Reconnect This function automatically reconnects to the BLUETOOTH wireless technology enabled device connected last when you change the input to "BLUETOOTH". "On (default value)": When this function is to be used "Off": When this function is not to be used 0 This may not work with some BLUETOOTH wireless technology enabled devices. Pairing Info You can initialize the pairing information saved on this unit. Pressing ENTER when "Clear" is displayed initializes the pairing information stored in this unit. 0 This function does not initialize the pairing information on the BLUETOOTH wireless technology enabled device. When pairing the unit again with the device, be sure to clear the pairing information on the BLUETOOTH wireless technology enabled device in advance. For information on how to clear the pairing information, refer to the BLUETOOTH wireless technology enabled device's instruction manual. Device Displays the name of the BLUETOOTH wireless technology enabled device connected to the unit. 0 The name is not displayed when "Stat" is "Ready" or "Pairing". Stat Displays the status of the BLUETOOTH wireless technology enabled device connected to the unit. "Ready": Not paired "Pairing": Pairing "Connected": Successfully connected Notice Availability of a firmware update will be notified via network. "Enable (default value)": Notify updates "Disable": Disable notifications Ver The current firmware version will be displayed. Update via NET Press ENTER to select when you want to update the firmware via network. 0 You will not be able to select this setting if you do not have Internet access or there is nothing to update. Update via USB Press ENTER to select when you want to update the firmware via USB. 0 You will not be able to select this setting if a USB storage device is not connected or there is nothing to update in the USB storage device. Setup Lock the Setup menu to protect the settings. "Locked": The menu is locked. "Unlocked (default value)": Unlocked SN29403234A_TX-8250_En.book 34 ページ ２０１７年１０月１７日　火曜日　午後１時２９分35

> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others Web Setup You can make the settings for network features for this unit in an internet browser on a PC, smartphone, etc.

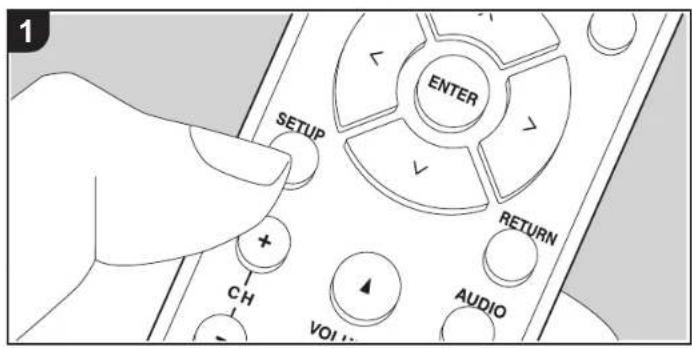

1. Press SETUP on the remote controller to

display the Setup menu.

2. Select "5. Network" - "IP Address" with

the cursors and take a note of the IP address displayed.

3. Start the internet browser on your PC or

smartphone and enter the IP address of the unit in the URL field.

5. After changing the settings, select

"Save" to save the settings. Device Information You can change the Friendly Name, set an AirPlay PW, etc. Control4: Register this unit if you are using a Control4 system. Firmware Update: Select the firmware update you have downloaded to your PC so you can update this unit. Network Setting Stat: You can see information for the network such as the MAC address and IP address for this unit. Network Connection: You can select how to connect to the network. If you select "Wireless", select an access point from "Wi-Fi Setup" to connect. DHCP: You can change DHCP settings. If you select "Off", set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually. Proxy: Display and set the URL for the proxy server. SN29403234A_TX-8250_En.book 35 ページ ２０１７年１０月１７日　火曜日　午後１時２９分36 Firmware Update The updating function on this unit This unit has functionality to update the firmware (the system software) over a network or by the USB port. This enables us to make improvements to a variety of operations and to add features. How to update There are two methods for updating the firmware: via network and via USB. The update may take about 20 minutes to complete for either method: via network or via USB. Furthermore, settings you have changed are maintained regardless of the method used for update. Note that when this unit is connected to a network, you may see notifications about firmware updates on the display. To execute updating, select "Update Now" with the cursors of the remote controller and press ENTER. "Completed!" is displayed when the update is complete. 0 For the latest information on updates, visit our website. There is no need to update the firmware on this unit if there is no update available. 0 During an update, do not: – Disconnect and reconnect any cable or USB storage device, headphones, or perform any operation on the component such as turn off its power – Accessing this unit from a PC or smartphone using an application Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. We will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will we be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever. Updating the Firmware via Network 0 Check that the unit is turned on, and the connection to the Internet is secured. 0 Turn off the controller component (PC etc.) connected to the network. 0 Stop any playing Internet radio, USB storage device, or server content.

1. Press SETUP on the remote controller.

2. Select "7. F/W Update" - "Update via NET" in order with

the Up/Down buttons on the remote controller and press ENTER. 0 You will not be able to select "Update via NET" if there is no firmware update.

3. Press ENTER with "Update" displayed to start the

update. 0 "Completed!" is displayed when the update is complete.

4. Press Í ON/STANDBY on the main unit to switch the

unit to standby. The process is completed and your firmware is updated to the latest version. 0 Do not use Í on the remote controller. If an Error Message is Displayed: When an error occurs, "¢-¢¢ Error!" is displayed on the display of the unit. ("¢" represents an alphanumeric character.) Check the following: 0 ¢-01, ¢-10: Cannot recognize Ethernet cable. Connect the Ethernet cable properly. 0 ¢-02, ¢-03, ¢-04, ¢-05, ¢-06, ¢-11, ¢-13, ¢-14, ¢-16, ¢-17, ¢-18, ¢-20, ¢-21: Internet connection error. Check the following: – Whether the router is turned on – Whether this unit and router are connected to the network Try to disconnect and then connect again the power to the unit and router. This may solve the problem. If you > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others Update via NET SN29403234A_TX-8250_En.book 36 ページ ２０１７年１０月１７日　火曜日　午後１時２９分37

are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the service status with your ISP provider. 0 Others: Disconnect then reconnect the power cord, then repeat from the beginning. Updating via USB 0 Prepare a 128 MB or larger USB storage device. FAT16 or FAT32 file system format. – Media inserted in a USB card reader may not be used for this function. – USB storage devices with security function are not supported. – USB hubs and USB devices with hub function are not supported. Do not connect these devices to the unit. 0 Delete any data stored on the USB storage device. 0 Turn off the controller component (PC etc.) connected to the network. 0 Stop any playing Internet radio, USB storage device, or server content. 0 Some USB storage devices may take long to load, may not be loaded correctly, or may not be correctly fed depending on the device or their content. 0 We will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device with this unit. Thank you for your understanding.

1. Connect the USB storage device to your PC.

2. Download the firmware file from the our website to your

PC and unzip. Firmware files are named in the following way: ONKRCV¢¢¢¢_¢¢¢¢¢¢¢¢¢¢¢¢.zip Unzip the file on your PC. The number of unzipped files and folders varies depending on the model.

3. Copy all unzipped files and folders to the root folder of

the USB storage device. 0 Make sure to copy the unzipped files.

4. Connect the USB storage device to the USB port on the

main unit. 0 If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it. 0 If the USB storage device has been partitioned, each section will be treated as an independent device.

5. Press SETUP on the remote controller.

6. Select "7. F/W Update" - "Update via USB" in order with

the Up/Down buttons on the remote controller and press ENTER. 0 You will not be able to select "Update via USB" if there is no firmware update.

7. Press ENTER with "Update" displayed to start the

update. 0 During the update, do not turn off, or disconnect then reconnect the USB storage device. 0 "Completed!" is displayed when the update is complete.

8. Disconnect the USB storage device from the main unit.

9. Press Í ON/STANDBY on the main unit to switch the

unit to standby. The process is completed and your firmware is updated to the latest version. 0 Do not use Í on the remote controller. If an Error Message is Displayed: When an error occurs, "¢-¢¢ Error!" is displayed on the display of the unit. ("¢" represents an alphanumeric character.) Check the following: 0 ¢-01, ¢-10: USB storage device not found. Check whether the USB storage device or USB cable is correctly inserted to the USB port of this unit. Connect the USB storage device to an external power source if it has its own power supply. 0 ¢-05, ¢-13, ¢-20, ¢-21: The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file. 0 Others: Disconnect then reconnect the power cord,

hen repeat from the beginning. > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup |Others Update via USB SN29403234A_TX-8250_En.book 37 ページ ２０１７年１０月１７日　火曜日　午後１時２９分38 Others Troubleshooting Before starting the procedure Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem isn't fixed after referring to "Troubleshooting", resetting the unit to the status at the time of shipment may solve the problem. Note that your settings will also be initialized when you reset, so we recommend that you note down your settings before doing the following. 0 This unit contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in. 0 We are not responsible for reparations for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly. If operation becomes unstable Try restarting the unit The issue may be fixed by restarting this unit. After switching this unit to standby, press and hold Í ON/ STANDBY on this unit for 5 or more seconds to restart the unit. (The settings in the unit are maintained.) If the issue is not fixed by restarting, try unplugging the power cords of the unit and connected devices, and then plugging them in again. Resetting the unit (this resets the unit settings to the default) If restarting the unit doesn't fix the problem, resetting the unit to the status at the time of shipment may solve the problem. Your settings will also be initialized when you reset, so note down your settings before doing the following.

1. While holding down TUNING MODE on the main unit,

2. The unit switches to standby and the settings are reset.

∫ Power Cannot turn on the unit 0 Make sure that the power cord is properly plugged into the wall outlet. 0 Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again. The unit turns off unexpectedly 0 The unit automatically switches to standby when the "3. Hardware" - "Auto Stby" setting in the Setup menu functions. 0 The protective circuit function may have been activated. If "CHECK SP WIRE" appears on the display, the speaker cables may be short-circuited. Make sure bare speaker wires are not touching each other or the back panel of the unit, then turn the unit on again. If "NG" is displayed, immediately unplug the power cord from the wall outlet and contact your dealer. 0 The protective circuit function may have been activated because the temperature of the unit rose abnormally. If this happens, then the power will continue to turn off after you have turned the unit on again. Make sure the unit has plenty of space for ventilation around it, wait for the unit to cool down sufficiently, and then try turning it on again.

WARNING: If smoke, smell or abnormal noise is produced

by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or customer support. ∫ Audio 0 Confirm that the connection between the output jack on the device and the input jack on this unit is correct. 0 Make sure that none of the connecting cables are bent, twisted, or damaged. 0 If the MUTE indicator on the display flashes, press MUTING on the remote controller to cancel muting. 0 While headphones are connected to the PHONES jack, > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others SN29403234A_TX-8250_En.book 38 ページ ２０１７年１０月１７日　火曜日　午後１時２９分> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

no sound is output from the speakers. No sound from a connected external device 0 Change the input selector on this unit to the position of the terminal to which the external device is connected. 0 Check the digital audio output setting on the connected component. On some game consoles, such as those that support DVD, the default setting is off. 0 Only PCM audio is supported for input through the DIGITAL IN OPTICAL/COAXIAL jacks. Set the audio output on the external device to output PCM. A speaker produces no sound 0 Make sure that the polarity of the speaker cables (+/-) is correct, and that no bare wires are in contact with the metal part of speaker terminals. 0 Make sure that the speaker cables have not shorted. 0 Make sure the speakers are connected correctly (P8). Noise can be heard 0 Using cable ties to bundle analog audio cables, power cords, speaker cables, etc. may degrade the audio performance, Do not bundle cords. 0 An audio cable may be picking up interference. Try repositioning your cables. Sound suddenly reduces 0 When the temperature inside the unit exceeds a certain temperature for extended periods, the volume may be reduced automatically to protect the circuits. ∫ AM/FM broadcasting Radio reception is poor or there is a lot of noise 0 Re-check the antenna connection. 0 Separate the antenna from speaker cables and the power cord. 0 Move the unit away from your TV or PC. 0 Passing cars and airplanes can cause interference. 0 Concrete walls weaken radio signals. 0 Listen to the station in mono. 0 When listening to an AM station, operating the remote controller may cause noise. 0 FM reception may become clearer if you use the antenna jack on the wall used for the TV. ∫ USB DAB adapter DAB cannot be select with the input selector 0 Check the connection of the USB DAB adapter again. 0 Try disconnecting and then reconnecting the USB DAB adapter. 0 Try restarting this unit. If the issue is not fixed by restarting, try unplugging the power cord of this unit, and then plugging it in again. ∫ The BLUETOOTH feature 0 Try plugging/unplugging the power of the unit and try turning on/off the BLUETOOTH wireless technology enabled device. Restarting the BLUETOOTH wireless technology enabled device may be effective. 0 The BLUETOOTH wireless technology enabled devices must support the A2DP profile. 0 Radio wave interference may occur in the vicinity of components, such as microwave ovens or cordless phones, which use radio waves in the 2.4 GHz range. This interference may render this unit unusable. 0 If there is a metallic object near the unit, BLUETOOTH connection may not be possible as the metal can effect on the radio waves. Cannot connect with this unit 0 Check that the BLUETOOTH function of the BLUETOOTH wireless technology enabled device is enabled. Music playback is unavailable on the unit even after successful BLUETOOTH connection 0 When the audio volume of your BLUETOOTH wireless technology enabled device is set low, the playback of audio may be unavailable. Turn up the volume on the BLUETOOTH wireless technology enabled device. 0 Some BLUETOOTH wireless technology enabled devices may be equipped with a Send/Receive selector switch. Select Send mode. 0 Depending on the characteristics or specifications of your BLUETOOTH wireless technology enabled device, playback on this unit may not be possible. Sound is interrupted 0 There may be a problem with the BLUETOOTH wireless technology enabled device. Check the information on the internet. The audio quality is poor after connection with a BLUETOOTH wireless technology enabled device 0 Reception is poor. Move the BLUETOOTH wireless technology enabled device closer to the unit or remove any obstacle between the BLUETOOTH wireless technology enabled device and this unit. ∫ Network Functions 0 If you cannot select a network service, it will become selectable when the network function is started. It may take about a minute to start up. 0 When NET is blinking, this unit is not properly connected to the home network. 0 Try plugging/unplugging the power supply of this unit and the router, and try rebooting the router. 0 If the desired wireless LAN router is not in the access point list, it may be set to hide SSID or the ANY connection may be off. Change the setting and try again. Cannot access the Internet radio 0 Certain network service or contents available through the unit may not be accessible in case the service provider SN29403234A_TX-8250_En.book 39 ページ ２０１７年１０月１７日　火曜日　午後１時２９分40 > Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others terminates its service. 0 Make sure that your modem and router are properly connected, and make sure they are both turned on. 0 Make sure that the LAN side port on the router is properly connected to this unit. 0 Make sure that connecting to Internet from other components is possible. If connecting is not possible, turn off all components connected to the network, wait for a while, and then turn on the components again. 0 If a specific radio station is unavailable for listening, make sure the registered URL is correct, or whether the format distributed from the radio station is supported by this unit. 0 Depending on ISP, setting the proxy server is necessary. 0 Make sure that the router and/or modem you are using is supported by your ISP. Cannot access the network server 0 This unit needs to be connected to the same router as the network server. 0 This unit is compatible with Windows Media

Player 11 or 12 network servers or NAS that are compatible with home network functionality. 0 You may need to make some settings on Windows Media

Player library can be played. Playback stops while listening to music files on the network server 0 Make sure the network server is compatible with this unit. 0 When the PC is serving as the network server, try quitting any application software other than the server software (Windows Media

Player 12 etc.). 0 If the PC is downloading or copying large files, the playback may be interrupted. ∫ USB storage device USB storage device is not displayed 0 Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit. 0 Disconnect the USB storage device from the unit, and then try reconnecting. 0 Performance of hard disks that receive power from the USB port of the unit is not guaranteed. 0 Depending on the type of format, the playback may not be performed normally. Check the type of the file formats that is supported. 0 USB storage devices with security functions may not be played. ∫ Wireless LAN Network 0 Try plugging/unplugging the power supply of wireless LAN router and the unit, check the wireless LAN router power-on status, and try reboot of the wireless LAN router. Cannot access wireless LAN network 0 The wireless LAN router setting may be switched to Manual. Return the setting to Auto. 0 Try the manual set-up. The connection may succeed. 0 When the wireless LAN router setting is at stealth mode (mode to hide the SSID key) or when ANY connection is off, the SSID is not displayed. Change the setting and try again. 0 Check that the setting of SSID and encryption (WEP, etc.) is correct. Make sure the network settings of the unit is properly set. 0 Connection to an SSID that includes multi-byte characters is not supported. Name the SSID of the wireless LAN router using single-byte alphanumeric characters only and try again. Connected to an SSID different to the SSID selected 0 Some wireless LAN routers allow you to set multiple SSIDs for one unit. If you use the automatic setting button on such a router, you may end up connecting with a different SSID from the SSID you wanted to connect to. Use the connection method requiring you to enter a password if this happens. Playback is interrupted and communication does not work 0 You may not receive radio waves due to bad radio wave conditions. Shorten the distance from the wireless LAN router or remove obstacles to improve visibility, and try again. Place the unit away from microwave ovens or other access points. It is recommended to place the wireless LAN router and the unit in the same room. 0 If there is a metallic object near the unit, wireless LAN connection may not be possible as the metal can effect on the radio wave. 0 When other wireless LAN devices are used near the unit, several issues such as interrupted playback and communication may occur. You can avoid these issues by changing the channel of your wireless LAN router. For instructions on changing channels, see the instruction manual provided with your wireless LAN router. 0 There may not be enough bandwidth available in the band for wireless LAN. Connect using an Ethernet cable. ∫ Remote Controller 0 Make sure that the batteries are installed with the correct polarity. 0 Install new batteries. Do not mix different types of batteries, or old and new batteries. 0 Make sure that the unit is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary. 0 If the unit is installed in a rack or cabinet with colored- glass doors or if the doors are closed, the remote controller may not work reliably. SN29403234A_TX-8250_En.book 40 ページ ２０１７年１０月１７日　火曜日　午後１時２９分> Before Start > Part Names > Install > Initial Setup > Playback Supplementary information | Advanced Setup | Others

∫ Display The display doesn't light 0 The display may go dim while the Dimmer is working. Press DIMMER to change the brightness level of the display. 0 The display is turned off when the Pure Audio listening mode is selected. ∫ Others Strange noises can be heard from the unit 0 If you have connected another unit to the same wall outlet as this unit, this noise may be an effect from the other unit. If the symptoms improve by unplugging the power cord of the other unit, use different wall outlets for this unit and the other unit. SN29403234A_TX-8250_En.book 41 ページ ２０１７年１０月１７日　火曜日　午後１時２９分42 General Specifications Amplifier (Audio) section Rated Output Power (IEC) 2 ch k 135 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD Dynamic Power (*) (*)IEC60268-Short-term maximum output power 180 W (3 ≠, Front) 160 W (4 ≠, Front) 100 W (8 ≠, Front) THD+N (Total Harmonic Distortion+Noise) 0.08% (20 Hz - 20,000 Hz, half power) Input Sensitivity and Impedance (1 kHz,100 W/8 ≠) 200 mV/50 k≠ (LINE (Unbalance))

87.5 MHz - 108.0 MHz, RDS

AM Tuning Frequency Range 522/530 kHz - 1611/1710 kHz Preset Channel

BLUETOOTH Section Communication system BLUETOOTH Specification version 4.1+LE Frequency band

Modulation method FHSS (Frequency Hopping Spread Spectrum) Compatible BLUETOOTH profiles A2DP 1.2 AVRCP 1.3 HOGP-Host (Client) HOGP-HID Device (Server) HID Service (HIDS) Supported Codecs SBC AAC Transmission range (A2DP) 20 Hz - 20 kHz (Sampling frequency 44.1 kHz) Maximum communication range Line of sight approx. 48y/15 m (*) (*)The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, cordless phone, reception sensitivity, antenna’s performance, operating system, software application, etc. General Power Supply AC 220-230 V, 50/60 Hz Power Consumption 220 W
