Product type	Quadcopter (drone) RTF
Brand	XciteRC
Model	Rocket 65XS 3D
Dimensions	Approx. 65 mm in diameter (micro size)
Weight	Approx. 25 g (with battery)
Battery	LiPo 1S, estimated capacity 150 mAh
Charging time	Approx. 40 minutes via included USB charger
Flight time	5 to 6 minutes
Remote control range	Approx. 25 meters
Frequency	2.4 GHz
Motors	Brushless or brushed electric motors? (unspecified, likely brushed)
Main functions	Hover, forward/backward/left/right movement, rotation, 360° flips and rolls, Headless mode, speed selection
Transmitter power supply	4 AA batteries (1.5 V) or NiMH rechargeable batteries
Recommended age	14 years and up (not a toy)
Area of use	Indoor, sufficiently large room without obstacles
Package contents	Pre-assembled drone, transmitter, LiPo battery, USB charger, spare blades, instruction manual
Maintenance and cleaning	Clean with a soft brush or compressed air; avoid chemical products
Safety	Read instructions; do not fly under influence; keep away from children; remove batteries after use
Spare parts and repairability	Parts available at retailer or online; repairs with original parts
Environment	Do not dispose of batteries with household waste; recycle at collection points

Frequently Asked Questions - Rocket 65XS 3D XciteRC

How to charge the battery of the Rocket 65XS 3D?

Use the included USB charger. Plug it into a USB port (PC or adapter). Connect the battery to the drone. The red LED lights up during charging and turns off when done. Charging takes about 40 minutes.

How to bind the drone to the remote control?

First turn on the drone (connect the battery), then turn on the transmitter. Move the throttle stick fully forward, then fully backward. A 'DI-DA-DO' melody sounds and the POWER LED stays on, indicating the binding is successful.

The drone does not take off, what to do?

Check that the drone battery is charged and the transmitter batteries are new. Make sure the drone is bound to the transmitter and the gyroscope is initialized (move throttle full then zero). If the problem persists, recalibrate the drone by moving both sticks to the lower right corner for a few seconds.

How to perform a flip or roll?

Fly at about 1.5 meters height. Briefly press the left button on the transmitter (a beep confirms activation). Then push the right stick in the desired direction (forward, backward, left or right) to perform a 360° flip or roll.

What is Headless mode and how to activate it?

Headless mode allows you to fly the drone always maintaining the same orientation relative to the pilot, even if the drone rotates. To activate it, press the corresponding button on the transmitter. The drone LEDs flash to indicate activation. Press again to deactivate.

How to adjust trim if the drone drifts?

If the drone spins on itself, use the yaw trim (left-right) on the transmitter. If it drifts forward or backward, use the pitch trim. Adjust gradually until a stable hover is achieved.

What is the flight time and how to know when the battery is low?

Flight time is about 5 to 6 minutes. When the battery is low, the drone slows down and controls become less responsive. Land immediately and recharge the battery.

Where to find spare parts for the Rocket 65XS 3D?

Spare parts are available at your local retailer or online at www.XciteRC.com. Go to the product page and click on the 'Spare parts' link.

What safety precautions should be followed?

Read the manual carefully. The drone is not a toy and is suitable for persons aged 14 and up. Do not fly under influence, near people, animals or obstacles. Always remove the battery after flight and store it on a non-flammable surface.

How to clean the drone after use?

Use a soft brush or lint-free cloth to remove dust. For stubborn dirt, slightly dampen the cloth with water and a little mild soap. Never use harsh chemicals. Make sure the electronics stay dry.

USER MANUAL Rocket 65XS 3D XciteRC

• Cd = Cadmium
• Pb = Blei
• Hg = Quecksilber
• Li = Lithium

DE

EN

Summary

Intended Usage 13
Scope of delivery 13
Required accessories 13
Explanation of Symbols 13
Warnings and safety notes. 13
Handling precautions for batteries or rechargeable batteries: 15
The remote control system 16
Transmitter 16
Battery charging 16
Getting started 17
Blades arrangement 18
RC functions 18
Trim 18
Speed and 360 degree flips and rolls. 19
Landing: 19
Maintenance. 19
Troubleshooting 20
Repairs, Spare Parts. 20
Environmental Protection Notes 21
Notes on battery law: 21
Spare Parts 32
Declaration of conformity 33

Imprint

This manual is a publication of

All rights including translation. Reproductions of any kind, such as photocopying, microfilming or storage in electronic data processing equipment, without the written permission of the publisher. Reproduction in whole or part, is prohibited.

This manual corresponds to the technical status of the product at time of printing, changes in technology and equipment reserved. Text and illustrations of this manual, no claims can be derived.

NO LIABILITY FOR PRINTING ERROR! SUBJECT TO CHANGE!

The latest version of this manual can be found on the Internet at www.XciteRC.com

© Copyright 2015 by XciteRC-Modellbau GmbH & Co. KG

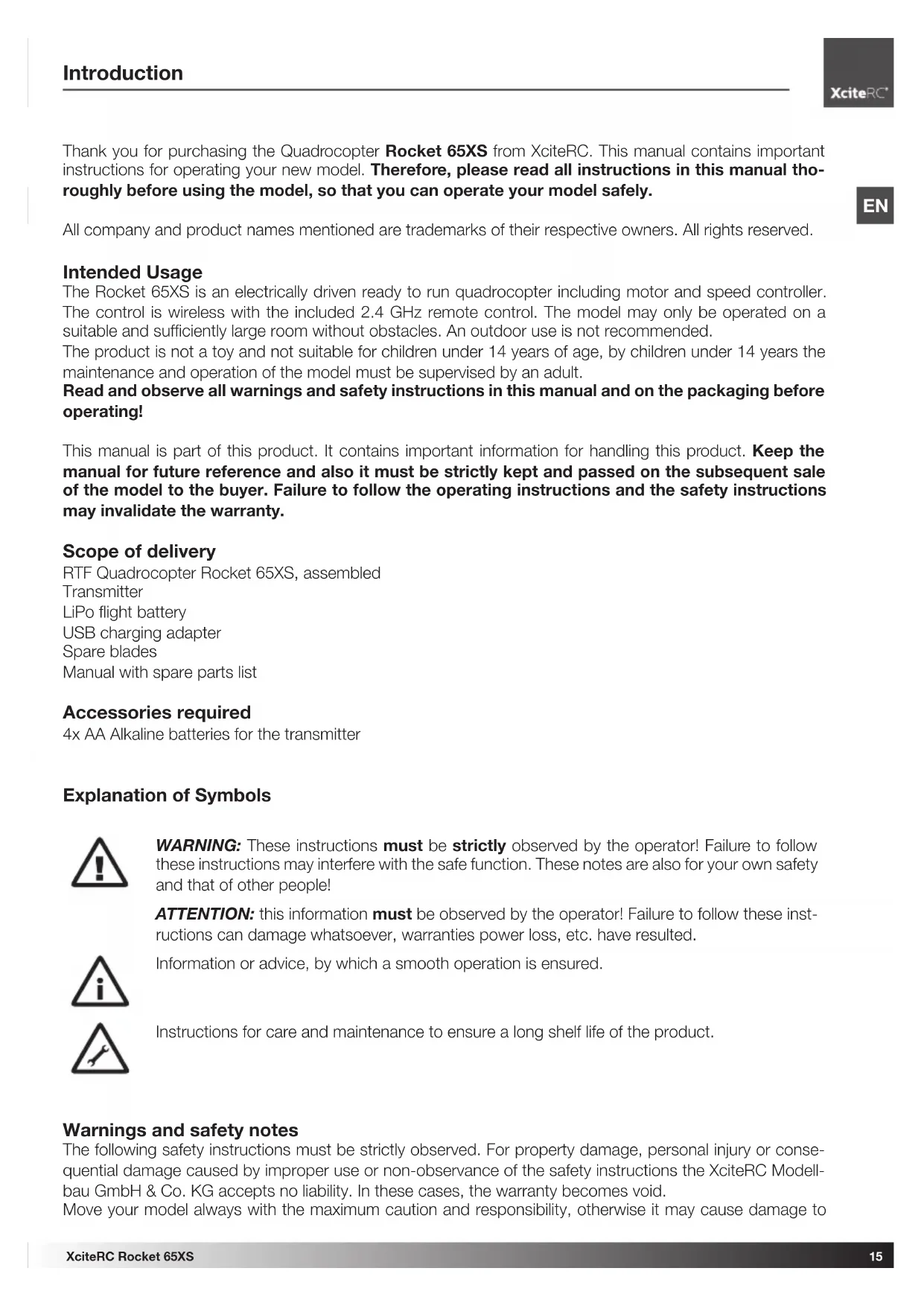

Thank you for purchasing the Quadrocopter Rocket 65XS from XciteRC. This manual contains important instructions for operating your new model. Therefore, please read all instructions in this manual thoroughly before using the model, so that you can operate your model safely.

All company and product names mentioned are trademarks of their respective owners. All rights reserved.

Intended Usage

The Rocket 65XS is an electrically driven ready to run quadrocopter including motor and speed controller.

The control is wireless with the included 2.4 GHz remote control. The model may only be operated on a suitable and sufficiently large room without obstacles. An outdoor use is not recommended.

The product is not a toy and not suitable for children under 14 years of age, by children under 14 years the maintenance and operation of the model must be supervised by an adult.

Read and observe all warnings and safety instructions in this manual and on the packaging before operating!

This manual is part of this product. It contains important information for handling this product. Keep the manual for future reference and also it must be strictly kept and passed on the subsequent sale of the model to the buyer. Failure to follow the operating instructions and the safety instructions may invalidate the warranty.

Scope of delivery

RTF Quadrocopter Rocket 65XS, assembled

Transmitter

LiPo flight battery

USB charging adapter

Spare blades

Manual with spare parts list

Accessories required

4x AA Alkaline batteries for the transmitter

Explanation of Symbols

WARNING: These instructions must be strictly observed by the operator! Failure to follow these instructions may interfere with the safe function. These notes are also for your own safety and that of other people!

ATTENTION: this information must be observed by the operator! Failure to follow these instructions can damage whatsoever, warranties power loss, etc. have resulted.

Information or advice, by which a smooth operation is ensured.

Instructions for care and maintenance to ensure a long shelf life of the product.

Warnings and safety notes

The following safety instructions must be strictly observed. For property damage, personal injury or consequential damage caused by improper use or non-observance of the safety instructions the XciteRC Modellbau GmbH & Co. KG accepts no liability. In these cases, the warranty becomes void.

Move your model always with the maximum caution and responsibility, otherwise it may cause damage to

EN

other property or even physical injury. We therefore recommend to secure the operation with a third party liability insurance. If you already have a liability insurance policy, check before start-up the model, whether radio-controlled models are covered by a corresponding amount.

The product contains small parts that can cause injury if swallowed, and must therefore be kept away from children under 3 years.
- The product is not a toy and not suitable for children under 14 years.
- The operation of radio-controlled models requires practice. In the beginning, operate your new model therefore with extra caution and familiarize yourself with the response to your commands.
WARNING: The safe operation requires concentration and quick reaction. Do not operate your model if you are tired or under the influence of drugs or alcohol - risk of accident and injury!
WARNING: The control of this model is done via radio signals, which can be influenced by the environment. This may cause a suddenly loss of control of your model. The model may only be operated on a suitable and sufficiently large room without obstacles. An outdoor use is not recommended.
- Operate your model therefore only with sufficient light within line of sight, away from cars, traffic and people - risk of accident and injury!
- ATTENTION: due to the small size and weight, the model should not be exposed to drafts or a strong winds. Avoid flights near open windows or air-outlets of an air-conditioning system - crash hazard!
- Do not operate your model during a thunder storm or near radio towers or power lines.
- Radio remote controlled models may not be operated at any public space by implication (streets, roads, squares or lakes). Before operation please ask where the operation is allowed. This also applies to private property, here the consent of the owner is required.
WARNING: Keep your fingers or loose clothing or hair away from the rotating parts or the propeller / rotor unit - risk of injury!
- Always switch on the transmitter first, then the model. NOTE: during the operation of the transmitter must remain switched on!
- Never operate your model with low transmitter batteries, because this reduces the range of your model dramatically.
- If the drive battery is empty, the model first slows down until it no longer reacts properly to your commands. Stop the operation and change the drive battery or charge it again.
- Pay attention to the instructions and warnings for this and any other equipment used by you (chargers, rechargeable battery packs, etc.).
WARNING: Keep packaging material, small parts, chemicals and electrical components away from children - risk of accident and injury!
- The model and the transmitter may be neither get humid nor wet, especially the electronic components (receiver, speed controller, servo) and, if used, lithium batteries, are not waterproof! The model may not be

used in the rain (or heavy fog), do not drive in wet grass or through puddles or snow. WARNING: Fire or explosion due to moisture in lithium batteries!

• Plastic parts (eg. fuselage or main blades) is less flexible and can break more easily at cold temperatures (below 10^ ).
• The modification of the model is not permitted for safety and CE approval regulations, which applies in particular to the transmitter, receiver and speed controller. Maintenance or repairs using original replacement parts are excluded.
  After use, first turn off the model and then the transmitter.
  WARNING: remove the drive battery from the model and transmitter after use. Store the model never with built-in battery. Fire hazard!
• Store batteries separately on a non-combustible surface.
• The drive components (motor and speed controller) or the car battery may become hot during operation.

WARNING: Risk of burns! Let these components cool down completely after the operation (and before each battery change)!

Operation of the model is performed solely at the risk of the operator. Only a careful and deliberate operation protects against physical injury and damage to property.

Handling precautions for batteries or rechargeable batteries:

• Keep batteries away from children! Never let batteries unattended, as they can be swallowed by children or pets!
• Use only the recommended or equivalent type of batteries / rechargeable batteries.

WARNING: Do not expose batteries / rechargeable batteries to heat or throw into fire - fire or explosion hazard!

WARNING: Insert batteries / rechargeable batteries with the correct polarity, no short-circuiting - or explosion hazard!

• If possible, always replace all batteries at the same time, never use new and used batteries and batteries with different charge levels simultaneously.

WARNING: Do not use defective or damaged batteries or rechargeable batteries - fire hazard! of chemical burns on contact with skin, use protective gloves!

• WARNING: Do not attempt to recharge non-rechargeable batteries in a charger - fire or explosion hazard!

• Remove the rechargeable batteries from the device before charging.

WARNING: Charging may take place only with a suitable charger for the type of battery on a fire-surface and under constant adult supervision - fire hazard!

• Immediately remove used batteries from the devices.

NOTE: NiMH batteries must be checked at least every 3 months and, if necessary, recharged, other because of the typic self-discharge they may get deep discharged and damaged! Therefore, better so-called RTU batteries with a very low self-discharge.

NOTE: note the specified storage voltage for lithium batteries. Is a completely full or empty lithium battery time stored for a longer time, it can be damaged.

The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use, therefore, the warranty is excluded due to incorrect charging or discharging.

EN

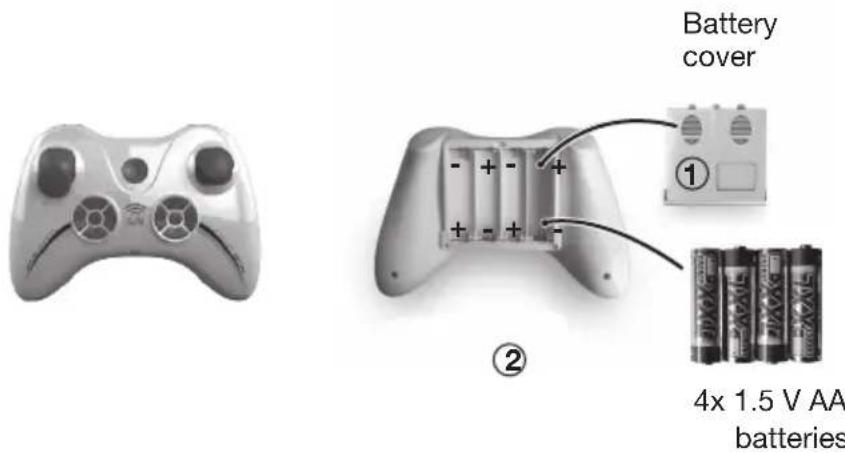

The remote control system

Here you get an overview of the remote control system of your XciteRC Rocket 65XS and its various features and settings. Before the first flight, you should absolutely have read and understood all these functions and settings.

• Do make sure that the transmitter is turned off - POWER-LED off.
• Now open the battery compartment cover on the backside of the transmitter. Remove the srew and slide the cover down (1).
• Insert four AA batteries into the battery compartment of the transmitter (2). Pay attention to the correct polarity!

• Close the battery compartment cover.
• During flight the POWER LED must lit. 1 ATTENTION: if the POWER LED flashes or does not light at all, the model may not started - crash hazard! Change transmitter batteries immediately.
  WARNING: check the POWER LED also during operation. If the POWER LED starts to blink, stop operation, switch the model off and replace the transmitter batteries - crash hazard!
• ATTENTION: The maximum range of the remote control system is about 25 meters, do not fly farther away under any circumstances! If the XciteRC Rocket 65XS gets out of range, the fail-safe function is activated and turns off the motor.

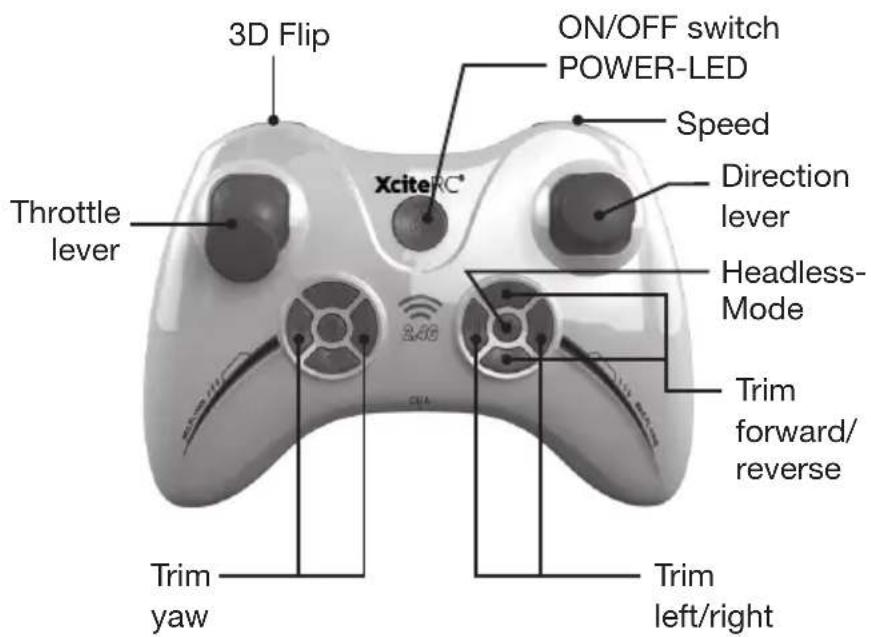

Transmitter

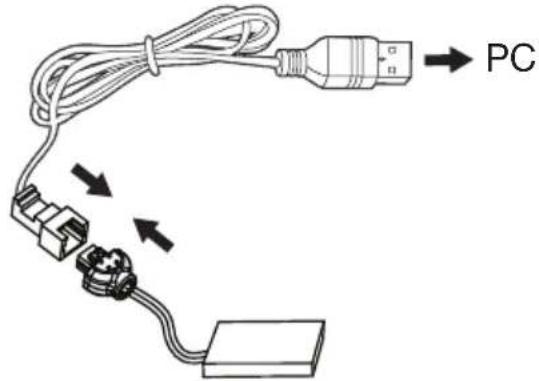

Battery charging

WARNING: Be sure to read all safety instructions regarding the use of rechargeable batteries. Charging may take place only with the supplied charger on a fireproof surface and under constant adult supervision - fire or explosion hazard!

• Connect the USB cable to a PC or appropriate power supply. The red LED lits.

• Connect the Quadrocopter battery with the charger.

WARNING: The Quadrocopter battery is polarized. Check the side channels. Do not use force - fire or explosion hazard!

• The red LED goes out to indicate charging. Charging time is about 40 minutes. If the battery is fully charged, the red LED lights up again.
• Unplug the battery and the USB cable.

The flight time of the Quadrocopter is about 5-6 minutes.

Getting started

Before you begin please check:

WARNING: Only start with a sufficiently full transmitter batteries (rechargeable batteries) and fully charged drive battery - crash hazard!
- Check all parts for damage and dirt. Replace any damaged parts and clean the model, because dirt increases the weight and therefore can degrade the flying qualities.

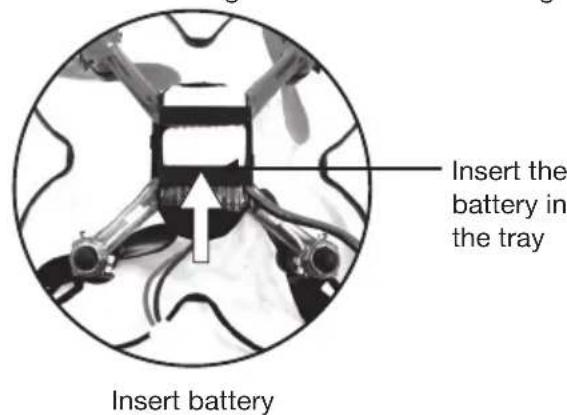

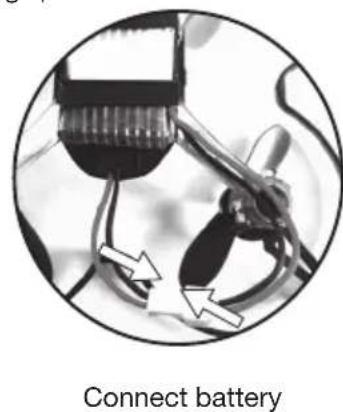

• Connect the battery to the Quadrocopter, the green LED's starts flashing.
  WARNING: The battery connector is polarized. Check the side channels. Do not use force - fire or explosion hazard!
• Switch on the transmitter. The POWER LED flashes.

• Place the Quadrocopter on a leveled surface in the starting position and move the left throttle lever all the way up and then back in the lowest position. This safety circuit prevents the rotor may start after turning ON the Quadrocopter

• The model is ready to fly as soon as the „DI-DA-DO“ melody is heard. The POWER LED of the transmitter lights up solid, the green LED's of the model stops flashing and lights up solid.

• Check the motor and servo functions.
• If the flight battery runs low, the motor speed is reduced and the Quadrocopter sinks automatically. Find a suitable place to land safely. Charge the flight battery again.

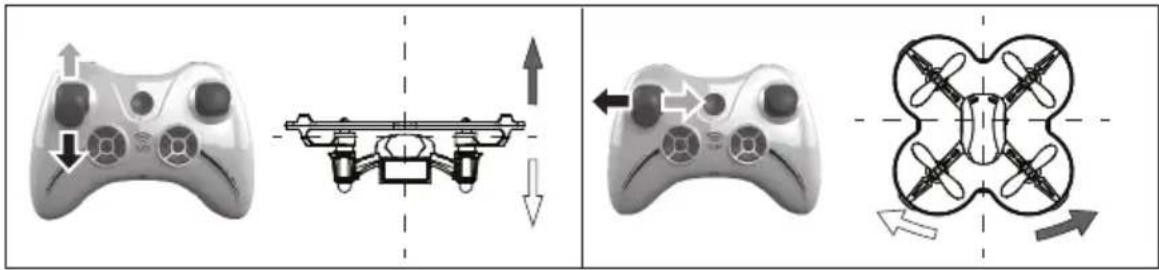

RC functions

Up - down

Move the throttle lever forward, the motor revs up and the Quadrocopter rises. Move the throttle lever backwards to sink again.

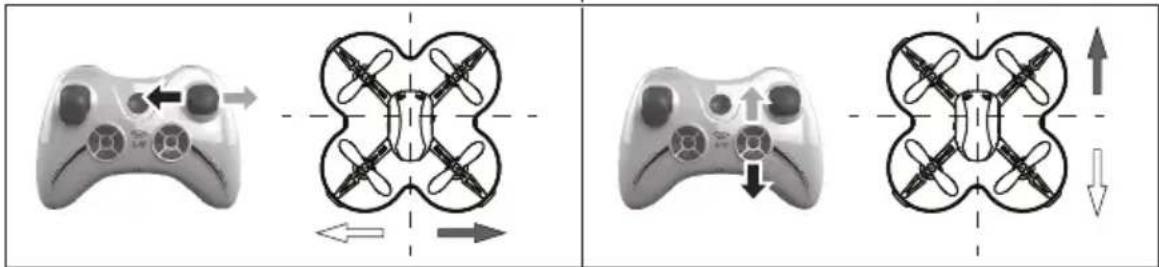

Left - Right

Move the direction lever to the left, the Quadrocopter turns to the left. Move it to the right to turn the Quadrocopter to the right.

Left - Right

Move the direction lever to the left, the Quadrocopter turns to the left. Move it to the right to turn the Quadrocopter to the right.

Forward - reverse

Move the direction lever towards you, the Quadrocopter will move forward. Move the throttle stick back to reverse.

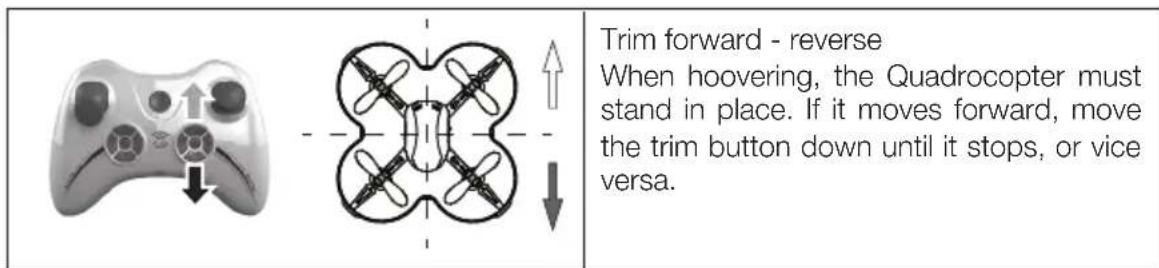

Trim

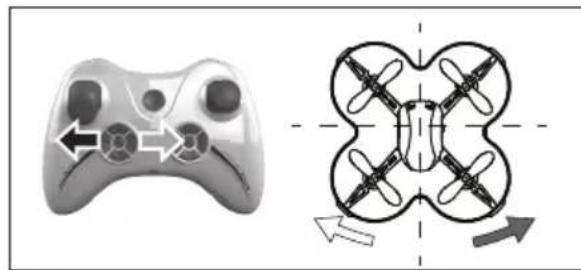

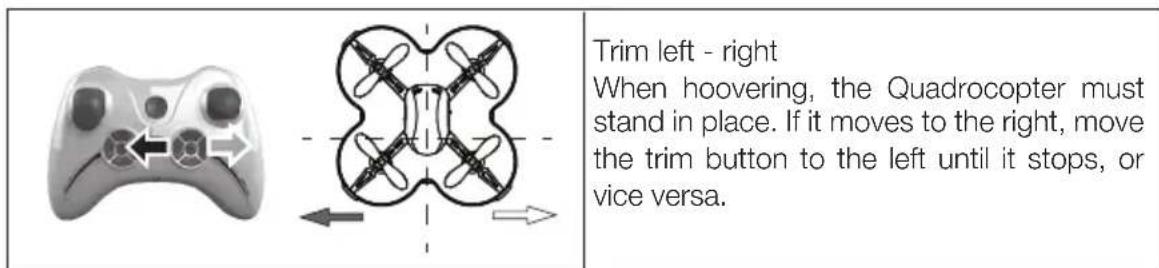

Trim left - right
When hoovering, the Quadrocopter must stand in place. If it moves to the right, move the trim button to the left until it stops, or vice versa.

Speed and 360 degree flips and rolls

Speed: press the right transmitter button during the flight and the Quadro-copter becomes faster. Press again to return to slower speed. For acoustic confirmation the transmitter beeps twice. Press again to return to slower flight - the transmitter beeps once.

360 degree flips and rolls

Once you are familiar with the aforementioned maneuvers, you can venture to flips and rolls. Fly at least 1.5m high, and then press the left transmitter button. A sound indicates that the mode is active. Now move the right control lever to the desired direction and the model rolls once around its own axis.

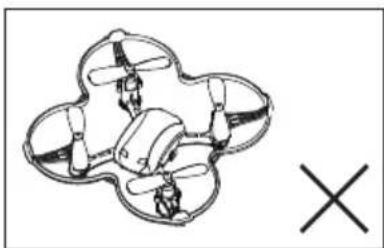

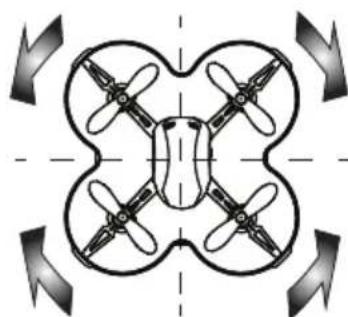

Headless mode

The Headless mode is ideal for beginners to fly the model safely. In headless mode, the Quadrocopter always flys from the pilot's view. No matter how the model is in the air, the front is always away from the pilot, left and right does not swap when the model is flying towards the pilot.

The Headless mode is activated by pressing the headless mode button, the LED's in the arms starts flashing to indicate the function.

As long as the LED's flash, the Headless mode is active. Press the control lever again to deactivate the headless mode. The function is deactivated automatically when the throttle stick is set to 0 for more than 5 seconds.

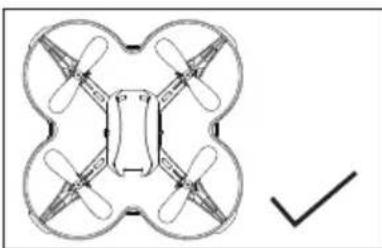

i Note: to make sure that the headless mode works correctly, the nose of the model must show away from the pilot at power on!

forward

backward

EN

Landing:

• Carefully push the left throttle lever rearward. Try to land „smooth“ without damaging the Quadrocopter.
  NOTE: if the flight battery runs empty, the Quadrocopter does not respond accurately to your commands, the flight is unstable. In this case land immediately.
• Switch of the Quadrocopter and then the transmitter.

WARNING: the motor of the XciteRC Rocket 65XS may get very hot during operation. Allow to cool down minimum 20 minutes before the next start to avoid damage. Fire hazard!

Model calibration

If the quadcopter flies no longer stable, e.g. after a serious crash, it may be necessary to calibrate it again. Proceed as follows:

• Turn the model on as usual, then move throttle lever once all the way up and down to bind the model.
• Move and hold both control levers in the lower right corner. After a few seconds the models LED's will start flashing to indicate that the calibration has been successfully completed.

Maintenance

To have fun with your model over a long period, occasional service work is required to get your model in good condition and to minimize wear.

• Remove dirt or dust depending with compressed air or a soft brush after each use. For stubborn dirt, a harder brush or a toothbrush can be used.
• To clean the body/fuselage no chemical cleaners such as thinners may used, as this damage the plastic of the body/fuselage. Normally a piece of soft cloth is ok, stubborn dirt can be removed with washing-up liquid.
• Check the tightness of all screws and tighten if necessary.
• Also check all connections, cables and power battery / rechargeable battery for damage.

WARNING: Damaged batteries or rechargeable batteries must not be used again and must be disposed of immediately - fire hazard! Please note the disposal notes at the end of this manual.
- Check the model for worn, broken or jammed parts and gears and repair if necessary.
WARNING: remove the batteries / rechargeable batteries of the transmitter and model when not in use - fire hazard!

Troubleshooting

Problem Possible	Cause Corrective Action
Rotor don't move ON/OFF switch is OFF Weak Quadrocopter battery Transmitter - model not bound	Switch ON Quadrocopter Re-charge battery Rebind: first switch on the model, then the transmitter
Rotor stops suddenly, Quadrocopper chrashes	Weak Quadrocopter battery Weak transmitter battery	Re-charge battery Change transmitter batteries
The Quadrocopter does not react to the remote control. Loss of control.	Gyro initialisation failure Another radio controlled device using the same channel Transmitter - model not bound Gyro initialisation neccessary	Place the model on a flat surface when switching on Switch off another/own device or move to another spot Rebind: first switch on the model, then the transmitter Re-calibrate the model: see chapter mo-del calibration

Repairs, Spare Parts

Normal wear and defective parts that result from an accident, are excluded from the guarantee. These include in particular:

For car models: bald tires, worn parts and drive gears, or bent / broken suspension, chassis or bodywork

For ship models: damaged or broken propellers, torn superstructure

For airplanes: damage due to improper transportation or crash

If you find a part that is defective in material or workmanship right after opening the package, return - before you used it - to your dealer or directly to us and we will send you a replacement.

For the Rocket 65XS some parts are available as spares. In case of problems or questions, please contact your dealer or:

XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Goppingen, Phone [phone]

Email: [e-mail]

Spare parts for the XciteRC Rocket 65XS you may order in your local hobby shop or online at http://www.XciteRC.com/

Environmental Protection Notes

The symbol of the crossed out dust bin on the product or packaging indicates that this product must be disposed of separately from normal household waste. In order to avoid harmful effects on the environment and human health in the disposal of electrical and electronic equipment and the re-use or recycling are possible. You have the opportunity to submit electrical and electronic

equipment free of charge at an appropriate collecting point in your area. Please check with your city or town across the available depot. You also have the option to return old electrical and electronic equipment which has been purchased from us. We will then perform a proper recycling or reuse.

Possibly contained batteries must be removed from the product and disposed of at the appropriate collecting point.

EN

Notes on battery law:

According to the German Battery Act (BattG) the one who sells batteries (and accumulators etc.) or devices containing batteries, we are obliged to draw your attention to the following:

Batteries and rechargeable batteries should not be disposed of with household waste but you are legally obliged to return used batteries. Batteries can contain contaminants that could harm the environment or your health if improperly stored or disposed of. Batteries also contain important raw materials such as iron, zinc, manganese or nickel and can be recycled.

You can send us back the batteries after use either sufficient postage:

returned free of charge or in close proximity (eg in trade or municipal collection). The levy is limited to points of sale to end-users for the disposal of such waste batteries and customary amounts, which the distributor as new batteries in his range or has done.

Batteries containing pollutants are marked with a sign, a crossed-out rubbish bin, and the chemical symbol of the pollutant-heavy metal.

This crossed-out bin means that you must not dispose of batteries with household waste.

Among these characters, see also the following symbols have the following meanings:

Cd

Hg

Pb

Li-Po

• Cd = cadmium
• Pb = plumbium
  Hg = mercury
• Li = lithium

EN

FR

Sommaire

Marche avant/Marche arrriere

EN The XciteRC Modellbau GmbH & Co. KG declare that this product complies with the essential requirements and other relevant regulations of the directives R&TTE 1999/5/EC and RoHS 2011/65/EC.

The detailed Declaration of Conformity can be found at www.XciteRC.com at the respective product link Declaration of Conformity or via E-mail: [e-mail].
