Travel Crib Light - Baby bed BabyBjörn - Free user manual and instructions

Technical specifications	Folded dimensions: 49 x 60 x 14 cm, Unfolded dimensions: 112 x 64 x 64 cm, Weight: 5 kg
Materials	Polyester fabric, aluminum frame
Usage	Easy to assemble and disassemble, ideal for travel, suitable for babies from 0 to 3 years
Maintenance	Machine washable cover at 40C, clean the frame with a damp cloth
Safety	Complies with EN 716 safety standards, mattress included, no sharp edges
General information	Easy to carry thanks to its light weight, carrying bag included, compact design

Frequently Asked Questions - Travel Crib Light BabyBjörn

How do I assemble the BabyBjrn Travel Crib Light?

To assemble the crib, unfold the sides by pulling on the corners. Make sure the support bars are properly in place. Then, place the mattress inside the crib.

How do I disassemble the BabyBjrn Travel Crib Light?

To disassemble the crib, first remove the mattress, then fold the sides by pressing the release buttons located on each corner. Once folded, store it in its carrying bag.

What is the maximum recommended weight for the BabyBjrn Travel Crib Light?

The maximum recommended weight for the crib is 15 kg.

Is the mattress included with the BabyBjrn Travel Crib Light?

Yes, the mattress is included with the BabyBjrn Travel Crib Light.

How do I clean the BabyBjrn Travel Crib Light?

The fabric of the crib can be cleaned with a damp cloth. For tougher stains, use a mild cleaner. Do not machine wash.

Is the BabyBjrn Travel Crib Light easy to carry?

Yes, the crib is lightweight and folds easily, making it very convenient for transport. It comes with a carrying bag.

At what age can the BabyBjrn Travel Crib Light be used?

The crib can be used from birth up to about 3 years, or until the child can stand up on their own.

Does the BabyBjrn Travel Crib Light meet safety standards?

Yes, the crib complies with current safety standards for children's beds.

Can standard sheets be used with the BabyBjrn Travel Crib Light?

It is recommended to use sheets specially designed for the BabyBjrn Travel Crib Light to ensure a perfect fit.

Where can I buy replacement parts for the BabyBjrn Travel Crib Light?

You can buy replacement parts directly from the official BabyBjrn website or authorized retailers.

USER MANUAL Travel Crib Light BabyBjörn

OWNER'S MANUAL GUIDE DE L'UTILISATEUR

BABYBJÖRN PLAY YARD LIGHT

PARC BÉBÉ LIGHT BABYBJÖRN

IMPORTANT!

Please read all instructions before assembly and use of product.

Keep instructions for future use.

IMPORTANT!

Congratulations on choosing the BABYBJÖRN Play Yard, which is a safe, practical and stable play yard that helps ensure that your child will play securely and comfortably. The play yard can be used for newborns and children up to around three years of age.

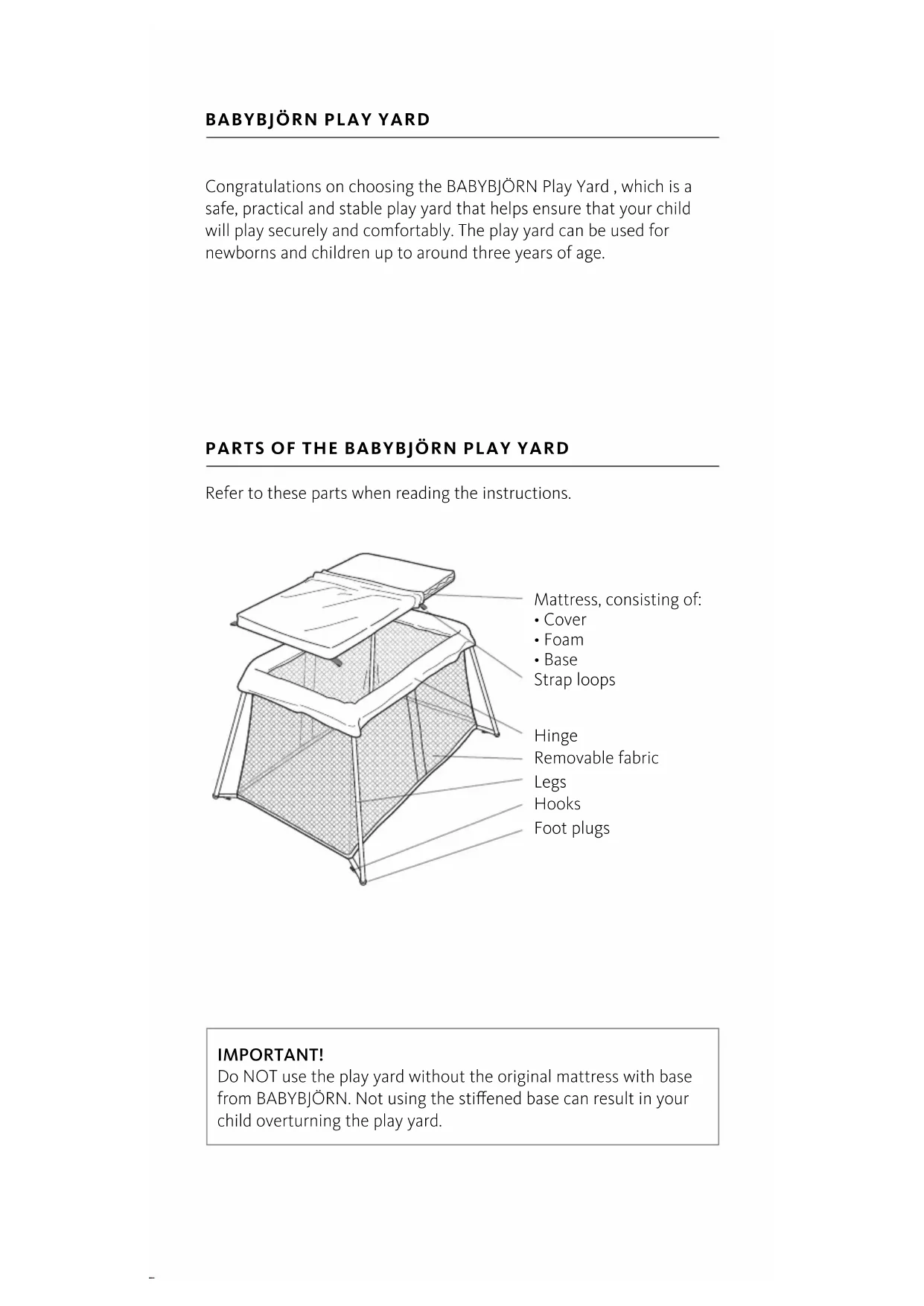

PARTS OF THE BABYBJÖRN PLAY YARD

Refer to these parts when reading the instructions.

Mattress, consisting of:

Cover
Foam
- Base
Strap loops

Hinge

Removable fabric

Legs

Hooks

Foot plugs

IMPORTANT!

Do NOT use the play yard without the original mattress with base from BABYBJÖRN. Not using the stiffened base can result in your child overturning the play yard.

1. Open the bag. Lift out the play yard.

Hold the two short sides.
Turn the product so its legs are towards the floor and unfold it with one clear movement so that the legs unfold.

1. Make sure that each leg is securely in place.

2. Place the mattress, base down, inside the play yard. Pull the four red strap loops on the underside of the mattress cover through the holes in the bottom of the play yard. Fasten each loop to a red hook.

TECHNICAL INFORMATION

• Weight: 6 kg/13 lb (including case). Wooden leg version: 5,5 kg /12 lb
• Height/length/width when transported: 49 × 60 × 14 cm / 19 × 23.5 × 5.5 in
• Height/length/width when assembled: 82 × 112 × 64 cm / 32 × 44 × 24 in
• Mattress: 60 × 105 cm/23.5 × 41 in
  Fabric: 100% polyester
• Bottom surface of mattress cover: 100% polyester
• Top surface of mattress cover: 50% polyester, 50% polyurethane (PU)

• Babybjörn Play Yard is Oeko-Tex Standard 100, product class 1 - approved for baby products.

• Release the strap loops holding the mattress in place. Remove the mattress from the play yard. Fold up the mattress with the base and place in the bag.

Release one leg at a time by pulling the legs out. PULL!

1. Once released, fold the legs down and lay them diagonally. The legs shall preferably be placed in a certain order, illustrated below.

Fold up the play yard. Place the play yard in the bag between the folded mattress.

1. To wash the play yard, remove the fabric by opening the four zippers on each side of the upper edge.

2. Pull out each foot plug and release the fabric from the legs.

WASHING INSTRUCTIONS

Fabric: Machine wash in warm water. Do not tumble dry. The play yard should be assembled when replacing the fabric. Reinsert the foot plugs and then close the zippers.

Mattress cover: Machine wash in hot water.

Mattress foam: Do not machine wash.

IMPORTANT! After washing, please ensure that all four zippers are completely closed and that all 4 foot plugs are fastened before use.

If you have questions or if there is anything you do not understand, call BabyBjörn Customer Service at 866-424-0200.

WARNING!

Failure to follow these warnings and the instructions could result in serious injury or death.

• Do NOT use the product without the original mattress with base from BABYBJÖRN.
• Not using the stiffened base can result in your child overturning the product.
• Do not use more than one mattress in the play yard.
  Always provide the supervision necessary for the continued safety of your child. When in use, never leave your child unattended.
• Discontinue use of the product when child is able to climb out or reaches the height of 35 in. (890mm).
• When child is able to pull to standing position, remove bumper pads, large toys, and other objects that could serve as steps for climbing out.
• Do NOT use the product if it is not correctly assembled: all of the legs must be locked in the extended position, all four zippers closed and the mattress with the base down must be firmly against the bottom of the product. Check all fittings regularly for security.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their back to sleep, unless otherwise advised by your physician.
  Not intended for unsupervised sleep.
• Strings can cause strangulation! Do NOT place items with a string around a child's neck such as hood strings or pacifier cords. Never suspend strings over product or attach strings to toys.
• Do NOT place product near window where cords from blinds or drapes can strangle a child.
• Do NOT let the child play with the product when it is folded up, or if the fabric has been removed.
• Never use plastic shipping bags or other plastic film as mattress covers. Not sold and intended for that purpose, they can cause suffocation.

• Do NOT use a water mattress with this product.

• The product, including side rails, must be fully erected prior to use.
  After raising side, make sure latches are secure.

• Child can become entrapped and die when improvised netting or covers are placed on top of a product. Never add such items to confine child in product.

Infants can suffocate

• in gaps between a mattress too small or too thick and product sides.
  on soft bedding.

NEVER add a mattress, pillow, comforter, or padding.

IMPORTANT!

Check this product for damaged hardware, loose joints, missing parts, or sharp edges before assembly and periodically during use. Do NOT use if any parts are missing, damaged, or broken. Contact BabyBjörn for replacement parts and instructions if needed. Never substitute parts.

BABYBJÖRN warrants to the original consumer purchaser that this product will be free from defects resulting from material, design or workmanship for two (2) years from the original date of purchase.

If any defect is discovered within six (6) months from the date of purchase, we ask you to call the retailer where the product was purchased, to arrange for the replacement of the defective product. If this is not possible, please contact BabyBjorn INC, following the instructions below.

If any defect is discovered after six (6) months and within two (2) years from the date of purchase, we ask you to call BabyBjorn INC at 866-424-0200 You will be given a return authorization number and asked to send us the defective product, postage prepaid, along with proof of purchase. Please send the product to: BabyBjorn Inc. 1270 Broadway Suite 508, NY 10001.

If BabyBjorn determines that the product is defective, BabyBjorn will either repair or replace the product and return it to you, all at BabyBjorn's expense.

This warranty applies only to defective original material, or to defects arising from faulty workmanship. The warranty does not apply to defects resulting from normal wear and tear, product misuse, after market product alterations, or failure to follow use and care instructions supplied with the product.

The warranty detailed above shall be in lieu of any and all other warranties. All other warranties, including implied warranties of merchantability and fitness for a particular purpose are hereby expressly disclaimed.

GARANTIE EXPLICITE DE 2 ANS

The Parallel Line Design is a sign of a genuine BABYBJÖRN product.

The mark BABYBJÖRN is protected by trademark registration TMA328091 and 839628.

This product is protected by design registrations 136639 and 168186.

Play Yard Light (art. 040) © BabyBjörn AB, 2013-2018.

BabyBjorn AB, 2018.

For more information, please contact [e-mail]

BabyBjorn AB, Kulltorpsvagen 49, SE-333 74 Bredaryd, Sweden.

www.babybjorn.com
