RE355 - Wifi repeater TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	RE355
Product Type	WiFi Repeater
Dimensions (L x W x H)	82 x 68 x 32 mm
Weight	120 g
Power Supply	100-240 V AC, 50/60 Hz via power outlet
Power Consumption	~5 W (estimated)
WiFi Frequencies	2.4 GHz and 5 GHz
Maximum Speed	Up to 1200 Mbps (300 Mbps 2.4 GHz + 867 Mbps 5 GHz)
Ethernet Port	1 RJ45 port 10/100/1000 Mbps
WPS Button	Yes, for quick setup
Main Features	WiFi extension, access point mode, compatibility with all routers, LED signal indicator
Configuration Methods	TP-Link Tether app or web browser (http://tplinkrepeater.net)
WiFi Security	WPA/WPA2, WPA-PSK/WPA2-PSK, AES encryption
WiFi Standards	IEEE 802.11a/b/g/n/ac
Operating Temperature	0 °C to 40 °C
Operating Humidity	10% to 90% (non-condensing)
Maintenance and Cleaning	Clean with a dry cloth. Do not use liquids or abrasive cleaners.
Safety	Keep away from water, fire, and moisture. Do not disassemble. Unplug during storms.
Spare Parts and Repairability	No detachable parts. Device not user-serviceable. 3-year warranty.
General Information	Complies with EU directives 2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU. CE marking.

Frequently Asked Questions - RE355 TP-LINK

How to access the repeater's configuration interface?

Connect to the repeater's WiFi network (e.g., TP-Link_Extender) or via Ethernet, then open a browser and enter http://tplinkrepeater.net or http://192.168.0.254. Create a password to log in.

What to do if I cannot access the configuration page?

1) Check that your computer is properly connected to the repeater (WiFi or Ethernet). 2) Make sure your computer obtains an IP address automatically. 3) Use the default IP address 192.168.0.254. 4) If the repeater is already connected to the router, check the router's DHCP client list to find the assigned IP address. 5) As a last resort, reset the repeater.

How to reset the repeater to factory settings?

Press and hold the RESET button for about 10 seconds until all LEDs briefly turn off, then release. All settings will be erased.

What is the difference between repeater mode and access point mode?

Repeater mode extends the existing WiFi signal wirelessly. Access point mode converts a wired Ethernet connection into a WiFi network. The RE355 can operate in both modes.

How to optimize the repeater's placement for better signal?

Place the repeater halfway between your router and the area to cover, in a wall outlet. Use the LED signal indicator to find the best location.

Can I use the repeater with any router?

Yes, the RE355 is compatible with all standard WiFi routers and internet boxes. It works with 802.11 a/b/g/n/ac standards.

How to connect a wired device (TV, console) to the WiFi network via the repeater?

If your repeater has an Ethernet port, you can use it in WiFi client mode. Connect the repeater to the router wirelessly, then plug your device (TV, console) into the repeater via an Ethernet cable. The device will access the WiFi network.

Does the WiFi password change after configuration?

During configuration, you set a new SSID and password for the extended network. By default, the password is the same as your source router's, but you can customize it.

What to do if the repeater overheats or stops working?

Unplug the repeater, let it cool down, then plug it back in. Make sure it is used in a well-ventilated area, away from moisture and excessive heat. If the problem persists, contact TP-Link support.

How to update the repeater's firmware?

Access the admin interface via a browser, go to System Tools > Firmware Update. Download the latest version from the TP-Link website and follow the instructions. Do not cut power during the update.

USER MANUAL RE355 TP-LINK

TP-Link Technologies Co., Ltd. South Building (floors 1, 3, 4, 5) and 28 (floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link France SARL 16-18 avenue Morane Saulnier 78140 Velizy-Villacoublay France

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved.

For technical support, the user guide and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code.

Quick Installation Guide

Wi-Fi Range Extender

*Images may differ from actual products.

Contents

Deutsch - 1 English - 4 Español - 7 Ελληνικά - 10 Français - 13 Italiano - 16 Português - 19 Suomi - 22 Nederlands - 25 Svenska - 28 Norsk - 31 Dansk - 34

1 Installation

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g., TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Method 2: Via a Web Browser

1 Launch a web browser and enter http://tplinkrepeater.net or

http://192.168.0.254 in the address bar.

Create a password to log in.

2 Follow the instructions on the web page to complete the initial configuration.

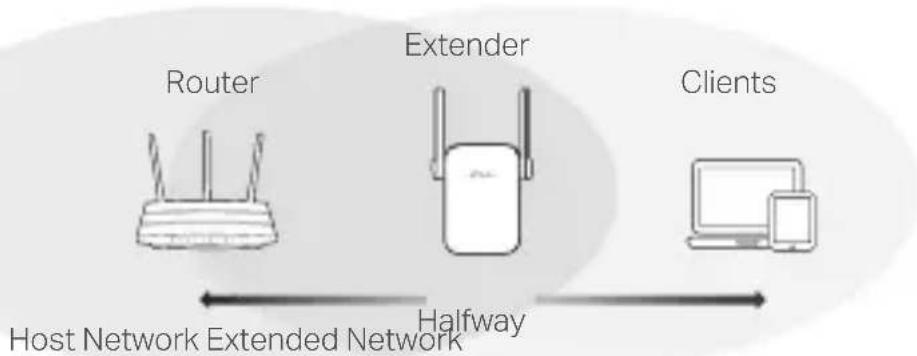

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

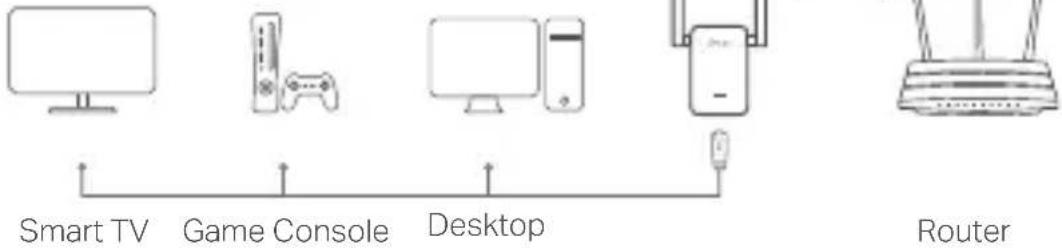

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1: Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2: How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1. Power on

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTY, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Spanish

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Spanish
