Product Type	External smart card reader
Brand	CSL
Model	306901
Interface	USB, compatible with USB 2.0/3.0
Contactless connectivity	NFC (ISO 14443 A/B, ISO 15693, MIFARE, FeliCa, etc.)
Contact connectivity	ISO 7816 compliant smart card reader, T0/T1 protocols
Supported voltages (contact cards)	5V, 3V, 1.8V (classes A, B, C)
Supported memory cards	I2C, SLE44xx, SLE55xx, AT88SC, AT45D, etc.
Software standards	PC/SC 2.0, CCID, Microsoft WHQL, EMV Level 1
Compatible operating systems	Windows 7/8/10/11, macOS 10.10 and later
Power supply	Via USB port, typical consumption 2.5 W
Driver installation	Automatic (Plug & Play)
Dimensions (approx.)	8.5 x 5.0 x 1.2 cm
Weight (approx.)	50 g
Housing material	ABS plastic
USB cable length	1.5 m (approximate)
Operating temperature	0 °C to 50 °C
Operating humidity	20% to 80% RH (non-condensing)
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use chemicals.
Safety instructions	Do not open, do not expose to water, avoid high temperatures, indoor use only.
Repairability	Not user-serviceable. Contact after-sales service.
Package contents	Card reader, USB cable, user manual
Warranty	2 years (according to manufacturer's conditions)
Recycling	WEEE compliant, eco-participation included
Certifications	EMV Level 1, WHQL, CE

Frequently Asked Questions - 306901 CSL

How to install the CSL 306901 card reader?

Simply plug the reader into a free USB port on your computer. Driver installation is automatic (Plug & Play). No additional steps are required.

Which operating systems are compatible?

The reader is compatible with Windows 7/8/10/11 and macOS 10.10 and later versions.

My reader is not recognized under Windows, what should I do?

Check that the reader is properly connected to a working USB port. Go to Device Manager, under 'Smart card readers'. It should appear as 'Microsoft USBCCID Smartcard Reader (WUDF)'. If not, try another USB port or restart the computer.

What types of smart cards does this reader support?

It supports contact cards ISO 7816 (classes A, B, C, T0/T1 protocols) and contactless NFC cards (ISO 14443 type A/B, ISO 15693, MIFARE, FeliCa). Many memory cards are also supported (full list in the manual).

Is the reader compatible with banking applications?

Yes, it is certified EMV Level 1, ensuring compatibility with payment terminals and applications.

Can I use this reader with a smartphone or tablet?

No, the reader is designed for use with a desktop or laptop computer running Windows or macOS. It is not compatible with mobile devices.

How to clean the reader?

Use a soft, dry cloth to clean the housing. Never use liquids, solvents, or abrasive products. Avoid touching the card contacts.

What to do if the card is not read?

Make sure the card is inserted correctly (chip facing up). Check that the driver is properly installed. Test with another card to identify a possible device defect. If the problem persists, contact customer service.

Does the reader work with an electronic ID card?

Yes, it is compatible with electronic ID cards compliant with ISO 7816 and NFC standards. Check that your reading software supports the reader.

How to recycle the reader at end of life?

Do not dispose of the device with household waste. Drop it off at a WEEE collection point (recycling center, electronics store) in accordance with local regulations. The product is subject to eco-participation.

USER MANUAL 306901 CSL

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

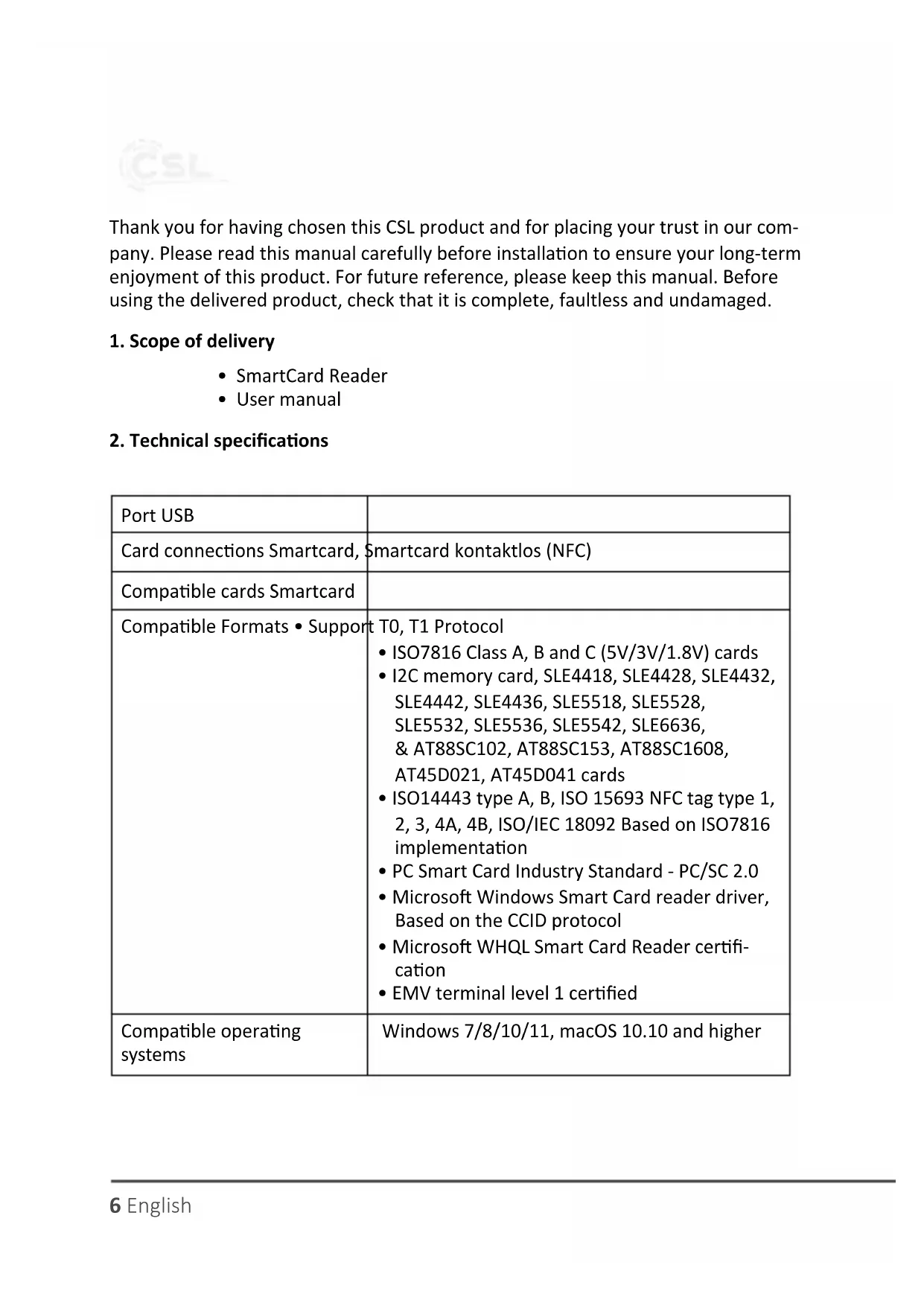

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• SmartCard Reader
• User manual

2. Technical specifications

Port USB
Card connections Smartcard, Smartcard kontaktlos (NFC)
Compatible cards Smartcard
Compatible Formats • Support	T0, T1 Protocol • ISO7816 Class A, B and C (5V/3V/1.8V) cards • I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5518, SLE5528, SLE5532, SLE5536, SLE5542, SLE6636, & AT88SC102, AT88SC153, AT88SC1608, AT45D021, AT45D041 cards • ISO14443 type A, B, ISO 15693 NFC tag type 1, 2, 3, 4A, 4B, ISO/IEC 18092 Based on ISO7816 implementation • PC Smart Card Industry Standard - PC/SC 2.0 • Microsoft Windows Smart Card reader driver, Based on the CCID protocol • Microsoft WHQL Smart Card Reader certification • EMV terminal level 1 certified
Compatible operating systems	Windows 7/8/10/11, macOS 10.10 and higher

3. Getting started

Take the device out of its packaging and remove any packaging material. Connect the SmartCard Reader to an available USB port on your computer or notebook. The driver installation is fully automatic. The device is then ready for operation.

To check whether the device is displayed in your device manager, go to the "Smartcard reader" tab. This device is displayed as "Microsoft Usbccid Smartcard Reader (WUDF)".

4. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.

Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

CE

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH herewith declares that this product 306901 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH Wohlenbergstraße 16, 30179 Hanover
