USER MANUAL V2 VirtuFit

Safety instructions		05
Guarantee	05
Assembly instructions 05
Folding and unfolding 05
Resistance	06
Maintenance	06
Console	07
Training guidelines		07

SAFETY INSTRUCTIONS

WARNING!

Consult your doctor before you start exercising. This is particularly important for people with health problems. Please read all instructions before using the machine. VirtuFit assumes no responsibility for injury or property damage resulting from the use of this equipment. Please read this manual carefully before assembling and/or using the machine.

• Do not wear loose clothing to avoid getting caught in moving parts.
• Install and use the unit on a solid, level surface.
• Always wear clean sports shoes when using the appliance.
• Keep children and pets away from the appliance when in use.
• Maintain your balance when using the device.
• Do not place your fingers or other objects in the moving parts.
• Before exercising, consult your physician to determine the appropriate frequency, duration and intensity of exercise for your age and physical condition. Stop exercising immediately if you experience nausea, shortness of breath, fainting, headache, chest pain, tightness or any other discomfort.
• This machine should only be used by one person at a time.
• This machine is designed for domestic use and the maximum user weight is 100kg .
• Leave 1-2 metres of space behind the machine to avoid accidents.
• Place the machine on a clean, flat surface. Do not place it on a

thick carpet, as this may hinder the ventilation of the machine. Do not place the machine outdoors or near water.

• Keep the storage area dry, clean and level to prevent damage.
• Do not use the device for any purpose other than training.
• Use the device only in an environment where the ambient temperature is between 10^ and 35^ . Store the device only in an environment where the temperature is between 5^ and 45^ .

GUARANTEE

Warranty claims are excluded if the cause of the defect is the result of:

• Maintenance and repair work not carried out by an official dealer, unless otherwise by the supplier specified.
• Improper use, negligence and/or poor maintenance.
• Failure to maintain the appliance in accordance with the manufacturer's instructions.

ASSEMBLY INSTRUCTIONS (STEP 01)

Missing parts: If any parts are missing from the packaging, carefully check the polystyrene foam and the appliance itself. Some parts (bolts, screws, etc.) are already attached to the unit.

Hex head bolts: Make sure that the hex head spanner is pushed into the bolt before applying force. This will prevent the head of the socket bolt from turning.

NOTE! Check that all bolts and screws are properly tightened before use

FOLDING AND UNFOLDING

NOTE! Keep the appliance in a dry room and out of reach of children. Ensure that the appliance is stable and secure so that it cannot fall on children or animals.

Folding (1 2)

After use, pull the pin (A) and remove it.
- Fold the legs of the chair stool into each other (B) and put the pin (A) back in.
The chair bike can be stored in a place of your choice.

Unfolding (2 1)

• Pull the pin (A) and remove it.
• Fold open the legs of the chair bike.
• Replace the pin (A) and the chair bike can be used.

NOTE! CBefore use, check that the chair bike is stable and steady.

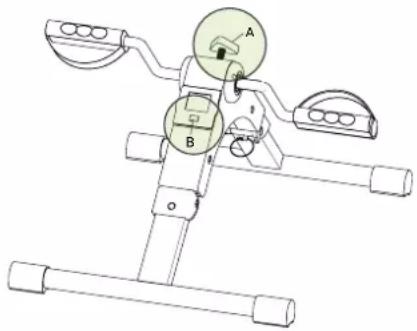

RESISTANCE

• Turn the resistance knob (A) to set the resistance as desired.
• Turning to the left will increase resistance and turning to the right will decrease resistance.
• Press red button (B) on the computer to start exercising.

NOTE! Before use, check that the chair bike is stable and firm. Start with minimal resistance, then you can increase resistance as desired.

MAINTENANCE

Safe and efficient use can only be achieved if the appliance is properly installed and maintained. It is your responsibility to ensure that the appliance is maintained regularly. Parts that have been used and/or damaged must be replaced before the appliance is used again. The appliance should only be used and stored indoors. Long-term exposure to weather and temperature/humidity changes can have a serious impact on the electrical components and moving parts of the unit. Always unplug the power cord from the unit before cleaning or servicing it.

Daily maintenance

• Clean and remove sweat and moisture after each use.
• Check that the unit is free of dust and dirt.
• Do not use aggressive cleaning agents and keep the device away from moisture.

Semi-annual maintenance

• Inspect all bolts and nuts connected to the moving parts of the unit. Tighten bolts and nuts as necessary and appropriate.
• Check the mobility of moving parts and components of the unit.

We recommend the following:

Clean the unit after use.
- Use a dry cloth to clean the control panel and the areas around the on/off switch.
- Use a soft, clean cloth and detergent to remove stubborn marks and dirt from the unit.
- Store the unit in a safe, dry place away from heat and water.

CAUTION! Repairs must be carried out by a professional technician, unless otherwise specified by the supplier or manufacturer.

Cleaning

General cleaning of the unit will extend its life. Keep the appliance clean by dusting it regularly. Regular maintenance will prolong the life of your appliance and prevent injuries! For more information, please visit https://www.virtufit.nl/service/faq/

CAUTION! Wear clean shoes to reduce the risk of soiling the machine. At least once a year, remove the cover to remove dust.

Battery

1.5V AG13 BATTERY

The display uses 1.5V AGI3 battery, which can be replaced on the back of the display. The battery must be inserted correctly.

If the screen is unreadable or only parts of the image work, proceed as follows:

• Remove the battery and wait 15 seconds.
• Replace the battery correctly.

ENGLISH

Tips on using the battery

• Remove the battery from the screen when they are empty or when the console will not be used for a long period of time.
• Do not recharge, disassemble or dispose of battery in fire.
• Pay close attention to the + and - when inserting the battery.
• It is recommended to use alkaline battery, they have a longer life than normal batteries.
• Battery should be replaced when the display loses brightness or stops showing.

Battery replacement

• Remove the mechanism (full display) from the chair bike base. The battery compartment is located behind the display.
• Remove the battery and insert a new 1.5V AC13 battery.
• Place the display back into the chair bike base.

CONSOLE (FIG. A)

• MODE Press MODE to select a function. Press and hold MODE longer (at least 4 seconds) to reset all function values.
• TIME Press MODE until appears before TIME. When you start cycling, the time will start automatically and the (elapsed) time of the workout on the display.
• COUNT Press MODE until for COUNT appears. When you start cycling, the counter will automatically start and the (set) steps of the workout will be shown on the display.
• REPS/MIN Press MODE until for REPS/MIN appears. When you start cycling, the number of revolutions per minute of the workout will automatically be shown on the display.
• CALORIES Press MODE until for CAL appears. When you start cycling, the number of calories burned is automatically added up and the totala number of calories burned from the workout will be shown on the display.
• SCAN The above functions are displayed successively for 5 seconds.

Start training

ON/OFF

• The chair cycle switches on automatically when a button is pressed or when you start cycling.
• The display turns off automatically as soon as the chair bike is not used for more than 4 minutes.

CAUTION! If the display shows incorrectly, it is recommended to reinsert or replace the battery

TRAINING GUIDELINES (FIG. B, 1-5)

A successful training program includes a warm-up, the actual training and a cool-down. Perform the complete training program at least twice, but preferably three times a week and keep a rest day between training sessions. After a few months, the intensity of the training can be increased, for example to four or five times a week.

The warm-up

The purpose of a warm-up is to prepare the body for training and to reduce the risk of injury. Warm up your body for two to five minutes before starting a cardio or strength training session. Do exercises that increase the heart rate and warm up the working muscles. Examples of this type of activity are running, jogging, jumping jacks, skipping and running in place.

Stretching

Stretching while the muscles are warm is very important after a good warm-up and cool-down. It reduces the risk of injury. Stretching exercises should be held for 15-30 seconds. Here are some examples of stretching exercises:

• Toe touch (Fig. B-1)
• Inner thight stretch (Fig. B-2)
• Hamstring stretch (Fig. B-3)
• Achilles stretch (Fig. B-4)
• Side stretch (Fig. B-5)

Cooling down

The purpose of the cool-down is to return the body to its (near) normal resting position at the end of the workout. A good cool-down slowly reduces your heart rate and promotes recovery.

INHOUD

Do you have a problem with your VirtuFit fitness equipment and would you like to submit a service request? Then scan the QR code on the right and fill in our service form.
