USER MANUAL ELVOX 662C Vimar

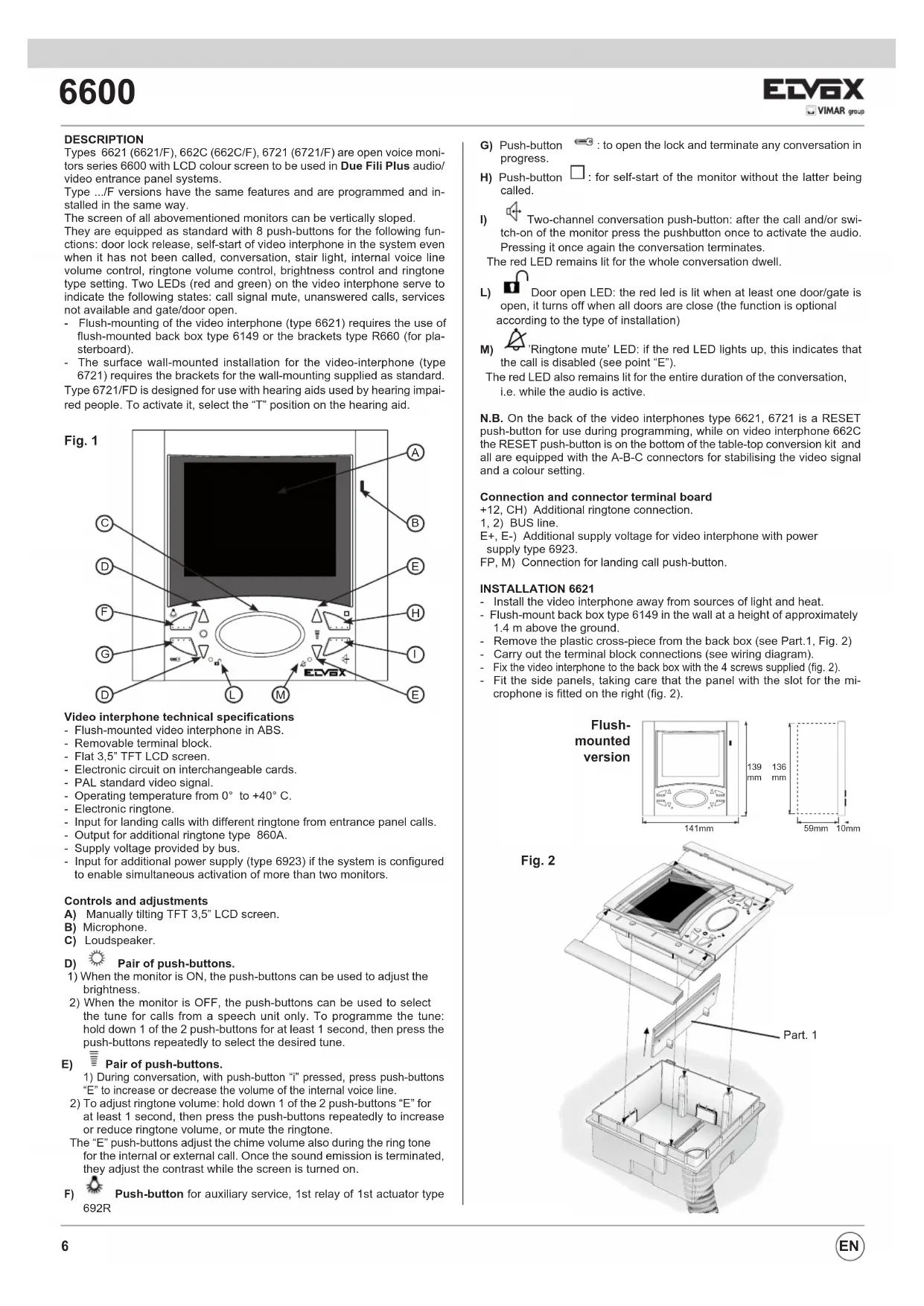

DESCRIPTION Types 6621 (6621/F), 662C (662C/F), 6721 (6721/F) are open voice moni- tors series 6600 with LCD colour screen to be used in Due Fili Plus audio/ video entrance panel systems. Type .../F versions have the same features and are programmed and in- stalled in the same way. The screen of all abovementioned monitors can be vertically sloped. They are equipped as standard with 8 push-buttons for the following fun- ctions: door lock release, self-start of video interphone in the system even when it has not been called, conversation, stair light, internal voice line volume control, ringtone volume control, brightness control and ringtone type setting. Two LEDs (red and green) on the video interphone serve to indicate the following states: call signal mute, unanswered calls, services not available and gate/door open. - Flush-mounting of the video interphone (type 6621) requires the use of flush-mounted back box type 6149 or the brackets type R660 (for pla- sterboard). - The surface wall-mounted installation for the video-interphone (type 6721) requires the brackets for the wall-mounting supplied as standard. Type 6721/FD is designed for use with hearing aids used by hearing impai- red people. To activate it, select the “T” position on the hearing aid. Video interphone technical specifications - Flush-mounted video interphone in ABS. - Removable terminal block. - Flat 3,5” TFT LCD screen. - Electronic circuit on interchangeable cards. - PAL standard video signal. - Operating temperature from 0° to +40° C. - Electronic ringtone. - Input for landing calls with different ringtone from entrance panel calls. - Output for additional ringtone type 860A. - Supply voltage provided by bus. - Input for additional power supply (type 6923) if the system is configured to enable simultaneous activation of more than two monitors. Controls and adjustments A) Manually tilting TFT 3,5” LCD screen. B) Microphone. C) Loudspeaker.

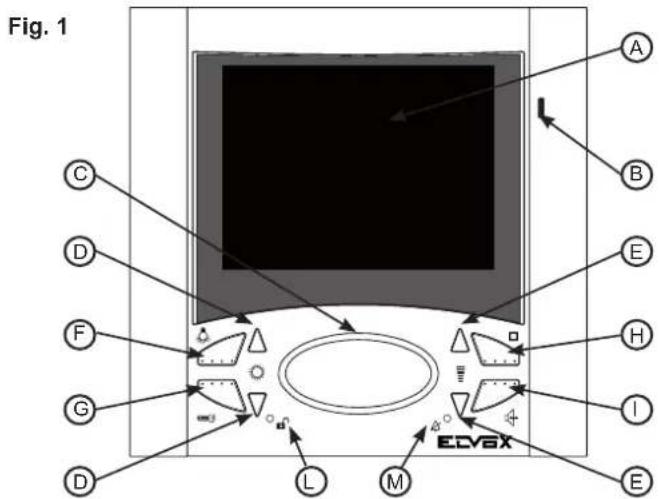

Pair of push-buttons.

1) When the monitor is ON, the push-buttons can be used to adjust the

2) When the monitor is OFF, the push-buttons can be used to select

the tune for calls from a speech unit only. To programme the tune: hold down 1 of the 2 push-buttons for at least 1 second, then press the push-buttons repeatedly to select the desired tune.

Pair of push-buttons.

1) During conversation, with push-button “i” pressed, press push-buttons

“E” to increase or decrease the volume of the internal voice line.

2) To adjust ringtone volume: hold down 1 of the 2 push-buttons “E” for

at least 1 second, then press the push-buttons repeatedly to increase or reduce ringtone volume, or mute the ringtone. The “E” push-buttons adjust the chime volume also during the ring tone for the internal or external call. Once the sound emission is terminated, they adjust the contrast while the screen is turned on.

Push-button for auxiliary service, 1st relay of 1st actuator type 692R G) Push-button : to open the lock and terminate any conversation in progress. H) Push-button : for self-start of the monitor without the latter being called.

Two-channel conversation push-button: after the call and/or swi- tch-on of the monitor press the pushbutton once to activate the audio. Pressing it once again the conversation terminates. The red LED remains lit for the whole conversation dwell.

Door open LED: the red led is lit when at least one door/gate is open, it turns off when all doors are close (the function is optional according to the type of installation)

’Ringtone mute’ LED: if the red LED lights up, this indicates that the call is disabled (see point “E”). The red LED also remains lit for the entire duration of the conversation, i.e. while the audio is active. N.B. On the back of the video interphones type 6621, 6721 is a RESET push-button for use during programming, while on video interphone 662C the RESET push-button is on the bottom of the table-top conversion kit and all are equipped with the A-B-C connectors for stabilising the video signal and a colour setting. Connection and connector terminal board +12, CH) Additional ringtone connection. 1, 2) BUS line. E+, E-) Additional supply voltage for video interphone with power supply type 6923. FP, M) Connection for landing call push-button. INSTALLATION 6621 - Install the video interphone away from sources of light and heat. - Flush-mount back box type 6149 in the wall at a height of approximately

1.4 m above the ground.

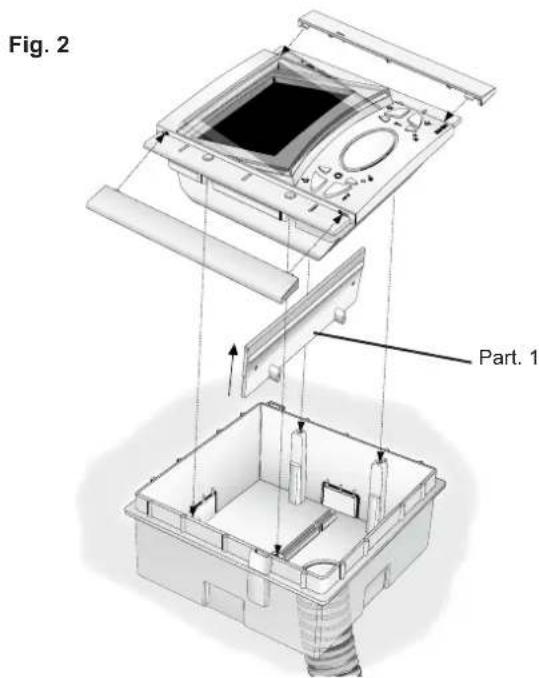

- Remove the plastic cross-piece from the back box (see Part.1, Fig. 2) - Carry out the terminal block connections (see wiring diagram).

Fix the video interphone to the back box with the 4 screws supplied (fig. 2). - Fit the side panels, taking care that the panel with the slot for the mi- crophone is fitted on the right (fig. 2). Flush- mounted version Fig. 2 59mm 10mm 141mm

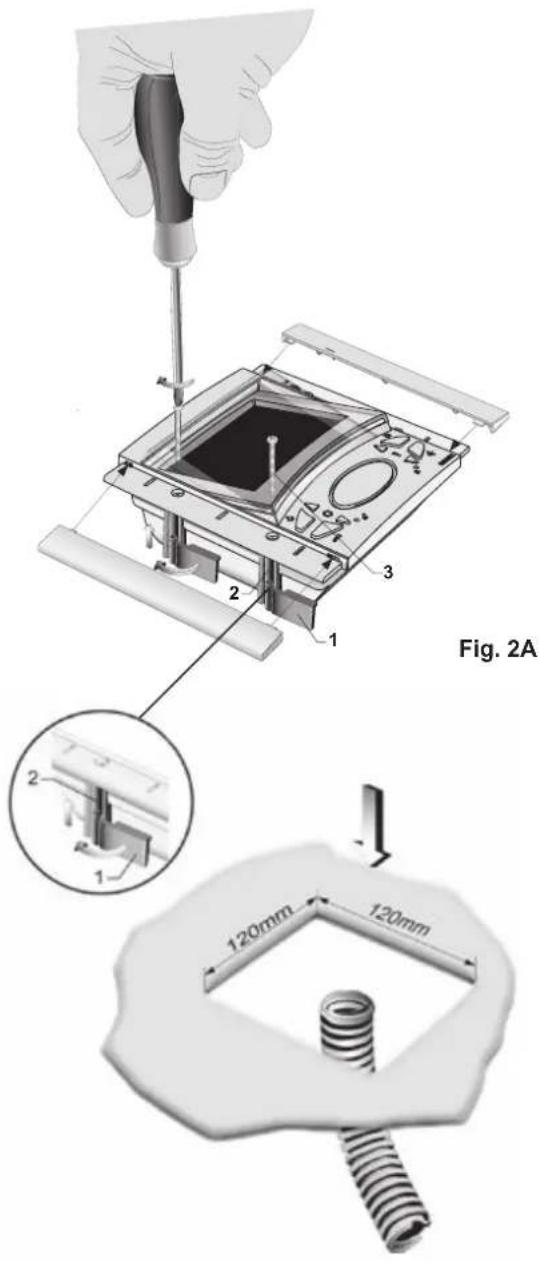

Table version Surface wall-mounting version INSTALLATION OF TYPE 6621 WITH BRACKETS TYPE R660 - Make a 120x120mm (nearly) hole in the plasterboard wall at 1,40 from the floor to the lower border. - Fix the bracket to the monitor as indicated in figure, keeping the cursors well aligned to the monitor sides (part. 1, Fig. 2A) - Carry out the terminal block connections (see wiring diagram) - Insert the monitor inside the wall in plasterboard. - Tighten the screws so as the cursors can get closer to the plasterboard wall. - By screwing, the cursors should get aligned orthogonally to the monitor (see part. 1, Fig. 2A) - Insert the side grids, paying attention that the one with the slot for the microphone must be inserted on the right. Fig. 2A

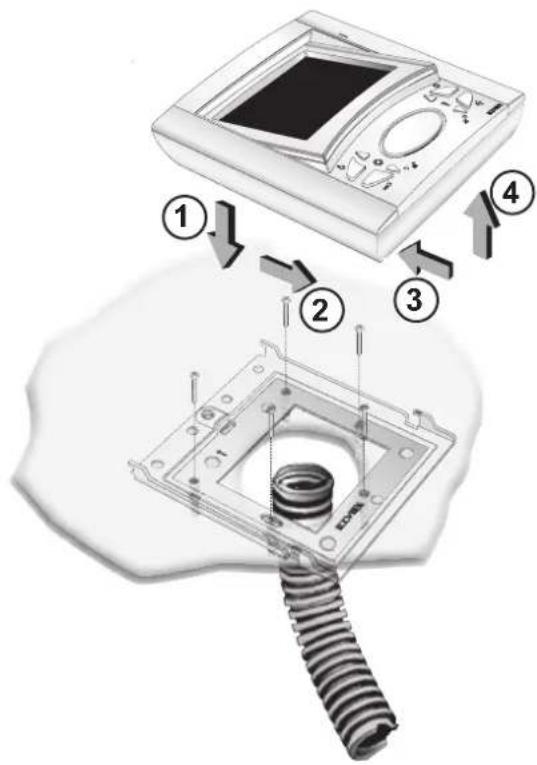

INSTALLATION OF TYPE 6721

- Install the video interphone away from sources of light and heat. - Fix the monitor fixing plate at 1,40m. from the ground level to the lower border. - Connect the terminal block. - Insert the monitor according to the 1 and 2 arrow direction - To remove the monitor from the plate hook, operate with a screw driver on the security lock (placed on the upper side and behind the monitor), and remove it according to the 3 and 4 arrow direction. Fig. 2B Fig. 2C

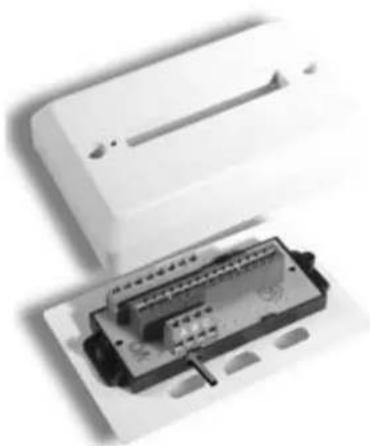

INSTALLATION OF TYPE 662C

- Fix the monitor support to the wall. - Connect the terminal block (see wiring diagrams). - Hook the stud to the support.

59mm10mm141mm139mm136mm141mm 125mm125mm 40mm 141mm

59mm10mm141mm139mm136mm 141mm 125mm

Bus termination for video signal stabilisa- tion The interphone is provided with a “BUS termi- nation connector” (A-B-C) for video signal sta- bilisation. Depending on the connection configuration (interphones/monitors connected in series or derived from a distributor), set a jumper on the connector ABC as described in the note “Bus termination” in the wiring diagrams section below. Art. 6621 Art. 6701 Art. 662C PROGRAMMING There are three monitor programming modes: assignment of an identifica- tion code or call code (indispensable), assignment of a secondary identifica- tion code (for video interphones associated with a master video interphone), programming of push-buttons for auxiliary services and intercommunicating calls (when necessary). Programming must be performed with the system switched on, without active communication and only after connecting the interphones/video in- terphones to the system and programming the panels. Programming the identification code The identification code is to be programmed by means of an entrance panel (main- “Master”), present on the installation and already configurated. The video-interphone is supplied without associated identification code. To check this, press the “G” push-button and the video-interphone will emit a triple “Beep”. Attention: during the interphone/video interphone identification code programming you have 30 seconds from the moment you enter the programming in the interphone/video interphone and the moment you press the call push-button on the panel or you send the code. Programming phase:

1) Press and hold down “I”.

2) Press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “I” and “H”. You have now 5 seconds to

carry out any of the described programmings.

6) Press and hold down the “G” lock push-button.

After nearly 2 seconds the video-interphone emits a high-pitched tone, it self-starts and gets in communication with the entrance panel.

8) On the entrance panels with push-buttons press the call push-button

corresponding to the video-interphone, on the alphanumeric entrance panel, on the contrary, enter the call code and press “

If on the installation there is already an interphone / video-interphone with the same associated identification code, the panel emits a low-pitched tone and you must repeat the operation from the beginning.

10) If not, the code is associated to the video-interphone and the commu-

nication is terminated. Programming the secondary identification code The programming of the secondary identification code is required only when you want more than a video- interphone to ring at the same time with the same push-button or call code. The video-interphones which must ring si- multaneously are associated with the same push-button to the same group. The “master” interphone / video-interphone is programmed in first place by means of the previous procedure: “programming the identification code”. The additional interphones / video-interphones are programmed with the secondary identification code (see table shown in the wiring diagram section enclosed with the electronic TWO WIRE ELVOX entrance panels). A maximum of three audio door entry units plus one group master can be associated with the same group, without the need for programmer Type 950C or SaveProg. Programming phase:

1) Press and hold down “I”.

2) Press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “I” and “H”

6) Press and hold down the “G” door lock and the “H” self-start push-but-

tons simultaneously.

7) After 2 seconds the video-interphone emits a high-pitched tone and

gets in communication with the entrance panel.

8) Release the door lock “G” and the self-start “G” push-buttons.

9) On the push-buttons entrance panels press the call push-button corre-

sponding to the main (already programmed) interphone / video-inter- phone, on the alphanumeric entrance panel, on the contrary, enter the same call code of the “Master” interphone / video-interphone and press

10) If on the installation there is already an interphone / video-interphone with

the same associated identification code, the panel emits a low-pitched tone and you must repeat the operation from the beginning.

11) Once the secondary identification code is associated to the video-inter-

phone, the communication is terminated. To know the number assigned see table shown in the wiring diagram section. EN9

OPERATION Calls from an entrance panel, intercommunicating calls and landing calls are differentiated by means of different tones. Landing calls Calls from entrance panels do not follow the pressing of the call push-but- ton but are generated internally by the video interphone. The call time dwell or cycle consists of a ringtone of 1 second and a pause of 2 seconds, repeated twice (default setting of entrance panel). The duration of “Ding- Dong” and “Ding-Dong-Dang” ringtones does not correspond to the time dictated by the call cycle but to the natural duration of the ringtone. To answer, press and release push-button “I”. If push-button “I” has already been pressed during the call, release it and press it again The call answer time (30 s) and the conversation time (2 minutes by default) are set in the entrance panel parameters. Once the conversation time has elapsed, conversation can be continued if the call is made again within 10 s, from the same entrance panel. During conversation, the audio can be interrupted momentarily (maximum 5 s) by pressing the “I” push-button.To resume conversation, press the conversation push-button again within 5 s, otherwise communication is lost. Press push-button “I” to terminate the conversation. The red LED “M” remains lit while the audio is active. Intercommunicating call. Press the intercommunicating push-button, if programmed, for the inter- phone/video interphone to be called. The loudspeaker of the calling video interphone will emit a ringing tone (if the call is possible) or an engaged tone (if the call is not possible). On the called interphone/video interphone the ringtone starts sequentially at intervals of 1 s ringing and 4 s pause. The maximum duration of the call is 30 s (6 cycles). If you wish to inter- rupt the call, press the conversation push-button “I” before an answer is received from the called device. To answer a call, lift the handset on the called interphone/video interphone, or press the conversation push-button. When answered, the video interphone enters direct communication with the called device. Maximum duration of conversation is 5 minutes. When the conversation time has elapsed, the user can continue without replacing the handset if a new call is made within 10 s. Calls from the entrance panel have priority over intercommunicating calls. Denied calls. The chime exclusion is indicated by the permanent lighting of the red LED “M”. If calls are made from the entrance panel to the video interphone when the call mute is enabled, they are denied. A denied call causes the red LED “M” to briefly switch off according to the number of times calls are denied (maximum 4 denied calls). The signal is repeated every 10 s (approx.). Deletion of denied calls is by re-enabling the ringtone, resetting the video interphone or a system power failure. On the entrance panel, a denied call is indicated by means of a dissuasion tone (a series of “Beeps” at 100ms intervals with a pause of 100ms for a total of 5 s). The message “Do not disturb” also appears on entrance panels with display. The programming of push-buttons “G” and “I” can be changed through two different configu- rations (“HANDS FREE” or with the speak/listen push-button PRESSED), using the programmer type 950C connected to a push-button entrance panel and/or an alphanumeric entrance panel with software version V4 or bigger. See instructions for programmer type 950C and entrance panels or electronic units. Lock Button The lock button of each device works in the following manner. - Device with handset at rest lock to the last entrance panel with which it has spoken or from which it has been called. - Device with handset raised but not engaged in a conversation call to switchboard if the Switchboard flag is YES. Otherwise it goes back to the first case. - Device with handset raised and engaged in an internal conversation as in the first case. - Device with handset raised and engaged in an external conversation or called from entrance panel lock to the entrance panel being spoken with or from which it has been called. In practice a lock is always activated except when the handset is raised and you immediately press the lock button. This can also be taken to the standard case if the system has no porter switchboard and the Switchboard flag is set on NO. NOTE: In series 6600 the equivalent operation is to press for an instant the “open voice” push-button and then the lock release. Also in this case the switchboard is called. Programming the push-buttons The video-interphone is supplied with 3 push-buttons for the following functions: lock release, self-start and “stair light” auxiliary service, which activates the 1st relay of the 1st actuator (type 69HR), if connected to the installation and with other 6 push-buttons for intercommunicating calls or auxiliary services. To change the operation type of push-buttons it is necessary to use pro- grammer type 950C or SaveProg, with the exception of the assignation of the functions for the intercommunicating calls and self-start to a specific entrance panel. Programming the push-buttons for the intercommunicating calls (With series 8870, Giotto, Petrarca raise the handset of the interphone / video-interphone to call. On the 6600 series keep pressed the talk / listen push-button “I”). Programming phase:

1) Press and hold down “I”.

2) Press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “I” and “H”

6) Press and hold down the “F” push-button to be programmed.

7) After 2 seconds the video-interphone emits a high-pitched tone, while

the other interphone / video-interphone emits a three-tone ascending scale.

8) Release the “F” push-button related to the intercommunicating call.

9) On the called interphone / video-interphone (the one with the three-

tone scale) press one of the push-buttons programmed as door lock or F1 or F2 or the auxiliary one.

10) A high-pitched tone confirms the end of the procedure.

Repeat the procedure also for the other interphones / video-interpho- nes ad possible intercommunicating call push-buttons. Programming the self-start push-button to a specific entrance panel. Programming phase:

1) Press and hold down “I”.

2) Press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “I” and “H”

6) Press and hold down the “F” push-button to be programmed.

7) After nearly 2 seconds the video-interphone emits a high-pitched tone.

8) Release the push-button “F” related to the self-start.

9) On the entrance panels with push-buttons press the call push-button

corresponding to the video -interphone; on the alphanumeric entrance panel, on the contrary, enter the call code and press “

10) A high-pitched tone will confirm the end of the procedure.

2) Press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “I” and “H”

6) Press and hold down the push-button to be restored to its default set-

7) After 2 seconds the video-interphone emits a high-pitched tone.

8) Release the push-buttons and press again the push-button to restore

to its default setting. Deleting all settings This procedure is recommended when you want to change the ID of a previously programmed video-interphone without retaining its pro- gramming parameters. Programming phase:

1) Press and hold down “I”.

2) Then press and hold down also “H” together with “I”.

3) Wait for nearly 3 seconds until the red led “M” flashes.

4) Now the microprocessor is physically reset.

5) Release both push-buttons “H” and “I”

6) Press and hold down the self-start push-button “H”.

7) After 2 seconds the video-interphone emits a continuous tone for two

8) Release the self-start push-button “H”.

9) During the long tone press the lock push-button “G”.

If the deletion procedure was successful, press the lock push-button “G” and the video-interphone will emit a triple “BEEP”. EN10

59mm10mm141mm139mm136mm 141mm 125mm

59mm10mm141mm139mm136mm141mm 125mm125mm 40mm 141mm

59mm10mm141mm139mm136mm 141mm 125mm

59mm10mm141mm139mm136mm141mm 125mm125mm 40mm 141mm

59mm10mm141mm139mm136mm 141mm 125mm

59mm10mm141mm139mm136mm141mm 125mm125mm 40mm 141mm

59mm10mm141mm139mm136mm 141mm 125mm

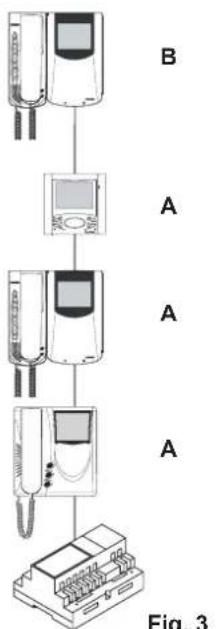

For correct adaptation of the line, make the setting ac- cording to the following rule: Maintain position “A” if the BUS enters and exits from the device; Move to position “B” (if Elvox cable) or to position “C” (if CAT5 twisted pair cable) if the BUS line terminates in the device itself.

“A” = NO TERMINATION

“B” = TERMINATION 100 ohm “C” = TERMINATION 50 ohm

INSTALLATIONS WITH PASSIVE DISTRIBUTOR

692D (DIN rail version) ALWAYS use output 1 on distributor type 692D (the only one that has no termination jumper). For termination of type 692D: If outputs “OUT”, “2”, “3” or “4” are not used, KEEP the jumper on the “TOUT”, “T2”, “T3” or “T4” connector. The default “TOUT” con- nector is in the “100” position (Elvox cable), position it to “50” only if using a CAT5 twisted pair cable.

“A” = AUCUNE TERMINAISON

“B” = TERMINAISON 100 ohm “C” = TERMINAISON 50 ohm
