• Die Unterzeichnenden handeln im Auftrag und mit Vollmacht der Geschäftsführung. Dokumentationsbevollmächtigter: A. Haag Kärcher Industrial Vacuuming GmbH Robert-Bosch-Straße 4-8 73550 Waldstetten (Germany) Tel.: +49 7171 94888-0 Fax: +49 7171 94888-528 Waldstetten, 24/04/01 Contents General instructions Read these original instruc- tions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners. ● Be sure to read the safety instructions no. 5.956-249.0 prior to the initial start- up. ● If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons. ● Notify the dealer immediately in the case of shipping damage. Safety information Hazard levels DANGER ● Indication of an imminent threat of danger that will lead to severe injuries or even death. 몇 WARNING ● Indication of a potentially dangerous situ- ation that may lead to severe injuries or even death. 몇 CAUTION ● Indication of a potentially dangerous situ- ation that may lead to minor injuries. General instructions p. 12
• Safety information p. 12
• Intended use p. 13
• Environmental protection p. 13
• Accessories and spare parts p. 14
• Scope of delivery p. 14
• Device description p. 14
• Symbols on the device p. 14
• Initial startup p. 15
• Operation p. 15
• Transport p. 17
• Storage p. 17
• Care and maintenance p. 17
• Troubleshooting guide p. 18
• Disposal p. 19
• Warranty p. 19
• Technical data p. 19

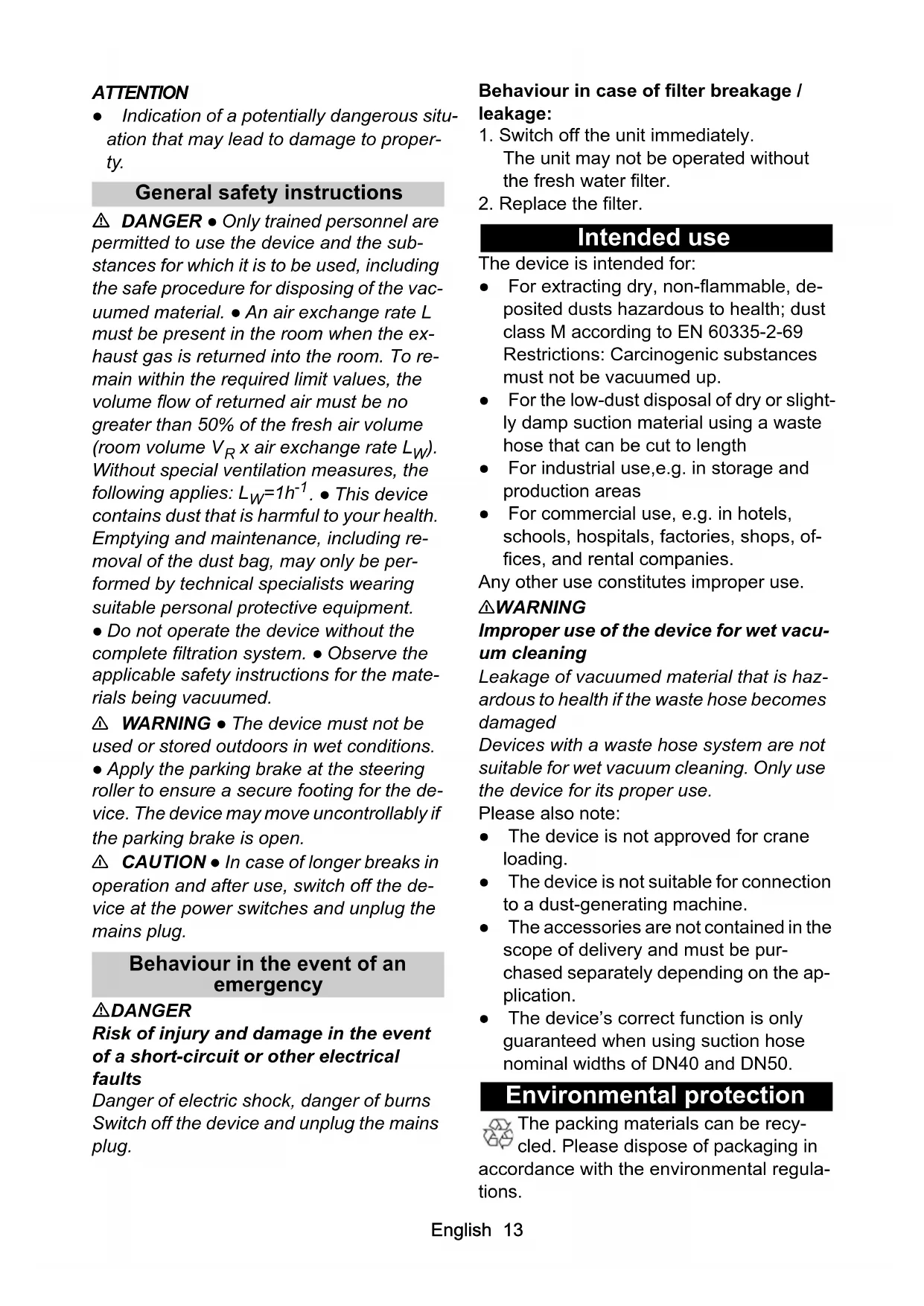

• Declaration of Conformity English 13 ATTENTION ● Indication of a potentially dangerous situ- ation that may lead to damage to proper- ty. General safety instructions DANGER ● Only trained personnel are permitted to use the device and the sub- stances for which it is to be used, including the safe procedure for disposing of the vac- uumed material. ● An air exchange rate L must be present in the room when the ex- haust gas is returned into the room. To re- main within the required limit values, the volume flow of returned air must be no greater than 50% of the fresh air volume (room volume V p. 20

x air exchange rate L

Without special ventilation measures, the following applies: L

. ● This device contains dust that is harmful to your health. Emptying and maintenance, including re- moval of the dust bag, may only be per- formed by technical specialists wearing suitable personal protective equipment. ● Do not operate the device without the complete filtration system. ● Observe the applicable safety instructions for the mate- rials being vacuumed. 몇 WARNING ● The device must not be used or stored outdoors in wet conditions. ● Apply the parking brake at the steering roller to ensure a secure footing for the de- vice. The device may move uncontrollably if the parking brake is open. 몇 CAUTION ● In case of longer breaks in operation and after use, switch off the de- vice at the power switches and unplug the mains plug. Behaviour in the event of an emergency DANGER Risk of injury and damage in the event of a short-circuit or other electrical faults Danger of electric shock, danger of burns Switch off the device and unplug the mains plug. Behaviour in case of filter breakage / leakage:

1. Switch off the unit immediately.

The unit may not be operated without the fresh water filter.

2. Replace the filter.

Intended use The device is intended for: ● For extracting dry, non-flammable, de- posited dusts hazardous to health; dust class M according to EN 60335-2-69 Restrictions: Carcinogenic substances must not be vacuumed up. ● For the low-dust disposal of dry or slight- ly damp suction material using a waste hose that can be cut to length ● For industrial use,e.g. in storage and production areas ● For commercial use, e.g. in hotels, schools, hospitals, factories, shops, of- fices, and rental companies. Any other use constitutes improper use. 몇 WARNING Improper use of the device for wet vacu- um cleaning Leakage of vacuumed material that is haz- ardous to health if the waste hose becomes damaged Devices with a waste hose system are not suitable for wet vacuum cleaning. Only use the device for its proper use. Please also note: ● The device is not approved for crane loading. ● The device is not suitable for connection to a dust-generating machine. ● The accessories are not contained in the scope of delivery and must be pur- chased separately depending on the ap- plication. ● The device’s correct function is only guaranteed when using suction hose nominal widths of DN40 and DN50. Environmental protection The packing materials can be recy- cled. Please dispose of packaging in accordance with the environmental regula- tions.14 English Electrical and electronic devices con- tain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if han- dled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run safely and fault-free. Information on accessories and spare parts can be found in the Service area at www.kaercher.com. Please note: ● No accessories are included in the scope of delivery. The accessories must be ordered separately depending on the application. ● The correct function of the device is only guaranteed by the prescribed nominal width of the suction hose (see chapter Technical data). ● Spare parts and accessories are availa- ble from your dealer or from your KÄRCHER branch. Scope of delivery Check the contents for completeness when unpacking. In the event of shipping dam- age, please notify your dealer. Device description For the illustrations, refer to the graphics page Illustration A 1 Steering roller with parking brake 2 Waste hose 3 Sealing plug 4 Suction hose port 5 Pressure gauge 6 Spacer lock 7 Filter dedusting 8 Suction turbine power switch 9 Suction head 10 Mains cable 11 filter 12 Sealing ring 13 Filter hold-down device 14 Suction head handle 15 Cable clips 16 Type plate 17 Spacer 18 Push handle 19 Filter ring lock 20 Sheathed cable 21 Sheet metal tray 22 Suction head lock 23 Filter ring 24 Chassis Symbols on the device The device is suitable for vacuuming dusts up to dust class M. 몇 WARNING Damage to the skin, lungs and eyes Expulsion of fine dust during emptying and maintenance work and disposal Wear the prescribed personal protective gear when performing during emptying and maintenance work, including disposal of the dust bag. The maximum vacuum value in relation to the hose cross-section is specified on the label. The actual value can be read on the pressure gauge. For the values applicableEnglish 15 to this device, see chapter Reading the minimum volumetric flow. If this value is not reached, the filter must be cleaned (see chapter Dedusting the filter) or replaced (see chapter Replacing the filter). The var- ious different hose cross-sections allow ad- aptation to the various different connection cross-sections of the accessories. Initial startup 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present. ATTENTION Missing filter element Damage to the suction motor Do not vacuum without a filter element.

1. Bring the device into the working posi-

2. Secure the device with the parking

3. Ensure that the suction head is fitted

4. Insert the suction hose (not included in

the scope of delivery) into the suction connection.

5. Make sure that the waste hose is fitted

correctly (see chapter Fitting the waste hose).

6. Make sure that the disposal system is

used correctly (see chapter Fitting the disposal system).

7. Attach the desired accessories (not in-

cluded in the scope of delivery) to the suction hose. Fitting the waste hose

1. Remove all 4 loops of the waste hose

(length 22 m). Illustration B

2. Open the holder by turning it to the left

and pull it out downwards.

3. Fit the waste hose.

4. Push the holder in and close it by turning

it to the right. Illustration C

5. Pull the waste hose 40-50 cm down.

6. Seal the end of the waste hose with a

cable tie. Operation The device is suitable for vacuuming fine dust up to dust class M. 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Do not vacuum without correctly installed filter elements, otherwise a danger to health from increased fine dust emission is present. Note The device is an industrial vacuum cleaner for vacuuming dry, non-inflammable dusts with MAK values ≥ 0.1 mg/m

Switching on the device

1. Plug the mains plug into the socket.

2. Switch on the device via the suction tur-

bine power switches. Note Always switch the suction turbines on and off one after the other. For the correct func- tion of the pressure gauge for monitoring the minimum volume flow, all suction tur- bines must be switched on.

3. Start the vacuuming process.

1. Perform the vacuuming process.

The suction material does not fall into the waste hose until the device is switched off. filter (Order no. 9.990-018.0) Waste hose (Order no. 6.907-506.0)16 English Regularly check the filling level in the waste hose because the device does not switch off automatically. Illustration D

2. With light suction material or in the case

of clogging, pull the sheathed cable to open the flap at the outlet (only possible when the device is switched off).

3. Pull the waste hose down somewhat.

4. Close the waste hose using 2 cable ties

at a spacing of 10 cm.

5. Cut the waste hose between the cable

6. Dispose of the waste bag in accordance

with statutory regulations. Note With light suction material, the length of the waste bag can be up to 2 m without the waste bag tearing. Reading the minimum volumetric flow A pressure gauge showing the vacuum in- side the device is mounted on the front of the device. The filter must be cleaned when the maximum vacuum (see table) is reached (see chapter Dedusting the filter). This value depends on the device perfor- mance and the suction hose used. If the vacuum is not significantly reduced by de- dusting, the filter must be replaced (see chapter Replacing the filter). ATTENTION Exceeding the maximum vacuum Suction loss If the specified value is exceeded, the air speed in the suction hose drops below 20 m/s. Clean or replace the filter. Dedusting the filter The filter must be cleaned if the pressure gauge shows the maximum vacuum (see chapter Reading the minimum volumetric flow). Illustration E

1. Close the inlet opening or the suction

hose during the suction process.

2. Pull the flap of the filter dedusting sys-

tem 3-4 times and hold it open for 1- 2 seconds each time. Switching off the device

1. Switch off the device via the suction tur-

bine power switches.

2. Pull out the mains plug.

Each time after use Closing the suction connection 몇 WARNING Risk of injury Damage to the skin, lungs and eyes through fine dust The suction connection must be closed us- ing the sealing plug after removing the suc- tion hose.

1. Remove the suction hose.

2. Insert the sealing plug precisely into the

3. Push the sealing plug in all the way to

4. Turn the sealing plug to the right until the

suction connection is tightly closed. Removing the disposal system

1. Secure the device with the parking

brakes. Illustration G

2. Release the locks on the filter ring and

remove the disposal system forwards. Cleaning the device 몇 WARNING Improper disposal of waste water Environmental pollution Observe the local waste water treatment regulations. Nominal width of the suction hose Maximum vacuum DN40 12.70 kPa (127.0 mbar) DN50 8.75 kPa (87.5 mbar) DN70 ---English 17

1. Vacuum the inside and outside of the de-

vice and clean with a moist cloth. A vacuum cleaner with the same or bet- ter classification must be used for vacu- uming the device.

2. If necessary, rinse the accessories (not

included in the scope of delivery) with water and dry them. Fitting the disposal system 몇 WARNING Fitting the disposal system Risk of crushing Never place your hands between the dis- posal system and the spacer when locking.

1. Fit the disposal system and secure it

with the locks on the filter ring. Storing the device

2. Store the device in a dry room and se-

cure it against unauthorised use. Transport 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transportation.

1. Close the suction connection for dust-

free transport (see chapter Closing the suction connection).

2. Release the parking brakes and push

the device by the push handle.

3. Grasp the device by the chassis and the

push handle for loading.

4. Secure the device against slipping and

tipping over when transporting in vehi- cles. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage.

1. Store the device indoors only.

Care and maintenance DANGER Inadvertently starting up device, touch- ing live components Risk of injury, electric shock Switch off the device before performing any work on the device. Remove the mains plug. DANGER Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Wear a breathing protection mask of class P2 or higher and disposable clothing when performing maintenance work (e.g. filter change). 몇 WARNING Danger from dust that is harmful to your health Respiratory sicknesses through inhalation of dust. Safety devices providing hazard protection must be checked for correct safety-related functionality at least annually by the manu- facturer or an appropriately instruction per- son, e.g. absence of leaks, filter damage, functionality of the monitoring devices. ATTENTION Care agents containing silicone These can attach plastic components. Do not use care agents containing silicone for cleaning. Dust extraction machines are safety devic- es for the prevention or elimination of haz- ards according to the German BGV A1. ● For servicing performed by the user, the device must be disassembled, cleaned and maintained only to the degree that this is possible without presenting a dan- ger to the maintenance personnel and other persons. Suitable precautionary measures include detoxification before disassembly. Make provisions for local forced ventilation at the location where the device is to be disassembled, for cleaning the maintenance surface and18 English to ensure adequate protection for the personnel. ● The exterior of the device should be de- toxified by vacuuming and wiped clean, or treated with sealant before being re- moved from the hazardous area. All de- vice parts must be regarded as contaminated when they are taken from the hazardous area. Suitable measures must be taken to prevent distribution of the dust. ● All contaminated objects resulting from maintenance and repair work that can- not be satisfactorily cleaned must be correctly disposed of. Such objects must be disposed of in sealed bags in accord- ance with the applicable regulations for the disposal of this type of waste. ● The suction hose ports are to be closed using the sealing plugs during transport and maintenance of the device.

1. Note that you can carry out simple main-

tenance and care work yourself.

2. Clean the surface of the device and the

interior of the container regularly with a moist cloth. Inspection and maintenance work Have the device regularly inspected ac- cording to the respective national accident prevention regulations. Maintenance work as specified by the manufacturer must be performed by a technically qualified person at the specified regular intervals and in ac- cordance with the applicable regulations and safety requirements. Work on electrical components may only be performed by a qualified electrician. Please contact a KÄRCHER branch office if you have any questions. Replacing the filter 몇 CAUTION Emission of fine dust when changing the filter Damage to the skin, lungs and eyes through emitted dust Wear the prescribed protective clothing when changing the filter. Change the filter in a suitable maintenance area. Dispose of the filter in accordance with the statutory regulations.

1. Secure the device with the parking

2. Switch off the device at the power

4. Unlock and remove the suction head.

5. Unlock and remove the spacer.

6. Remove the contaminated filter.

7. Immediately after removing the contam-

inated filter from the unit, place it in a bag and seal the bag tightly.

8. Dispose of the contaminated filter ac-

cording to legal requirements.

9. Check the sealing ring for damage.

10.Remove any dirt deposits from the clean air side. 11.Fit the new filter in reverse order. Make sure that the filter hold-down device is centred in the filter pockets. 12.Fit and lock the spacer. 13.Fit and lock the suction head. Troubleshooting guide DANGER Unintentional start-up of the device / electric shock Unintentional start-up of the suction motor can cause injuries. Voltage present on electrical parts can cause an electric shock. Switch off the device and unplug the mains plug before performing any work on the de- vice. Have all checks and work on electrical parts performed by an qualified technician. Note The device must be switched off immedi- ately in the event of a malfunction. The mal- function must be eliminated before switching the device on again. If the malfunction cannot be corrected, the device must be checked by the Customer Service department.English 19 Suction turbine does not start up

1. Check the socket and the power supply

3. Switch the device on.

Suction power decreases

1. Remove the blockages from the suction

nozzle, the suction pipe or the suction hose.

2. Check that the suction head and the dirt

receptacle are correctly seated.

3. Dedust the filter (see chapter Dedusting

4. Check the seating of the filter and cor-

1. Check the seating of the filter and cor-

2. Dedust the filter (see chapter Dedusting

ing the filter). Disposal At the end of its service life, the device is to be disposed of in accordance with statutory regulations. Warranty The warranty conditions issued by our rele- vant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a war- ranty case, please contact your dealer (with the purchase receipt) or the next author- ised customer service site. (See overleaf for the address) Further warranty information (if available) can be found in the service area of your lo- cal Kärcher website under "Downloads". Technical data Electrical connection Mains voltage V 220-240 Phase ~ 1 Power frequency Hz 50-60 Nominal power W 2100 Maximum power W 2300 Protection type IPX4 Protection class I* Maximum permissible mains grid impedance Ω 0.224+j

Dimensions and weights Typical operating weight kg 47 Length x width x height mm 680 x 655 x

Effective filter area m

Main filter order number 9.990-

Sound pressure level L

• with elements of protection class II ar- rangement Subject to technical changes without no- tice. Declaration of Conformity We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Dry vacuum cleaner Product: Wet/dry vacuum cleaner Type: 9.989-xxx Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Harmonised standards used EN 60335-1 EN 60335-2-69 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015

The signatories act on behalf of and with the authority of the Executive Board. Documentation supervisor: A. Haag Kärcher Industrial Vacuuming GmbH Robert-Bosch-Straße 4-8 73550 Waldstetten (Germany) Ph.: +49 7171 94888-0 Fax: +49 7171 94888-528 Waldstetten, 24/04/01 We hereby declare that the product de- scribed below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: Dry vacuum cleaner Product: Wet/dry vacuum cleaner Type: 9.989-xxx Currently applicable UK Regulations S.I. 2008/1597 (as amended) S.I. 2016/1091 (as amended) S.I. 2012/3032 (as amended) Designated standards used EN 60335-1 EN 60335-2-69 EN 55014-1: 2017 + A11: 2020 EN 55014-2: 2015
