USER MANUAL DVP1273 LENCO

Version : 5.0 2English CAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave

5 cm (2”) free space around the whole device.

2. Install in accordance with the supplied user manual.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and

other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.

4. Avoid using the device near strong magnetic fields.

5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and

restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

6. Warning! Never insert an object into the product through the vents or openings. High

voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming

8. The device shall not be exposed to dripping or splashing and make sure that no objects

filled with liquids, such as vases, are placed on or near the apparatus.

9. Do not use this device when condensation may occur. When the unit is used in a warm wet

room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.

10. Although this device is manufactured with the utmost care and checked several times

before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

11. This device must operate on a power source as specified on the specification label. If you

are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Keep away from animals. Some animals enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.

To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse,

modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files.

Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit

directly. Don’t use an USB extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the device.

18. This device is not intended for use by people (including children) with physical, sensory or

mental disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in

an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.

22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

325. Refer all servicing to qualified service personnel. Servicing is required when the device has

been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or

permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel. Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves. Unplug this device during lightning storms or when unused for a long period. The socket outlet must be installed near the equipment and must be easily accessible. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock. Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection. Devices with class 2 construction do not require a earthed connection. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

28. If the product contains or is delivered with a remote control containing coin/cell batteries:

“Do not ingest battery, Chemical Burn Hazard” or equivalent working. [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

29. Caution about the use of Batteries:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Attention should be drawn to the environmental aspects of battery disposal. INSTALLATION

• Unpack all parts and remove protective material.

• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. 4WARNING Class 1 Laser Product

Warning : Do not touch the lens.

WARNING: When participating in the traffic listening to a personal

music player can make the listener less aware of potential dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high

volume levels for long periods. Power supply adaptor Manufacturer: Dongguan Green Power One Co.,Ltd. Model number: GA04-0901500EU Only use the power supply listed in the user instructions Information Value and and precision Manufacturers name or trade mark, commercial registration and address Dongguan Green Power One Co., Ltd. No.26, Hongyun Street, Chonghe Village. Qingxi Town, DONGGUAN CITY Guangdong Model Identifier GA04-0901500EU Input voltage 100-240V Input AC frequency 50/60HZ Output voltage 9.0V Output current 1.5A Output Power 13.5W Average active efficiency 85.47% Efficiency at low load (10%) 82.74% No load Power consumption 0.068W 5Idenficaon of Controls Main Unit

(Le/right/up/down/Fasorward/Fast reverse)

Illuminates green flashing when the baery is charging. Illuminates green when the baery is fully charged.

27. Power I ndicator

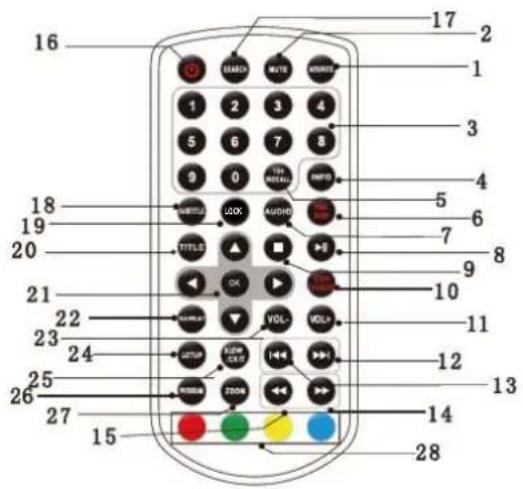

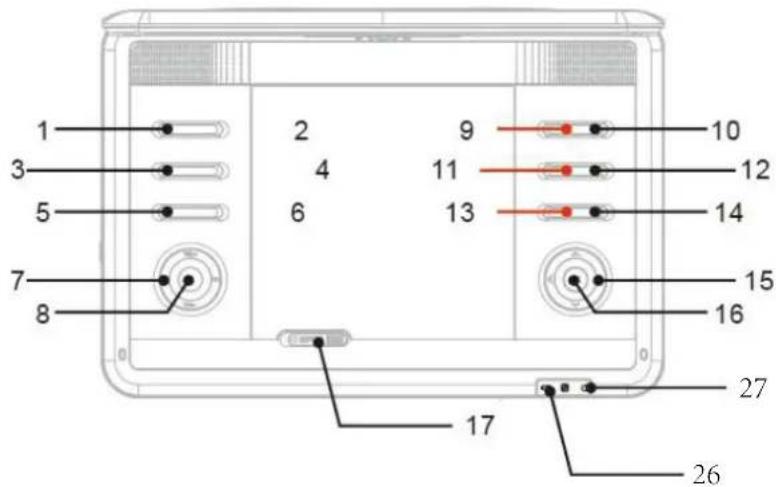

Illuminates red when the unis switched on. 6Idenficaon of Controls Remote control unit LOCK

To display the playtime and status information.

Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable. Press AUDIO repeatedly during playback to hear a different audio channel (Left, Right, Mix, and Stereo).

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

When this button is pressed once, the unit records the stopped point, from where playback will resume if 7PLAY ( ) is pressed aer wards. Buf STOP buon is pressd again instead of PLAY ( ) buon, there will be no resume funcon.

Step the moon in DVD mode. Switch between TV and Radio source in DVB mode.

Go to next chapter/track.

Go to previous chapter/track to the beginning.

BUTTON Press BUTTON allow skipping ahead at 5-level speed (X2->X4->X8->X1 6->X32->PLAY), press PLAY buon return to normal playback.

buon Press BUTTON allow skipping back at 5-level speed (X2->X4->X8->X16->X32->PLAY), press PLAY buon return to normal playback.

Press SUBTITLE repeatedly during playback to hear a different subtle languages.

Press REPEAT during playback to select a desired repeat mode. : You can play select repeat chapter/tle/off. : You can select repeat single/all/off. : You can select repeat single/folder/off. LOCK

Press Slow buon repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2, 1/4, 1/8, 1/16, and normal.

: The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles, chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu, press PROGRAM again to exit program menu.

1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears

briefly in the right bottom of the picture.

2. Each press of the ZOOM button changes the TV screen in the following sequence:

2. Used " " to enlarge, or " " to shorten the picture. Use the ▲ ▼ ◄ ► button to move through the

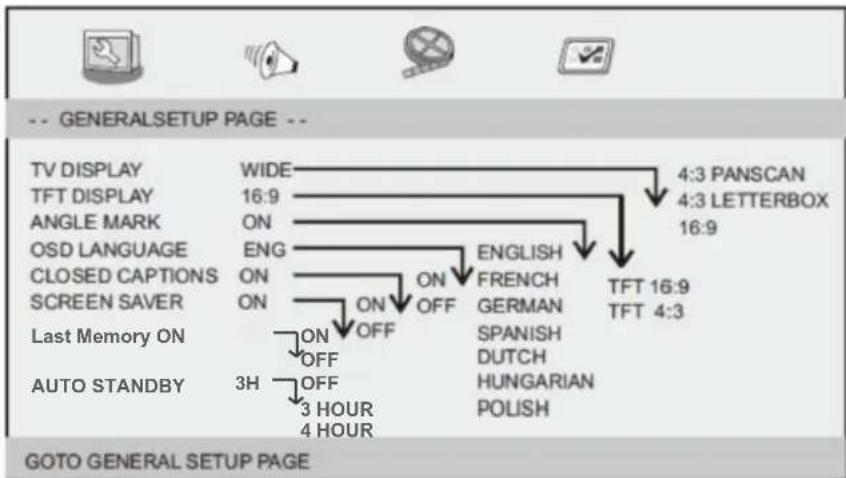

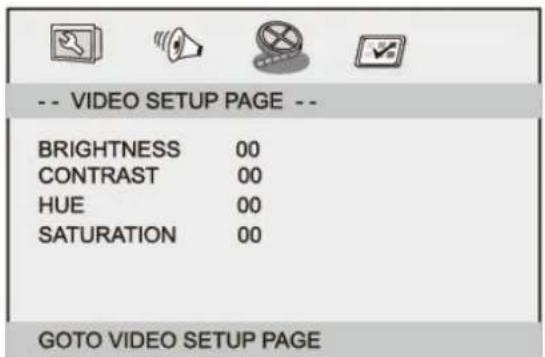

to select the preferred item. After finishing settings, press SETUP again to normal display. The following menu items can be changed: GENERAL: selects the GENERAL PAGE menu. AUDIO: selects the AUDIO PAGE menu. VIDEO: selects the VIDEO PAGE menu. PREFERENCE: selects the PREFERENCE PAGE menu. 9General Setup Page TV DISPLAY: selects the aspect ra o o he playback picture. 4:3 PANSCAN: if you have a normal TV and want both sides o he picture to be trimmed or forma d to fit your TV screen. 4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower por ons o he TV screen will be displayed. 16:9: wide screen display. Wide Squeeze: Set screen mode to 4:3. Angle Mark Displays current angle se ng informa on on the right hand corner o he TFT screen if available on the disc

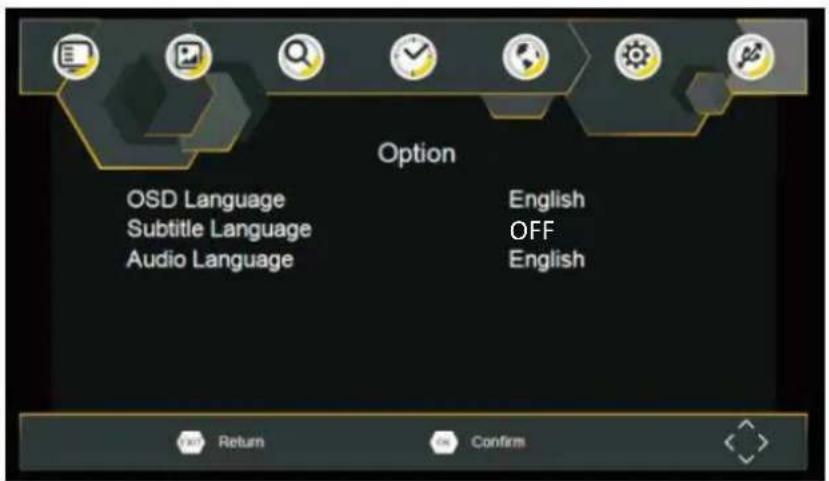

OSD Language You can select your own preferred language se ngs. Closed Cap ons Closed cap ons are data that are hidden in the video signal of some discs. Before you selec his func on, please ensure tha he disc contains closed cap ons informa on and your TV set also has this func on. Screen Saver Last Memory This func on is used to turn the screen saver On or Off. Auto Standby If this funcon is switched to ON, the DVD will resume play on the last known posion, when the unit was stopped, powered down or dvd was reinserted. standby mode a r 3 hours i here is no interac on from user within this period o ime. 4 HOURS: the unit will turn to standby mode a r 4 hours i he re is no interac on from user within this period o ime. OFF: the auto standby func on is disabled, and unit will stay in “on” mode even if no interac on from user. AUTO STANDBY Last Memory ON

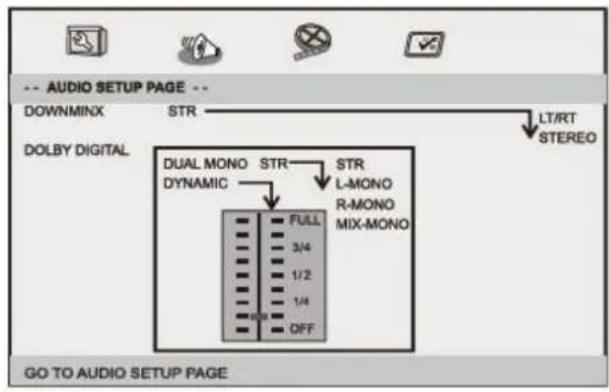

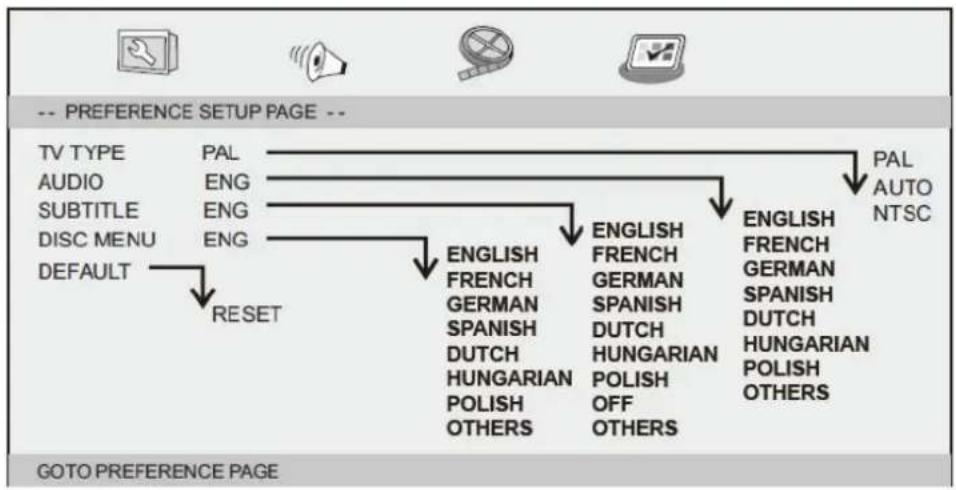

OFF OFF 3 HOUR 4 HOUR 10Audio Setup Page Audio Setup Page Audio Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. LT/RT: Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. Stereo: Select this option when output delivers sound from only the two front speakers. Dolby digital The options included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'. Dual Mono Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker. L-Mono: Left mono sound will send output signals to Left speaker and Right speaker. R-Mono: Right mono sound will send output signals to Left speaker and Right speaker. Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers. Dynamic Dynamic range compression. 11Video Setup Page Video Setup Page Brightness, Contrast, Hue, Saturation: setting the video quality. Preference Page TV Type Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL. Preference Page PAL - Select this if the connected TV is PAL system. lt will change the video signal of a NTSC disc and output in PAL format. NTSC - Select this if the connected TV is NTSC system. lt will change the video signal of a PAL disc and output in NTSC format. Auto: Chang the video signal output automatic according to the playing disk format. Audio: Selects a language for audio (if available). Subtitle: Selects a language for subtitle (if available). Disc Menu: Selects a language for disc menu (if available). 12Default: Back to the factory seng. Parameters and specificaons Electronical parameters Item Standard requirement Power requirements AC 100-240 V, 50/60 Hz Power consumption <12W Operating humidity 5% to 90% Output VIDEO OUT AUDIO OUT

1.4 Vrms (1 KHz, 0 dB)

Audio Speakers WX2, Headphones output System Laser Semiconductor laser, wavelength 650 nm Signal system NTSC/PAL Frequency response 20Hz to 20 kHz (3dB) Signal-to-noise ratio More than 80 dB (ANALOG OUT connectors only) Dynamic range More than 85 dB (DVD/CD) Note: Design and specifications are subject to change prior notice. Battery Parameters Battery Specifications: Output: 7.4V Charge/Discharge Time: Standard charge time: 3h ~ 4h Storage and work circumstances:

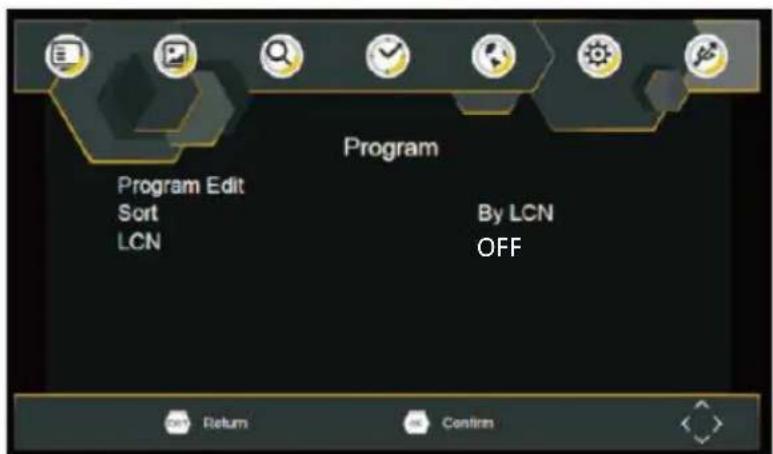

Temperature Humidity Standard charge 0°C ~ +45°C 65±20% Standard discharge -20°C ~ +65°C 65±20% 13First Time Installaon Aer all connecons have been made properly, switch on TV and make sure the receiver is connected to the Main Power. Press Power Buon to switch receiver on. If you are using the receiver for the firsme or restored to Factory Default, the Main Menu will appear o n your TV screen. (1) Select [OSD Language] and press RIGHT/LEFT key to select a language. (2) Select [Country] and press RIGHT/LEFT key to select your country of residence. (3) Select [Channel Search] and press RIGHT or OK key to begin Automatic channel search. (4) Once channel tuning is complete, you are now ready to watch TV. Basic Operation Program Manage Settings To access the Menu, press the SETUP button and select [Program], The Menu provides options to adjust the Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu. OFF 14Program Edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. UPO TV/Radio First Time Installation Set Favourite Program/s You can create a shortlist of favourite programs that you can easily access. Set Favourite TV or Radio program:

1. Select the preferred program then press the FAVOURITE button. A heart-shaped symbol will appear and

the program is marked as a favourite.

2. Repeat the previous step to select more Favourite programs.

3. To confirm and exit the Menu, press the EXIT key.

Disable Favourite TV or Radio Program: Press the FAV button on the Remote Control with the heart-shaped symbol. View Favourite Programs:

1. Press the Fav button and the Favourite Menu will appear.

2. Press UP/DOWN to select your Favourite Programs.

3. Press OK to select your favourite program.

Delete a TV or Radio Program/s

1. Select the Program and then press the BLUE button A message will appear. Press OK to delete the

2. Repeat the previous step to select more programs to delete.

Skip TV or Radio Program/s

1. Select the program you would like to skip and press the GREEN button A skip symbol is displayed.

The program is marked as a skip.

2. Repeat the previous step to select more programs.

3. To confirm and exit the menu, press EXIT key.

Disable a skip TV or Radio Program: Press the GREEN button on the skip program with the skip symbol. 15Move a TV or Radio Program/s

3. Press OK to confirm.

4. Repeahe above steps to move more channels.

Lock Program/s You can lock selected programs for restricted view. Lock a TV or Radio Program:

1. Seleche preferred program then press the YELLOW buon.Alock-shaped symbol is displayed.

The program is now marked as locked.

2. Repeahe previous step to select more programs.

4. Press the YELLOW buon to disable the locked program.

5. To view the locked program, you will be required to enter either the default.

First Time Installaon Sort Sort your channels from the following opons: [LCN]-Sorhe channels in asce nding order. [Name] - Sorhe channels in alphabecal order. [Service ID] - Sorhe channels according to the staon. LCN (Logical channel number) Set LCN on or off. Video Seng To access the Menu, press SETUP then select [Picture]. The Menu provides opons to adjushe video sengs. Press UP/DOWN to select an opon and press RIGHT/LEFT to adjushat seng. P ress EXIT to exit the menu. 16Aspect Ra o You must set the display format o either 4:3 PanScan, 4:3 Box, 4:3 Full, 16:9 Wide Screen, 16:9 Pillar or Auto to get the maximum display when watching TV. First Time Installa he Menu. Box 16:9 Pan Scan t let ter

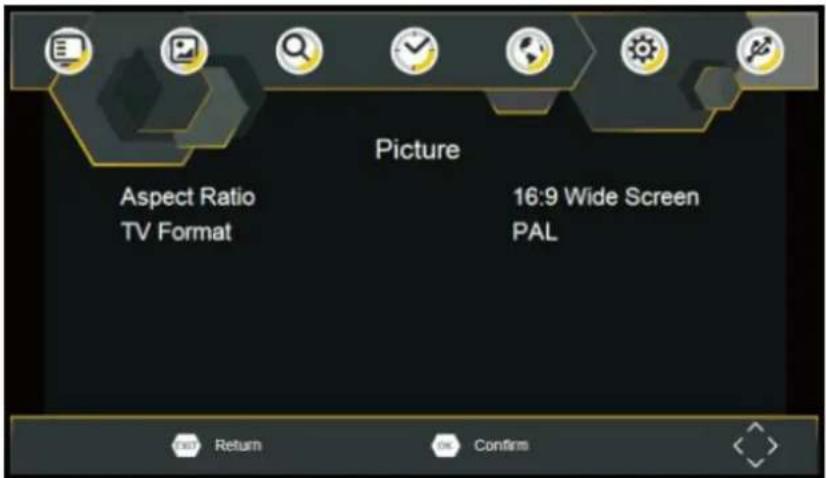

he video does not appear correctly, you need to change the se ngs. This should match the most common se ng for TVs in your country. [NTSC]: for NTSC system TV. [PAL]: for PAL system TV. Channel Search To access the menu, press SETUP and select [Search Channel], The Menu provides op ons to adjus he

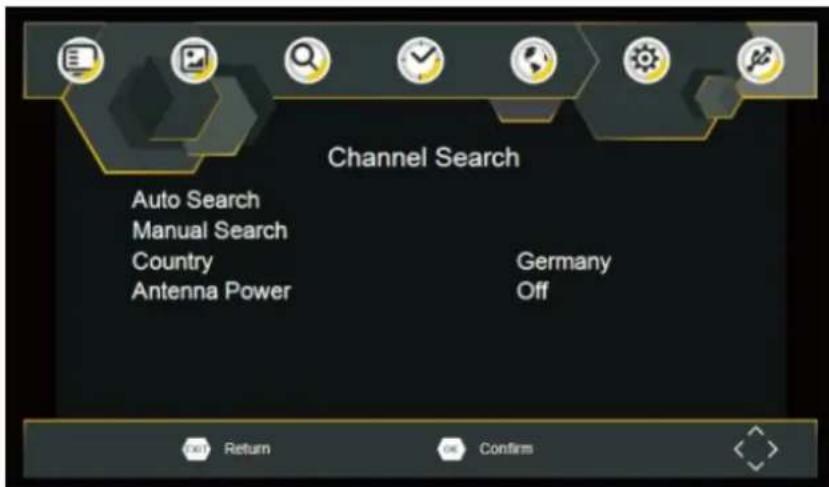

arch Channel se ngs. Select an op on and press RIGHT/LEFT to adjus he se ngs. Press EXIT to exi Auto Search Search and install all channels automatically. This option overwrites all preset channels.

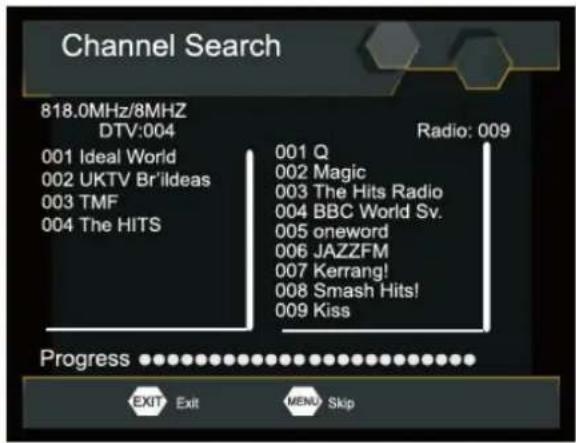

1. Select [Auto Search] and press OK or RIGHT to start channel search

2. To cancel channel search, press EXIT.

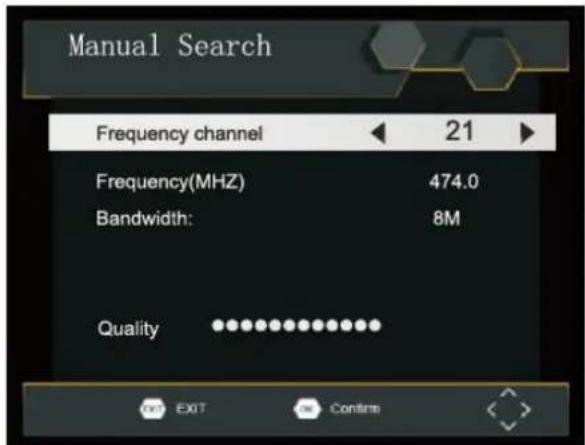

17Manual Search Install new channels manually. This option adds new channels without changing the current channels list.

1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.

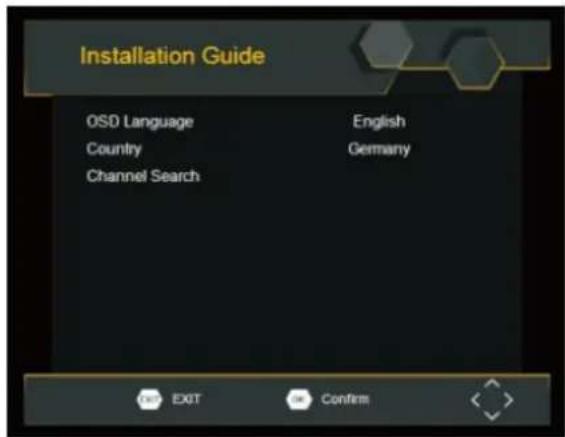

First Time Installation

2. Press the RIGHT/LEFT key to select the channel frequency.

3. Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If

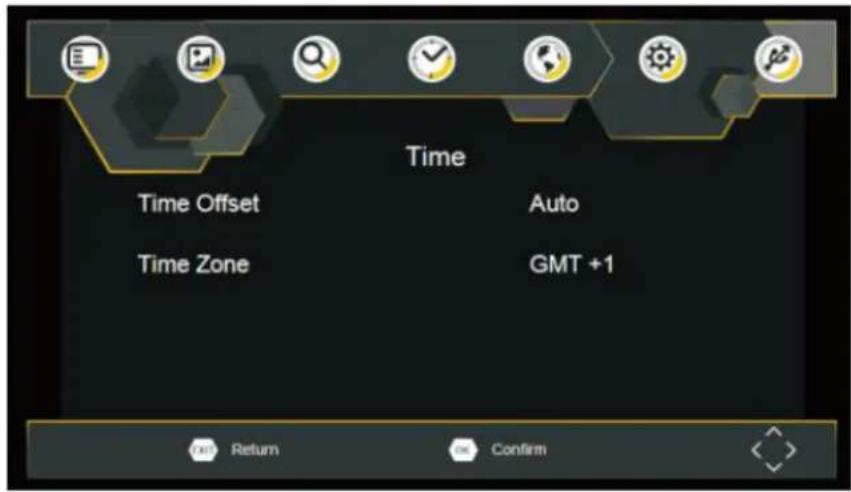

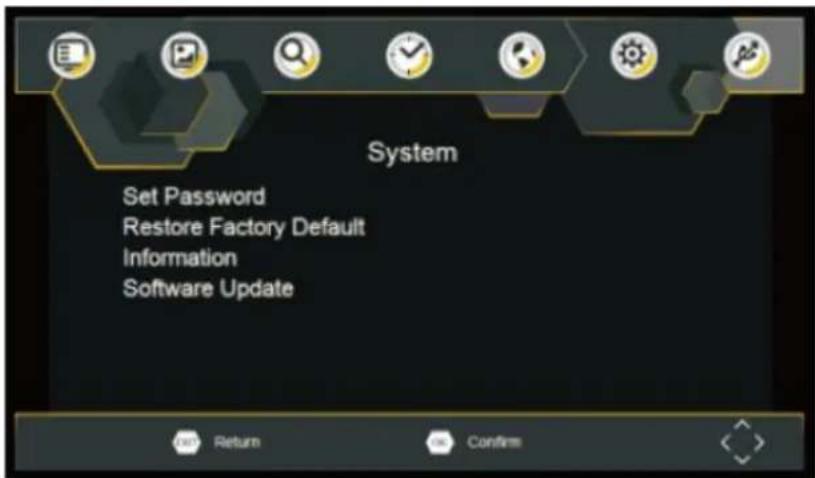

channels can’t be found, then exit the menu. Country Select your country of residence. Time Setting To access the Menu, press SETUP then select [Time]. The Menu provides options to adjust the time settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the menu. 18Time offset Select auto or manual for GMT offset adjustments. Time Zone Selec he Time Zone Offset when [Time Offset] is se o Manual. First Time Installa on Op on To access the Menu, press SETUP and select [Op on]. The menu provides op ons to adjus he OSD Language, Sub tle Language and Audio Language. Select an op on and press RIGHT/LEFT to adjus he se ng. Press EXIT to exit The Menu. OFF 19OSD Language Select an OSD language. Audio Language Seleche preferred audio language for watching TV channels. lhe language is not available, the default program language will be used. Subtle L anguage Seleche preferred subtle language. System Seng To access the Menu, press SETUP and select [System].The menu. Provides opons to adjushe system sengs. Press the UP/DOWN key to select an opon and press RIGHT/LEFT to adjushe seng. Press EXIT to exihe Menu. Parental Guidance You can restrict access to channels that are unsuitable for children. To restrict/lock the channel you will need to enter either the default password '000000' or your own password. First Time Installation Set Password Set or change the password for Locked programs. Enter your old Password or the default password '000000'. You will then be asked to enter your new password. To confirm re-enter your new password. Once it is confirmed, press EXIT to exit the Menu. Restore Factory Default Reset your Set Top Box to the Default Factory Settings. In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. 20Informaon View model, hardware and soware informaon. Soware update Aer selected, it will begin searching for new soware from USB device. USB To access the Menu, press the SETUP buon and select USB Multi-Media Switch to USB mode and plug in USB to view files. Photo Configure Set the parameters for viewing photographs. Movie Configure Set the parameters for displaying movie subtitles. 21Technical Specificaons Item Sub Item Parameter Tuner Input Frequency 170~230MHz 470~860MHz RF |nput level -79dBm (T), -75dBm (T2) IF Bandwidth 7MHz and 8MHz Modulation QPSK, 16QAM, 64QAM, 128QAM (T2), 256QAM (T2) Video Decoder Format mpeg-2/4, h.264, h.265, vc-1, avs/avs+, VP8, VP9 Output Format 480i, 480p, 576i, 576P, 720P, 1080i, 1080P, 4:3 and 16:9 Troubleshooting Problem Potential Reasons What to do No picture Power isn't connected Connect the power The power switch is not on Switch on the power Screen shows “No Signal” DVB-T cable not connected Plug in the DVB-T cable Incorrect setting Reset setting No sound from speaker Sound on mute Turn off mute function Incorrect sound track Try another sound track Only sound, no image on the screen No or incorrect connection with AV cable Make sure cables are connected correctly The program is a radio program Press <TV/RADIO> key to shift into TV mode Remote Control is not responding The battery is exhausted Change battery Remote Control is not facing or close enough to the Set Top Box Adjust the position of the Remote Control and move closer to the unit The image stopped suddenly or mosaic The signal is too weak Strengthen the signal he base of

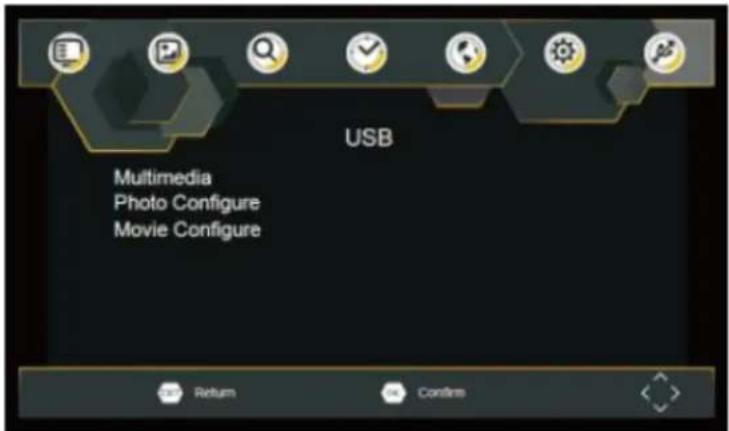

he antenna on a metallic surface like the bodywork of a car, a fridge, a hea ng... - The DVP-1273 can only receive non encrypted free TV c hannels. Remark about recep on of HD channels: the recepon of HD DVB-T channels requiresabeer signal than normal SD quality channels. For that reason the TV should be posioned at places where the recep

quality is higher. Ihe recep on is not strong enough, the image of HD channels can be interrupted or from bad quality. Important remarks for the recepon o he TV channels: - The base o he antenna is magne c; forabe er recepon o he TV signal, if available, pu 22Guarantee Lenco offers service and warranty in accordance to European law, which me a ns than case of repairs (both during and aer the warranty period) you should contact your local dealer. Important note: Is not possible to send products that need repairs to Lenco directly. Important note: Ihis unis opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligaons ohe manufacturer will be voided. Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some ohe instrucon, specificaons and pictures in this documentaon may differ slightly from your parcular situaon. All items described in this guide for illustraon purposes only and may not apply to parcular situaon. No legal right or entlements may be obtained from the descripon made in this manual. Disposal ohe Old Device This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive). CE Marking Hereby, Lenco Benelux B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements. The declaration of conformity may be consulted via techdoc@commaxxgroup.com Service For more information and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands. 23Nederlands LET OP: Het gebruik van afstandsbedieningen of aanpassingen of de uitvoering van procedures die niet in dit document zijn gespecificeerd, kan leiden tot gevaarlijke blootstelling aan straling.
