USER MANUAL Sensor for Senses TW86103P SIEMENS

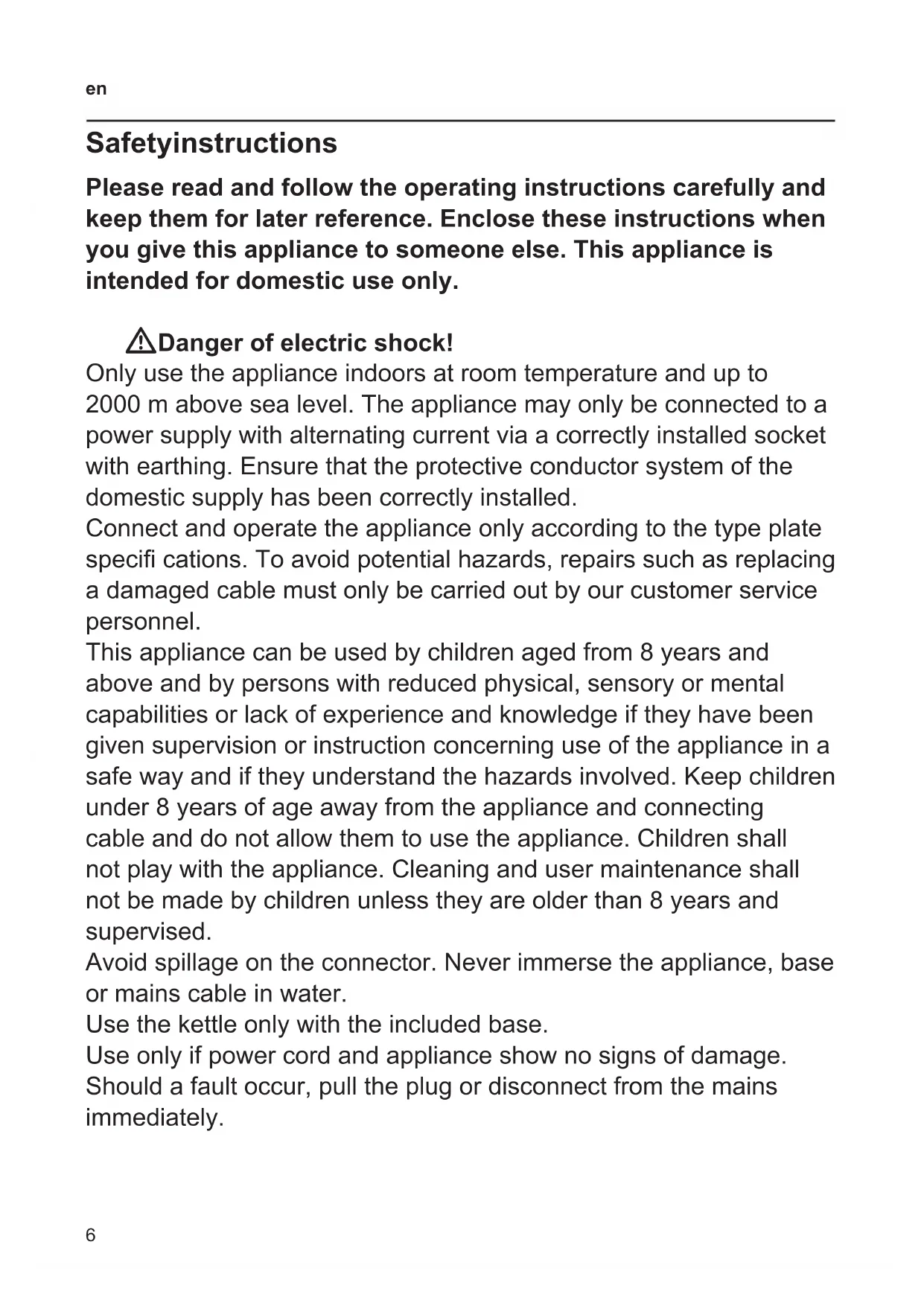

Safety instructions Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is intended for domestic use only. WDanger of electric shock! Only use the appliance indoors at room temperature and up to 2000 m above sea level. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. Connect and operate the appliance only according to the type plate specications.Toavoidpotentialhazards,repairssuchasreplacing a damaged cable must only be carried out by our customer service personnel. This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Avoid spillage on the connector. Never immerse the appliance, base or mains cable in water. Use the kettle only with the included base. Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.7

WRisk of re! Do not place the base or kettle on or near hot surfaces, e.g. hobs. Avoid spatters of grease as the plastic may be damaged. WRisk of scalding! The appliance heats up during use. Make sure you only pick it up by the handle and do not open the lid until the appliance has cooled down. Only use the appliance when the lid is engaged. Iftheapplianceislledabovethe“max”marking,therecouldbea risk from splashes of boiling water. WRisk of burns! After the use the heating element surfaces and warming plate can be subjected to residual heat.

Do not use near water contained in bath tubs, sinks or other containers. WRisk of suff ocation! Do not allow children to play with packaging material. WRisk of injury! A misuse of the appliance can potentially lead to injury.8

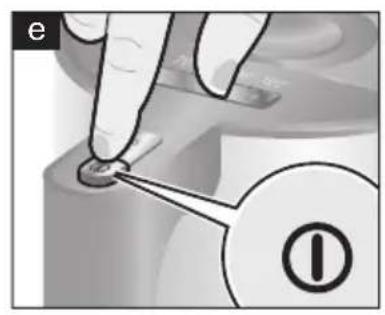

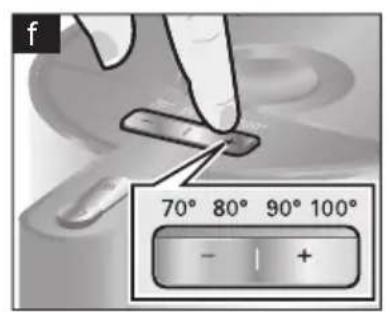

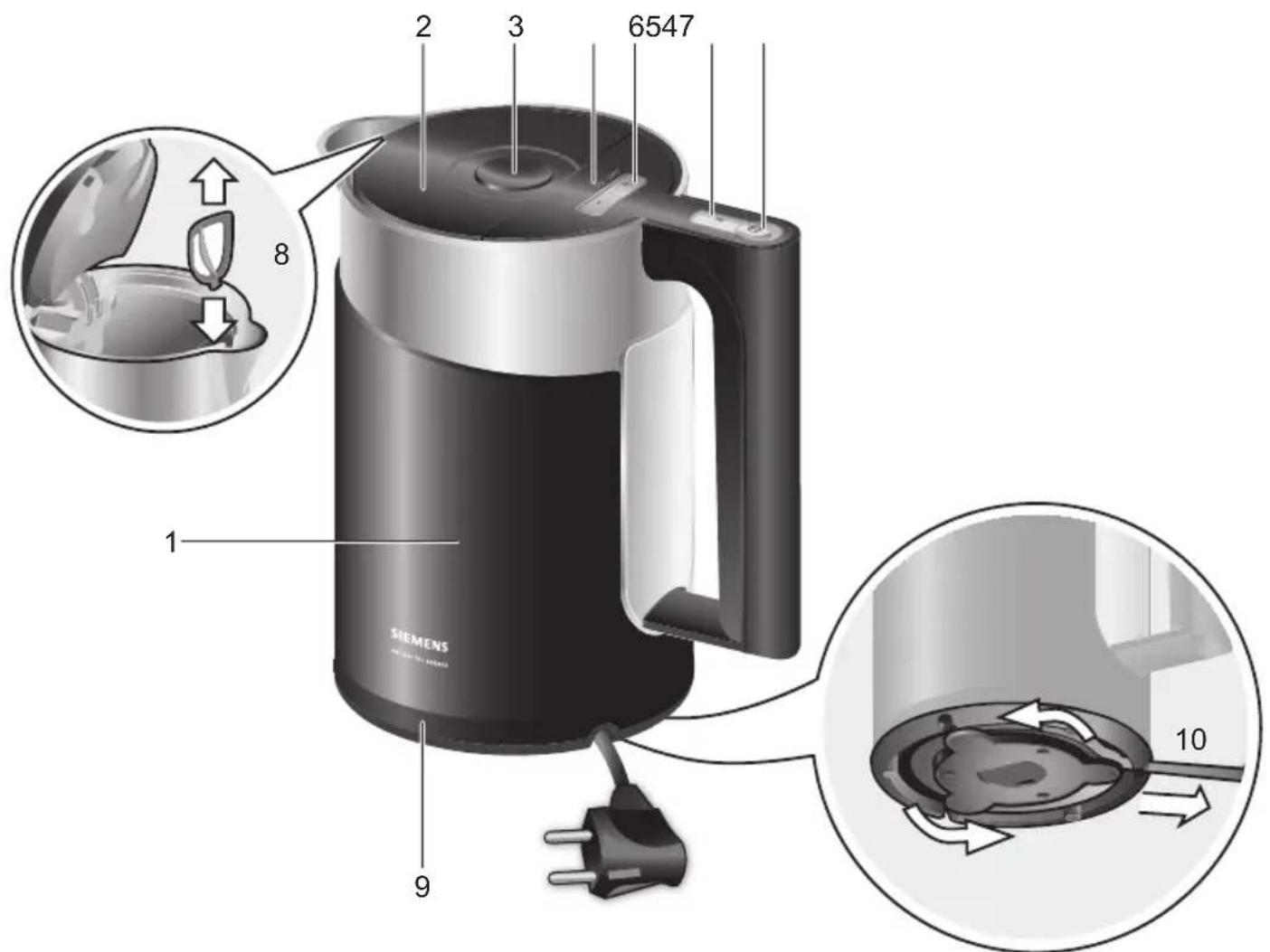

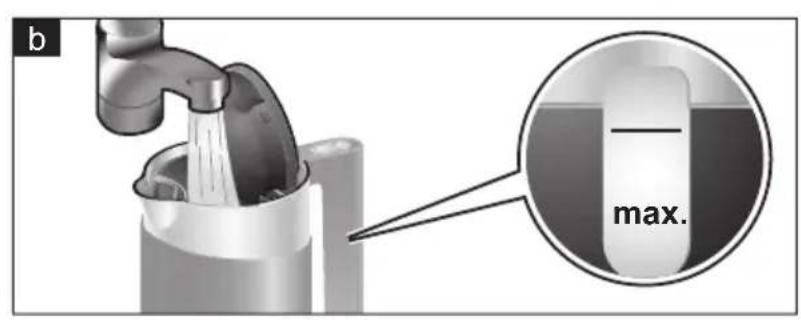

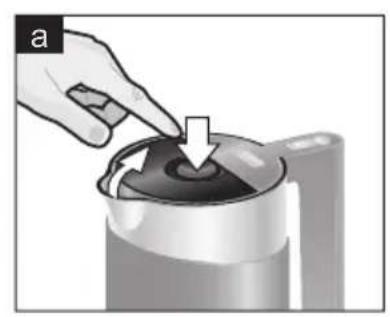

Congratulations on purchasing this Siemens appliance. You have acquired a high-quality product that will bring you a lot of enjoyment. Parts and operating controls 1 Kettle (with water level indicator) 2 Lid 3 Lid release button 4 ON/OFF O switch 5 Temperature indicator (illuminated) 6 + – button (temperature setting) 7 U button (keep warm) 8Limescalelter(removable) 9 Base 10 Cable tidy Important: Use the kettle 1 only with its included base 9. ■ Only ll the kettle with water. Milk and instant beverages will burn and damage the appliance. Never operate the kettle 1withoutwateranddonotoverllit; observe the min and max markings. If the kettle is too full, the water will boil over! Before using for the rst time ■ Removeanystickersorlm. ■ Unroll the right amount of cable from the cable tidy 10 and plug it in. ■ Fill the kettle 1 with water. Bring the water to a boil and discard it. Repeat the proce- dure. This will make sure that the kettle is clean for normal use. ■ When the water comes to a boil for the rsttime,addatablespoonofwhite vinegar. Boiling water ■ Fill the kettle with fresh water through the spout or the open lid 2 (press lid release button 3). ■ Check the amount by reading the water level indicator markings (min and max). ■ Close the lid 2 until it locks and place the kettle 1 on the base 9. ■ Press the O ON/OFF switch 4. The kettle emits a signal, and the factory-set temperature (100°C) lights up. The water is being heated. ■ By pressing button 6 + or – you can set thetemperaturetoca.70°C,ca.80°C, ca. 90°C or ca. 100°C. ■ When the water has reached the selected temperature,thekettlewillswitcho󰀨 automatically, the temperature indicator 5 goeso󰀨,andasignalsounds. Note: The selected temperature can be changed at any time while the kettle is heating up. While the kettle heats up, the current temperature lights up; the preset temperatureashesuntilithasbeen reached. If the temperature cannot be set, this indi- cates that the water in the kettle is hotter than the desired temperature. The current temperature will light up. Youcanturno󰀨thekettleatanytimeby pressing the O ON/OFF switch 4 again.

Warning: If you remove the kettle 1 from

the base and replace it before the heating process is over, the kettle will not continue to heat the water. The selected settings will be lost (reset to factory setting).9

N.B.: Use the kettle only while the lid 2 is closedandthelimescalelter8 is in place. For physical reasons, the base 9 may collect some condensation water. This is normal; it does not mean that the kettle 1 leaks. When you set the temperature to 100°C,thekettlewillturno󰀨onlyafterthe water has reached the boiling point, i.e. it will bubble for a short period of time. After boiling, let the kettle cool down for 5minutesbeforerellingitwithwater. Do not turn on the appliance if the kettle 1 is empty, otherwise the overheat control will engage and the appliance will switch itself o󰀨automatically. Keep warm setting You can turn on the keep warm with any temperature setting. Press button 7. U lights up, and the function isactivated.Toturnito󰀨,pressbutton7 again. The Uindicatorgoeso󰀨. Note: Thekeepwarmfeatureswitcheso󰀨 automatically after 30 minutes. The kettle emits a signal. Cleaning and maintenance W Risk of electric shock! Never immerse the device in water or place it in the dishwasher! Do not steam-clean the appliance. ■ Before cleaning, unplug the appliance from the power outlet. ■ Clean the outside of the kettle 1 and base 9 with a damp cloth. Do not use strong or abrasive cleaning agents. ■ Removethelimescalelter8, soak it in a little vinegar, then rinse clean with clear water. ■ Rinse the kettle 1andthelimescalelter 8 with clear water. Tip: Clean the stainless steel surface with a commercial stainless steel care product. Descaling Regular descaling ■ makes your kettle last longer; ■ ensures proper function; ■ saves energy. Descale the kettle 1 with vinegar or a com- mercial descaling agent. ■ Fill the kettle 1 with water up to the 1.5 mark and bring to a boil. Next, add a small amount of white vinegar and let it sit for several hours. You can also use a commercial descaling product and follow the manufacturer’s instructions. ■ Rinse the kettle 1andthelimescalelter 8 with clear water.

Warning: Never use hard objects to

remove limescale residue as this will damage the seal. Tip: If you use the kettle daily, descale more frequently. Troubleshooting The kettle does not heat up; the tempera- ture indicator 5 does not light up. The overheat control has tripped. ■ Let the kettle 1 cool down for some time so that the appliance can be switched on again. Theunitturnso󰀨beforethewatercomesto a boil. The kettle contains too much scale. ■ Descale the kettle as per the instructions.10
