Refrigerator-Freezer A3FE835C*JE C3FE835C*JE C3FE737C*JE *= Colour code: G, M, W, S or R User Manual Downloaded from www.vandenborre.beGB

Downloaded from www.vandenborre.beGB Thank You Legend Warning – Important Safety information General information and tips Environmental information Disposal Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic ap- pliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal Thank you for purchasing a Haier Product. Please read these instructions carefully before using this appliance. The instructions con- tain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance. Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance. If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings. WARNING! Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

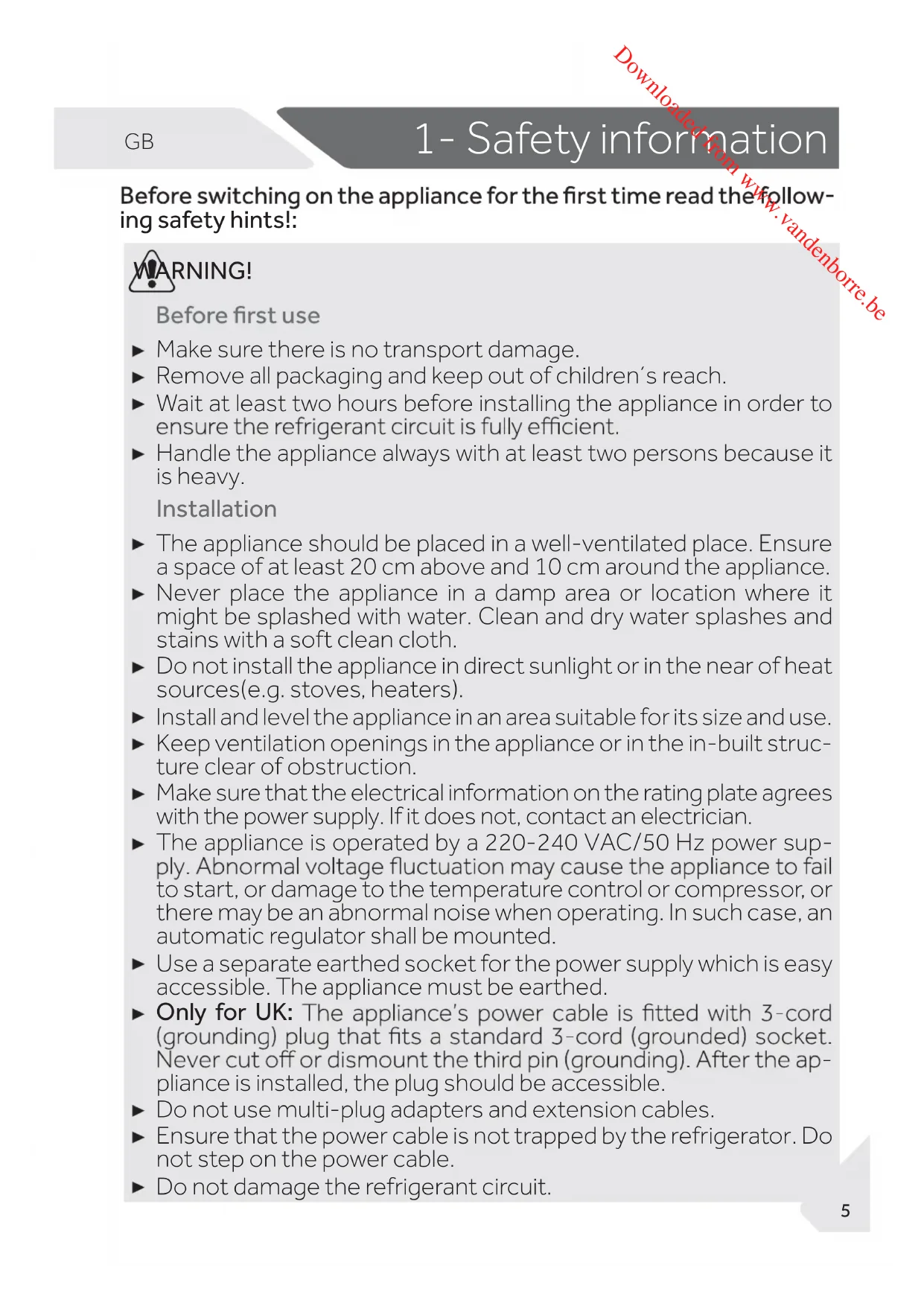

ing safety hints!: WARNING! Make sure there is no transport damage. Remove all packaging and keep out of children´s reach. Wait at least two hours before installing the appliance in order to Handle the appliance always with at least two persons because it is heavy. Installation The appliance should be placed in a well-ventilated place. Ensure a space of at least 20 cm above and 10 cm around the appliance. Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the in-built struc- ture clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power sup- to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed. Only for UK:

pliance is installed, the plug should be accessible. Do not use multi-plug adapters and extension cables. Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable. Do not damage the refrigerant circuit.

WARNING! Daily use This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep away children under 3 years of age from the appliance un- less they are constantly supervised. Children shall not play with the appliance. and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

bient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or be- low the indicated range. with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your no children standing within the range of door movement. in the appliance or in the vicinity. Do not store medicines, bacteria or chemical agents in the ap- pliance. This appliance is a household appliance. It is not recom- mended to store materials that require strict temperatures. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place.

WARNING! Daily use Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst. Do not touch frozen goods with wet hands (wear gloves). Espe- cially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compart- ment when in operation, especially with wet hands, as your hands may freeze onto the surface. Unplug the appliance in the event of a power interruption or be- fore cleaning. Allow at least 5 minutes before restarting the appli- ance, as frequent starting may damage the compressor. Do not use electrical devices inside the food storage compart- ments of the appliance, unless they are of the type recommend- ed by the manufacturer. Maintenance / cleaning Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before un- dertaking any routine maintenance. Allow at least 5 minutes be- fore restarting the appliance, as frequent starting may damage the compressor. Hold the plug, not the cable, when unplugging the appliance. sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the man- ufacturer. If the supply cord is damaged, it must be replaced by the manu- avoid a hazard.

WARNING! (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye sources, thoroughly ventilate the room, do plug or unplug the power cords of the appliance or any other appliance. Inform the customer service. In case of eyes get into contact with the refrigerant, rinse immedi- ately it under running water and call immediately the eye specialist. WARNING! Maintenance / cleaning Do not try to repair, disassemble or modify the appliance by your- self. In case of repair please contact our customer service. Eliminate the dust on the back of the unit at least once in the year Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden tem- perature change may cause the glass to break. Refrigerant gas information

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in dry-interior house-holds. It is not intended for commercial or industrial use.

ards and loss of warranty claims.

Check the accessories and literature in accordance with this list (Fig.:2.2):

e cube tray with cover User manual Warranty card Door hinges

Model with one door: A3FE835C*JE

Models with two doors: C3FE835C*JE, C3FE737C*JE

One piece for model with one door, two pieces for model with two doors

A: Refrigerator compartment 1 Refrigerator LED lamp 2 Air duct and sensor (behind panel) 3 Rating plate 4 Glass shelves 5 O.K.-temperature indicator 6 MyZone box cover 7 Air duct (behind drawer) 8 MyZone box 9 Moist Zone box cover 10 Moist Zone box 11 Door rack 12 Sealed box 13 Upper Freeze Box 14 Middle Freeze Box 15 Lower Freeze Box 16 Adjustable feet 17 Upper freezer storage drawer with prefreezing rack 18 Lower freezer storage drawer with prefreezing rack B: Freezer compartment Pictures of appliances (Fig. 3.1)

Refrigerator compartment of model: C3FE737C*JE *= Colour code Downloaded from www.vandenborre.beGB

Keys: A Fridge temperature setting B Freezer temperature setting and C My Zone setting D Panel lock/unlock Indicators: a Temperature fridge compartment b1 Temperature freezer compartment b2 Super freeze function (“Super.Frz”) c MyZone function d Panel lock

Remove all packaging materials, keep them out of children`s reach and dispose them in an environmentally friendly manner. Clean the inside and outside of the appliance as well as the interior and accessories with water and a mild detergent and dry it well with soft cloth. After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. See Section INSTALLATION. Precool the compartments at high settings before loading with food. The function Super-Freeze helps to cool down the freezer compartment quickly. The refrigerator temperature and freezer temperature are automatically set to 5° C and -18° C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE. Notice: Presettings The appliance is preset to the recommended temperature of 5°C (refrigerator) and - 18°C (freezer). Under normal ambient condition you need not to set a temperature. The presetting function for the My Zone compartment is Chiller. When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

The appliance is in operation as soon as it is connected to the power supply. “b1”show the presetting values (refer to NOTICE ).

be automatically locked. It lights up automatically by touching any key or opening the door .

The buttons on the control panel are sensor keys, which already respond when lightly Notice: Panel lock The control panel is automatically blocked against activation if 30 seconds no key is touched. For any settings the control panel must be unlocked. Touch key “D” for 3 seconds to block all panel ele- ments against activation (Fig. 5.5-1). The related indicator “d” is now displayed (Fig. 5.5-2). For unlocking touch again the key.

5.5 Lock/unlock panel

The temperature in the corresponding compartment cannot be adjusted if any other function (Super-Freeze is activated or the display is locked. The corresponding indicator

5.7.1 Adjust the temperature for fridge

Unlock the panel by touching key “D” if it is locked (Fig. 5.5-1).

Touch sequentially key “A” (Fridge) until the de

After a few seconds temperature indicator “a” will Fridge

5.6 Door opening alarm

When the refrigerator door is opened for more than 3 minutes, the door opening alarm will sound (Fig. 5.6). The alarm can be silenced by closing the door. If the door is left open for more than 7 minutes, the light in

side the refrigerator and control panel illumination will

ing factors: Ambient temperature Frequency of door opening Amount of stored foods Installation of the appliance

5.7 Adjust the temperature

5.7.2 Adjust the temperature for freezer

Unlock the panel by touching key “D” if it is locked (Fig. 5.5-1).

Touch sequentially key “B” (Freezer) until the de

ing. (Fig. 5.7.2). The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption.

Fresh food should be frozen as quickly as possible to the core. This preserved the best nutritional value, ap- pearance and taste. The Super-Freeze function ac- celerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food once, it is recommended to set the Super-Freeze function on ahead for 24h before the usage of frozen room.

1. Unlock the panel by touching key “D” if it is locked

2. Touch key „B“ (Freezer) for 3 seconds; indicator

„b2“ illuminates and the function is activated (Fig. 5.8).

3. The same operation can exit Super-Freeze function.

then operated at the previously set temperature. Notice: Chiller

zen at temperatures lower than 0 °C. So “immediately cut” meat should be stored in My-Zone box, with temperatures min. 0°C. Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits and vegetables such as potatoes, aubergines, beans, cucumbers, zucchini and tomatoes and cheese should not be stored in the My Zone box . When you chose “Chiller“ set the temperature of the refrigerating compartment in the middle level (5°C), in order to preserve your food in the optimal storage environ- ment.

The fridge compartment is equipped with a MyZone box (Fig. 5.9). In accordance with the food’s storage demands, the most suitable temperature can be se- lected to get the optimal nutritional value of the foods. Following modes are available:

5.9.1 Function Chiller

This function sets the temperature in the MyZone box to 0 °C. Suitable to store of fresh food such as meat or instant products. Most foods stay fresh at 0 ° C, but not frozen. Downloaded from www.vandenborre.beGB

Notice: MyZone box One of the three functions of the My Zone compartment must always be activated To reduce the refrigerator compartment temperature use the Q-Cool function. To increase it, use the D-Frost-function.

Notice: D-Frost Defrosting time may vary according to size and thickness of the food. Following values can be used for defrosting: 500 g: 7 h; 1000 g: 8 h, 1500 g: 10 h.

5.9.2 D-Frost (Defrost)

This function allows to defrost frozen food without liquid residues on the food after de- frosting. It will leave the food partly frozen, convenient for cutting and cooking. The temperature in MyZone compartment is set to + 1 ° C.

5.9.3 Q-Cool (Quick-Cool)

This function allows to quick cool canned beverages in a short time. Please take out any bottles before activating this function, they might become frozen. The temperature in MyZone compartment is set to -1 ° C.

5.9.4 Select function for MyZone box

1. Unlock the panel by touching key “D” if it is locked

2. Touch sequentially “C” (MyZone) until the desired

1 Butter, cheese, eggs, spices, etc. 2 Eggs, canned food, spices, etc. 3 Drinks and bottled foods. 4 Pickled foods, canned food, etc. 5 Meat products, snack foods, pas- ta, milk, tofu, dairy, etc.

5.10 Tips on storing fresh food

Keep your fridge temperature below 5°C. Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing Food to be stored should be properly sealed to avoid odour or taste alterations. Do not store excessive quantities of food. Leave spaces between foods to allow cold Foods eaten daily should be stored at the front of the shelf. don’t store foods against the rear wall: foods could freeze against rear wall. Avoid di- rect contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found. Frozen food can be gently defreezed in the refrigerator compartment or with D- Frost function in the MyZone box.This saves energy. The ageing process of fruit and vegetables such as courgettes, melons, papaya, ba- nana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advis- able to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegeta- bles should also be stored at room temperature. Unpleasant odours inside the fridge are a sign that something has spilled and clean- ing is required. See CARE AND CLEANING.

6 Cooked meat, sausages, etc. 7 MyZone box: canned beverages (Q-Cool), raw fresh food (Chiller), all frozen food which should be defrost (D-Frost) 8 Moist Zone box: Fruit, vegetables, salad, etc. 9 Jam, cheese, tomato sauce, etc.

Model with additional rack: C3FE737C*JE Downloaded from www.vandenborre.beGB

When storing commercially frozen foods, please follow these guidelines: Always follow manufacturers’ guidelines for the length of time you should store food for. Do not exceed these guidelines! Try to keep the length of time between purchase and storage as short as possible to preserve food quality. Buy frozen foods, which have been stored at a temperature of –18 °C or below. Avoid buying food which has ice or frost on the packaging – This indicates that the products might have been partially defrosted and refrozen at some point – temper- Keep the freezer temperature at- 18°C. 24 hours before freezing switch on the Super-Freeze function; -for small quantities Hot food must be cooled to room temperature before storing in the freezer com- partment. Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg It is better to pack food before putting it into the freezer. The outside of the pack- aging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and nontoxic. In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of dif- ferent foods. Acid, alkali and salt etc. could erode the internal surface of the freezer. surface. Salt water in the freezer should be cleaned up immediately. Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer. Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer – See TECHNICAL DATA or data at the type plate. Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months) When freezing fresh food, avoid bringing it in contact with already frozen food. Risk of thawing!

Energy saving tips Make sure the appliance is properly ventilated (see INSTALLATION). Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters). Avoid unnecessarily low temperature in the appliance. The energy consumption in- creases the lower the temperature in the appliance is set. Functions like SUPER-FREEZE consume more energy. Allow warm food to cool down before placing it in the appliance.

Avoid air within the food packaging. Keep door seals clean so that the door always closes correctly. Defreeze frozen food in the fridge storage compartment or use the D-Frost function in the MyZone box. Downloaded from www.vandenborre.beGB

refer to chapter PRODUCT DESCRIPTION. Notice: Shelves Ensure that all ends of a shelf are level. WARNING! Do not store things that need precision storage temperature such as medicine and food therapy articles, to prevent them deteriorating

shelf level (Fig. 7.1). This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

7.2 Adjustable shelves

storage needs. hind edge (1) and pulling it out (2) (Fig. 7.2).

2. To reinstall it, put it on the lugs on both sides and

push it to the most rearward position until the rear

7.3 Removable door racks

The door racks can be removed for cleaning: Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.3). In order to insert the door rack, the above steps are carried out in reverse order.

It is used for storage small parts like jam, cheese, to- mato paste, etc. The seal box (Fig. 7.4) shouldn’t be opened more than 120°, as doing so might damage the seal box max120°7.4 Downloaded from www.vandenborre.be7- Equipment

WARNING! Do not overload the drawers: Max. load of each drawer: 35 kg!.

Notice: OK-sticker When the appliance is switched on, it may take up to 12 hours for the correct tempera

tures to be reached.

In this compartment (Fig. 7.6) the humidity level is around 90%. It is controlled automatically by the sys

tem and is suitable to store fruits,vegetables, salads etc.

7.9 3D-freezer drawer

The freezer drawers (Fig. 7.9) can be extended straight

ly and completely. They are mounted on easy-roll tel

escopic runners, so that you can store and remove the freezing good comfortable. Because of the automatic door closing mechanism the handling is easy and you save energy.

The OK-temperature (Fig. 7.7) indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate “OK”.

7.8 Removable freezer drawer

To remove the drawer out, pull out to the maximum ex

tent (1), lift and remove (2) (Fig. 7.8). In order to insert the drawer, the above steps are car

ried out in reverse order.

For use and setting of the My Zone compartment (Fig. 7.5) please check section USE (MyZone box).

Notice: Fresher Pad Do not touch the aluminium part of the Fresher Pad when using it in the freezer com- partment. Your hands may freeze onto the surface. Wear gloves. Please keep the fresher pad dry when you put it into the freezer.

7.10 Pre-freezing rack

Each freezer drawer is equipped with a pre-freezing rack (Fig. 7.10). Fresh frozen food can be separated from already frozen, so that a smooth freezing process can take place and freezing food will not defrosted. After rearrangement of frozen food these compart- ments can be used for easy storage of small parts such as herbals, ice cream or for the ice cube tray.

1. Fill the ice cube tray 3/4 full of water, be careful

not to exceed the water level line (A) (Fig. 7.12-1). Close the tray with the cover and put it into one of the freezer storage drawer.

By using the Fresher Pad in the freezer compartment, food put on this pad will be frozen three times faster than in ordinary freezer. The zone of maximum ice crystal formation will be minimized; the quality of food will be saved: Put the Fresher Pad in the upper freezer drawer in the respective hole and place the food on the side printed with “Fresher Pad“.

without pad because: outside the appliance. Place the food on the side printed with “Fresher Pad“.

The LED interior light comes on when the door is opened. The performance of the lights is Downloaded from www.vandenborre.be8- Care and Cleaning

Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours. WARNING! Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break . Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. In case of heating check the condition of frozen goods. WARNING! Disconnect the appliance from the power supply before cleaning.

Always keep the door gasket clean. Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent (Fig. 8.1). Rinse and dry with soft cloth. Clean the accessories only with warm water and neutral detergent. Do not clean any of the parts of the appliance in a dishwasher. Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed. Downloaded from www.vandenborre.beGB

8- Care and Cleaning

WARNING! Do not replace the LED lamp yourself, it must only be replaced by either the manufac- turer or the authorised service agent.

The lamp adopts LED as its light source, featuring low energy consumption and long ser- vice life. If there is any abnormality, please contact the customer service . See CUSTOMER SERVICE. Parameters of the lamp:

8.4 Removable auxiliary door gaskets

There are six auxiliary door gaskets on the upper and lower freezer drawer.

2. Make sure the bent slices of the gaskets point in-

wards when attaching (Fig. 8.4-2.).

3. Locate the gasket of the upper drawer as

indicated (Fig. 8.4-3.).

4. Make sure the bent slice of this gasket points

downwards when attaching (Fig. 8.4-4.). You get these gaskets as well as the revolving door / drawer gaskets via the customer service (see warranty card).

8.5 Non-use for a longer period

If the appliance is not used for an extended period of time: Take out the food. Unplug the power cord. Clean the appliance as described above. Keep the door and freezer drawers/door open to prevent the creation of bad odours inside. Voltage in V 12 Max Power in W 2 Amount of light in lumen 150 LED Spec white-5050 Usage temperature -30°C to +85°C Downloaded from www.vandenborre.be8- Care and Cleaning

WARNING! Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.

8.6 Moving the appliance

1. Remove all food and unplug the appliance.

2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

The compressor does not work. Mains plug is not connected in the mains socket. Connect the mains plug. The appliance is in the defrosting cycle. This is normal for an automatic defrosting. The appliance runs frequently or runs for a too long pe- riod of time. The indoor or outdoor tempera- ture is too high. In this case, it is normal for the ap- pliance to run longer. for a period of time. Normally, it takes 8 to 12 hours for the appliance to cool down com- pletely. A door/drawer of the appliance is not tightly closed. Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. The temperature setting for the freezer compartment is too low. Set the temperature higher until a satisfactory refrigerator tempera- ture is obtained. It takes 24 hours for the refrigerator temperature to become stable. The door/drawer gasket is dirty, worn, cracked or mismatched. Clean the door/drawer gasket or replace them by the customer service. The required air circulation is not guaranteed. Ensure adequate ventilation. The inside of the refrigerator is dirty and/or smells. The inside of the refrigerator needs cleaning. Clean the inside of the refrigera- tor. Food of strong odour is stored in the refrigerator. Wrap the food thoroughly. of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE. WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. improper repairs can cause considerable consequential damages. A damaged supply should only be replaced by the manufacturer, its service agent or

It is not cold enough inside the appli- ance. The temperature is set too high. Reset the temperature. Too warm goods has been stored. Always cool down goods before storing them. Too much food has been stored at one time. Always store small quantities of food. The goods are too close to each other. Leave a gap between several A door/drawer of the appliance is not tightly closed. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. It is too cold in- side the appli- ance

The temperature is set too low. Reset the temperature. The Power-Freezer function is ac- tivated or is running too long. function. Moisture forma- tion on the inside of the refrigerator compartment. The climate is too warm and too damp. Increase the temperature. A door/drawer of the appliance is not tightly closed. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. Food containers or liquids are left open. Let hot foods cool to room tem- perature and cover foods and li- quids. Moisture accu- mulates on the refrigerators out- side surface or be- tween the doors/ door and drawer. The climate is too warm and too damp. This is normal in damp climate and will change when the humidity de- creases. The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it con- densates. Ensure that he door/drawer is tightly shut. Strong ice and frost in the freez- er compartment. The goods were not adequately packaged. Always pack the goods well. A door/drawer of the appliance is not tightly closed. Close the door/drawer. The door/drawer has been opened too frequently or for too long. Do not open the door/drawer too frequently. The door/drawer gasket is dirty, worn, cracked or mismatched. Clean the door/drawer gasket or replace them by new ones. Something on the inside prevents the door/drawer to close properly. Reposition the shelves, door racks, or internal containers to al- low the door/drawer to close. The appliance makes abnormal sounds. The appliance is not located on level ground. Adjust the feet to level the appli- ance. The appliance touches some ob- ject around it. Remove objects around the appli- ance.

A slight sound is to be heard simi-

ing water. This is normal. - You will hear an alarm beep. The fridge storage compartment door is open. Close the door or silence the alarm manually. You will hear a faint hum

The anti-condensation system is working. This prevents condensation and is normal. The interior lighting or cooling system does not work. Mains plug is not connected in the mains socket. Connect the mains plug. The power supply is not intact. Check the electrical supply to the room. Call the local electricity company! The LED-lamp is out of order. Please call the service for chang- ing the lamp. The sides of the cabinet and door strip get warm. This is normal. - Notice: Memory function during power interruption After restoration of power the appliance continues with the settings that were set be- fore the power failure.

In the event of a power cut, food should remain safely cold for about 13/14 hours (see section TECHNICAL DATA). Follow these tips during a prolonged power interruption, es- pecially in summer: Open the door/drawer as few times as possible. Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 16 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other fail- ure, the storage period and edible quality of food will be reduced. Any food that de- frosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks. Downloaded from www.vandenborre.be10- Installation

Take the appliance out of the packaging. Remove all packaging materials. WARNING! The appliance is heavy. Always handle with at least two persons. Keep all packaging materials out of children´s reach and dispose them in an environ- mentally friendly manner.

10.2 Environmental conditions

the temperature inside the appliance and its energy consumption. Do not install the appli- ance near other heat-emitting appliances (ovens, refrigerators) without isolation.

10.3 Door reversibility

Before the appliance is permanently installed, check the correct position of the door hinge. If necessary see section the DOOR REVERSIBILITY.

10.4 Space requirement

Required space when door is opened (Fig. 10.4):

10.5 Ventilaton cross-section

safety reasons, the information of the required venti- lation cross sections must be observed (Fig. 10.5). ïðð ³³îðð ³³ïðð ³³ïðð ³³10.5

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Be- fore connecting the appliance to the power supply you have to wait 2 hours (Fig. 10.7) so that the oil runs back into the capsule. î ¸

2. Set the feet to the desired level.

3. The stability can be checked by alternately bump-

ing on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door. ³¿¨ ìëp

WARNING! To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10.8 Electrical connection

Before each connection check if: power supply, socket and fusing are appropriate to the rating plate. the power socket is earthed and no multi-plug or extension. the power plug and socket are strictly according. Connect the plug to a properly installed household socket.

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability. WARNING! The appliance is heavy. You need two persons to carry out the door reversibility. Do not tilt the appliance more than 45 ° to prevent damage of the cooling system.

Unplug the appliance.

Remove the small cover of the front panel from left to right side.

Unplug the connection cable

Remove the upper hinge cover (1) and unscrew the upper hinge (three screws) on right side (2).

Turn the door upside down, unscrew the cover (1)

part (3) from the accessory bag and screw them to opposite side.

Remove the lower hinge of the upper door.

Change the positions of the blanking plugs and the screw on the side. Assembly steps (Fig. 10.9):

Next steps (a-h) are only necessary for models with two doors:

This step needs two persons; one who holds the appliance in place and one who carries out the as

sembly steps! Tilt the appliance slightly backwards and remove the lower hinge with the feet (1). Change also po

sition of the other feet (2).

Unscrew the two grub screws (1), remove the low

Screw the lower hinge to the left side of the appliance.

Follow steps 8 and 9.

Lift the lower door carefully on to the lower hinge

Take out the new hinge from the accessory bag and screw it to the left side of the appliance.

wer door. After the change of the door check that the door seals are located properly on the housing and all screws are tightened well.

Take out the new lower hinge of upper door from the accessory bag and screw it to the left side of the appliance.

Lift the upper door carefully on to the lower hinge

Take out the upper hinge from the accessory bag. Put the connection cable through the up

screws on left side of appliance.

Put the hinge cover (delivered in the accessory bag) over the hinge.

it to the right side of upper door.

regulation EU No. 1060/2010 Trade mark A3FE C3FE 835C*JE 737C*JE 835C*JE Category of the model Refrigerator-freezer A+++ A++ A+++ Annual energy consumption (kWh/year)

Storage volume cooling (L) 231 257 231 Storage volume freezing (L) **** 97 108 108 Star rating Temperature of other compartments > 14°C Non applicable Frostfree system Yes Power cut safe (h)

Climate class This appliance is intended to be used at an ambient temperature between 10 °C and 43°C. SN/N/ST/T Airborne acoustical noise emissions (db(A) re 1pW)

based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. *= Colour code

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the correspond- ing harmonised standards, which provide for CE marking.

11.2 Additional technical data

Dimensions (in mm) Depth

Downloaded from www.vandenborre.be12- Customer Service

*For more information please refer to www.haier.com
