RIG 500 Pro - Headphones PLANTRONICS - Free user manual and instructions

Product type	Wired gaming headset
Brand	Plantronics
Model	RIG 500 Pro
Connectivity	3.5 mm jack (wired)
Compatibility	PC, PlayStation 4, Xbox One
Weight	Approximately 300 g
Dimensions (headband)	Approx. 20 x 18 x 8 cm (adjustable)
Size adjustment	3 notches on each earcup
Earcup type	Circumaural, removable ear cushions
Volume control	Rotary wheel on cable
Microphone	Adjustable, with mute function in upright position
Cable length	Approximately 1.3 m
Included accessories	Adapters for Xbox One and PS4 controllers, additional ear cushions
Power	None (passive, powered by audio source)
Maintenance and cleaning	Clean the ear cushions with a soft damp cloth
Safety	Do not force the microphone boom to its stop
Spare parts and repairability	Removable and replaceable ear cushions, interchangeable adapters

Frequently Asked Questions - RIG 500 Pro PLANTRONICS

How to adjust the size of the RIG 500 Pro headset?

Move the earcups along the 3 notches on the headband to adjust size (small, medium, large). To remove an earcup, press it to unclip.

How to connect the headset to an Xbox One controller?

Use the provided Xbox One adapter. It is pre-attached to the volume wheel for RIG 500 Pro HC/HX models. Align the notches and attach it to the controller.

How to activate the microphone mute function?

Raise the microphone boom all the way up to mute the sound. The boom locks the mute in the upright position.

Can I replace the headset ear cushions?

Yes, the ear cushions are removable. Gently pull them off to remove and align the notches to install new ones.

How to adjust the volume on the headset?

Turn the volume wheel located on the cable. For system-level adjustment, use your console or PC controls.

Does the headset work with a PlayStation 5?

Yes, via the USB port or the controller's jack. Use the provided PS4 adapter for the DualSense controller.

What is the warranty for the RIG 500 Pro headset?

The warranty is 2 years on manufacturing defects. Visit NACON's website for details.

How to clean the headset?

Wipe the ear cushions and headband with a soft damp cloth. Do not use harsh chemicals.

Is the cable detachable?

No, the cable is fixed. It measures approximately 1.3 meters. Do not pull on it to avoid damage.

Can I use the headset without an adapter on PC?

Yes, plug the 3.5 mm jack directly into your PC's headphone jack. Make sure you have a combined microphone/audio input.

USER MANUAL RIG 500 Pro PLANTRONICS

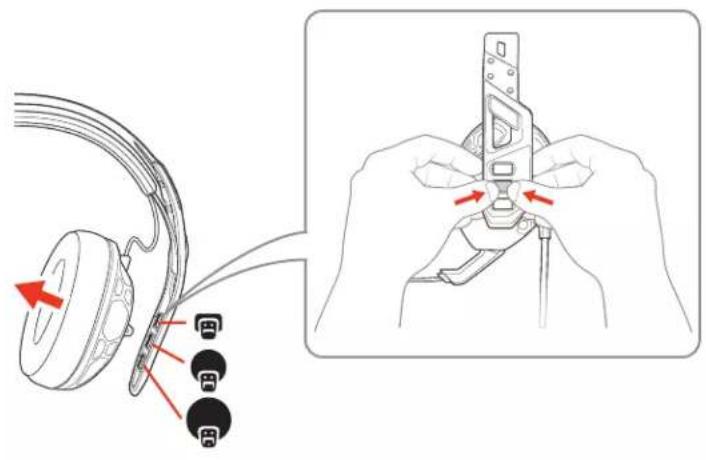

Fit 1 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earmcup, press the earmcup to detach it from the headband.

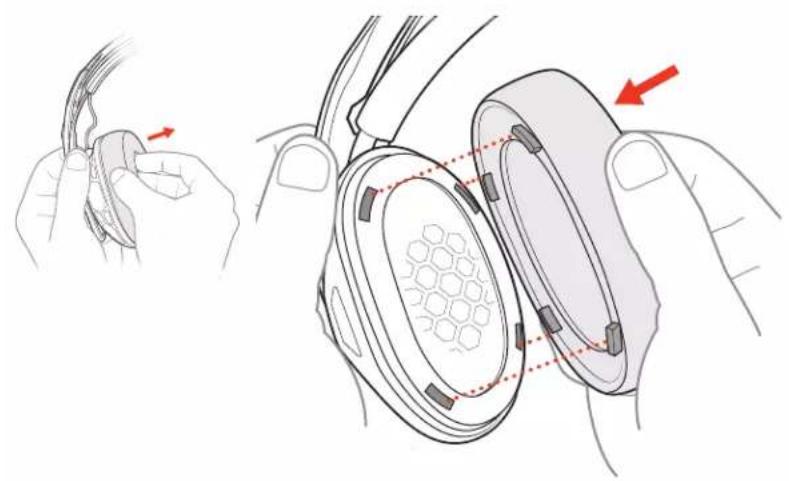

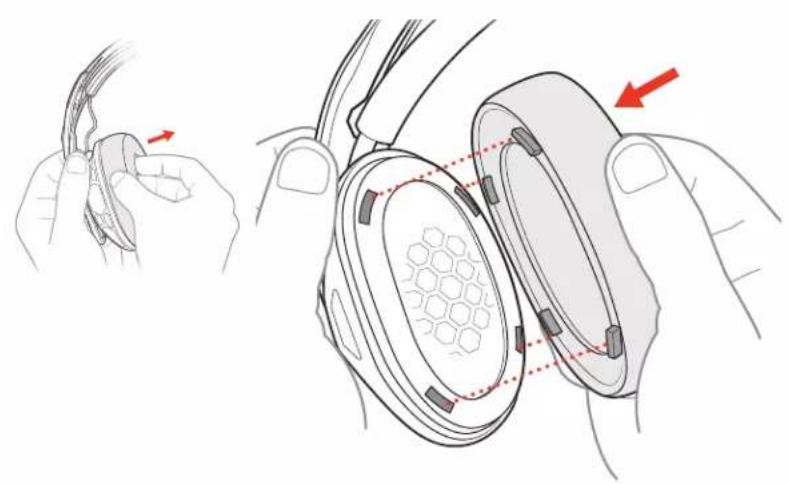

2 To change your ear cushions, gently pull the ear cushion off. To replace it, align the notches.

Set up your headset

Your headset components easily snap into the headset frame to configure the best fit and sound.

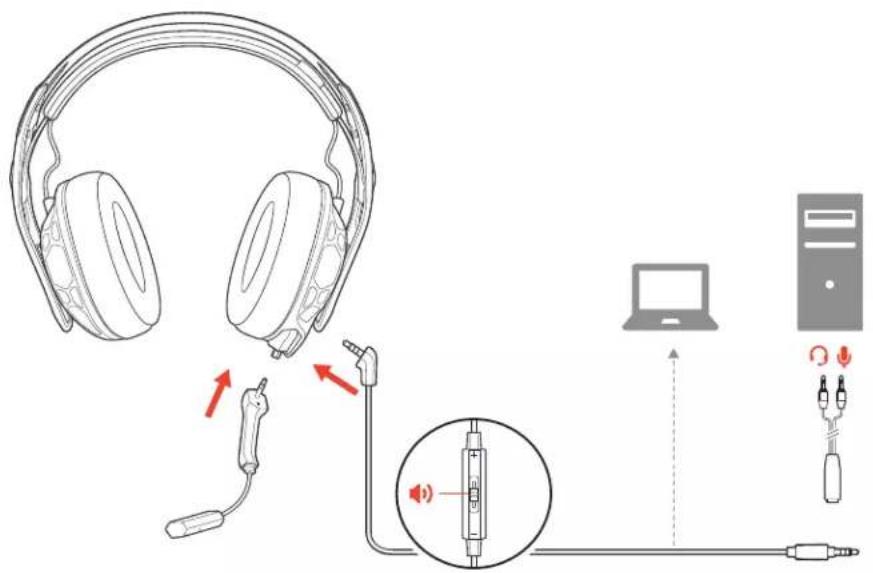

Follow the diagram to put your headset together. Connect to PC RIG 500 PRO, RIG 500 PRO ESPORTS

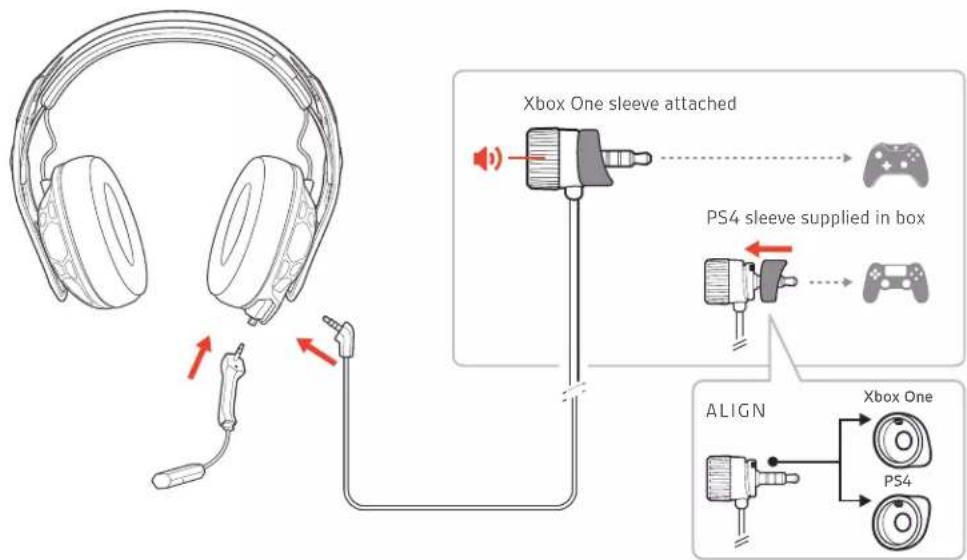

Connect to console RIG 500 PRO ESPORTS, RIG 500 PRO HC, RIG 500 PRO HX/HX SE

Out of the box, the volume wheel has the Xbox One sleeve attached and the PS4 sleeve is supplied (the RIG 500 PRO HS/HS SE models have the PS4 sleeve attached and the Xbox One sleeve is supplied). Align notches on the appropriate sleeve and volume wheel before attaching to your controller.

Adjust the volume

To adjust your headset volume, turn the volume wheel.

NOTE If your controller has a volume feature, you can lock the volume wheel at maximum by turning it fully to the right.

System volume

To adjust system volume, check your console's user guide.

Mute

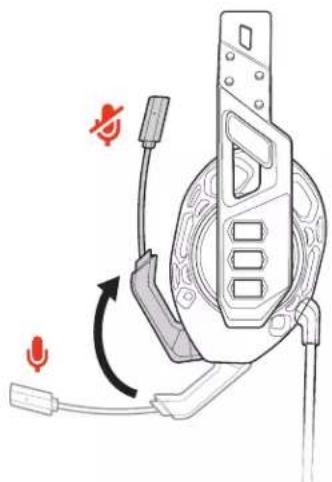

Lift the boom to a full stop to mute the microphone.

CAUTION Do not force the boom past its upper or lower limits.
